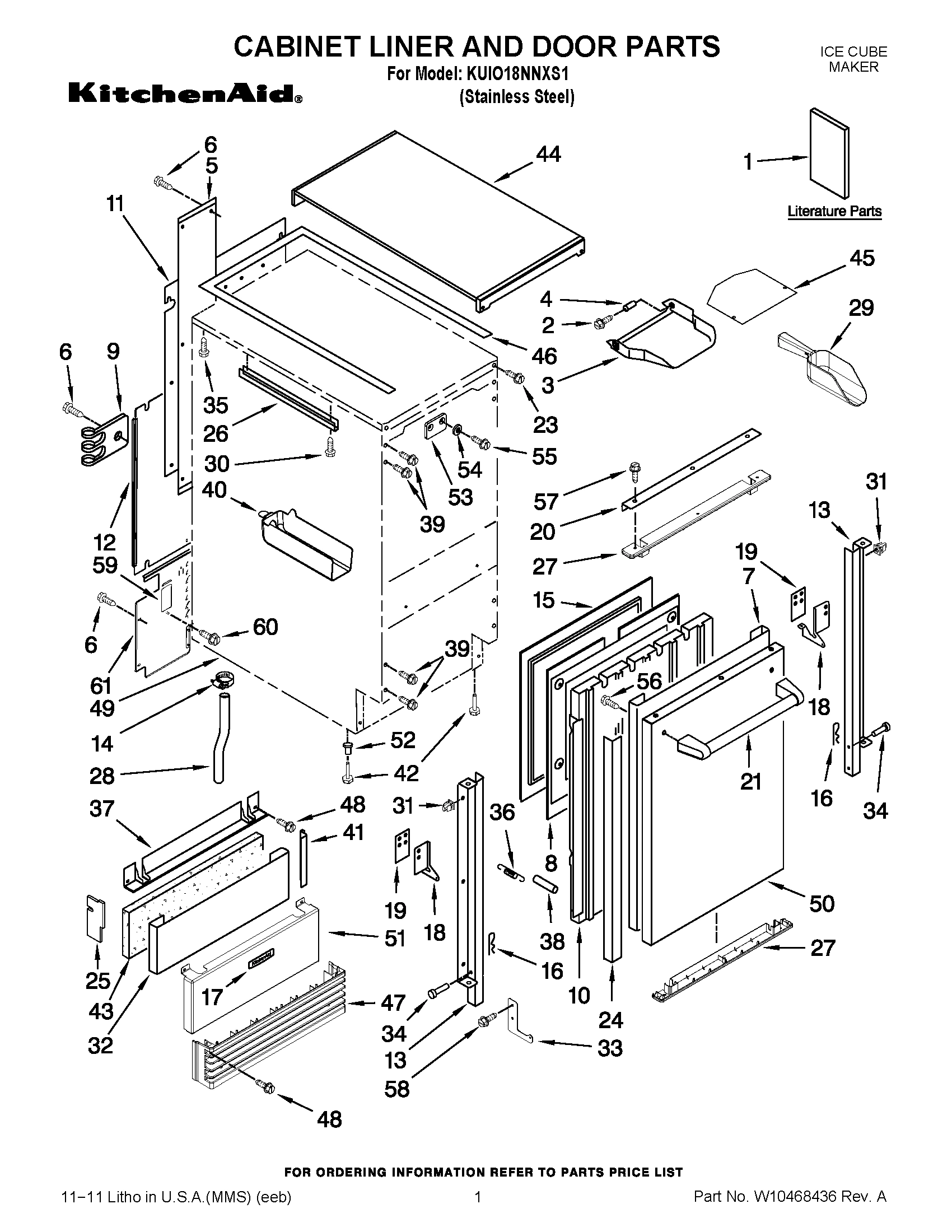

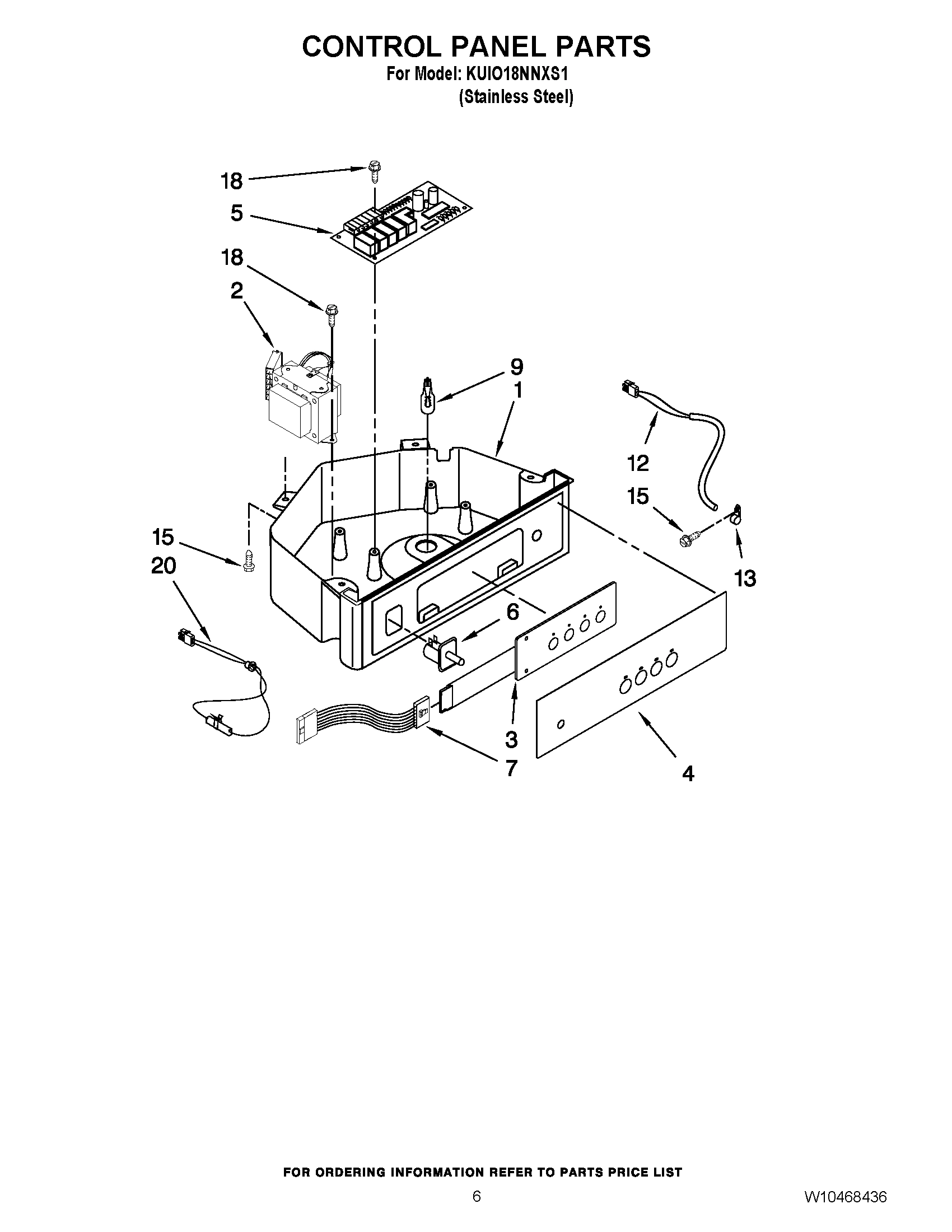

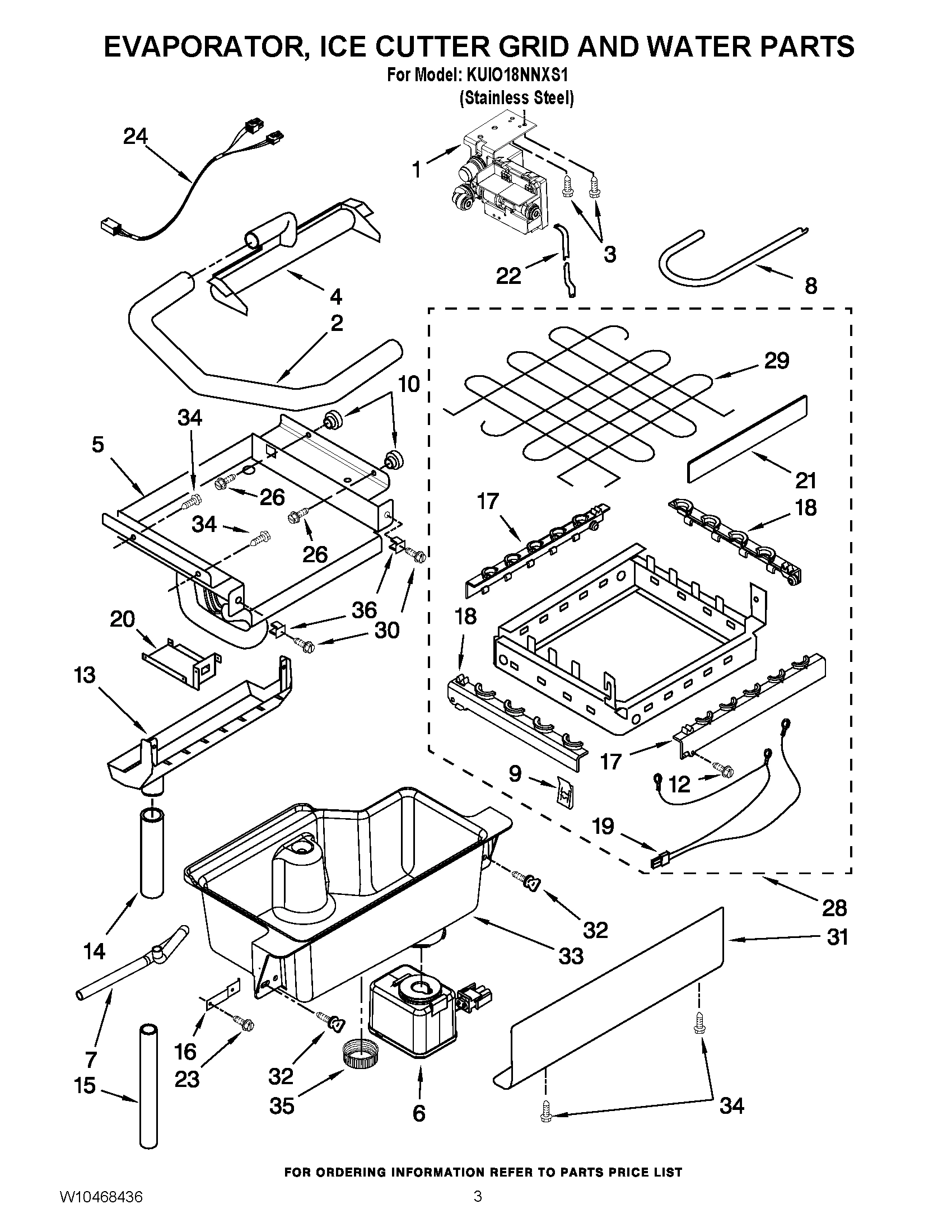

Model Whirlpool KUIO18NNXS1 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

BOX, CONTROL WPL W10340993 Contact Us For Availability

2

WP2310139 Whirlpool Refrigerator Transformer In Stock WPL WP2310139 $134.02

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $28.80

3

W10200034 Whirlpool Refrigerator Fan Blade Backorder WPL W10200034 $29.43

3

WPW10282116 Whirlpool Refrigerator Switch Backorder WPL WPW10282116 $80.15

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10200032 Whirlpool Refrigerator Condenser Mo Backorder WPL W10200032 $143.40

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $29.43

4

WPW10282108 Whirlpool Refrigerator Overlay Backorder WPL WPW10282108 $30.85

5

W11204894 Whirlpool Refrigerator Bracket Backorder WPL W11204894 $25.27

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $379.51

5

WPW10226157-includeCORE Whirlpool WPW10226157 Backorder WPL WPW10226157-includeCORE $289.52

6

W11566407 Whirlpool Pump In Stock WPL W11566407 $43.43

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

7

Wire Assy-Active Overlay Jumper WPL 2187585 Contact Us For Availability

7

TUBE, RESERVOIR PUMP WPL 2313851 Contact Us For Availability

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

WPW10340992 Whirlpool Refrigerator Pump Harne In Stock WPL WPW10340992 $53.60

8

WPW10418868 Whirlpool Refrigerator Water Tube Backorder WPL WPW10418868 $31.31

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Pump Assembly WPL 2313702 Contact Us For Availability

9

Bulb WPL 745362 Contact Us For Availability

10

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $39.60

13

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $26.21

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $61.00

14

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

14

WPW10217922 Whirlpool Tube In Stock WPL WPW10217922 $50.29

15

WP2313890 Whirlpool Overflow Hose In Stock WPL WP2313890 $42.91

15

WPW10206473 Whirlpool Refrigerator Coil Solen Backorder WPL WPW10206473 $76.96

16

Bracket-Reservoir WPL 2217378 Contact Us For Availability

17

BRACKET, REAR WPL 2313603 Contact Us For Availability

17

BRACKET, FRONT WPL W10136175 Contact Us For Availability

2208426 Whirlpool Refrigerator Hinge Backorder WPL 2208426 $43.24

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $8.99

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

WPW10136197 Whirlpool Refrigerator Start Devi In Stock WPL WPW10136197 $64.38

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $42.04

20

2208427 Whirlpool Refrigerator Support Backorder WPL 2208427 $59.48

20

WP2313635 Whirlpool Refrigerator Thermistor In Stock WPL WP2313635 $36.44

21

2313604 Whirlpool Refrigerator Guide Backorder WPL 2313604 $29.77

21

W10129457 Whirlpool Refrigerator Handle Backorder WPL W10129457 $197.17

21

WP759113 Whirlpool Refrigerator Gas Valve Backorder WPL WP759113 $143.91

23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

24

W10129494 Whirlpool Refrigerator Condenser Backorder WPL W10129494 $215.09

24

WP2310169 Whirlpool Refrigerator Harness Backorder WPL WP2310169 $44.76

25

2217225 Whirlpool Refrigerator Foam Pad Backorder WPL 2217225 $28.80

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

28

2208453 Whirlpool Refrigerator Tube Backorder WPL 2208453 $26.59

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

29

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $33.42

29

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

30

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

31

2208365 Whirlpool Refrigerator Panel Backorder WPL 2208365 $36.00

31

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

31

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

32

2208382B Whirlpool Refrigerator Grill Panel Backorder WPL 2208382B $131.10

32

Thumbscrew WPL 8281228 Contact Us For Availability

33

WP2324334 Whirlpool Refrigerator Water Pan In Stock WPL WP2324334 $57.14

34

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

34

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

35

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $15.72

36

WP3400909 Whirlpool Refrigerator Nut Backorder WPL WP3400909 $2.51

40

Holder, Scoop WPL 2208449 Contact Us For Availability

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

51

2208594S Whirlpool Refrigerator Grill Panel Backorder WPL 2208594S $135.80

55

8281191 Whirlpool Oven Screw Backorder WPL 8281191 $4.61

56

WP3400237 Whirlpool Refrigerator Screw Backorder WPL WP3400237 $2.38

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11179302 Whirlpool Ice Machine Cleaner In Stock WPL W11179302 $12.81

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

AFFRESH CLEANER (STAINLESS STEEL) WPL W10355016 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
