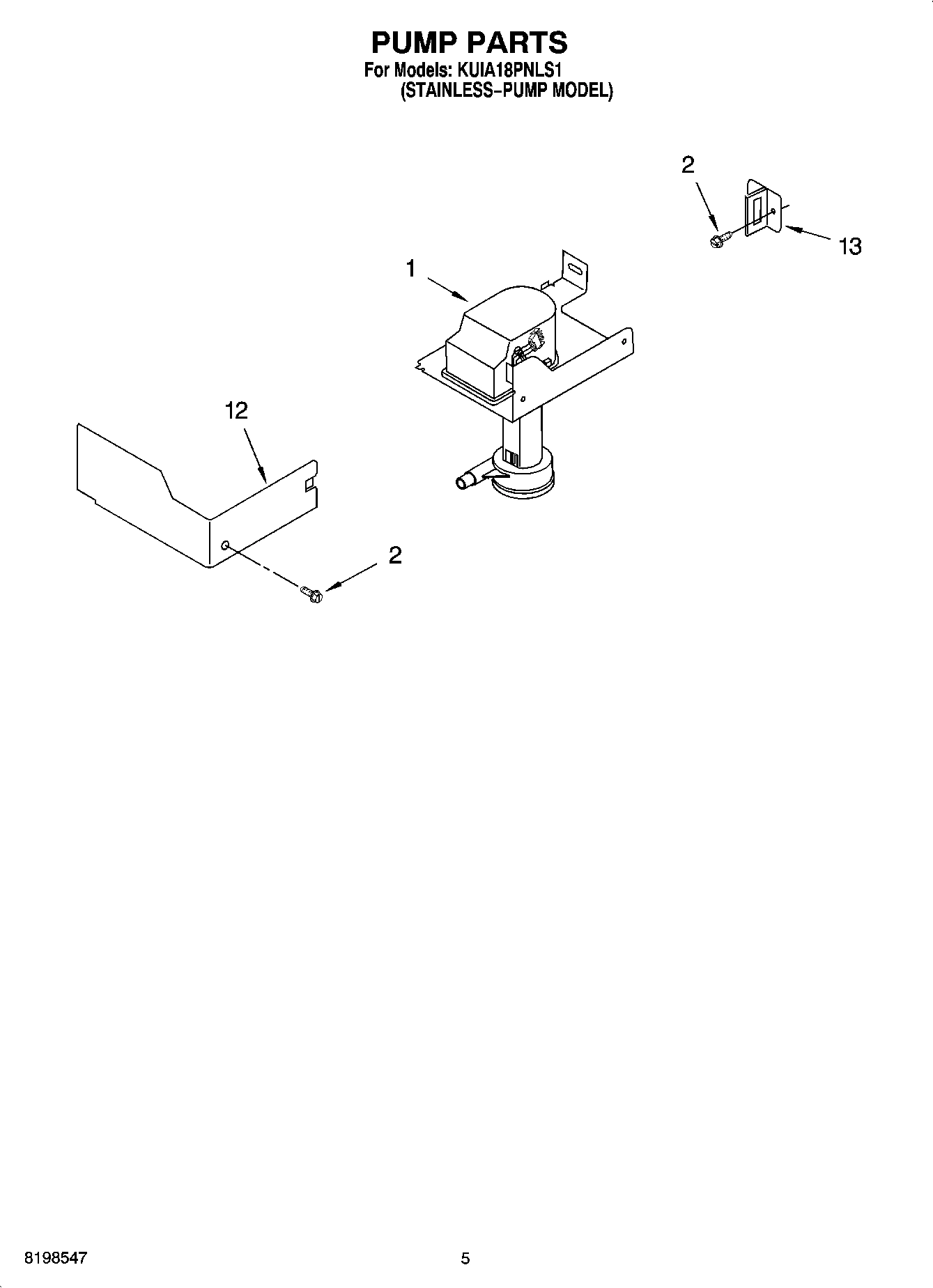

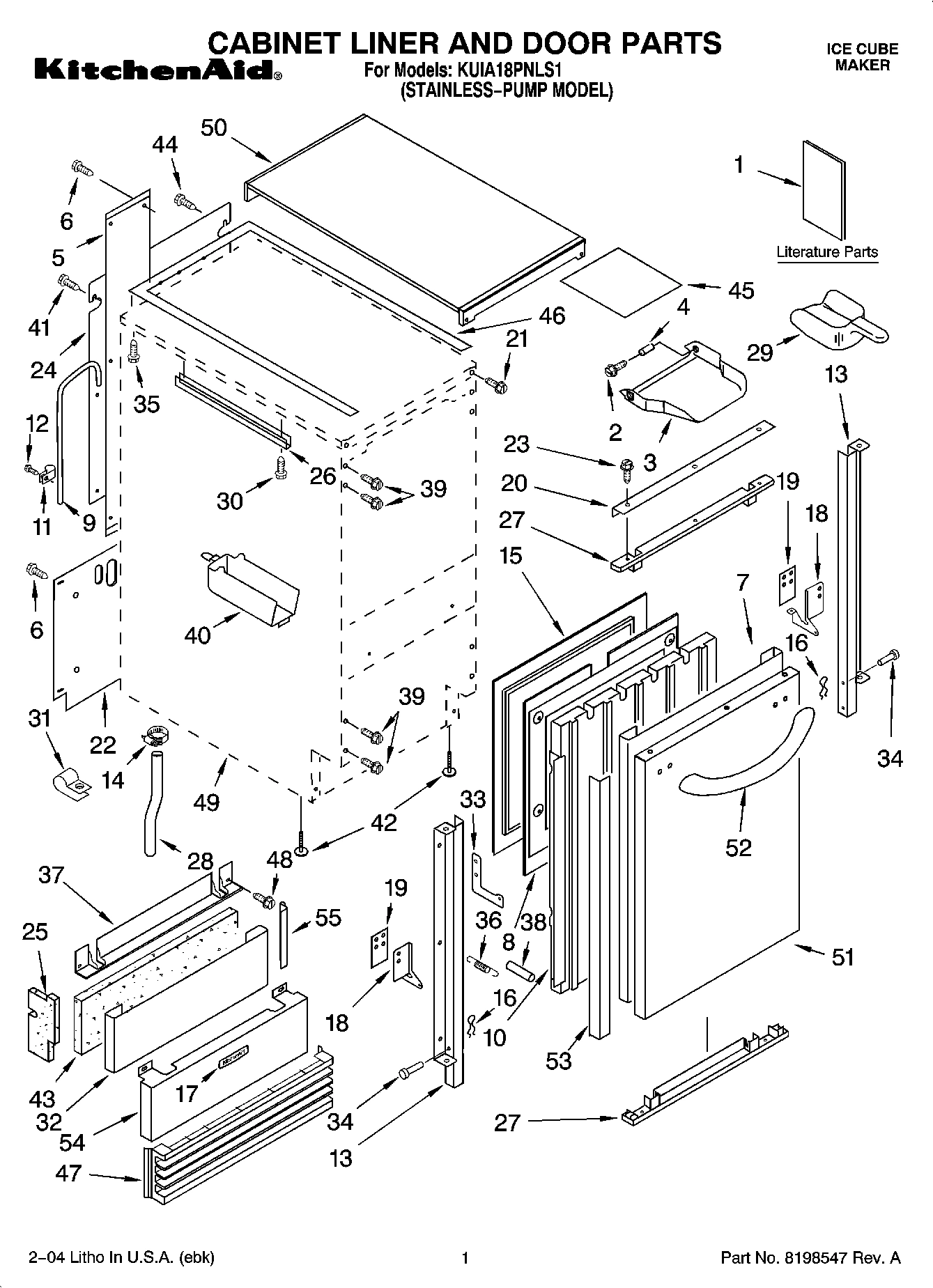

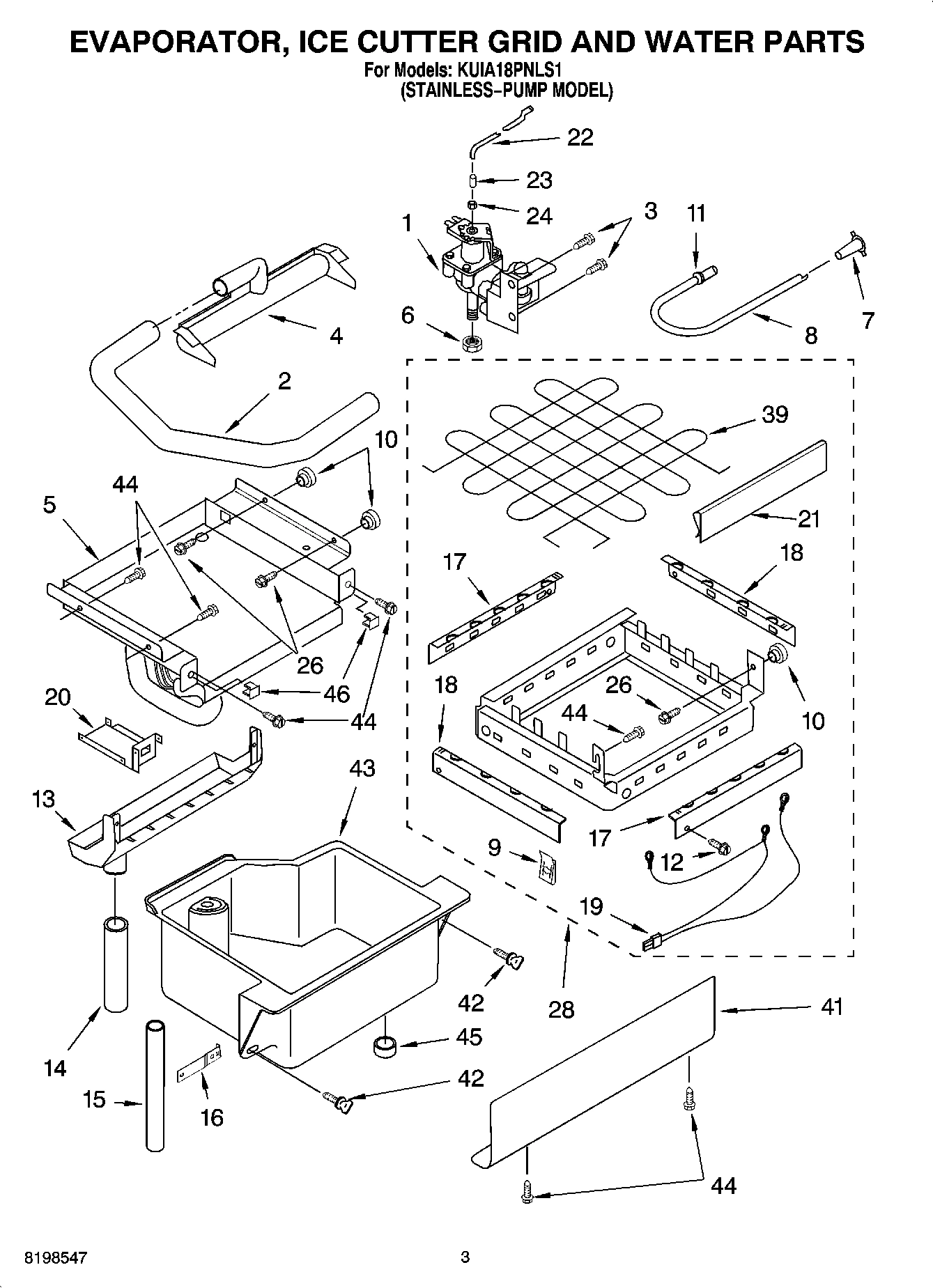

Model Whirlpool KUIA18PNLS1 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

Literature Parts (Service & Wiring Sheet) WPL LIT2217232 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2217251 Contact Us For Availability

2

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

2

Transformer WPL 2185657 Contact Us For Availability

3

2208354 Whirlpool Refrigerator Inner Door Backorder WPL 2208354 $38.76

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER 4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $29.43

5

2217394 Whirlpool Refrigerator Wire Cover Backorder WPL 2217394 $28.80

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $379.51

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

7

2208352B Whirlpool Refrigerator Panel Backorder WPL 2208352B $285.12

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

Wiring Harness Grid/ Light WPL 2185692 Contact Us For Availability

8

Panel, Interior WPL 2217298 Contact Us For Availability

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Tube, Air Vent WPL 2185926 Contact Us For Availability

10

2208377 Whirlpool Insulation Backorder WPL 2208377 $60.78

11

WP2208367 Whirlpool Refrigerator Half Clamp Backorder WPL WP2208367 $29.43

12

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $28.80

12

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $39.60

2217466 Whirlpool Bracket Backorder WPL 2217466 $44.51

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $61.00

Bracket, Door (Right Side) WPL 2208375 Contact Us For Availability

Bracket, Connector Assembly WPL 2185585 Contact Us For Availability

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $37.64

14

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

15

W11624959 Whirlpool Refrigerator Door Gasket Backorder WPL W11624959 $83.88

15

Coil, Solenoid WPL 759112 Contact Us For Availability

16

Clip WPL 2208535 Contact Us For Availability

17

Nameplate (Black) WPL 2217214B Contact Us For Availability

18

2208425 Whirlpool Refrigerator Hinge Backorder WPL 2208425 $42.36

18

2208426 Whirlpool Refrigerator Hinge Backorder WPL 2208426 $43.24

18

WP2217223 Whirlpool Refrigerator Overload Rel Backorder WPL WP2217223 $47.10

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $42.04

19

Shim, Hinge WPL 2208401 Contact Us For Availability

20

2208427 Whirlpool Refrigerator Support Backorder WPL 2208427 $59.48

20

WP2208452B Whirlpool Refrigerator Handle Backorder WPL WP2208452B $40.22

20

WP2217224 Whirlpool Refrigerator Start Relay In Stock WPL WP2217224 $36.64

21

Screw 8-18 X 1/2 WPL 8281184 Contact Us For Availability

22

WPW10136200 Whirlpool Refrigerator Unit Cover Backorder WPL WPW10136200 $50.76

23

Screw, Handle (Black) WPL 8281186 Contact Us For Availability

24

W10218024 Whirlpool Enclosure Backorder WPL W10218024 $116.43

24

WP245183 Whirlpool Nut Backorder WPL WP245183 $2.51

25

2217225 Whirlpool Refrigerator Foam Pad Backorder WPL 2217225 $28.80

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

27

W11413461 Whirlpool Refrigerator Endcap Backorder WPL W11413461 $22.84

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

28

Tube, Drain WPL 2208459 Contact Us For Availability

29

W11420408 Whirlpool Refrigerator Ice Scoop In Stock WPL W11420408 $7.27

31

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

31

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

32

2208382B Whirlpool Refrigerator Grill Panel Backorder WPL 2208382B $131.10

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

2208487 Whirlpool Bracket Backorder WPL 2208487 $26.21

34

Pin, Hinge WPL 2208417 Contact Us For Availability

35

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

35

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

36

WP2208570 Whirlpool Refrigerator Spring Backorder WPL WP2208570 $9.46

37

2208383B Whirlpool Refrigerator Endcap Backorder WPL 2208383B $40.92

38

Dampener, Spring WPL 2208530 Contact Us For Availability

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $33.42

39

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

40

Holder, Scoop WPL 2208449 Contact Us For Availability

41

2208365 Whirlpool Refrigerator Panel Backorder WPL 2208365 $36.00

42

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

42

Thumbscrew WPL 8281228 Contact Us For Availability

43

2208384 Whirlpool Refrigerator Insulation Backorder WPL 2208384 $53.29

43

Reservoir, Water WPL 8201653 Contact Us For Availability

44

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

44

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

45

2185690 Whirlpool Shield Assembly Backorder WPL 2185690 $9.15

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $15.72

46

2217296 Whirlpool Refrigerator Top Gasket Backorder WPL 2217296 $56.78

46

WP3400909 Whirlpool Refrigerator Nut Backorder WPL WP3400909 $2.51

47

WP2217206B Whirlpool Refrigerator Grille Backorder WPL WP2217206B $33.67

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

49

Cabinet & Liner (Not Serviced) WPL ARI116450A Contact Us For Availability

50

Top (Black) WPL 2929701B Contact Us For Availability

51

Panel, Wrap WPL 2208593S Contact Us For Availability

52

Handle, Bar WPL 2208597S Contact Us For Availability

53

2208595B Whirlpool Guard Edge Backorder WPL 2208595B $38.83

54

2208594S Whirlpool Refrigerator Grill Panel Backorder WPL 2208594S $135.80

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

2208596B Whirlpool Refrigerator Edge Guard Backorder WPL 2208596B $10.61

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11179302 Whirlpool Ice Machine Cleaner In Stock WPL W11179302 $12.81

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

Cleaner (Stainless Steel) WPL 2261590 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI116451A WPL ARI116451A Contact Us For Availability
