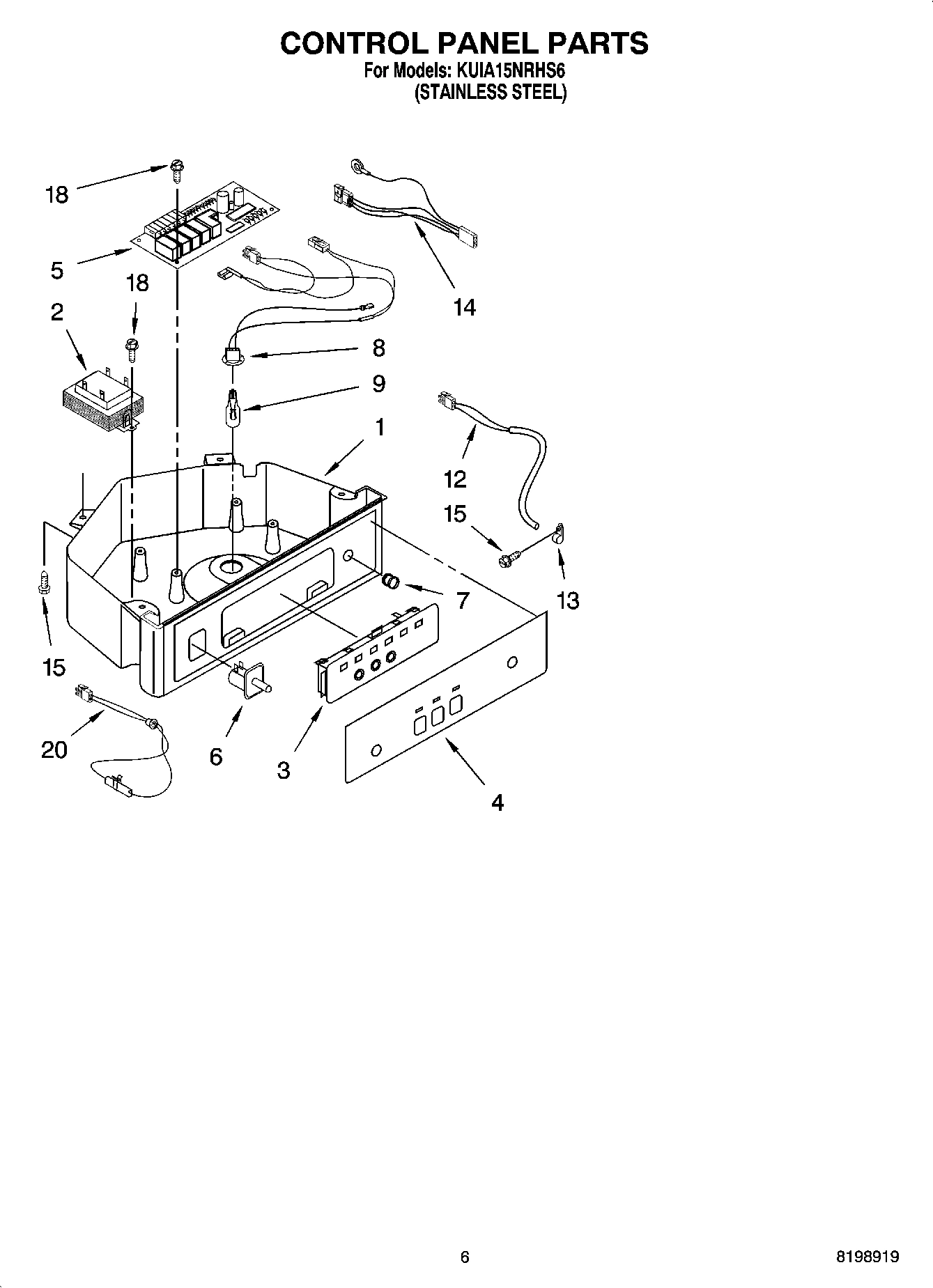

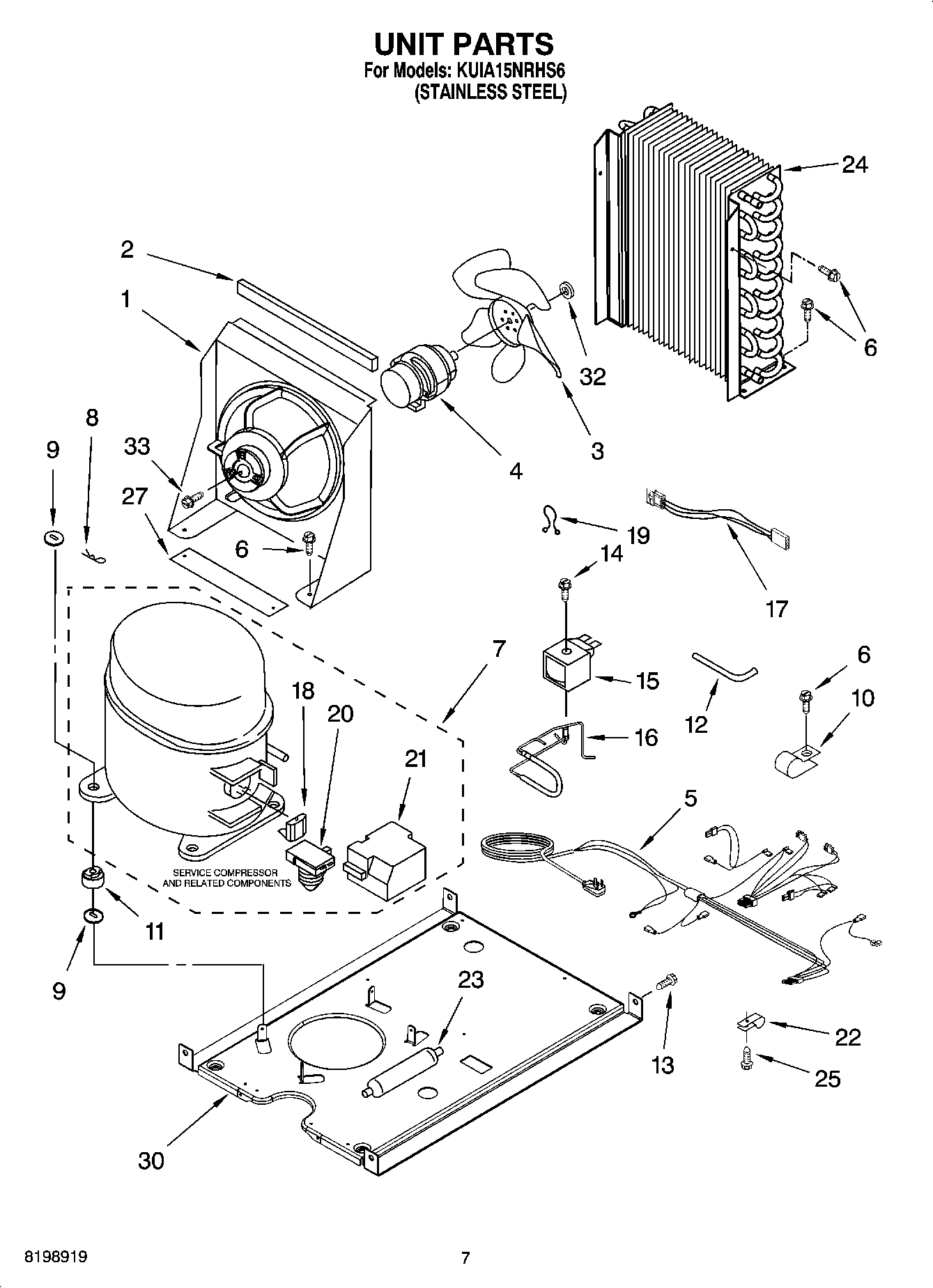

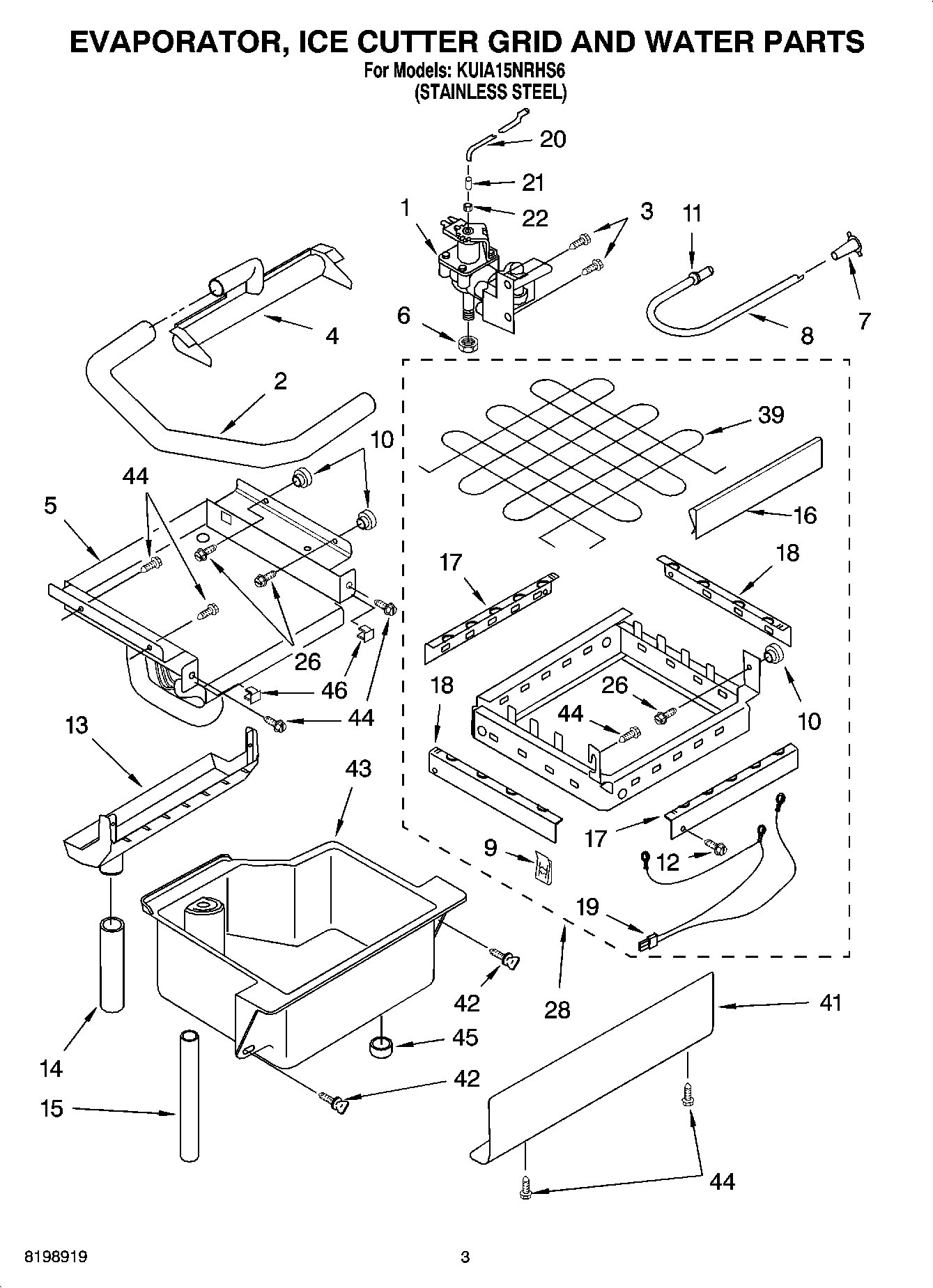

Model Whirlpool KUIA15NRHS6 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $162.07

1

Box, Control WPL 2185738 Contact Us For Availability

2

2185675 Whirlpool Refrigerator Foam Pad Backorder WPL 2185675 $4.78

2

Transformer WPL 2185657 Contact Us For Availability

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $30.25

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER 4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $31.71

4

Overlay WPL 2208317W Contact Us For Availability

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $380.30

5

P.C. Board WPL 6100499 Contact Us For Availability

5

Wiring Harness, Complete Unit (Includes Power WPL 2187286 Contact Us For Availability

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $5.42

7

W11735041 Whirlpool Compressor In Stock WPL W11735041 $356.15

7

Lens, LED WPL 2185694 Contact Us For Availability

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

Wiring Harness Grid/ Light WPL 2185692 Contact Us For Availability

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Bulb WPL 745362 Contact Us For Availability

10

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

10

CLAMP, POWER CORD WPL 2185960 Contact Us For Availability

11

2185965 Whirlpool Refrigerator Grommet Backorder WPL 2185965 $14.31

12

W10528572 Whirlpool Refrigerator Tube In Stock WPL W10528572 $14.26

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $40.23

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $27.52

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $30.89

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $64.06

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $39.53

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

Wiring Harness, Main to Pump, WPL 2185703 Contact Us For Availability

Screw WPL 489472 Contact Us For Availability

15

WP2217294 Whirlpool Refrigerator Door Gasket Backorder WPL WP2217294 $115.70

15

Coil, Solenoid WPL 759112 Contact Us For Availability

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $28.11

16

W10724988 Whirlpool Refrigerator Gas Valve Backorder WPL W10724988 $175.79

17

Wiring Harness, Condenser Fan WPL 2187267 Contact Us For Availability

18

WP2217223 Whirlpool Refrigerator Overload Rel Backorder WPL WP2217223 $49.46

18

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $44.14

19

Twist Loc WPL 2217322 Contact Us For Availability

20

WP2217224 Whirlpool Refrigerator Start Relay In Stock WPL WP2217224 $43.49

20

Thermister, Ice Control WPL 2217289 Contact Us For Availability

21

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

22

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $11.58

23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

24

8201810 Whirlpool Refrigerator Condenser Backorder WPL 8201810 $194.16

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

27

2185964 Whirlpool Refrigerator Guard Edge Backorder WPL 2185964 $7.28

27

2217397 Whirlpool Foam Pad Backorder WPL 2217397 $30.65

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $40.68

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

30

2217445 Whirlpool Refrigerator Base Condenser Backorder WPL 2217445 $95.42

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

33

REFRIGERANT CHARGE 6.5 OZ. (R134A) WPL ARI116374A Contact Us For Availability

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $30.51

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $35.90

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $32.39

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $42.71

42

Thumbscrew WPL 8281228 Contact Us For Availability

43

Reservoir, Water WPL 8201653 Contact Us For Availability

44

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $17.33

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $57.00

46

WP3400909 Whirlpool Refrigerator Nut In Stock WPL WP3400909 $2.51

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $84.13

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
