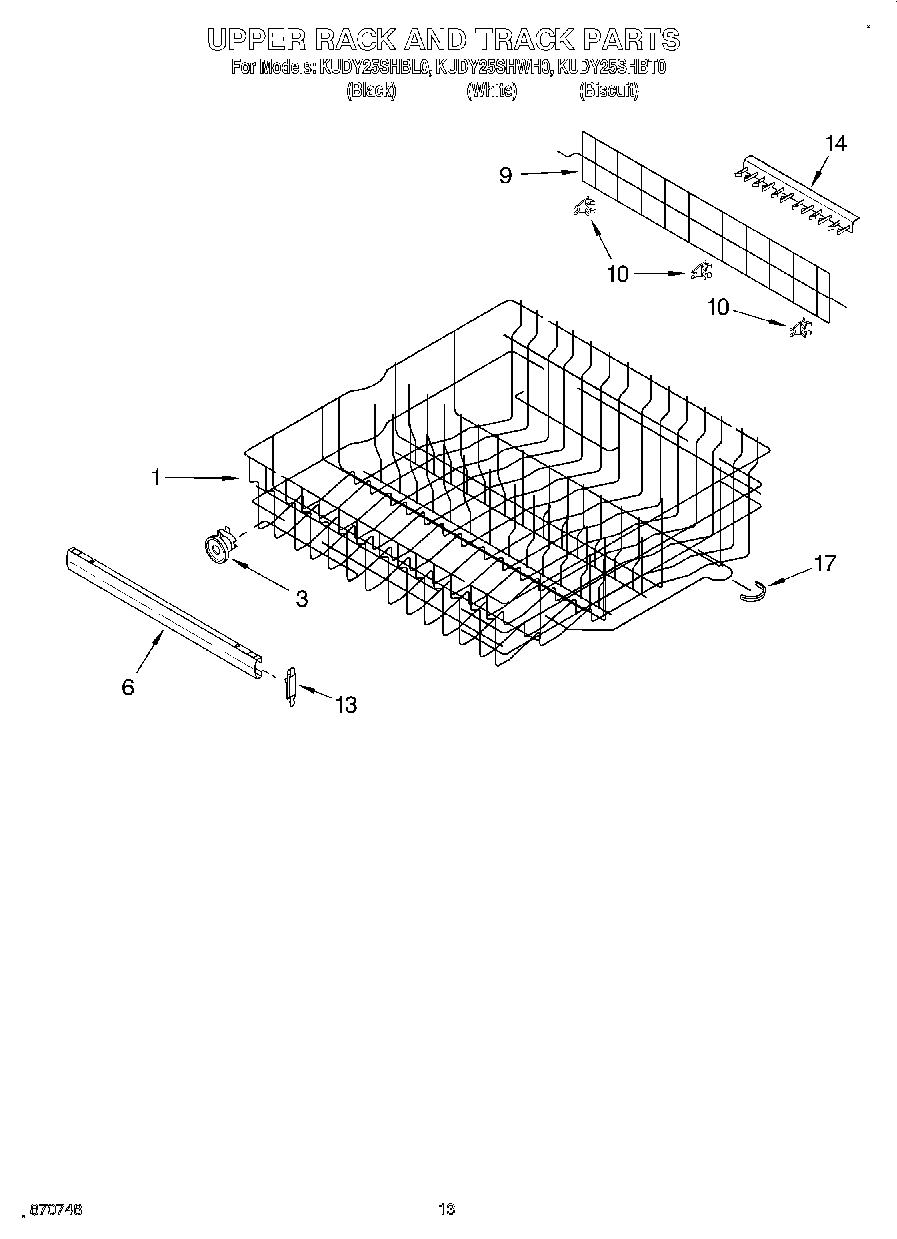

Model Whirlpool KUDY25SHBL0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

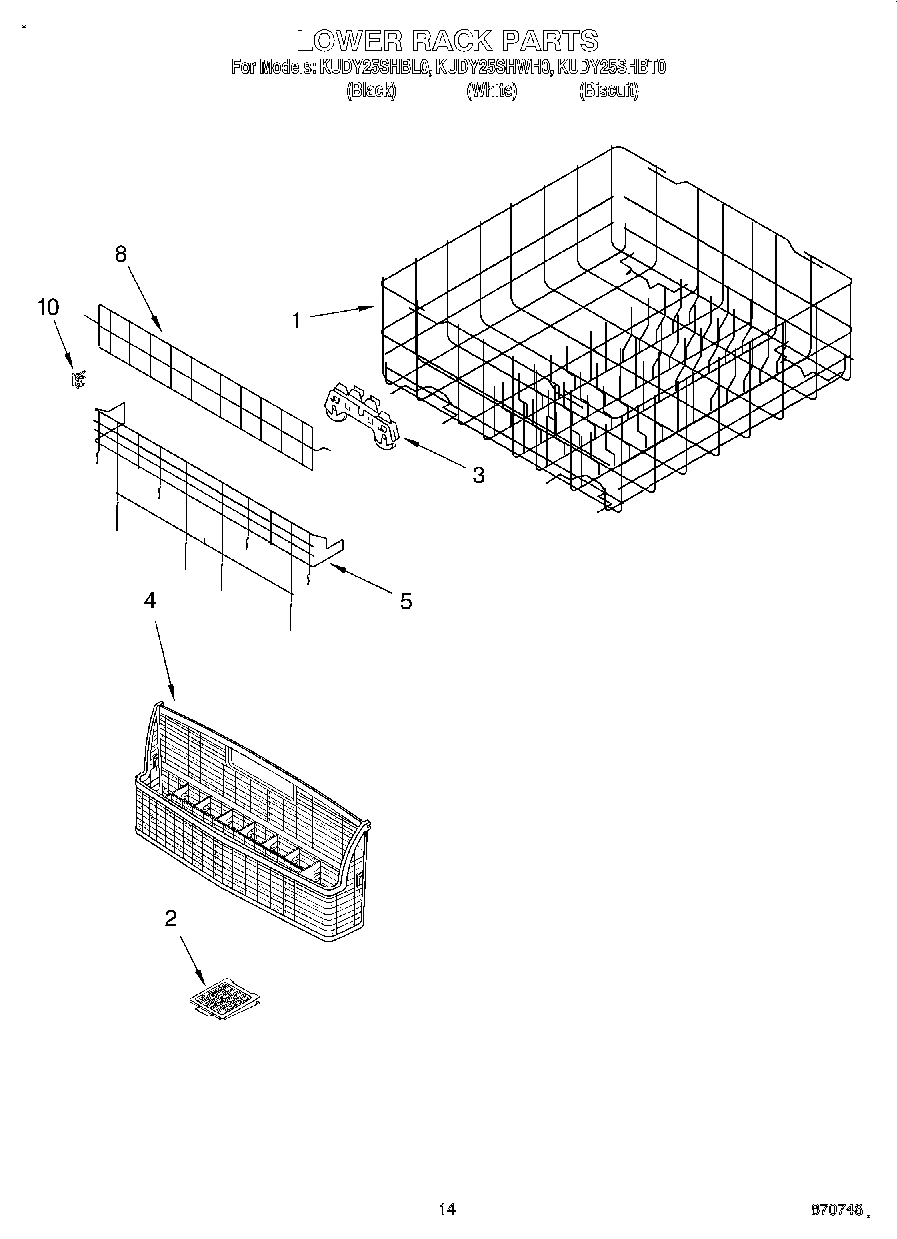

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $179.00

1

Knob, Dispenser WPL 9743399 Contact Us For Availability

1

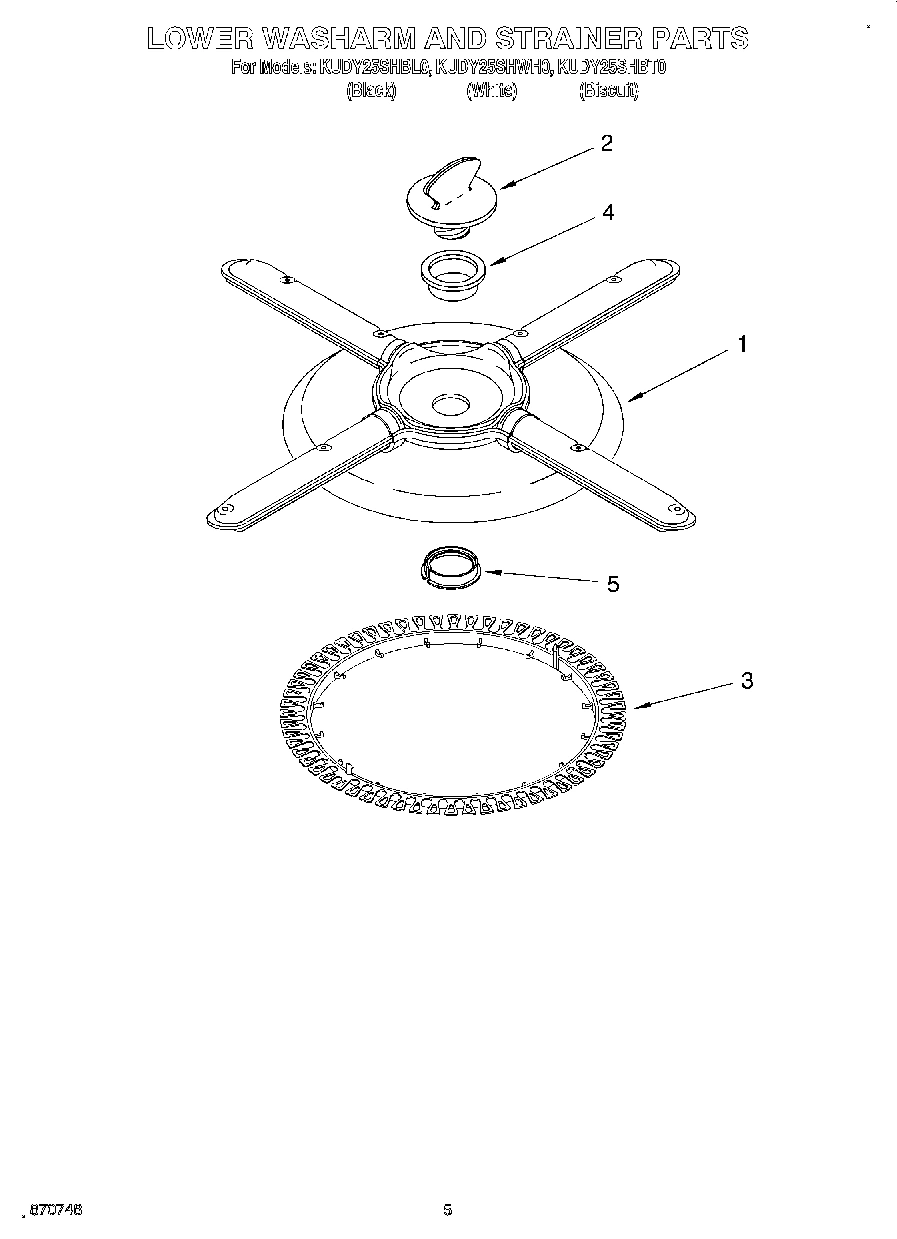

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

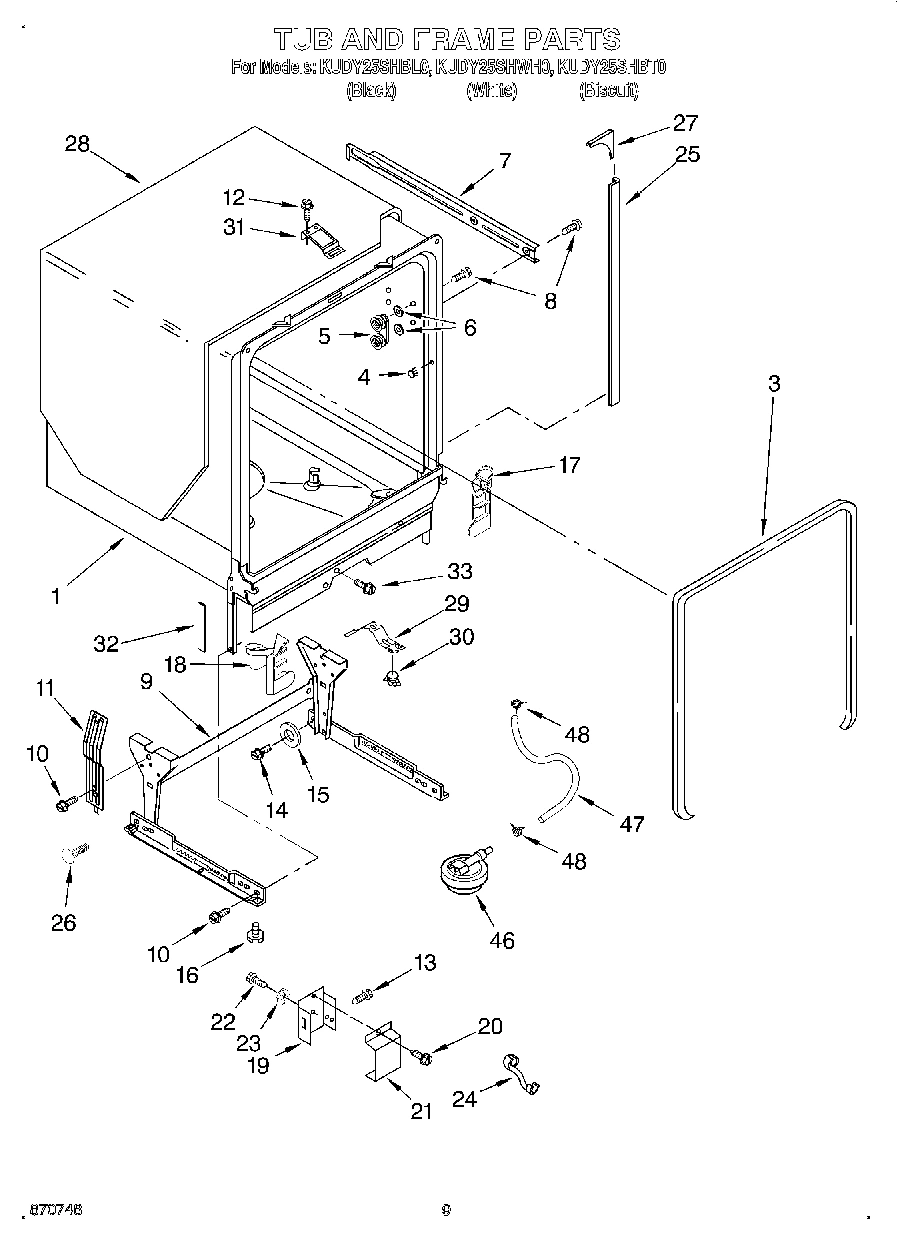

Tub Assembly WPL 9744055 Contact Us For Availability

1

Plate, Perforated (Also Order Item 30) See No WPL 9740982 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $5.44

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

2

Cover, Silverware Basket WPL 9743044 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

WP9743573 Whirlpool Dishwasher Spring Backorder WPL WP9743573 $2.51

4

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

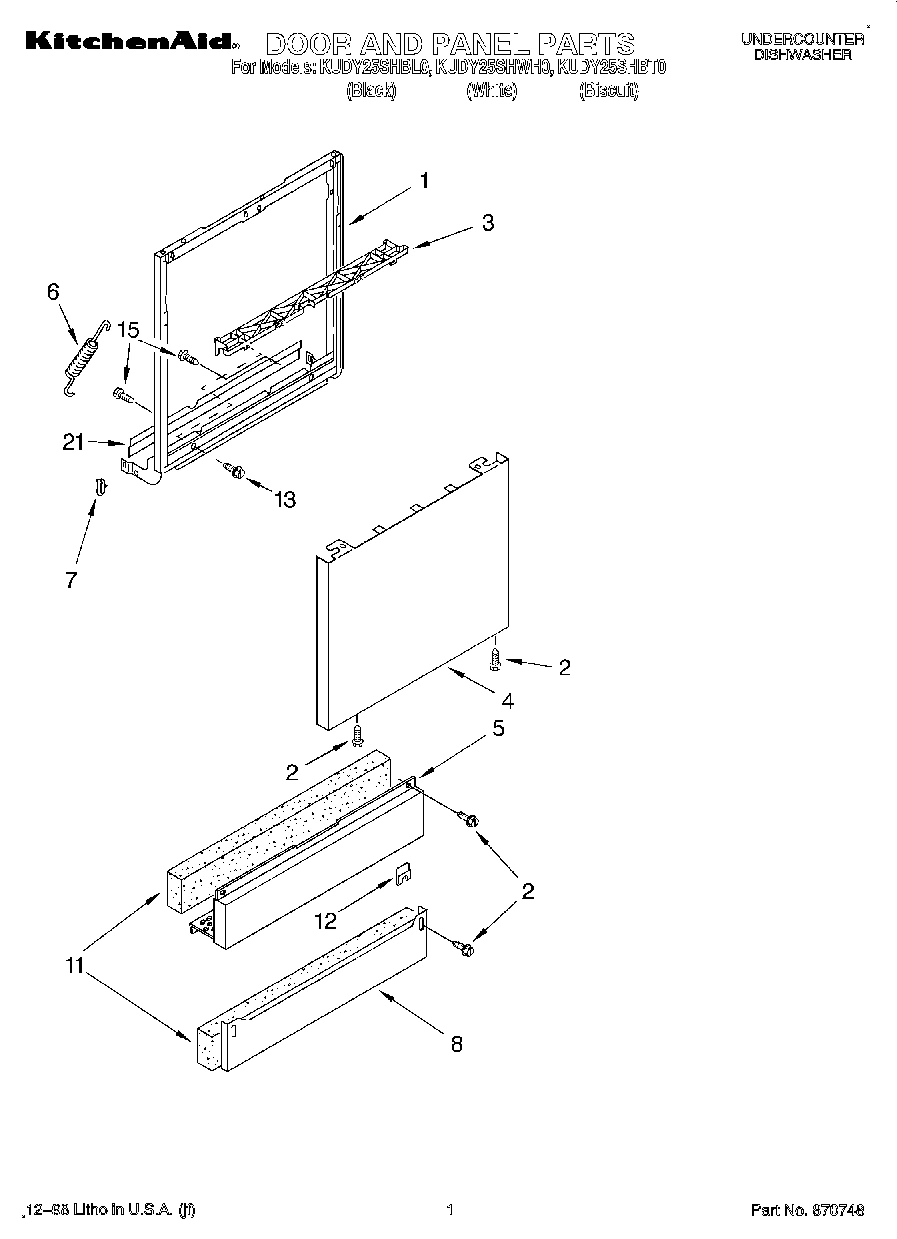

Panel Front (White) WPL 3379376 Contact Us For Availability

4

Panel Front (Black) WPL 3379375 Contact Us For Availability

4

Panel, Front (Biscuit) WPL 8054178 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

4

Basket, Silverware WPL 9742853 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

5

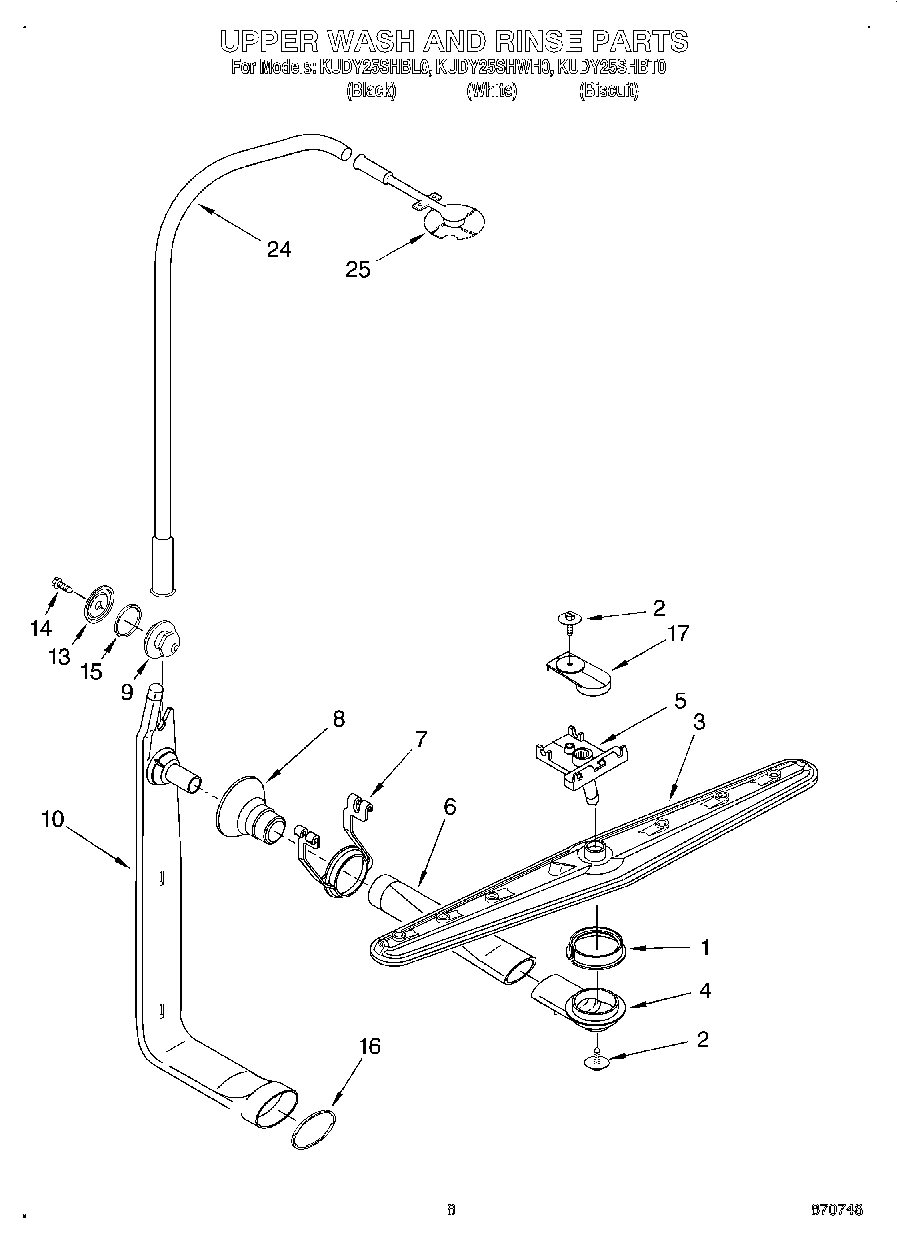

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $3.29

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

5

Extension, Side Wall WPL 9743545 Contact Us For Availability

6

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $18.92

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $9.99

6

``O`` Ring WPL 95080 Contact Us For Availability

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $10.82

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

8

Cupshelf WPL 3377419 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle Backorder WPL WP9743903 $50.67

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

9

Filter Assembly WPL 3380788 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.45

Latch Lever Asm. WPL 3380655 Contact Us For Availability

Feed Tube Assembly WPL 9743957 Contact Us For Availability

Screw WPL 3400001 Contact Us For Availability

11

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

11

Insulation WPL 3382404 Contact Us For Availability

11

Connector Tub To Brace WPL 9742610 Contact Us For Availability

12

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

12

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

12

Clip, Grounding WPL 3378123 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Washer WPL 9743475 Contact Us For Availability

8194582 Whirlpool Dishwasher Outlet Backorder WPL 8194582 $33.16

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

Screw (2) WPL 3370389 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

16

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

16

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

16

Seal, Tube WPL 9742953 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $26.44

17

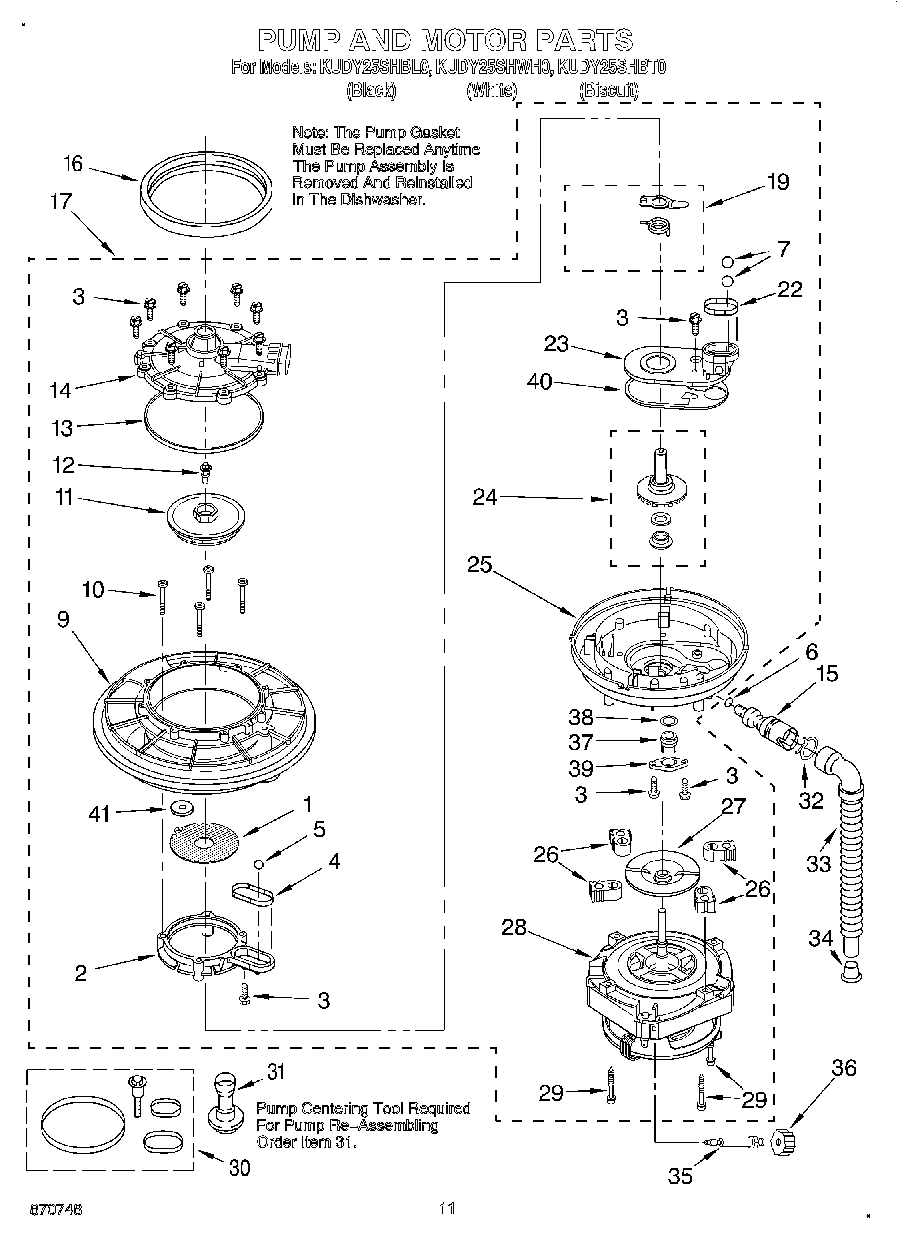

W10428168 Whirlpool Dishwasher Pump and Motor Backorder WPL W10428168 $373.12

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $6.35

19

Terminal Box WPL 3378131 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

20

Screw WPL 3369138 Contact Us For Availability

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

21

Barrier, Lower vent WPL 8054188 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

24

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

24

Tube (3rd Level) WPL 9743958 Contact Us For Availability

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

WP3379369 Whirlpool Dishwasher Wash Assembly Backorder WPL WP3379369 $28.80

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

25

Base, Pump (Also Order Item 30) See Note A. WPL 3379336 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

28

Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3377333 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

29

Screw (4) WPL 3369331 Contact Us For Availability

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

Pad, Friction WPL 3379938 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

36

Weight, Absorber WPL 3378202 Contact Us For Availability

37

Thermistor WPL 9743158 Contact Us For Availability

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $4.48

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

41

Seal, Pump base WPL 3379340 Contact Us For Availability

46

Switch, Pressure WPL 3380871 Contact Us For Availability

47

Hose, Pressure Switch WPL 3380785 Contact Us For Availability

48

Clamp, Hose (2) WPL 3380943 Contact Us For Availability
