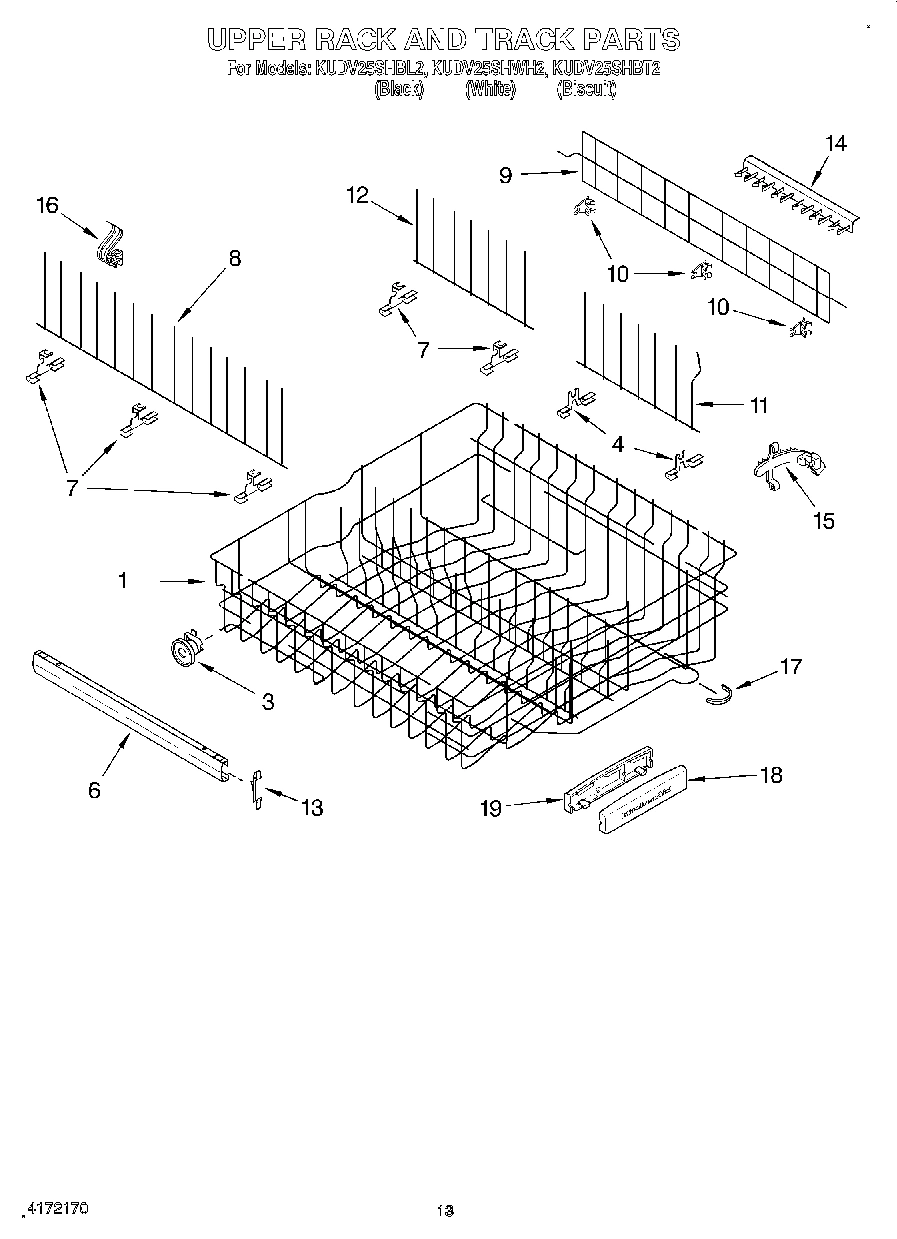

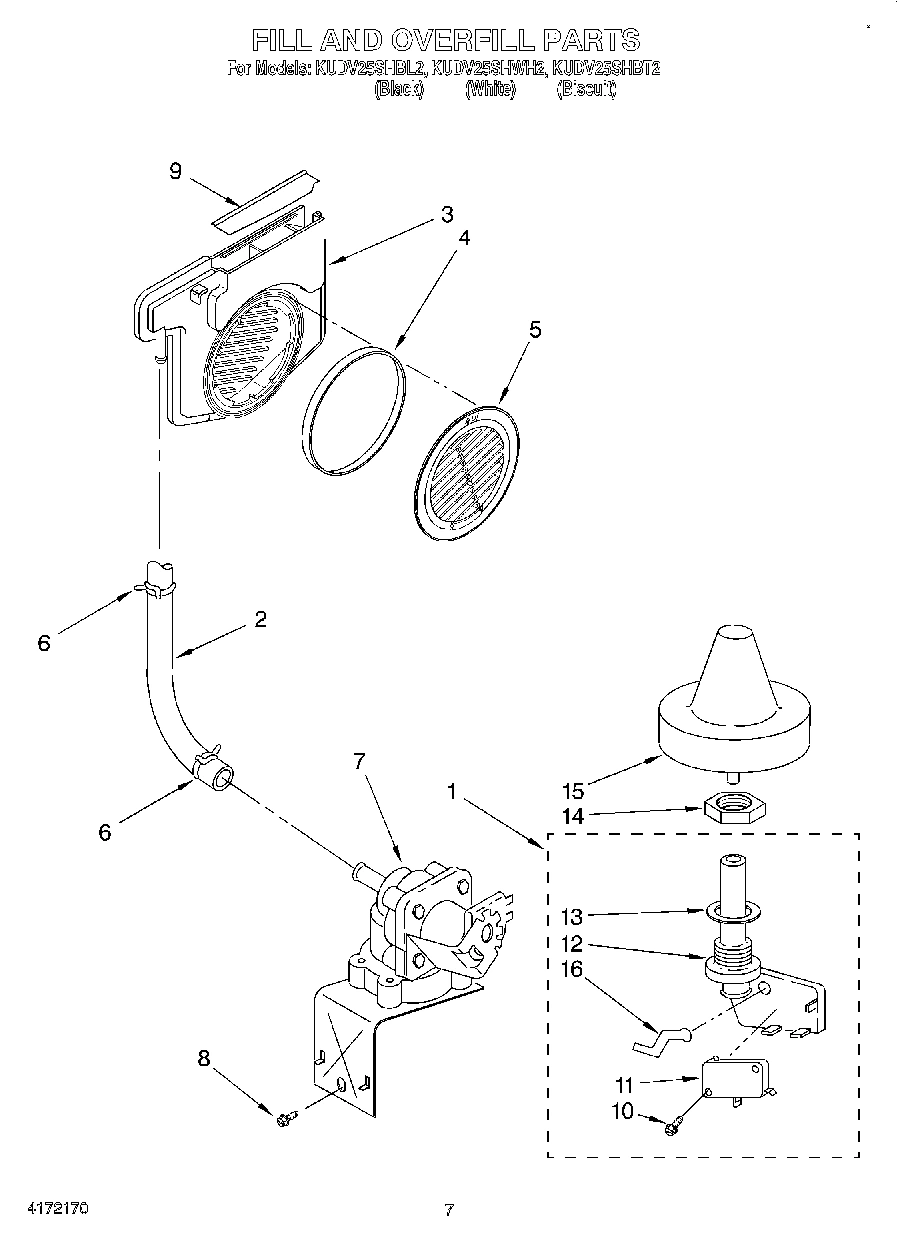

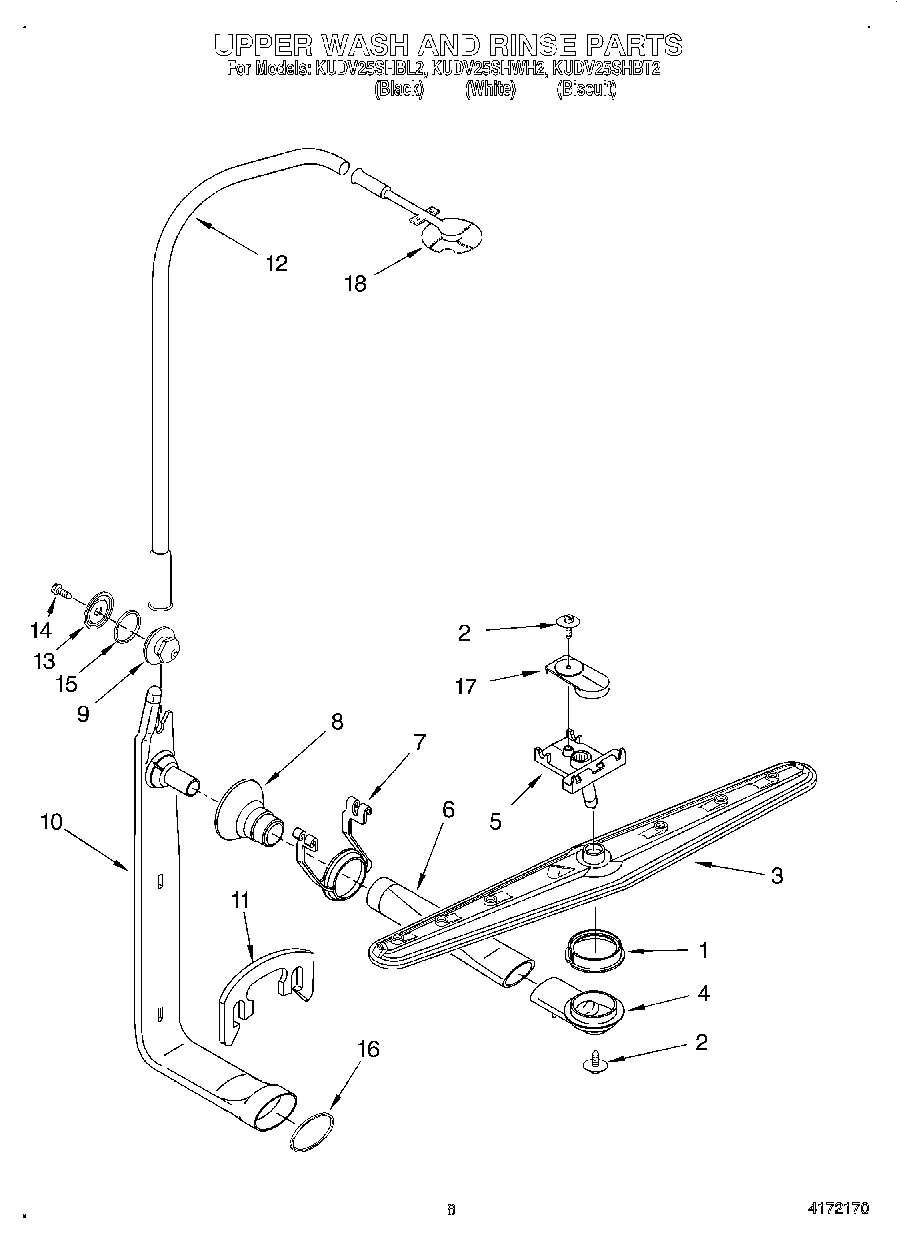

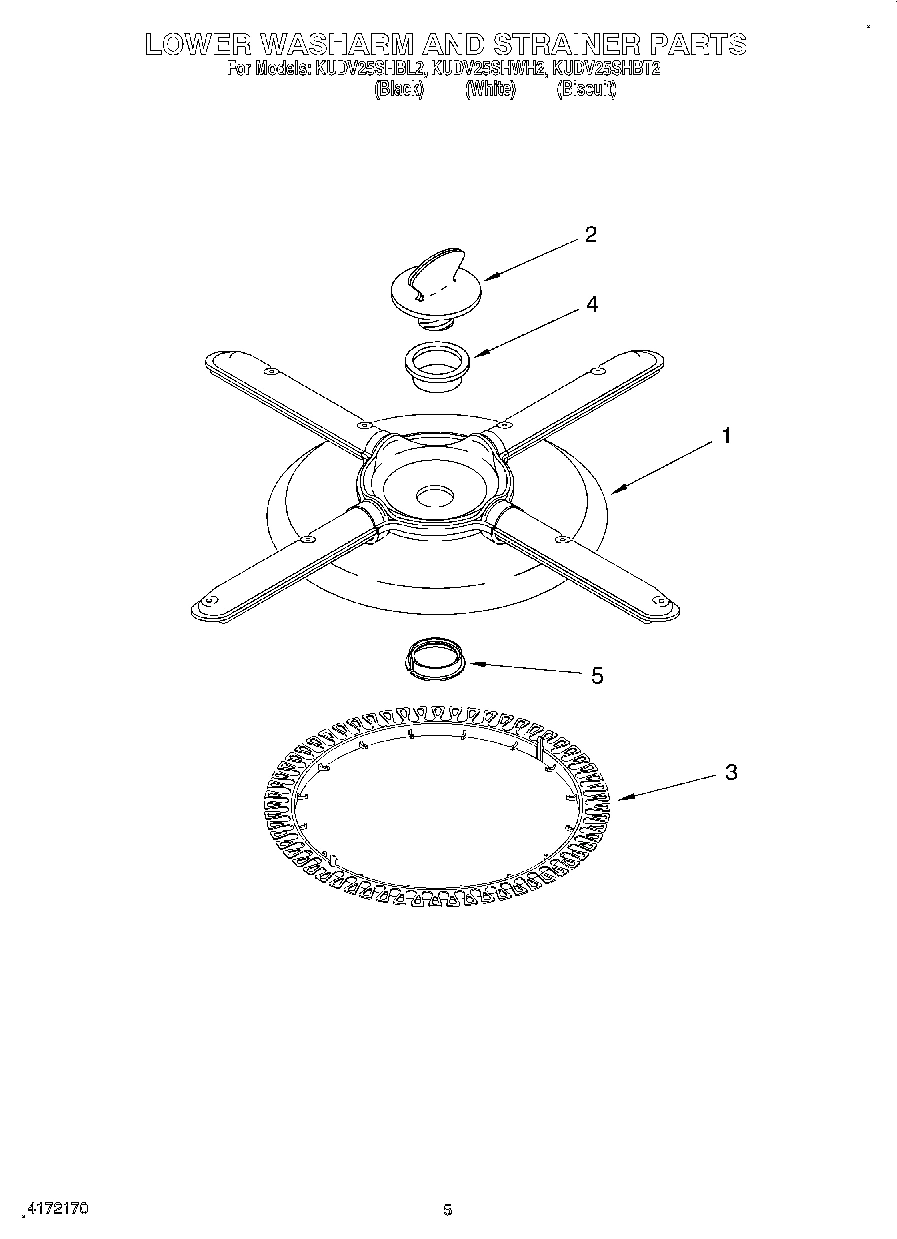

Model Whirlpool KUDV25SHWH2 – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

1

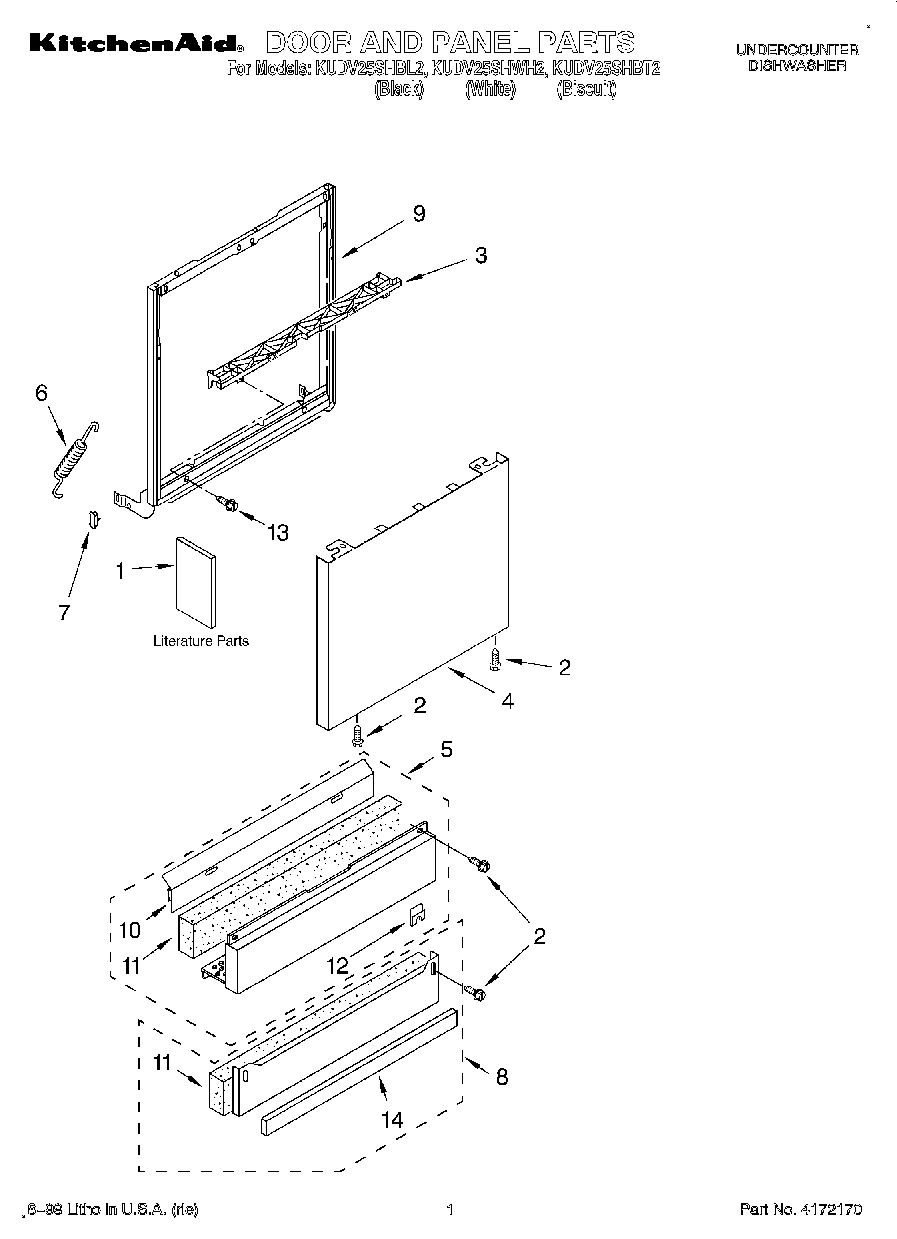

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $156.64

1

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

1

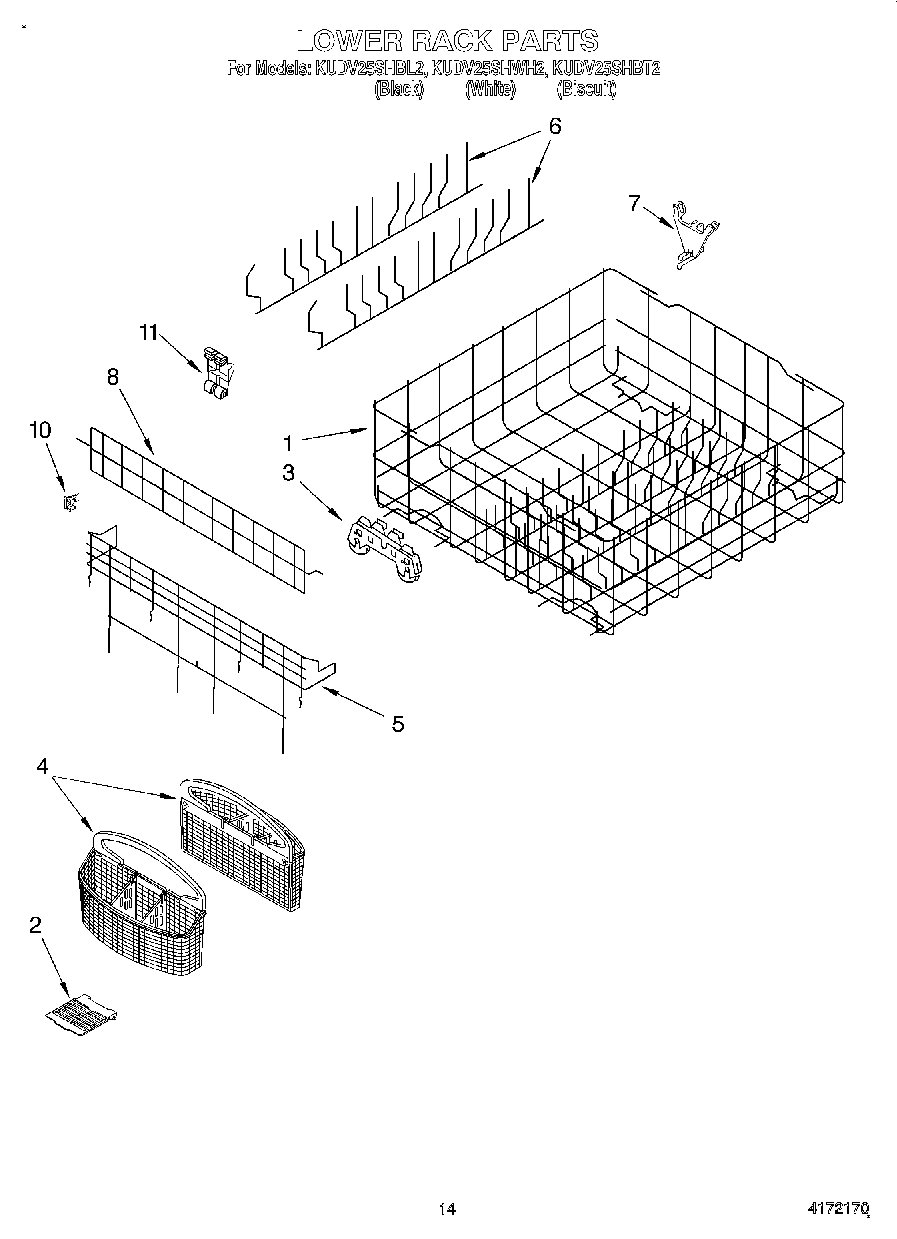

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $179.00

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

Control, Overfill Assembly (Also Order Item 1 WPL 9741999 Contact Us For Availability

1

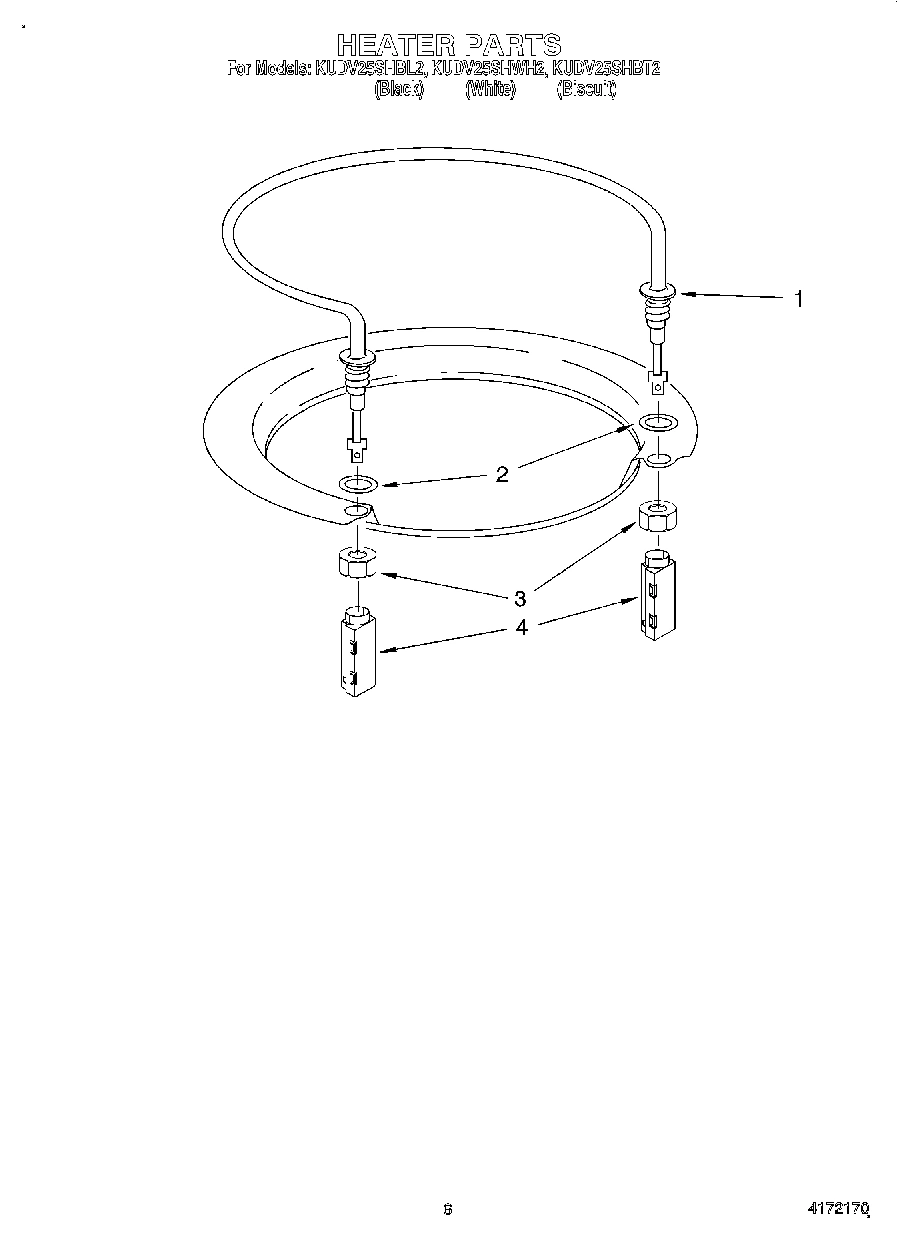

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

1

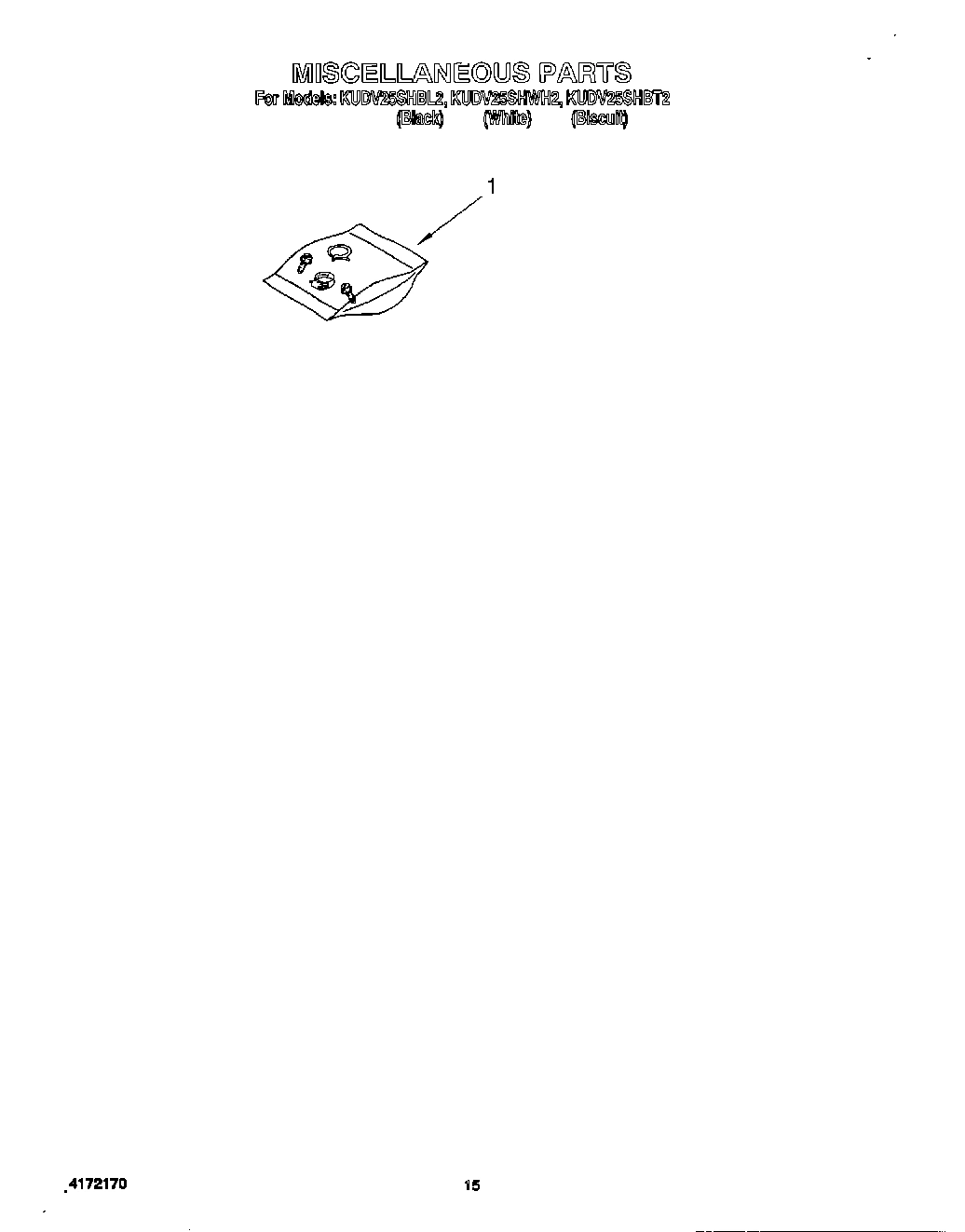

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

1

Glisten WPL 4319102 Contact Us For Availability

1

Frameless (White) WPL 4378861 Contact Us For Availability

1

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

1

Frameless (Almond) WPL 4378863 Contact Us For Availability

1

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

1

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

1

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

1

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

1

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

1

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

1

Almond (Uncut) WPL 978883 Contact Us For Availability

1

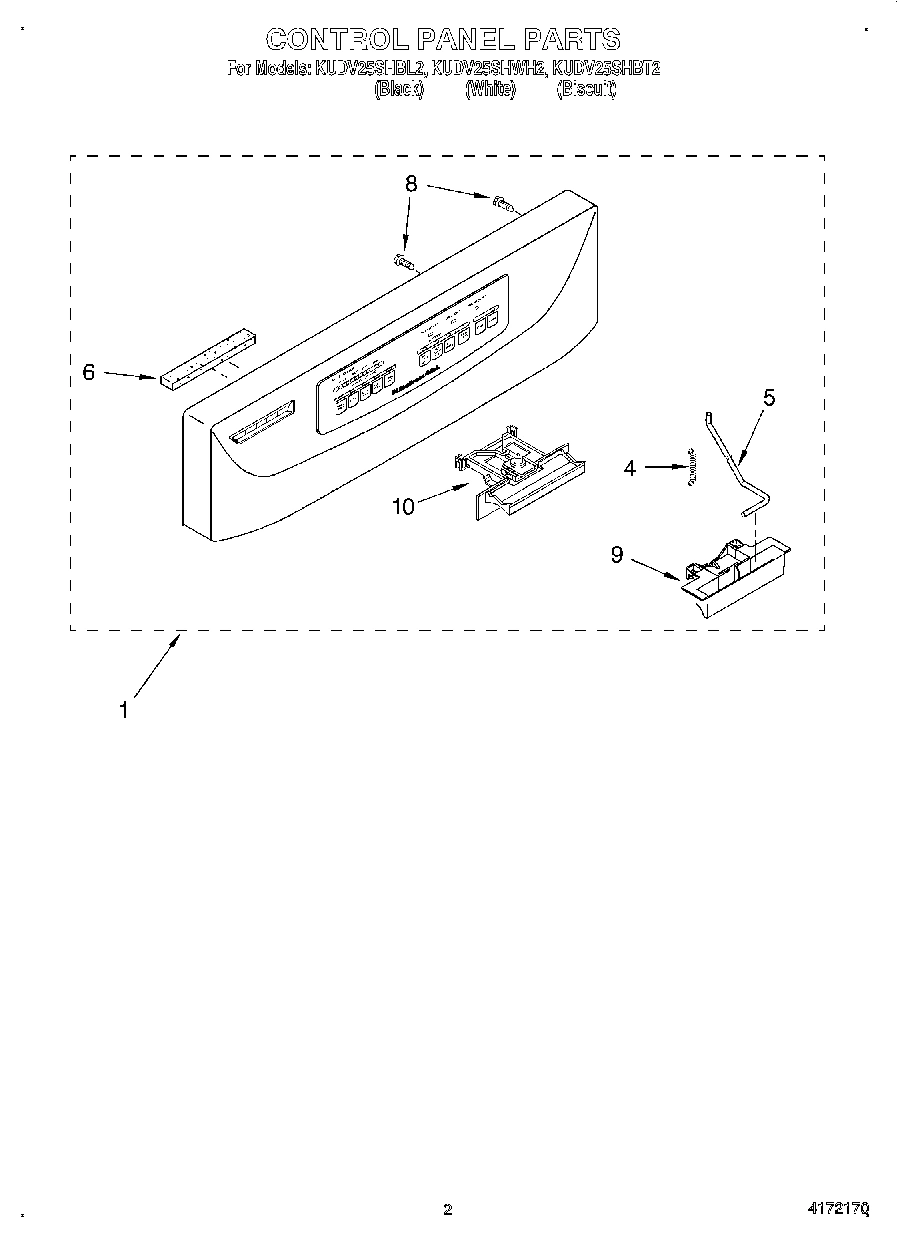

Console (Also Order Item 2) (Black Model) WPL 9744484 Contact Us For Availability

1

Console (Also Order Item 2) (White Model) WPL 9744485 Contact Us For Availability

1

Console (Also Order Item 2) (Biscuit Model) WPL 9744486 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT9743822 Contact Us For Availability

1

Literature Parts (Guide, Use & Care Tech Shee WPL LIT9744477 Contact Us For Availability

1

Literature Parts (English) WPL LIT9744480 Contact Us For Availability

1

Literature Parts (French) WPL LIT9744481 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT9744482 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

Hose, Inlet WPL 9742727 Contact Us For Availability

2

Cover, Silverware Basket WPL 9743048 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

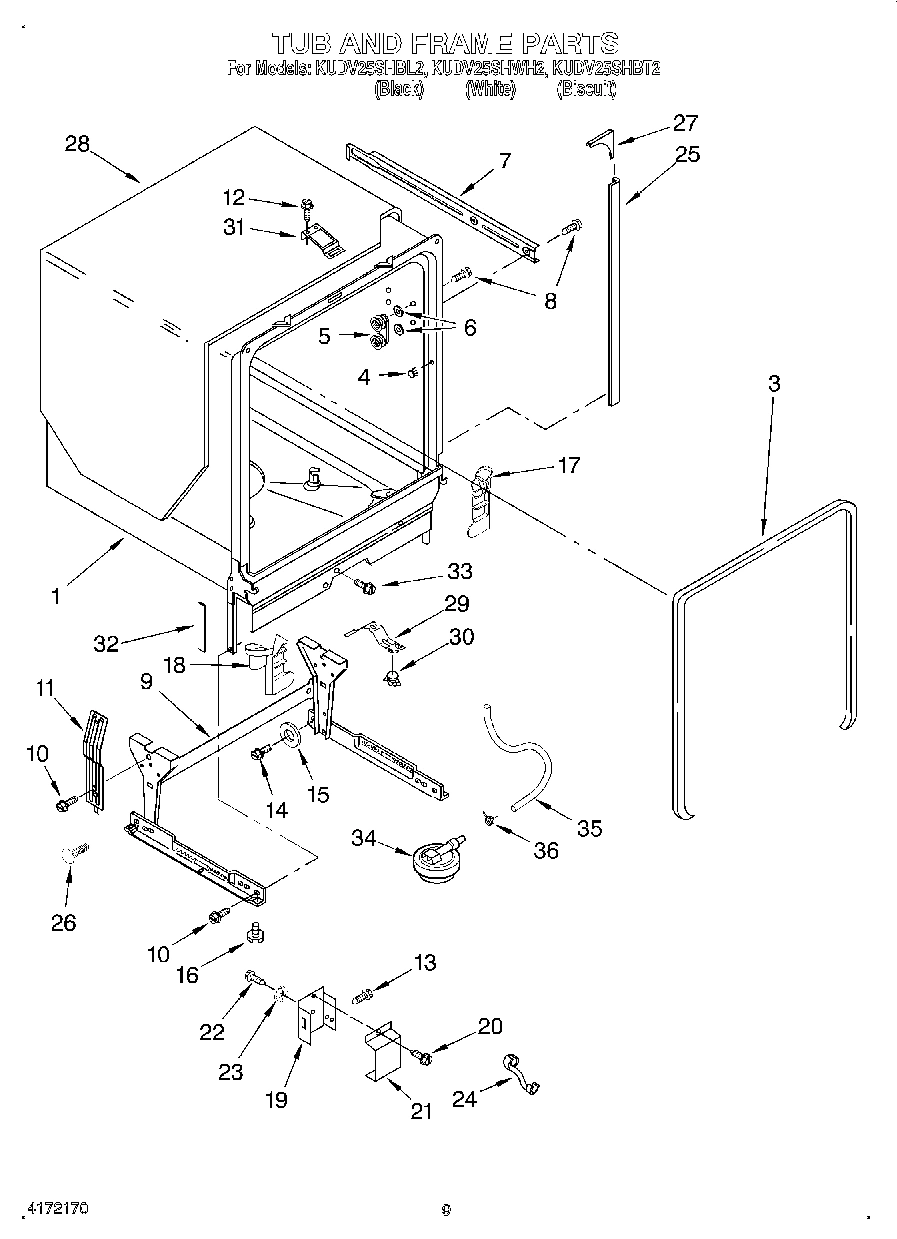

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Water Inlet Assembly (Includes Items 4 & 5) WPL 9744288 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

3

Stiffener, Door WPL 9742964 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

WP9743016 Whirlpool Dishwasher Tine Pivot Backorder WPL WP9743016 $4.48

4

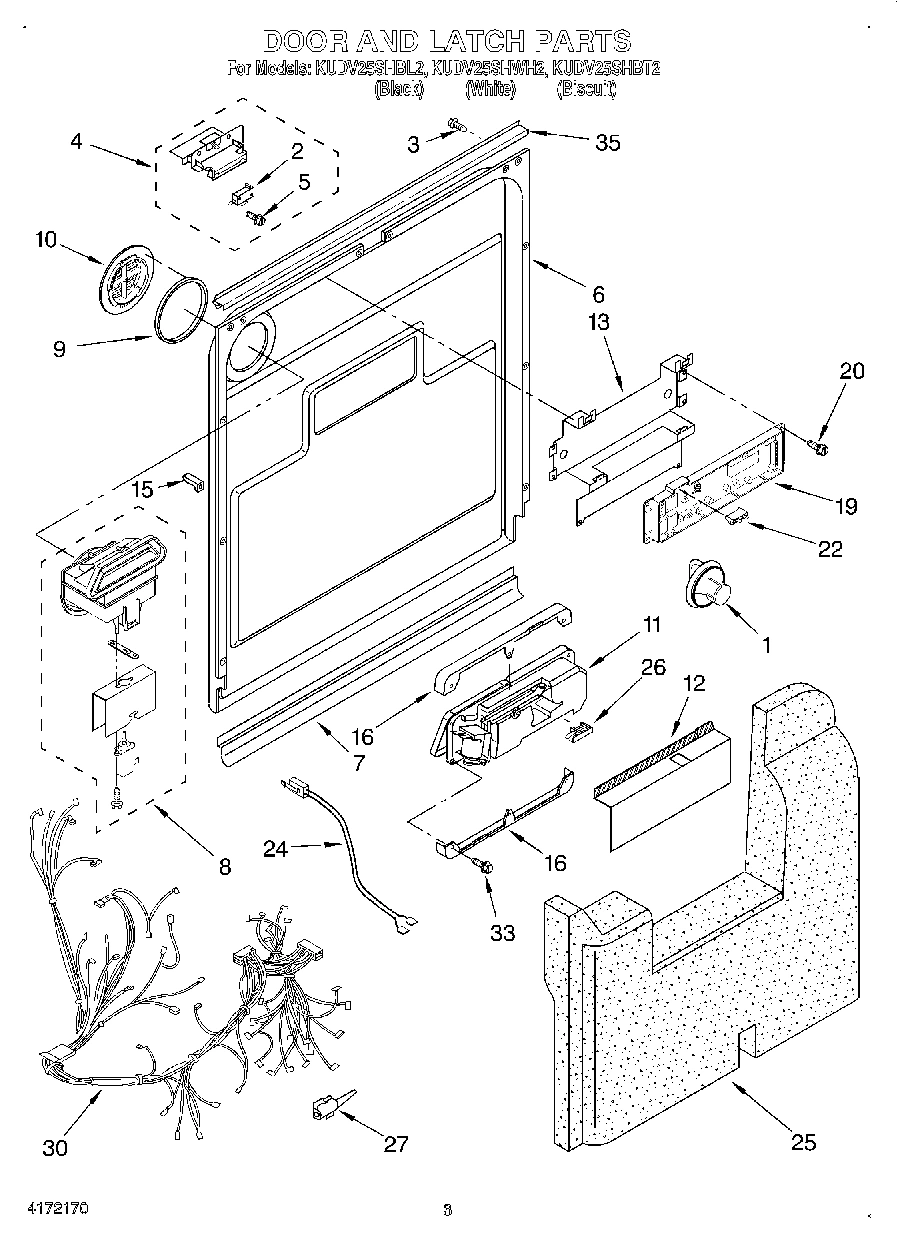

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

Spring, Handle WPL 9743573 Contact Us For Availability

4

Panel Front (White Model) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Model) WPL 3379375 Contact Us For Availability

4

Basket Half, Silverware WPL 9743574 Contact Us For Availability

4

Panel Front (Biscuit Model) WPL 8054178 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $12.16

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Bezel, Inlet WPL 9742786 Contact Us For Availability

5

Extension, Side Wall WPL 9743536 Contact Us For Availability

5

Access Panel & Clip Assembly (Black Model) WPL 9744392 Contact Us For Availability

5

Access Panel & Clip Assembly (White Model) WPL 9744393 Contact Us For Availability

5

Access Panel & Clip Assembly (Biscuit Model) WPL 9744395 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring In Stock WPL WP9743986 $9.99

6

Flexrow (2) WPL 9743685 Contact Us For Availability

6

Sponge, Vent WPL 9743412 Contact Us For Availability

7

W10844024 Whirlpool Water Inlet Valve In Stock WPL W10844024 $38.67

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $4.43

7

Pivot, Folddown WPL 3379955 Contact Us For Availability

8

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $75.55

8

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

8

Cupshelf WPL 3377419 Contact Us For Availability

8

Toe Panel (Black Model) WPL 9744147 Contact Us For Availability

8

Toe Panel (Biscuit Model) WPL 9744150 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle In Stock WPL WP9743903 $53.20

9

Frame, Door WPL 9743028 Contact Us For Availability

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Flapper WPL 9744360 Contact Us For Availability

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.45

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

Screw WPL 3935667 Contact Us For Availability

Latch Lever Asm. WPL 3380662 Contact Us For Availability

Barrier, Lower Vent WPL 8274453 Contact Us For Availability

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $162.10

Retainer, Flexrow (2) WPL 3368629 Contact Us For Availability

Switch, Overfill Control WPL 9743413 Contact Us For Availability

Tine Row, Upper (Multi Position) WPL 3377443 Contact Us For Availability

Insulation WPL 9743825 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Tube (3rd Level) WPL 9743958 Contact Us For Availability

Shield, Dispenser WPL 9743450 Contact Us For Availability

Standpipe, Overfill WPL 9741997 Contact Us For Availability

Clip, Grounding WPL 3378123 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $11.66

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

Track Stop (4) WPL 3379941 Contact Us For Availability

Bracket, Controls WPL 9742623 Contact Us For Availability

14

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

14

Seal, Toe Panel WPL 9744140 Contact Us For Availability

15

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

15

Wheel, Leg WPL 302819 Contact Us For Availability

15

Guide, Door WPL 9743487 Contact Us For Availability

Gasket, Pump WPL 717000 Contact Us For Availability

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

18

WP3379369 Whirlpool Dishwasher Wash Assembly In Stock WPL WP3379369 $30.25

19

Control, Electronic WPL 9744483 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

21

Cover, Terminal Box WPL 300068 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

24

Dispenser, Wiring Harness WPL 9743154 Contact Us For Availability

25

Sound Absorber WPL 9742397 Contact Us For Availability

26

Sensor, Rinse Aid WPL 9742852 Contact Us For Availability

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

30

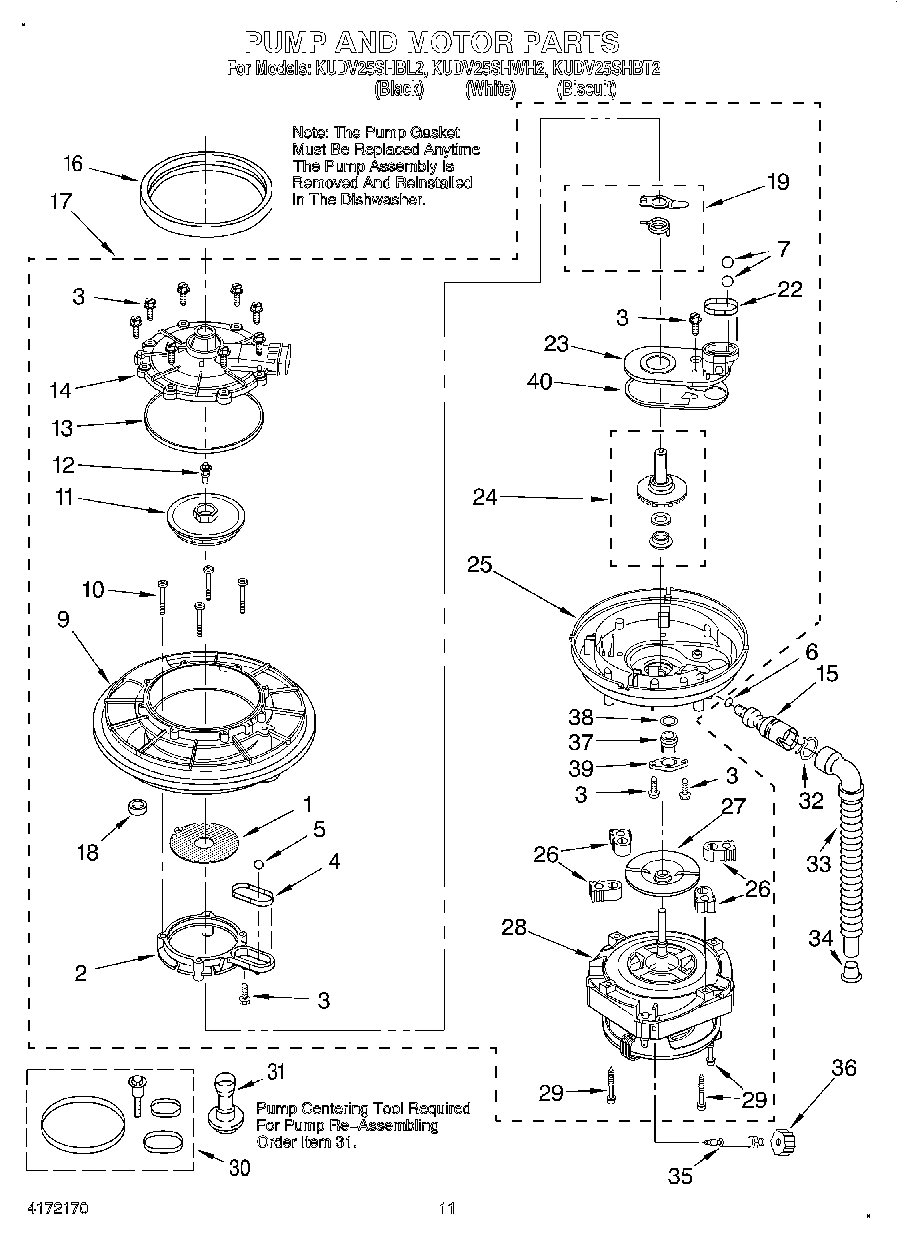

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness, Main WPL 9744027 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $50.11

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

Hose, Pressure Switch WPL 3380785 Contact Us For Availability

35

Seal, Console/Door WPL 9743806 Contact Us For Availability

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
