Model Whirlpool KUDS25SHBT0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

W10207863 Whirlpool Dishwasher Switch Backorder WPL W10207863 $33.16

1

W10757838 Whirlpool Dishwasher Electronic Con Backorder WPL W10757838 $206.22

1

Knob, Dispenser WPL 9743399 Contact Us For Availability

1

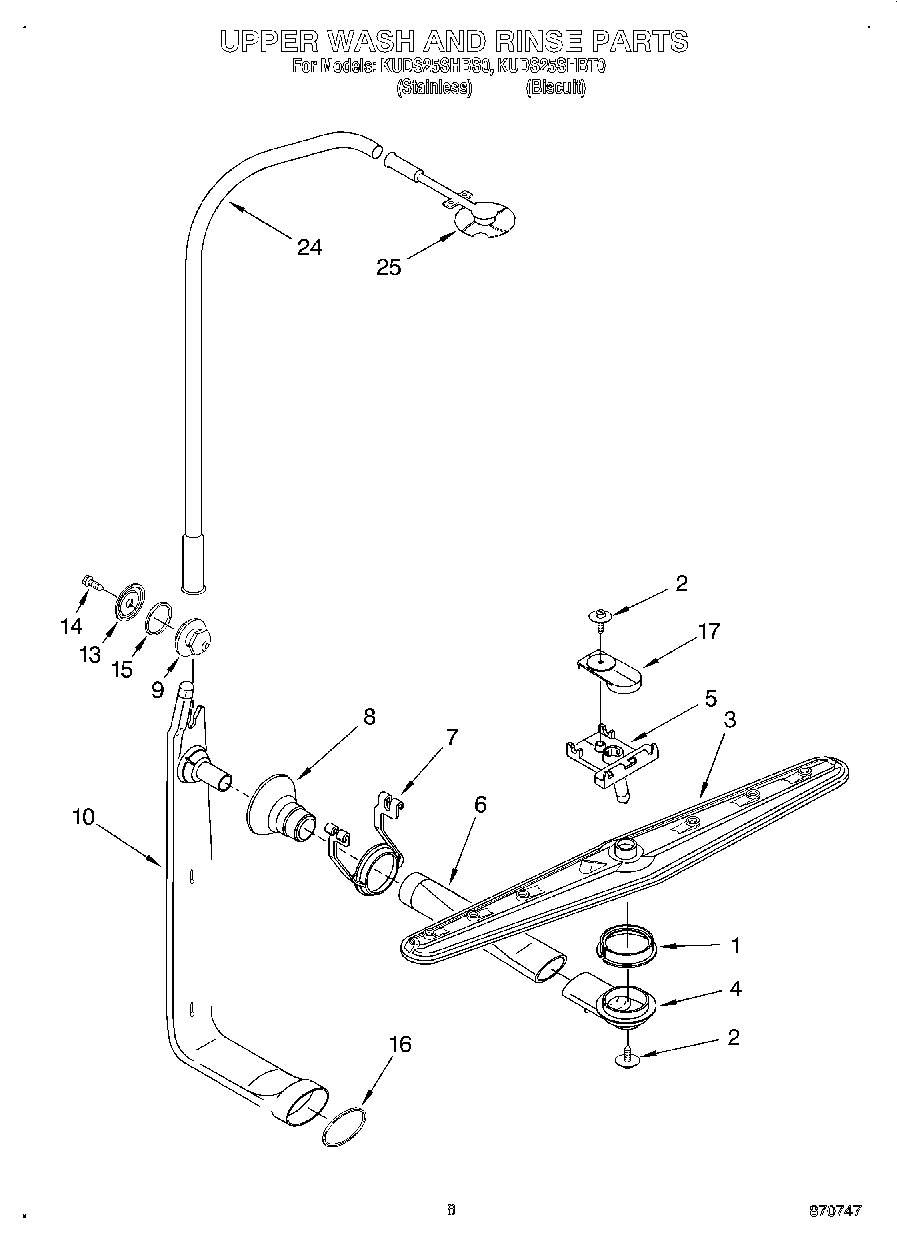

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

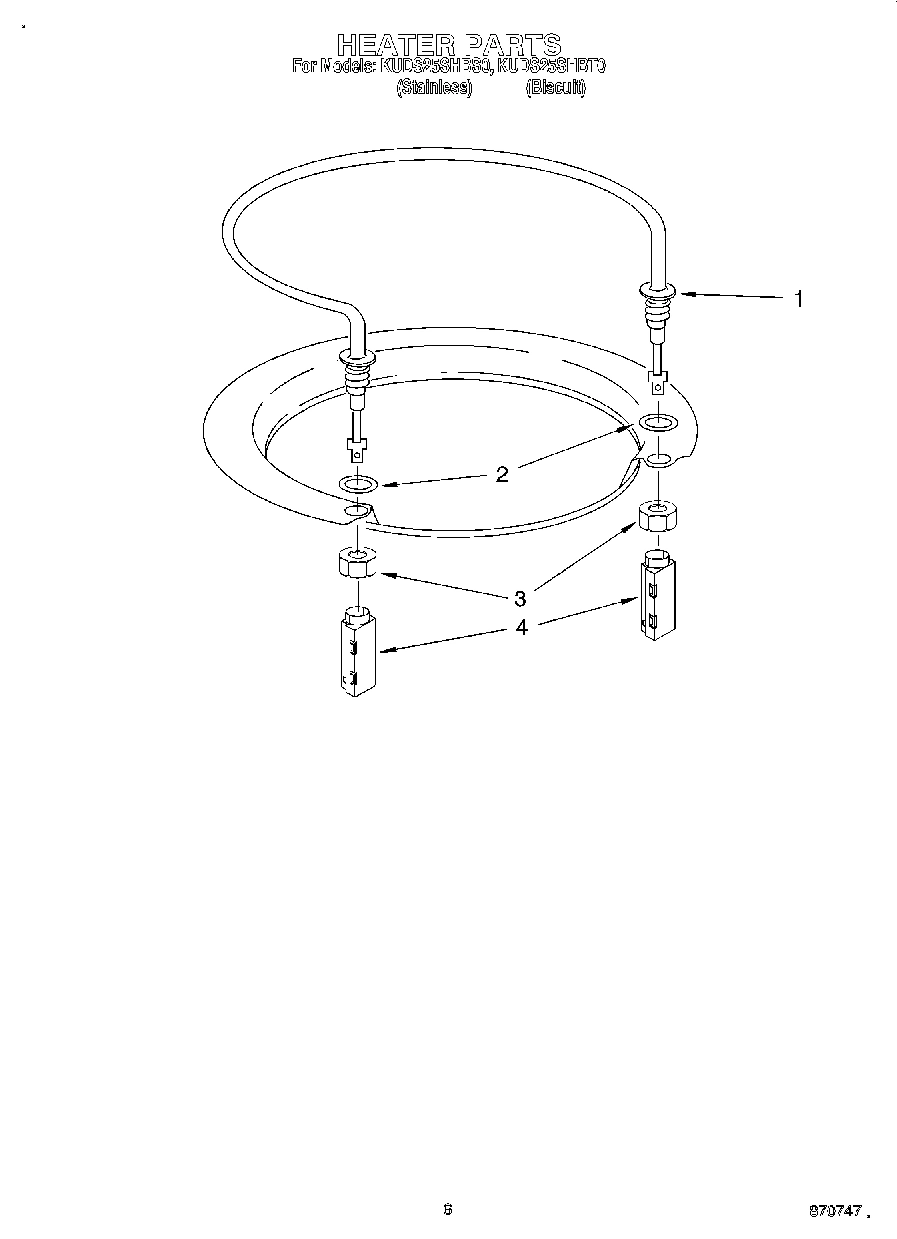

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

1

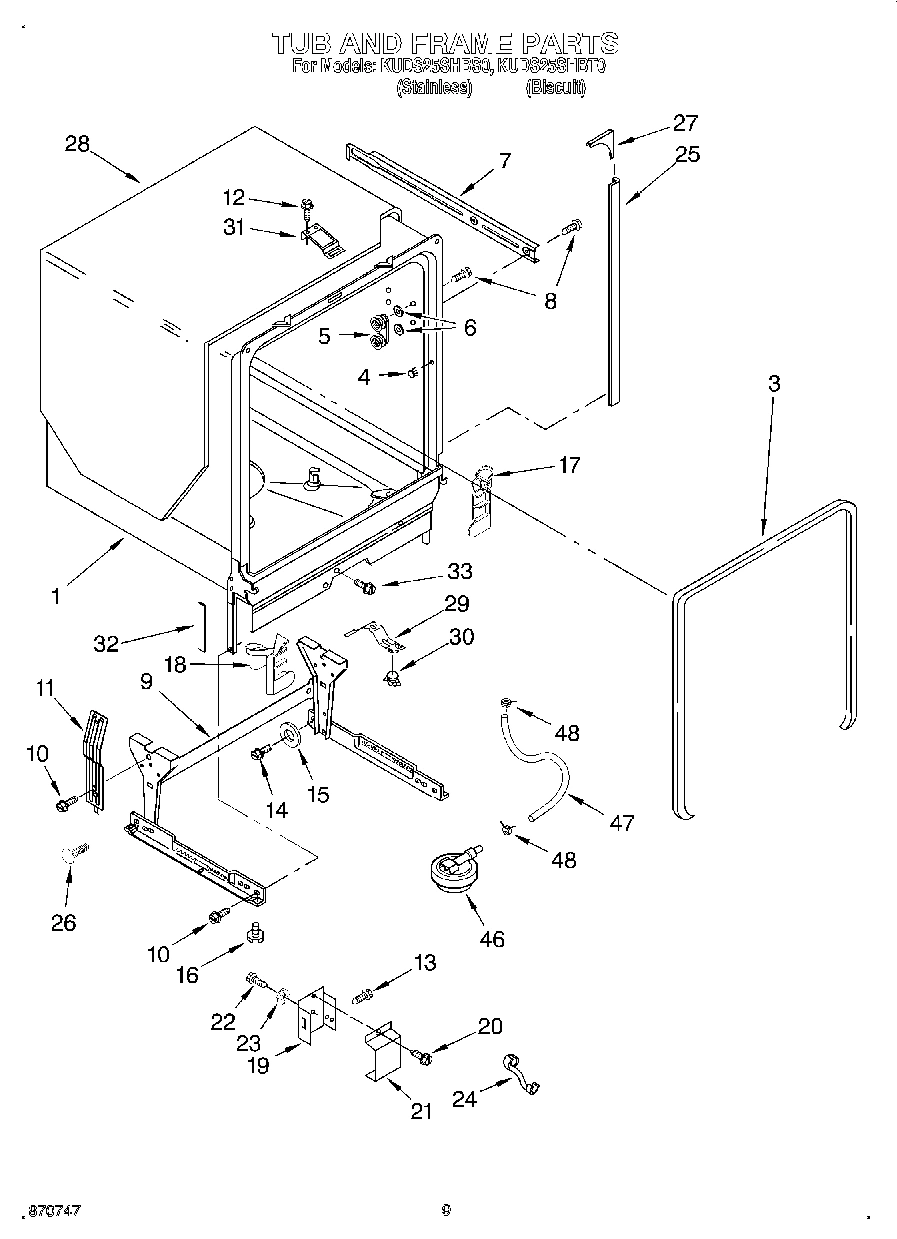

Tub Assembly WPL 9744055 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $5.44

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

Switch, Micro WPL 3369325 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

3

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

3

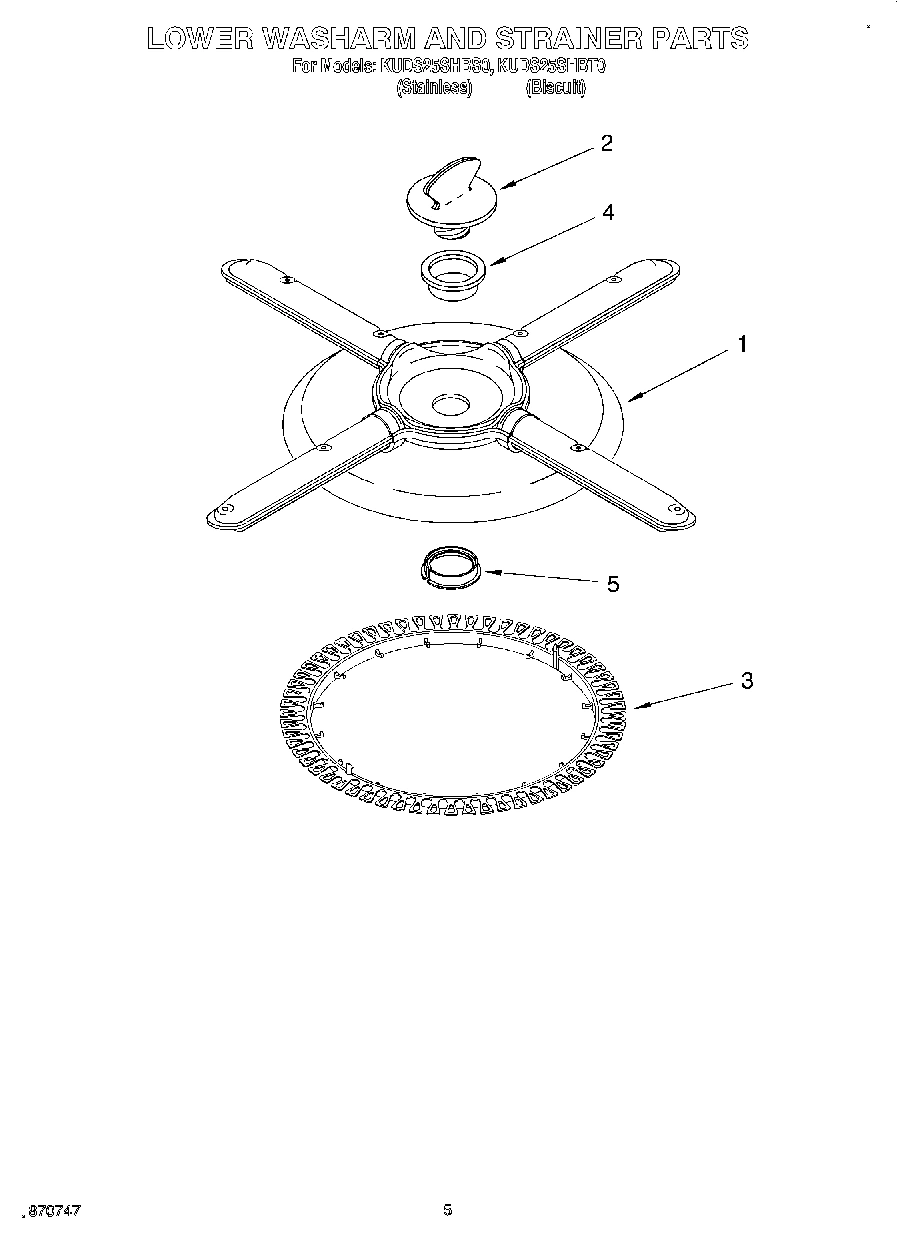

Strainer (Coarse) WPL 9742646 Contact Us For Availability

3

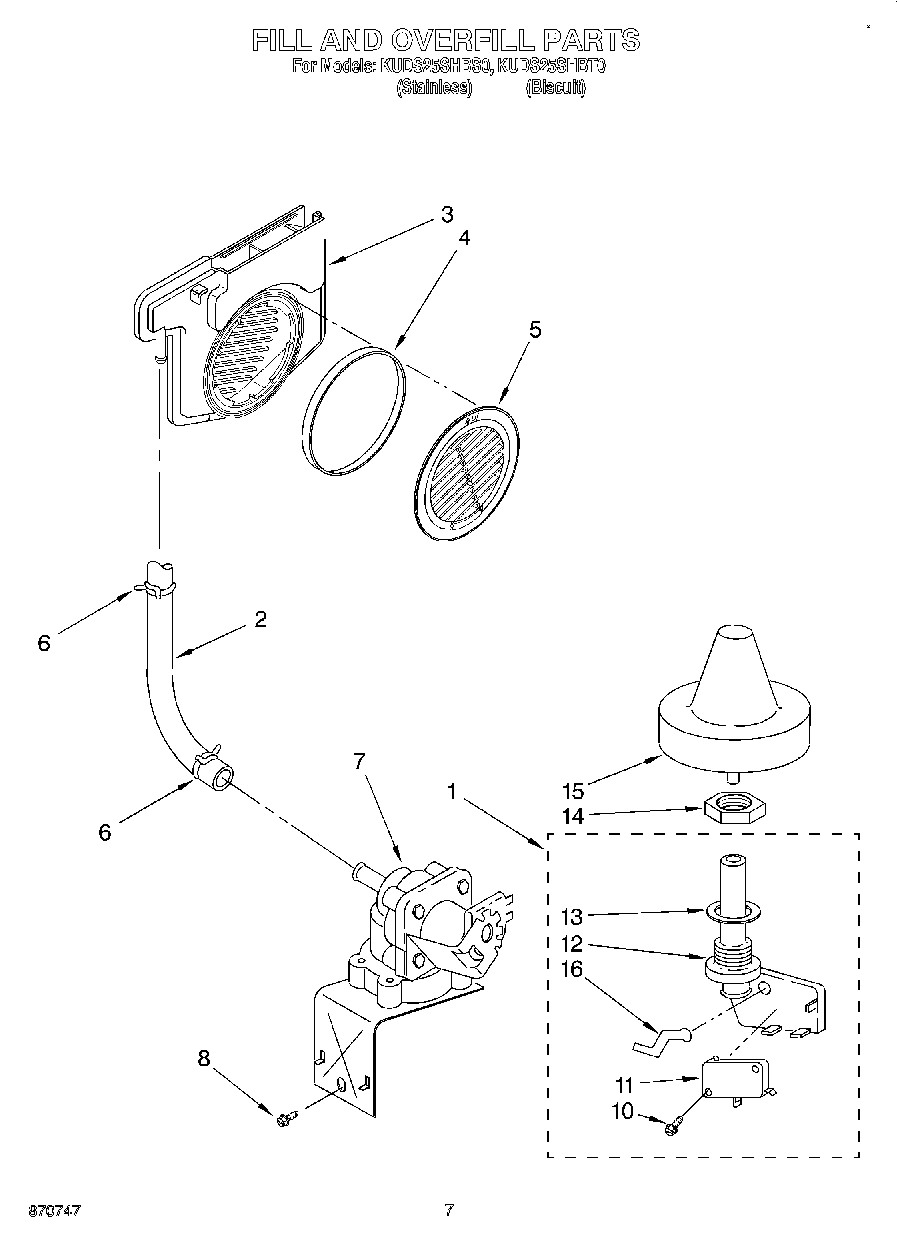

Water Inlet Assembly (Includes Items 4 & 5) WPL 9744288 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

WP9743016 Whirlpool Dishwasher Tine Pivot Backorder WPL WP9743016 $4.48

4

WP9743573 Whirlpool Dishwasher Spring Backorder WPL WP9743573 $2.51

4

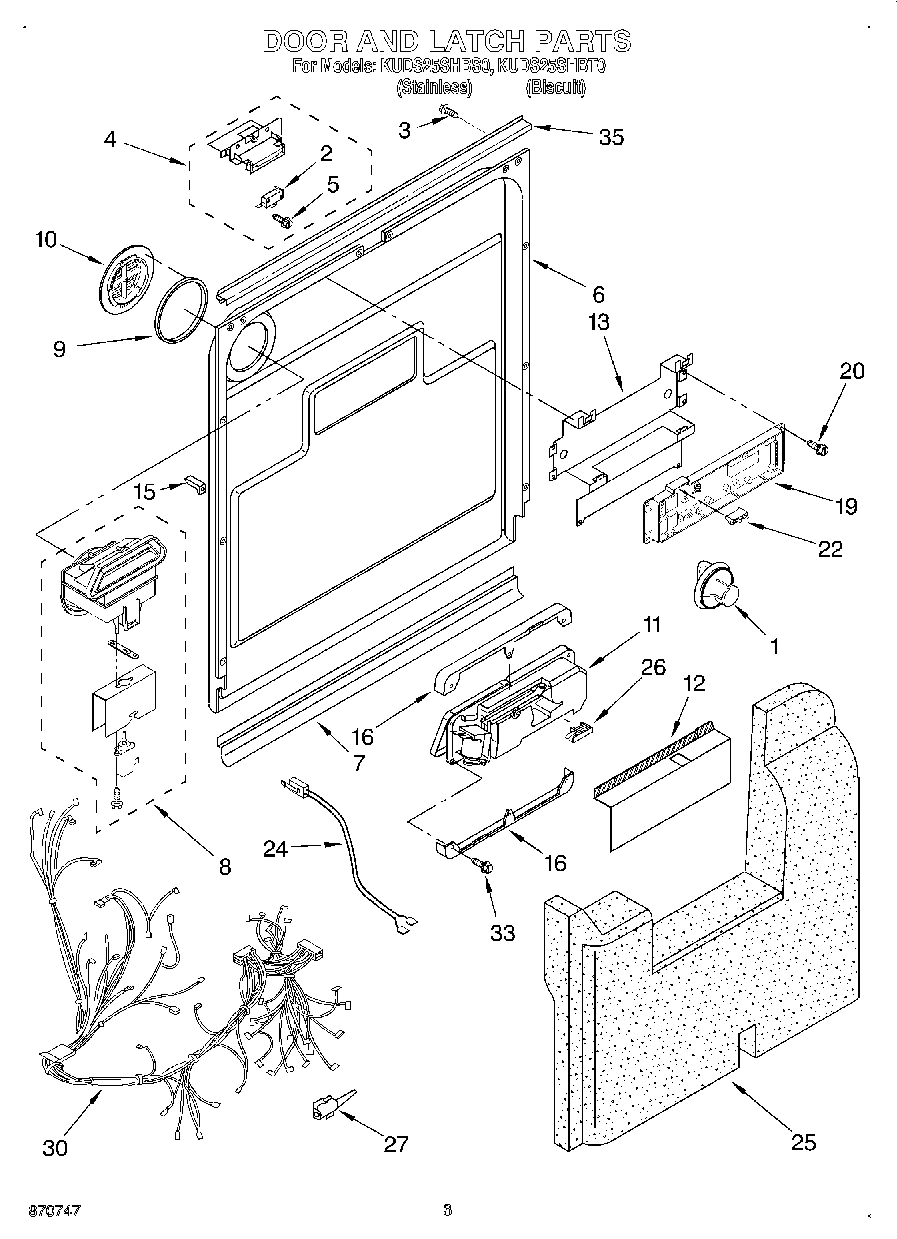

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

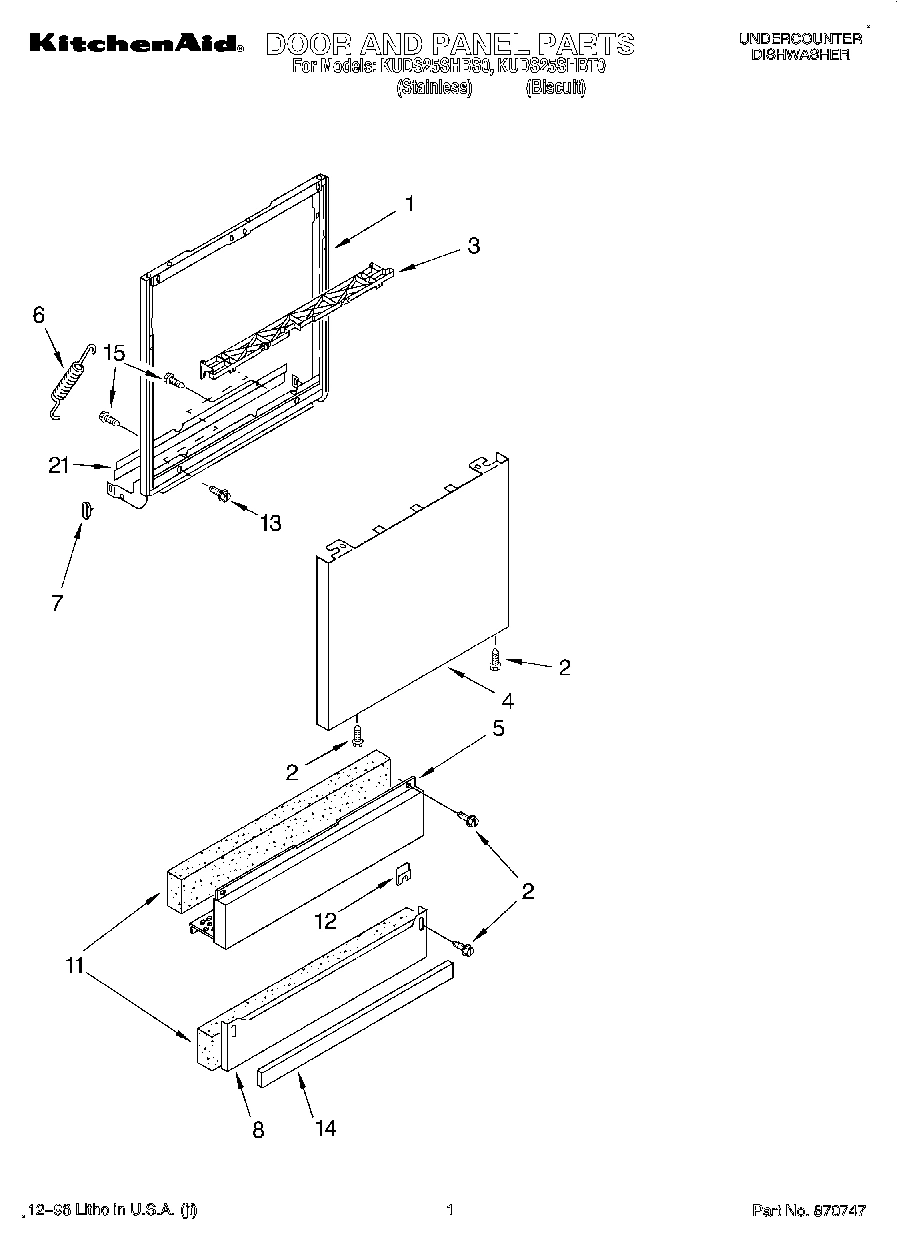

Panel Front (Biscuit Mdl.) WPL 8054178 Contact Us For Availability

4

Basket Half, Silverware WPL 9743574 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Bezel, Inlet WPL 9742786 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $9.99

6

Sponge, Vent WPL 9743412 Contact Us For Availability

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742353 Contact Us For Availability

7

W10844024 Whirlpool Water Inlet Valve In Stock WPL W10844024 $38.67

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

7

Pivot, Folddown WPL 3379955 Contact Us For Availability

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle Backorder WPL WP9743903 $50.67

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.45

Latch Lever Asm. WPL 3380655 Contact Us For Availability

Screw WPL 3400404 Contact Us For Availability

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

WP3368629 Whirlpool Dishwasher Retainer Backorder WPL WP3368629 $3.70

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $154.38

Tine Row, Upper (Multi Position) WPL 3377443 Contact Us For Availability

Connector Tub To Brace WPL 9742610 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP9741997 Whirlpool Dishwasher Standpipe Backorder WPL WP9741997 $26.75

Clip, Grounding WPL 3378123 Contact Us For Availability

Shield, Dispenser WPL 9743450 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

Bracket, Controls WPL 9742623 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

Seal, Toe Panel WPL 9744140 Contact Us For Availability

Screw (2) WPL 3370389 Contact Us For Availability

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Guide, Door WPL 9743487 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $26.44

19

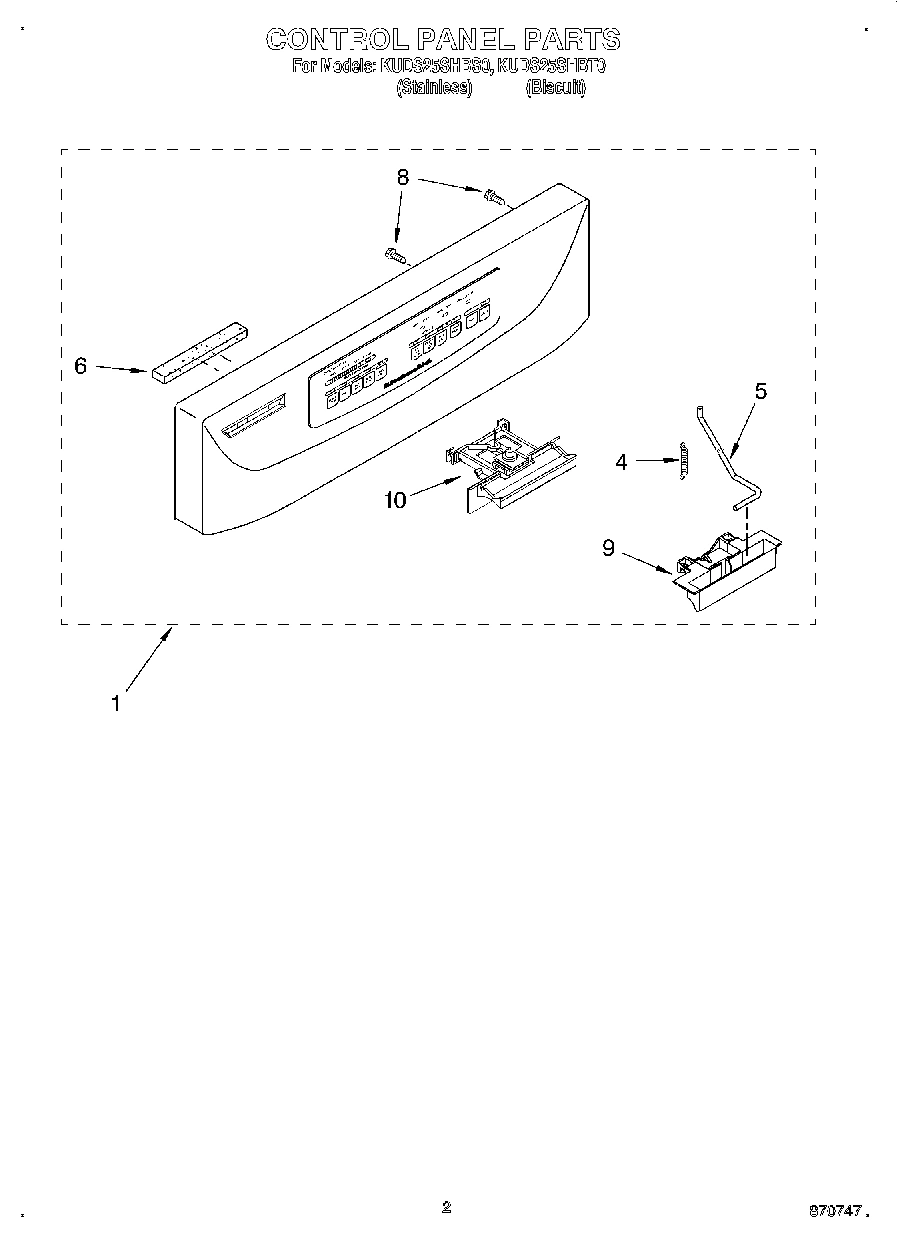

Control, Electronic WPL 9744031 Contact Us For Availability

19

Terminal Box WPL 3378131 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

20

Screw WPL 3369138 Contact Us For Availability

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

21

Barrier, Lower vent WPL 8054188 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

24

Tube (3rd Level) WPL 9743958 Contact Us For Availability

24

Dispenser, Wiring Harness WPL 9743154 Contact Us For Availability

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

WP3379369 Whirlpool Dishwasher Wash Assembly Backorder WPL WP3379369 $28.80

25

Sound Absorber WPL 9742397 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

26

Sensor, Rinse Aid WPL 9742852 Contact Us For Availability

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

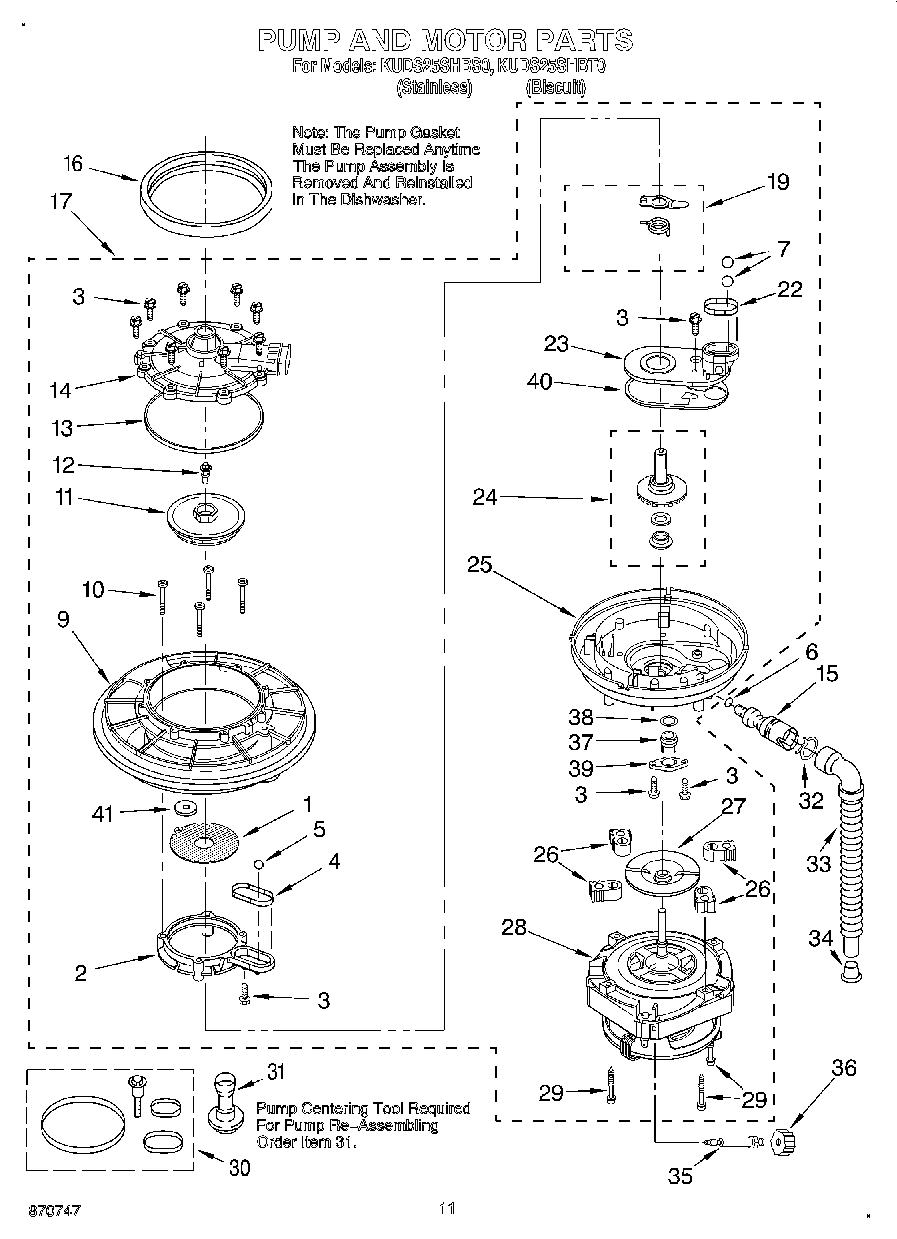

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness, Main WPL 9744027 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

Pad, Friction WPL 3379938 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

Seal, Console/Door WPL 9743806 Contact Us For Availability

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

46

Switch, Pressure WPL 3380871 Contact Us For Availability

47

Hose, Pressure Switch WPL 3380785 Contact Us For Availability

48

Clamp, Hose (2) WPL 3380943 Contact Us For Availability
