Model Whirlpool KUDS03FSBT4 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

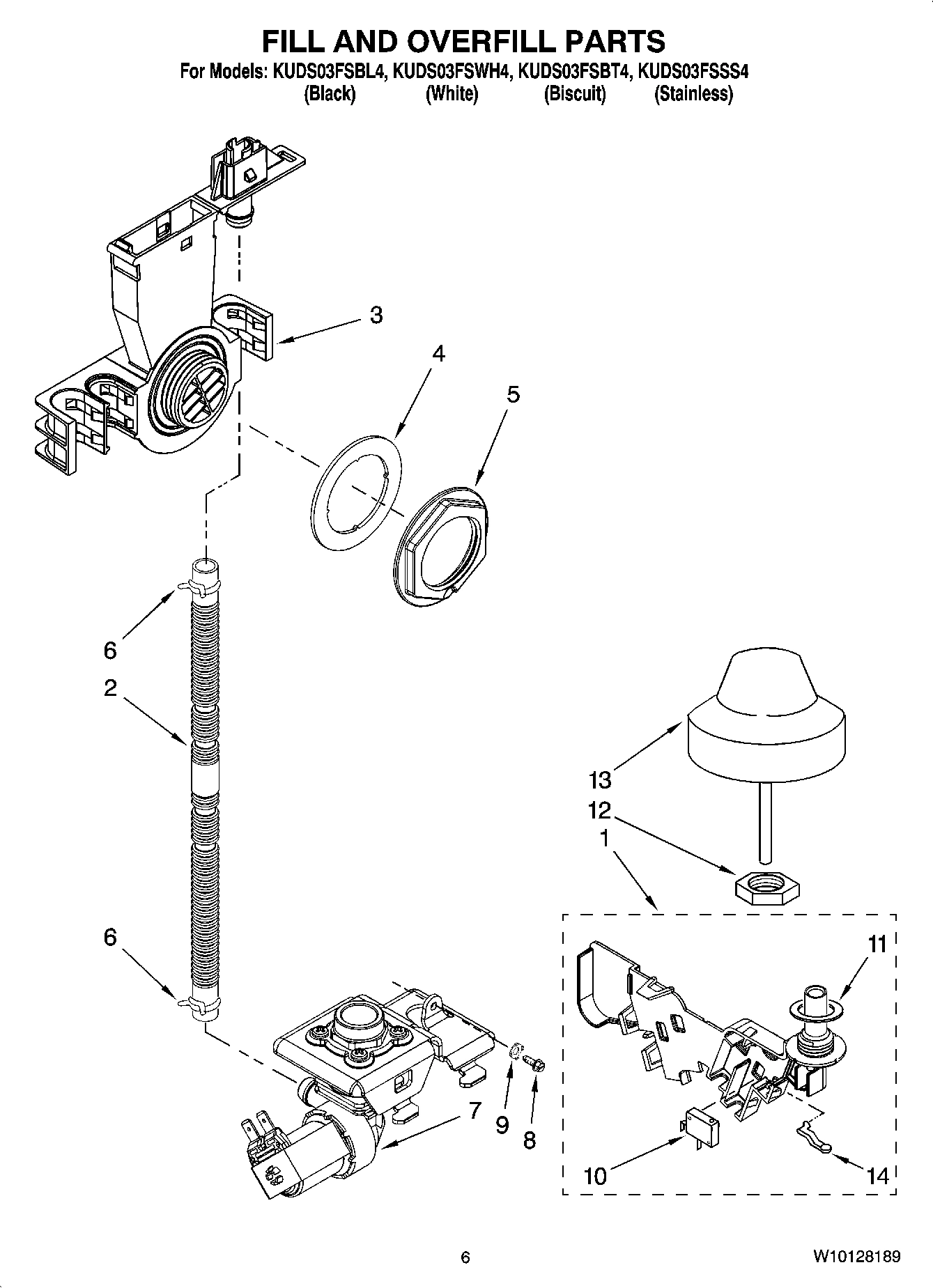

06 - FILL AND OVERFILL PARTS

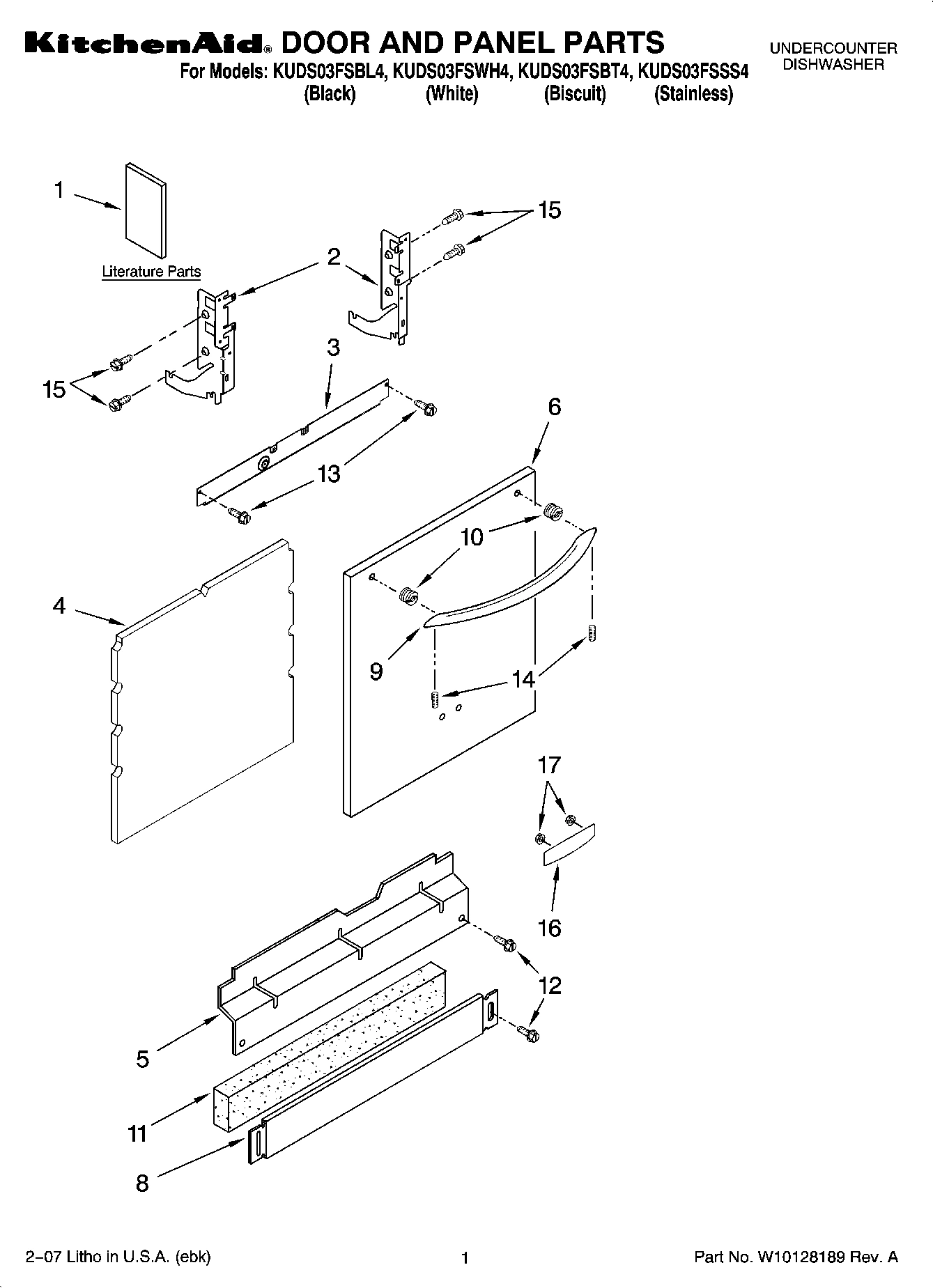

01 - DOOR AND PANEL PARTS
09 - UPPER RACK AND TRACK PARTS
10 - THIRD LEVEL RACK AND TRACK PARTS
04 - LOWER WASHARM AND STRAINER PARTS
11 - UPPER WASH AND RINSE PARTS
07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS
02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS
05 - HEATER PARTS
12 - LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KUDS03FSBT4 UNDERCOUNTER DISHWASHER
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
POWER CORD KIT (INCLUDES POWER CORD & MISC. H WPL 4317824 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Moisture Barrier Kit (Kit) WPL 4396277 Contact Us For Availability
Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability
Side Panel Kits (White) WPL 8171656 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Side Panel Kits (Black) WPL 8171657 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
VINYL TOUCH-UP (4OZ.) (SILVER ATLANTIS) WPL 4396853 Contact Us For Availability
Side Panel Kits (Biscuit) WPL 8171658 Contact Us For Availability
Towel Bar Handle Kit (Stai WPL 8573938 Contact Us For Availability
WPL ARI115725A WPL ARI115725A Contact Us For Availability
WPL ARI115726A WPL ARI115726A Contact Us For Availability
WPL ARI115727A WPL ARI115727A Contact Us For Availability
1
Console Assembly (Includes Insert) (Black) WPL W10083992 Contact Us For Availability
1
Console Assembly (Includes Insert) (White) WPL W10083993 Contact Us For Availability
1
Console Assembly (Includes Insert) (Stainless WPL W10083994 Contact Us For Availability
1
Console Assembly (Includes Insert) (Biscuit) WPL W10084000 Contact Us For Availability
2
Lid, Basket Silverware (Left Side) WPL 8519695 Contact Us For Availability
3
Clip, BI-Metal WPL 8546546 Contact Us For Availability
3
Screw WPL 3400069 Contact Us For Availability
3
Inner Door Mastic Assembly (Also Order Item 6 WPL 8530900 Contact Us For Availability
4
Cover, Screw WPL 3400920 Contact Us For Availability
5
Retainer, Spring Grip WPL 3400931 Contact Us For Availability
5
NOTE: If heater element is removed, it must b WPL ARI115724A Contact Us For Availability
6
Insert, Large WPL W10086370 Contact Us For Availability
7
BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability
7
Screw WPL 8281156 Contact Us For Availability
8
BASKET, UTENSIL WPL 8519702 Contact Us For Availability
10
Harness, Vent Motor WPL 8545608 Contact Us For Availability
11
Clip, Insert Tines WPL 8539148 Contact Us For Availability
12
Screen, Separation WPL 8268391 Contact Us For Availability
12
Valve Assembly, Manifold WPL 8575244 Contact Us For Availability
12
Wiring Harness WPL W10083745 Contact Us For Availability
16
Positioner, Arm WPL 8268738 Contact Us For Availability
16
Nameplate (Stainless) WPL W10021850 Contact Us For Availability
16
Nut WPL 8533949 Contact Us For Availability
19
Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability
20
Stop, Track (Left) WPL 8573953 Contact Us For Availability
25
Clip, Cupshelf WPL 8562026 Contact Us For Availability
29
BRACKET, THERMOSTAT WPL 9742648 Contact Us For Availability
× ![]()
