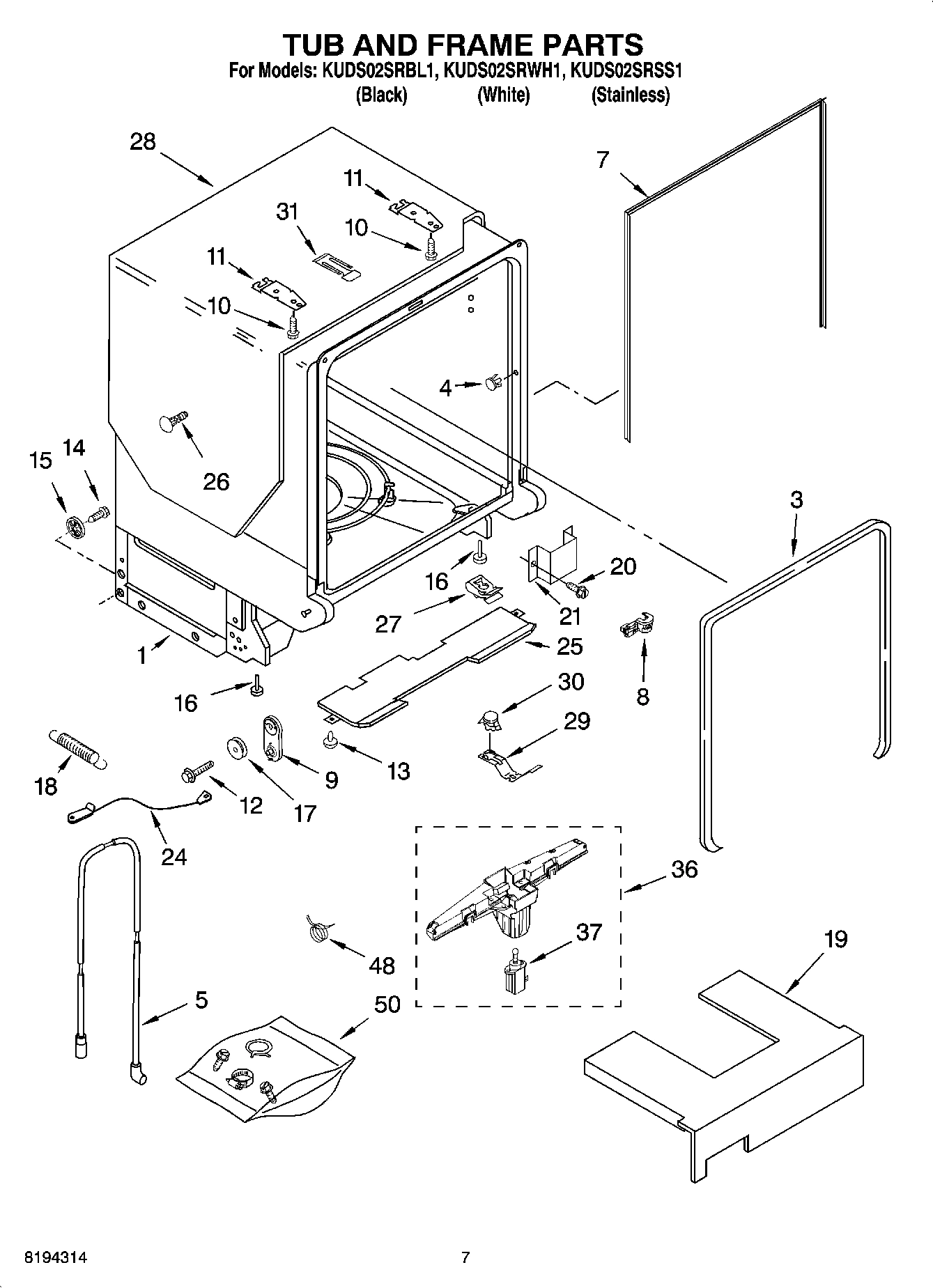

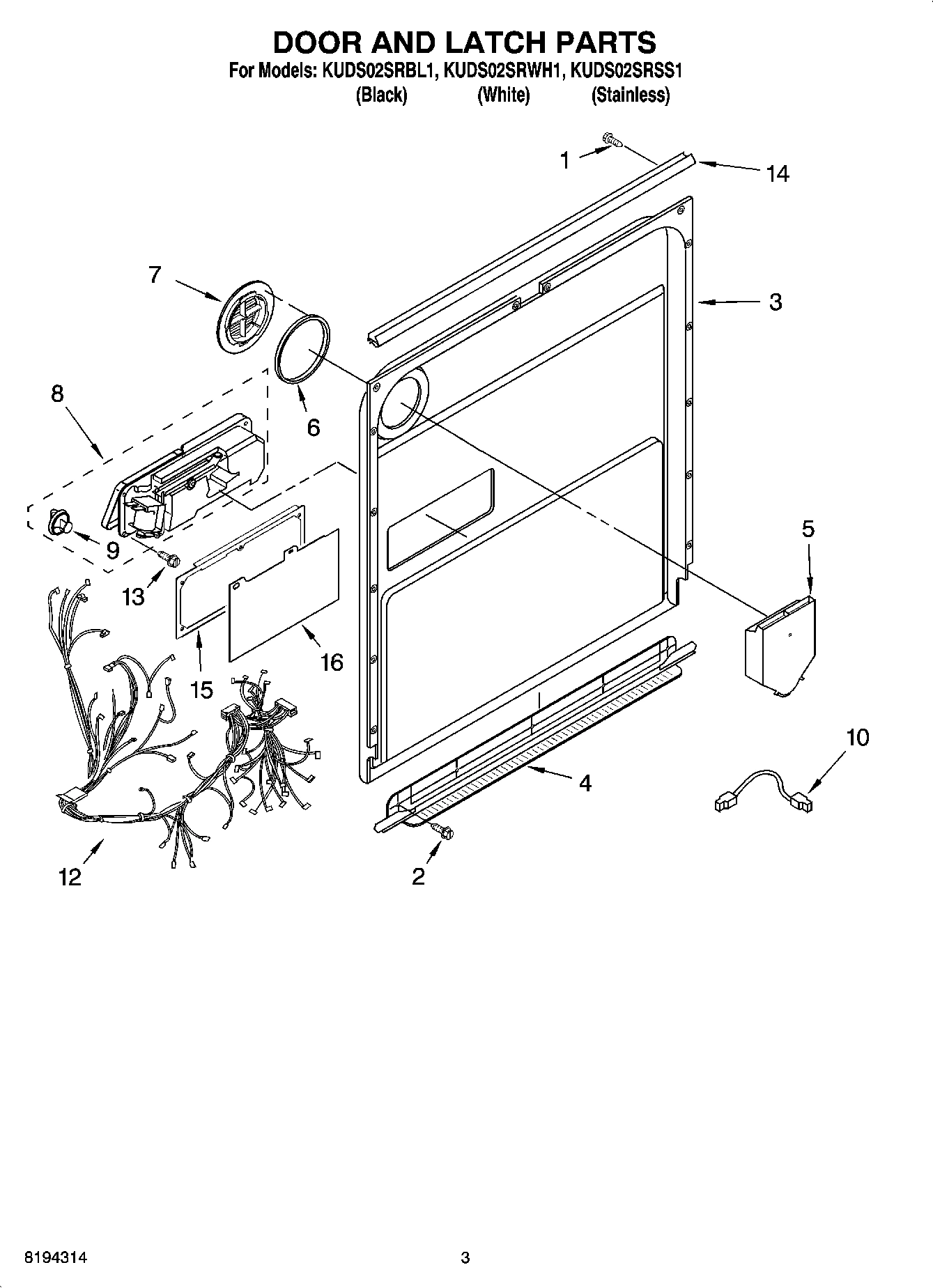

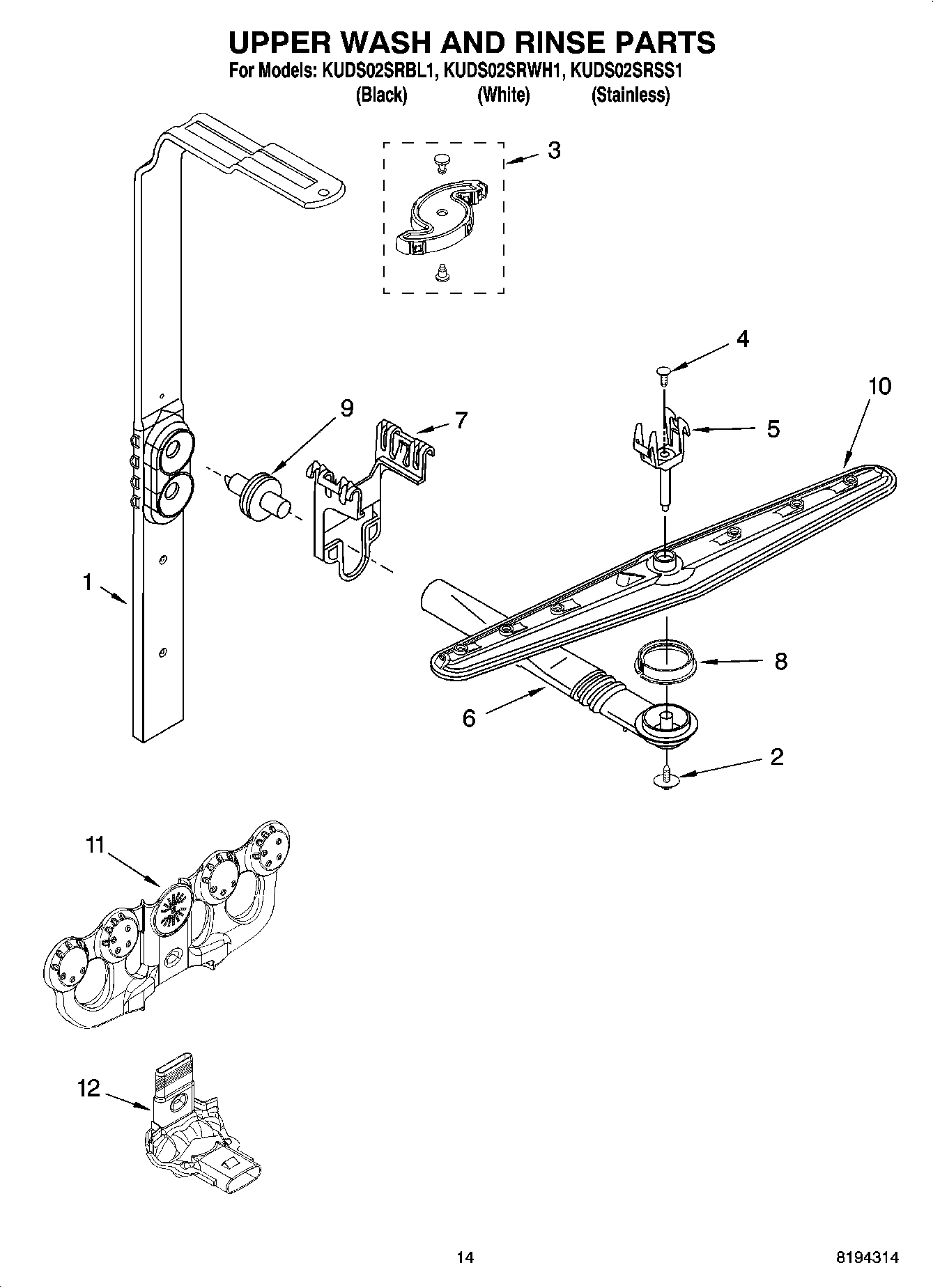

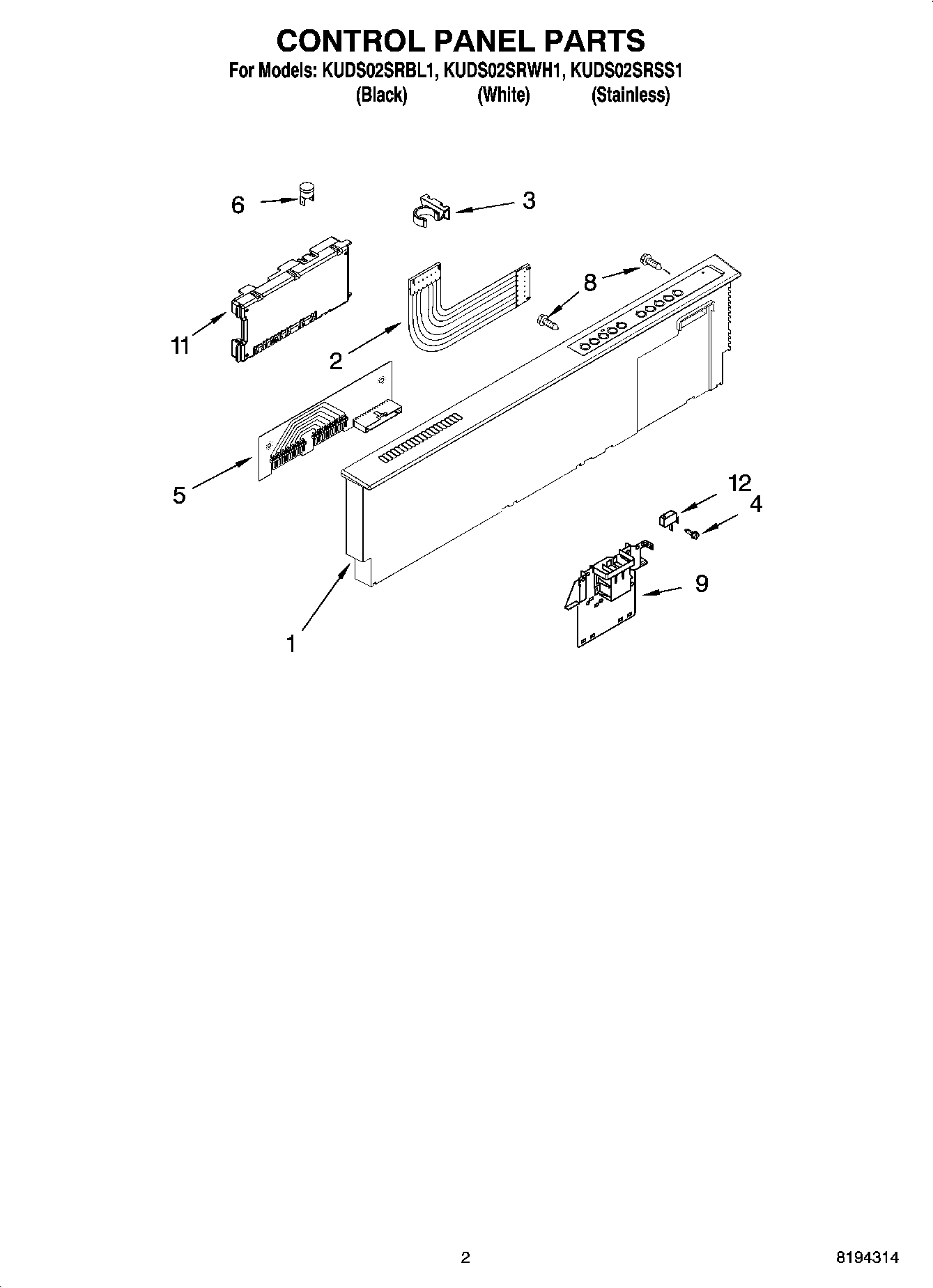

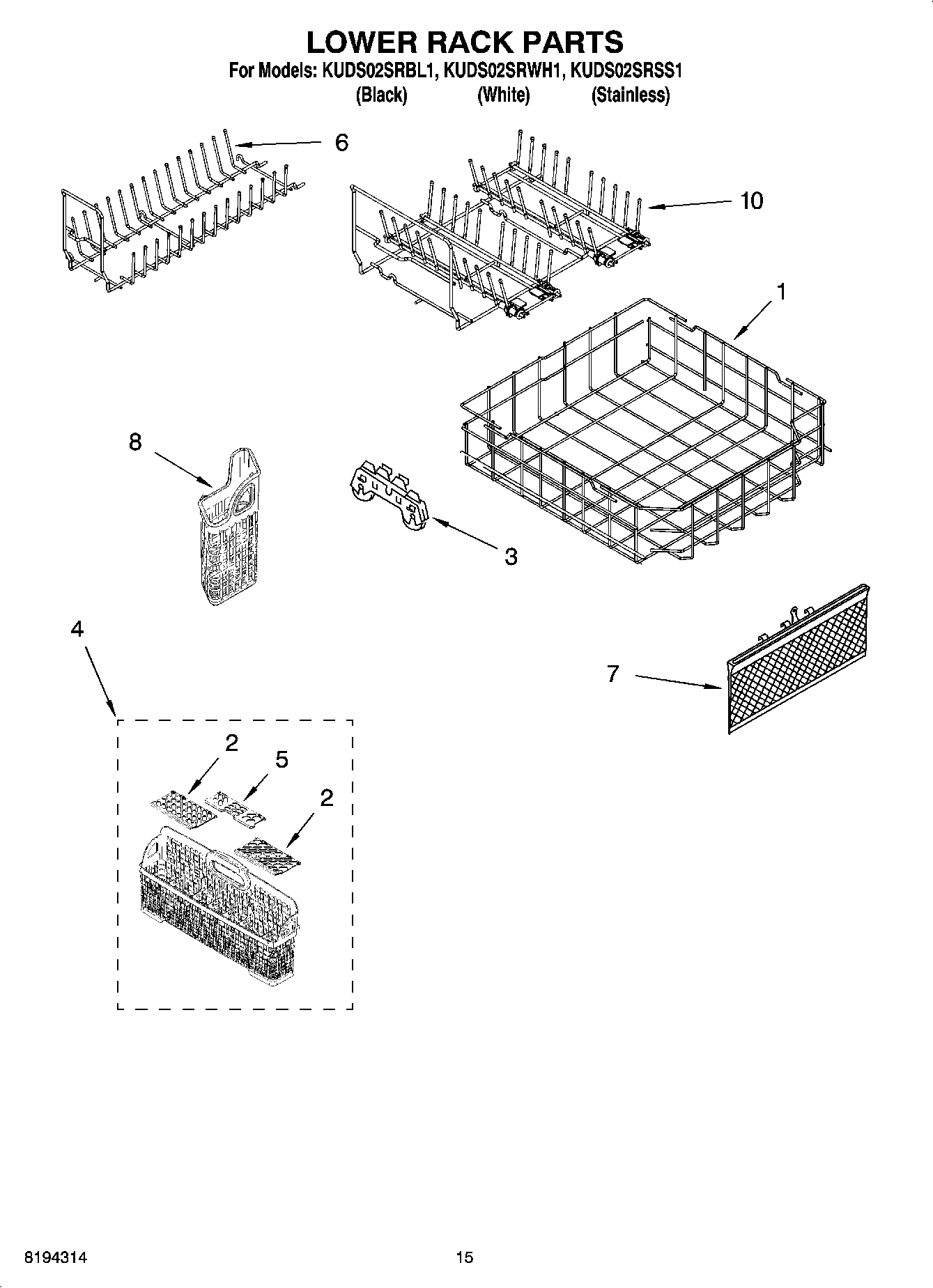

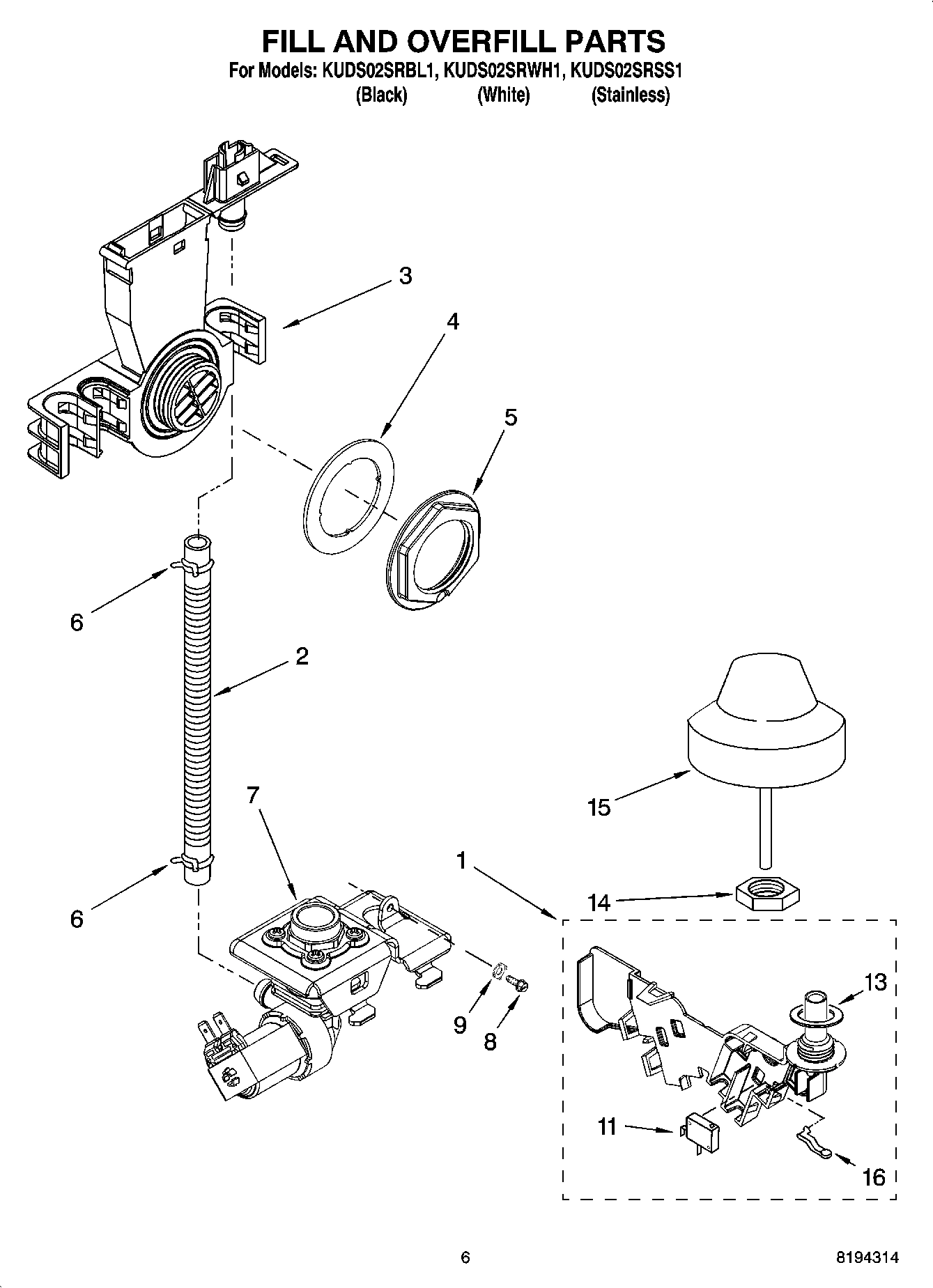

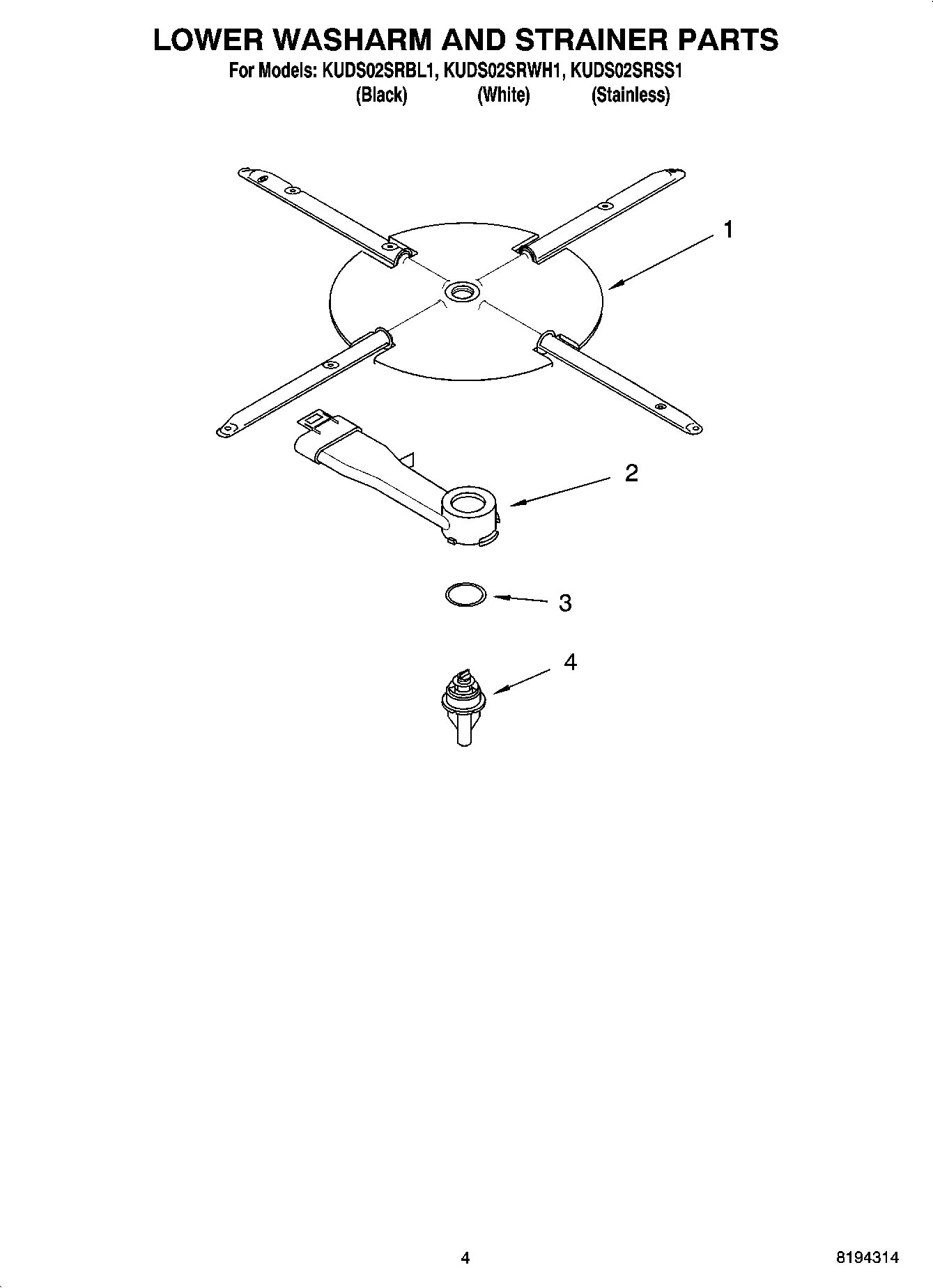

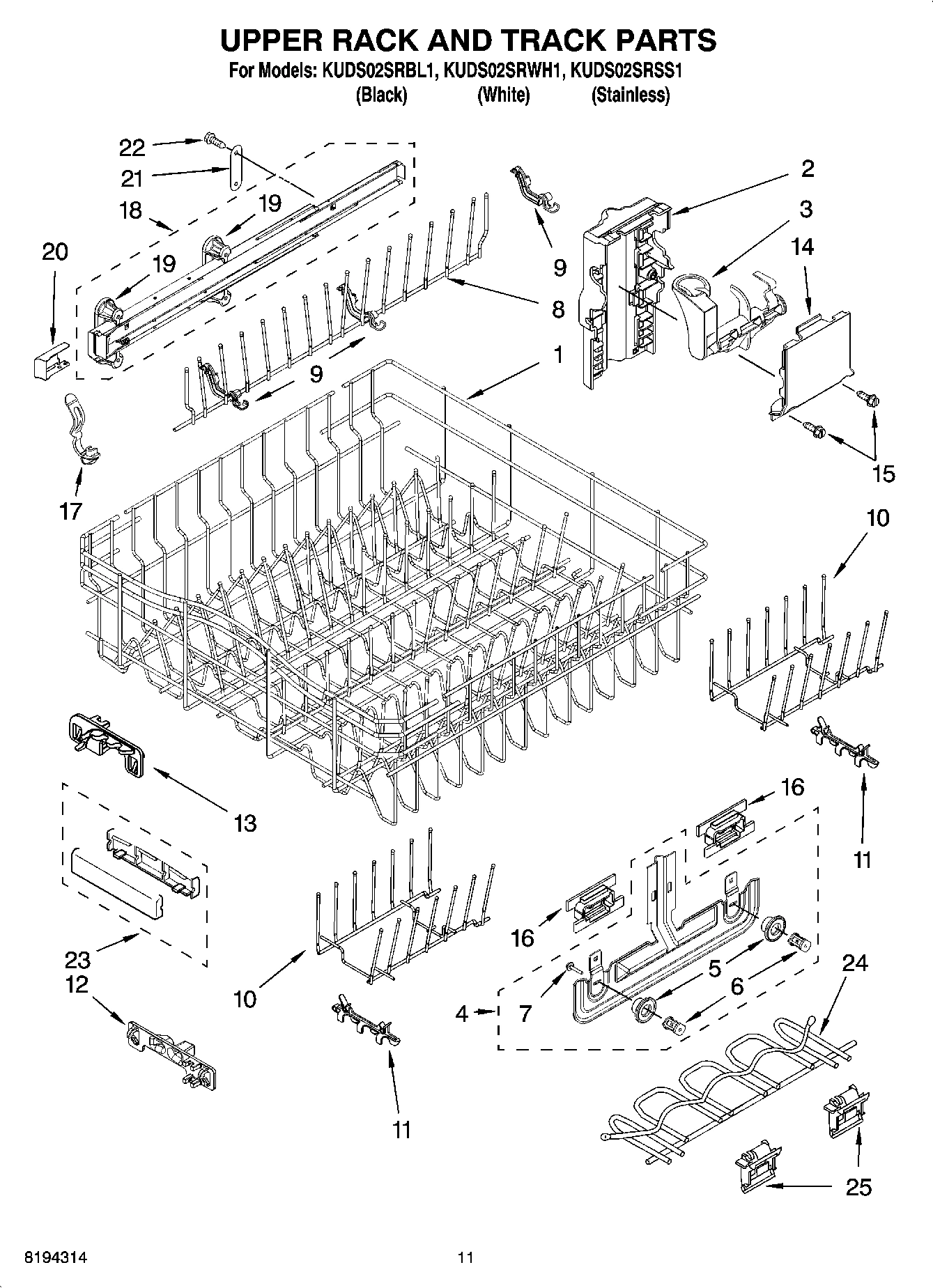

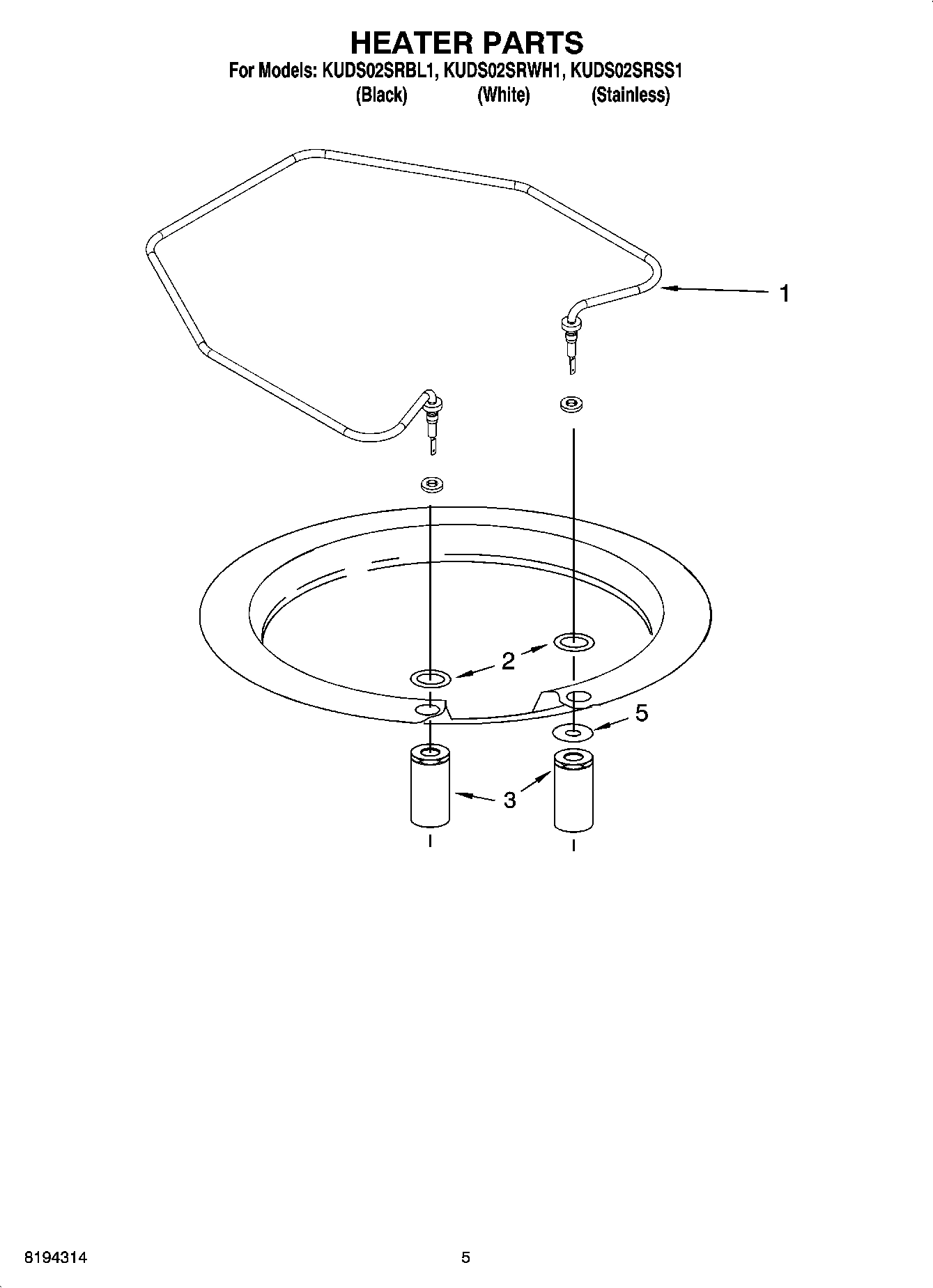

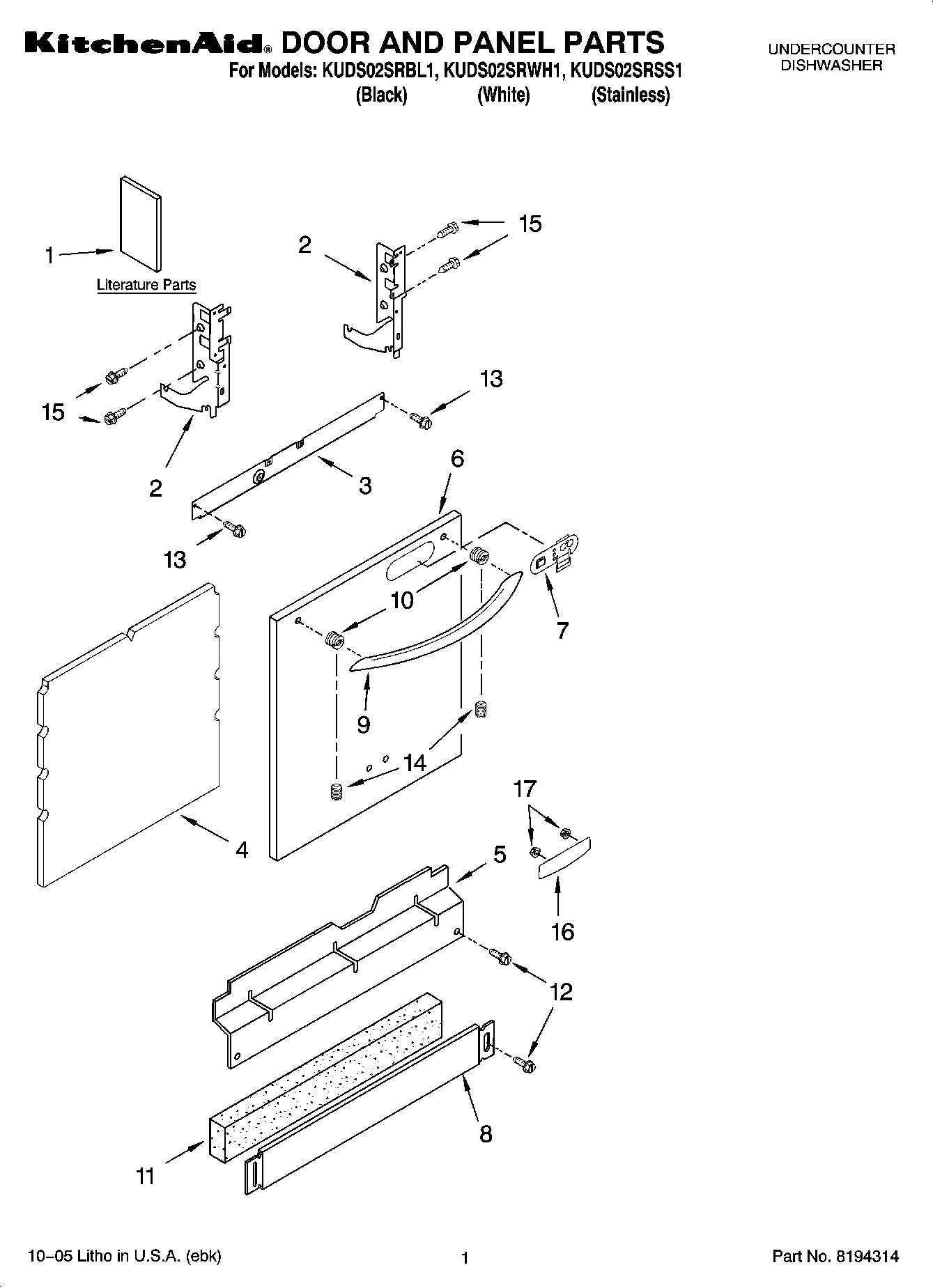

Model Whirlpool KUDS02SRBL1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $13.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $16.47

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WPL 8171659 WPL 8171659 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (WHITE) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

ACCESSORIES, SID WPL 8171657 Contact Us For Availability

1

W10728863 Whirlpool Dishwasher Upper Dishrack Backorder WPL W10728863 $161.95

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $30.89

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $33.75

2

CABLE-RIBBON WPL 8531877 Contact Us For Availability

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.64

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $31.42

3

WP8564899 Whirlpool Dishwasher Mount Assembly In Stock WPL WP8564899 $53.73

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Clip, BI-Metal WPL 8546546 Contact Us For Availability

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $50.88

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $28.09

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $118.74

4

Cover, Screw WPL 3400920 Contact Us For Availability

5

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $30.91

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8270138 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8270138 $4.56

5

WP8531873 Whirlpool Dishwasher Control Board In Stock WPL WP8531873 $75.22

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $90.84

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8268703 Whirlpool Dishwasher Rack Axle In Stock WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

Panel, Full Front (Includes Items 16 & 17) (B WPL 8572324 Contact Us For Availability

6

Panel, Full Front (Includes Items 16 & 17) (W WPL 8572325 Contact Us For Availability

6

Panel, Full Front (Includes Items 16 & 17) (S WPL 8572327 Contact Us For Availability

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $32.39

7

BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability

7

Screw WPL 8281156 Contact Us For Availability

7

Overlay (Black) WPL 8572211 Contact Us For Availability

7

Overlay (White) WPL 8572212 Contact Us For Availability

7

Overlay (Stainless) WPL 8572214 Contact Us For Availability

8

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

8

W11763736 Whirlpool Access Panel In Stock WPL W11763736 $16.98

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

8

WPW10586591 Whirlpool Dishwasher Toe Panel Backorder WPL WPW10586591 $131.08

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

W10083931A Whirlpool Dishwasher Stainless Ste Backorder WPL W10083931A $35.87

9

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

9

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $29.10

9

WP8564929 Whirlpool Rinse Aid Cap In Stock WPL WP8564929 $13.76

9

Handle (Black) WPL 8564946 Contact Us For Availability

9

Handle (White) WPL 8564947 Contact Us For Availability

10

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

10

Harness, Vent Motor WPL 8545608 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

W10831329 Whirlpool Dishwasher Shield In Stock WPL W10831329 $16.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $30.27

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.53

Clip, Insert Tines WPL 8539148 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.39

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.75

WP8539102 Whirlpool Dishwasher Positioner Backorder WPL WP8539102 $43.02

Wiring Harness WPL 8574060 Contact Us For Availability

Valve Assembly, Manifold WPL 8575244 Contact Us For Availability

13

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

14

WP8534008 Whirlpool Screw In Stock WPL WP8534008 $2.40

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $58.90

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $44.65

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

Positioner, Arm WPL 8268738 Contact Us For Availability

Nameplate (Black) WPL 2005292 Contact Us For Availability

Nameplate (White) WPL 2209118W Contact Us For Availability

17

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $33.45

18

WP8270182 Whirlpool Door Spring Assembly In Stock WPL WP8270182 $15.87

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.55

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8573954 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573954 $3.70

20

Stop, Track (Left) WPL 8573953 Contact Us For Availability

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

24

W11125975 Whirlpool Dishwasher Cup Shelf Backorder WPL W11125975 $42.16

25

8562026 Whirlpool Dishwasher Clip In Stock WPL 8562026 $35.41

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

36

Actuator Assembly WPL 8559845 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
