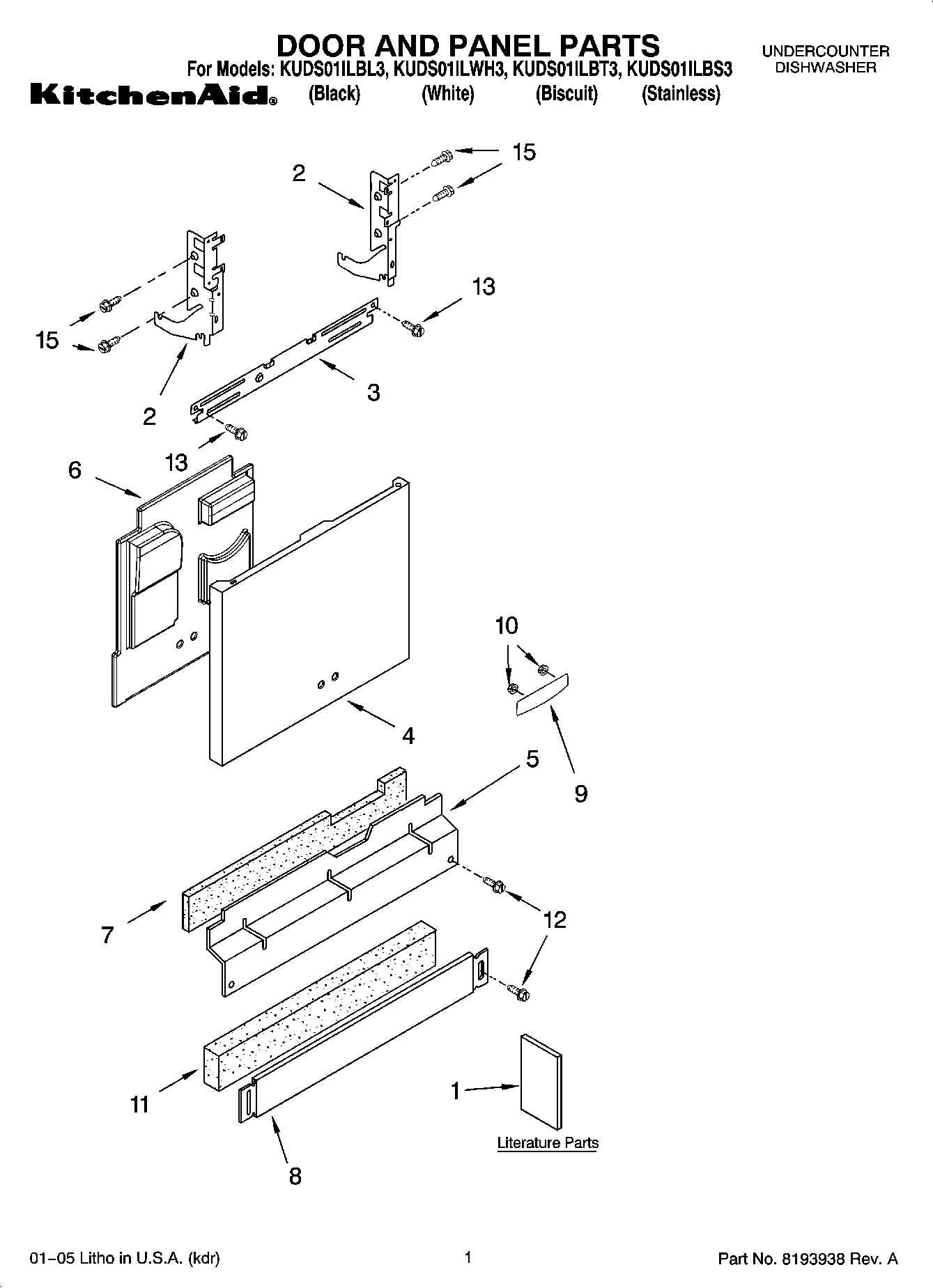

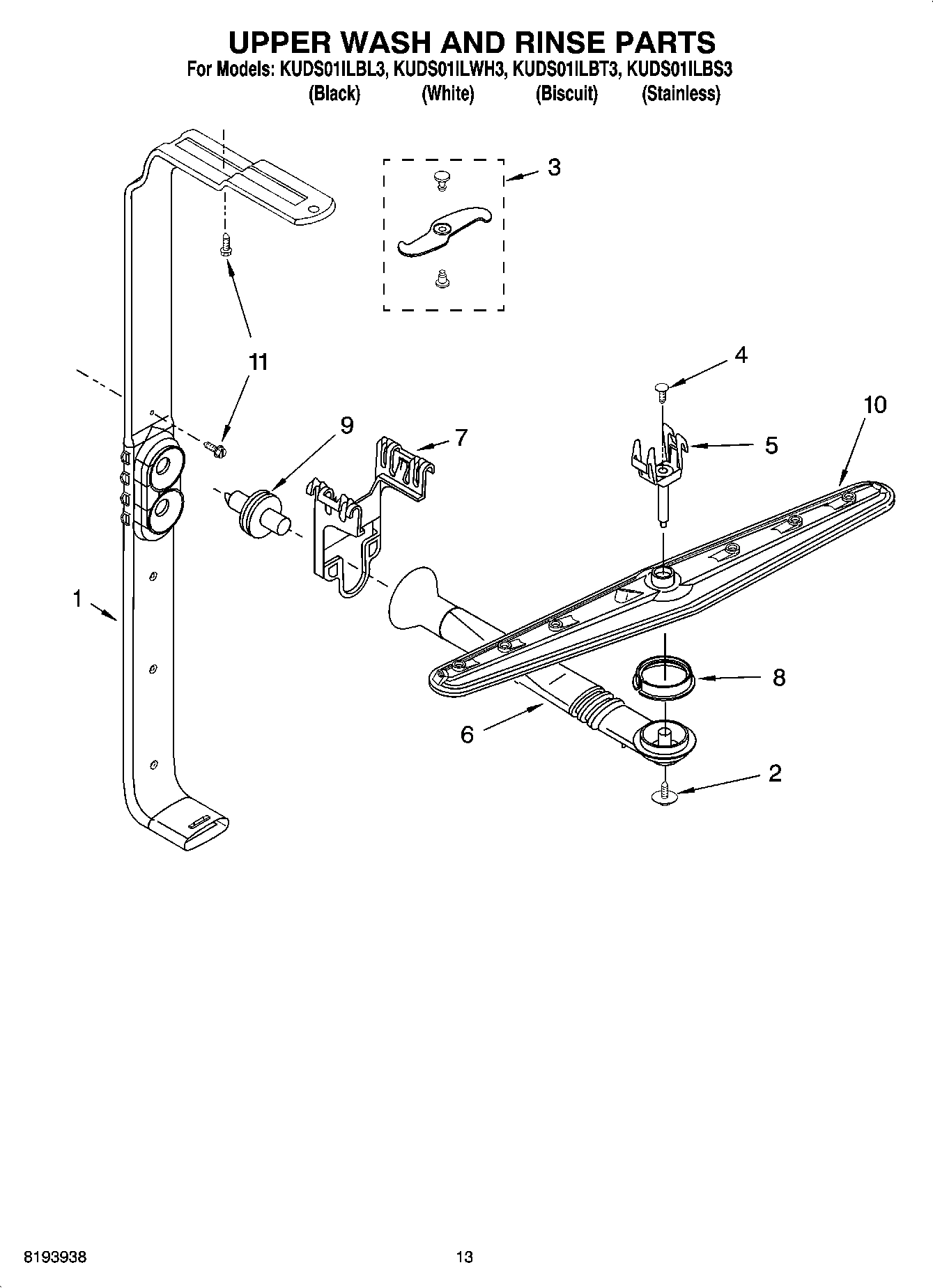

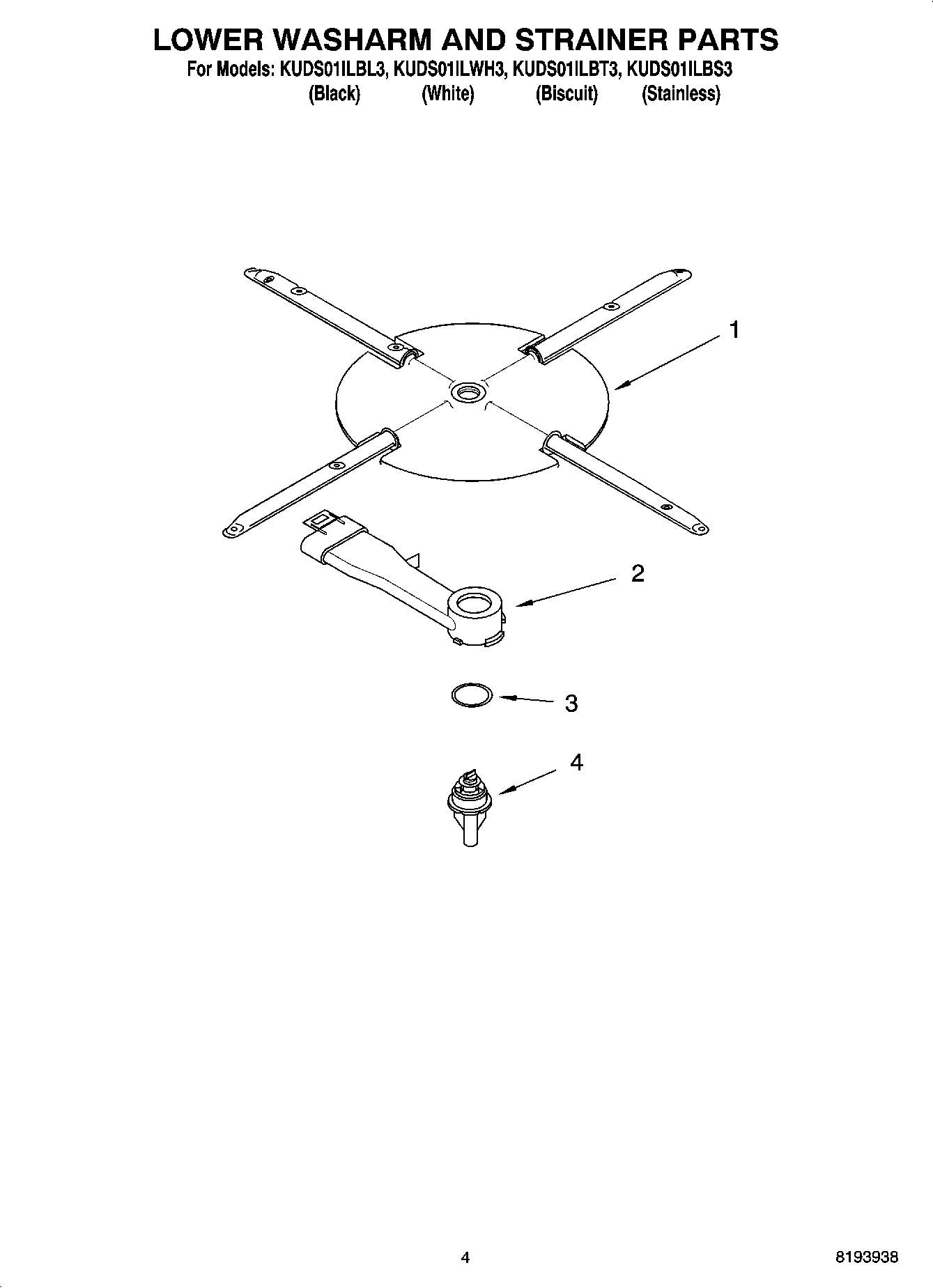

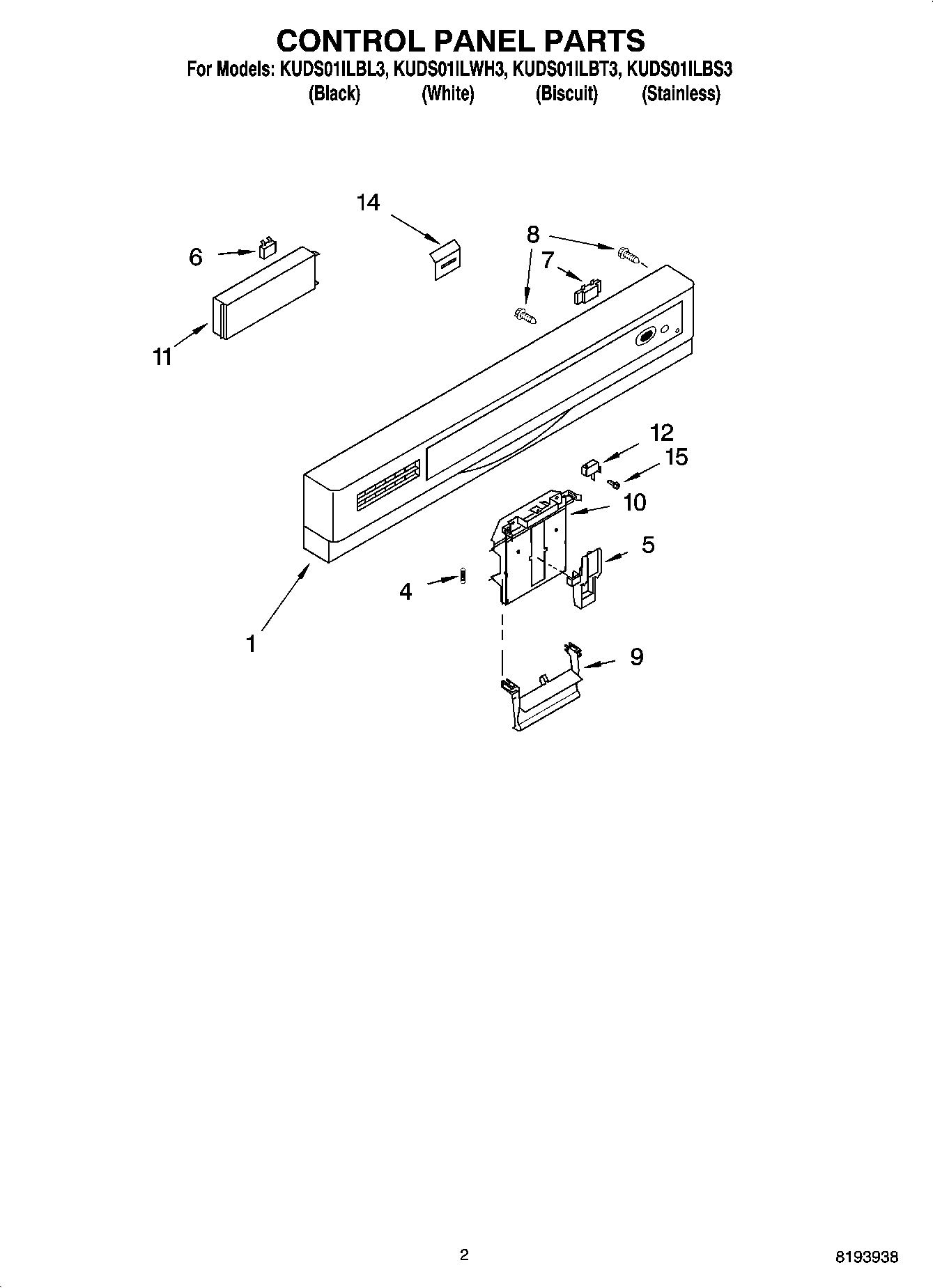

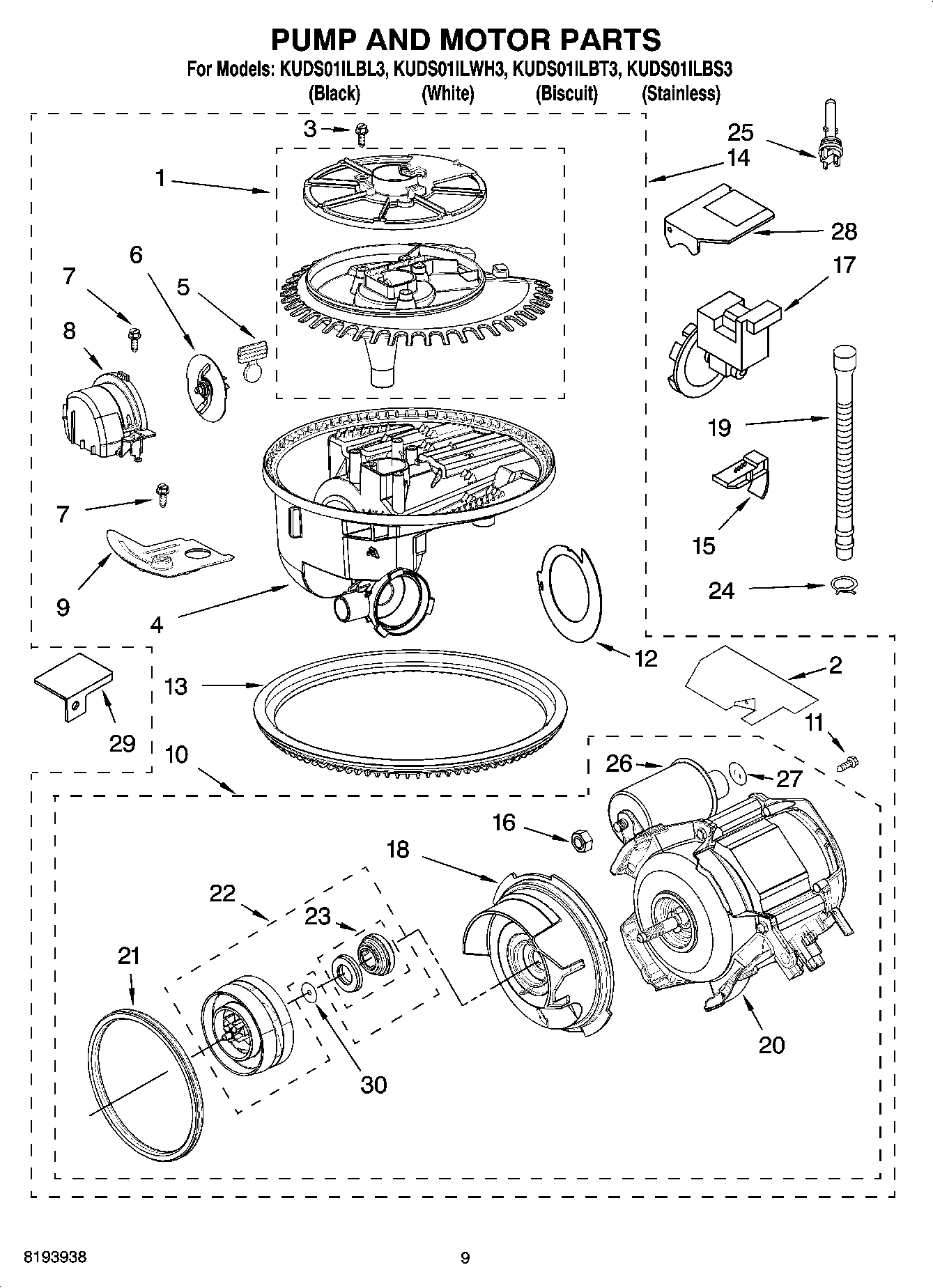

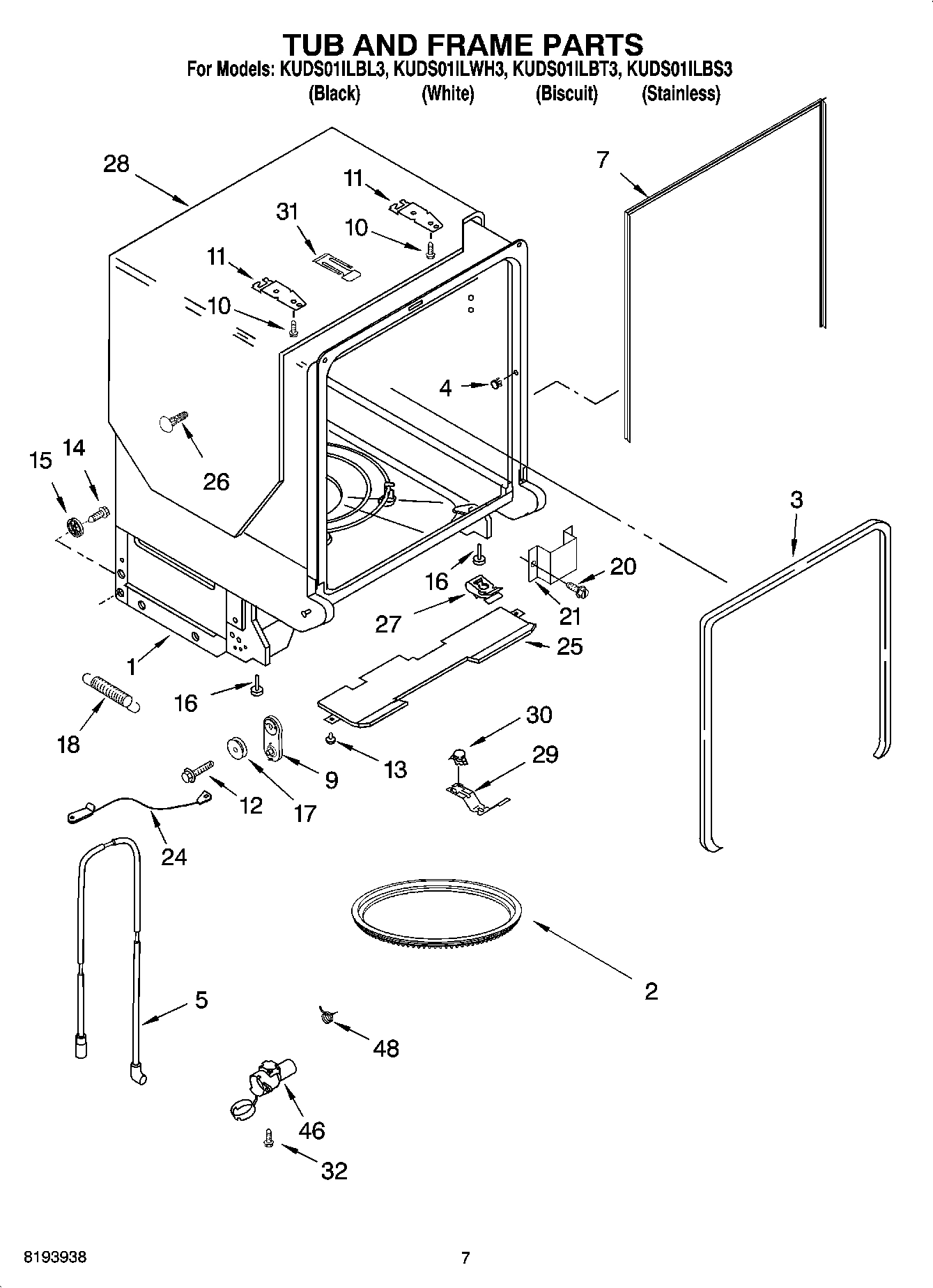

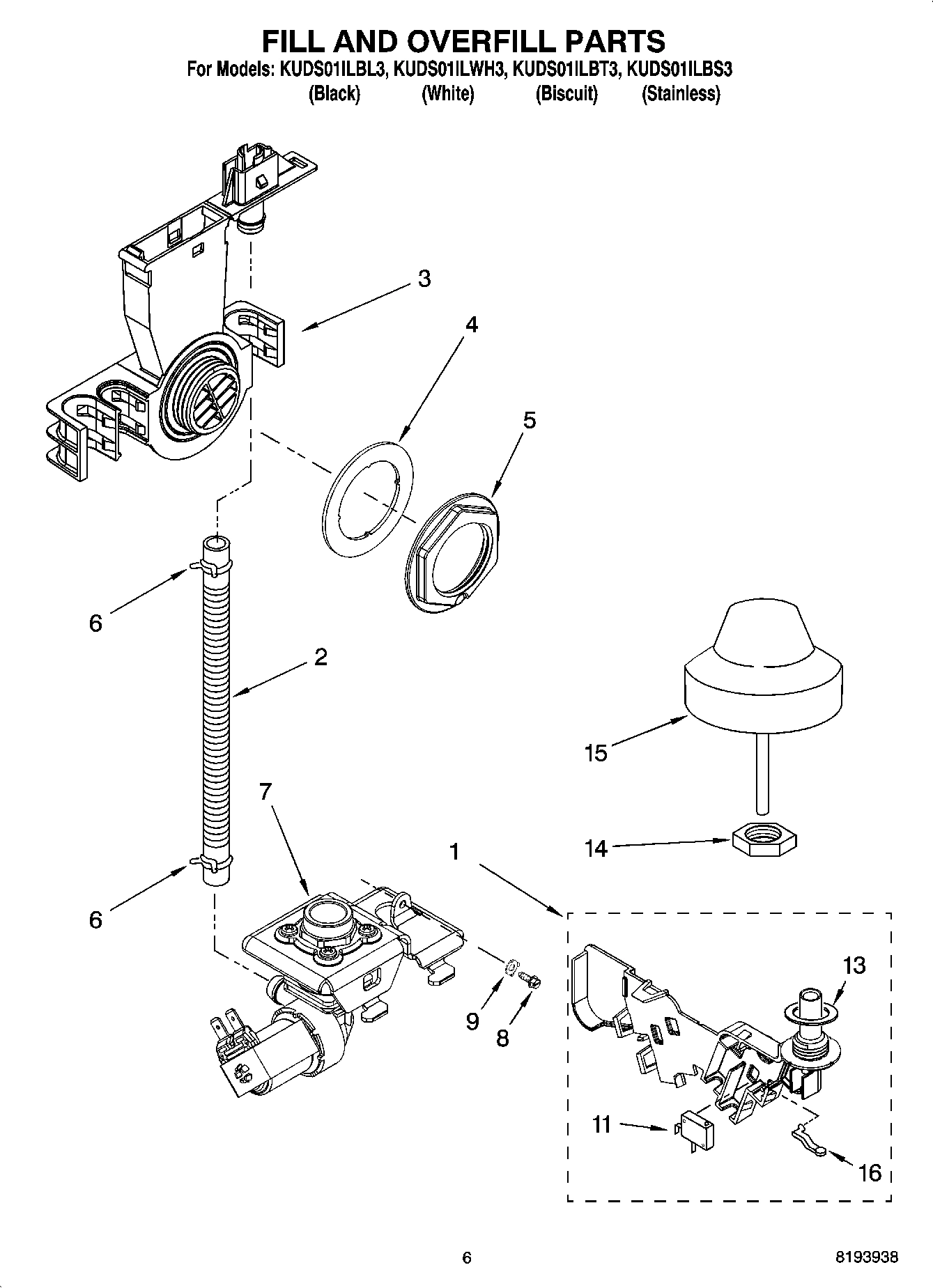

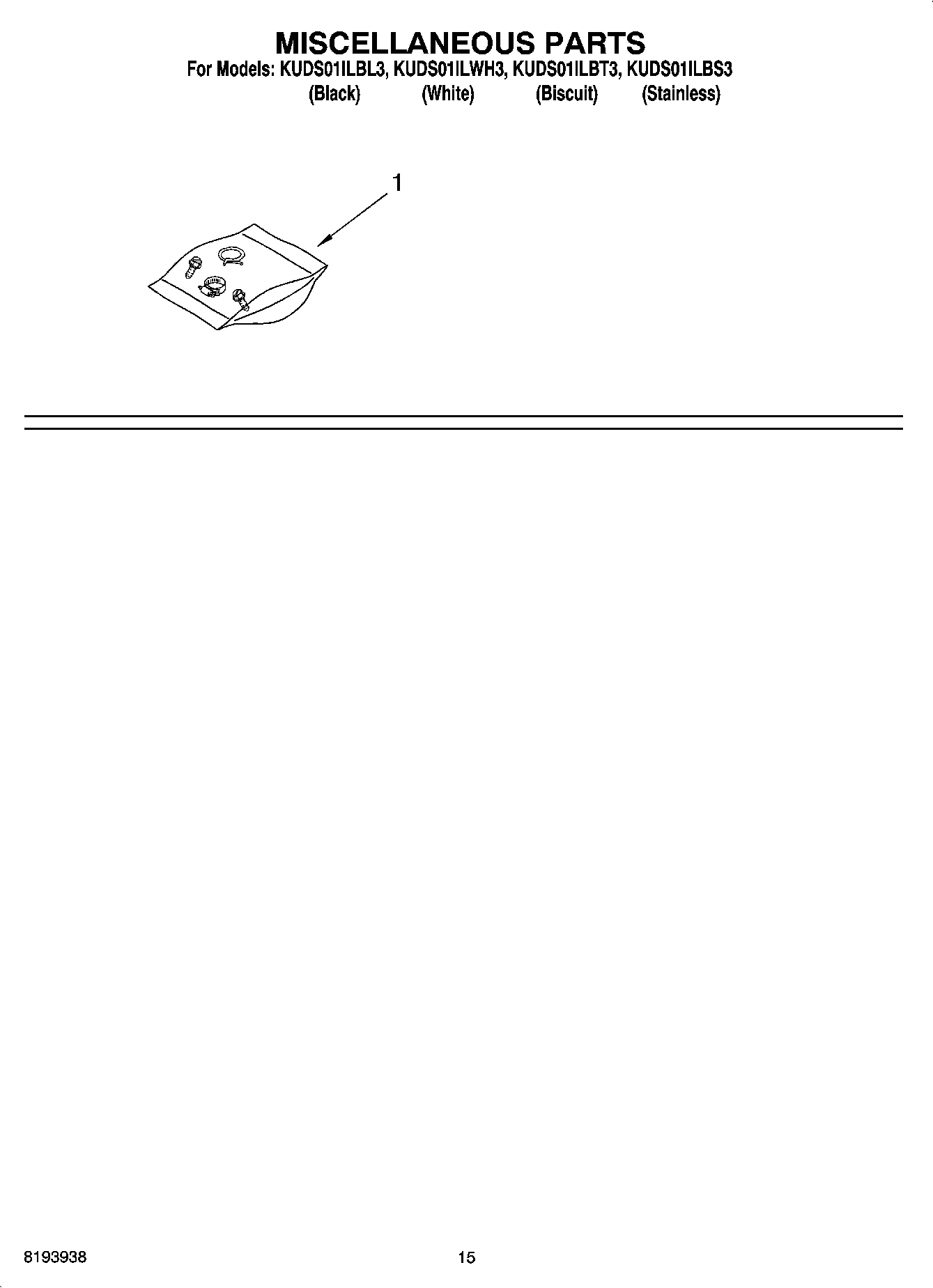

Model Whirlpool KUDS01ILBT3 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

1

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

1

WPW10320510 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10320510 $80.71

1

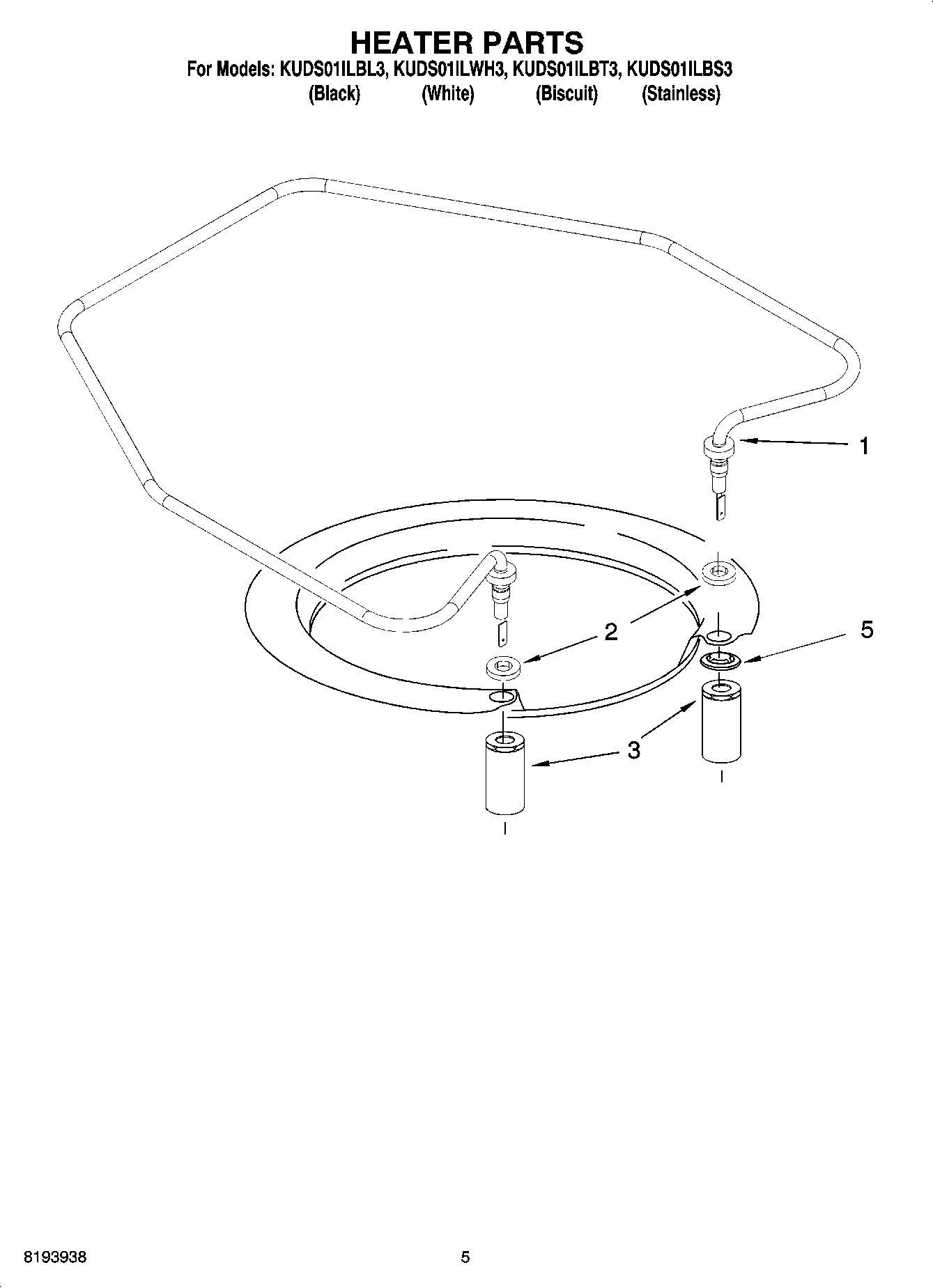

Heater Element Assembly (Also Includes Item 2 WPL 8194200 Contact Us For Availability

1

WPL 8171659 WPL 8171659 Contact Us For Availability

1

WPL 8171656 WPL 8171656 Contact Us For Availability

1

WPL 8171657 WPL 8171657 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8531547 Contact Us For Availability

1

Literature Parts (Guide, Use & Care Tech Shee WPL LIT8531533 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8531579 Contact Us For Availability

1

Literature Parts (Guide, Energy) WPL LIT8531624 Contact Us For Availability

1

Literature Parts (Video, Use & Care (DVD)) WPL LIT8531822 Contact Us For Availability

1

Literature Parts (English/French) WPL LIT8537797 Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $29.43

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

2

Seal, Sump WPL 8268395 Contact Us For Availability

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Stiffener, Door WPL 8268983 Contact Us For Availability

4

W10301577 Whirlpool Outer Door Panel Backorder WPL W10301577 $195.85

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $2.51

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $26.75

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

Panel Front (Includes Item 6) (Black) WPL 8270084 Contact Us For Availability

4

Panel Front (Includes Item 6) (White) WPL 8270085 Contact Us For Availability

4

Panel Front (Includes Item 6) (Biscuit) WPL 8270086 Contact Us For Availability

5

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $29.44

5

W10871198 Whirlpool Dishwasher Panel Backorder WPL W10871198 $52.03

5

W10909066 Whirlpool Dishwasher Panel Backorder WPL W10909066 $56.54

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WP8270138 Whirlpool Dishwasher Upper Wheel Backorder WPL WP8270138 $4.56

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $24.96

5

WP8545533 Whirlpool Dishwasher Vent Backorder WPL WP8545533 $84.85

5

Retainer, Spring WPL 3400931 Contact Us For Availability

6

8193762 Whirlpool Fuse Kit In Stock WPL 8193762 $33.60

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP8268703 Whirlpool Dishwasher Rack Axle Backorder WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

6

Brace, Foam WPL 8531330 Contact Us For Availability

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8269206 Whirlpool Dishwasher Display Backorder WPL WP8269206 $44.08

7

WP8281156 Whirlpool Dishwasher Screw Backorder WPL WP8281156 $2.51

7

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $28.99

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $30.85

7

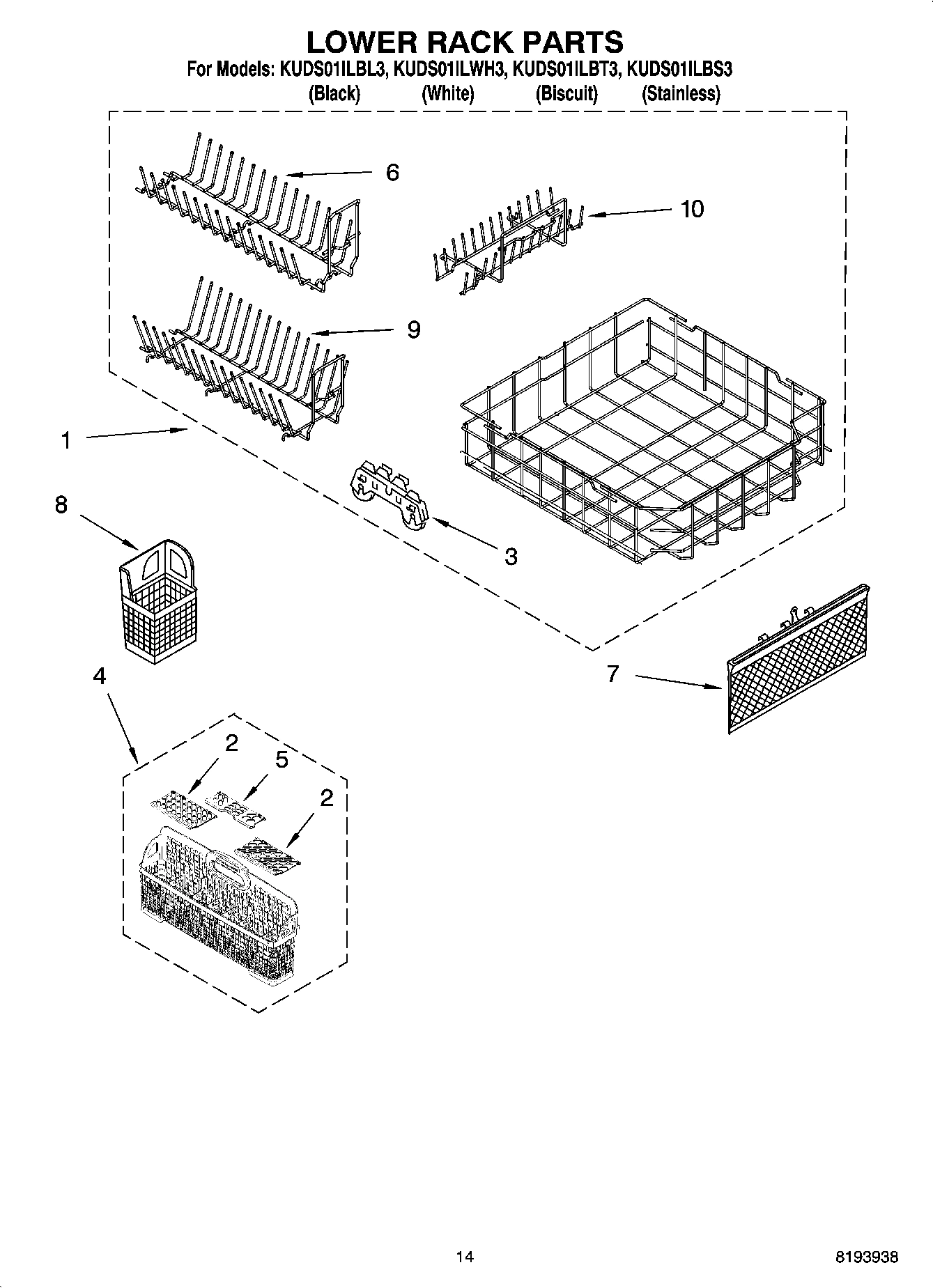

BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability

8

W10909064 Whirlpool Dishwasher Black Access P In Stock WPL W10909064 $65.72

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

8

WPW10586591 Whirlpool Dishwasher Toe Panel Backorder WPL WPW10586591 $124.83

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Biscuit) WPL 8270028 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $49.46

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $28.80

9

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $27.71

9

Nameplate (Black) WPL 2005292 Contact Us For Availability

9

Nameplate (Biscuit) WPL 2209118T Contact Us For Availability

9

Nameplate (White) WPL 2209118W Contact Us For Availability

10

8193882 Whirlpool Dishwasher Primary Latch Bo In Stock WPL 8193882 $38.89

10

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

10

Dispenser, Wiring Harness WPL 8269190 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

W10831329 Whirlpool Dishwasher Shield In Stock WPL W10831329 $16.05

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

WP8533381 Whirlpool Dishwasher Sensor Backorder WPL WP8533381 $28.80

Control, Electronic WPL 8534963 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $40.97

WPW10503549 Whirlpool Dishwasher Retainer Cli In Stock WPL WPW10503549 $2.29

WPW10503550 Whirlpool Dishwasher Retainer Backorder WPL WPW10503550 $10.30

Wiring Harness Main WPL 8534932 Contact Us For Availability

13

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

14

Shield WPL 8268547 Contact Us For Availability

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP3400412 Whirlpool Dishwasher Screw Backorder WPL WP3400412 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

16

WP8268738 Whirlpool Dishwasher Positioner Backorder WPL WP8268738 $32.85

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

WP8533380 Whirlpool Dishwasher Cap In Stock WPL WP8533380 $12.68

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $31.86

Pump, Drain WPL 661658 Contact Us For Availability

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.17

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8270136 Whirlpool Dishwasher Stop Backorder WPL WP8270136 $28.11

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
