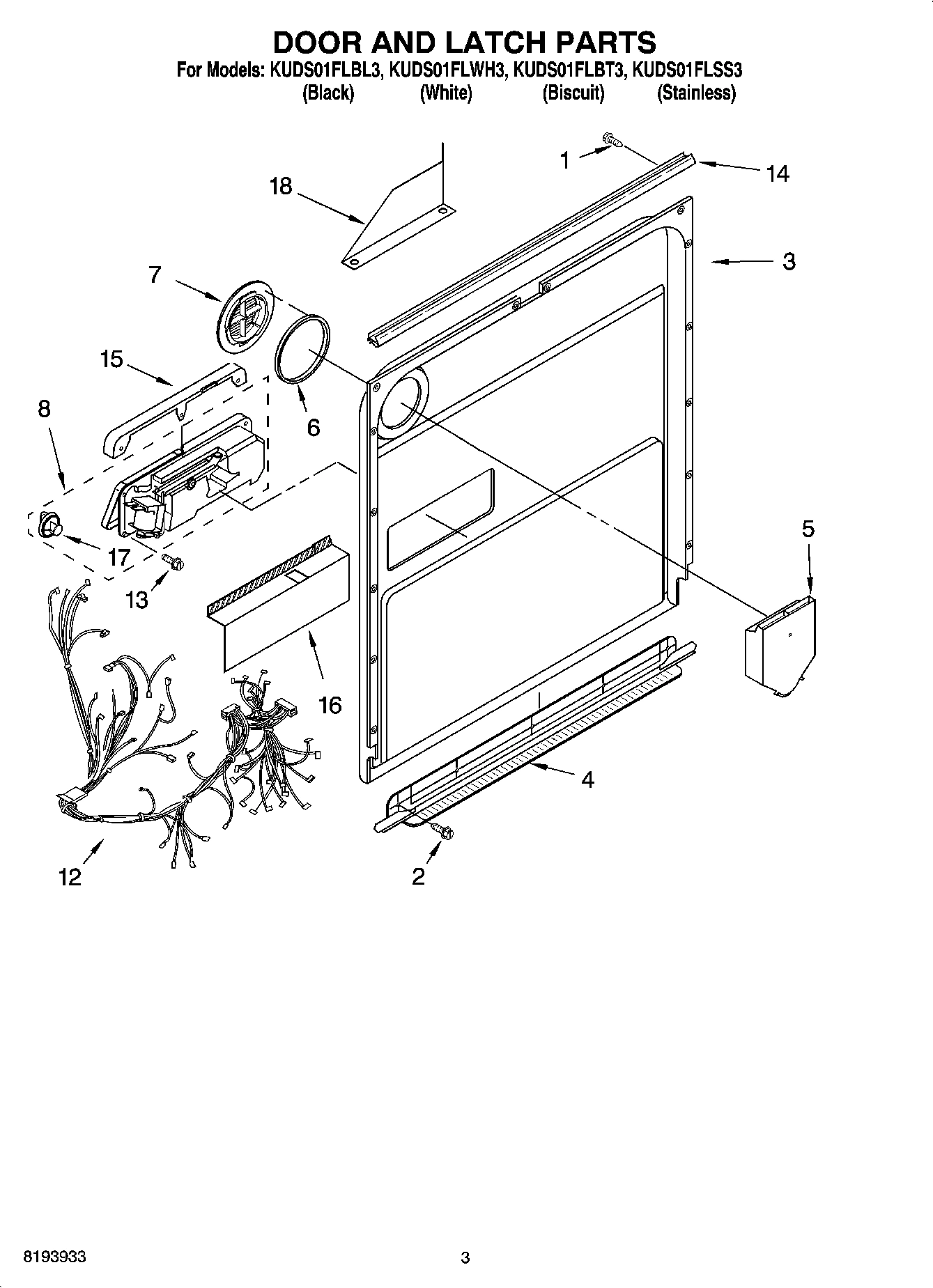

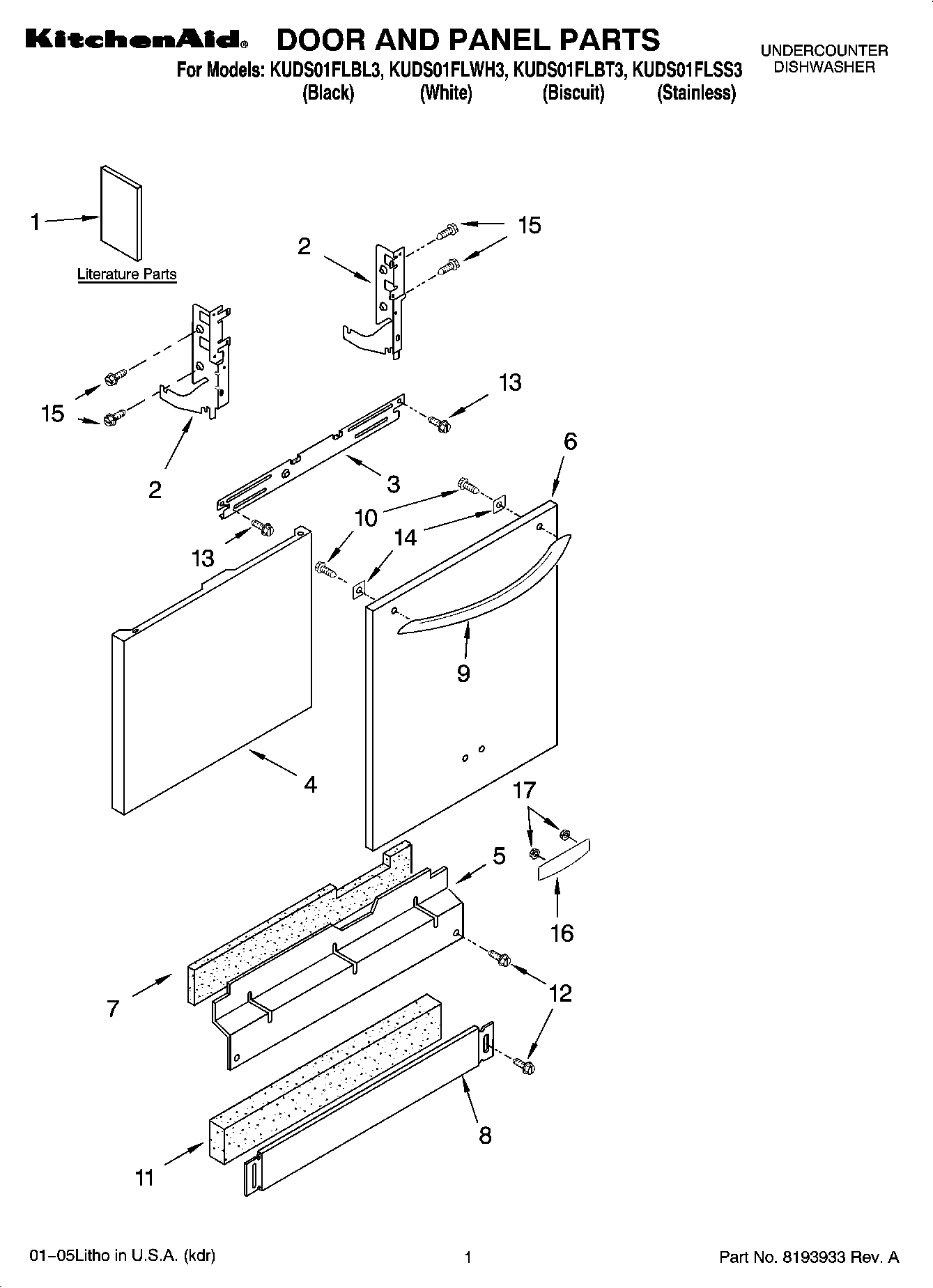

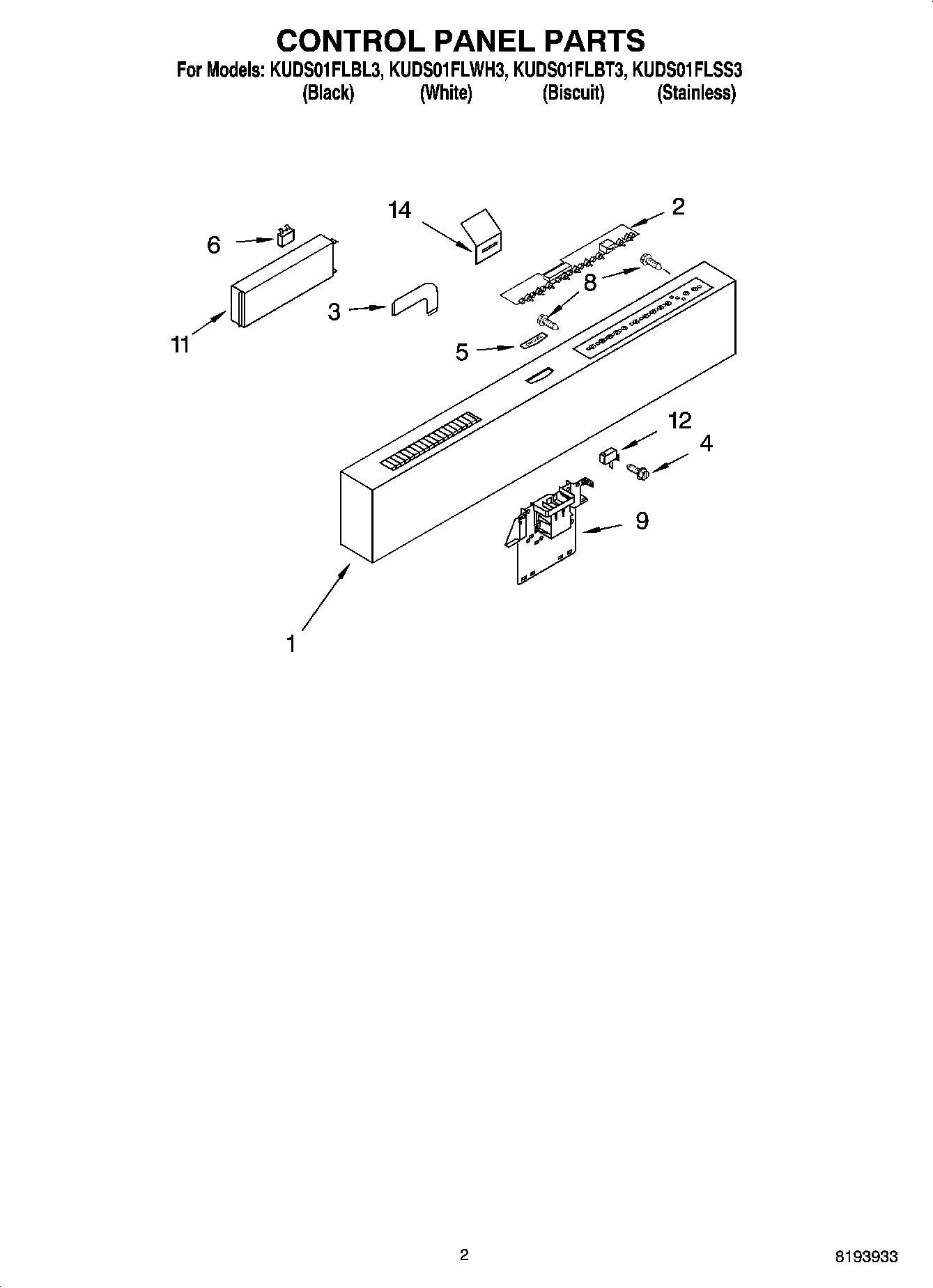

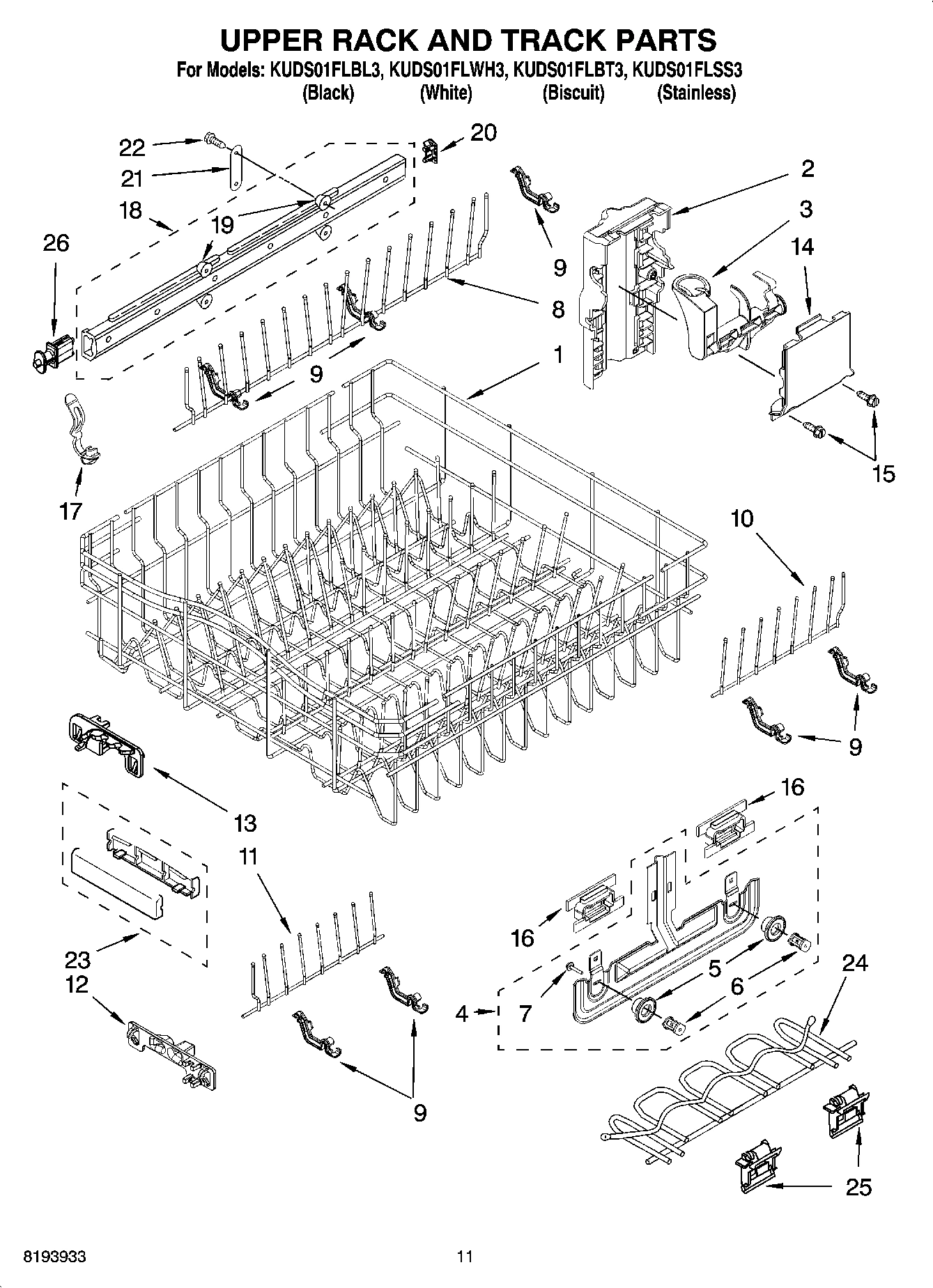

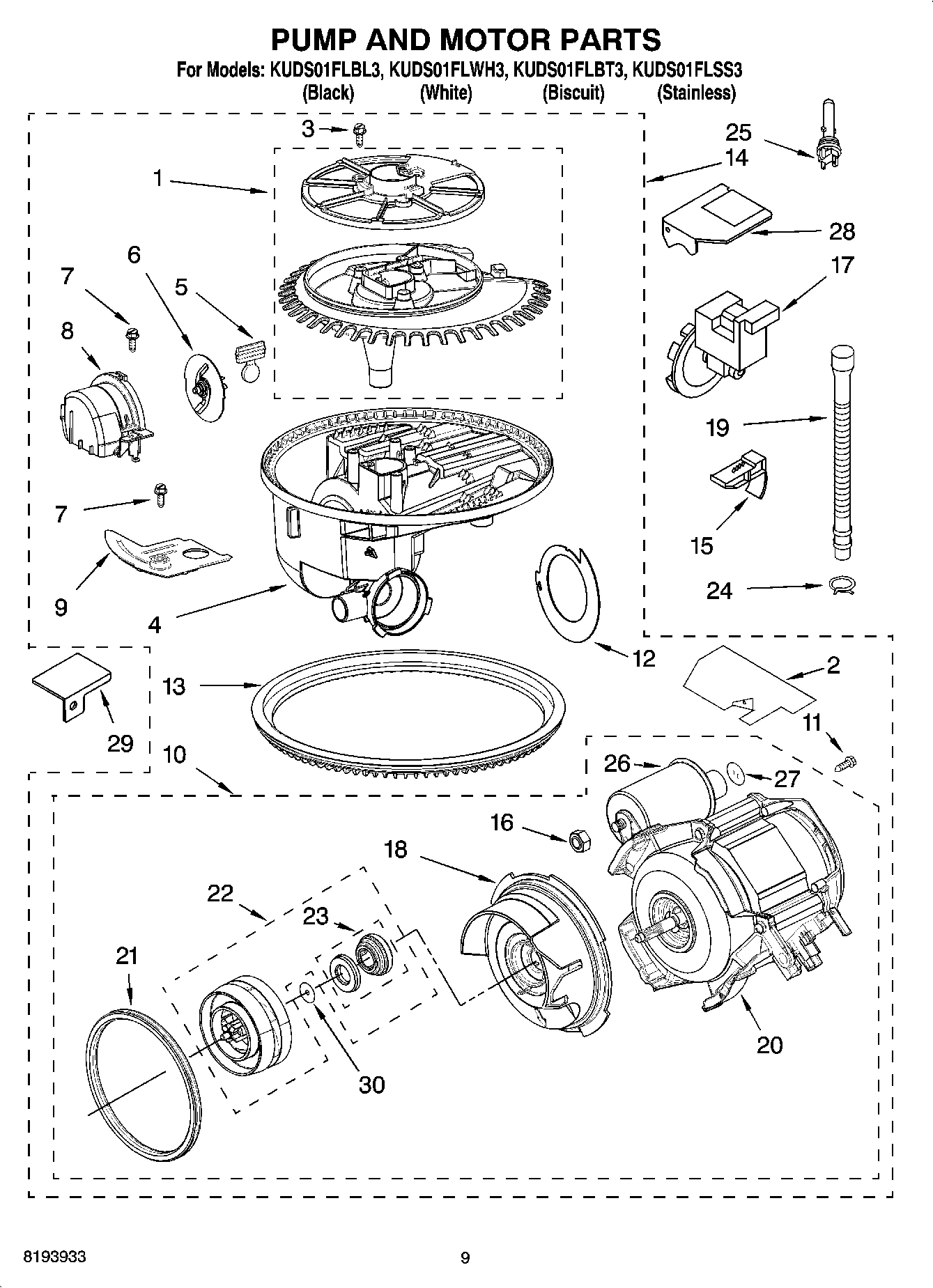

Model Whirlpool KUDS01FLSS3 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $16.47

8171571 Whirlpool Touch-Up Paint Cobalt Blue In Stock WPL 8171571 $12.81

8171651 Whirlpool Touch Up Backorder WPL 8171651 $8.40

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

W10202939 Whirlpool Touch Up Backorder WPL W10202939 $9.15

WPL 8171659 WPL 8171659 Contact Us For Availability

WPL 8171656 WPL 8171656 Contact Us For Availability

WPL 8171657 WPL 8171657 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Empire Red WPL 4396267 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Majestic Y WPL 4396268 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Hunter Gre WPL 4396269 Contact Us For Availability

Color Panel Kits (Black) WPL 4396401 Contact Us For Availability

Color Panel Kits (White) WPL 4396402 Contact Us For Availability

Color Panel Kits (Biscuit) WPL 4396403 Contact Us For Availability

Color Panel Kits (Cobalt Blue) WPL 4396404 Contact Us For Availability

Color Panel Kits (Hunter Green) WPL 4396405 Contact Us For Availability

Color Panel Kits (Empire Red) WPL 4396406 Contact Us For Availability

Color Panel Kits (Majestic Yellow) WPL 4396407 Contact Us For Availability

Color Panel Kits (For use with 6`` clearance WPL 4396655 Contact Us For Availability

PAINT, PRESSURIZED WPL 8171573 Contact Us For Availability

WPL 8171653 WPL 8171653 Contact Us For Availability

WPL 8171658 WPL 8171658 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI115397A WPL ARI115397A Contact Us For Availability

WPL ARI115398A WPL ARI115398A Contact Us For Availability

WPL ARI115399A WPL ARI115399A Contact Us For Availability

1

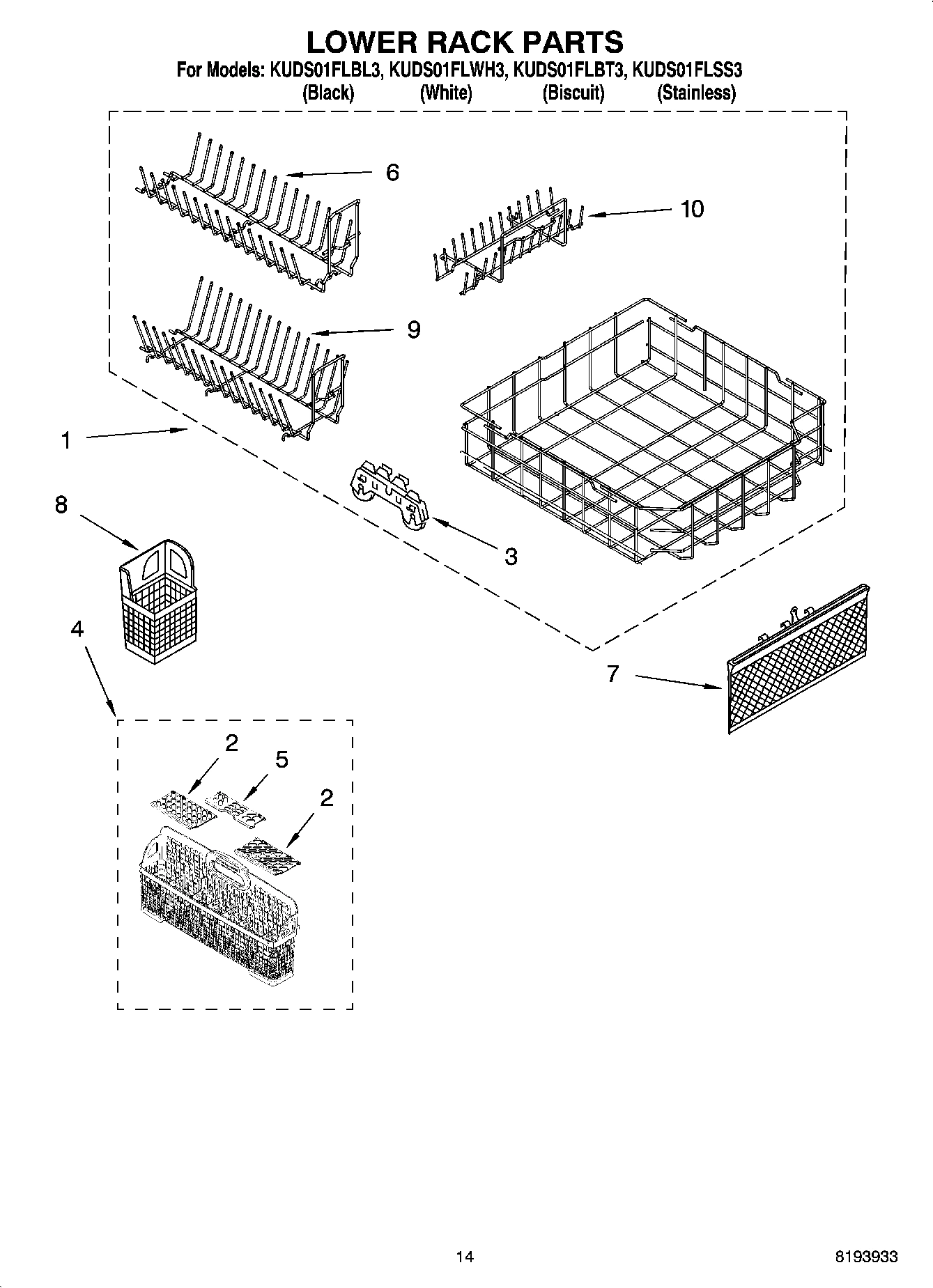

W10727422 Whirlpool Dishwasher Dishrack In Stock WPL W10727422 $183.18

1

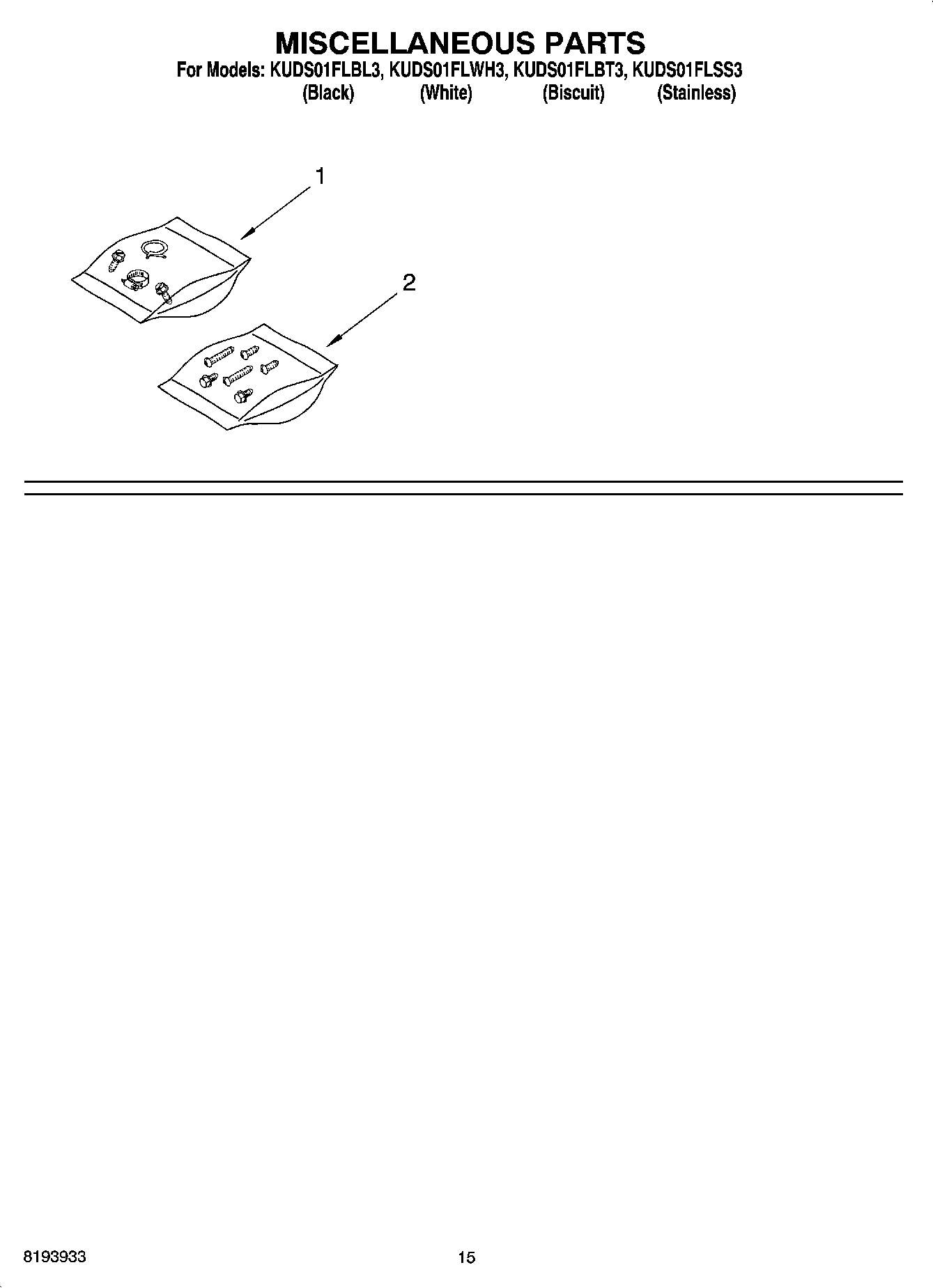

WPW10292170 Whirlpool Dishwasher Miscellaneou Backorder WPL WPW10292170 $32.83

1

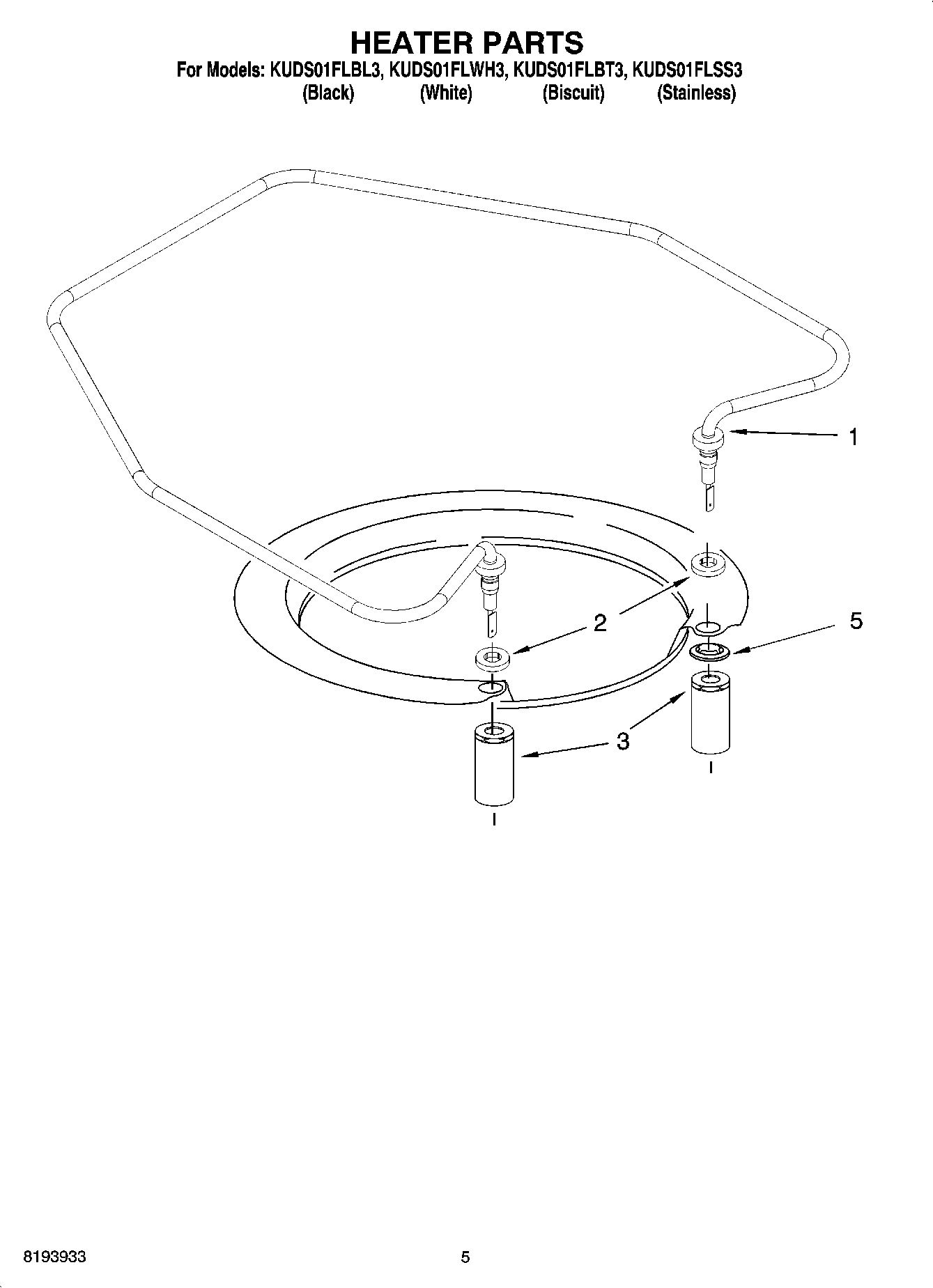

Heater Element Assembly (Also Includes Item 2 WPL 8194200 Contact Us For Availability

2

8193741 Whirlpool Dishwasher Adjuster P1 Backorder WPL 8193741 $30.80

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $29.43

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

2

WP8270168-includeCORE Whirlpool WP8270168 Dis Backorder WPL WP8270168-includeCORE $199.58

2

Seal, Sump WPL 8268395 Contact Us For Availability

2

Screws, Bag Door Assembly (Includes) 2 Screws WPL 8524464 Contact Us For Availability

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel In Stock WPL WP8268713 $29.92

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

RIBBON, CABLE WPL 8524447 Contact Us For Availability

3

Actuator, Adjuster (Left Hand) WPL 8531309 Contact Us For Availability

3

Actuator, Adjuster (Right Hand) WPL 8531310 Contact Us For Availability

4

W10728567 Whirlpool Dishwasher Adjuster Backorder WPL W10728567 $75.84

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

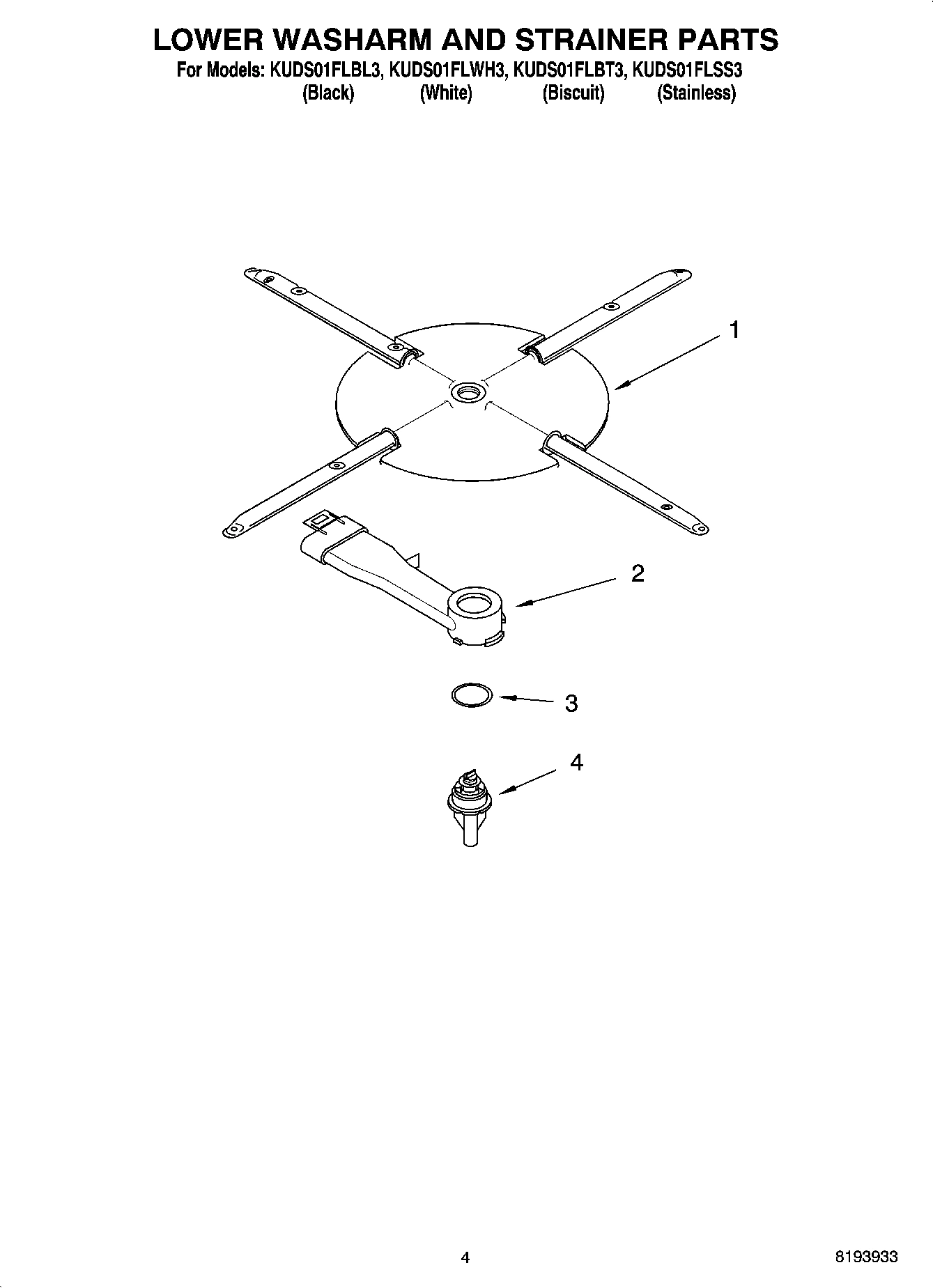

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $26.75

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

5

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $29.44

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8270138 Whirlpool Dishwasher Upper Wheel Backorder WPL WP8270138 $4.56

5

Reatiner, Spring Grip WPL 3400931 Contact Us For Availability

5

Medallion WPL 8524425 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP8268703 Whirlpool Dishwasher Rack Axle In Stock WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

7

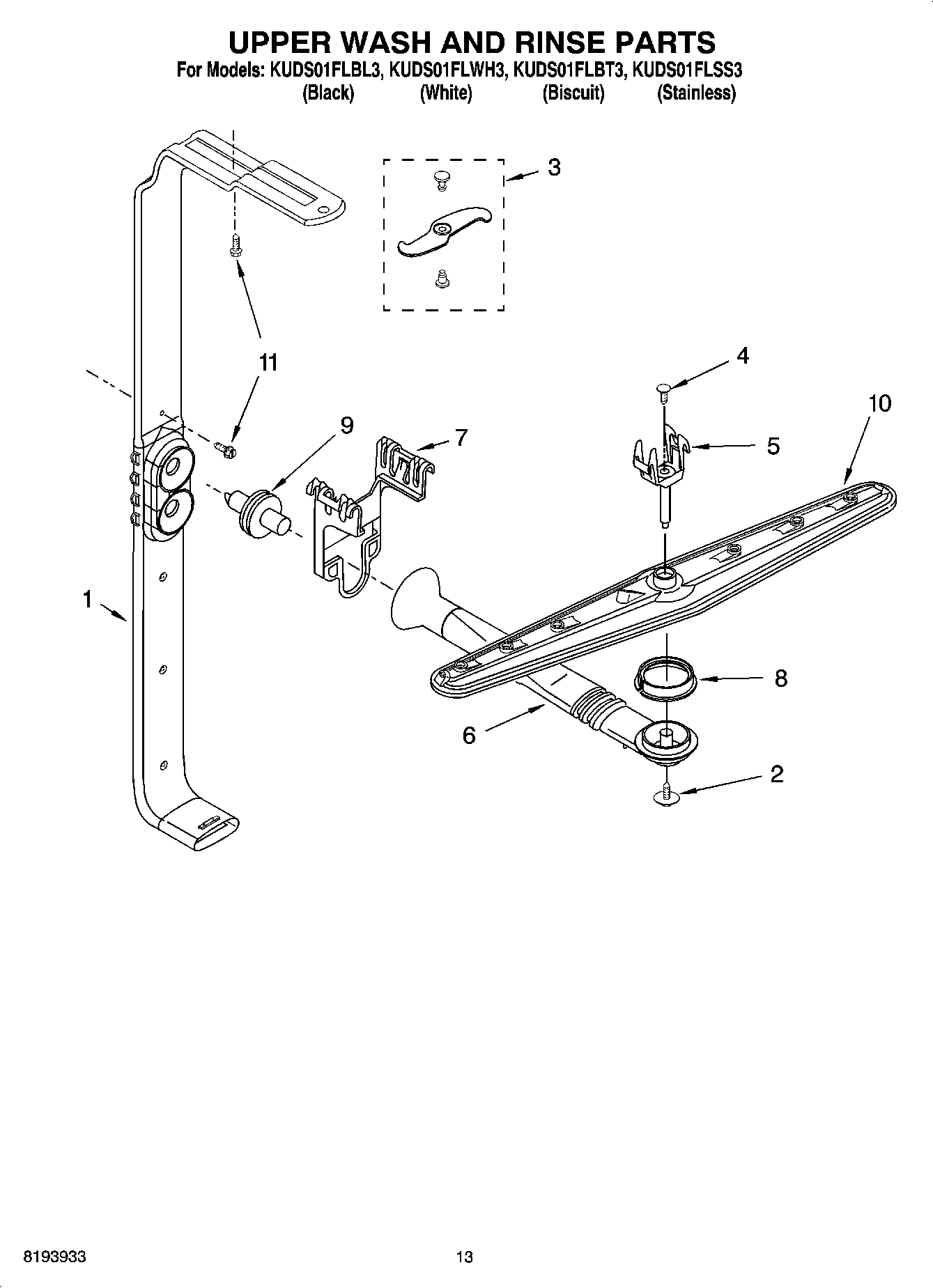

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8281156 Whirlpool Dishwasher Screw Backorder WPL WP8281156 $2.51

7

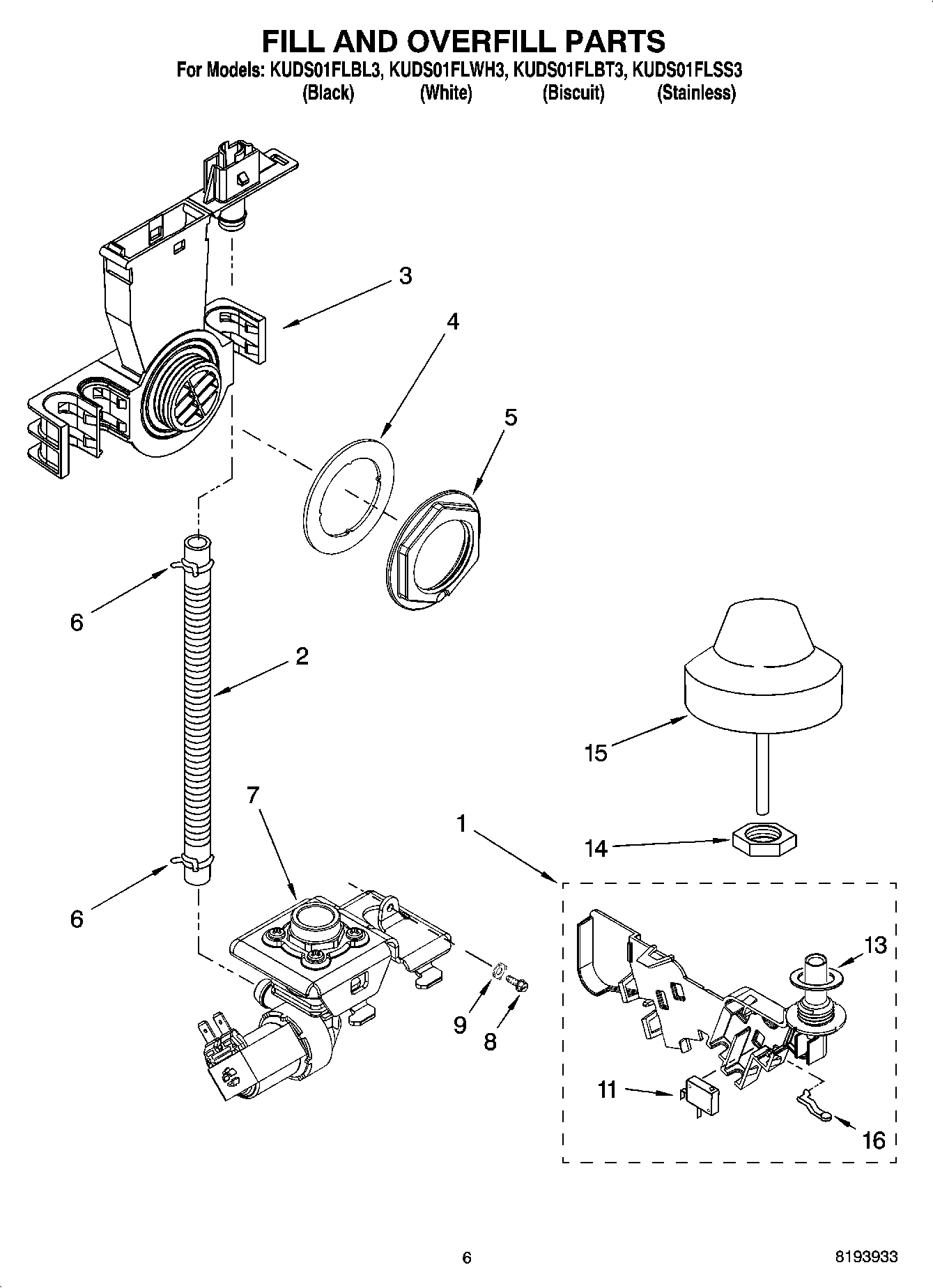

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $28.99

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $30.85

7

BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability

8

W10727426 Whirlpool Dishwasher Rack Tine In Stock WPL W10727426 $32.52

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $27.71

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

Tine Row, Rear WPL 9744567 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $40.97

Wiring Harness & Protector WPL 8534932 Contact Us For Availability

13

WP3400924 Whirlpool Dishwasher Retainer In Stock WPL WP3400924 $14.31

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

13

WP8539103 Whirlpool Dishwasher Positioner Backorder WPL WP8539103 $39.77

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

14

Screw (2) WPL 3370389 Contact Us For Availability

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

15

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $30.80

15

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

16

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

16

WP8268738 Whirlpool Dishwasher Positioner Backorder WPL WP8268738 $32.85

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

WP8533380 Whirlpool Dishwasher Cap In Stock WPL WP8533380 $12.68

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $31.86

Pump, Drain WPL 661658 Contact Us For Availability

18

W10404344 Whirlpool Dishwasher Track Backorder WPL W10404344 $175.40

18

WP8270182 Whirlpool Door Spring Assembly In Stock WPL WP8270182 $15.12

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

21

WP8268991 Whirlpool Dishwasher Cover Assembly In Stock WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

22

WPW10348407 Whirlpool Dishwasher Screw In Stock WPL WPW10348407 $3.70

23

Handle, Dishrack WPL 8519699 Contact Us For Availability

24

W11125975 Whirlpool Dishwasher Cup Shelf Backorder WPL W11125975 $40.15

25

WPW10746770 Whirlpool Insulation Pad Backorder WPL WPW10746770 $16.05

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

26

Stop, Track Removable WPL 8531301 Contact Us For Availability

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

28

W10877094 Whirlpool Shield In Stock WPL W10877094 $79.73

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

31

WP8574157 Whirlpool Dishwasher Strike In Stock WPL WP8574157 $29.06

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

46

Switch, Pressure WPL 8542575 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
