Model Whirlpool KUDR24SEWH5 – Common Parts & Diagrams
07 - UPPER WASH AND RINSE
03 - DOOR AND LATCH
05 - HEATER

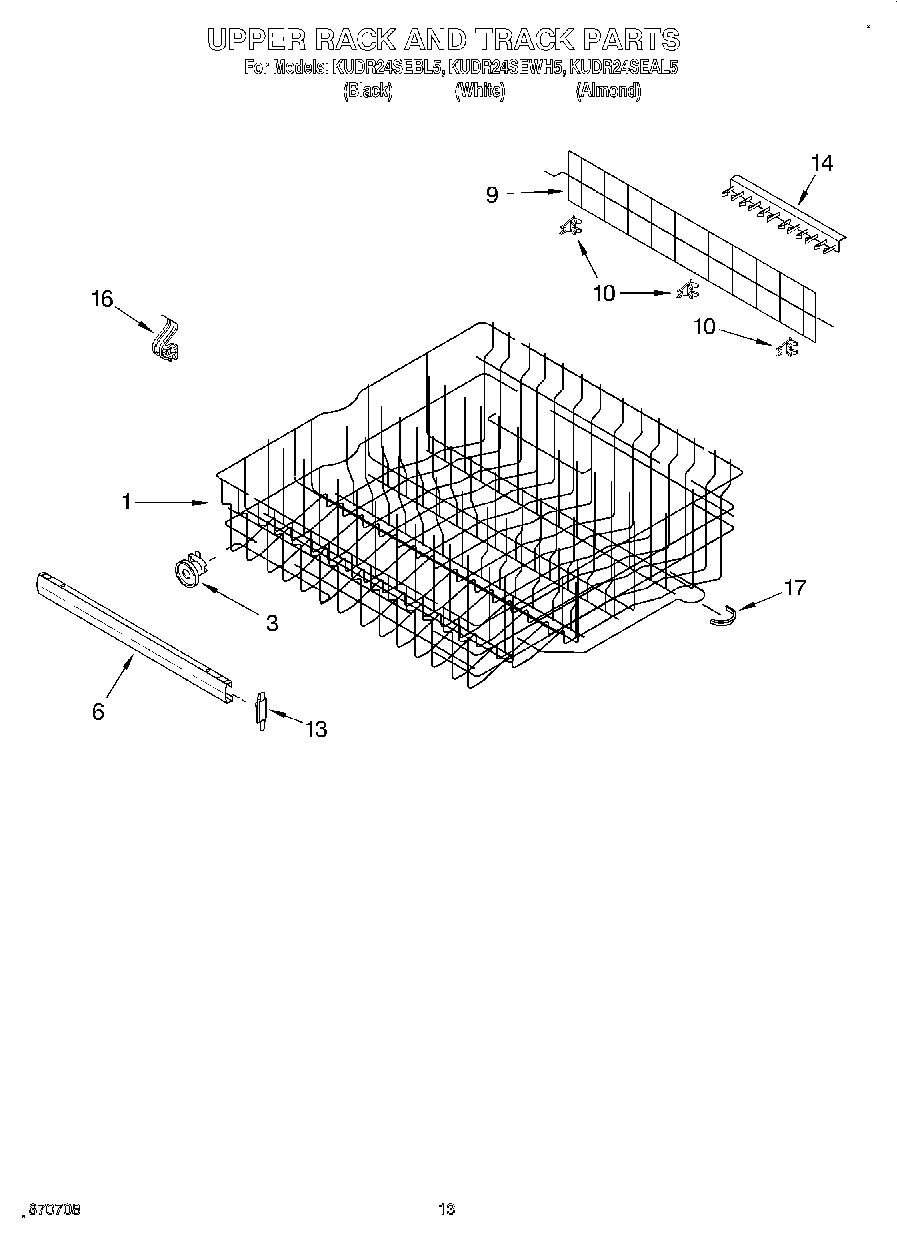

10 - UPPER RACK AND TRACK

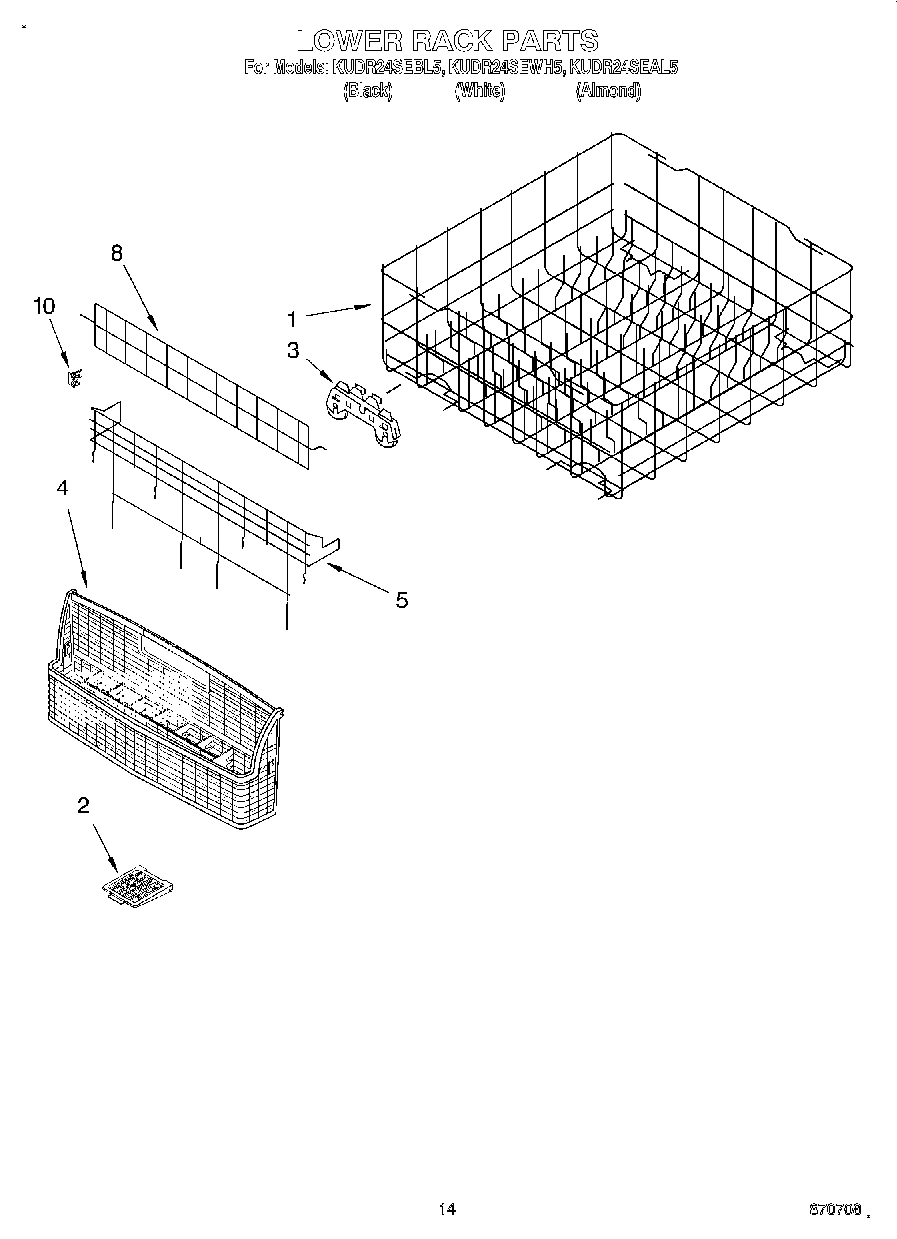

11 - LOWER RACK
06 - FILL AND OVERFILL
08 - TUB AND FRAME

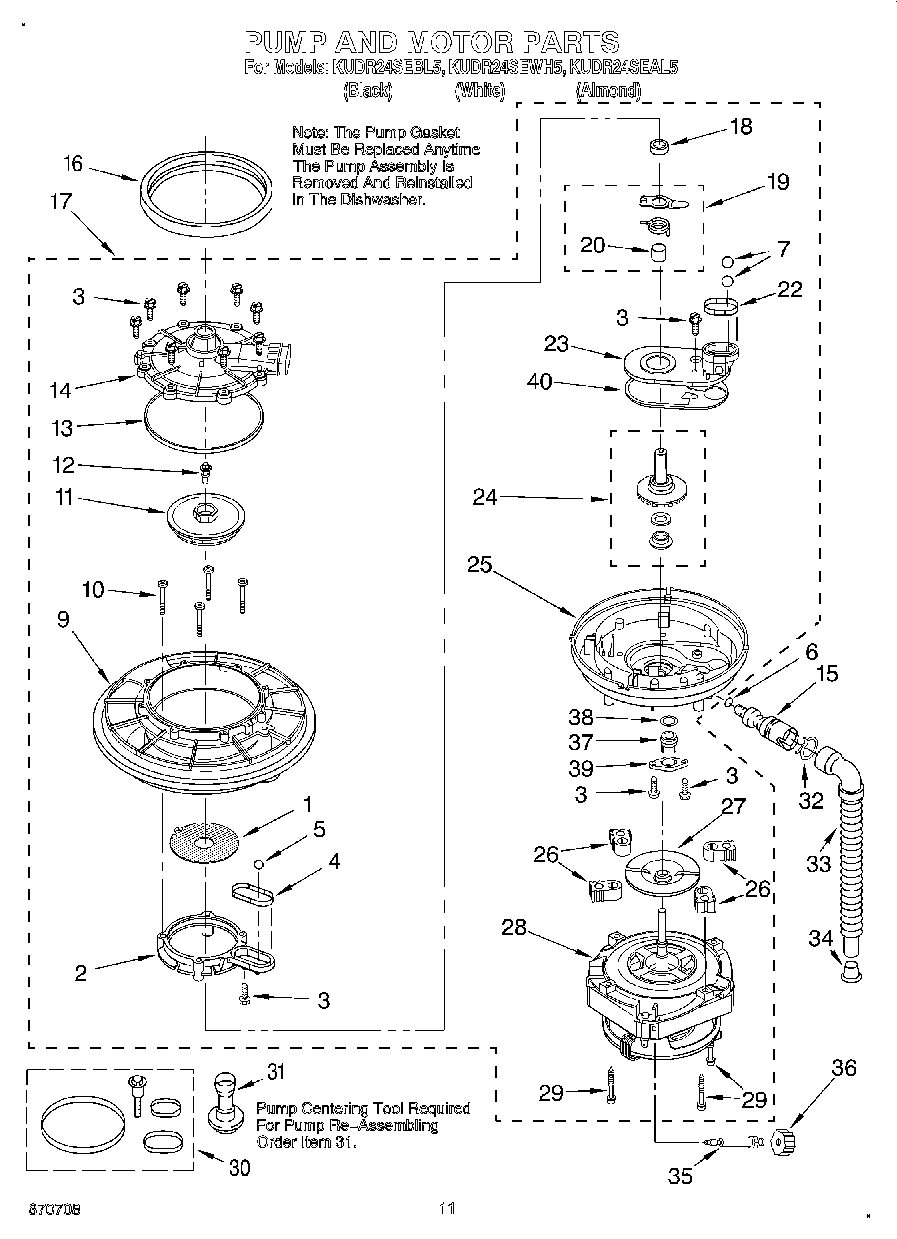

09 - PUMP AND MOTOR

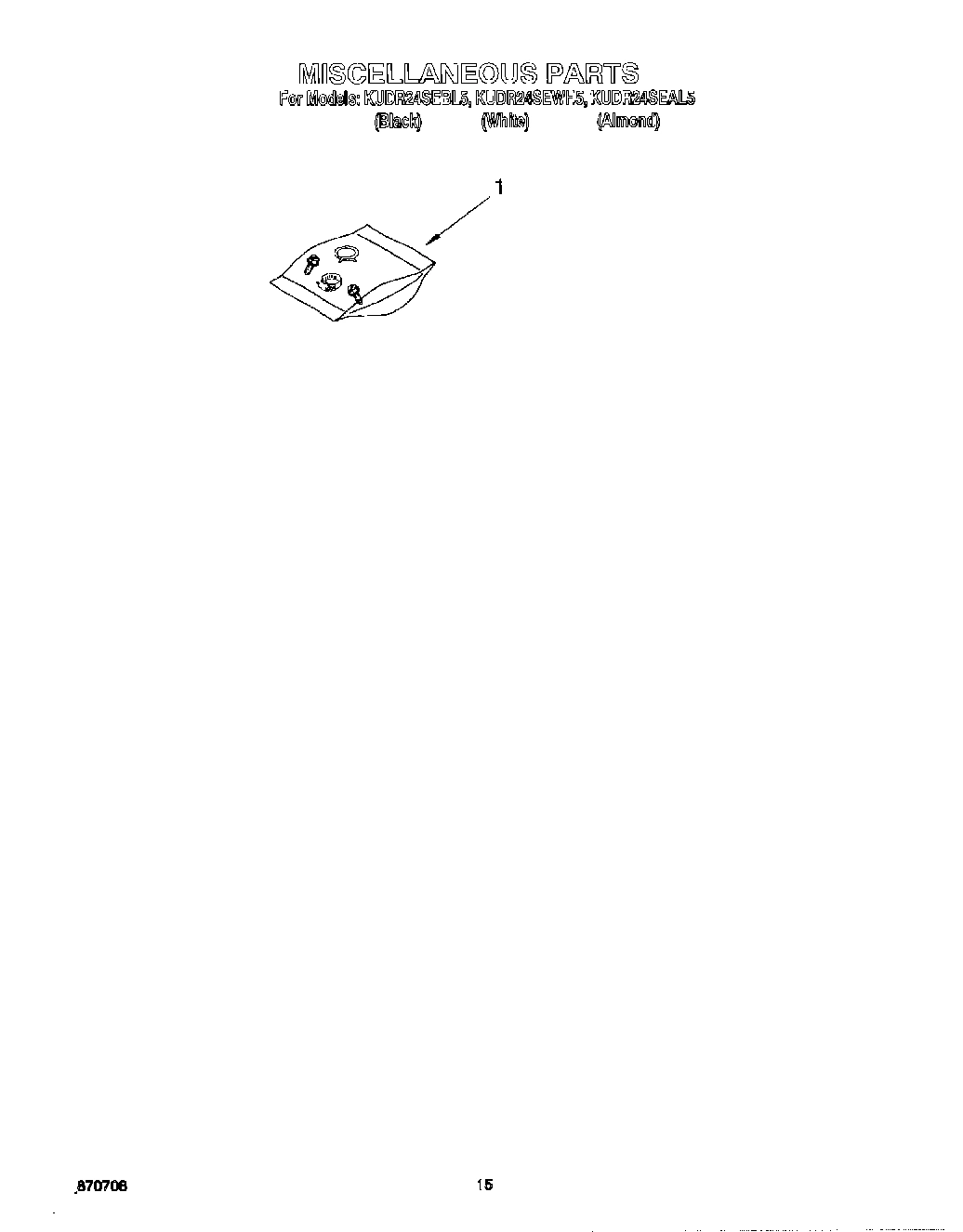

12 - MISCELLANEOUS, LIT/OPTIONAL

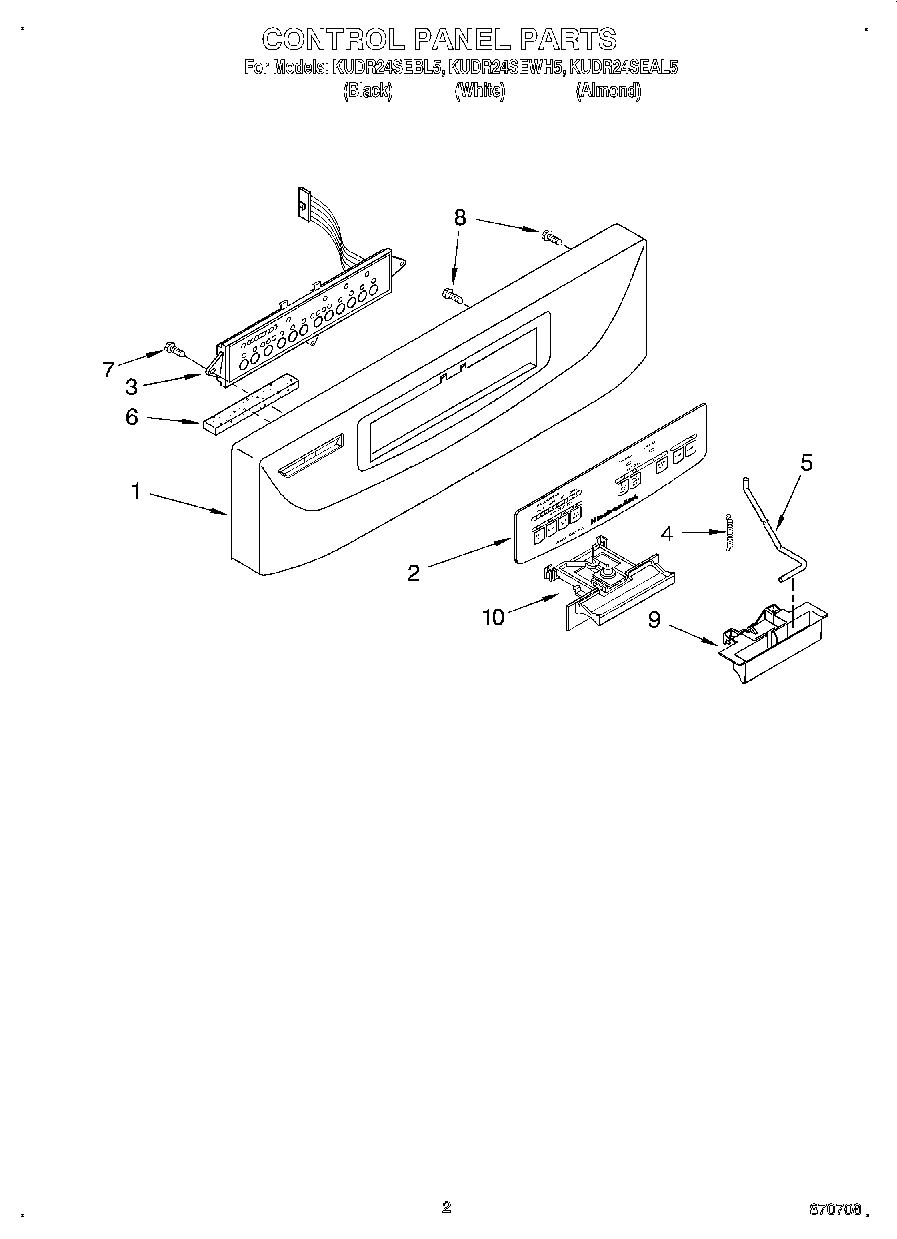

02 - CONTROL PANEL

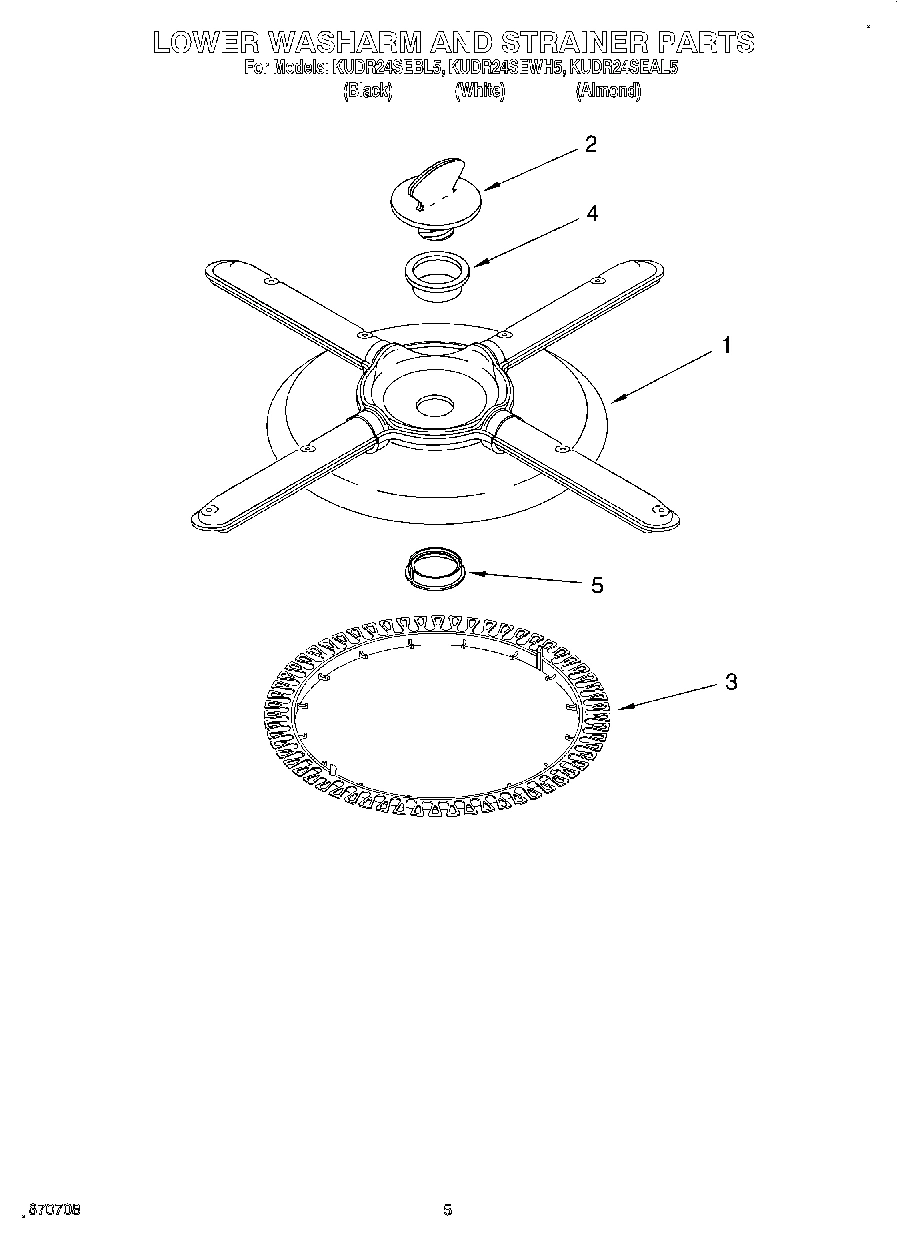

04 - LOWER WASHARM AND STRAINER
01 - DOOR AND PANEL
Common parts from model Whirlpool KUDR24SEWH5
Frameless (White) WPL 4378861 Contact Us For Availability
Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability
Frameless (Almond) WPL 4378863 Contact Us For Availability
Door Framed Kits (White) WPL 4378864 Contact Us For Availability
Door Framed Kits (Black) WPL 4378865 Contact Us For Availability
Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability
Side Panel Kits (Black) WPL 4378868 Contact Us For Availability
Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability
Guide, Energy WPL LIT8054170 Contact Us For Availability
Guide, Use & Care WPL LIT9743111 Contact Us For Availability
Tech Sheet (English) WPL LIT9743814 Contact Us For Availability
Tech Sheet (French) WPL LIT9743815 Contact Us For Availability
Instructions, Installation WPL LIT9743822 Contact Us For Availability
1
Cap, Dispenser WPL 9743399 Contact Us For Availability
1
Console (Also order Item No.2) (White Model) WPL 9743592 Contact Us For Availability
1
Console (Also Order Item 2) (Black Model) WPL 9743591 Contact Us For Availability
1
Wash Arm Assembly WPL 9742947 Contact Us For Availability
1
Plate, Perforated (Also Order Item 30) See No WPL 9740982 Contact Us For Availability
1
Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability
1
Glisten WPL 4319102 Contact Us For Availability
1
Almond (Uncut) WPL 978883 Contact Us For Availability
1
Console (Also order Item No.2) (Almond Model) WPL 9743593 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
2
Insert (Black Model) WPL 9743372 Contact Us For Availability
2
Insert (White Model) WPL 9743373 Contact Us For Availability
2
Insert (Almond Model) WPL 9743374 Contact Us For Availability
3
Door Seal WPL 9743590 Contact Us For Availability
3
Switch, Panel (User Interface) WPL 9743242 Contact Us For Availability
3
Wheel & Transport Assembly WPL 8051252 Contact Us For Availability
3
Strainer (Coarse) WPL 9742646 Contact Us For Availability
3
Stiffener, Door WPL 9742964 Contact Us For Availability
4
Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability
4
Gasket WPL 9742787 Contact Us For Availability
4
Panel Front (White Model) WPL 3379376 Contact Us For Availability
4
Panel Front (Black Model) WPL 3379375 Contact Us For Availability
4
Panel Front (Almond Model) WPL 3379377 Contact Us For Availability
5
Link, Handle WPL 9743572 Contact Us For Availability
5
Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
5
Access Panel & Clip Assembly (Black Model) WPL 3379917 Contact Us For Availability
5
Access Panel & Clip Assembly (White Model) WPL 3379918 Contact Us For Availability
5
Access Panel & Clip Assembly (Almond Model) WPL 3379919 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
6
Sponge, Vent WPL 9743412 Contact Us For Availability
8
Toe Panel (Includes Item 11) (Almond Model) WPL 9742862 Contact Us For Availability
9
Gasket, Vent WPL 9742782 Contact Us For Availability
9
Filter Assembly WPL 9742968 Contact Us For Availability
10
Latch Lever Asm. WPL 3380655 Contact Us For Availability
10
Screw WPL 3400001 Contact Us For Availability
11
Insulation WPL 9743825 Contact Us For Availability
12
Clip, Grounding WPL 3378123 Contact Us For Availability
15
Float & Retainer Assembly WPL 9743070 Contact Us For Availability
16
Seal, Tube WPL 9742953 Contact Us For Availability
16
Clip, No Flip (4) WPL 3377464 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
19
Control, Electronic WPL 8051136 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 3378139 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cover, Drain (Also Order Item 30 & 40) See No WPL 3378207 Contact Us For Availability
25
Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability
28
Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3377333 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
32
Pad, Friction WPL 9743406 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3378202 Contact Us For Availability
37
Thermostat WPL 3378083 Contact Us For Availability
× ![]()
