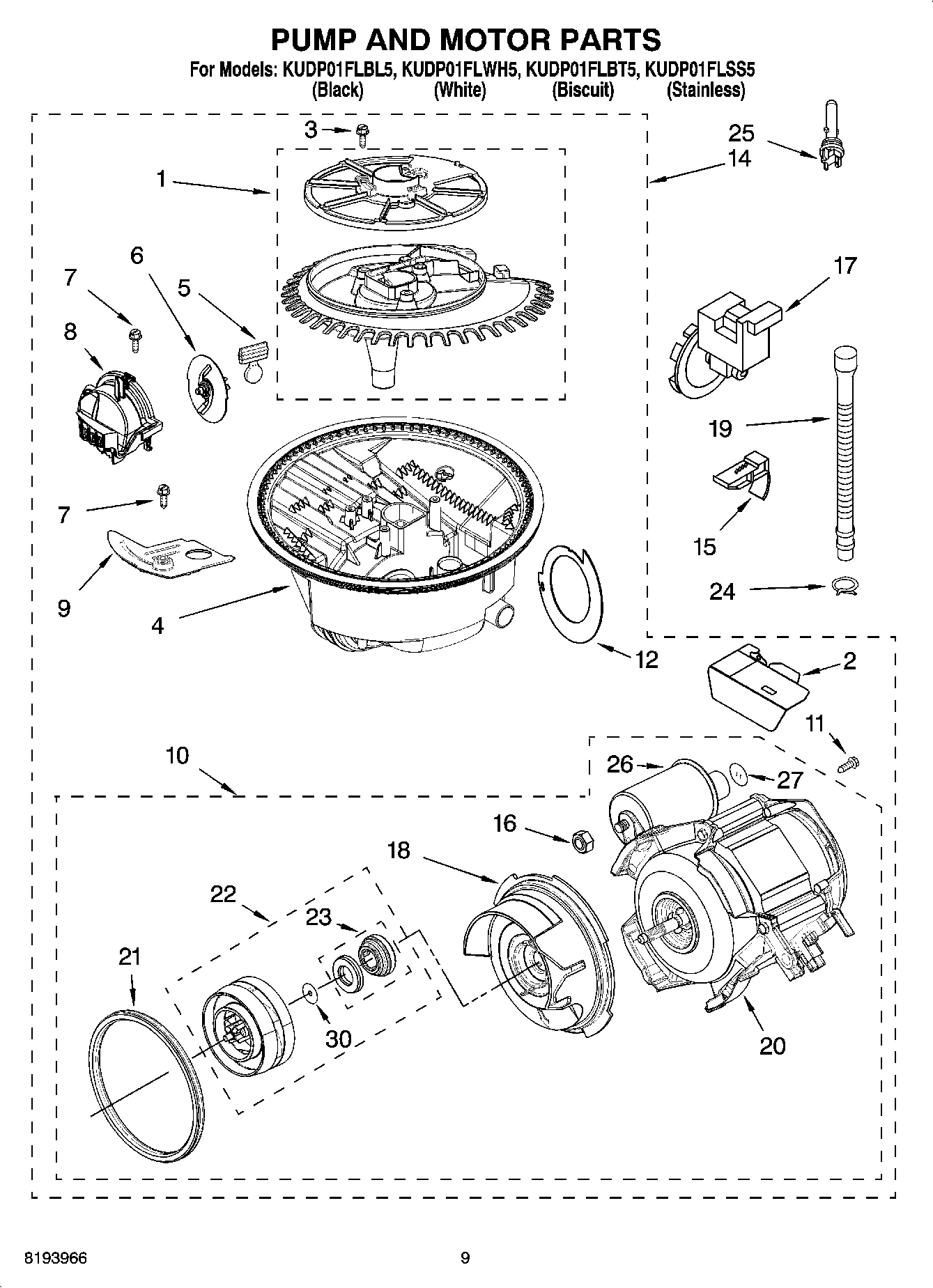

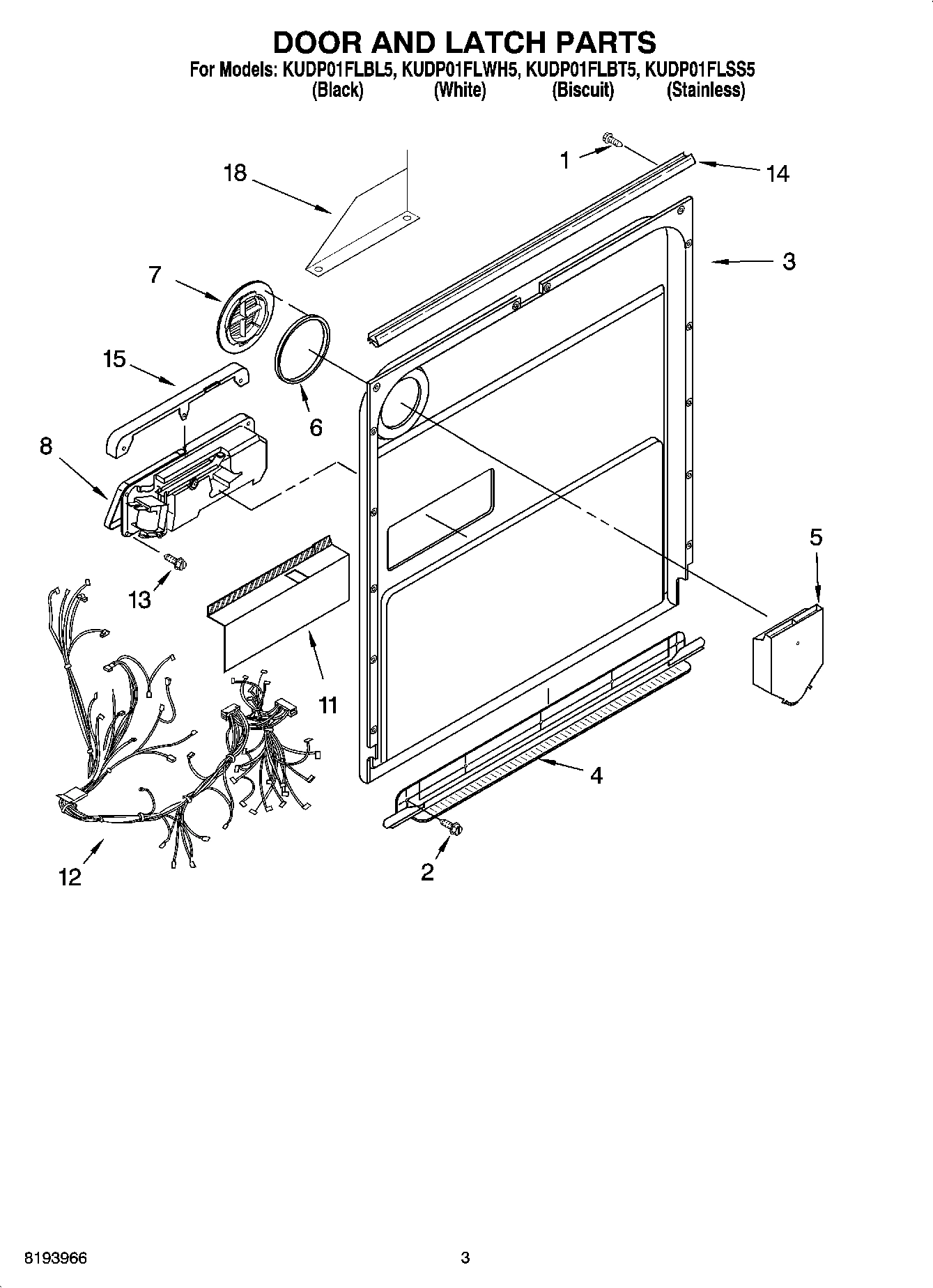

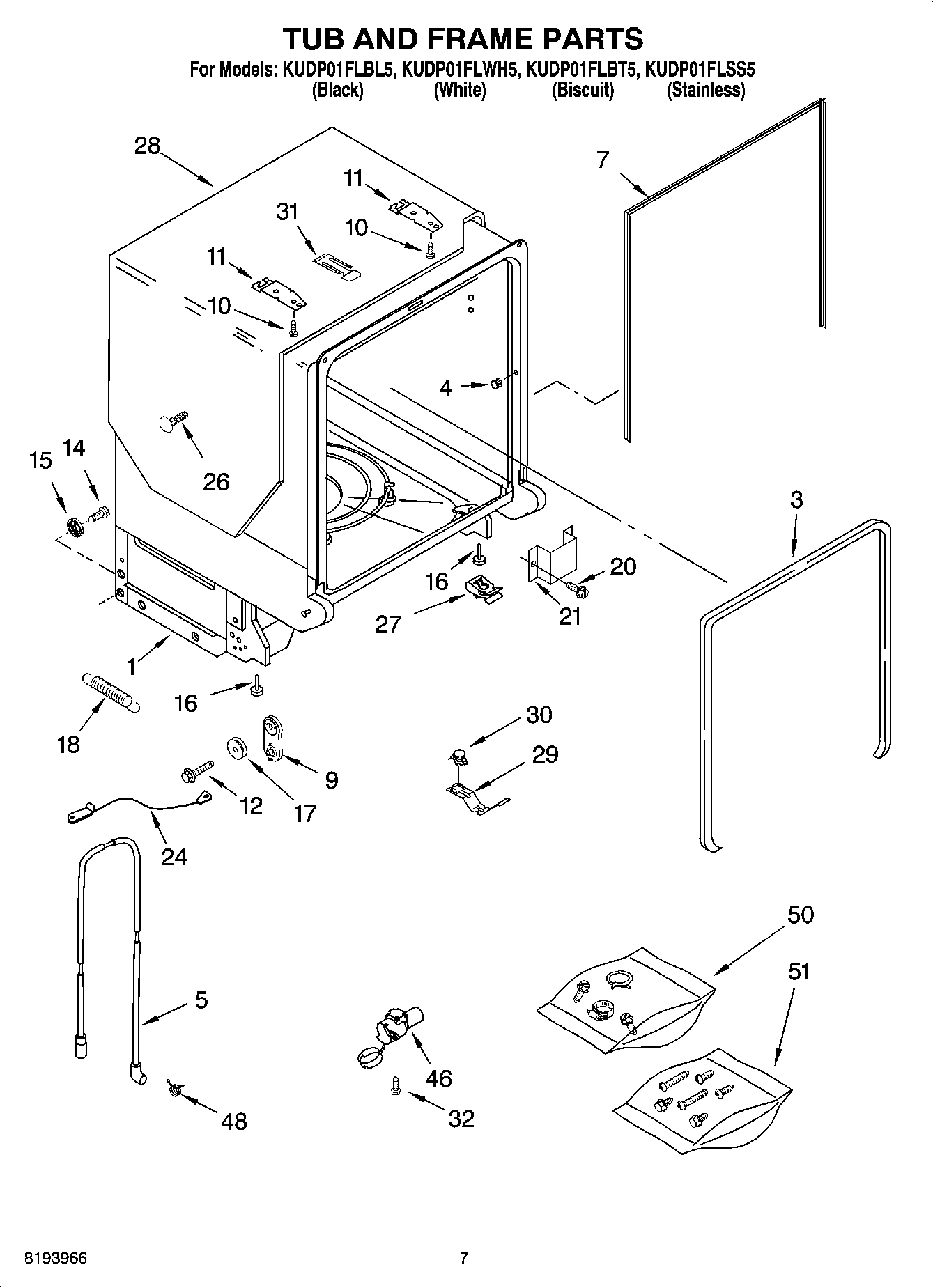

Model Whirlpool KUDP01FLBL5 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

WPL 8171659 WPL 8171659 Contact Us For Availability

WPL 8171656 WPL 8171656 Contact Us For Availability

WPL 8171657 WPL 8171657 Contact Us For Availability

1

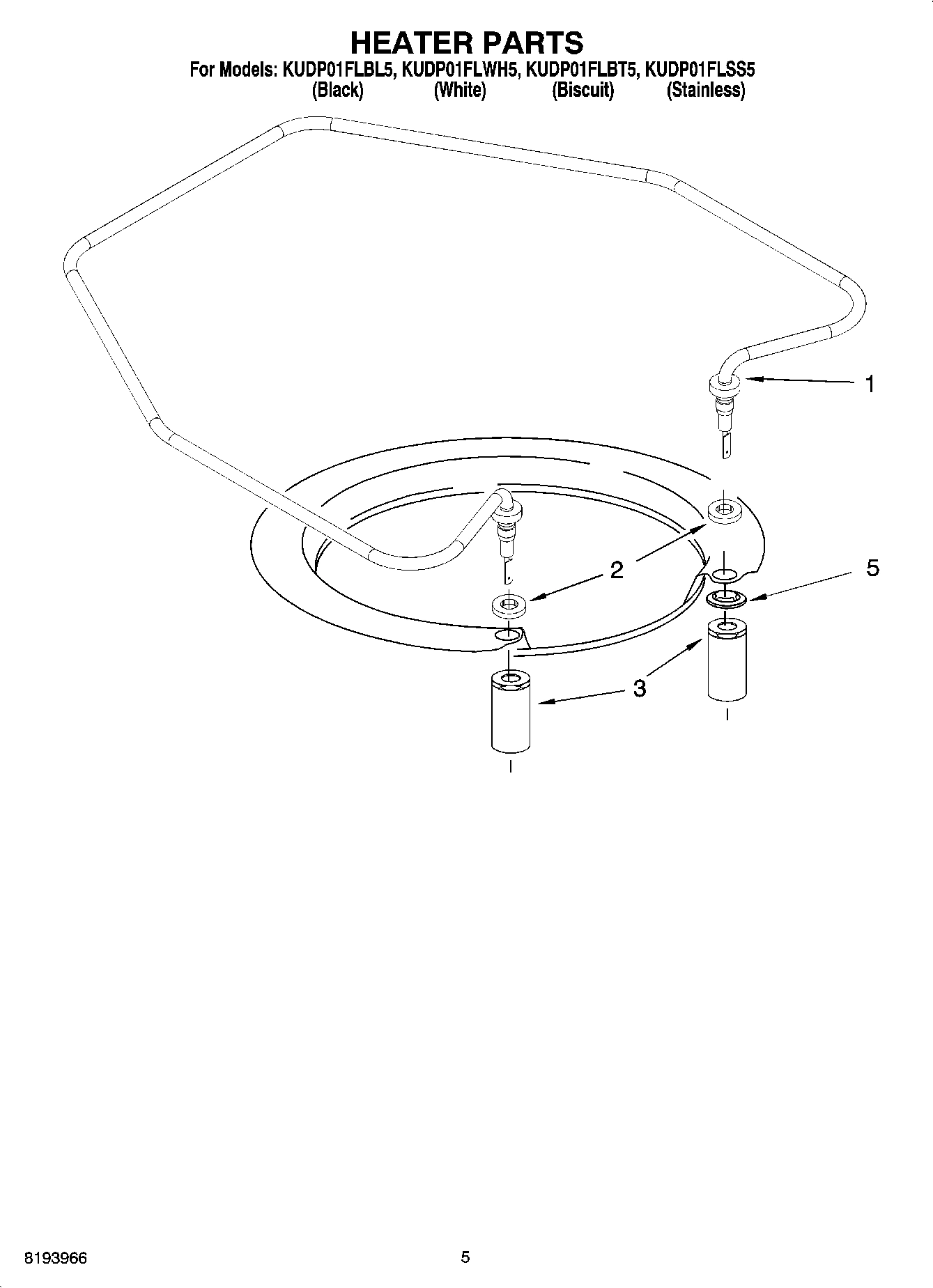

Heater Element Assembly (Also Includes Item 2 WPL 8194200 Contact Us For Availability

1

Feed Tube Assembly (Also Includes Item 3) WPL 8268361 Contact Us For Availability

1

Instructions, Installation WPL 8531579 Contact Us For Availability

1

Guide, Use & Care Tech Sheet WPL 8531778 Contact Us For Availability

1

Video, Use & Care (DVD) WPL 8531822 Contact Us For Availability

1

Energy Guide WPL 8531840 Contact Us For Availability

1

English/French WPL 8564040 Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $29.43

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

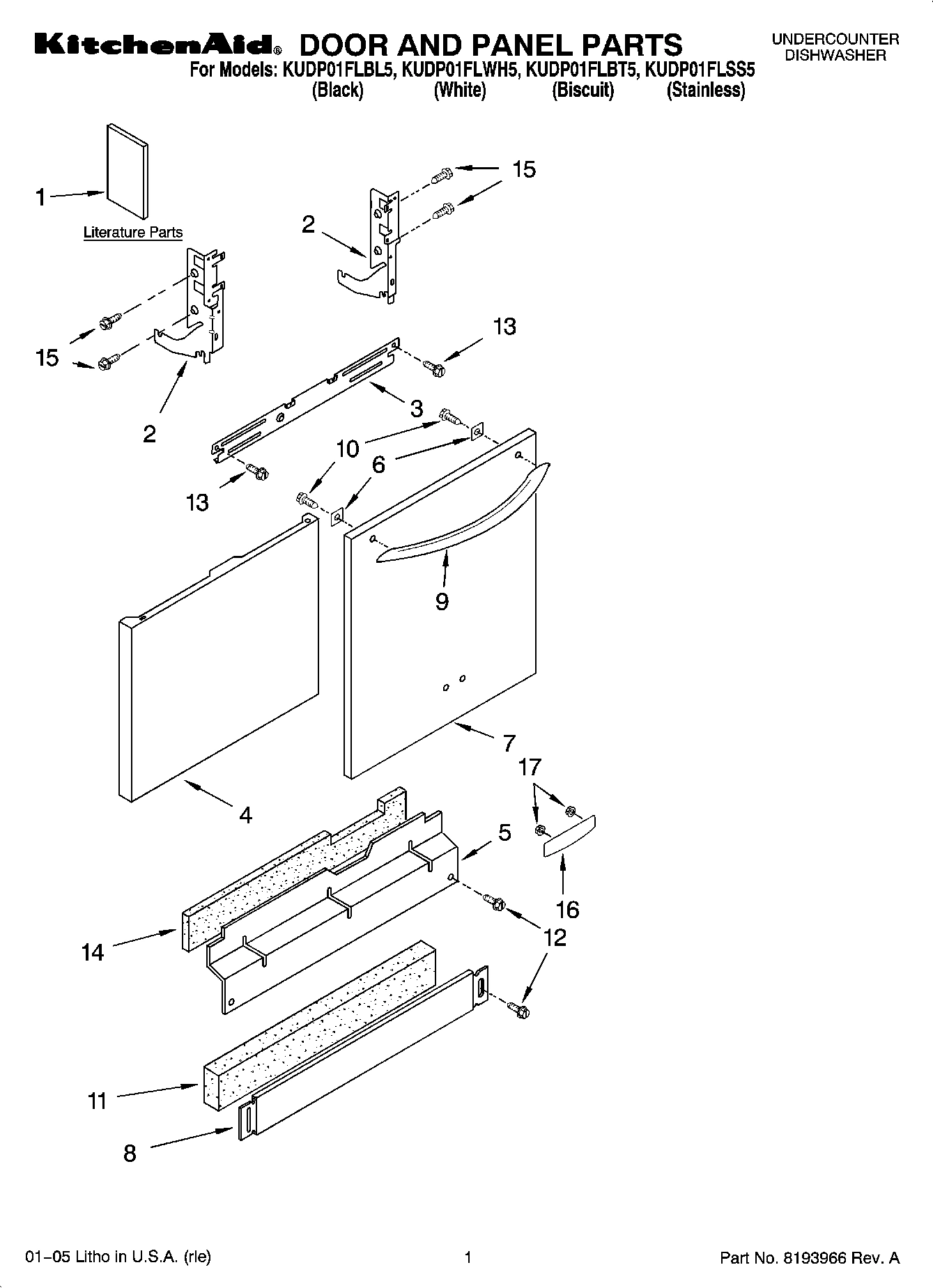

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

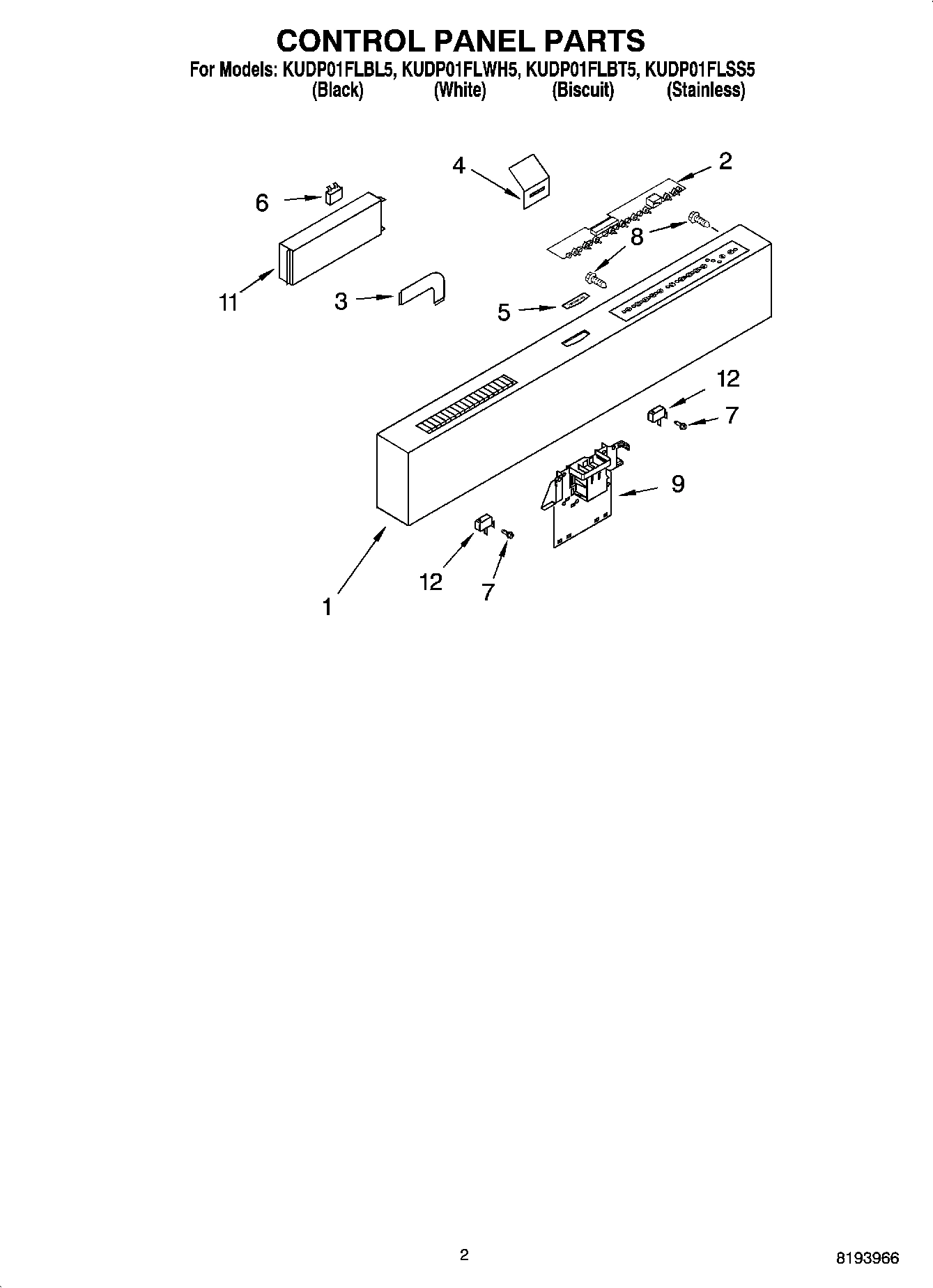

RIBBON, CABLE WPL 8524447 Contact Us For Availability

3

Stiffener, Door WPL 8268983 Contact Us For Availability

4

W11113792 Whirlpool Dishwasher Panel Backorder WPL W11113792 $106.90

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

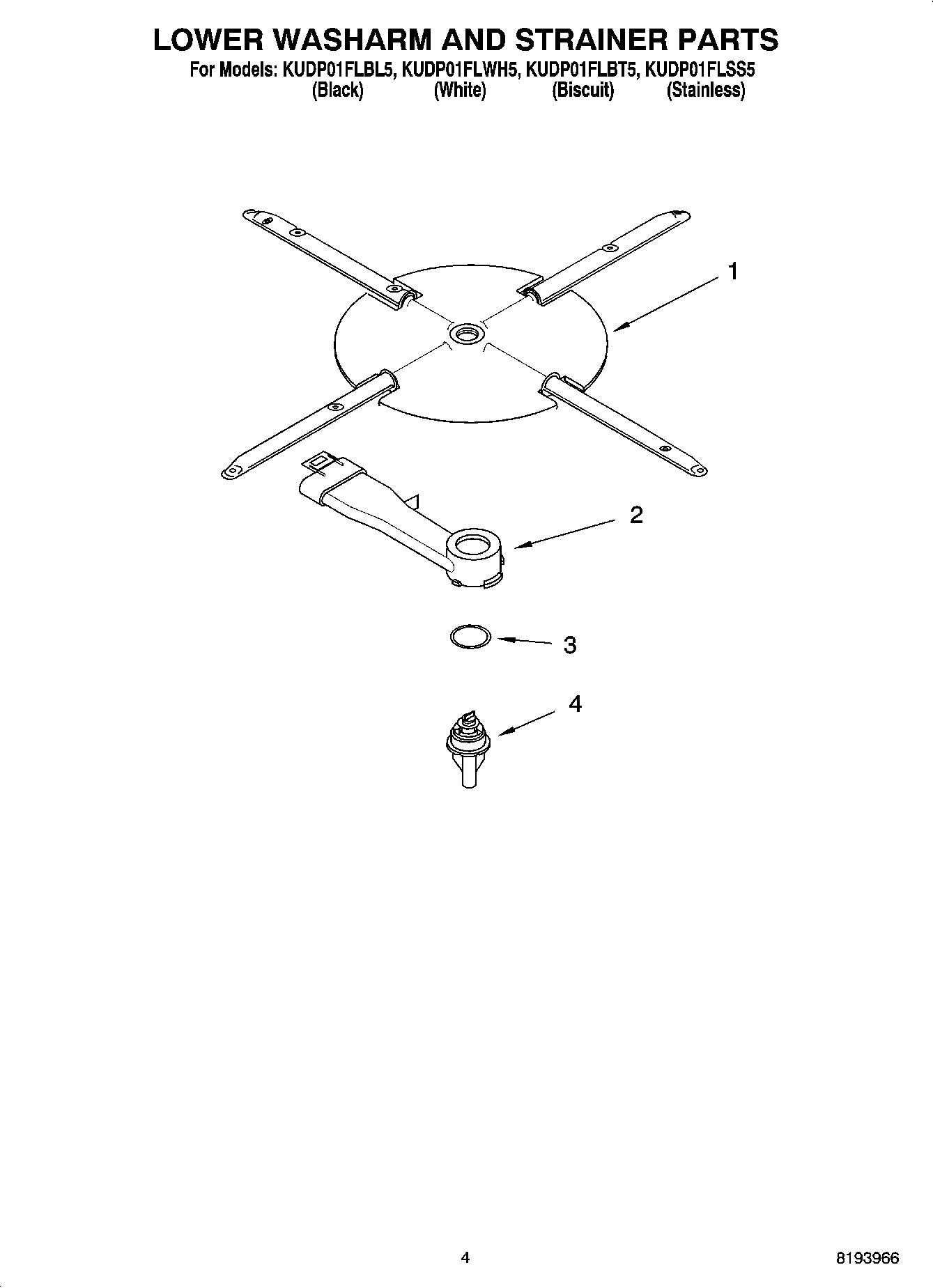

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268785 Whirlpool Dishwasher Wheel In Stock WPL WP8268785 $13.03

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $26.75

4

WP8531233 Whirlpool Dishwasher Silverware Bas In Stock WPL WP8531233 $32.78

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

Sump WPL 8534882 Contact Us For Availability

5

W10871198 Whirlpool Dishwasher Panel Backorder WPL W10871198 $52.03

5

W10909066 Whirlpool Dishwasher Panel Backorder WPL W10909066 $56.54

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

6

Manifold WPL 8268355 Contact Us For Availability

6

Plate, Backing WPL 9744437 Contact Us For Availability

7

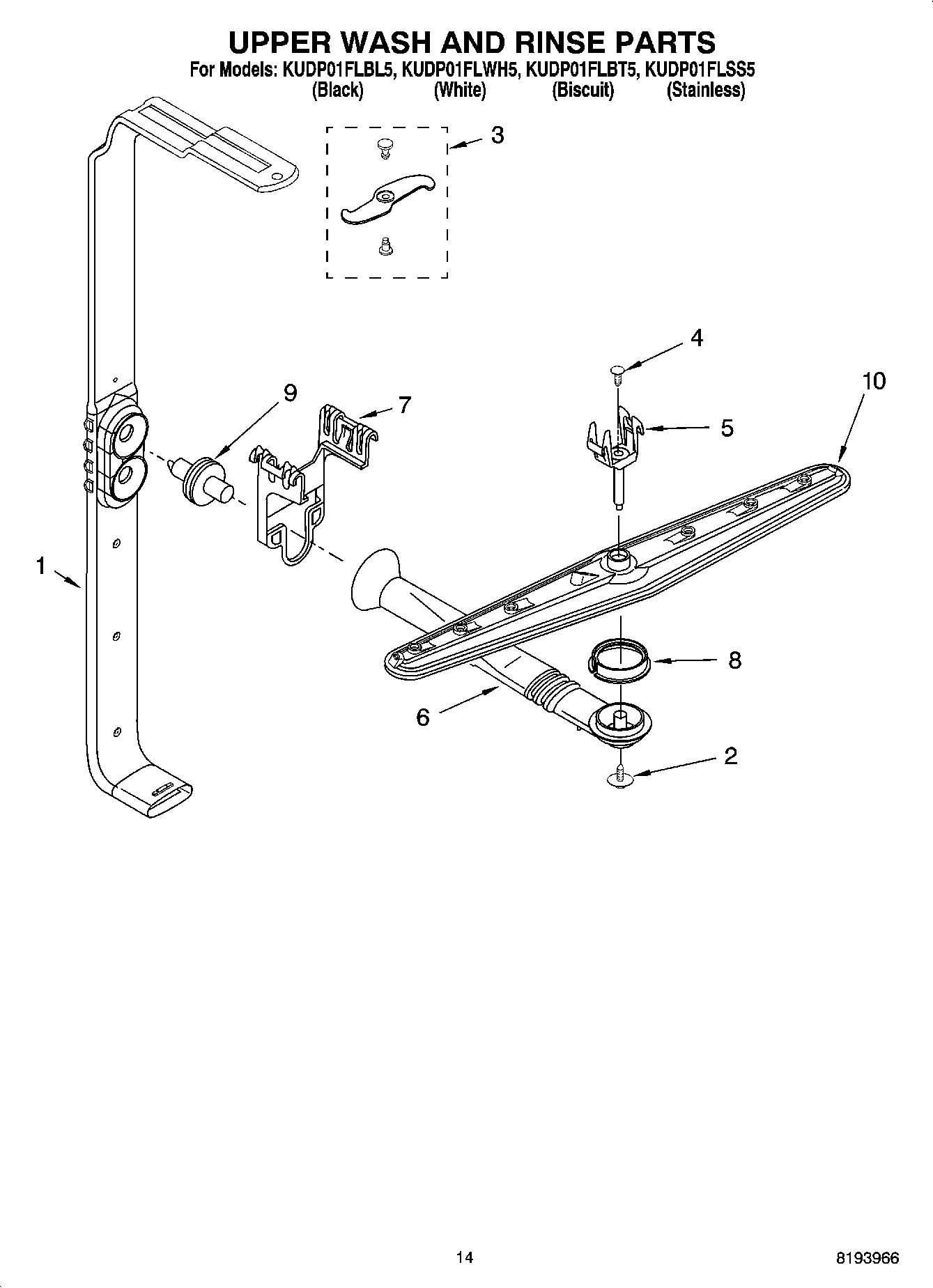

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8531314 Whirlpool Dishwasher Retainer In Stock WPL WP8531314 $10.76

7

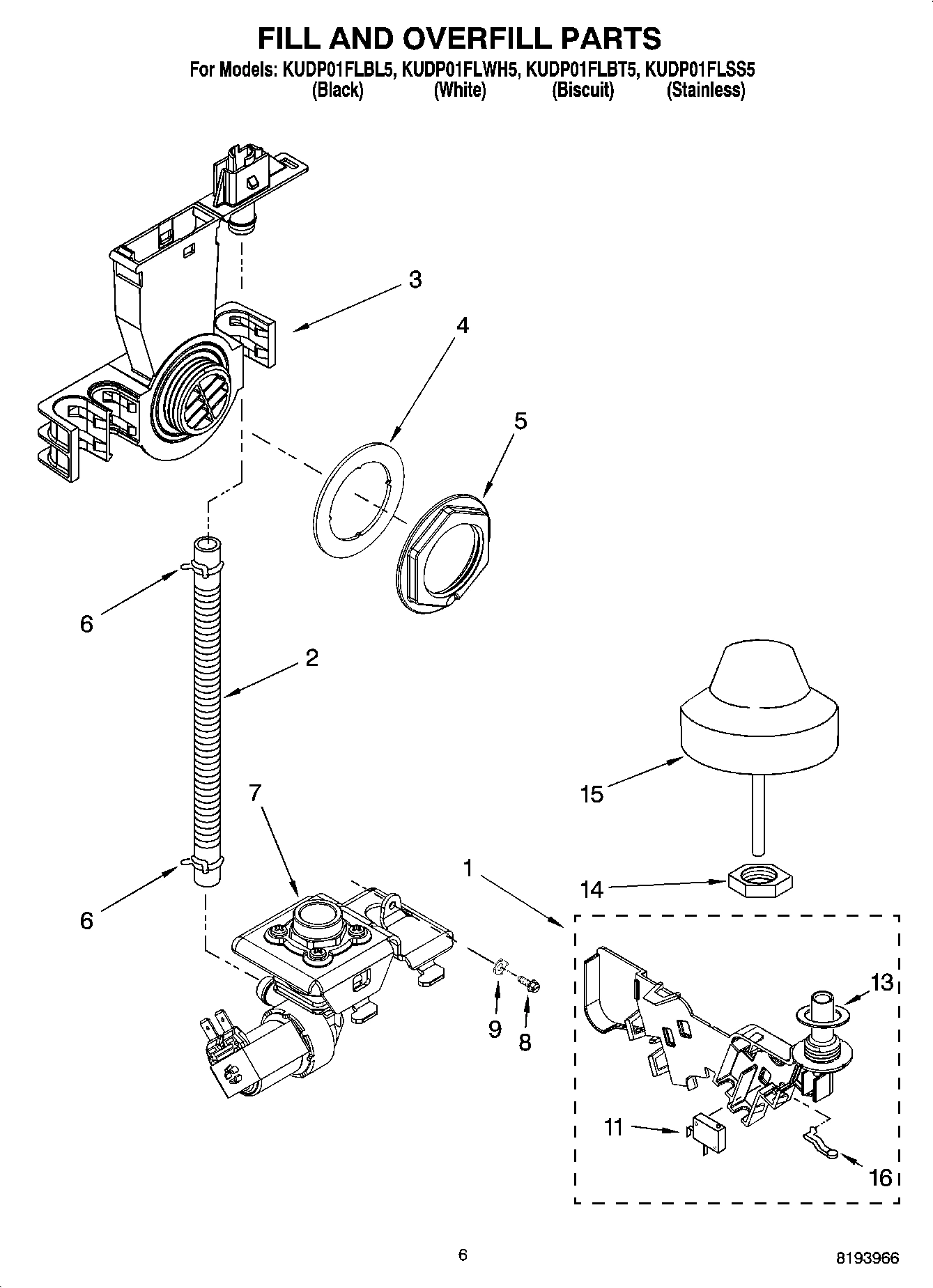

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $28.99

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $30.85

7

Panel, Full Front (Includes Items 16 & 17) (S WPL 8531225 Contact Us For Availability

7

Panel, Full Front (Includes Items 16 & 17) (B WPL 8531226 Contact Us For Availability

7

Panel, Full Front (Includes Items 16 & 17) (W WPL 8531227 Contact Us For Availability

7

Panel, Full Front (Includes Items 16 & 17) (B WPL 8531228 Contact Us For Availability

8

W10909064 Whirlpool Dishwasher Black Access P In Stock WPL W10909064 $65.72

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WPW10586591 Whirlpool Dishwasher Toe Panel Backorder WPL WPW10586591 $124.83

8

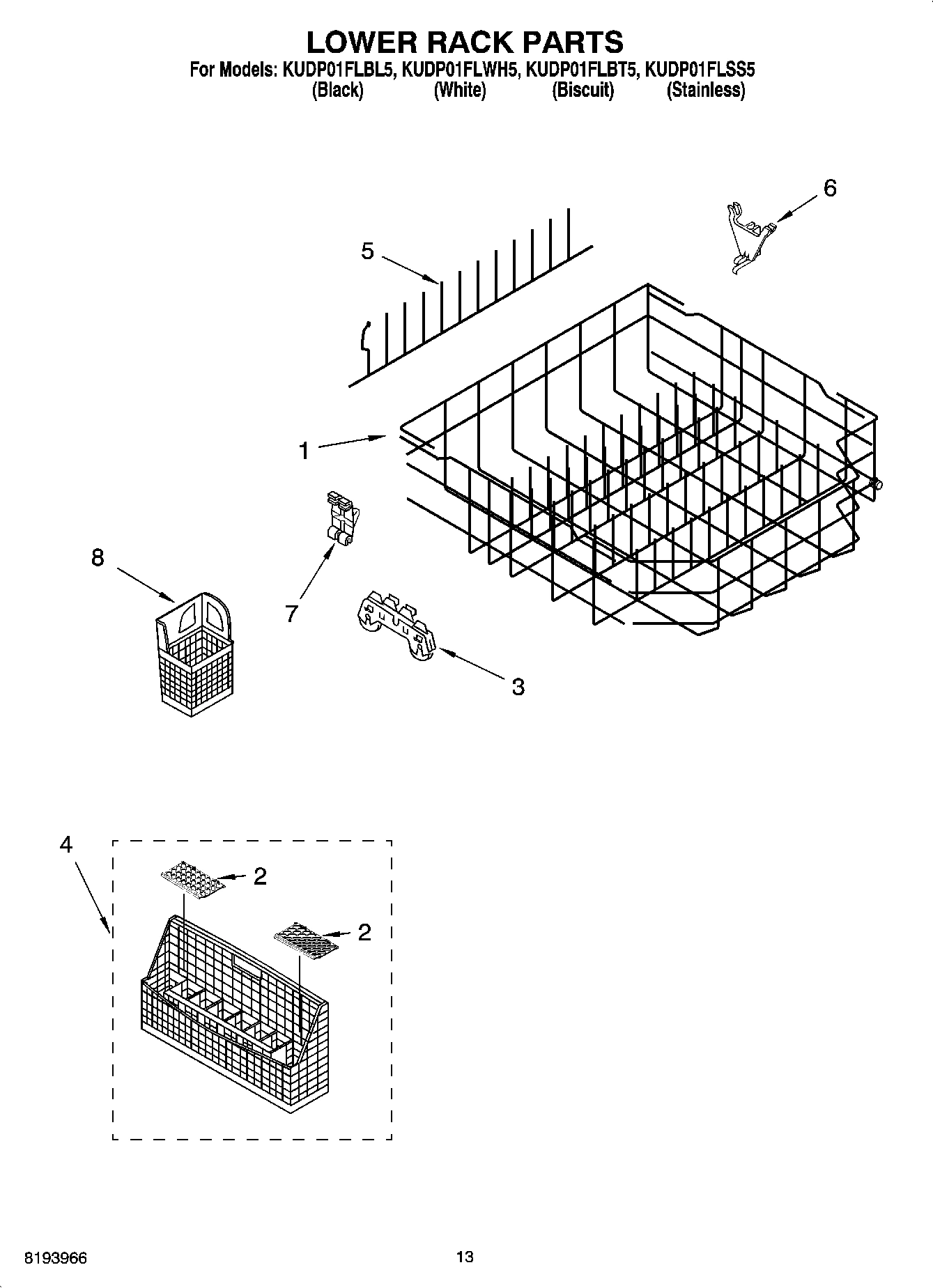

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Biscuit) WPL 8269001 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $27.71

9

Nozzle, Feed WPL 8269295 Contact Us For Availability

9

Handle (Includes Items 6 & 10) (Stainless) WPL 8524415 Contact Us For Availability

9

Handle (Includes Items 6 & 10) (White) WPL 8524416 Contact Us For Availability

9

Handle (Includes Items 6 & 10) (Biscuit) WPL 8524417 Contact Us For Availability

9

Handle (Includes Items 6 & 10) (Black) WPL 8524418 Contact Us For Availability

10

Screw WPL 3400067 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

W10831329 Whirlpool Dishwasher Shield In Stock WPL W10831329 $16.05

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $40.97

Wiring Harness Main WPL 8534931 Contact Us For Availability

13

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

15

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

15

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

Nameplate (Black) WPL 2005292 Contact Us For Availability

Nameplate (Biscuit) WPL 2209118T Contact Us For Availability

Nameplate (White) WPL 2209118W Contact Us For Availability

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $31.86

Pump, Drain WPL 661658 Contact Us For Availability

18

WP8270182 Whirlpool Door Spring Assembly In Stock WPL WP8270182 $15.12

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

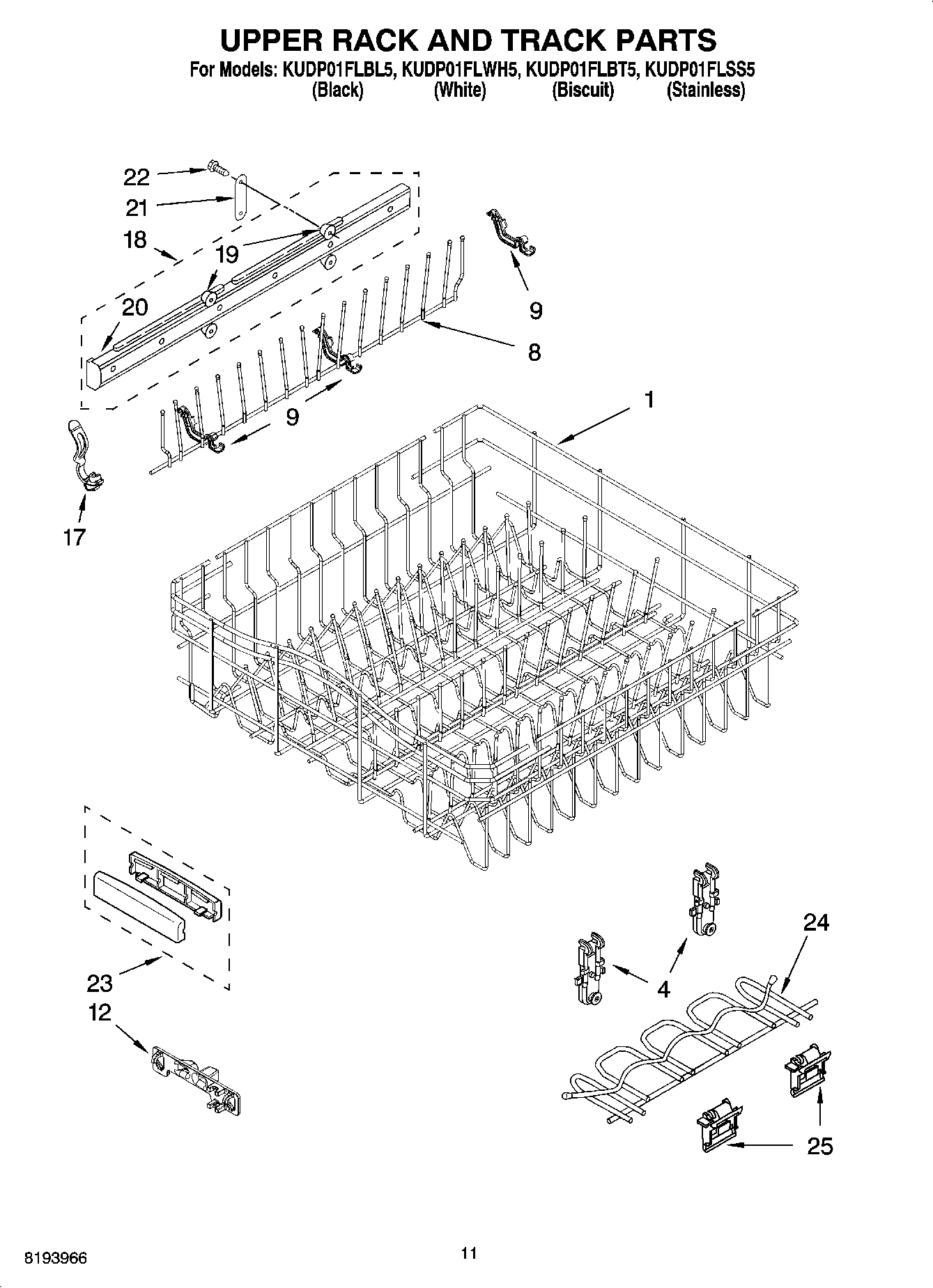

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8270136 Whirlpool Dishwasher Stop Backorder WPL WP8270136 $28.11

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
