Model Whirlpool KUDN230YWH0 – Common Parts & Diagrams
05 - PUMP AND MOTOR
02 - ACCESS PANEL

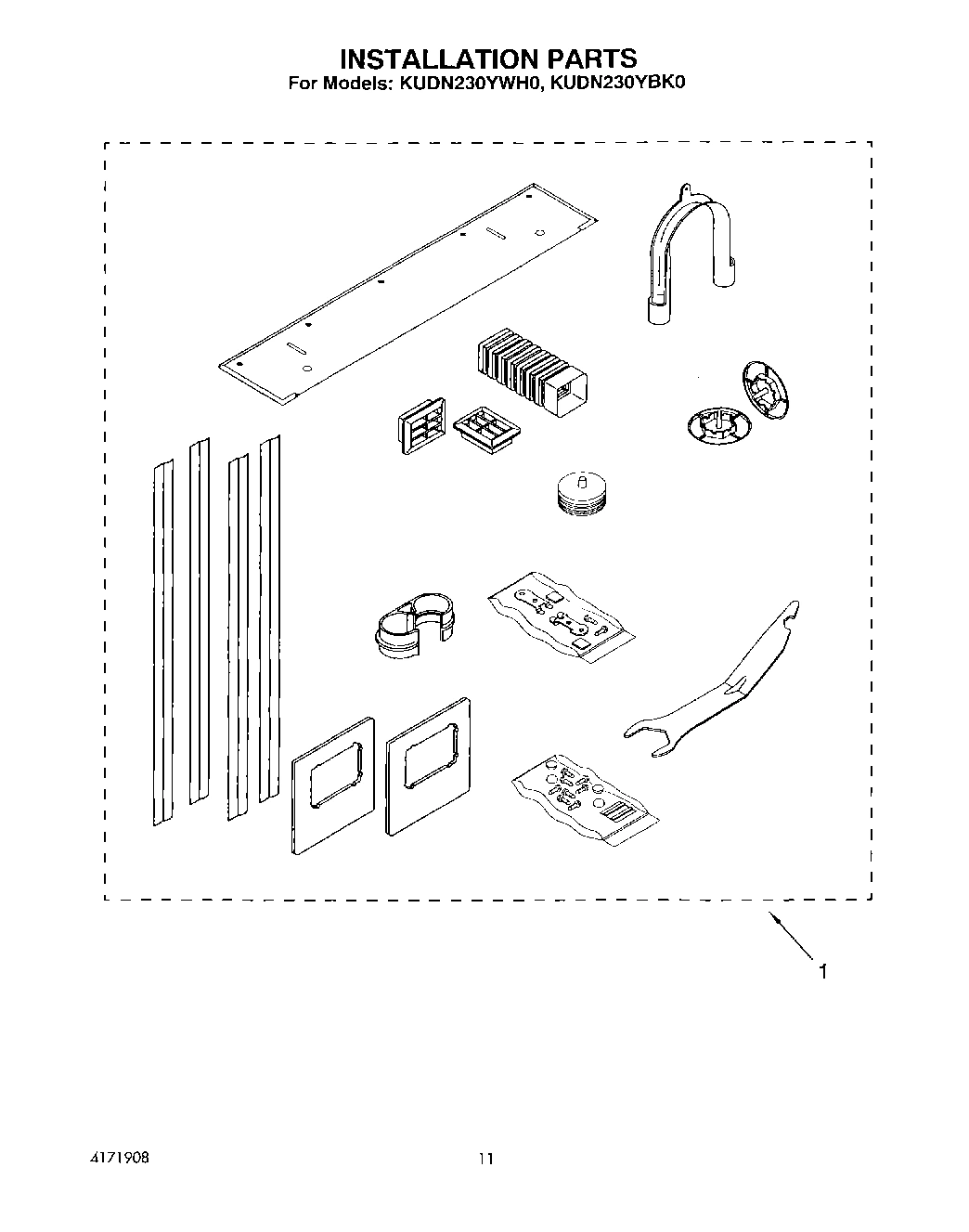

08 - INSTALLATION

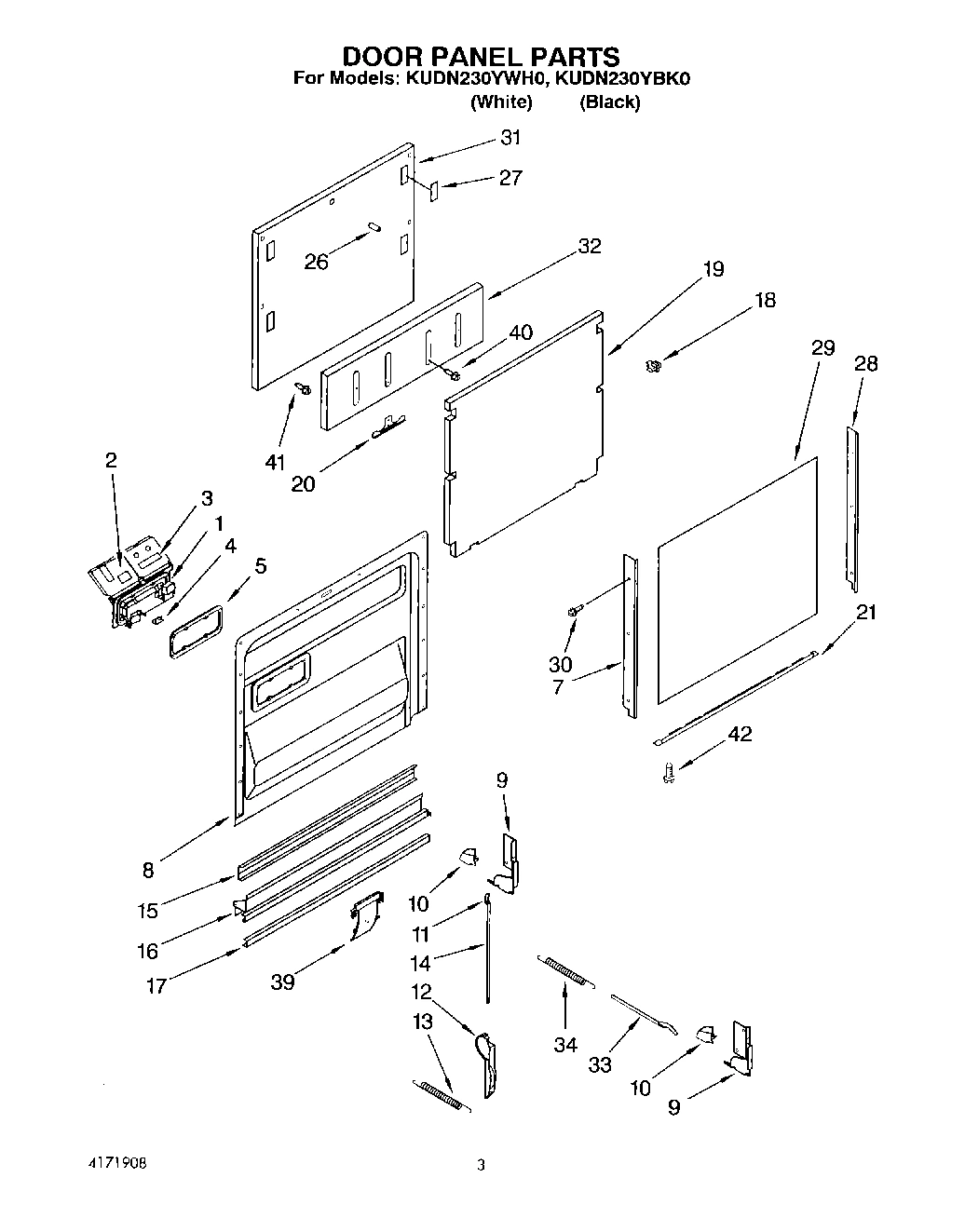

03 - DOOR PANEL, LITERATURE

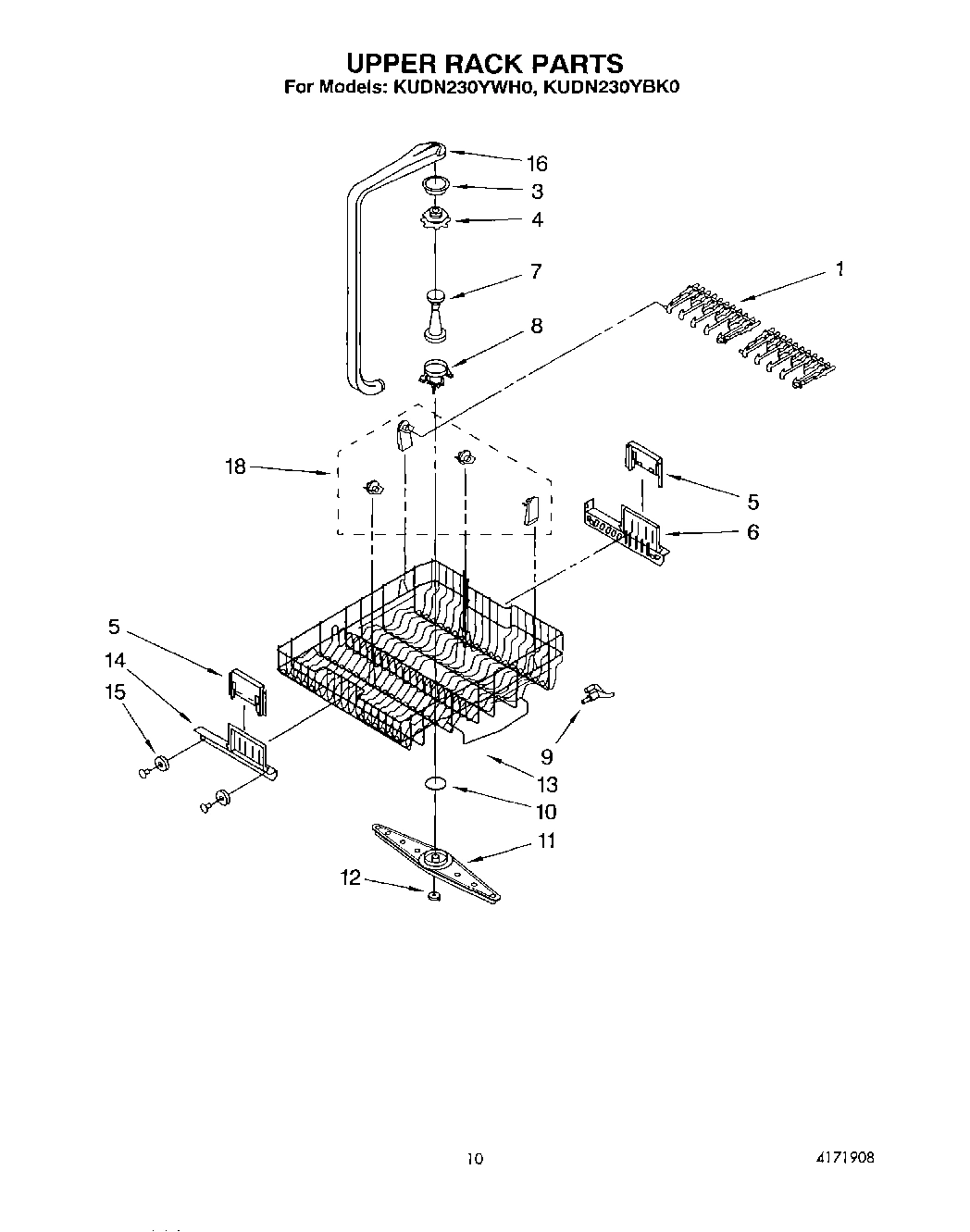

07 - UPPER RACK

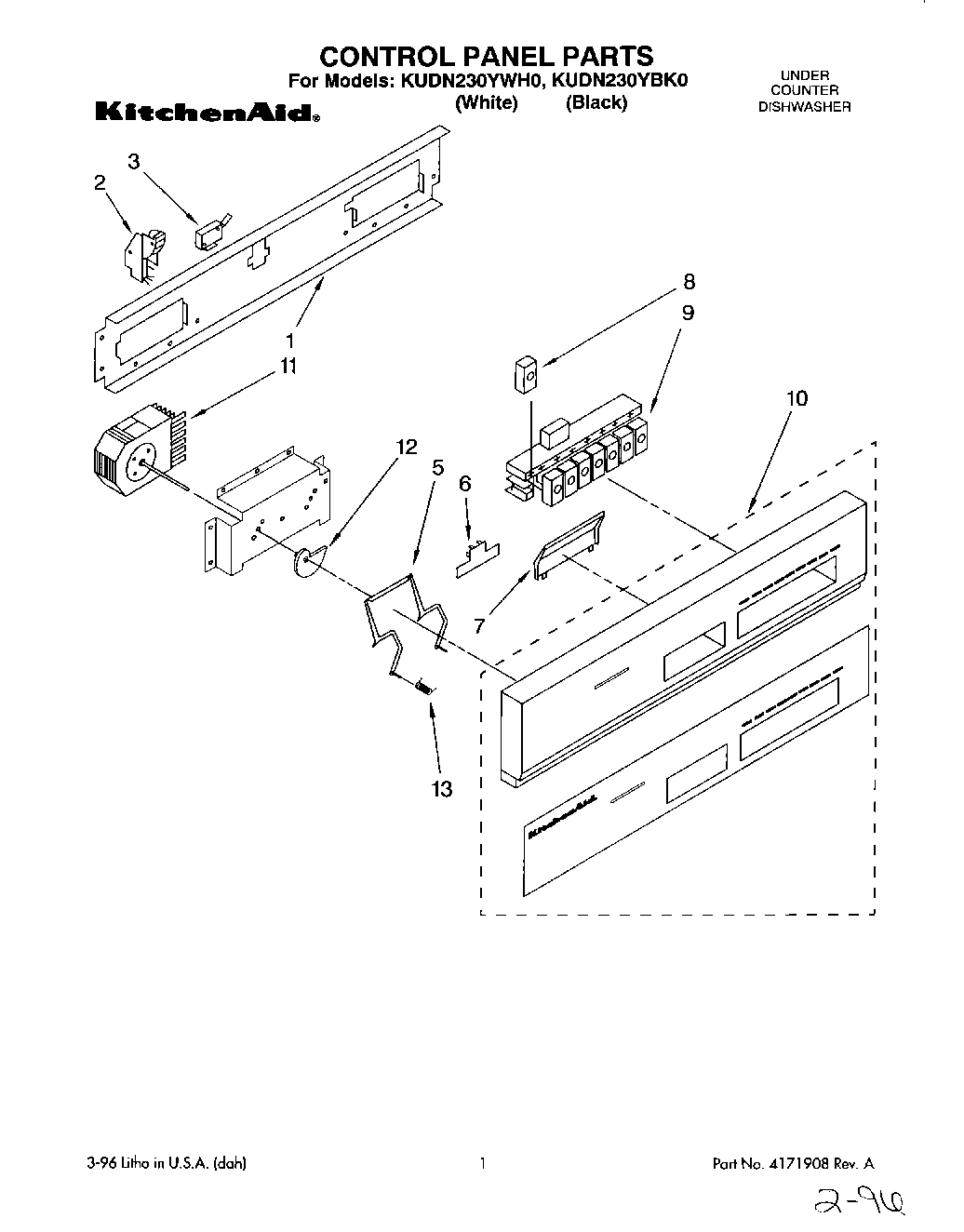

01 - CONTROL PANEL

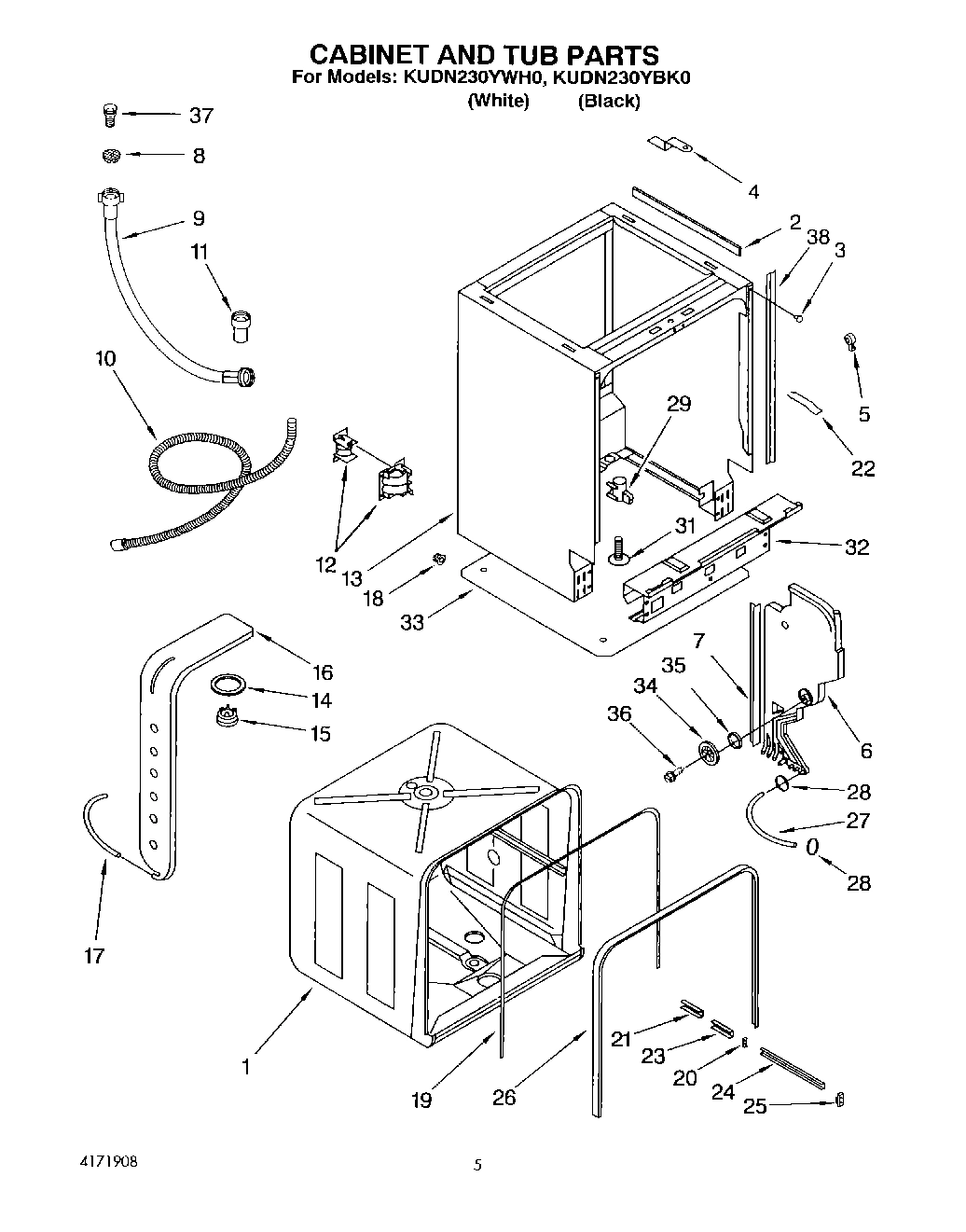

04 - CABINET AND TUB

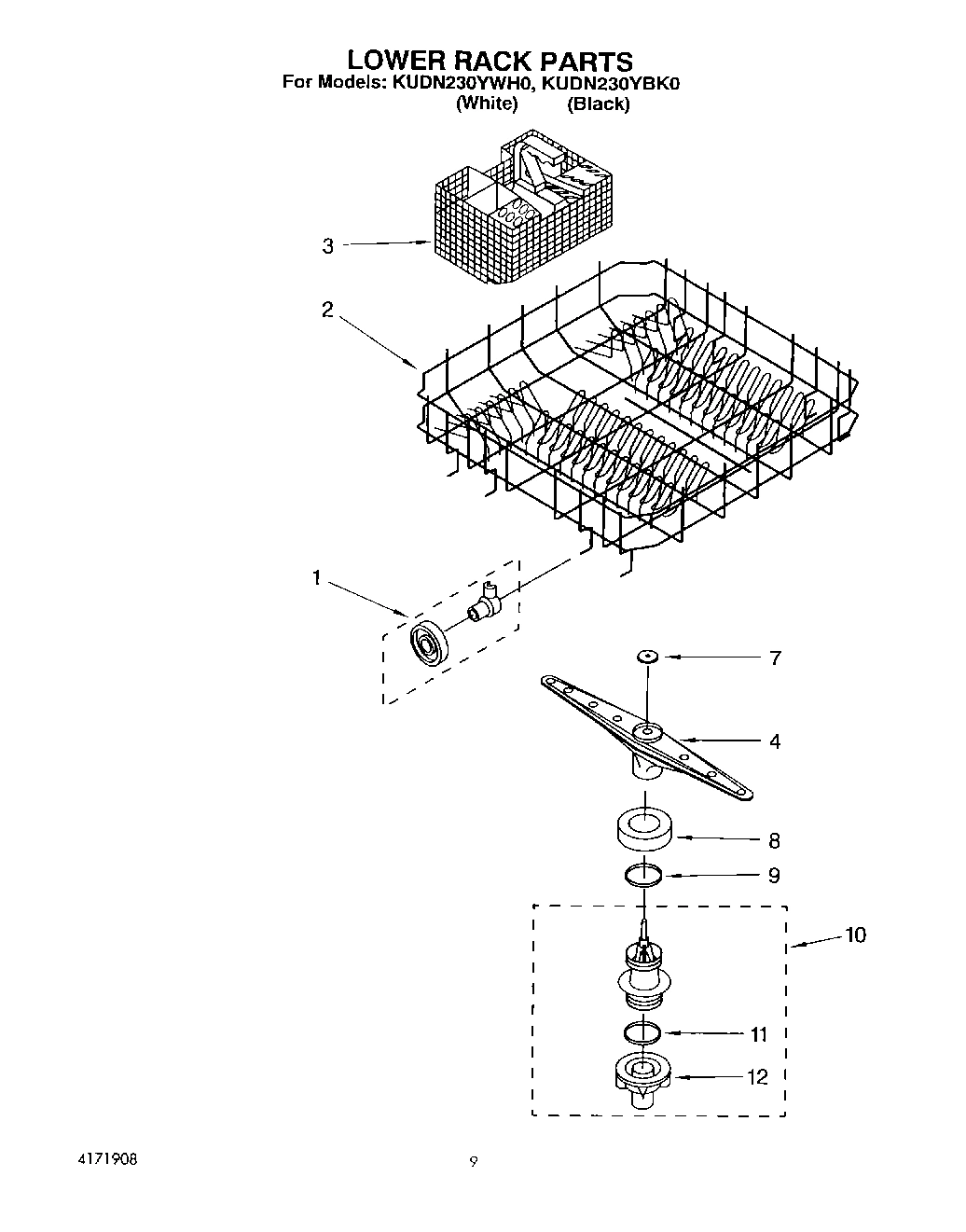

06 - LOWER RACK
Common parts from model Whirlpool KUDN230YWH0
Parts List WPL LIT4171908 Contact Us For Availability
Instructions, Installation WPL LIT9741194 Contact Us For Availability
Guide, Use & Care WPL LIT9741195 Contact Us For Availability
Energy Guide WPL LIT9741411 Contact Us For Availability
Tech Sheet WPL LIT9741562 Contact Us For Availability
1
Cover, Plate R.S. WPL 4171779 Contact Us For Availability
1
Hardware Bag WPL 4172050 Contact Us For Availability
1
Rinse Agent Dispensing Valve WPL 4171741 Contact Us For Availability
1
Flexrow WPL 4171879 Contact Us For Availability
1
Bracket, Control (Not Serviceable) WPL ARI114653A Contact Us For Availability
1
Tub, Insulated WPL 4171797 Contact Us For Availability
1
Roller & Axle Lower Dishrack WPL 4171893 Contact Us For Availability
2
Cover, Plate L.S. WPL 4171778 Contact Us For Availability
2
Seal, Dispenser WPL 4171742 Contact Us For Availability
2
Latch, Door WPL 4171783 Contact Us For Availability
2
Spacer WPL 4171798 Contact Us For Availability
2
Dishrack, Lower WPL 4171894 Contact Us For Availability
3
Extension, Foot Panel WPL 4171765 Contact Us For Availability
3
Seal, Dispenser WPL 4171743 Contact Us For Availability
3
Seal, Top Nozzle WPL 4171880 Contact Us For Availability
3
Microswitch, Door WPL 4171784 Contact Us For Availability
3
Stopper, Door WPL 4171799 Contact Us For Availability
3
Basket, Silverware WPL 4171895 Contact Us For Availability
4
Foot Panel, Base WPL 4171766 Contact Us For Availability
4
Reed, Contact Dispenser WPL 4171744 Contact Us For Availability
4
Assembly, Top Nozzle WPL 4171881 Contact Us For Availability
4
Plate, Adjustable WPL 4171800 Contact Us For Availability
4
Lower Spray Arm WPL 4171896 Contact Us For Availability
5
Adjuster, Base Plate WPL 4171767 Contact Us For Availability
5
Gasket, Dispenser WPL 4171745 Contact Us For Availability
5
Handle, Basket WPL 4171882 Contact Us For Availability
5
Parallel Crank, Drive Motor WPL 4171785 Contact Us For Availability
5
Clip, Tub WPL 4171801 Contact Us For Availability
6
Pressure Switch, High WPL 4171834 Contact Us For Availability
6
Screw WPL 4171746 Contact Us For Availability
6
Support, Foot Panel WPL 4171764 Contact Us For Availability
6
Adjustment, Basket (Right) WPL 4171883 Contact Us For Availability
6
Plate, Indicator WPL 4171786 Contact Us For Availability
6
Dispenser (Incl. Illus. No.28) WPL 4171802 Contact Us For Availability
7
Filter, Coarse WPL 4171835 Contact Us For Availability
7
Air Grid (White) WPL 4171780 Contact Us For Availability
7
Air Grid (Black) WPL 4171781 Contact Us For Availability
7
Side Trim, L.H. (White) WPL 4171747 Contact Us For Availability
7
Side Trim, L.H. (Black) WPL 4171748 Contact Us For Availability
7
Funnel WPL 4171884 Contact Us For Availability
7
Nut WPL 4171889 Contact Us For Availability
7
Insert, Handle (White) WPL 4171787 Contact Us For Availability
7
Insert, Handle (Black) WPL 4171788 Contact Us For Availability
7
Trim, Side Strip WPL 4171803 Contact Us For Availability
8
Strainer, Fine WPL 4171836 Contact Us For Availability
8
Vent Duct WPL 4171782 Contact Us For Availability
8
Door, Inner WPL 4171749 Contact Us For Availability
8
Bearing, Rotor WPL 4171885 Contact Us For Availability
8
Push-Button (White) WPL 4171789 Contact Us For Availability
8
Push-Button (Black) WPL 4171790 Contact Us For Availability
8
Strainer, Inlet WPL 4171804 Contact Us For Availability
8
Nut, Lower Spray Arm WPL 4171899 Contact Us For Availability
9
Cap WPL 4171837 Contact Us For Availability
9
Panel, Toe Kick (White) WPL 4172005 Contact Us For Availability
9
Panel, Toe Kick (Black) WPL 4172006 Contact Us For Availability
9
Hinge, Door WPL 4171750 Contact Us For Availability
9
Holder, Distance WPL 4171886 Contact Us For Availability
9
Switch, Push-Button WPL 4171791 Contact Us For Availability
9
Hose, Inlet WPL 4171805 Contact Us For Availability
9
O-Ring (Lower) WPL 4171900 Contact Us For Availability
10
Gasket WPL 4171838 Contact Us For Availability
10
Toe Kit (European) (White) WPL 4172008 Contact Us For Availability
10
Toe Kit (European) (Black) WPL 4172009 Contact Us For Availability
10
Cover, Hinge WPL 4171751 Contact Us For Availability
10
O-Ring (Upper) WPL 4171887 Contact Us For Availability
10
Control Panel (White) WPL 4171792 Contact Us For Availability
10
Control Panel (Black) WPL 4171793 Contact Us For Availability
10
Hose, Drain WPL 4171806 Contact Us For Availability
10
Lower Rotor Hub Assembly WPL 4171901 Contact Us For Availability
11
Ring, Thread WPL 4171839 Contact Us For Availability
11
Panel, Front Access (White/Black) WPL 4171992 Contact Us For Availability
11
Connection, Pull Tape WPL 4171752 Contact Us For Availability
11
Upper Spray Arm WPL 4171888 Contact Us For Availability
11
Timer WPL 4171794 Contact Us For Availability
11
Sleeve, Connector WPL 4171807 Contact Us For Availability
11
Seal, Rotor Hub WPL 4171902 Contact Us For Availability
12
Strainer, Micro-Fine WPL 4171840 Contact Us For Availability
12
Spacer, Access Panel WPL 4171994 Contact Us For Availability
12
Brake Lever WPL 4171753 Contact Us For Availability
12
Cam WPL 4171795 Contact Us For Availability
12
Cradle, Hose WPL 4171808 Contact Us For Availability
12
Rotor Hub, Lower WPL 4171903 Contact Us For Availability
13
Motor WPL 4171846 Contact Us For Availability
13
Trim, Upper (White) WPL 4171995 Contact Us For Availability
13
Trim, Upper (Black) WPL 4171996 Contact Us For Availability
13
xDoor Spring, L.H. WPL 4171754 Contact Us For Availability
13
Dishrack, Upper WPL 4171890 Contact Us For Availability
13
Spring, Crank WPL 4171796 Contact Us For Availability
13
Cabinet (Not A Serviceable Part) WPL ARI114654A Contact Us For Availability
14
Washer WPL 4171847 Contact Us For Availability
14
Trim, Bottom (White) WPL 4171997 Contact Us For Availability
14
Trim, Bottom (Black) WPL 4171998 Contact Us For Availability
14
Pull Tape WPL 4171755 Contact Us For Availability
14
Adjustment, Basket (Left) WPL 4171891 Contact Us For Availability
14
Seal, Air Duct WPL 4171809 Contact Us For Availability
15
Spray Pump WPL 4171848 Contact Us For Availability
15
Screw, Upper Trim (2) WPL 4171999 Contact Us For Availability
15
Seal, Inside WPL 4171756 Contact Us For Availability
15
Roller, Upper Dishrack WPL 4171892 Contact Us For Availability
15
Deflector, Air WPL 4171810 Contact Us For Availability
16
Clip (2) WPL 4172000 Contact Us For Availability
16
Trim, Lower WPL 4171757 Contact Us For Availability
16
Pipe WPL 4171897 Contact Us For Availability
16
Duct, Air WPL 4171811 Contact Us For Availability
17
Hose (Includes (2) Illus. No.54) WPL 4171850 Contact Us For Availability
17
Seal, Lower WPL 4171758 Contact Us For Availability
17
Hose, Duct WPL 4171812 Contact Us For Availability
18
O-Ring WPL 4171851 Contact Us For Availability
18
Panel, Bottom (White) WPL 4172002 Contact Us For Availability
18
Panel, Bottom (Black) WPL 4172003 Contact Us For Availability
18
Clip, Trim WPL 4171759 Contact Us For Availability
18
Clip Assembly WPL 4171976 Contact Us For Availability
18
Cable, Relief WPL 4171813 Contact Us For Availability
19
Nut, Adjusting WPL 4171852 Contact Us For Availability
19
Bracket, Front WPL 4172004 Contact Us For Availability
19
Spacer, Door WPL 4171760 Contact Us For Availability
19
Strap WPL 4171814 Contact Us For Availability
20
Thermostat, Hi-Limit WPL 4171853 Contact Us For Availability
20
Bracket, Side (2) WPL 4171993 Contact Us For Availability
20
Clamp WPL 4171761 Contact Us For Availability
20
Rail Cap, Rear WPL 4171815 Contact Us For Availability
21
Element, Heating WPL 4171854 Contact Us For Availability
21
Toe Kit (American) (White) WPL 9741413 Contact Us For Availability
21
Toe Kit (American) (Black) WPL 9741416 Contact Us For Availability
21
Bottom Trim (White) WPL 4171762 Contact Us For Availability
21
Bottom Trim (Black) WPL 4171763 Contact Us For Availability
21
Bearing WPL 4171816 Contact Us For Availability
22
Misc. Parts (Includes White Touch-Up Paint) WPL 4172001 Contact Us For Availability
22
Hook, Latch WPL 4171817 Contact Us For Availability
23
Thermostat, Red W/O Dot. 40 C WPL 4171856 Contact Us For Availability
23
Bearing, Track WPL 4171818 Contact Us For Availability
24
Thermostat, Red W/Dot 55C/135F WPL 4171857 Contact Us For Availability
24
Rail, Inner WPL 4171819 Contact Us For Availability
25
Thermostat, White W/O Dot 65C/155F WPL 4171858 Contact Us For Availability
25
Rail Cap, Front WPL 4171820 Contact Us For Availability
26
Holder, Thermostat WPL 4171859 Contact Us For Availability
26
Pin, Outer Door WPL 4171768 Contact Us For Availability
26
Seal, Door WPL 4171821 Contact Us For Availability
27
Outlet, Channel (Lower) WPL 4171860 Contact Us For Availability
27
Hose, Dispenser WPL 715960 Contact Us For Availability
27
Cap, Outer Door WPL 4171769 Contact Us For Availability
28
Fan Motor WPL 4171861 Contact Us For Availability
28
Side Trim, R.H. (White) WPL 4171770 Contact Us For Availability
28
Side Trim, R.H. (Black) WPL 4171771 Contact Us For Availability
29
Clamp (130-150) WPL 4171862 Contact Us For Availability
29
Insert, Front Panel (White/Black) WPL 4171772 Contact Us For Availability
29
Reinforcement, Foot WPL 4171824 Contact Us For Availability
30
Seal, Drain Tube WPL 4171863 Contact Us For Availability
30
Screw, Side Trim (Black) (For White, Also Ord WPL 4171773 Contact Us For Availability
31
Pipe, Water WPL 4171864 Contact Us For Availability
31
Door, Outer WPL 4171774 Contact Us For Availability
31
Foot & Disc Assy. WPL 4171826 Contact Us For Availability
32
Drain Sump WPL 4171865 Contact Us For Availability
32
Plate, Adjustable WPL 4171775 Contact Us For Availability
32
Plate WPL 4171827 Contact Us For Availability
33
Clamp (82mm) WPL 4171866 Contact Us For Availability
33
Arm, Spring R.H. WPL 4171776 Contact Us For Availability
33
Tray, Base WPL 4171828 Contact Us For Availability
34
Pipe, Suction WPL 4171867 Contact Us For Availability
34
xDoor Spring, R.H. WPL 4171777 Contact Us For Availability
34
Cover WPL 4171970 Contact Us For Availability
35
Clamp (69mm) WPL 4171868 Contact Us For Availability
35
Gasket WPL 4171971 Contact Us For Availability
36
Chamber, Air Compression WPL 4171869 Contact Us For Availability
36
Screw WPL 4171972 Contact Us For Availability
37
Adapter, Hose WPL 9741412 Contact Us For Availability
38
Flap, Non-Return Valve WPL 4171870 Contact Us For Availability
38
Filler Strip (White) WPL 4172078 Contact Us For Availability
38
Filler Strip (Black) WPL 4172079 Contact Us For Availability
39
Clamp, Non-Return Valve WPL 4171871 Contact Us For Availability
39
Cable Protection WPL 4171915 Contact Us For Availability
40
Screw WPL 4171878 Contact Us For Availability
41
Pump, Drain WPL 4171873 Contact Us For Availability
41
Screw WPL 4171916 Contact Us For Availability
42
Screw WPL 4171969 Contact Us For Availability
43
Block, Terminal WPL 4171874 Contact Us For Availability
44
Switch, Pressure (Hi-Limit) WPL 4171875 Contact Us For Availability
45
Valve, Inlet WPL 4171876 Contact Us For Availability
46
Manifold WPL 4171877 Contact Us For Availability
47
O-Ring WPL 4171913 Contact Us For Availability
49
Bracket (Not Serviceable) WPL ARI114655A Contact Us For Availability
50
Bracket (Not Serviceable) WPL ARI114656A Contact Us For Availability
51
Bracket (Not Serviceable) WPL ARI114657A Contact Us For Availability
53
Hose, Pump Inlet (Includes (2) Illus. No.54) WPL 4171898 Contact Us For Availability
56
Clamp WPL 4171823 Contact Us For Availability
× ![]()
