Model Whirlpool KUDM25SHWH1 – Common Parts & Diagrams
07 - UPPER WASH AND RINSE
03 - DOOR AND LATCH
05 - HEATER

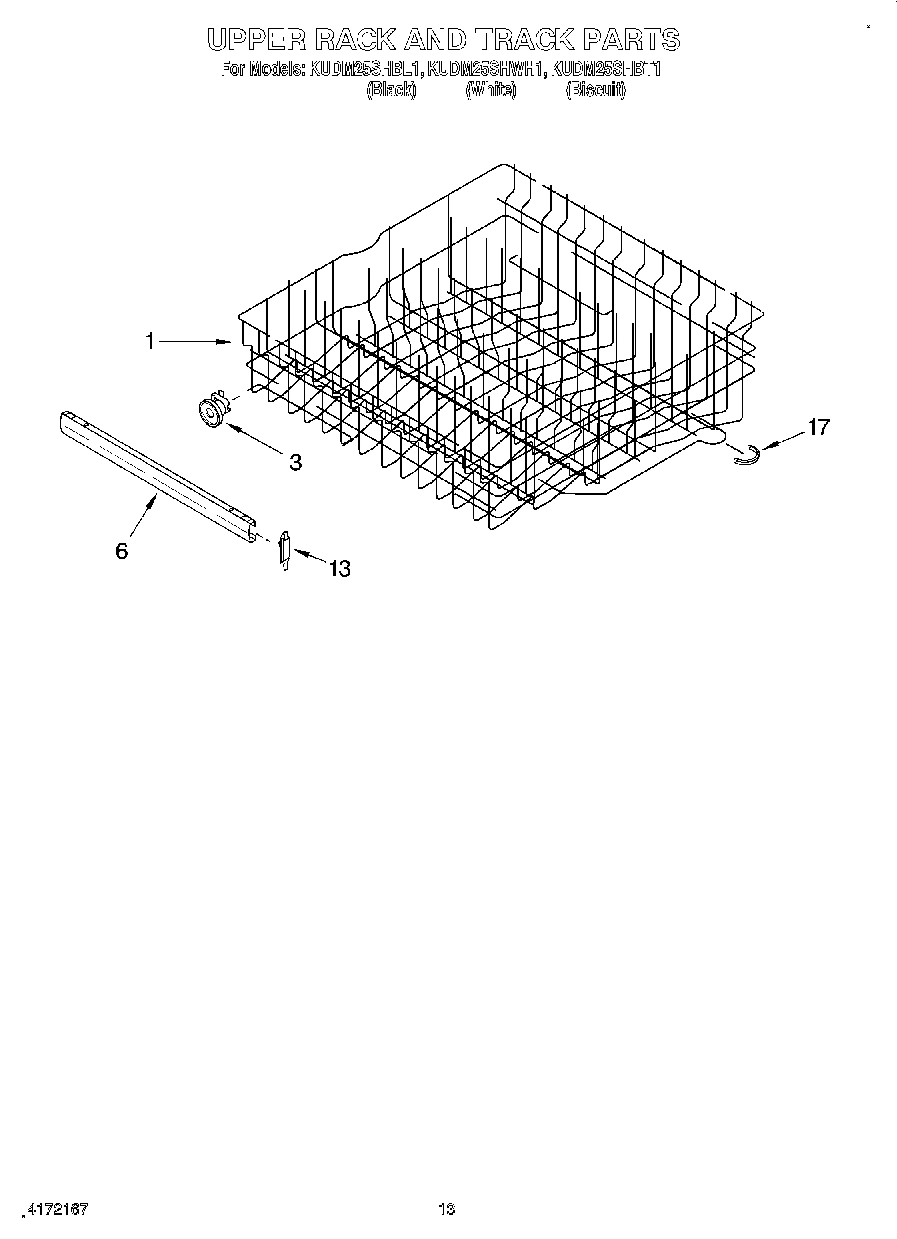

10 - UPPER RACK AND TRACK

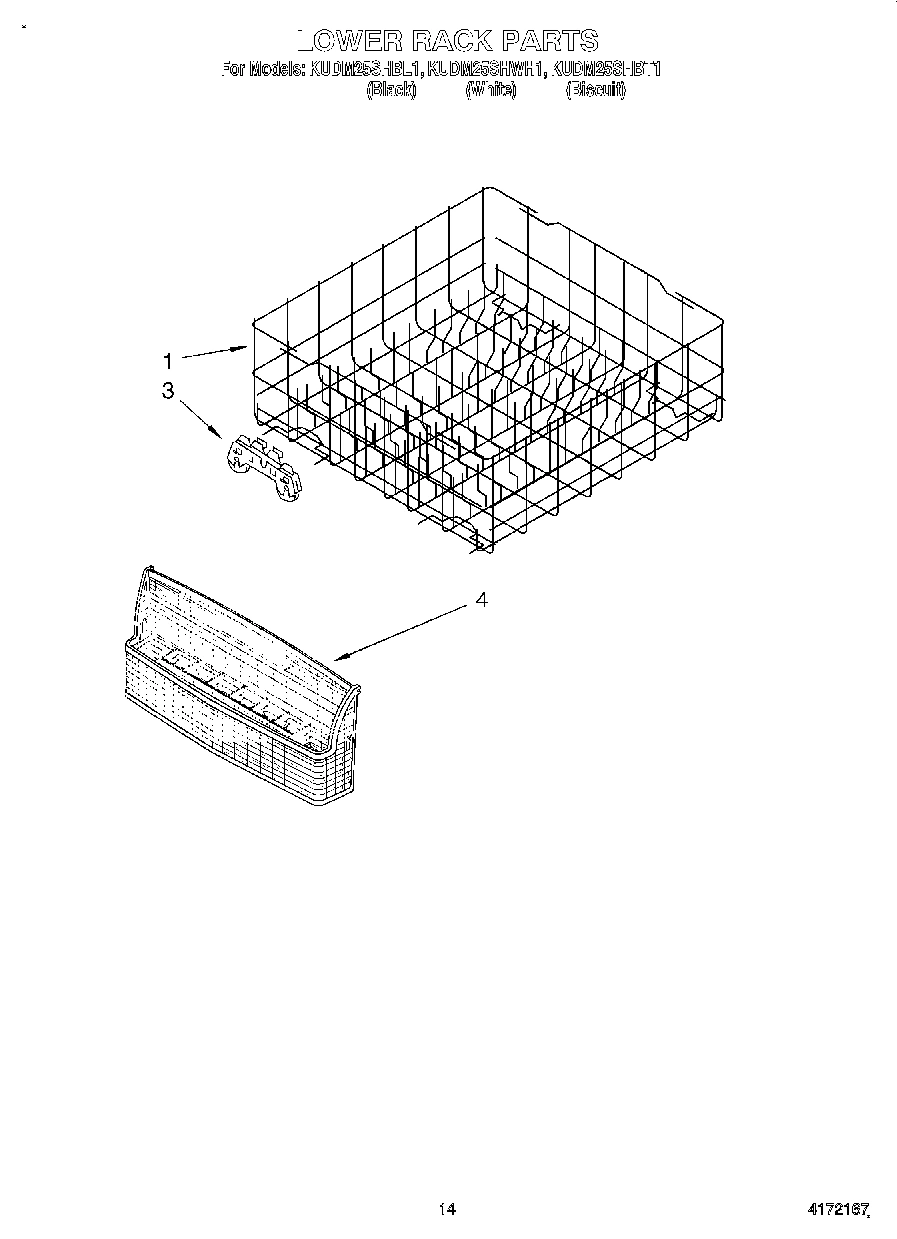

11 - LOWER RACK

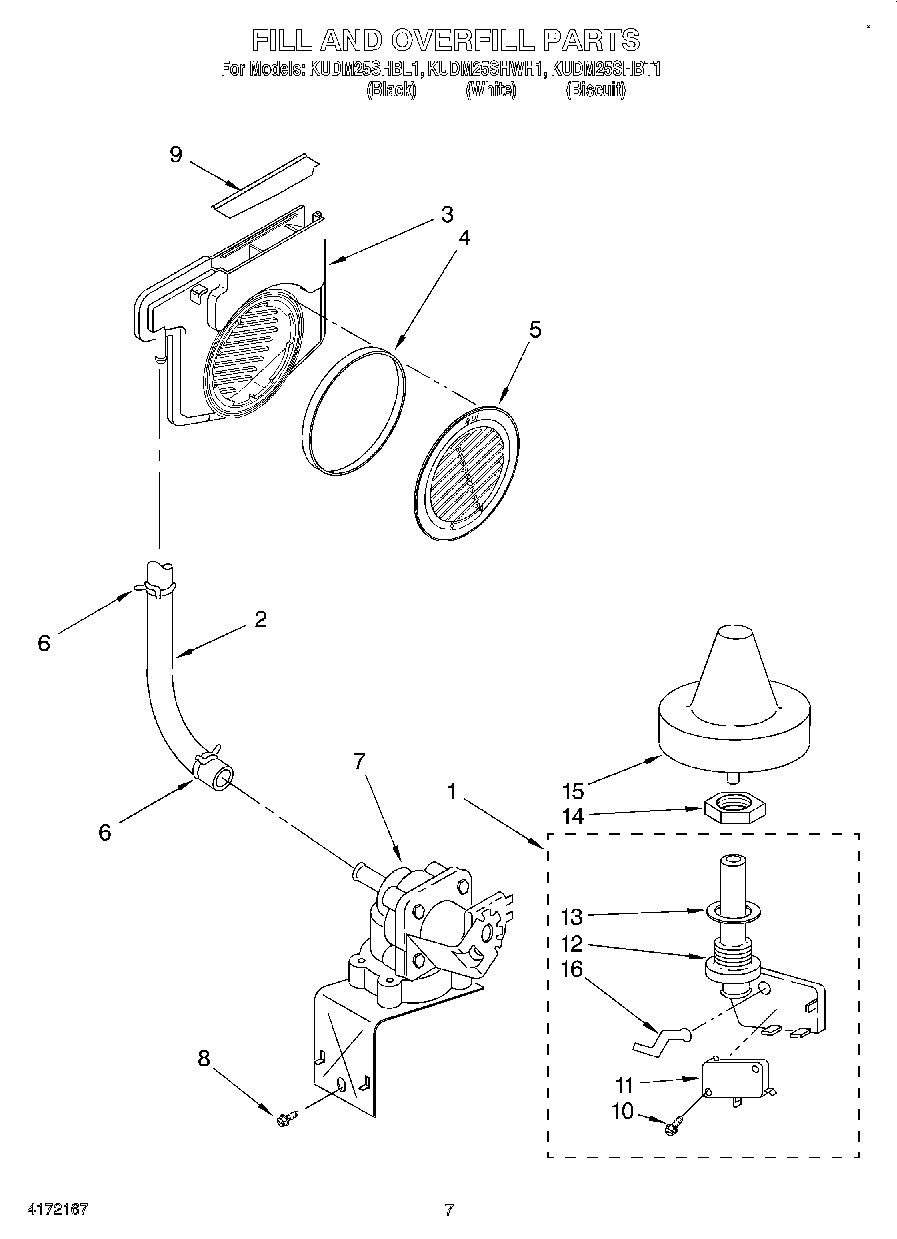

06 - FILL AND OVERFILL
08 - TUB AND FRAME

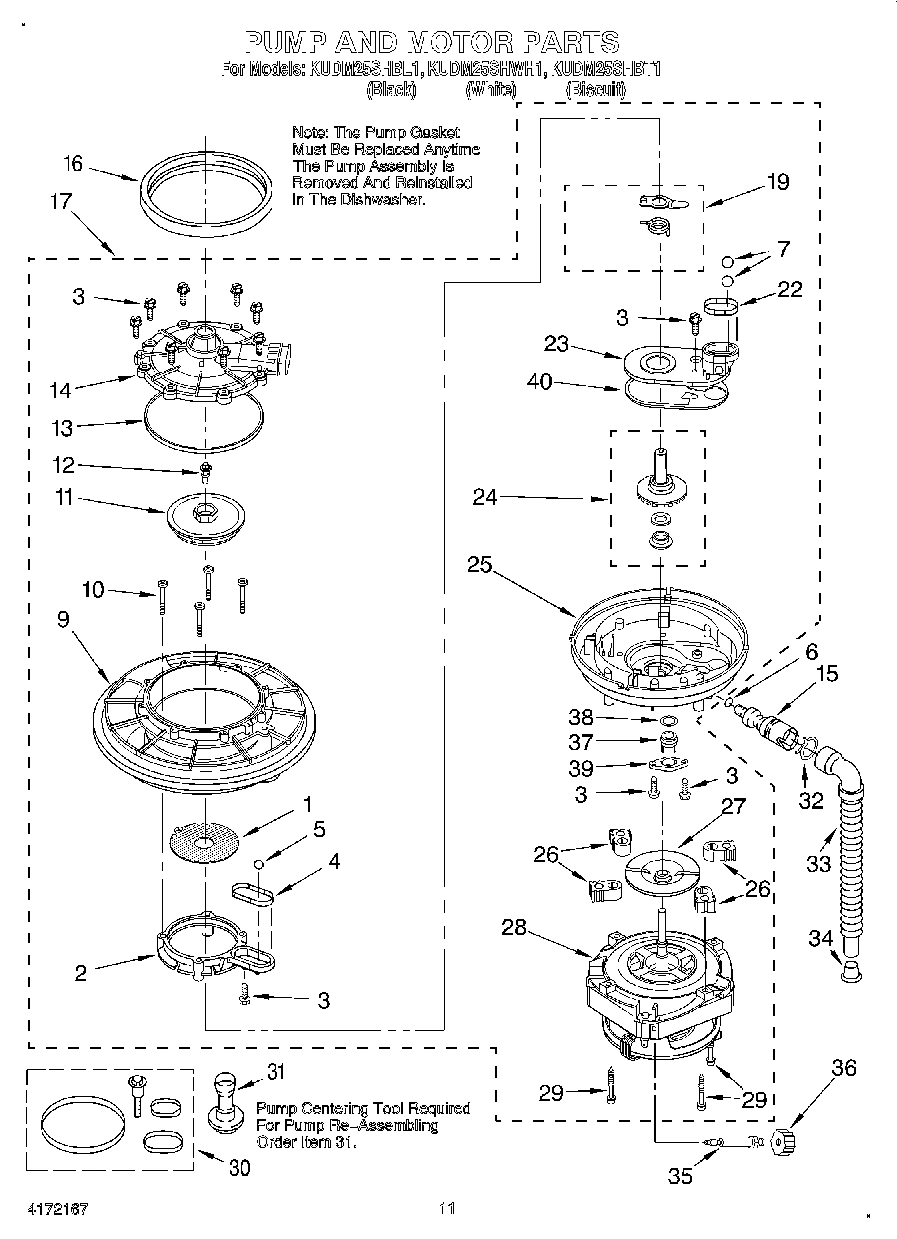

09 - PUMP AND MOTOR

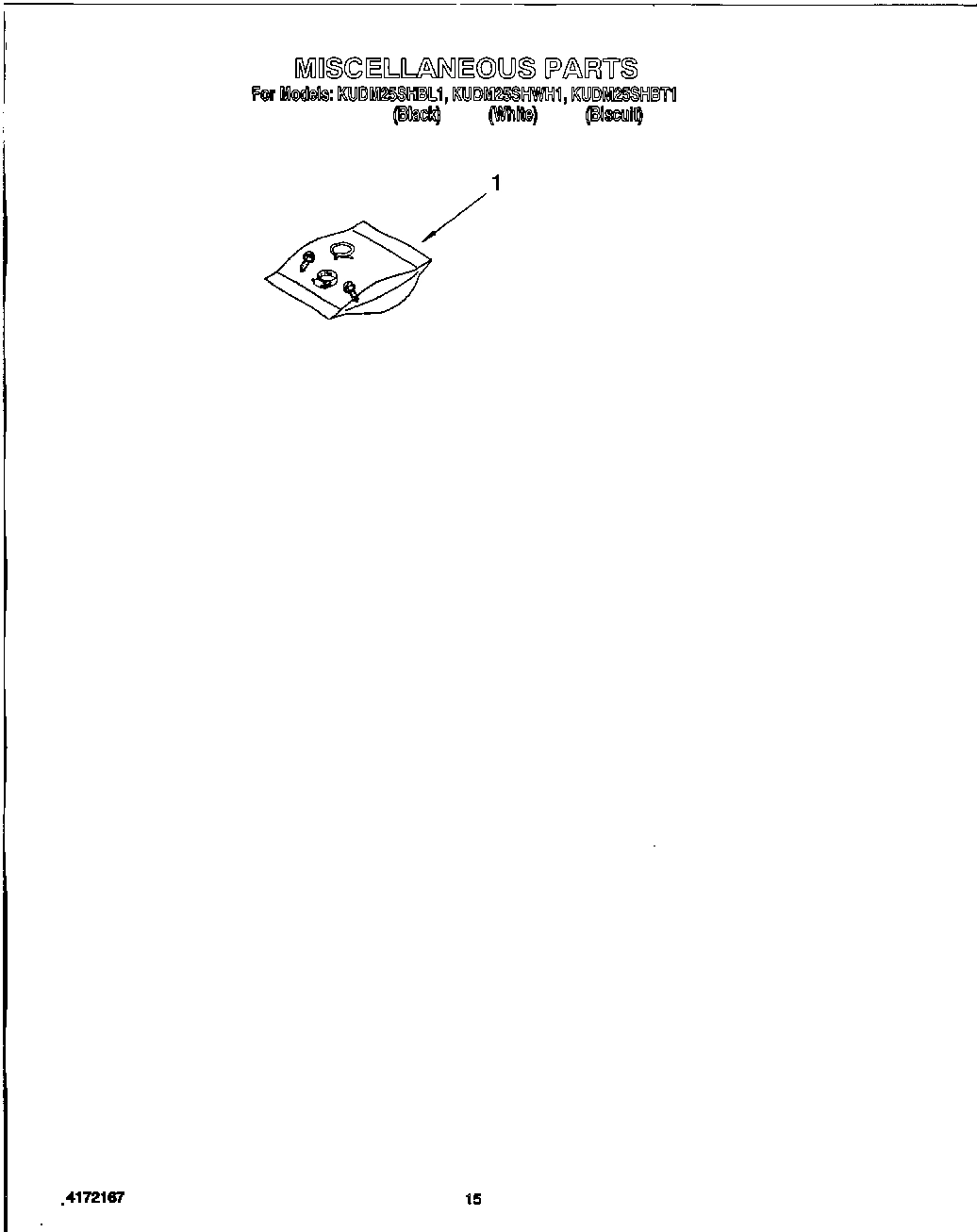

12 - MISCELLANEOUS, OPTIONAL

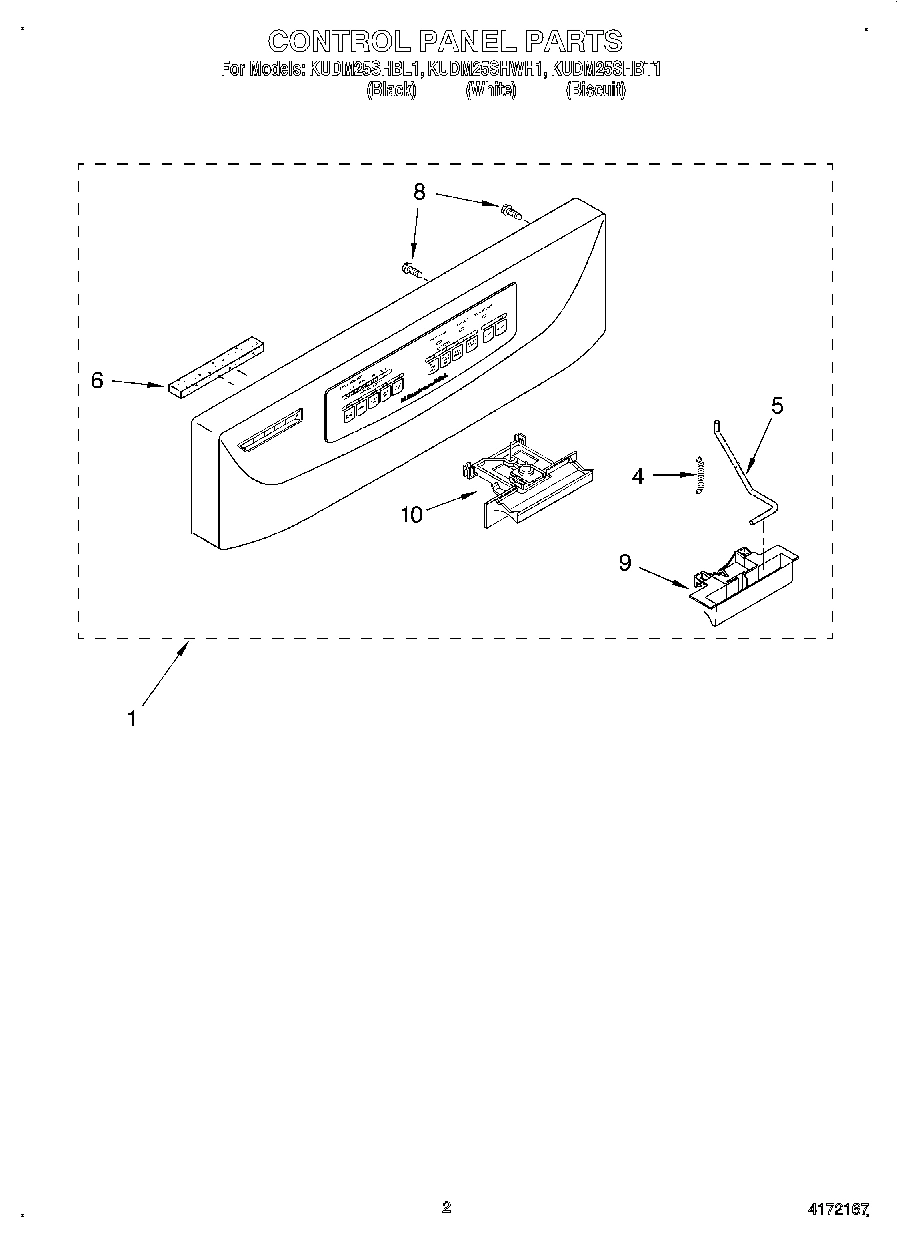

02 - CONTROL PANEL
04 - LOWER WASHARM AND STRAINER

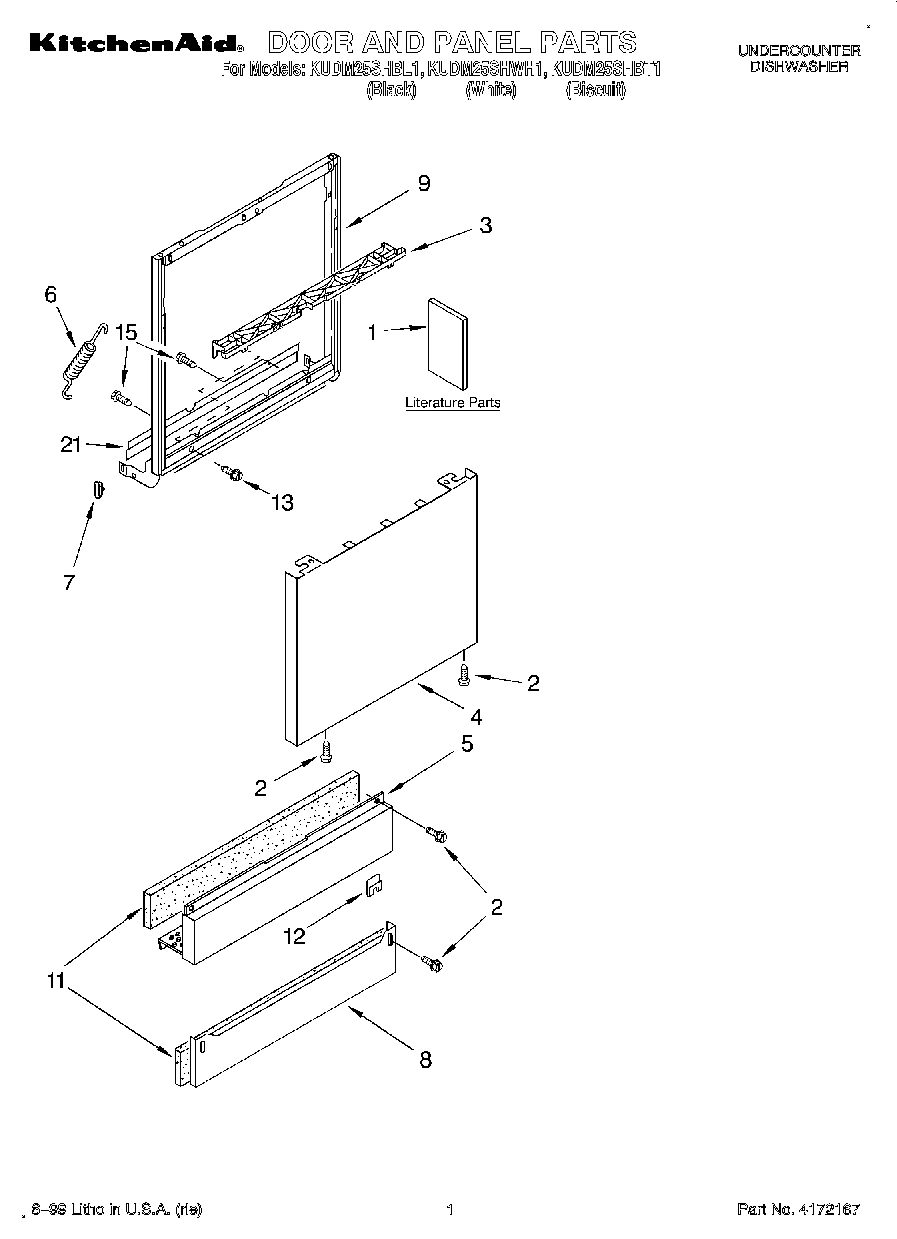

01 - DOOR AND PANEL, LITERATURE
Common parts from model Whirlpool KUDM25SHWH1
1
Knob, Dispenser WPL 9743399 Contact Us For Availability
1
Wash Arm Assembly WPL 9742947 Contact Us For Availability
1
Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability
1
Glisten WPL 4319102 Contact Us For Availability
1
Frameless (White) WPL 4378861 Contact Us For Availability
1
Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability
1
Frameless (Almond) WPL 4378863 Contact Us For Availability
1
Door Framed Kits (White) WPL 4378864 Contact Us For Availability
1
Door Framed Kits (Black) WPL 4378865 Contact Us For Availability
1
Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability
1
Side Panel Kits (Black) WPL 4378868 Contact Us For Availability
1
Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability
1
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
1
Almond (Uncut) WPL 978883 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT9743822 Contact Us For Availability
1
Literature Parts (Tech Sheet) (English) WPL LIT9744033 Contact Us For Availability
1
Literature Parts (Tech Sheet) (French) WPL LIT9744034 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT9744037 Contact Us For Availability
1
Literature Parts (Guide, Energy) WPL LIT9744391 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
3
Door Seal WPL 9743590 Contact Us For Availability
3
Wheel & Transport Assembly WPL 8051252 Contact Us For Availability
3
Strainer (Coarse) WPL 9742646 Contact Us For Availability
3
Stiffener, Door WPL 9742964 Contact Us For Availability
4
Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability
4
Gasket WPL 9742787 Contact Us For Availability
4
Panel Front (White Mdl.) WPL 3379376 Contact Us For Availability
4
Panel Front (Black Mdl.) WPL 3379375 Contact Us For Availability
4
Panel Front (Biscuit Mdl.) WPL 8054178 Contact Us For Availability
5
Link, Handle WPL 9743572 Contact Us For Availability
5
Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
5
Access Panel & Clip Assembly (Includes Items WPL 3379917 Contact Us For Availability
5
Access Panel & Clip Assembly (Includes Items WPL 3379918 Contact Us For Availability
5
Access Panel & Clip Assembly (Includes Items WPL 8054179 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
6
Sponge, Vent WPL 9743412 Contact Us For Availability
8
Toe Panel (Includes Item 11) (Biscuit Mdl.) WPL 8054181 Contact Us For Availability
9
Gasket, Vent WPL 9742782 Contact Us For Availability
9
Filter Assembly WPL 9742968 Contact Us For Availability
10
Latch Lever Asm. WPL 3380655 Contact Us For Availability
10
Screw WPL 3400001 Contact Us For Availability
11
Insulation WPL 3382404 Contact Us For Availability
12
Clip, Grounding WPL 3378123 Contact Us For Availability
15
Float & Retainer Assembly WPL 9743070 Contact Us For Availability
16
Seal, Tube WPL 9742953 Contact Us For Availability
21
Barrier, Lower vent WPL 8054188 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability
24
Tube (3rd Level) WPL 9743958 Contact Us For Availability
25
Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability
28
Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3377333 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3378202 Contact Us For Availability
37
Thermostat WPL 3378083 Contact Us For Availability
× ![]()
