Model Whirlpool KUDM24SEBL2 – Common Parts &amp; Diagrams

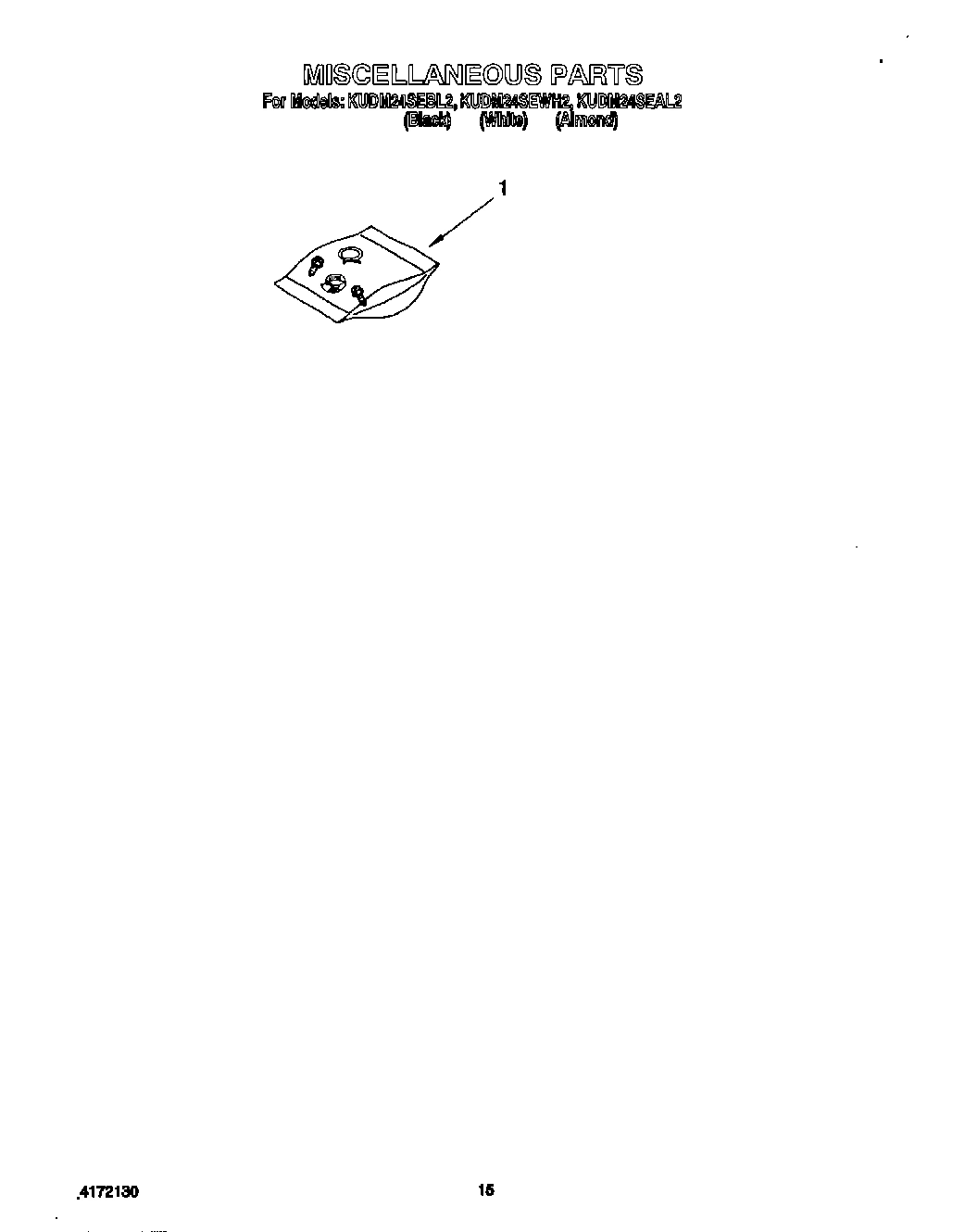

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

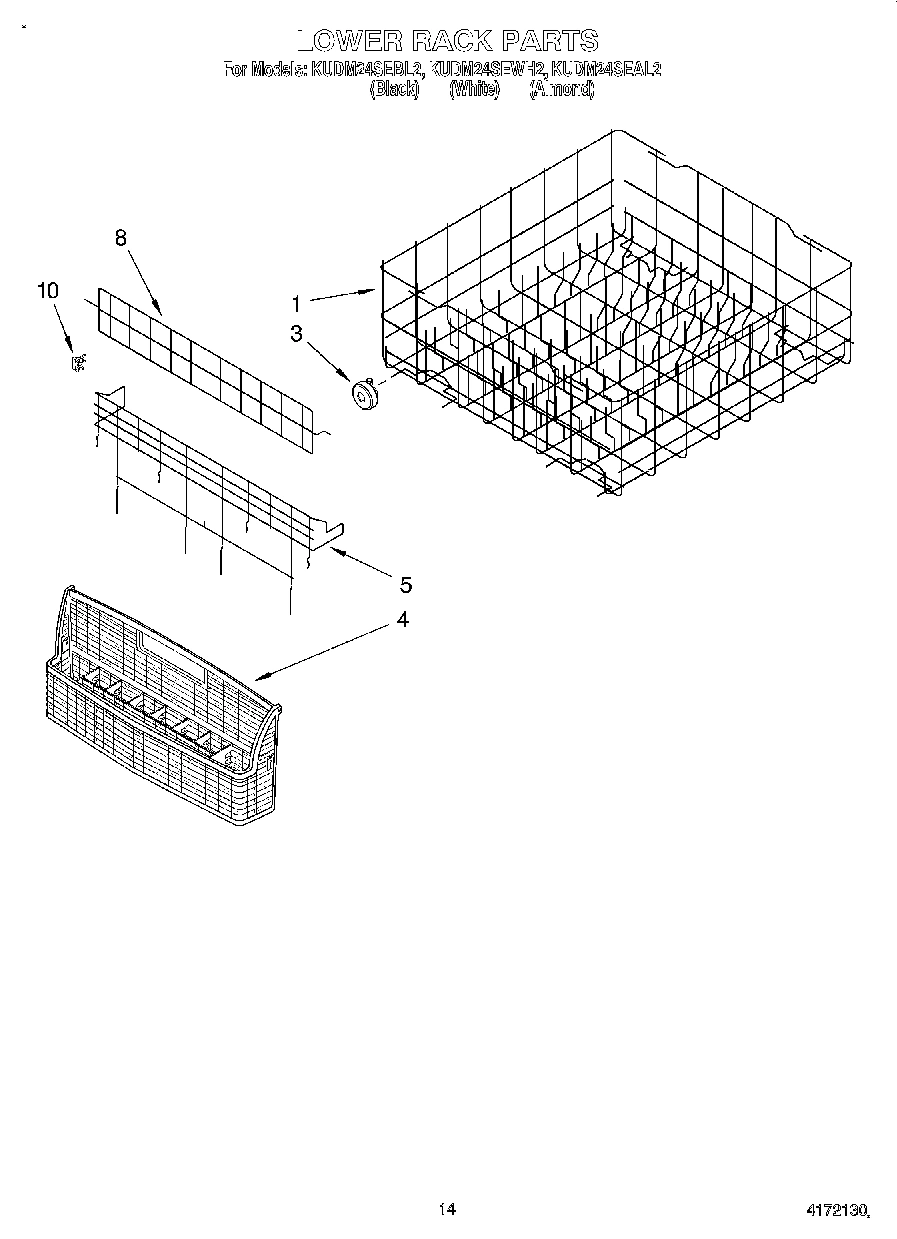

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $179.00

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

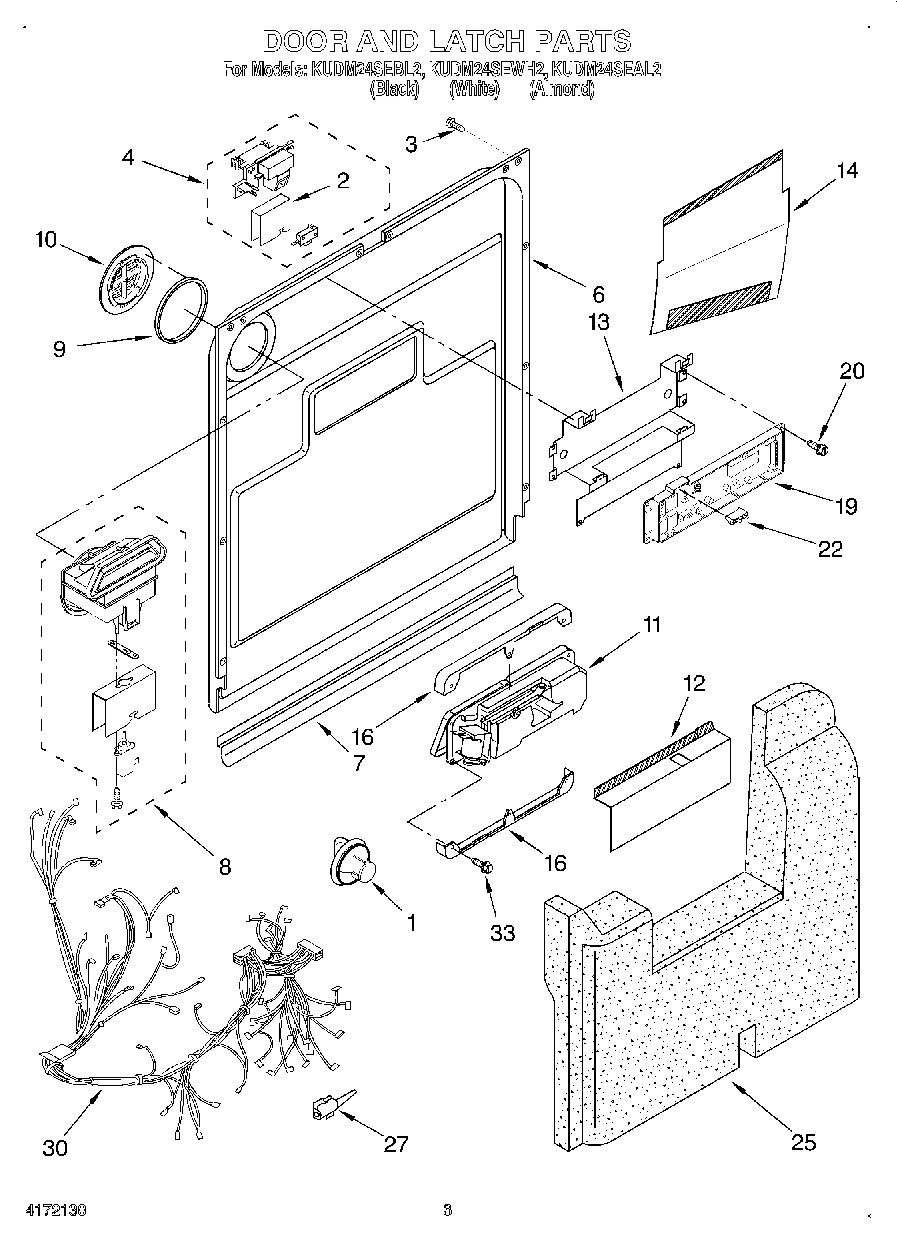

Door Frame WPL 9743028 Contact Us For Availability

1

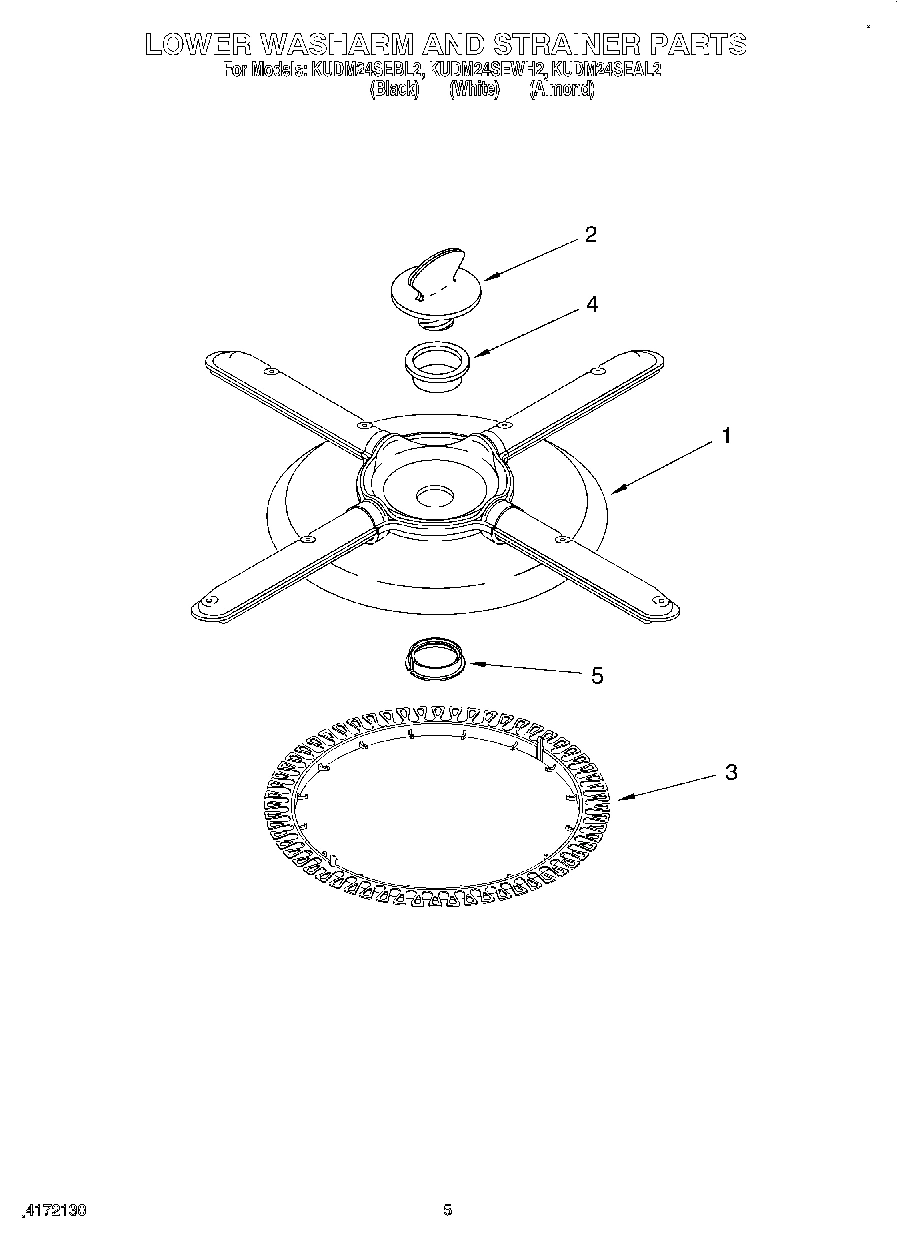

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

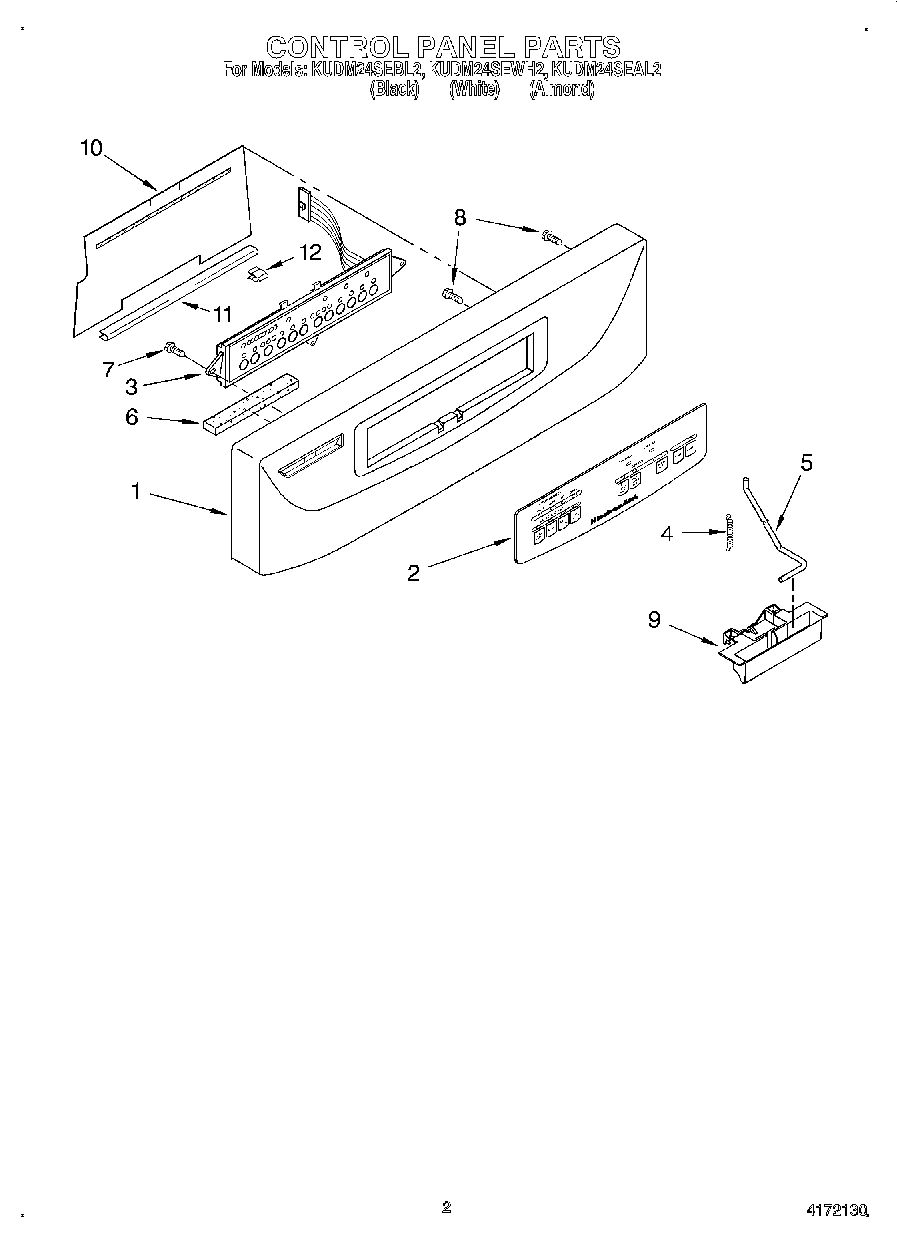

Console (Also Order Item 2) (Black Model) WPL 9743577 Contact Us For Availability

1

Console (Also Order Item 2) (White Model) WPL 9743578 Contact Us For Availability

1

Console (Also Order Item 2) (Almond Model) WPL 9743579 Contact Us For Availability

1

Tub Assembly WPL 9742605 Contact Us For Availability

1

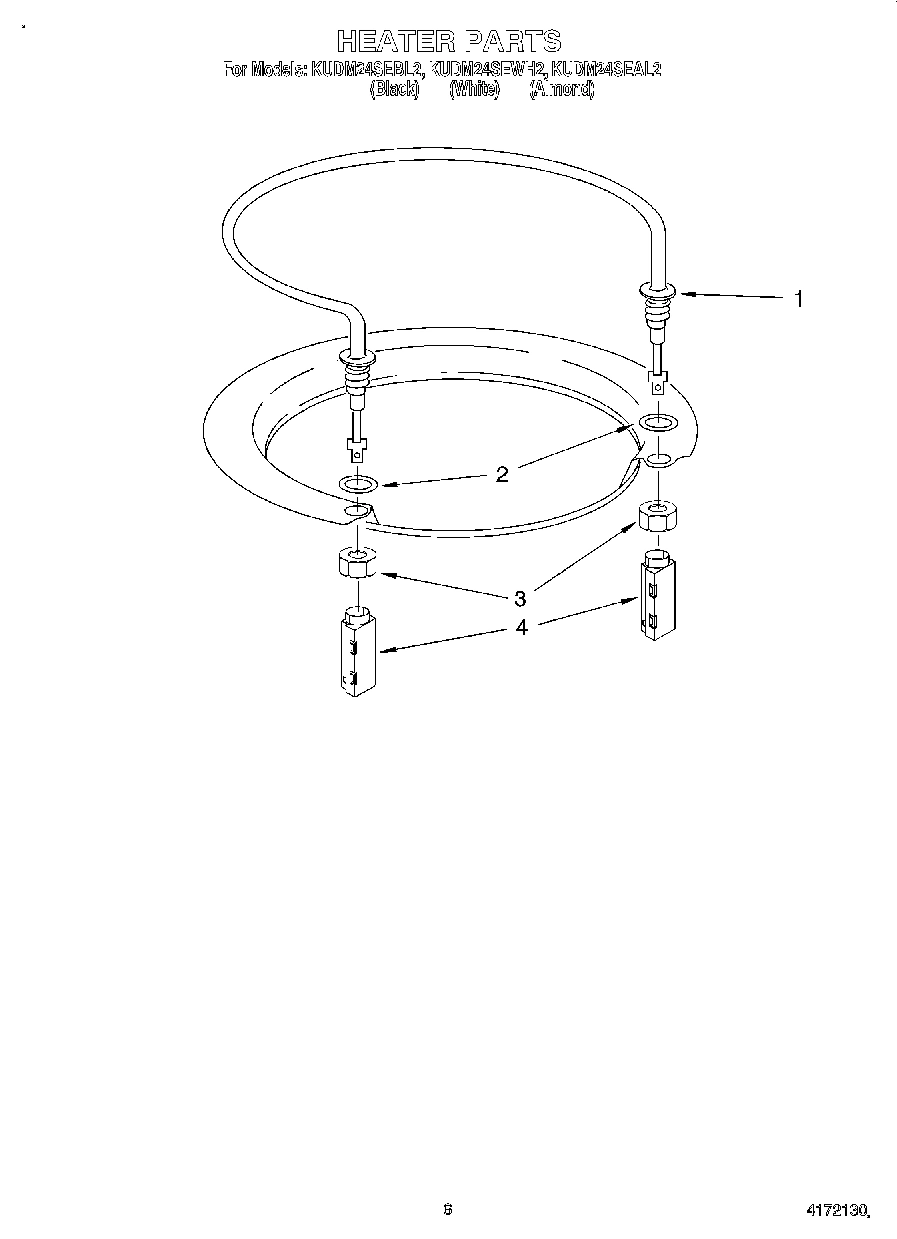

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

Hose, Inlet WPL 9742727 Contact Us For Availability

2

Insert (Black Model) WPL 9743369 Contact Us For Availability

2

Insert (White Model) WPL 9743370 Contact Us For Availability

2

Insert (Almond Model) WPL 9743371 Contact Us For Availability

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $73.13

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

3

Wheel Assembly (2) Lower Rack (8) WPL 9743007 Contact Us For Availability

3

Switch, Panel (User Interface) WPL 9743243 Contact Us For Availability

3

Stiffener, Door WPL 9742964 Contact Us For Availability

3

Strainer (Coarse) WPL 9742646 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

Gasket WPL 9742787 Contact Us For Availability

4

Spring, Handle WPL 9743573 Contact Us For Availability

4

Panel Front (White Model) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Model) WPL 3379375 Contact Us For Availability

4

Panel Front (Almond Model) WPL 3379377 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

4

Basket, Silverware WPL 9742853 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $12.16

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743167 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743168 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743169 Contact Us For Availability

5

Extension, Side Wall WPL 9743536 Contact Us For Availability

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring In Stock WPL WP9743986 $9.99

6

Sponge, Vent WPL 9743412 Contact Us For Availability

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742625 Contact Us For Availability

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $4.43

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $75.55

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Almond Model) WPL 9742872 Contact Us For Availability

8

Cupshelf WPL 3377419 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle In Stock WPL WP9743903 $53.20

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.45

Barrier, Display WPL 9743440 Contact Us For Availability

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $162.10

Switch, Overfill Control WPL 9743413 Contact Us For Availability

Retainer, Barrier WPL 9743444 Contact Us For Availability

Insulation WPL 3382404 Contact Us For Availability

Connector Tub To Brace WPL 9742610 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Clip, Retainer WPL 9743442 Contact Us For Availability

Shield, Dispenser WPL 9743450 Contact Us For Availability

Clip, Grounding WPL 3378123 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $11.66

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Bracket, Controls WPL 9742623 Contact Us For Availability

14

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

14

Shield, Control WPL 9742963 Contact Us For Availability

14

Screw (2) WPL 3370389 Contact Us For Availability

15

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

15

Wheel, Leg WPL 302819 Contact Us For Availability

15

Screw WPL ARI114645A Contact Us For Availability

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $28.99

Gasket, Pump WPL 717000 Contact Us For Availability

Seal, Tube WPL 9742953 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $43.10

19

Control, Electronic WPL 9743448 Contact Us For Availability

19

Terminal Box WPL 3378131 Contact Us For Availability

20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

20

Screw WPL 3369138 Contact Us For Availability

21

Cover, Terminal Box WPL 300068 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

Sound Absorber WPL 9743026 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

28

Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3376765 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

29

Screw (4) WPL 3369331 Contact Us For Availability

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

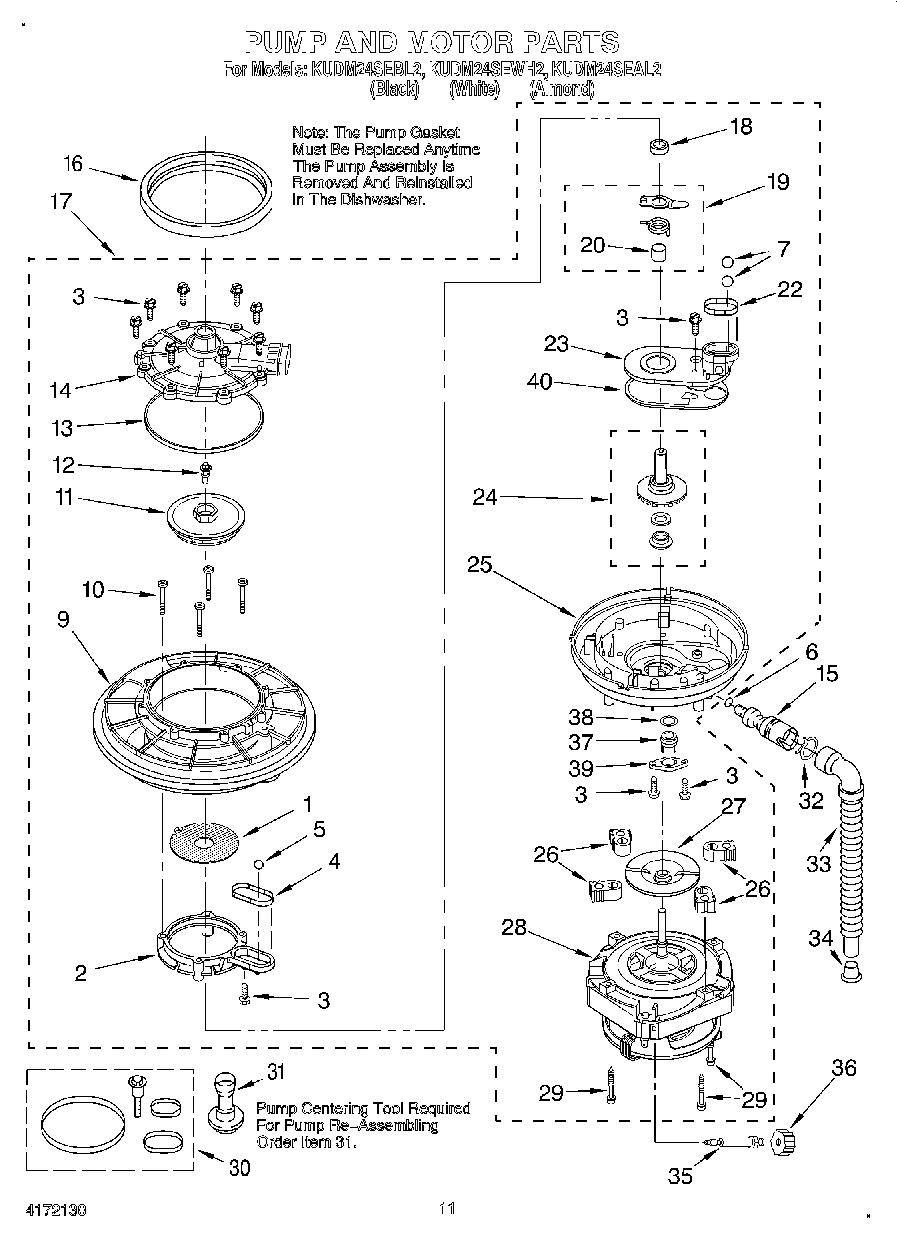

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness Main WPL 9743462 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $50.11

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

36

Weight, Absorber WPL 3378202 Contact Us For Availability

37

Thermostat WPL 3378083 Contact Us For Availability

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $4.48

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
