Model Whirlpool KUDM220T4 – Common Parts & Diagrams
06 - LOWER WASHARM AND STRAINER
13 - DOOR AND LATCH

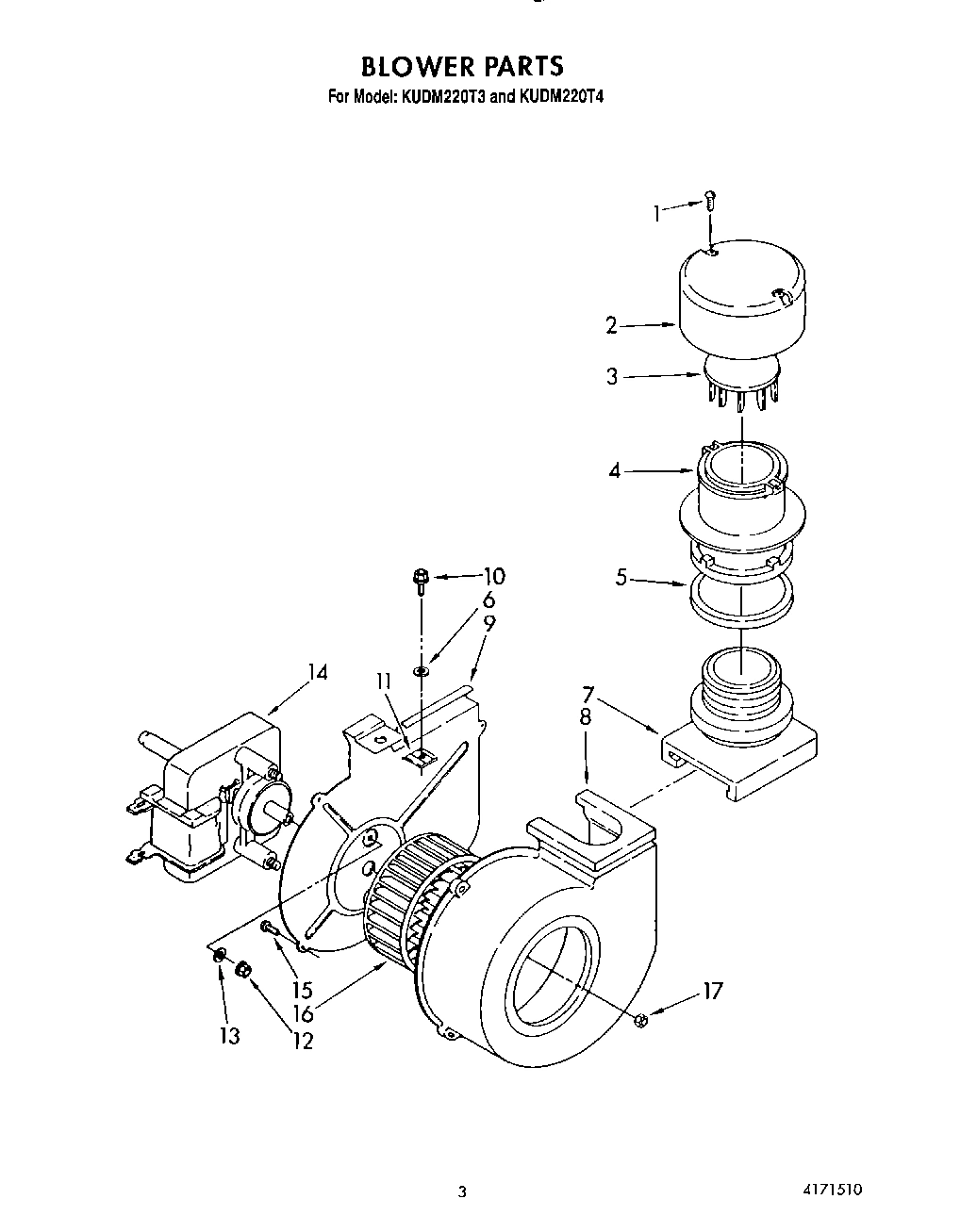

03 - BLOWER
09 - UPPER WASH AND RINSE

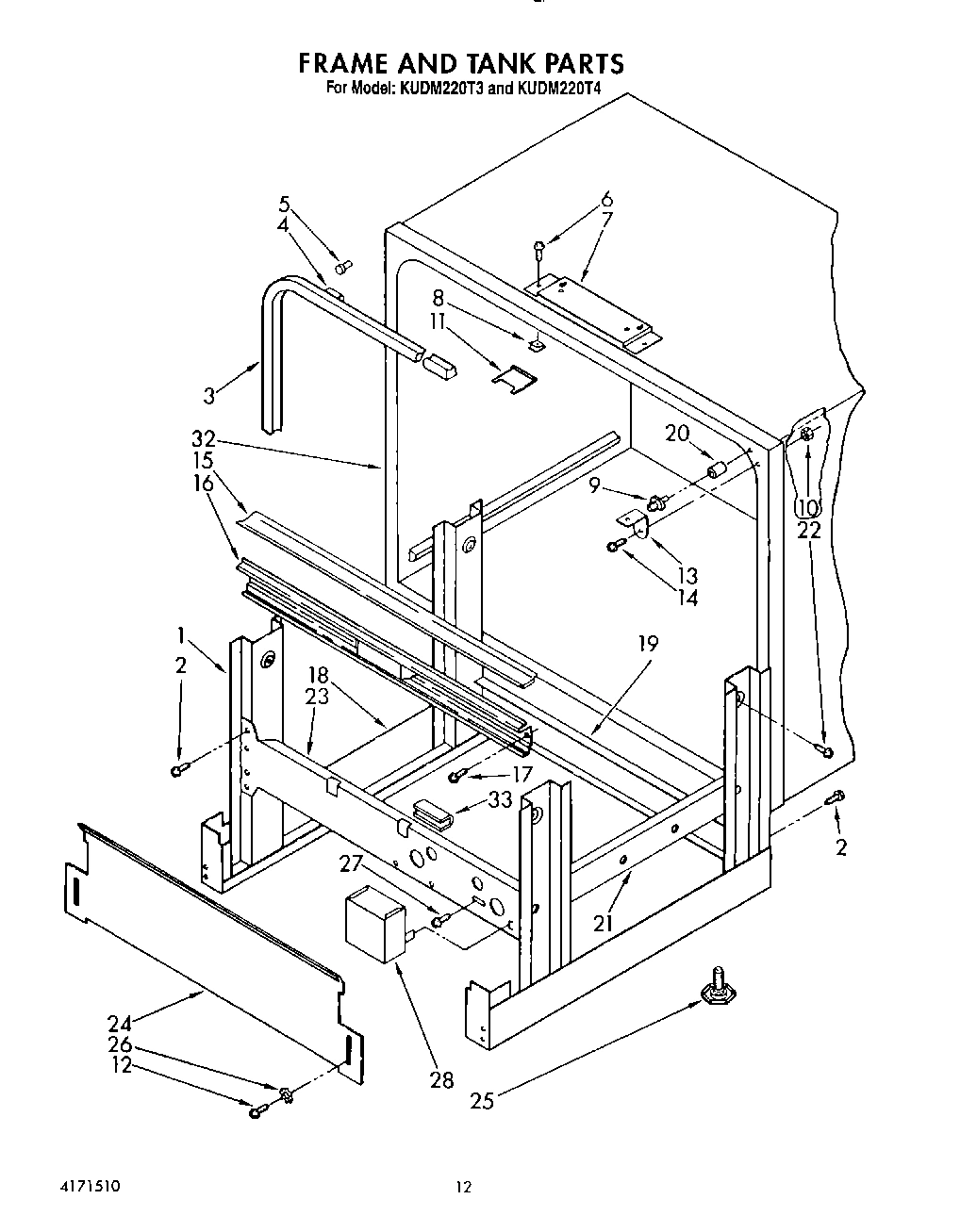

10 - FRAME AND TANK

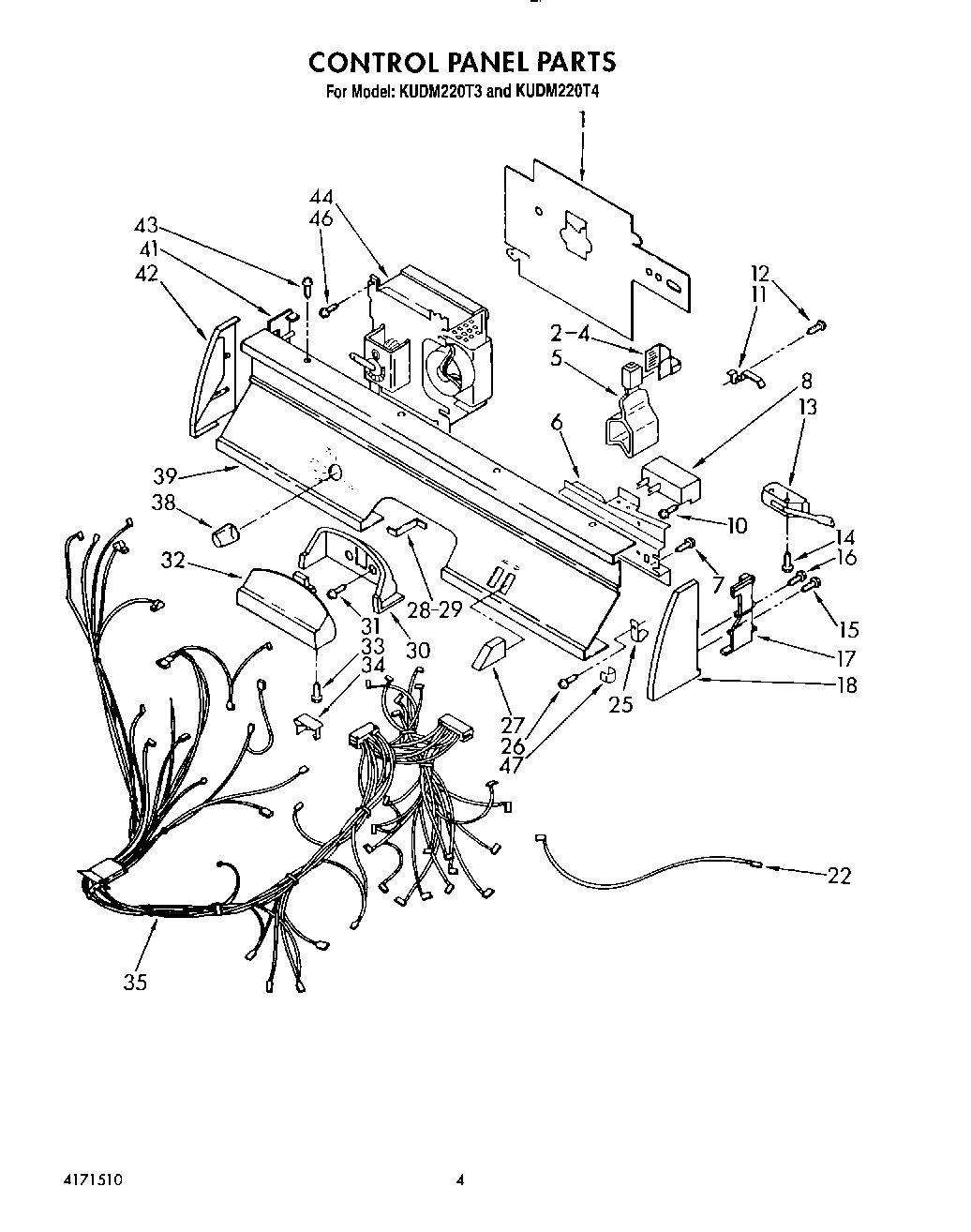

04 - CONTROL PANEL, LIT/OPTIONAL

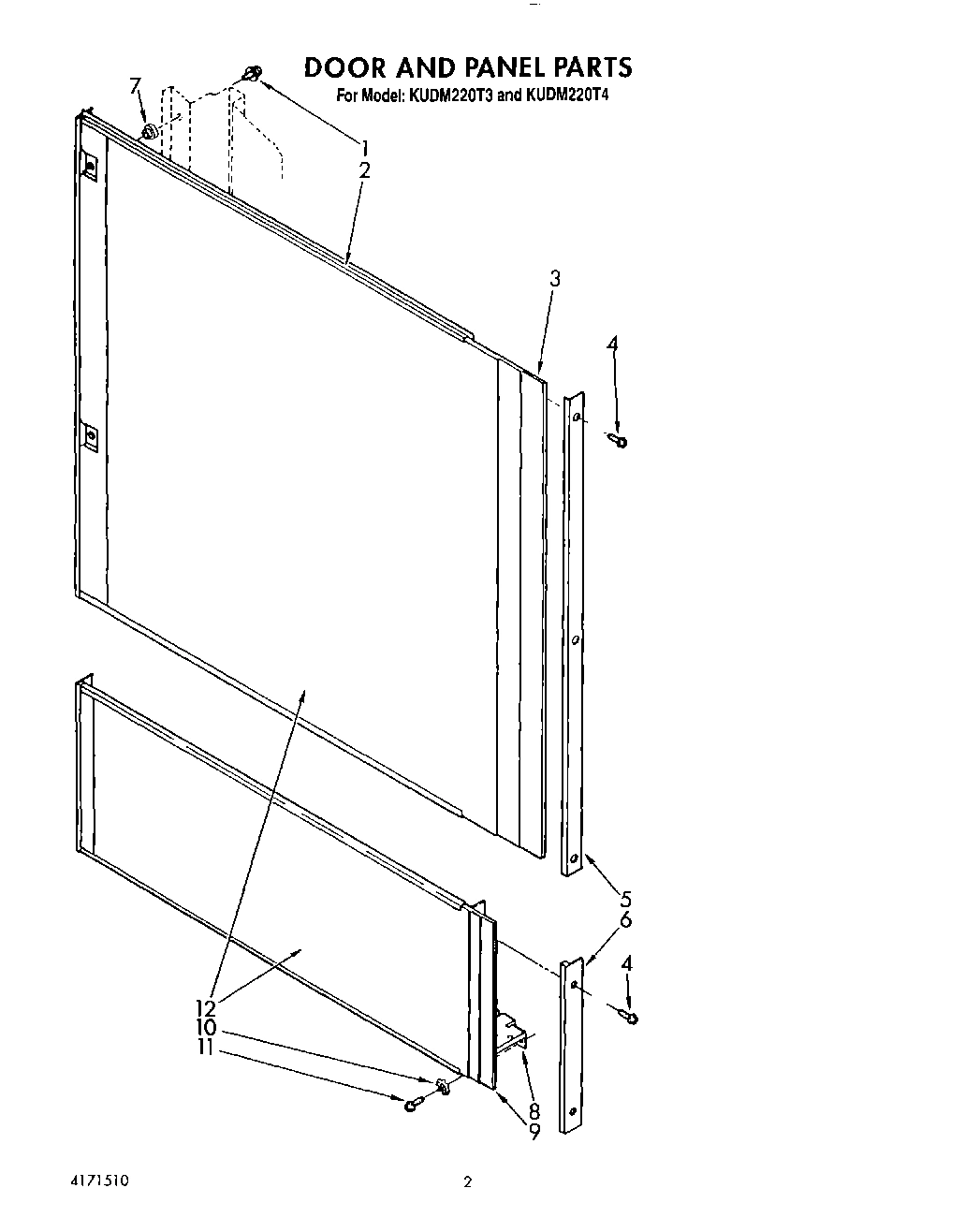

02 - DOOR AND PANEL

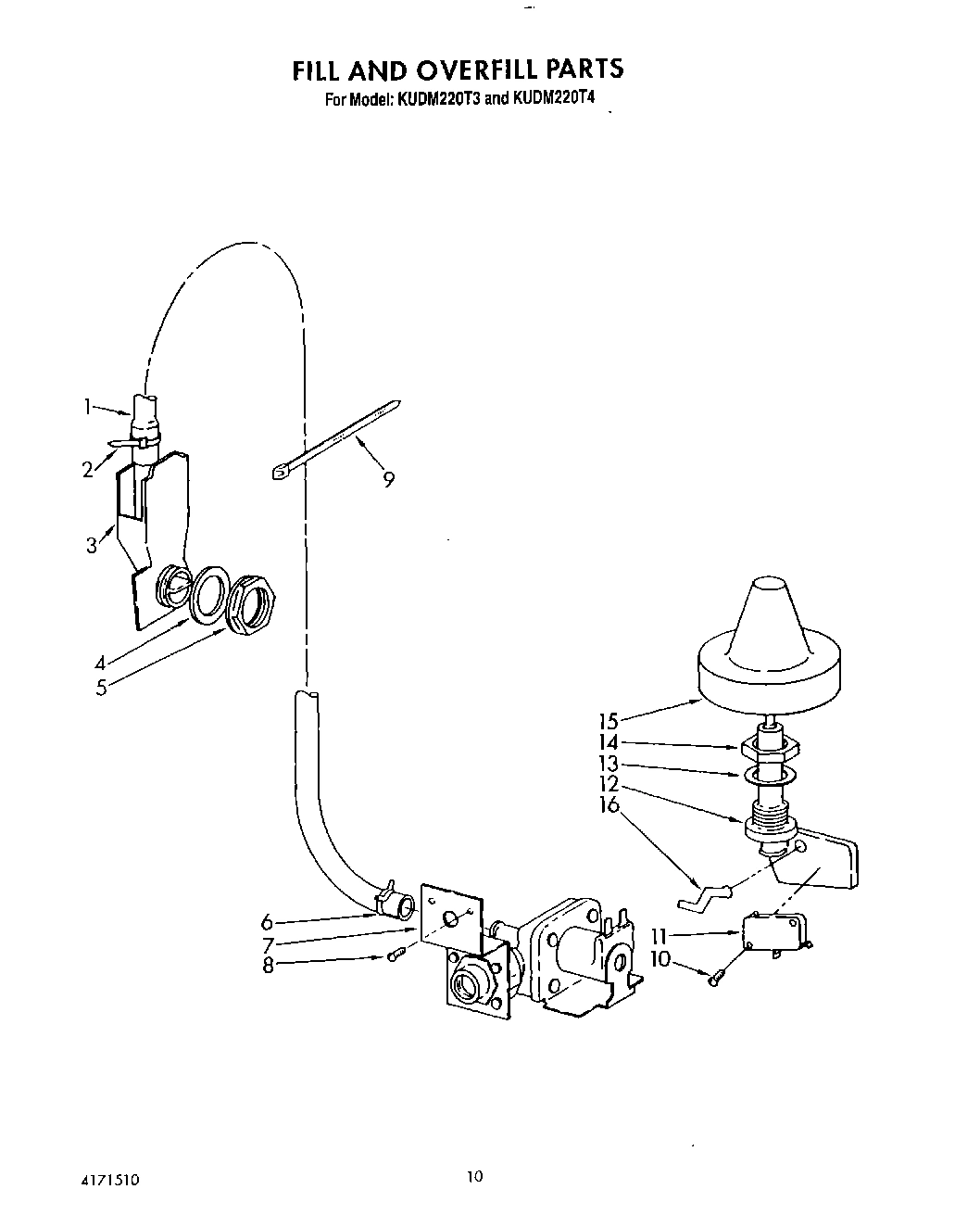

08 - FILL AND OVERFILL

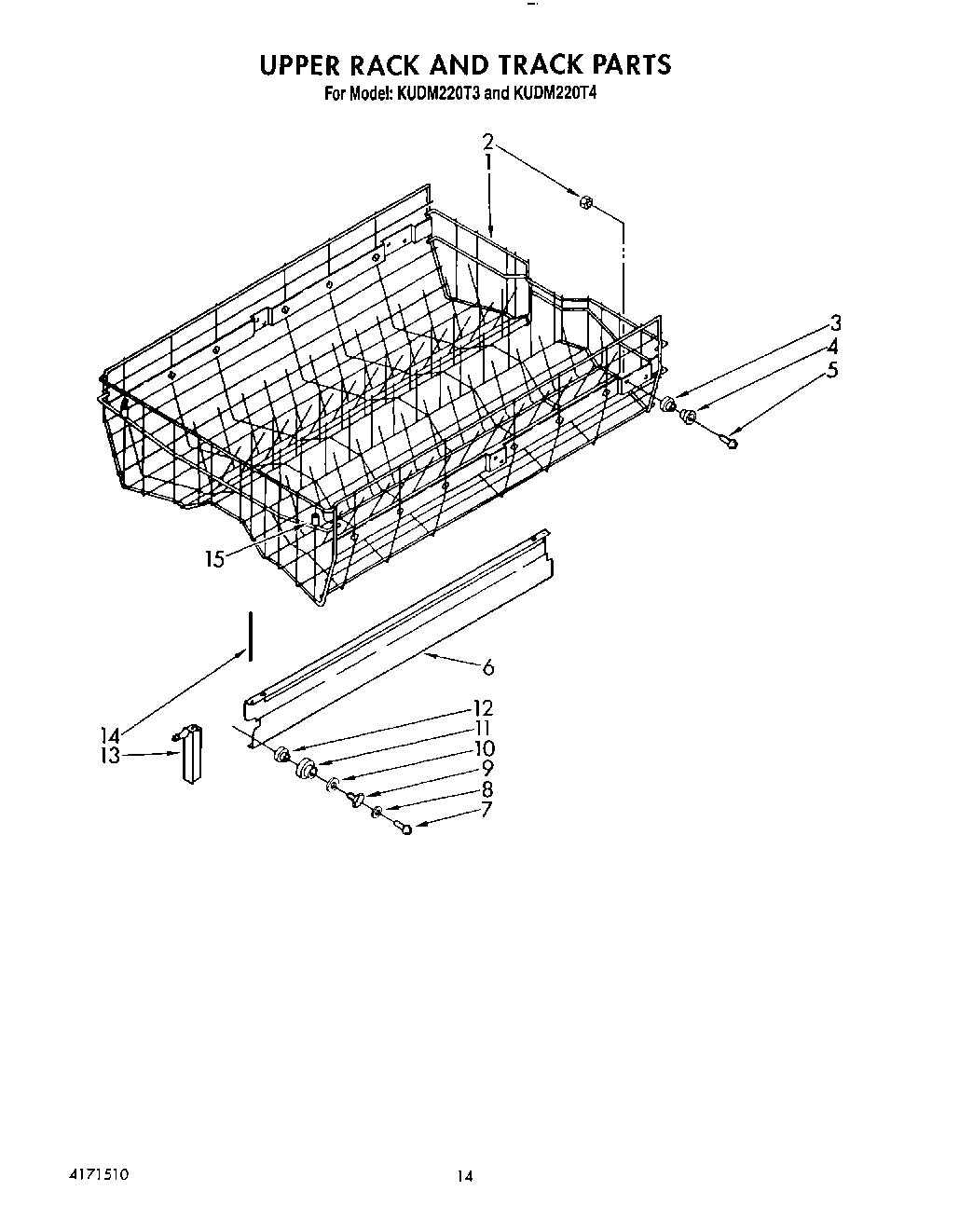

11 - UPPER RACK AND TRACK

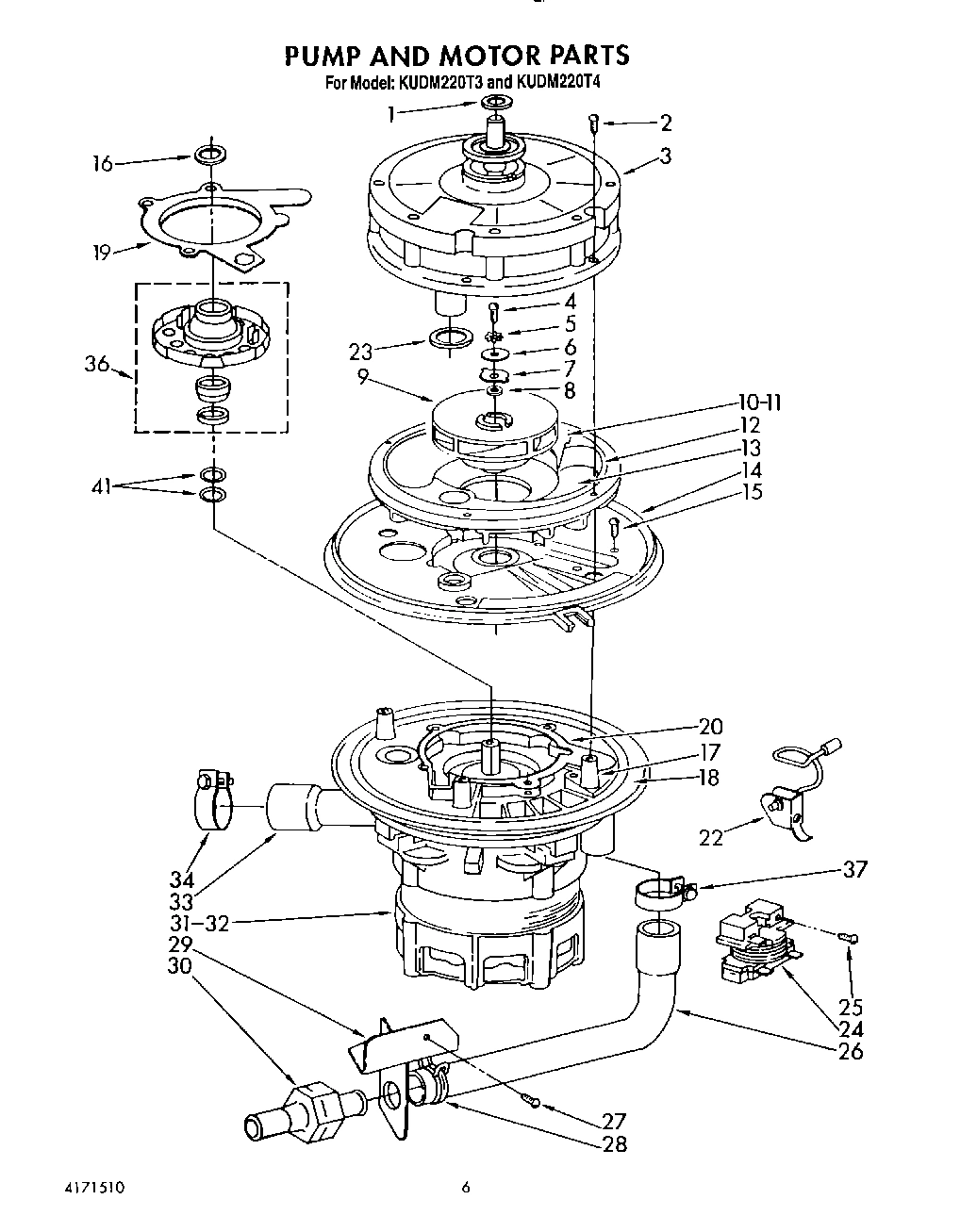

05 - PUMP AND MOTOR

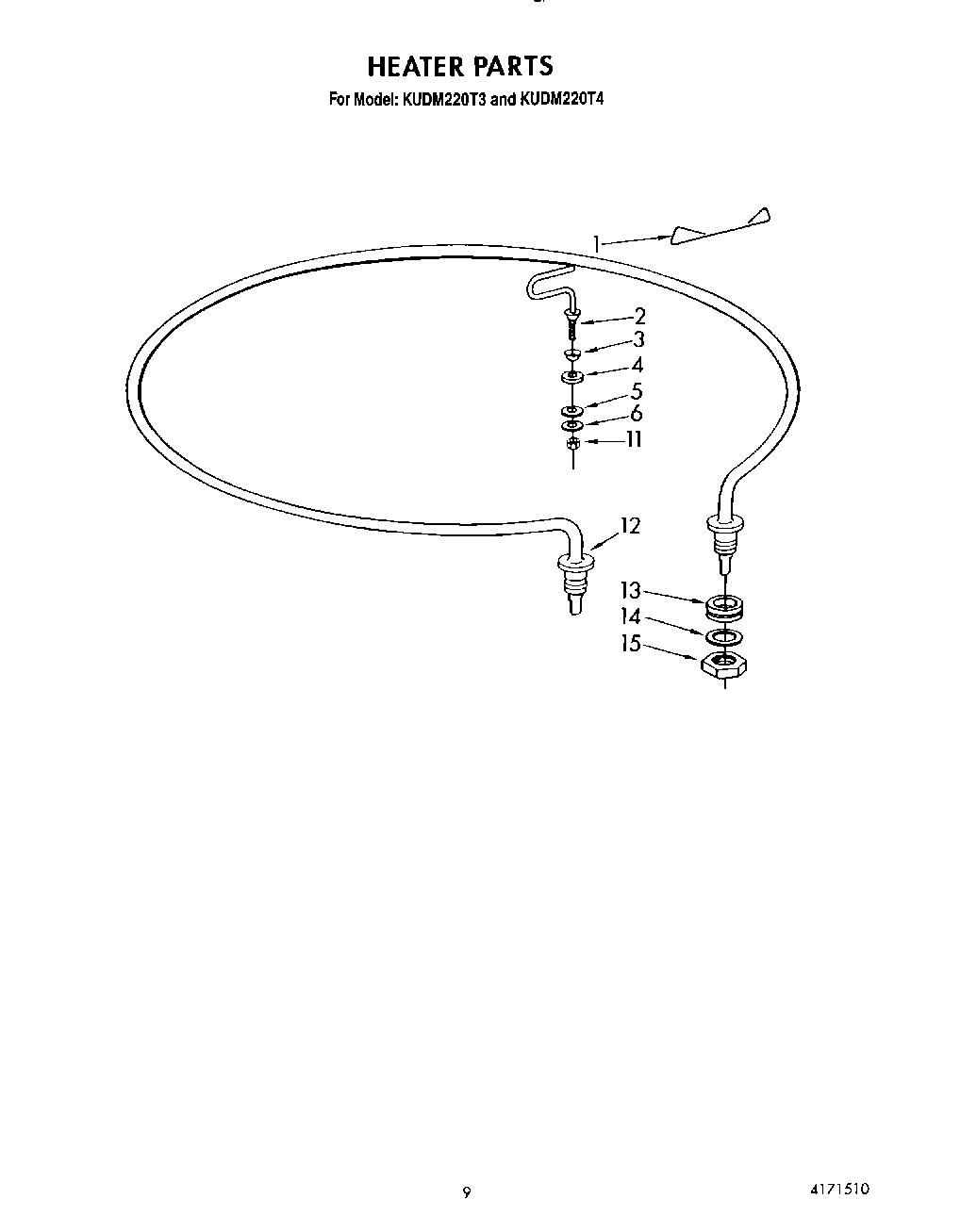

07 - HEATER

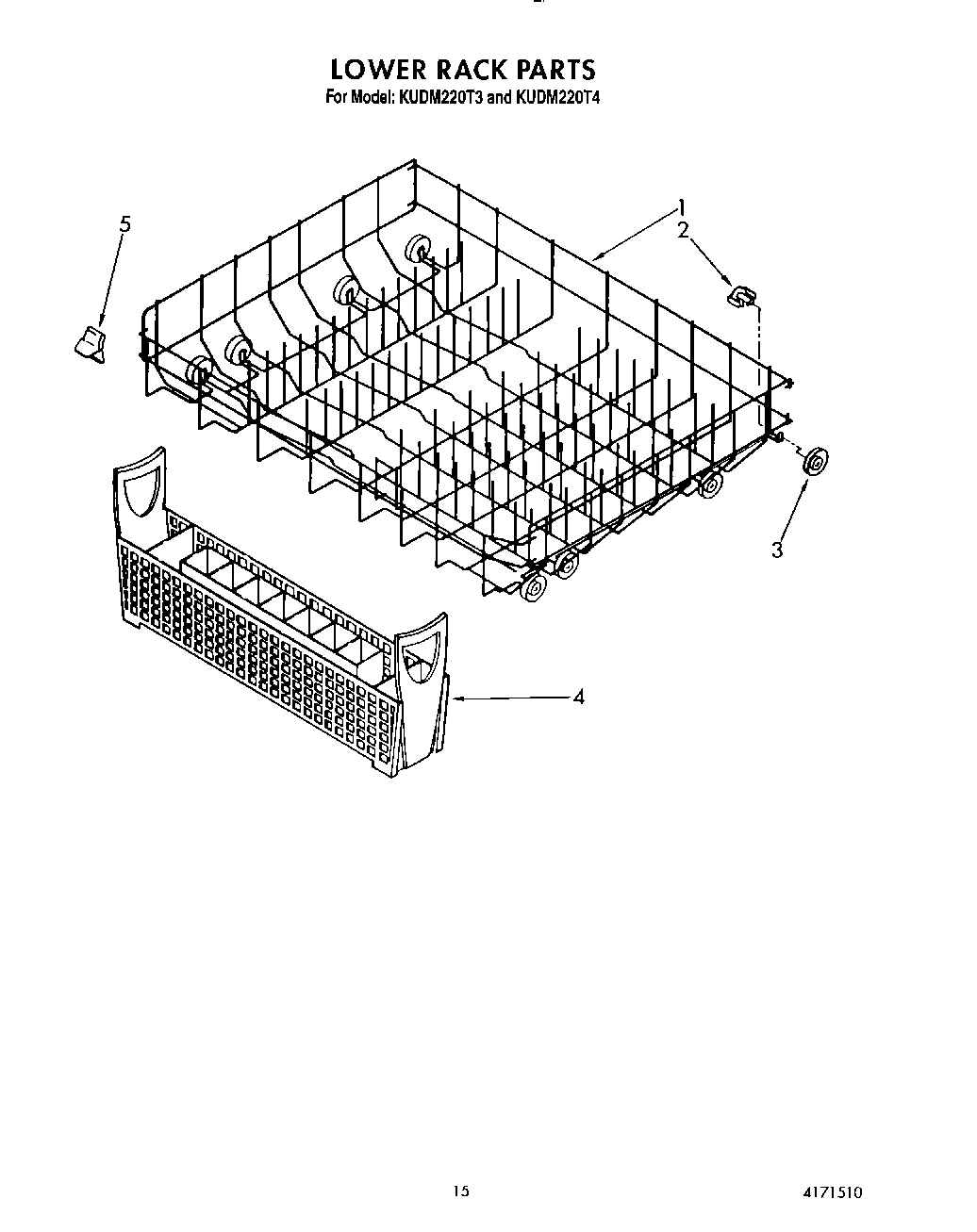

12 - LOWER RACK
Common parts from model Whirlpool KUDM220T4
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum (Uncut) WPL 285368 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Insulation Kit (Kit Includes Tub WPL 4171179 Contact Us For Availability
WPL 675506 WPL 675506 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT4171206 WPL LIT4171206 Contact Us For Availability
WPL LIT4171510 WPL LIT4171510 Contact Us For Availability
WPL LIT4171653 WPL LIT4171653 Contact Us For Availability
WPL LIT9740181 WPL LIT9740181 Contact Us For Availability
WPL LIT9740623 WPL LIT9740623 Contact Us For Availability
1
Screw, 6-32 X 7/8 WPL 4159436 Contact Us For Availability
1
Tube & Connector Assembly WPL 9740307 Contact Us For Availability
1
Short Frame Assembly (Includes Items 2, 18, 1 WPL 4162908 Contact Us For Availability
1
Insulator, Latch WPL 4171130 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Hose, Flexible (Fill Valve to Air Gap) WPL 9740392 Contact Us For Availability
1
Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4171306 Contact Us For Availability
1
Washer WPL 4162892 Contact Us For Availability
1
Spring, Heater Retainer WPL 4163619 Contact Us For Availability
1
Lower Rack Assembly (Includes Items 2 & 3) WPL 4171307 Contact Us For Availability
2
Axle, Lower Rack WPL 4162321 Contact Us For Availability
2
Cap, Air Inlet WPL 4162482 Contact Us For Availability
2
Connector, Vertical Conduit WPL 4162723 Contact Us For Availability
2
Screw, 10-16 X 5/8 WPL 4159178 Contact Us For Availability
2
Anchor, Cancel Spring WPL 4171120 Contact Us For Availability
2
Upper Mounting Panel Assembly (Includes Upper WPL 4162736 Contact Us For Availability
2
Clamp, Hose WPL 4162103 Contact Us For Availability
2
Nut, Roller WPL 4161226 Contact Us For Availability
2
Hook, Heater Element WPL 4163549 Contact Us For Availability
3
Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability
3
Damper, Air Inlet WPL 4162485 Contact Us For Availability
3
Conduit, Vertical WPL 4162655 Contact Us For Availability
3
Filler (Upper Panel) WPL 4162733 Contact Us For Availability
3
Air Gap, Fill Assembly (Includes Items 1 & 2) WPL 9740394 Contact Us For Availability
3
Bearing & Spacer, Rack Roller WPL 4171358 Contact Us For Availability
3
Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability
3
Washer WPL 4159477 Contact Us For Availability
4
Roller, Upper Rack Track WPL 4160421 Contact Us For Availability
4
Tube, Air Inlet WPL 4162483 Contact Us For Availability
4
Retainer, Conduit WPL 4162609 Contact Us For Availability
4
Clip, Seal WPL 4161608 Contact Us For Availability
4
Rivet WPL 4159169 Contact Us For Availability
4
Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability
4
Gasket, Rubber WPL 4161545 Contact Us For Availability
4
Screw, 10-32 WPL 4162918 Contact Us For Availability
4
Washer, Sealing WPL 4160051 Contact Us For Availability
5
Seal, Air Inlet WPL 4162481 Contact Us For Availability
5
Retainer, Manifold WPL 4162500 Contact Us For Availability
5
Bumper, Door WPL 4161626 Contact Us For Availability
5
Spring, Switch Cancel WPL 4163257 Contact Us For Availability
5
Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability
5
Nut (Fill Air Gap) WPL 4171300 Contact Us For Availability
5
Screw, 10-16 X 1 WPL 4159426 Contact Us For Availability
5
Lock Washer WPL 4159500 Contact Us For Availability
5
Washer WPL 4159567 Contact Us For Availability
5
Bumper, Lower Rack WPL 4171297 Contact Us For Availability
6
Spacer, Blower Mounting WPL 4162615 Contact Us For Availability
6
Manifold, Upper Arm WPL 4162466 Contact Us For Availability
6
Bracket, Program Switch WPL 4163256 Contact Us For Availability
6
Side Trim (Lower Panel) WPL 4162686 Contact Us For Availability
6
Clamp, Hose WPL 4161505 Contact Us For Availability
6
Track, Rack WPL 4162442 Contact Us For Availability
6
Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability
6
Washer WPL 4159583 Contact Us For Availability
7
Support, Blower WPL 4162484 Contact Us For Availability
7
Protector, Upper Water Inlet WPL 4161699 Contact Us For Availability
7
Grommet WPL 4162735 Contact Us For Availability
7
Screw, 10-16 X 3/8 WPL 4159466 Contact Us For Availability
7
Washer, Impeller WPL 4162917 Contact Us For Availability
8
Housing, Blower WPL 4162487 Contact Us For Availability
8
Washer WPL 4171240 Contact Us For Availability
8
Speed Nut WPL 4162174 Contact Us For Availability
8
Switch, Program WPL 4171338 Contact Us For Availability
8
Lower Mounting Panel Assembly (Includes Upper WPL 4162737 Contact Us For Availability
8
Gasket, Rack Stud WPL 4162943 Contact Us For Availability
8
``O`` Ring WPL 4159826 Contact Us For Availability
9
Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability
9
Plate, Motor Mounting WPL 9740266 Contact Us For Availability
9
Actuator, Interlock Switch WPL 4171197 Contact Us For Availability
9
Filler (Lower Panel) WPL 4162734 Contact Us For Availability
9
Strap (Flexible Connector to Tank) WPL 4162935 Contact Us For Availability
9
Stud, Rack Roller WPL 4162945 Contact Us For Availability
9
Wash Impeller Assembly WPL 4162921 Contact Us For Availability
10
Screw, Blower Retainer WPL 4162524 Contact Us For Availability
10
Wash/Rinse Arm Assembly WPL 9740586 Contact Us For Availability
10
Lock Nut WPL 4159115 Contact Us For Availability
10
Lock Washer WPL 4159494 Contact Us For Availability
10
Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability
10
Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability
10
Washer, Roller Spacing WPL 4162947 Contact Us For Availability
10
Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability
11
Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability
11
Speednut, Type ``U`` WPL 4162903 Contact Us For Availability
11
Keeper, Latch WPL 4160092 Contact Us For Availability
11
Spring, Door Interlock WPL 4163571 Contact Us For Availability
11
Roller, Rack Track WPL 4162944 Contact Us For Availability
11
Gasket, Cover Plate WPL 4162953 Contact Us For Availability
11
Locknut WPL 4179107 Contact Us For Availability
12
Panel Insert Kits (OPTIONAL KITS) (Stainless WPL 4169400 Contact Us For Availability
12
Nut, 6-32 Hex WPL 4159071 Contact Us For Availability
12
Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability
12
Panel Insert Kits (OPTIONAL KITS) (Fresh Avoc WPL 4162835 Contact Us For Availability
12
Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability
12
Panel Insert Kits (OPTIONAL KITS) (Platinum/T WPL 4169402 Contact Us For Availability
12
Panel Insert Kits (OPTIONAL KITS) (Sand/Onyx WPL 4169403 Contact Us For Availability
12
Panel Insert Kits (OPTIONAL KITS) (Silver/Ony WPL 4169404 Contact Us For Availability
12
Panel Insert Kits (OPTIONAL KITS) (Harvest Go WPL 4171096 Contact Us For Availability
12
Panel Insert Kits (Almond/Black) WPL 4171534 Contact Us For Availability
12
Bushing, Rack Roller WPL 4162946 Contact Us For Availability
12
Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability
12
Element, Heater WPL 4171118 Contact Us For Availability
13
Lockwasher WPL 4159491 Contact Us For Availability
13
Screw WPL 4161737 Contact Us For Availability
13
Switch, Interlock WPL 4160658 Contact Us For Availability
13
Bumper, Rack Track WPL 4162084 Contact Us For Availability
13
Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability
13
Grommet, Heater Element WPL 4162521 Contact Us For Availability
14
Motor, Blower WPL 9740267 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 4161617 Contact Us For Availability
14
Screw, 10-16 X 1/2 WPL 4159389 Contact Us For Availability
14
Screw (2) WPL 9740003 Contact Us For Availability
14
Nut, Standpipe WPL 4161596 Contact Us For Availability
14
Stud, Bumper Retaining WPL 4160423 Contact Us For Availability
14
Fine Strainer WPL 4162933 Contact Us For Availability
14
Washer, Heater Element WPL 4163554 Contact Us For Availability
15
Screw, 6 X 1/2 WPL 4171131 Contact Us For Availability
15
Channel, Evaporation WPL 4162306 Contact Us For Availability
15
Screw & Washer Assembly WPL 4163263 Contact Us For Availability
15
Float & Retainer Assembly WPL 4171216 Contact Us For Availability
15
Bumper, Upper Rack WPL 4162048 Contact Us For Availability
15
Nut, Heater Element WPL 4163556 Contact Us For Availability
16
Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability
16
Blower Wheel Assembly (Includes Item 17) WPL 4162499 Contact Us For Availability
16
Support, Evaporation Channel WPL 4161564 Contact Us For Availability
16
Lever, Overflow Switch WPL 4171116 Contact Us For Availability
16
``O`` Ring WPL 4159827 Contact Us For Availability
17
Nut WPL 9740265 Contact Us For Availability
17
Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability
17
Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability
17
Motor Mounting Plate (Includes Items 18 & 20) WPL 4162932 Contact Us For Availability
18
Support, Receiver WPL 4162439 Contact Us For Availability
18
Frame Assembly (L.H.) WPL 4162910 Contact Us For Availability
18
End Cap (R.H.) WPL 4171122 Contact Us For Availability
18
Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability
19
Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability
19
Spacer, Upper Rack WPL 4163187 Contact Us For Availability
19
Cross Frame, Rear WPL 4162867 Contact Us For Availability
19
Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability
19
Drain Pump Top Assembly WPL 4162924 Contact Us For Availability
20
Washer WPL 4163188 Contact Us For Availability
20
Sleeve, Actuator Spacer WPL 9740120 Contact Us For Availability
20
Gasket, Drain Pump WPL 4163050 Contact Us For Availability
21
Frame Assembly (R.H.) WPL 4163604 Contact Us For Availability
22
Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability
22
Lead Assembly (Interlock Switch to Program Sw WPL 4162614 Contact Us For Availability
22
Motor Clamp Assembly WPL 4161986 Contact Us For Availability
23
Cross Frame, Front WPL 4161368 Contact Us For Availability
23
Gasket, Venturi WPL 4162916 Contact Us For Availability
24
Kick Board WPL 4161580 Contact Us For Availability
24
Start Relay Kit (Includes Item 25) WPL 9740418 Contact Us For Availability
25
Foot, Leveling (4) WPL 4162911 Contact Us For Availability
25
Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability
25
Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability
26
Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability
27
Baffle, Lower WPL 4161295 Contact Us For Availability
27
Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
27
Button, Program Switch (2) WPL 4163240 Contact Us For Availability
28
Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability
28
Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability
28
Clamp, Hose (.937`` Dia.) WPL 4161508 Contact Us For Availability
29
Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability
29
Bracket, Check Valve WPL 4171311 Contact Us For Availability
30
Trim, Handle WPL 4163255 Contact Us For Availability
30
Check Valve Assembly WPL 4162920 Contact Us For Availability
31
Motor, Seal & Gasket Kit (Includes Items 18, WPL 9740410 Contact Us For Availability
32
Tank (Serviced Complete with Frame) WPL 4163586 Contact Us For Availability
32
Handle, Latch WPL 4163243 Contact Us For Availability
32
Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability
33
Protector, Edge WPL 4171215 Contact Us For Availability
33
Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability
33
Connector WPL 4161605 Contact Us For Availability
34
Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability
34
Clip, Harness Guide WPL 4163372 Contact Us For Availability
34
Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability
35
Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability
35
Wiring Harness (Main) WPL 9740383 Contact Us For Availability
36
Cutter Kit (Includes Shaft Seal Kit) WPL 4163042 Contact Us For Availability
38
Rinse Agent Dispensing Valve WPL 4162522 Contact Us For Availability
38
Knob, Timer WPL 4171119 Contact Us For Availability
39
Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability
39
Control Panel WPL 9740175 Contact Us For Availability
41
Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
41
Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability
41
Shim Washer Kit WPL 4163634 Contact Us For Availability
42
End Cap (L.H.) WPL 4171123 Contact Us For Availability
43
Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability
44
Timer Assembly (115 V., 60 Hz.) WPL 4171360 Contact Us For Availability
47
Clip, Endcap (2) WPL 4171127 Contact Us For Availability
× ![]()
