Model Whirlpool KUDI25CHAL0 – Common Parts &amp; Diagrams

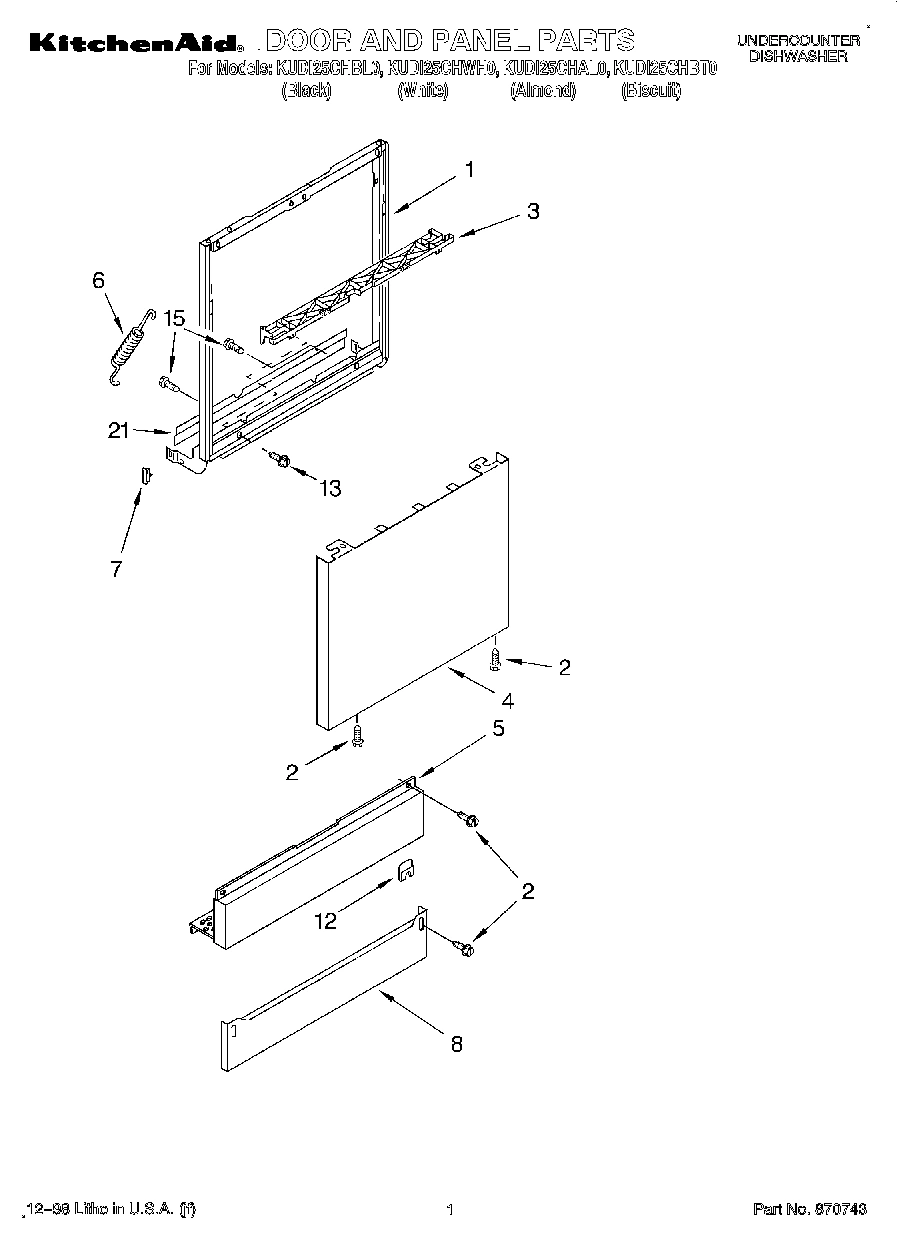

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $156.64

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Glisten WPL 4319102 Contact Us For Availability

Door Frameless Kits (White) WPL 4378861 Contact Us For Availability

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

Door Frameless Kits (Almond) WPL 4378863 Contact Us For Availability

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT9743822 Contact Us For Availability

Guide, Use & Care WPL LIT9744037 Contact Us For Availability

Energy Guide WPL LIT9744285 Contact Us For Availability

Tech Sheet (English) WPL LIT9744358 Contact Us For Availability

Tech Sheet (French) WPL LIT9744359 Contact Us For Availability

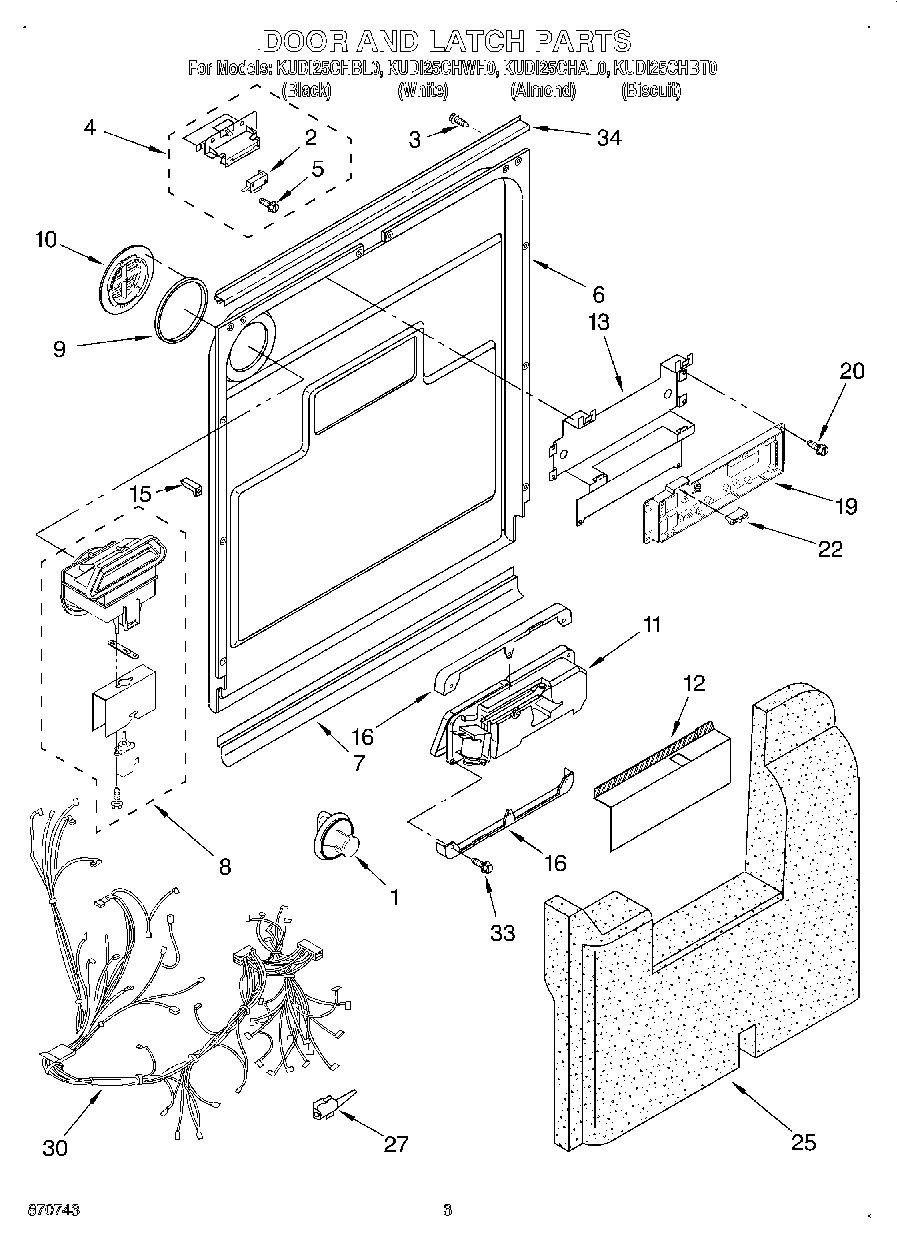

1

Knob, Dispenser WPL 9743399 Contact Us For Availability

1

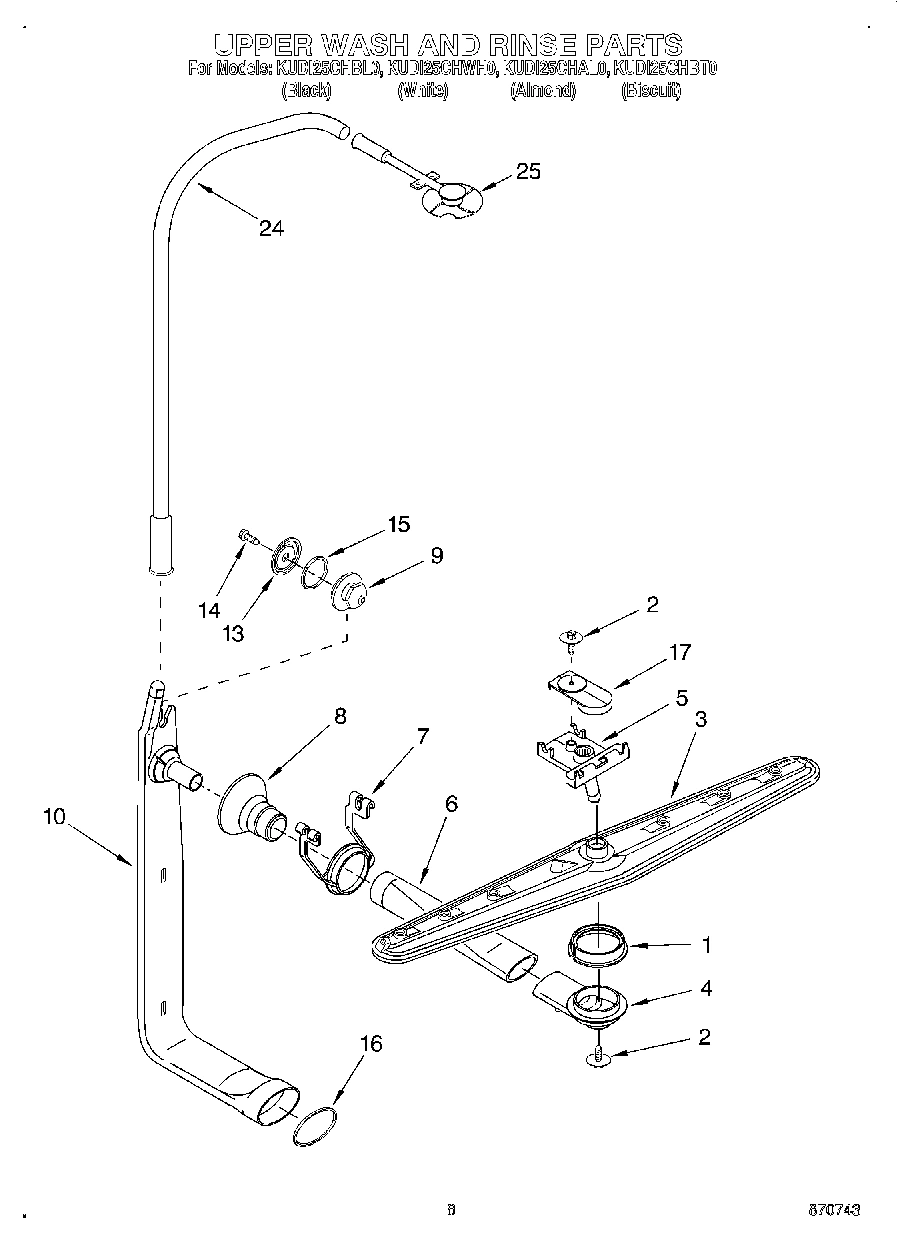

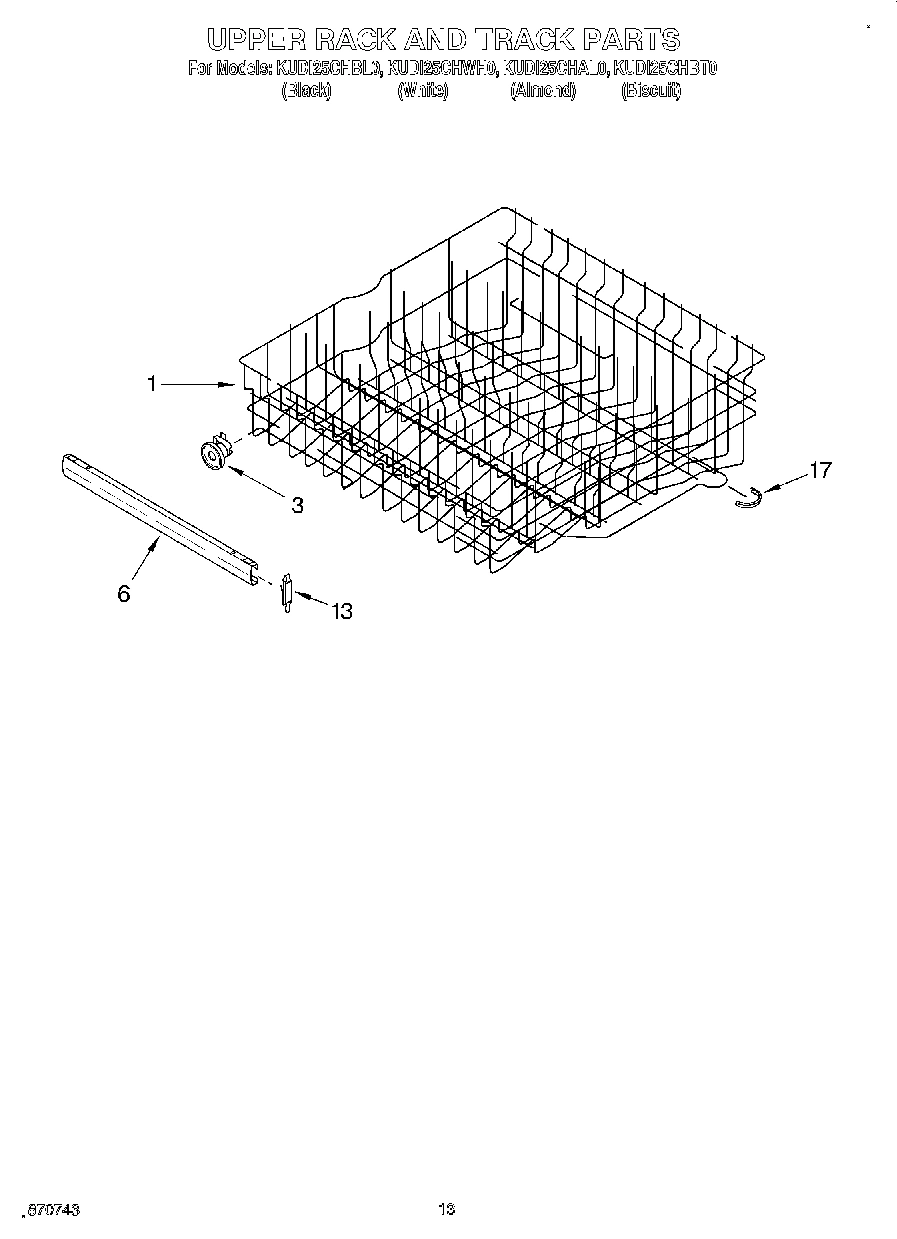

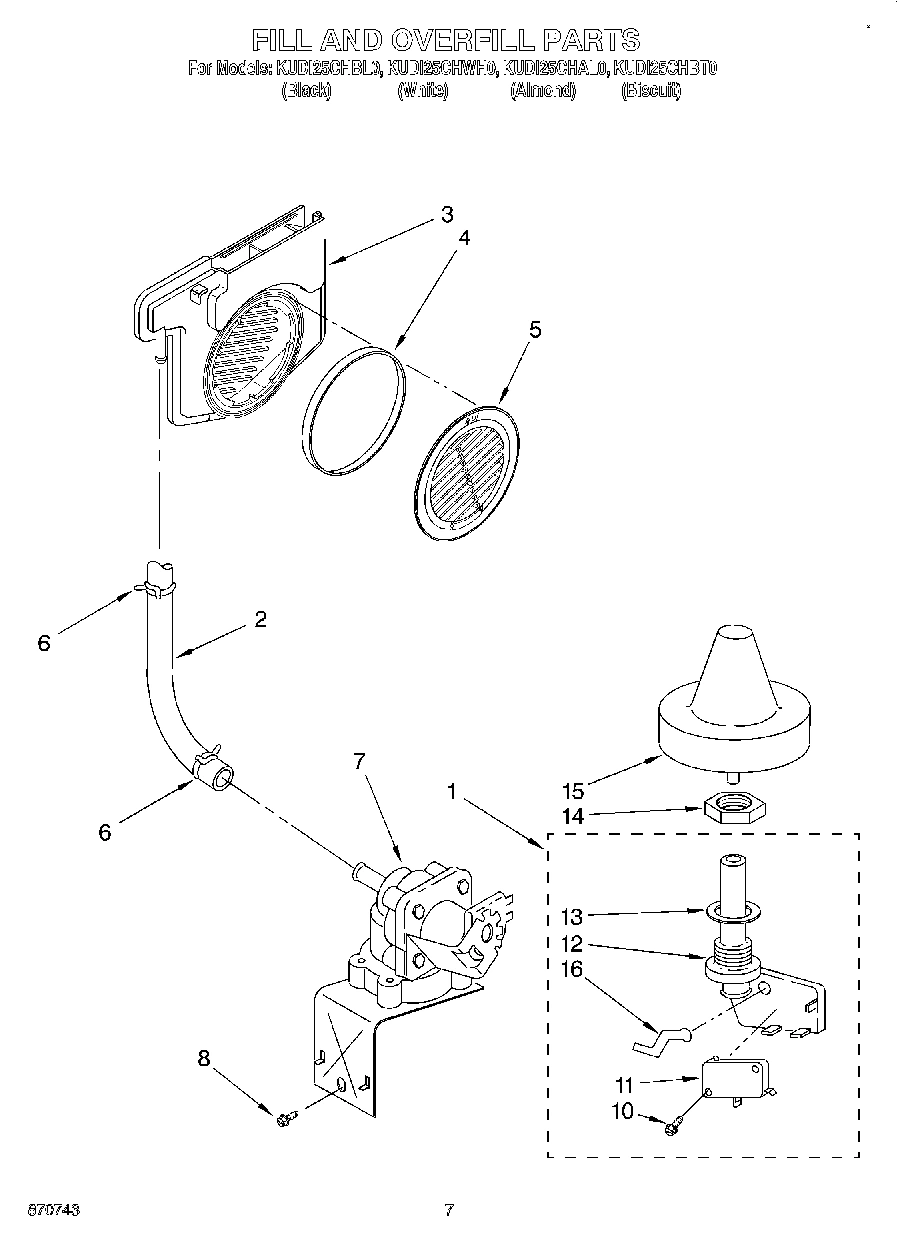

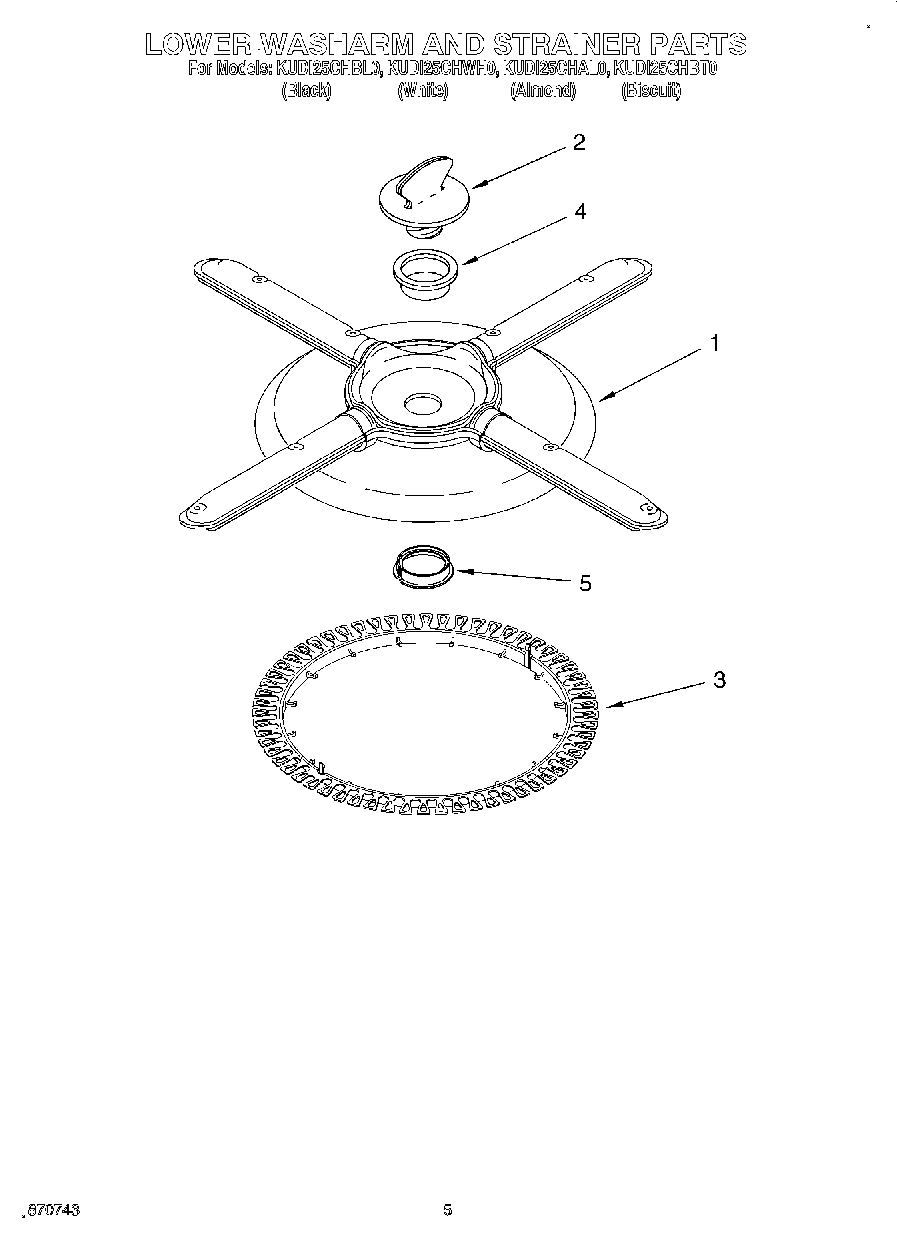

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

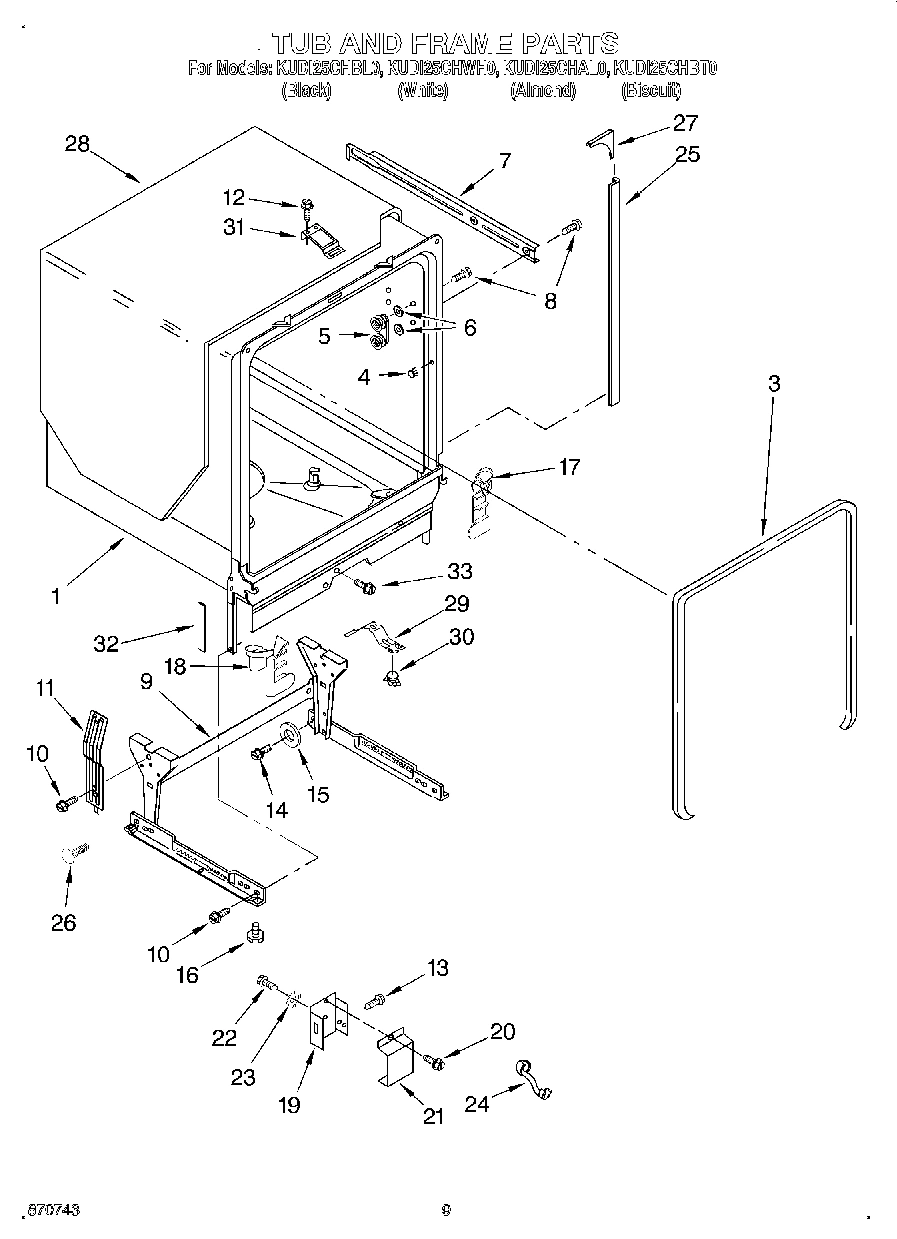

Tub Assembly WPL 9744055 Contact Us For Availability

1

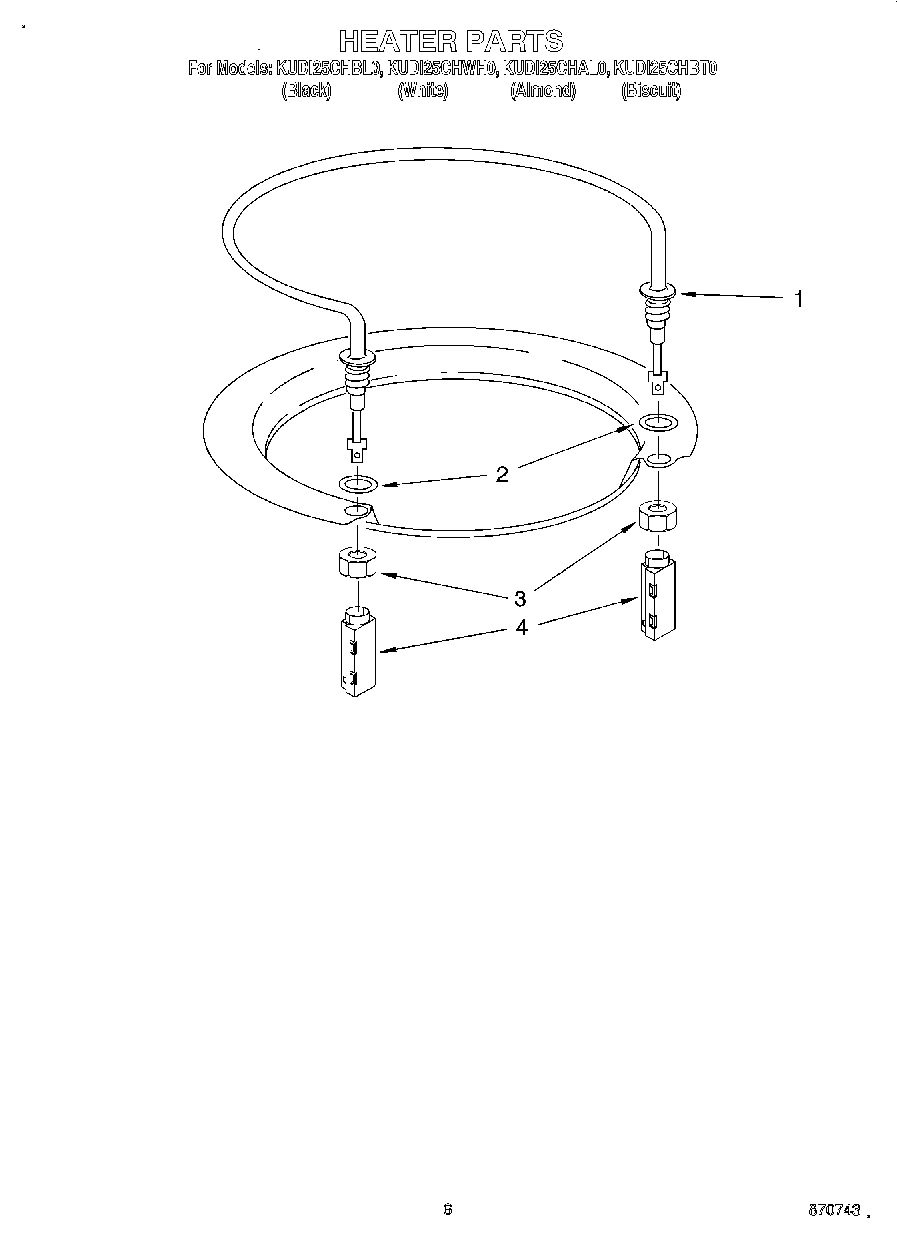

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

1

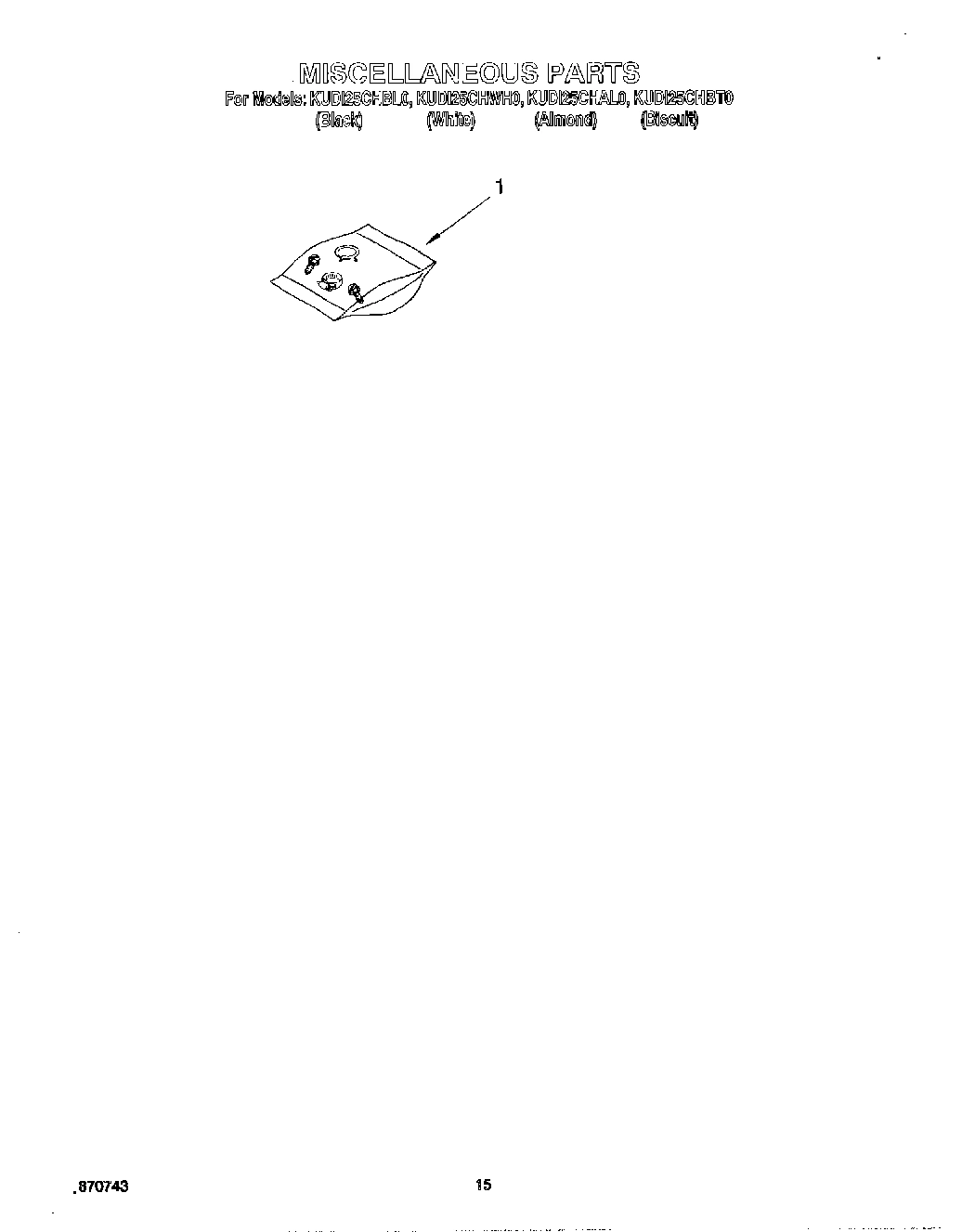

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

1

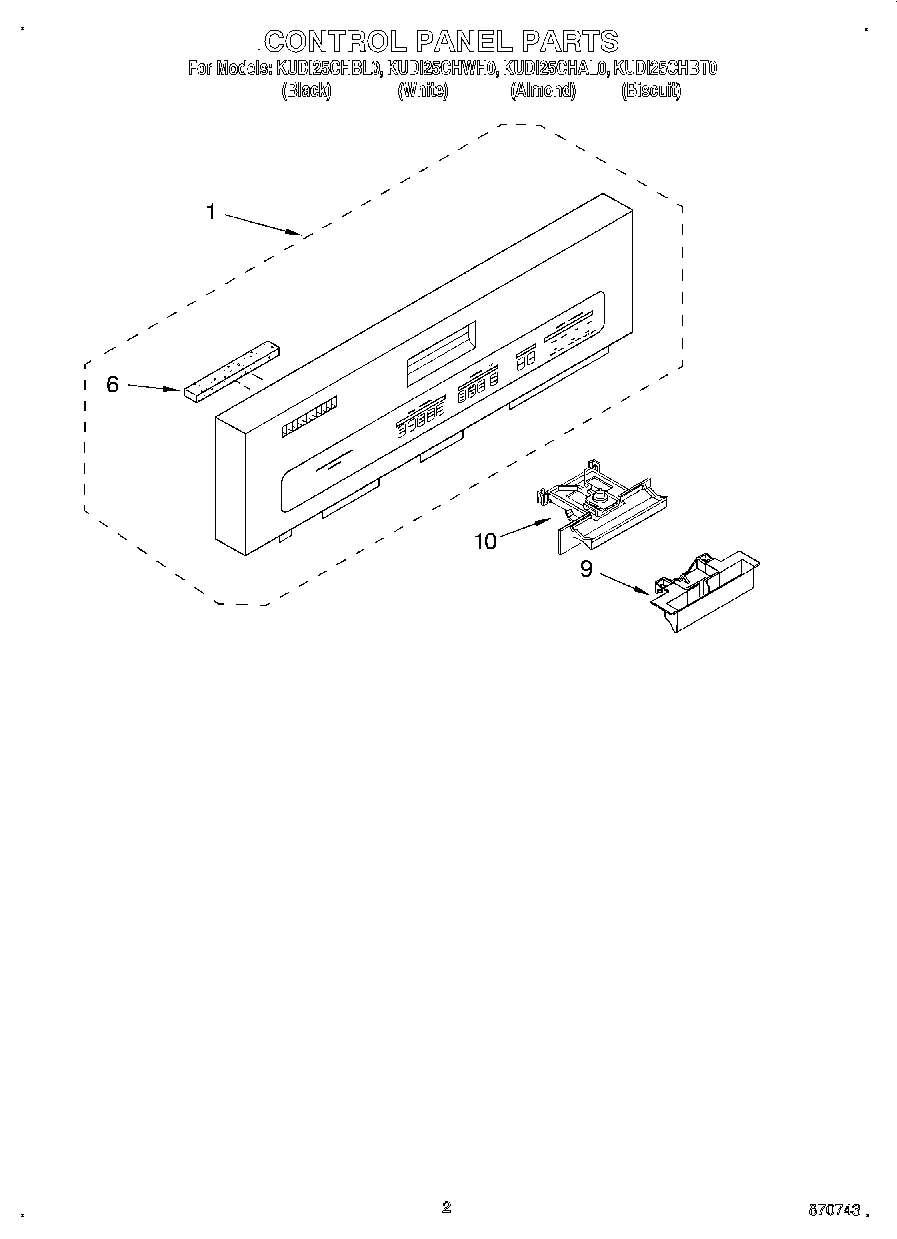

Console, Complete (Black) WPL 9744125 Contact Us For Availability

1

Console, Complete (White) WPL 9744126 Contact Us For Availability

1

Console, Complete (Almond) WPL 9744127 Contact Us For Availability

1

Console, Complete (Biscuit) WPL 9744308 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $5.44

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

Panel Front (White Model) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Model) WPL 3379375 Contact Us For Availability

4

Panel, Front (Biscuit) WPL 8054178 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

5

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $3.29

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

6

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $18.92

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $9.99

6

Sponge, Vent WPL 8051305 Contact Us For Availability

6

Sponge, (Console/Lever) WPL 9743961 Contact Us For Availability

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $10.82

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $78.93

8

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $71.95

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

8

Toe Panel (Includes Item 11) (Biscuit) WPL 8054181 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Almond Model) WPL 9742862 Contact Us For Availability

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

9

Handle, Latch (Black Model) WPL 3380662 Contact Us For Availability

9

Handle, Latch (White Model) WPL 3380663 Contact Us For Availability

9

Handle, Latch (Almond Model) WPL 3380664 Contact Us For Availability

9

Handle, Latch (Biscuit Mdl.) WPL 9744052 Contact Us For Availability

10

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

10

Latch Lever Asm. WPL 3380655 Contact Us For Availability

10

Feed Tube Assembly WPL 9743957 Contact Us For Availability

11

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

11

Connector Tub To Brace WPL 9742610 Contact Us For Availability

12

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

12

Clip, Grounding WPL 3378123 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Washer WPL 9743475 Contact Us For Availability

14

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

14

Screw (2) WPL 3370389 Contact Us For Availability

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

16

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

16

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

16

Seal, Tube WPL 9742953 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $26.44

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $6.35

19

Terminal Box WPL 3378131 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

20

Screw WPL 3369138 Contact Us For Availability

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

21

Barrier, Lower vent WPL 8054188 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

23

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

24

Tube (3rd Level) WPL 9743958 Contact Us For Availability

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

WP3379369 Whirlpool Dishwasher Wash Assembly Backorder WPL WP3379369 $28.80

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

Pad, Friction WPL 3379938 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
