Model Whirlpool KUDI24SEAL4 – Common Parts & Diagrams
09 - PUMP AND MOTOR
11 - LOWER RACK

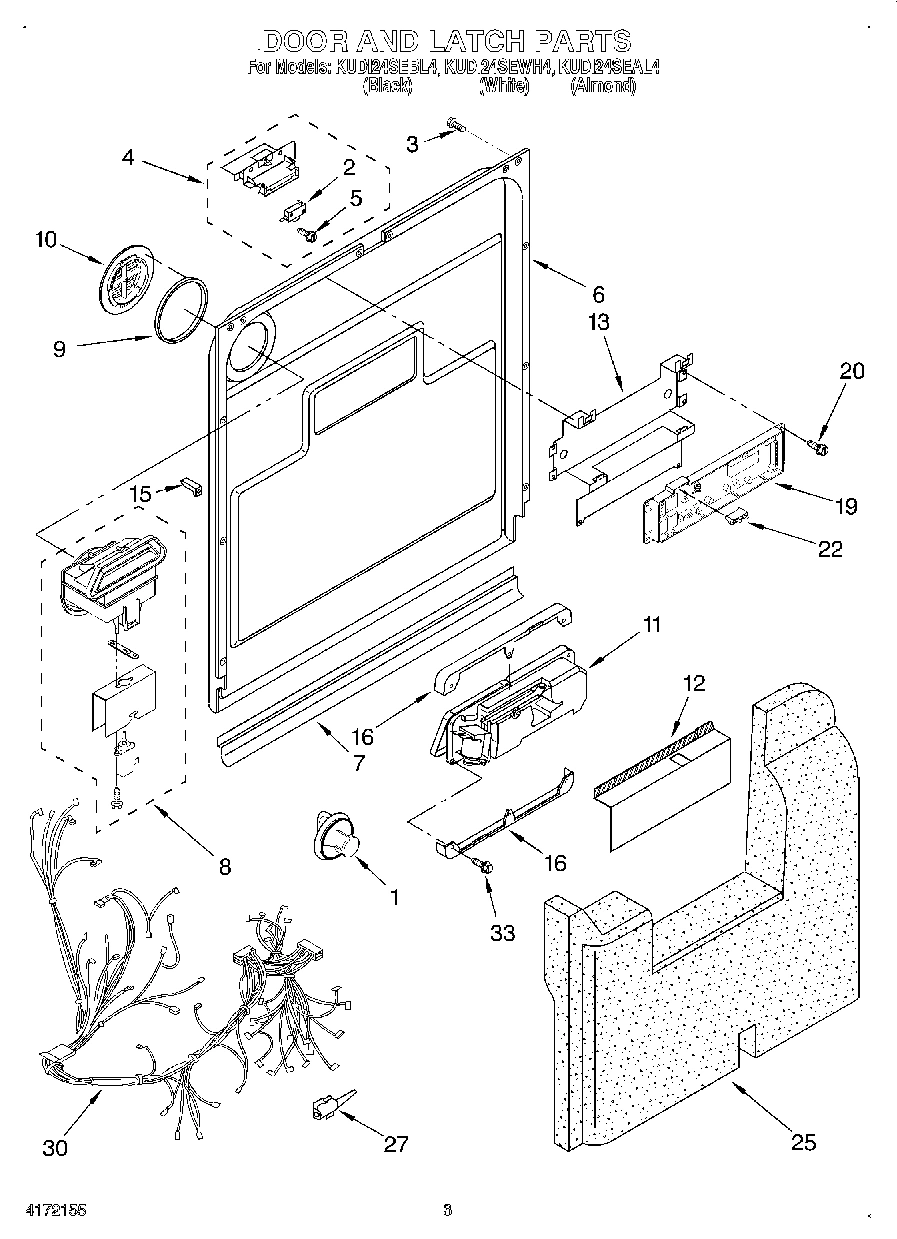

03 - DOOR AND LATCH

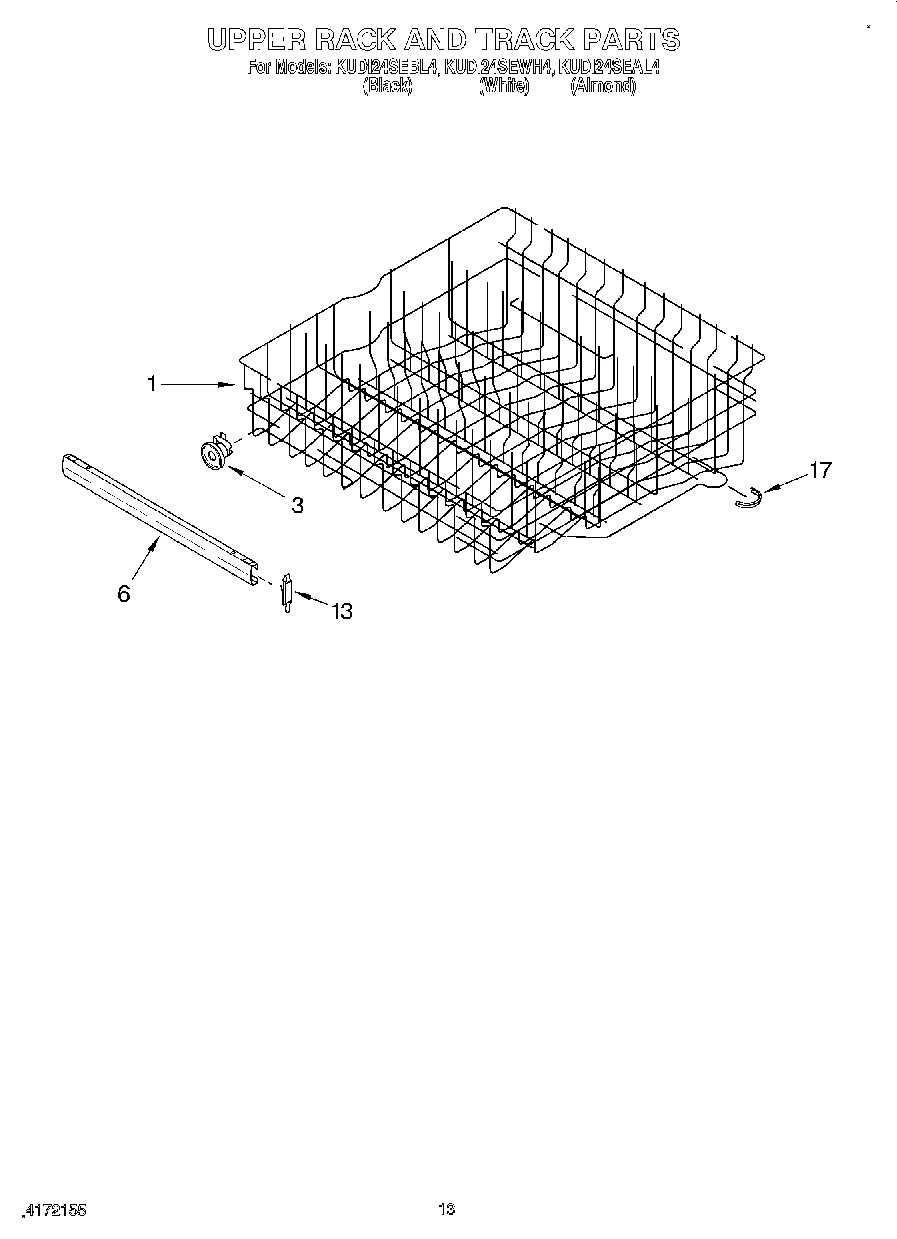

10 - UPPER RACK AND TRACK
06 - FILL AND OVERFILL
08 - TUB AND FRAME

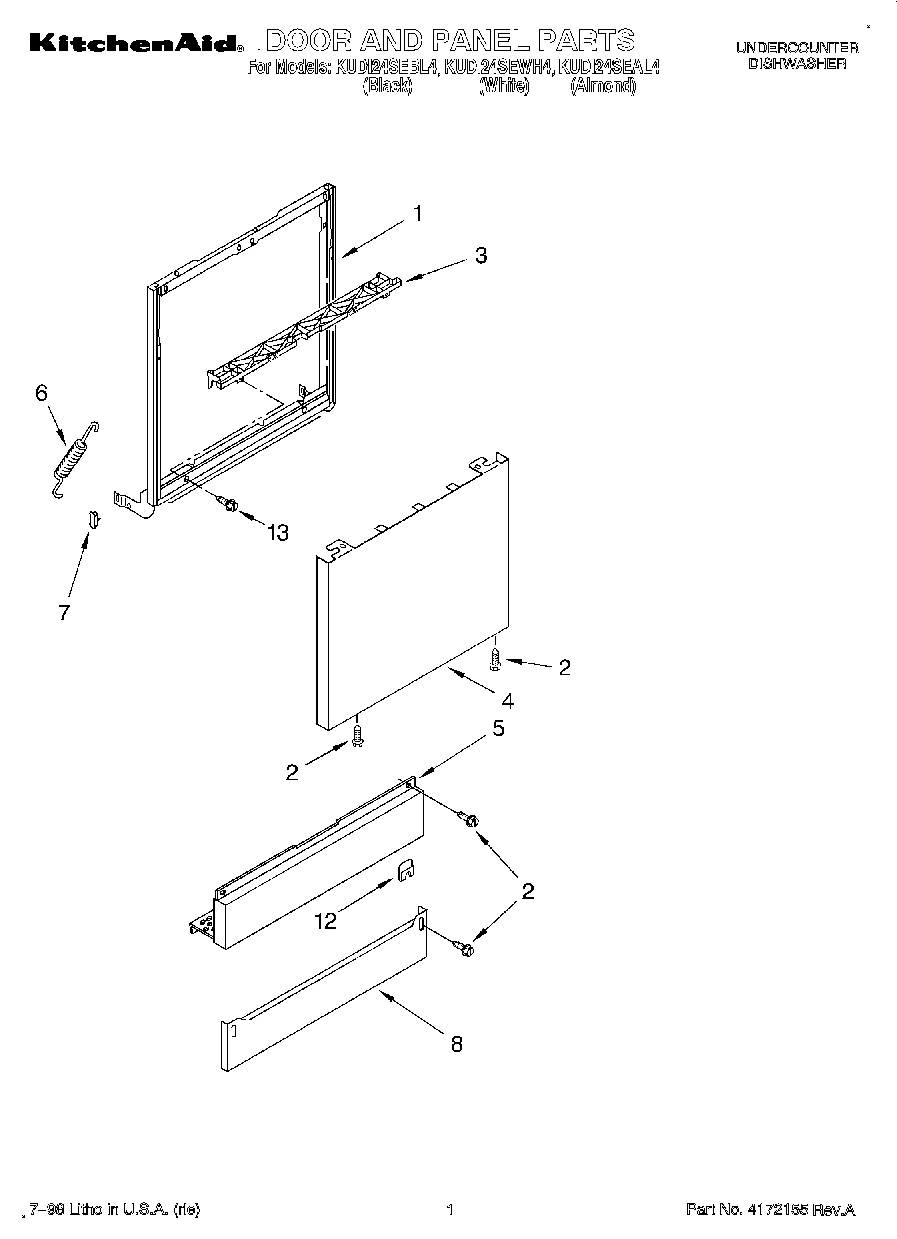

01 - DOOR AND PANEL

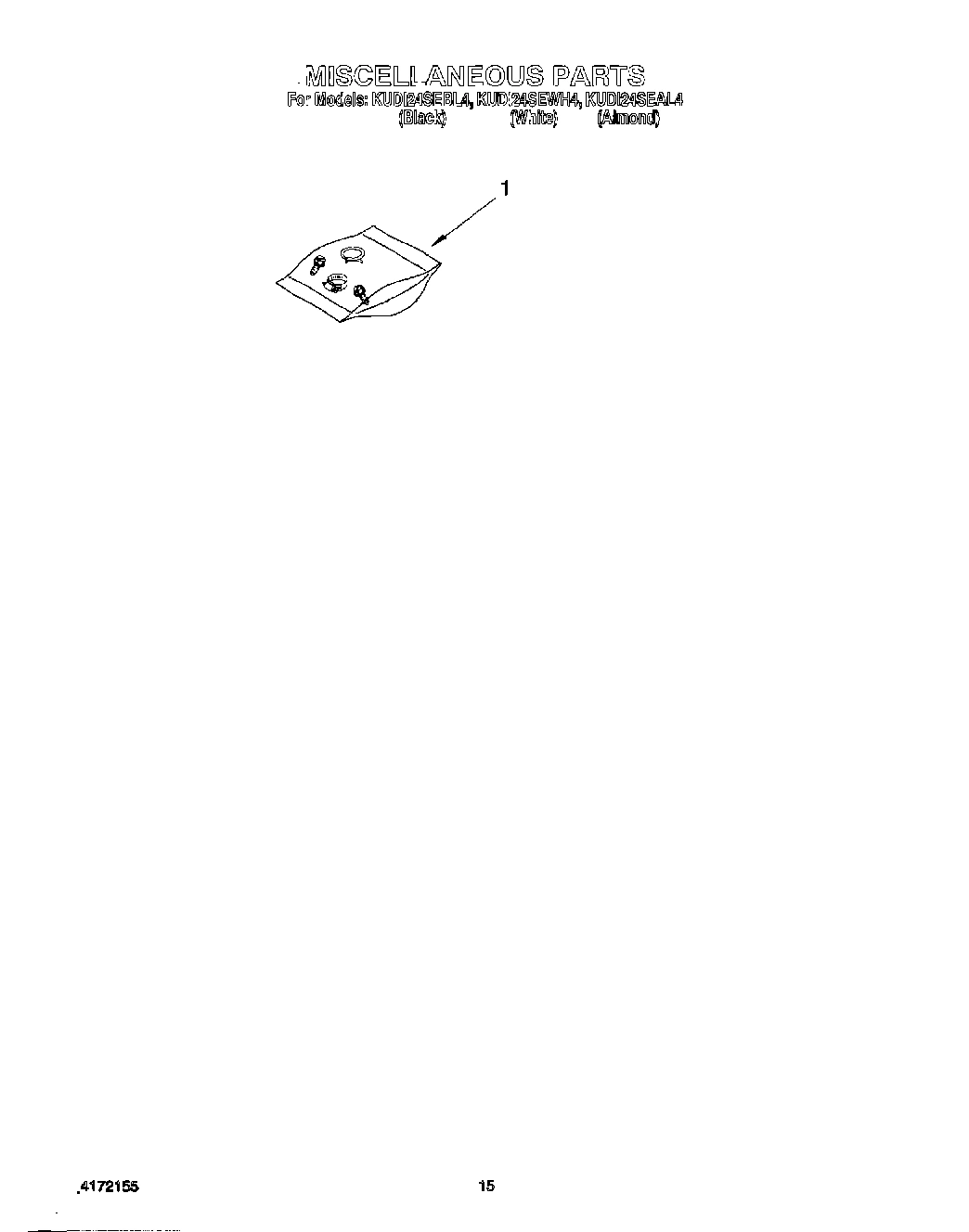

12 - MISCELLANEOUS, LIT/OPTIONAL

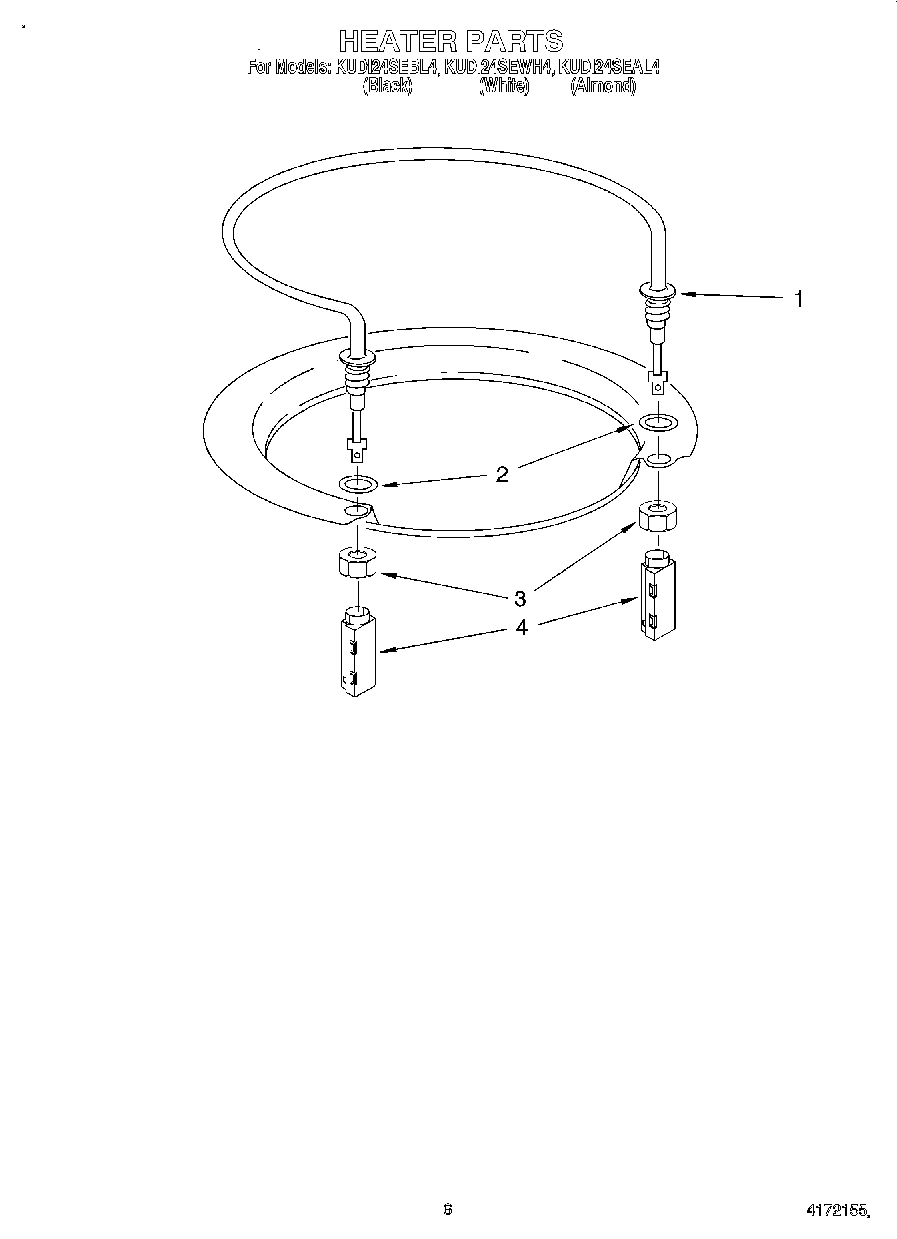

05 - HEATER

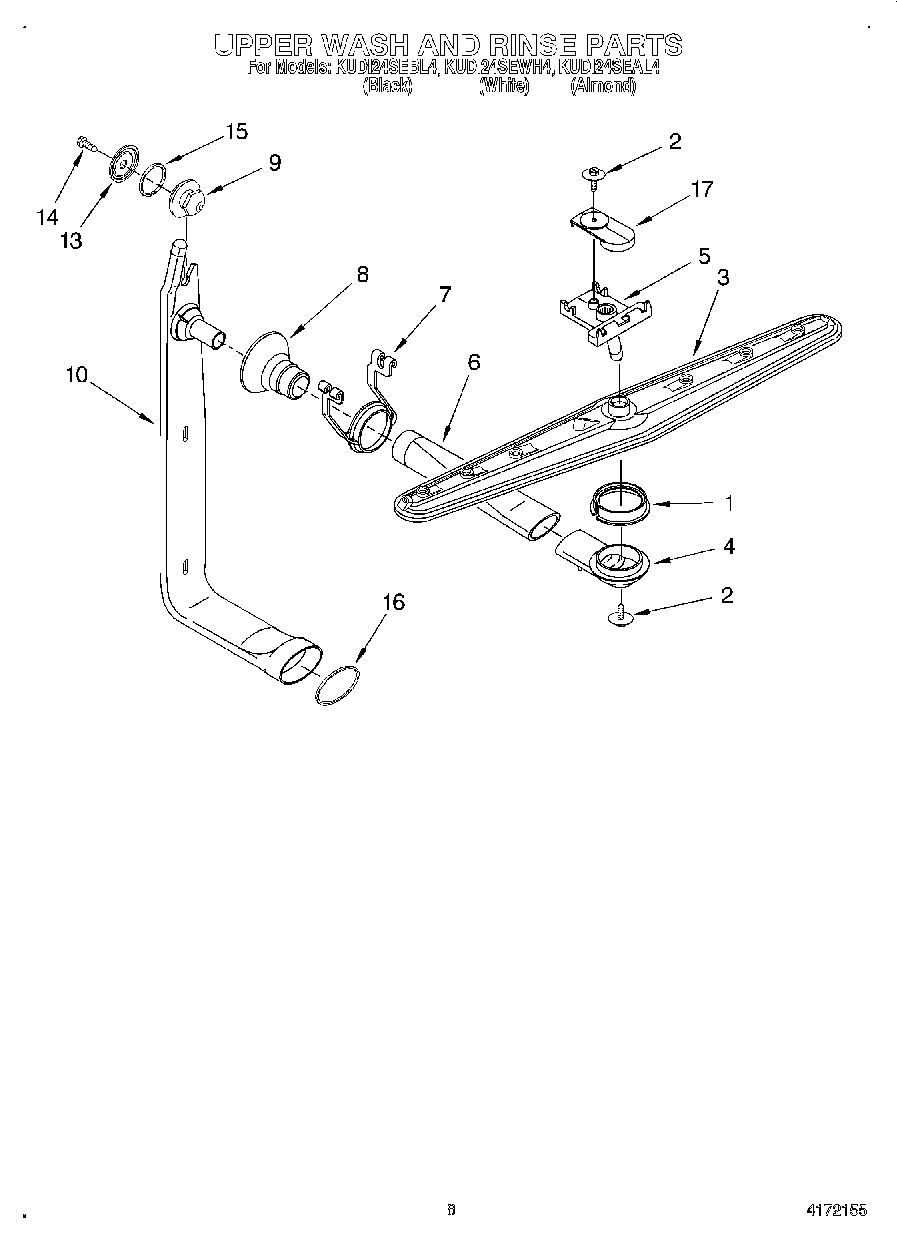

07 - UPPER WASH AND RINSE

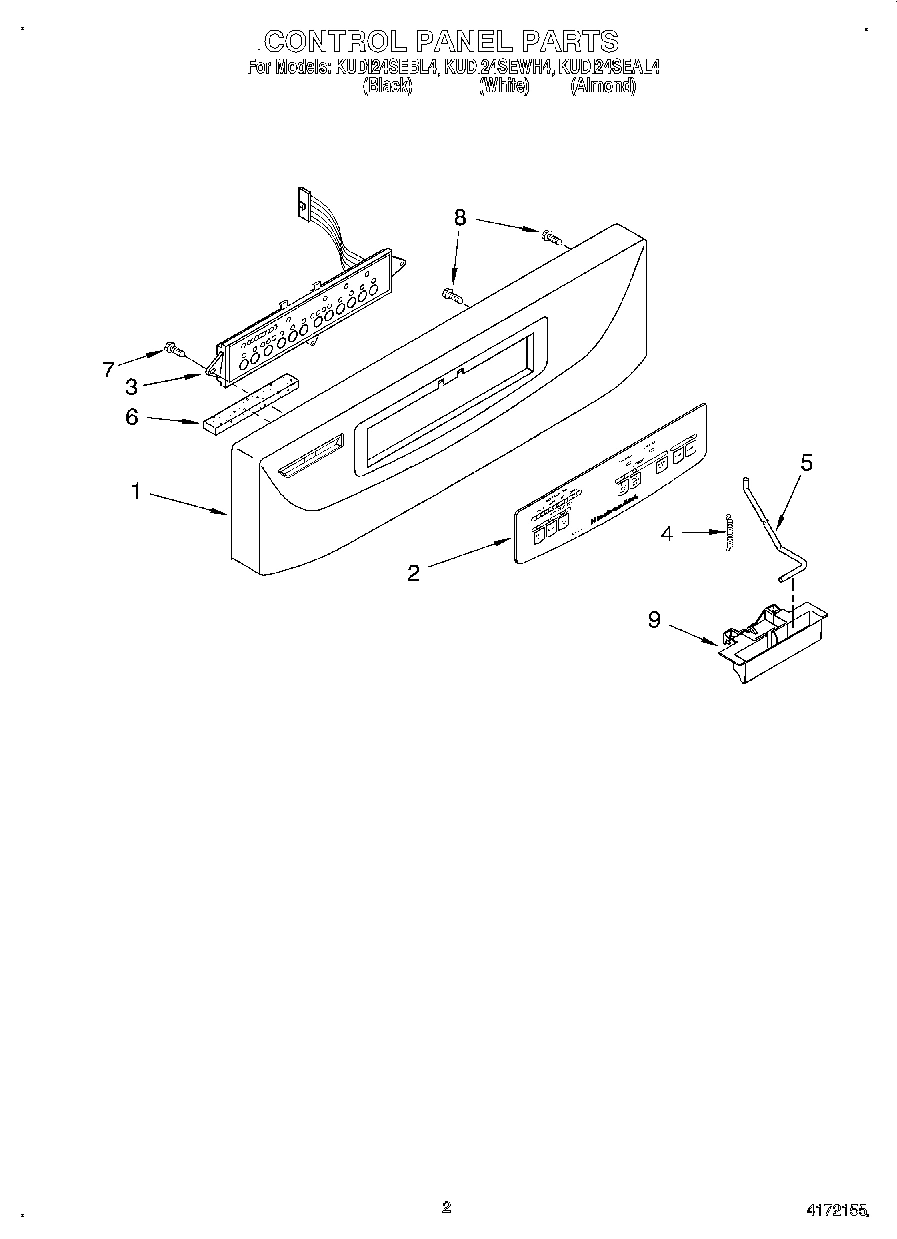

02 - CONTROL AND PANEL

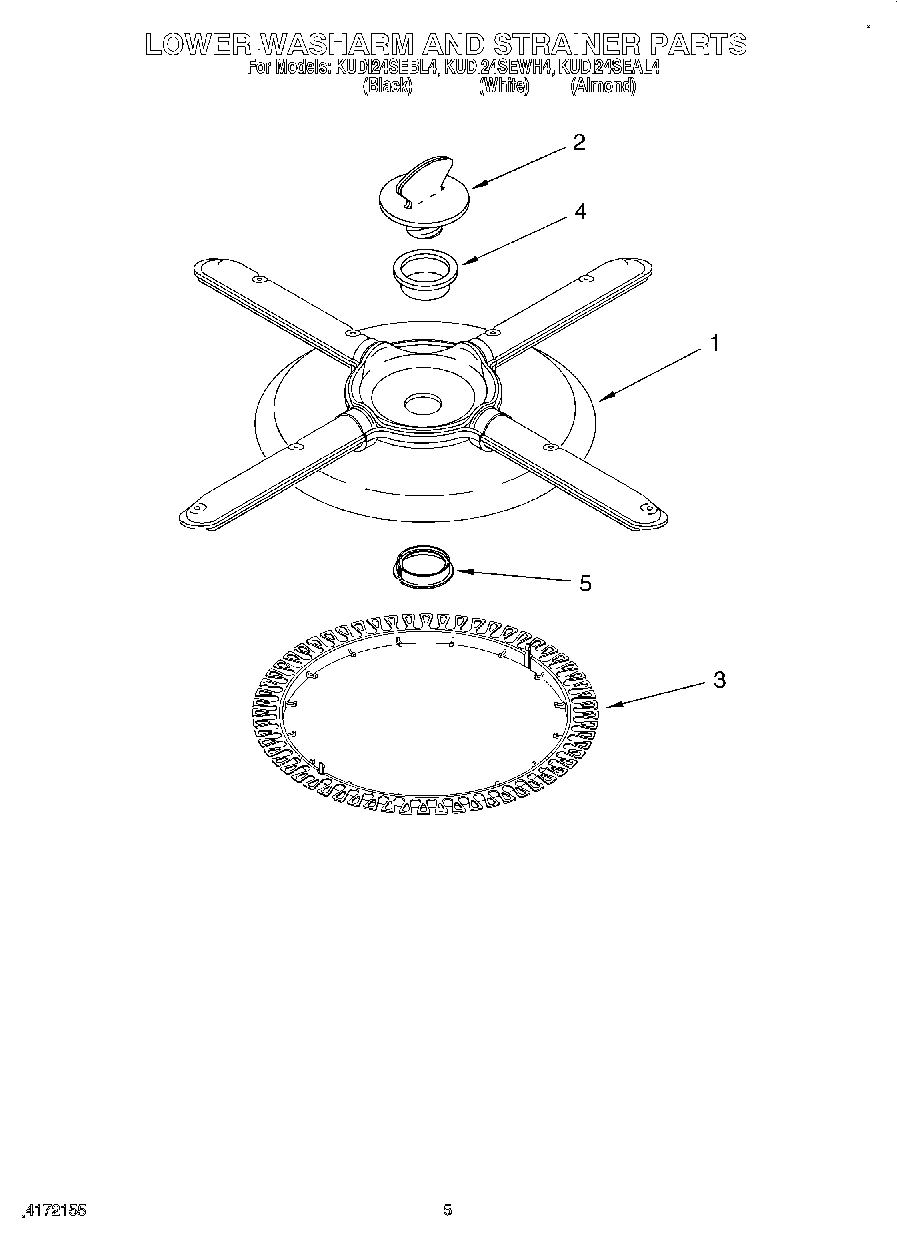

04 - LOWER WASHARM AND STRAINER
Common parts from model Whirlpool KUDI24SEAL4
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Glisten WPL 4319102 Contact Us For Availability
White WPL 4378861 Contact Us For Availability
Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability
Almond WPL 4378863 Contact Us For Availability
Door Framed Kits (White) WPL 4378864 Contact Us For Availability
Door Framed Kits (Black) WPL 4378865 Contact Us For Availability
Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability
Side Panel Kits (Black) WPL 4378868 Contact Us For Availability
Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Guide, Energy WPL LIT8054170 Contact Us For Availability
Guide, Use & Care WPL LIT9743107 Contact Us For Availability
Instructions, Installation WPL LIT9743663 Contact Us For Availability
Tech Sheet (English) WPL LIT9743964 Contact Us For Availability
Tech Sheet (French) WPL LIT9743965 Contact Us For Availability
1
Cap, Dispenser WPL 9743399 Contact Us For Availability
1
Door Frame WPL 9743028 Contact Us For Availability
1
Wash Arm Assembly WPL 9742947 Contact Us For Availability
1
Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability
1
Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability
1
Console (Also Order Item 2) (Black Model) WPL 9743744 Contact Us For Availability
1
Console (Also Order Item 2) (White Model) WPL 9743745 Contact Us For Availability
1
Console (Also Order Item 2) (Almond Model) WPL 9743746 Contact Us For Availability
2
Insert (White Model) WPL 9743367 Contact Us For Availability
2
Hose, Inlet WPL 9742727 Contact Us For Availability
2
Insert (Black Model) WPL 9743366 Contact Us For Availability
2
Insert (Almond Model) WPL 9743368 Contact Us For Availability
3
Door Seal WPL 9743590 Contact Us For Availability
3
Switch, Panel (User Interface) WPL 9743244 Contact Us For Availability
3
Wheel & Transport Assembly WPL 8051252 Contact Us For Availability
3
Stiffener, Door WPL 9742964 Contact Us For Availability
3
Nut, Heater Element WPL 9743039 Contact Us For Availability
3
Strainer (Coarse) WPL 9742646 Contact Us For Availability
4
Gasket WPL 9742787 Contact Us For Availability
4
Spring, Handle WPL 9743573 Contact Us For Availability
4
Panel Front (White Model) WPL 3379376 Contact Us For Availability
4
Panel Front (Black Model) WPL 3379375 Contact Us For Availability
4
Plug Tub (2) WPL 9742788 Contact Us For Availability
4
Panel Front (Almond Model) WPL 3379377 Contact Us For Availability
4
Pod, Terminal Heater WPL 9743166 Contact Us For Availability
5
Link, Handle WPL 9743572 Contact Us For Availability
5
Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability
5
Access Panel & Clip Assembly (Black Model) WPL 3379917 Contact Us For Availability
5
Access Panel & Clip Assembly (White Model) WPL 3379918 Contact Us For Availability
5
Access Panel & Clip Assembly (Almond Model) WPL 3379919 Contact Us For Availability
6
Sponge, Vent WPL 9743412 Contact Us For Availability
7
Tub Stiffener WPL 3378056 Contact Us For Availability
8
Toe Panel (Almond Model) WPL 9742862 Contact Us For Availability
9
Gasket, Vent WPL 9742782 Contact Us For Availability
9
Filter Assembly WPL 9742968 Contact Us For Availability
9
Rear Support Assembly WPL 9743149 Contact Us For Availability
9
Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability
10
Feed Tube Assembly WPL 9742950 Contact Us For Availability
11
Switch, Overfill Control WPL 9743413 Contact Us For Availability
11
Connector Tub To Brace WPL 9742610 Contact Us For Availability
12
Clip, Grounding WPL 3378123 Contact Us For Availability
13
Track Stop (4) WPL 3379941 Contact Us For Availability
13
Washer WPL 9743475 Contact Us For Availability
14
Screw (2) WPL 3370389 Contact Us For Availability
15
Float & Retainer Assembly WPL 9743070 Contact Us For Availability
15
Wheel, Leg WPL 302819 Contact Us For Availability
15
Gasket, Connector WPL 9743474 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Seal, Tube WPL 9742953 Contact Us For Availability
19
Terminal Box WPL 3378131 Contact Us For Availability
20
Screw WPL 3369138 Contact Us For Availability
21
Cover, Terminal Box WPL 300068 Contact Us For Availability
24
Relief, Strain WPL 3370307 Contact Us For Availability
25
Trim Strip, Tub WPL 9743460 Contact Us For Availability
27
Corner Trim, Tub WPL 9742789 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Strike, Latch WPL 9742722 Contact Us For Availability
32
Pad, Friction WPL 9743406 Contact Us For Availability
38
Seal, O-Ring WPL 3376723 Contact Us For Availability
× ![]()
