Model Whirlpool KUCS181T0 – Common Parts & Diagrams
03 - FRAME
06 - ACCESSORY

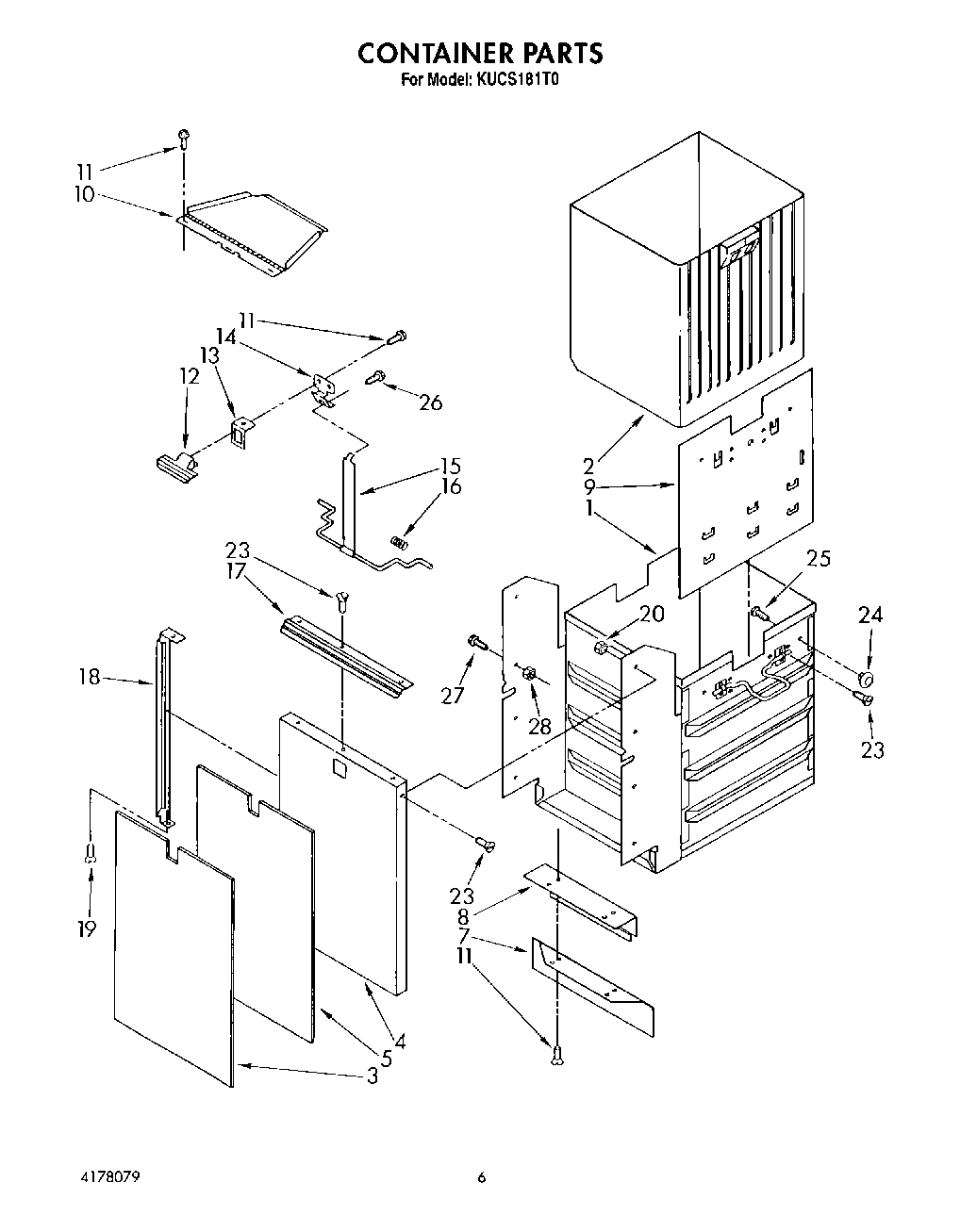

04 - CONTAINER

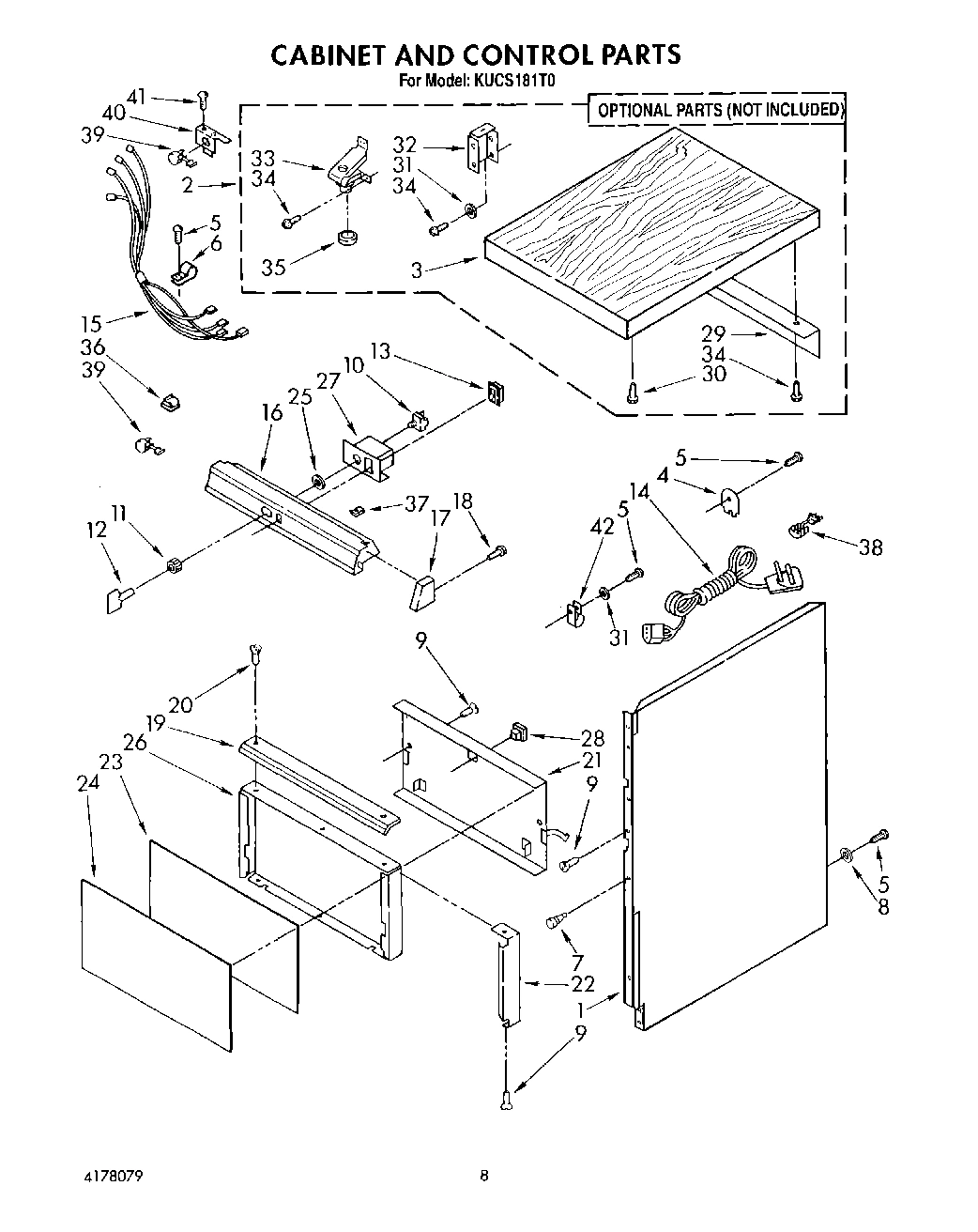

05 - CABINET AND CONTROL

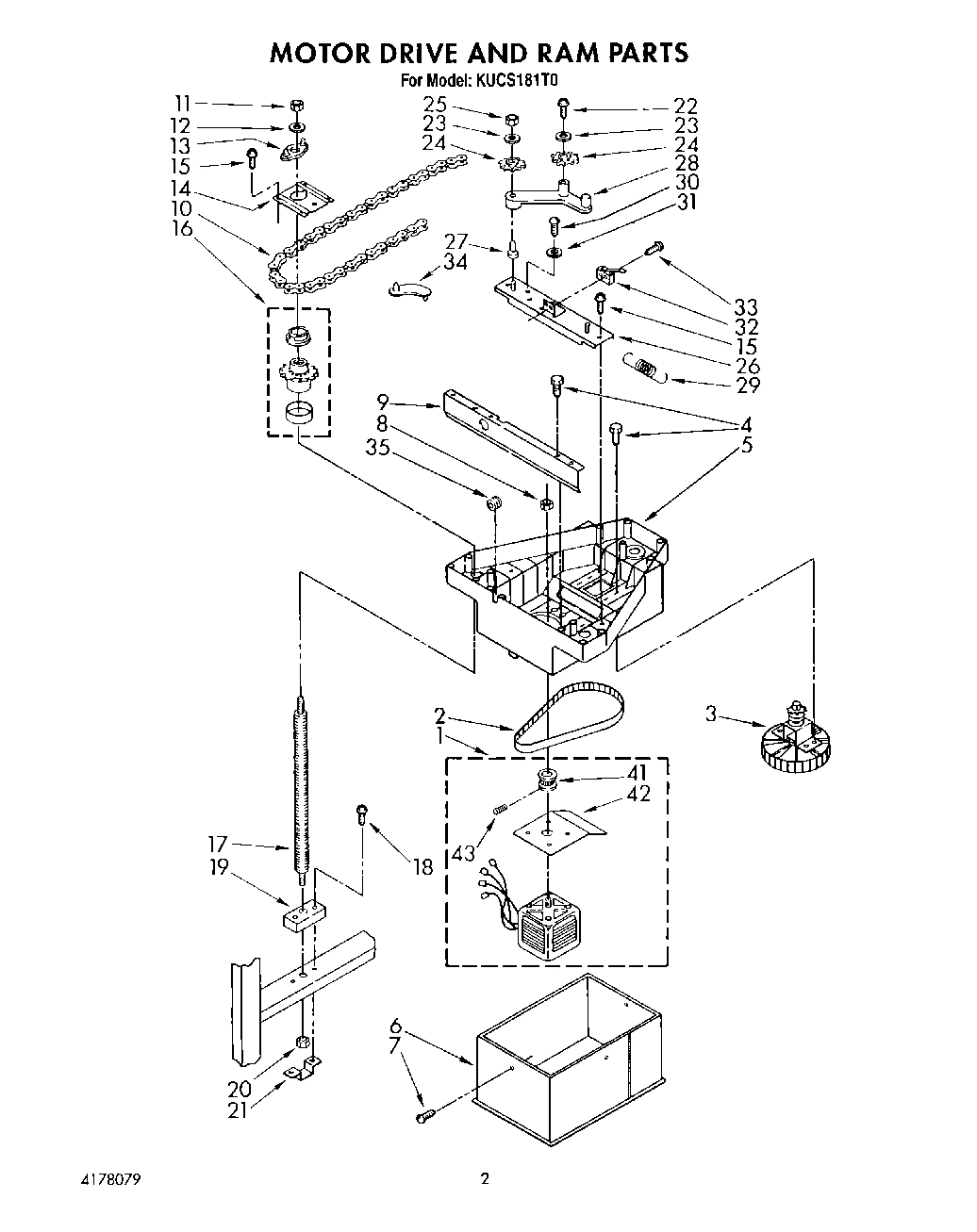

02 - MOTOR DRIVE AND RAM, LIT/OPTIONAL
Common parts from model Whirlpool KUCS181T0
Diagram, Wiring WPL LIT4178072 Contact Us For Availability
List, Repair Parts WPL LIT4178079 Contact Us For Availability
Guide, Use and Care WPL LIT9740079 Contact Us For Availability
Instructions, Installation (Front Panel) WPL LIT9740200 Contact Us For Availability
Instructions, Installation (Built-In Applicat WPL LIT9870117 Contact Us For Availability
1
Bag, Trash (18`` Plastic) (12 Boxes Of 15 Pac WPL 4163345 Contact Us For Availability
1
Bag, Trash (18`` Plastic) (1 Box Of 15 Pack) WPL 4163347 Contact Us For Availability
1
Container WPL 4161516 Contact Us For Availability
1
Panel, Cabinet (Left Side) WPL 4161021 Contact Us For Availability
1
Panel, Cabinet (Right Side) WPL 4161030 Contact Us For Availability
1
Panel, Cabinet (Back) WPL 4161315 Contact Us For Availability
1
Motor, Drive WPL 4178043 Contact Us For Availability
2
paint, spray 13 oz. (coffee) WPL 261886 Contact Us For Availability
2
Paint, Spray 13 Oz. (Avocado) WPL 261888 Contact Us For Availability
2
Paint, Spray 13 Oz. (Harvest Gold) WPL 261890 Contact Us For Availability
2
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
2
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
2
Paint, Spray 13 Oz. (Electro Tan) WPL 675167 Contact Us For Availability
2
Paint, Spray 13 Oz. (Stanford Brown) WPL 978726 Contact Us For Availability
2
Liner, Container WPL 4161337 Contact Us For Availability
2
Freestanding, Conversion Kit WPL 4164800 Contact Us For Availability
2
Belt, Drive WPL 4161013 Contact Us For Availability
3
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
3
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
3
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
3
Panel, Container (White & Almond) WPL 4178037 Contact Us For Availability
3
Panel, Container (Harvest Gold & Black) WPL 4178039 Contact Us For Availability
3
Top, Wood WPL 4161162 Contact Us For Availability
3
Sprocket, Driven WPL 4178086 Contact Us For Availability
4
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Front, Container WPL 4178051 Contact Us For Availability
4
Plate, WPL 4161301 Contact Us For Availability
4
Screw, 1/4 20 x 2`` (4) WPL 4159303 Contact Us For Availability
5
Filler, Panel WPL 4162880 Contact Us For Availability
5
Ram, Top WPL 4161268 Contact Us For Availability
6
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
6
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
6
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
6
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
6
Clamp, Wire WPL 4162573 Contact Us For Availability
6
Ram, Bottom WPL 4163107 Contact Us For Availability
7
Plate, Toe WPL 4161232 Contact Us For Availability
7
Screw, 8-18 x 1/2 (4) WPL 4159414 Contact Us For Availability
7
Bumper, Container WPL 4159983 Contact Us For Availability
8
Bracket, Toe Plate WPL 4161152 Contact Us For Availability
9
Plate, Releif WPL 4178056 Contact Us For Availability
9
Brace, Top WPL 4161212 Contact Us For Availability
10
Cover, Storage WPL 4161527 Contact Us For Availability
10
Switch, Rotary WPL 4162882 Contact Us For Availability
10
Chain, Drive WPL 4160983 Contact Us For Availability
11
Nut, Switch WPL 4162883 Contact Us For Availability
11
Nut, 5/16-18 (3) WPL 4159084 Contact Us For Availability
12
Handle, Pull WPL 4161515 Contact Us For Availability
13
Bezel, Handle WPL 4162881 Contact Us For Availability
13
Switch, Rocker WPL 4162891 Contact Us For Availability
13
Stop, Ram Upper WPL 4161041 Contact Us For Availability
14
Bracket, Handle WPL 4161542 Contact Us For Availability
14
Cord, Power WPL 4162569 Contact Us For Availability
14
Plate, Powerscrew Cover (Right Side) WPL 4161002 Contact Us For Availability
14
Plate, Powerscrew Cover (Left Side) WPL 4161003 Contact Us For Availability
14
Plate, Powerscrew Cover (Rear) WPL 4161271 Contact Us For Availability
15
Latch, Container WPL 4162937 Contact Us For Availability
15
Harness, Wiring (Motor Drive To Directional S WPL 4161258 Contact Us For Availability
15
Harness, Wiring (Interlock To Bypass) WPL 4162668 Contact Us For Availability
15
Harness, Wiring (Power Distribution) WPL 4162893 Contact Us For Availability
15
Harness, Wiring (Ram Switch To Key) WPL 4162894 Contact Us For Availability
15
Harness, Wiring (Rocker Switch To Fan Motor) WPL 4162895 Contact Us For Availability
15
Harness, Wiring (Main Harness) WPL 4162896 Contact Us For Availability
15
Screw, 10-24 x 1/2 WPL 4159416 Contact Us For Availability
16
Barrier WPL 4162571 Contact Us For Availability
16
Spring, Latch (Right Side) WPL 4162739 Contact Us For Availability
16
Spring, Latch (Left Side) WPL 4162740 Contact Us For Availability
16
Escutcheon, Control WPL 4178077 Contact Us For Availability
16
Sprocket, Powerscrew (3) WPL 4161449 Contact Us For Availability
17
Bracket WPL 4162310 Contact Us For Availability
17
End Cap (Right Side) WPL 4162885 Contact Us For Availability
17
End Cap (Left Side) WPL 4162886 Contact Us For Availability
17
Powerscrew (3) WPL 4160988 Contact Us For Availability
18
Trim, Front (Right Side) WPL 4161173 Contact Us For Availability
18
Trim, Front (Left Side) WPL 4161176 Contact Us For Availability
18
Screw, 4 x 1/4 (4) WPL 4178052 Contact Us For Availability
18
Screw, 1/4-20 x 7/16 WPL 4162027 Contact Us For Availability
19
Foot, leveling (4) WPL 4161363 Contact Us For Availability
19
Handle, Litter Bin WPL 4160981 Contact Us For Availability
19
Screw, 10-32 x 5/16 WPL 4159439 Contact Us For Availability
19
Stop, Ram Lower (3) WPL 4162026 Contact Us For Availability
20
Plate, Frame Cover WPL 4161346 Contact Us For Availability
20
Screw, 10-32 x 5/16 WPL 4159441 Contact Us For Availability
20
Nut (3) WPL 4161394 Contact Us For Availability
21
Panel, Litter Bin Rear WPL 4161294 Contact Us For Availability
21
Retainer, Nut (3) WPL 4161390 Contact Us For Availability
22
Screw, 6 x 3/8 (2) WPL 4159356 Contact Us For Availability
22
Trim, Litter Bin (Bottom) WPL 4161177 Contact Us For Availability
22
Screw, 8 x 5/16 (2) WPL 4159364 Contact Us For Availability
22
Trim, Litter Bin (Right Side) WPL 4161171 Contact Us For Availability
22
Trim, Litter Bin (Left Side) WPL 4161174 Contact Us For Availability
23
Plate, Top Front WPL 4178078 Contact Us For Availability
23
Screw, No.10 x 3/8 (3) WPL 4178087 Contact Us For Availability
23
Filler, Bin Panel WPL 4162879 Contact Us For Availability
24
Bushing WPL 4178050 Contact Us For Availability
24
Retainer, Bag (4) WPL 4161099 Contact Us For Availability
24
Insert, Door (Almond & White) WPL 4178036 Contact Us For Availability
24
Insert, Door (Harvest Wheat & Onyx Black) WPL 4178038 Contact Us For Availability
24
Sprocket, Idler (4) WPL 4161121 Contact Us For Availability
25
Strain Releif WPL 4159023 Contact Us For Availability
25
Washer WPL 4159503 Contact Us For Availability
26
Bushing (2) WPL 4178049 Contact Us For Availability
26
Top, Bin WPL 4178013 Contact Us For Availability
26
Plate, Idler WPL 4178066 Contact Us For Availability
27
Screw, 10-32 x 5/16 WPL 4159288 Contact Us For Availability
27
Barrier, Switch WPL 4162936 Contact Us For Availability
27
Bushing (2) WPL 4161124 Contact Us For Availability
28
Arm, Idler (Left Side) WPL 4161122 Contact Us For Availability
28
Arm, Idler (Right Side) WPL 4161123 Contact Us For Availability
29
Spring, Track (4) WPL 4160982 Contact Us For Availability
29
Bracket, Wood top WPL 4161161 Contact Us For Availability
29
Spring, Chain Tension WPL 4161133 Contact Us For Availability
30
Screw, 10 x 1/2 WPL 4159388 Contact Us For Availability
30
Screw, 1/4-20 x 3/8 (4) WPL 4161134 Contact Us For Availability
31
Washer WPL 4159494 Contact Us For Availability
31
Nut, 1/4-20 (4) WPL 4159106 Contact Us For Availability
32
Washer (4) WPL 4159554 Contact Us For Availability
32
Block, Leveling Leg (Right Side) WPL 4161149 Contact Us For Availability
32
Block, Leveling Leg (Left Side) WPL 4161150 Contact Us For Availability
32
Switch, Directional WPL 4161012 Contact Us For Availability
33
Bracket, Foot (4) WPL 4161154 Contact Us For Availability
33
Screw, 6-32 x 7/8 (2) WPL 4159353 Contact Us For Availability
34
Screw, 10-32 x 3/8 (2) WPL 4159305 Contact Us For Availability
34
Retainer, Wire WPL 4160064 Contact Us For Availability
35
Clip, Foot (4) WPL 4161235 Contact Us For Availability
35
Grommet, Wiring WPL 4178044 Contact Us For Availability
36
Bin, Litter WPL 4162616 Contact Us For Availability
36
Clip, C WPL 4178064 Contact Us For Availability
37
Rivet WPL 4159166 Contact Us For Availability
37
WPL 4162903 WPL 4162903 Contact Us For Availability
38
Screw, No. 6 x 3/8 WPL 4159384 Contact Us For Availability
38
WPL 4159026 WPL 4159026 Contact Us For Availability
39
Switch, Limit WPL 4161250 Contact Us For Availability
39
WPL 4159031 WPL 4159031 Contact Us For Availability
40
Baffle WPL 4161165 Contact Us For Availability
40
WPL 4178076 WPL 4178076 Contact Us For Availability
41
Screw, 4-40 x 5/8 WPL 4159268 Contact Us For Availability
41
Gear, Drive WPL 4161485 Contact Us For Availability
42
Washer, Lock WPL 4159495 Contact Us For Availability
42
WPL 4178062 WPL 4178062 Contact Us For Availability
42
WPL 4178063 WPL 4178063 Contact Us For Availability
42
WPL 4178083 WPL 4178083 Contact Us For Availability
42
Deflector, Debris WPL 4178045 Contact Us For Availability
43
Nut WPL 4159069 Contact Us For Availability
43
Pin, Gear WPL 4159154 Contact Us For Availability
44
Retainer, Cord WPL 4178084 Contact Us For Availability
45
Bracket, Motor WPL 4160028 Contact Us For Availability
× ![]()
