Model Whirlpool KUCC151T0 TRASH COMPACTOR – Common Parts & Diagrams
02 - MOTOR AND DRIVE
07 - LIT/OPTIONAL

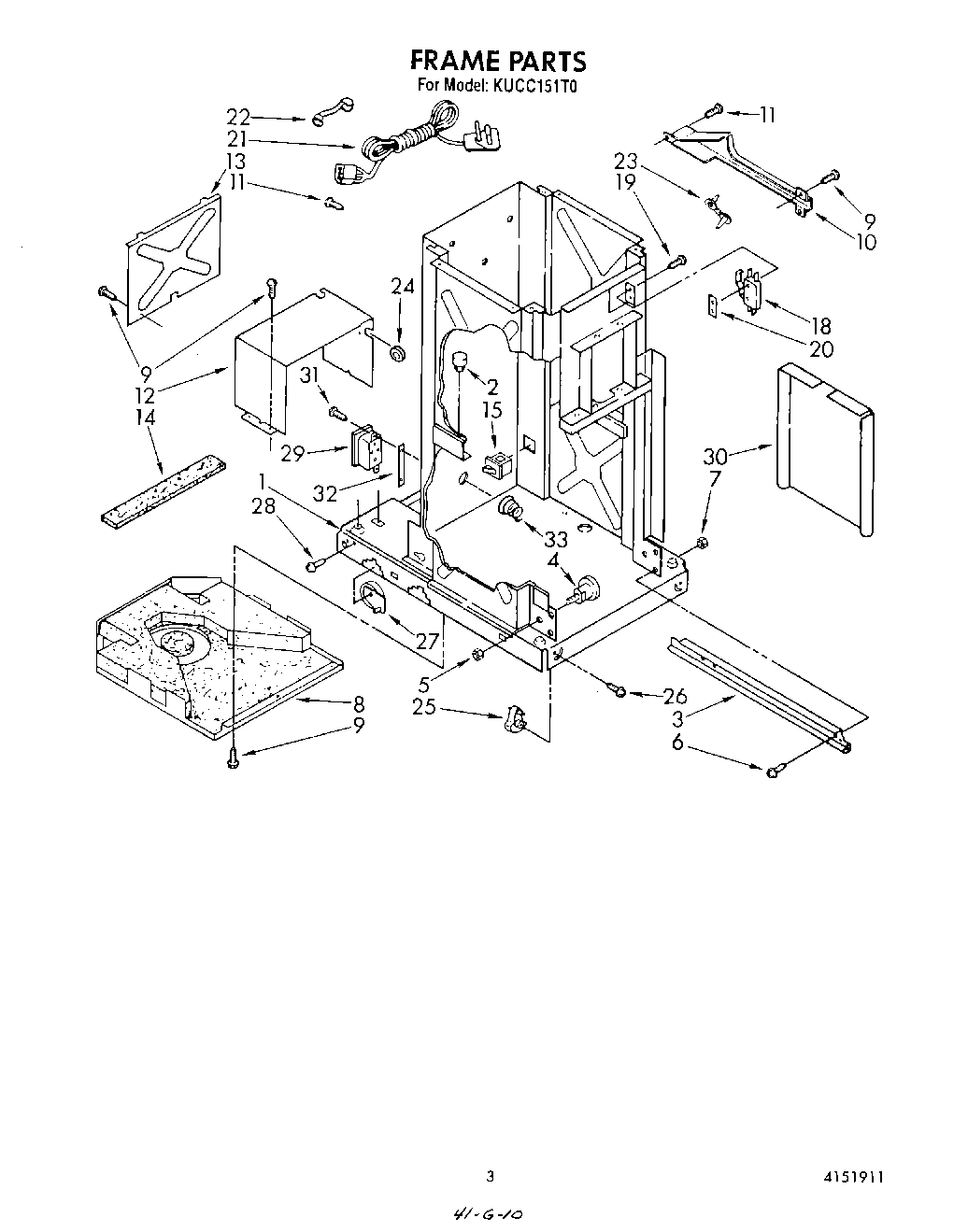

03 - FRAME

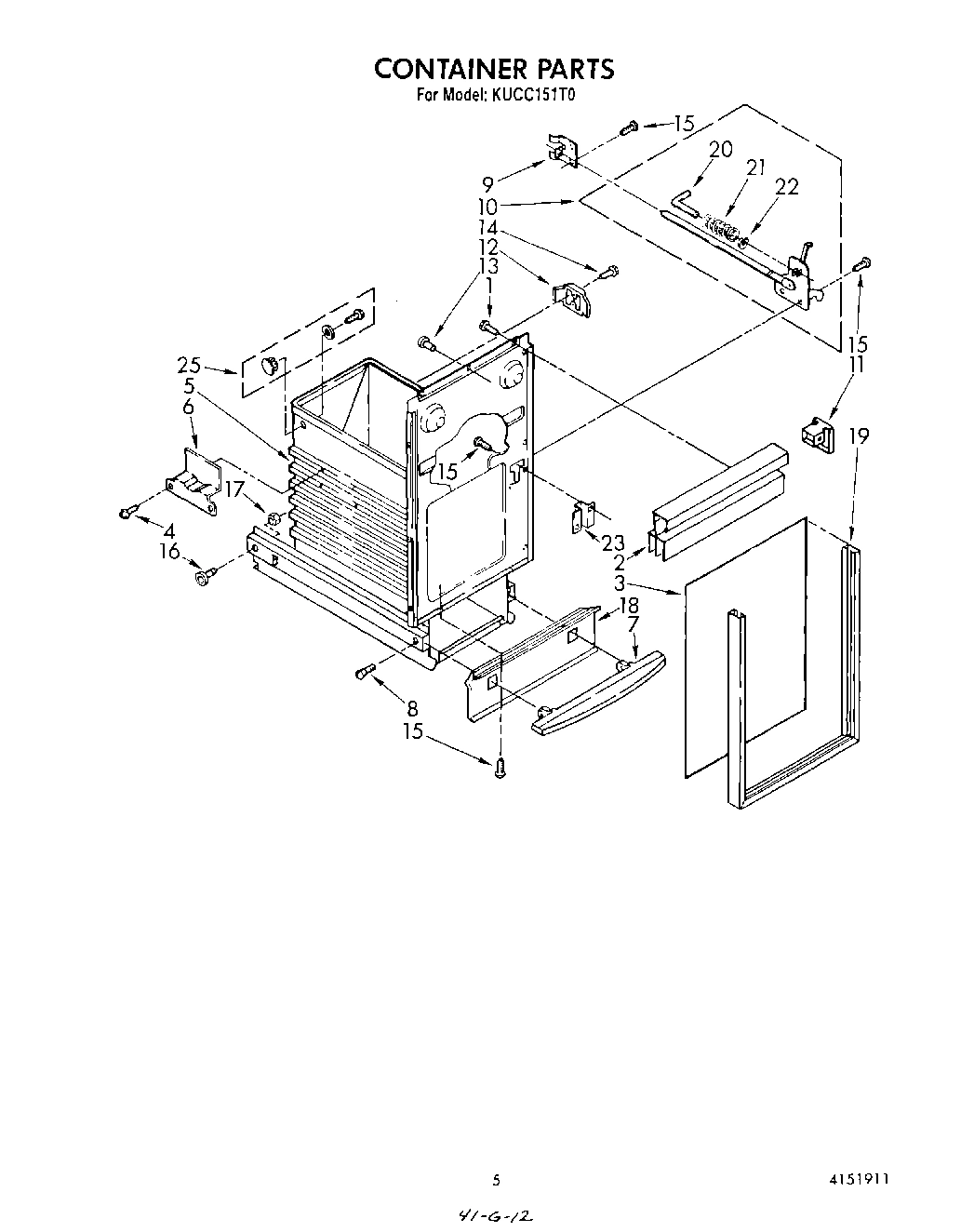

05 - CONTAINER

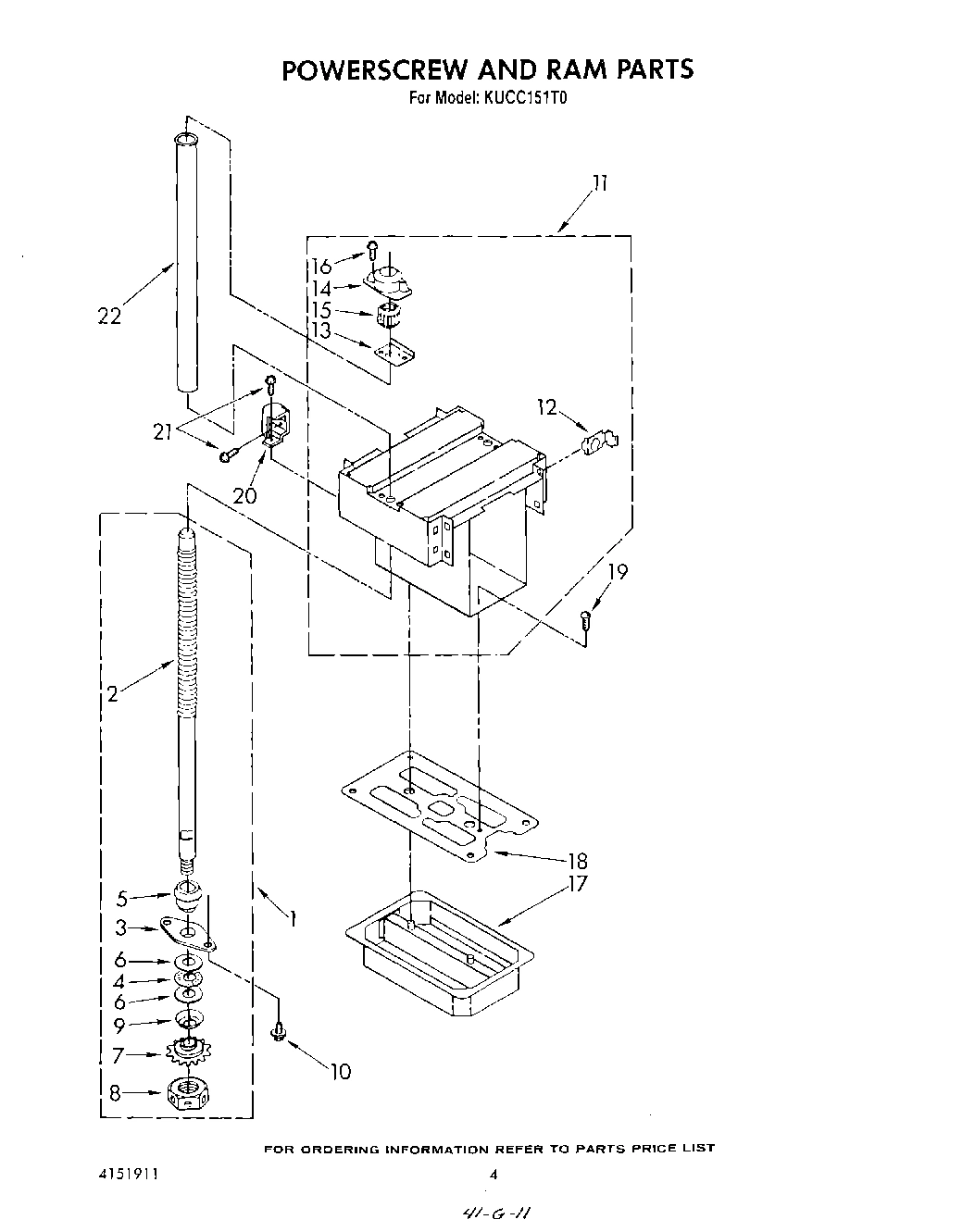

04 - POWERSCREW AND RAM

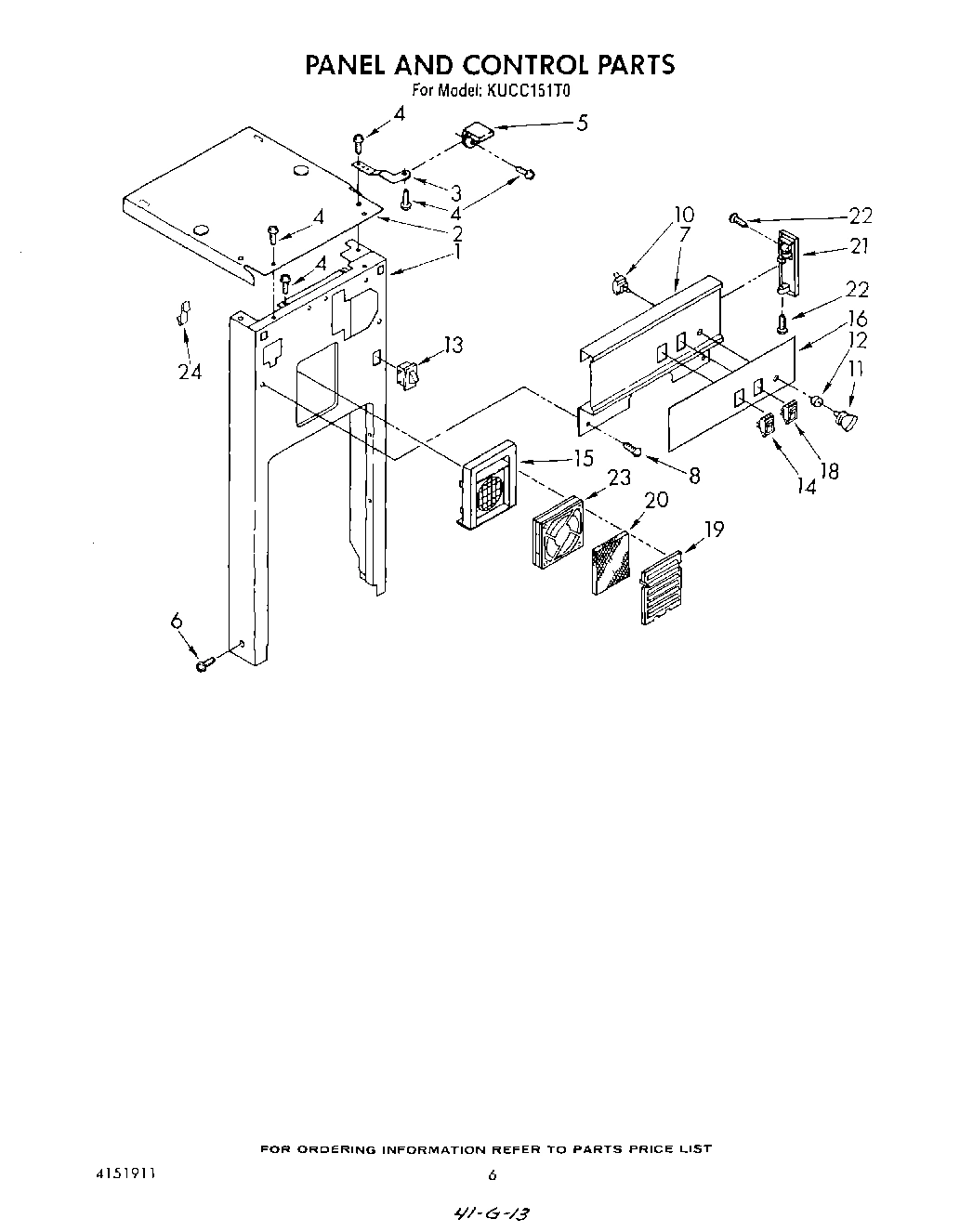

06 - PANEL AND CONTROL
Common parts from model Whirlpool KUCC151T0 TRASH COMPACTOR
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Panel, Front Frame WPL 4152069 Contact Us For Availability
2
Handle, Container WPL 4151451 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI113200A Contact Us For Availability
2
Cover, Top WPL 608572 Contact Us For Availability
3
Panel, Container (Harvest Gold & Almond) WPL 4151462 Contact Us For Availability
3
Panel, Container (White & Black) WPL 4151463 Contact Us For Availability
5
Container Assembly WPL 882666 Contact Us For Availability
6
Retainer, Bag (2) WPL 776523 Contact Us For Availability
7
Escutcheon, Control WPL 4151456 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
11
End Cap, Handle (R.H.) WPL 4151454 Contact Us For Availability
11
End Cap, Handle (L.H.) WPL 4151455 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
12
Cover, Motor WPL 608849 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Plate, Motor Cover WPL 608009 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
14
Screw (2) WPL 4149395 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
16
Insert, Escutcheon (White) WPL 4151847 Contact Us For Availability
16
Insert, Escutcheon (Almond (Optional)) WPL 4151848 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Trim, Container (Front) WPL 4151460 Contact Us For Availability
19
Cover, Air Freshener WPL 4151441 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
21
End Cap, Escutcheon (R.H.) WPL 4151452 Contact Us For Availability
21
End Cap, Escutcheon (L.H.) WPL 4151453 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4163646 Contact Us For Availability
25
Leveler, Front (2) WPL 780082 Contact Us For Availability
26
Screw, 10-16 x 3/4 (2) WPL 780125 Contact Us For Availability
27
Wheel, Leveler (R.H. Rear) WPL 780139 Contact Us For Availability
29
Relay, Motor WPL 4147502 Contact Us For Availability
30
Insulation, Inner Panel WPL 780412 Contact Us For Availability
31
Screw, 6-3/8 x 1/2 (2) WPL 681699 Contact Us For Availability
32
Plate, Nut WPL 4147771 Contact Us For Availability
× ![]()
