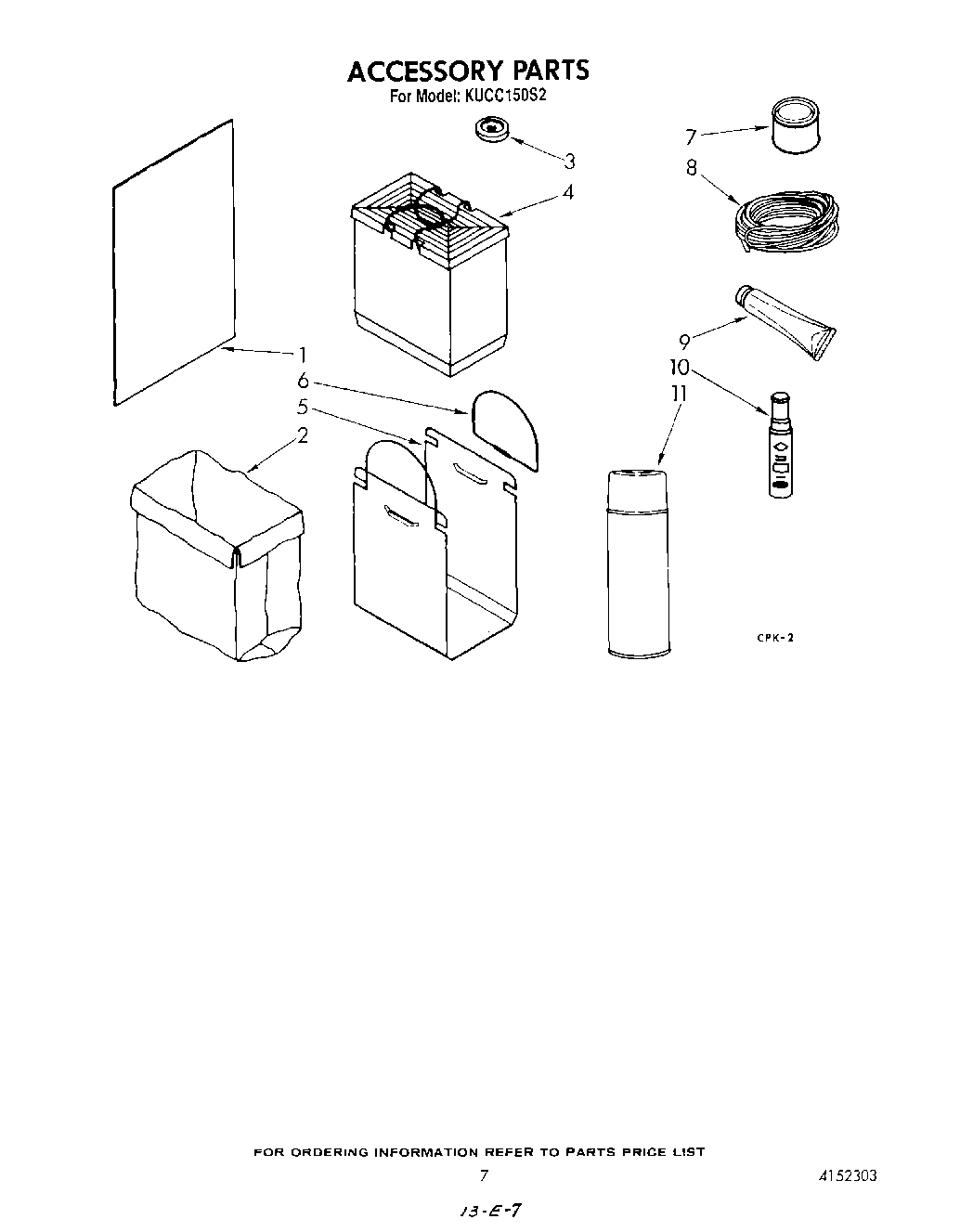

Model Whirlpool KUCC150S2 TRASH COMPACTOR – Common Parts & Diagrams

Sheet, Tech And Wiring Daigram
Sheet, Tech And Wiring Daigram WPL LIT4147738 Contact Us For Availability
View on Model
Manual, Owners
Manual, Owners WPL LIT4147739 Contact Us For Availability
View on Model
Instructions, Installation (Unit To Window)
Instructions, Installation (Unit To Window) WPL LIT4147742 Contact Us For Availability
View on Model
List, Repair Parts
List, Repair Parts WPL LIT4152303 Contact Us For Availability
View on Model
1
Switch, Motor
Switch, Motor WPL 4147711 Contact Us For Availability
View on Model
1

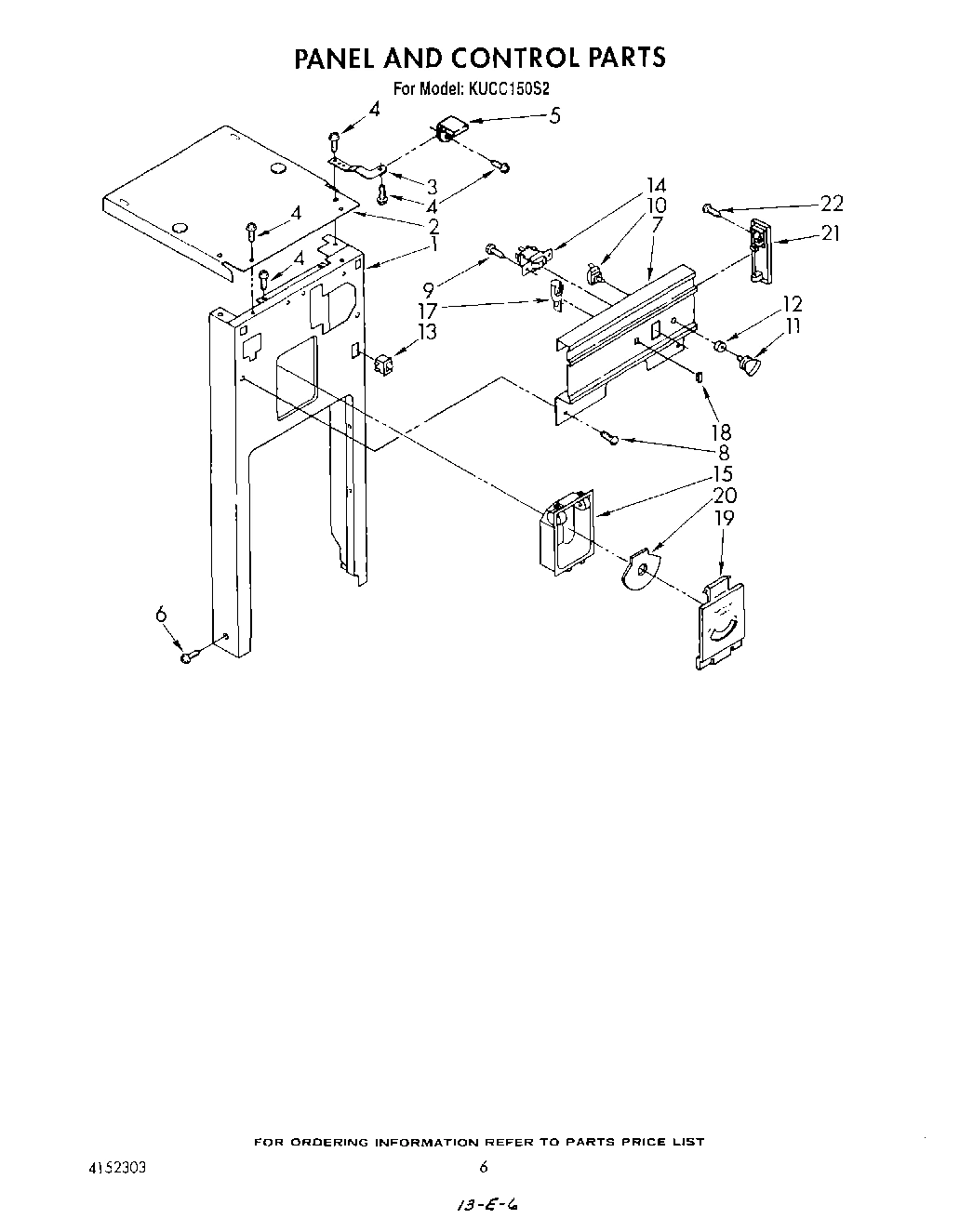

Panel, Front Frame
Panel, Front Frame WPL 4152069 Contact Us For Availability
View on Model
1

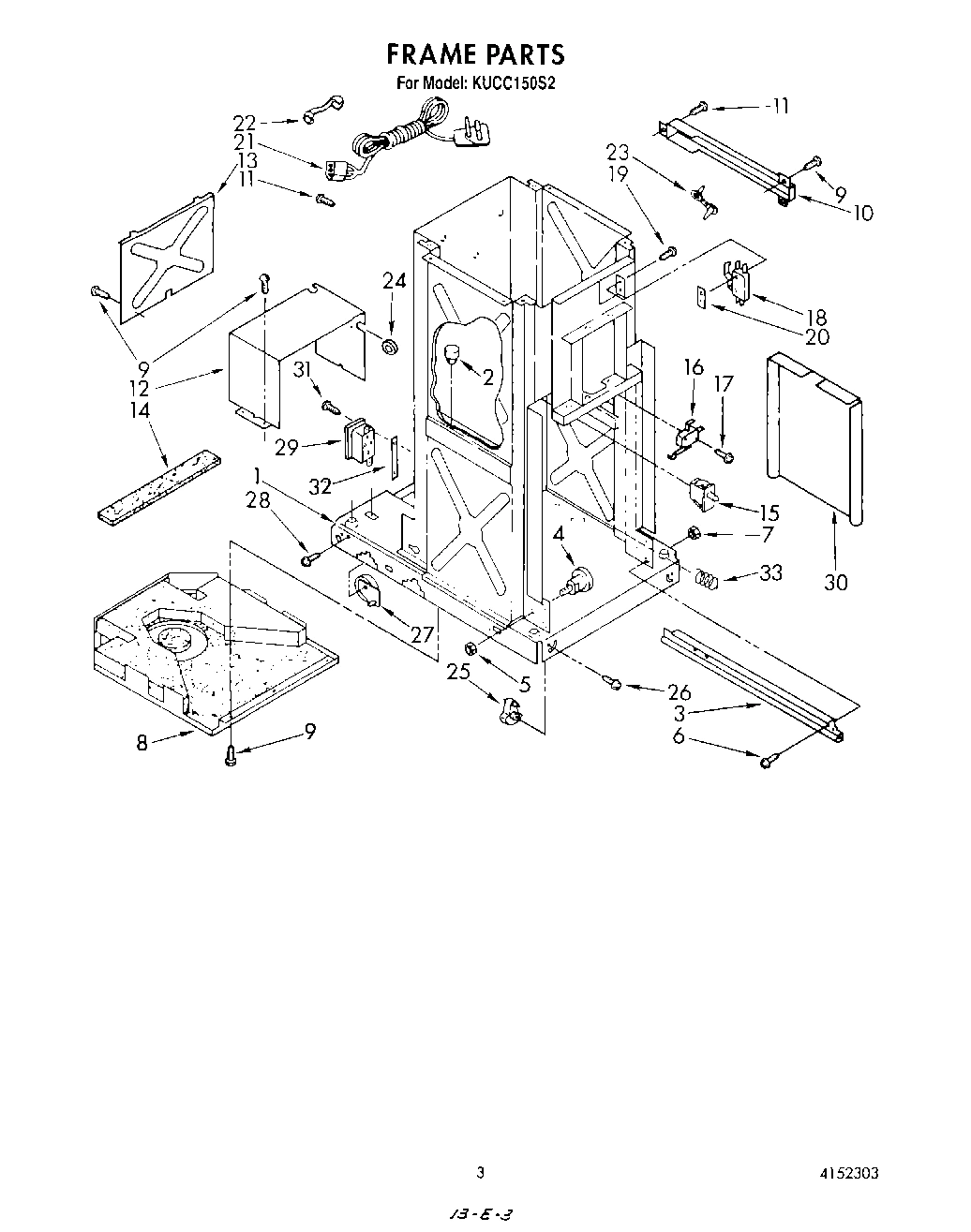

Frame (Not a Serviceable Part)
Frame (Not a Serviceable Part) WPL ARI113098A Contact Us For Availability
View on Model
2

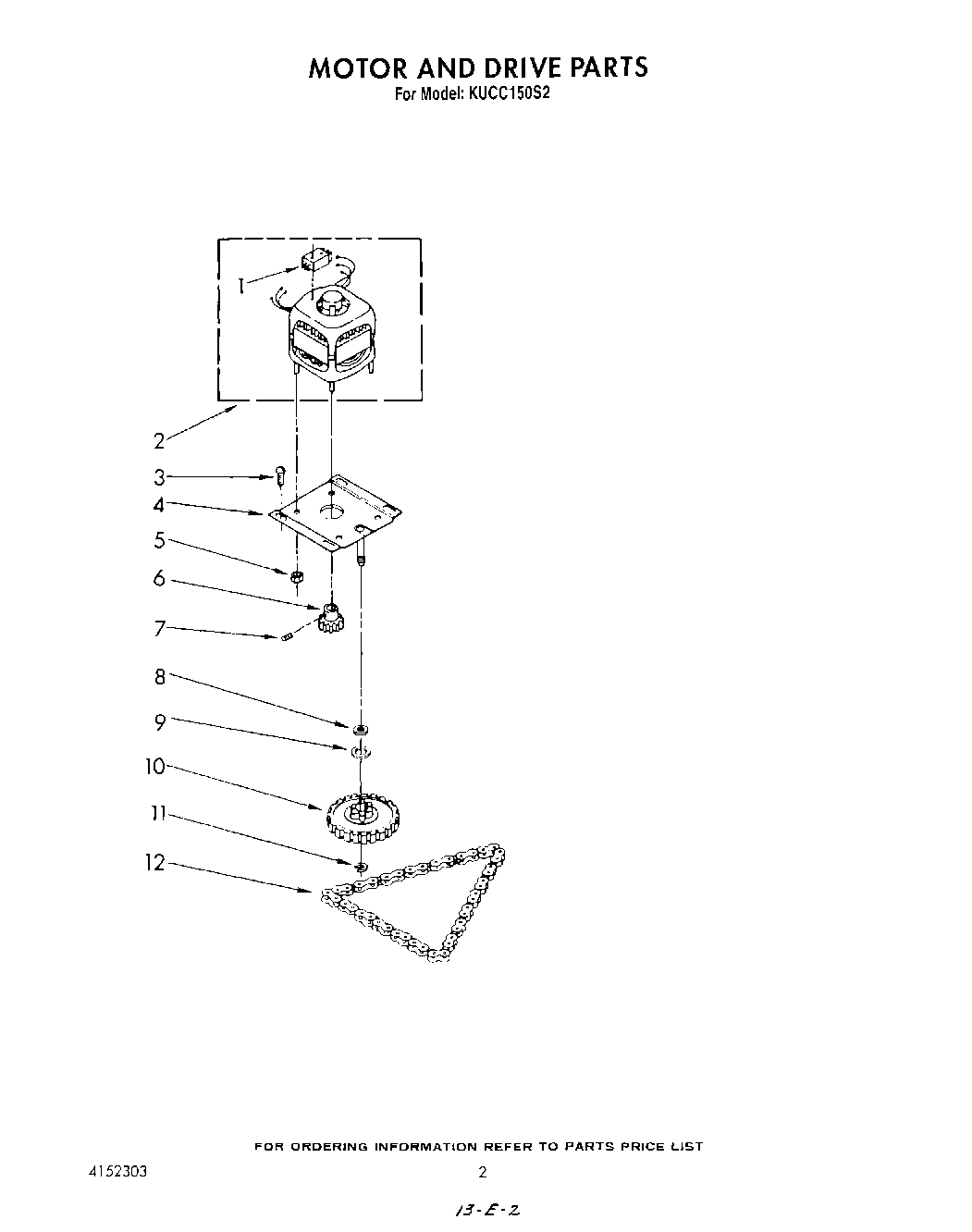

Motor, Drive (Includes No. 1)
Motor, Drive (Includes No. 1) WPL 4147710 Contact Us For Availability
View on Model
2
Cover, Top
Cover, Top WPL 608572 Contact Us For Availability
View on Model
2
Bumper (4)
Bumper (4) WPL 775643 Contact Us For Availability
View on Model
2
Handle, Container
Handle, Container WPL 4149710 Contact Us For Availability
View on Model
3
Screw. 1/4-20 x 1/2 (4)
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
View on Model
3
Panel, Container Front (Almond & Harvest Gold
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
View on Model
3
Panel, Container (White & Black)
Panel, Container (White & Black) WPL 777941 Contact Us For Availability
View on Model
3
Panel, Container (Toast & Platinum)
Panel, Container (Toast & Platinum) WPL 780280 Contact Us For Availability
View on Model
5

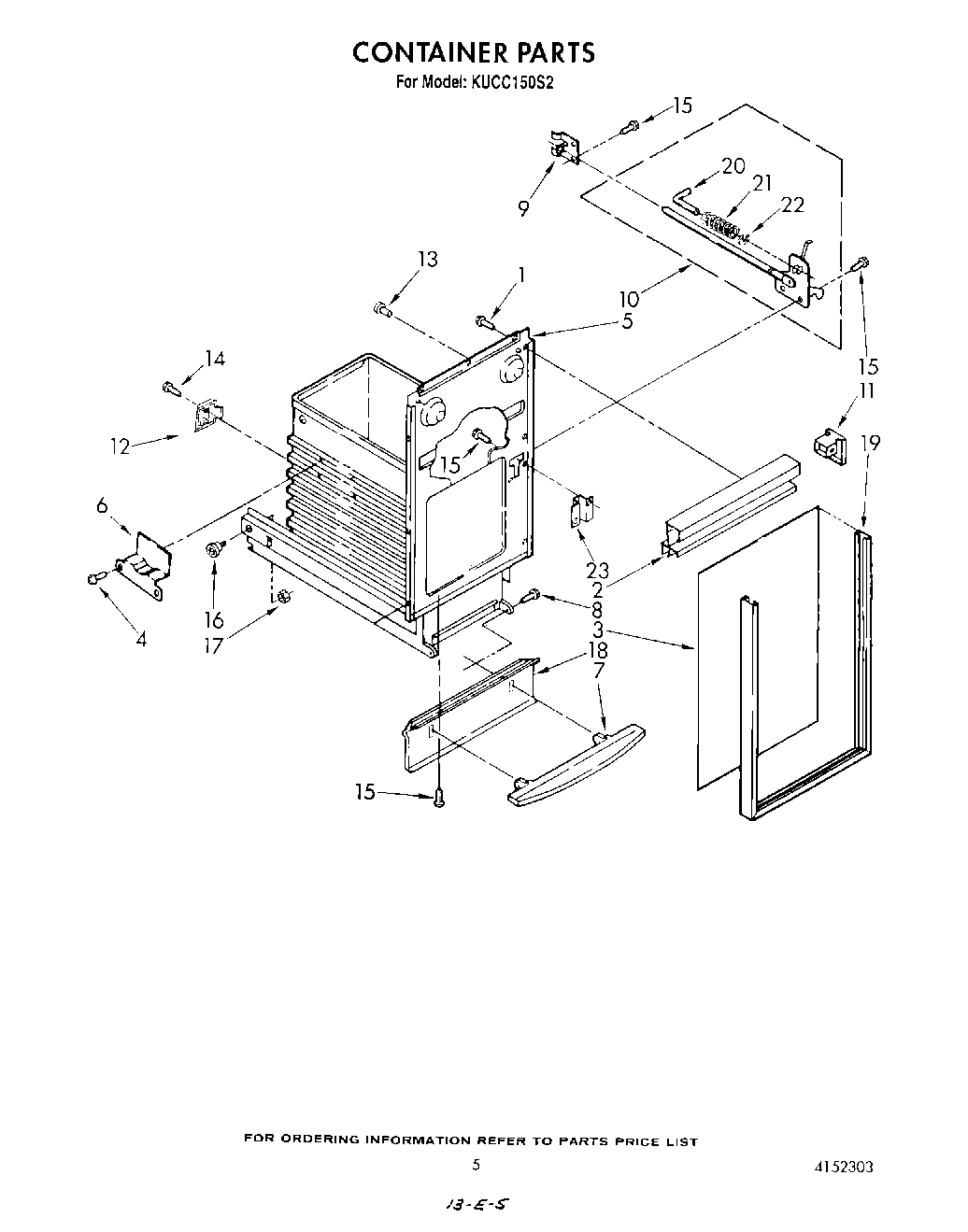

Container Assembly
Container Assembly WPL 675296 Contact Us For Availability
View on Model
6
Plate, Trim
Plate, Trim WPL 776523 Contact Us For Availability
View on Model
7
Escutcheon, Control
Escutcheon, Control WPL 4149705 Contact Us For Availability
View on Model
7
Nut, 6-32 (4)
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
View on Model
8
Screw, 6-20 x 3/8 (2)
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
View on Model
11
End Cap, Handle (L.H.)
End Cap, Handle (L.H.) WPL 780188 Contact Us For Availability
View on Model
11
End Cap, Handle (R.H.)
End Cap, Handle (R.H.) WPL 780189 Contact Us For Availability
View on Model
12

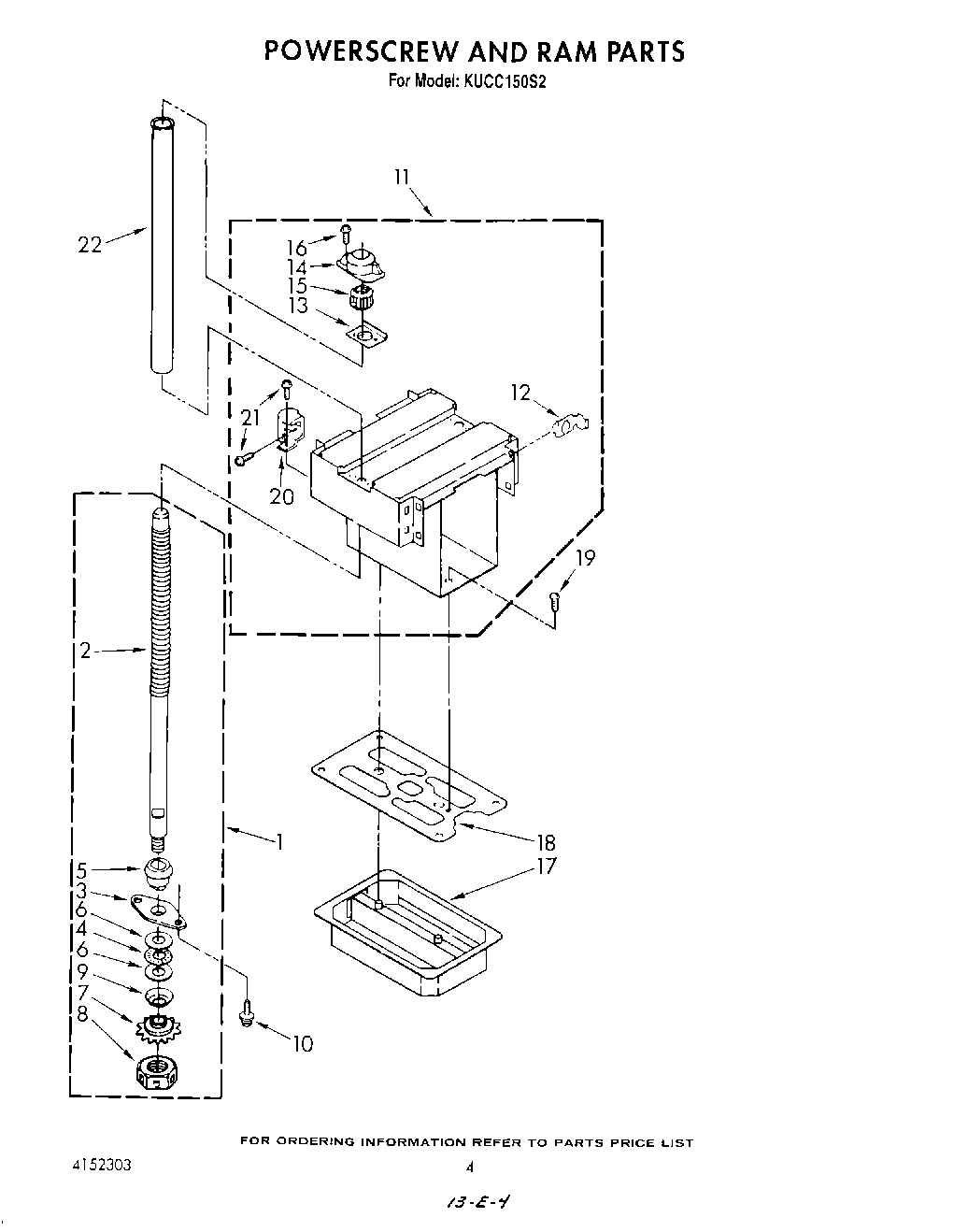

Pad, Ram (8)
Pad, Ram (8) WPL 777758 Contact Us For Availability
View on Model
12
Harness, Wiring (Complete)
Harness, Wiring (Complete) WPL 4152080 Contact Us For Availability
View on Model
12
Cover, Motor
Cover, Motor WPL 608849 Contact Us For Availability
View on Model
13
Plate, Doubler (2)
Plate, Doubler (2) WPL 608733 Contact Us For Availability
View on Model
13
Plate, Motor Cover
Plate, Motor Cover WPL 608009 Contact Us For Availability
View on Model
13
Bumper, Container (2)
Bumper, Container (2) WPL 775785 Contact Us For Availability
View on Model
14
Retainer, Nut (2)
Retainer, Nut (2) WPL 780036 Contact Us For Availability
View on Model
14
Barrier, Glass
Barrier, Glass WPL 776780 Contact Us For Availability
View on Model
14
Screw (2)
Screw (2) WPL 4149395 Contact Us For Availability
View on Model
15
Compartment, Air Flow
Compartment, Air Flow WPL 777642 Contact Us For Availability
View on Model
16
Switch, Indicator (Bag Full)
Switch, Indicator (Bag Full) WPL 4147717 Contact Us For Availability
View on Model
17
Cover, Ram
Cover, Ram WPL 608723 Contact Us For Availability
View on Model
17
Screw, 4-40 X 3/4 (2)
Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
View on Model
17
Light, Indicator
Light, Indicator WPL 4147718 Contact Us For Availability
View on Model
18
Wiper, Ram
Wiper, Ram WPL 780021 Contact Us For Availability
View on Model
18
Lens, Indicator
Lens, Indicator WPL 4147746 Contact Us For Availability
View on Model
19
Cover, Air Flow
Cover, Air Flow WPL 4147744 Contact Us For Availability
View on Model
19
Trim, Container (Front)
Trim, Container (Front) WPL 777345 Contact Us For Availability
View on Model
20
Block, Container Stop
Block, Container Stop WPL 777691 Contact Us For Availability
View on Model
20
Dail, Air Flow
Dail, Air Flow WPL 608782 Contact Us For Availability
View on Model
20
Plate, Nut
Plate, Nut WPL 777850 Contact Us For Availability
View on Model
20
Pin
Pin WPL 776654 Contact Us For Availability
View on Model
21
End Cap, Escutcheon (L.H.)
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
View on Model
21
End Cap, Escutcheon R.H.
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
View on Model
21
Cord, Power
Cord, Power WPL 778575 Contact Us For Availability
View on Model
22
Protector, Powerscrew (2)
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
View on Model
22
Bushing, Cord
Bushing, Cord WPL 776119 Contact Us For Availability
View on Model
23
Clamp, Wire
Clamp, Wire WPL 777035 Contact Us For Availability
View on Model
24
Grommet, Motor Cover
Grommet, Motor Cover WPL 776118 Contact Us For Availability
View on Model
25
Leveler, Front (2)
Leveler, Front (2) WPL 780082 Contact Us For Availability
View on Model
26
Screw, 10-16 x 3/4 (2)
Screw, 10-16 x 3/4 (2) WPL 780125 Contact Us For Availability
View on Model
27
Wheel, Leveler (R.H. Rear)
Wheel, Leveler (R.H. Rear) WPL 780139 Contact Us For Availability
View on Model
29
Relay, Motor
Relay, Motor WPL 4147502 Contact Us For Availability
View on Model
30
Insulation, Inner Panel
Insulation, Inner Panel WPL 780412 Contact Us For Availability
View on Model
31
Screw, No. 6 x 3/8 (2)
Screw, No. 6 x 3/8 (2) WPL 681699 Contact Us For Availability
View on Model
32
Plate, Nut
Plate, Nut WPL 4147771 Contact Us For Availability
View on Model
