Model Whirlpool KUCC150S1 TRASH COMPACTOR – Common Parts & Diagrams

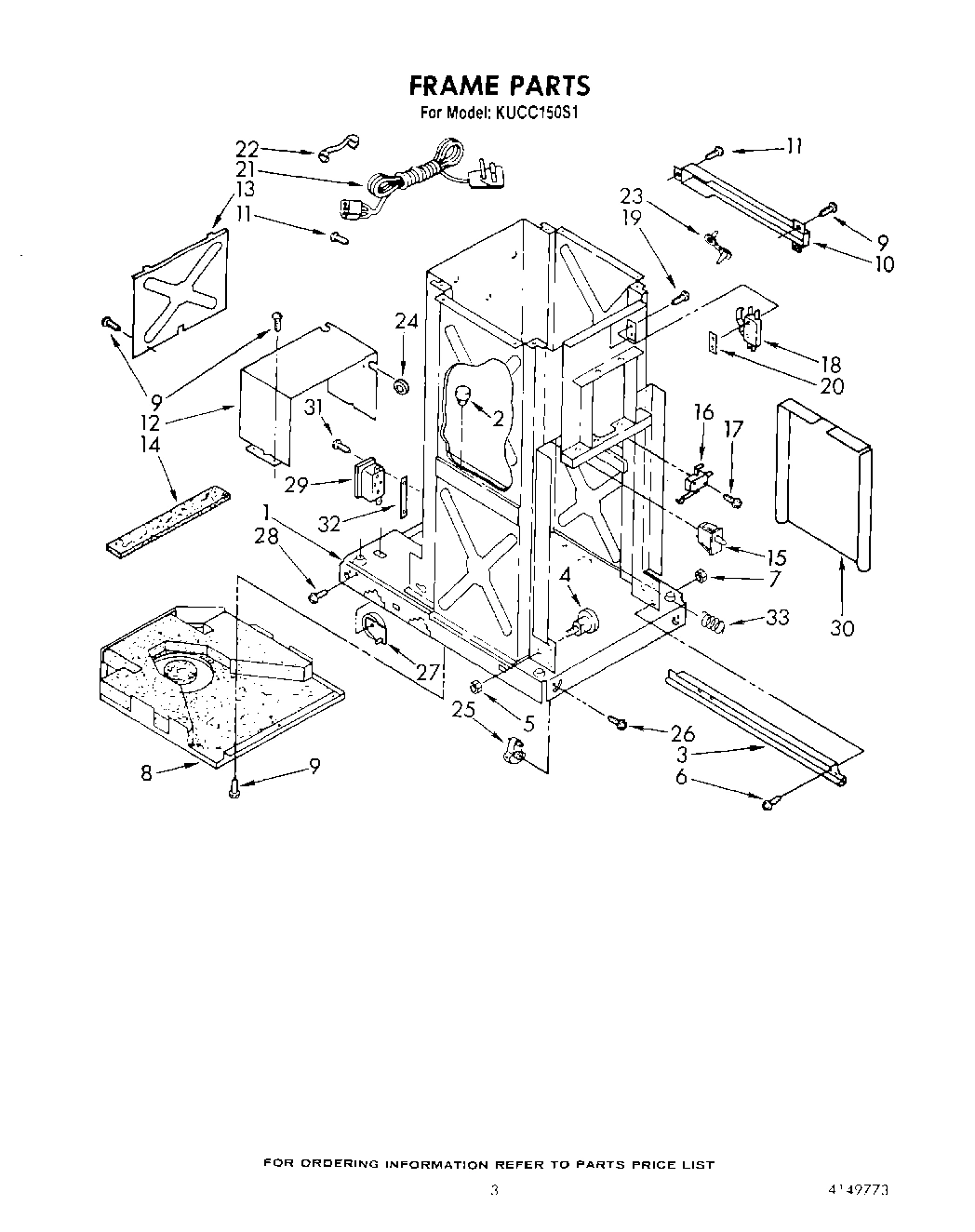

03 - FRAME

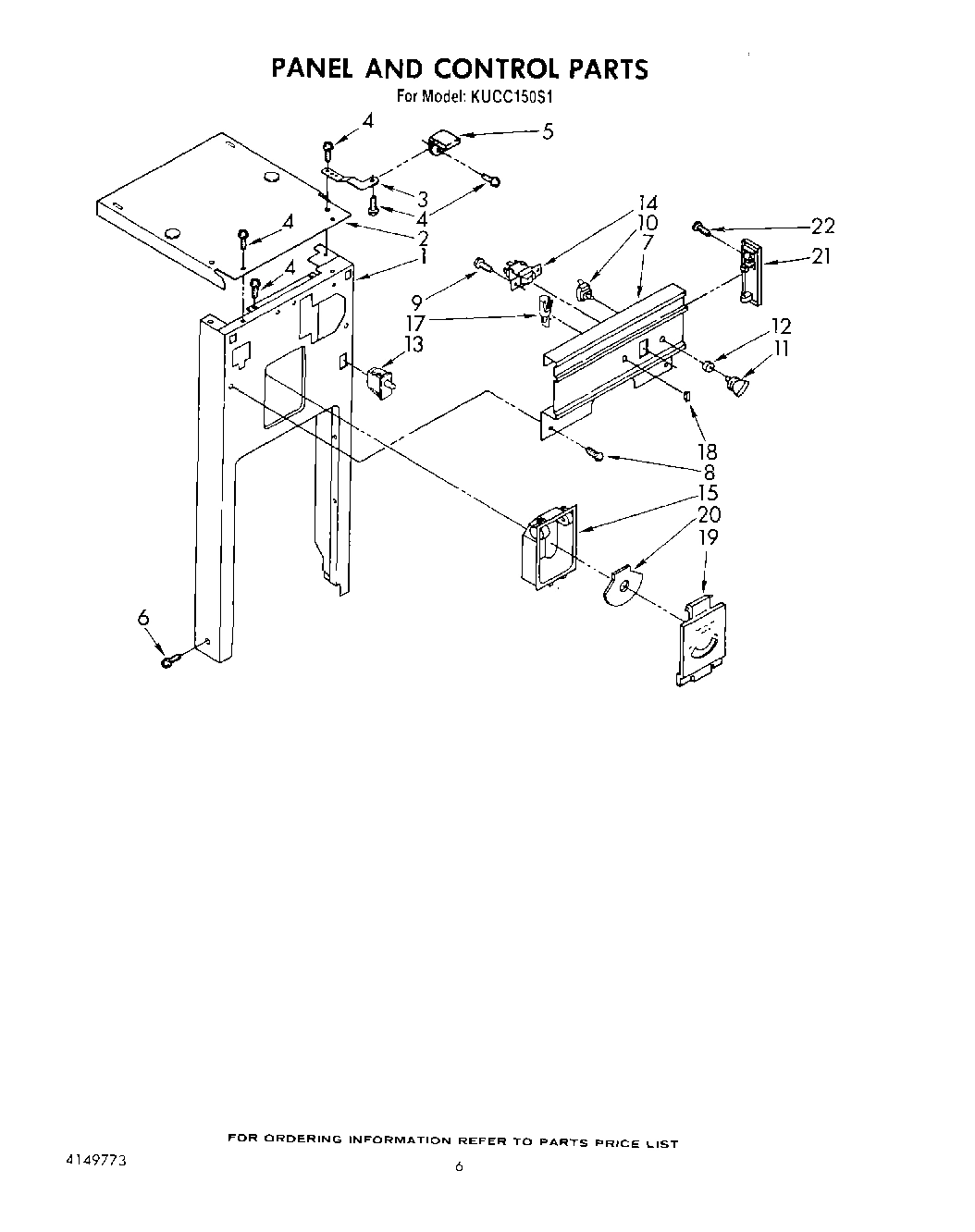

06 - PANEL AND CONTROL
07 - LIT/OPTIONAL
05 - CONTAINER
02 - MOTOR AND DRIVE
04 - POWER SCREW AND RAM
Common parts from model Whirlpool KUCC150S1 TRASH COMPACTOR
Sheet, Tech And Wiring Daigram WPL LIT4147738 Contact Us For Availability
Guide, Use And Care WPL LIT4147739 Contact Us For Availability
Instructions, Installation (Unit To Window) WPL LIT4147742 Contact Us For Availability
List, Repair Parts WPL LIT4149773 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Switch, Motor WPL 4147711 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
Handle, Container WPL 4149710 Contact Us For Availability
2
Motor, Drive (Includes No. 1) WPL 4147710 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI113097A Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Container (White & Black) WPL 777941 Contact Us For Availability
3
Panel, Container (Toast & Platinum) WPL 780280 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Escutcheon, Control WPL 4149705 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Screw, ST 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
10
Paint, (To WPL 72112 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
End Cap, Handle (L.H.) WPL 780188 Contact Us For Availability
11
End Cap, Handle (R.H.) WPL 780189 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
12
Harness, Wiring (Complete Assembly) WPL 4149400 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Switch, Drawer WPL 780421 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
14
Screw (2) WPL 4149395 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Compartment, Air Flow WPL 777642 Contact Us For Availability
17
Light, Indicator WPL 4147718 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Lens, Indicator WPL 4147746 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Cover, Air Flow WPL 4147744 Contact Us For Availability
19
Trim, Container (Front) WPL 777345 Contact Us For Availability
20
Dail, Air Flow WPL 608782 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
21
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
21
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
× ![]()
