Model Whirlpool KUCC150S0 TRASH COMPACTOR – Common Parts & Diagrams
02 - MOTOR AND DRIVE
04 - POWERSCREW AND RAM

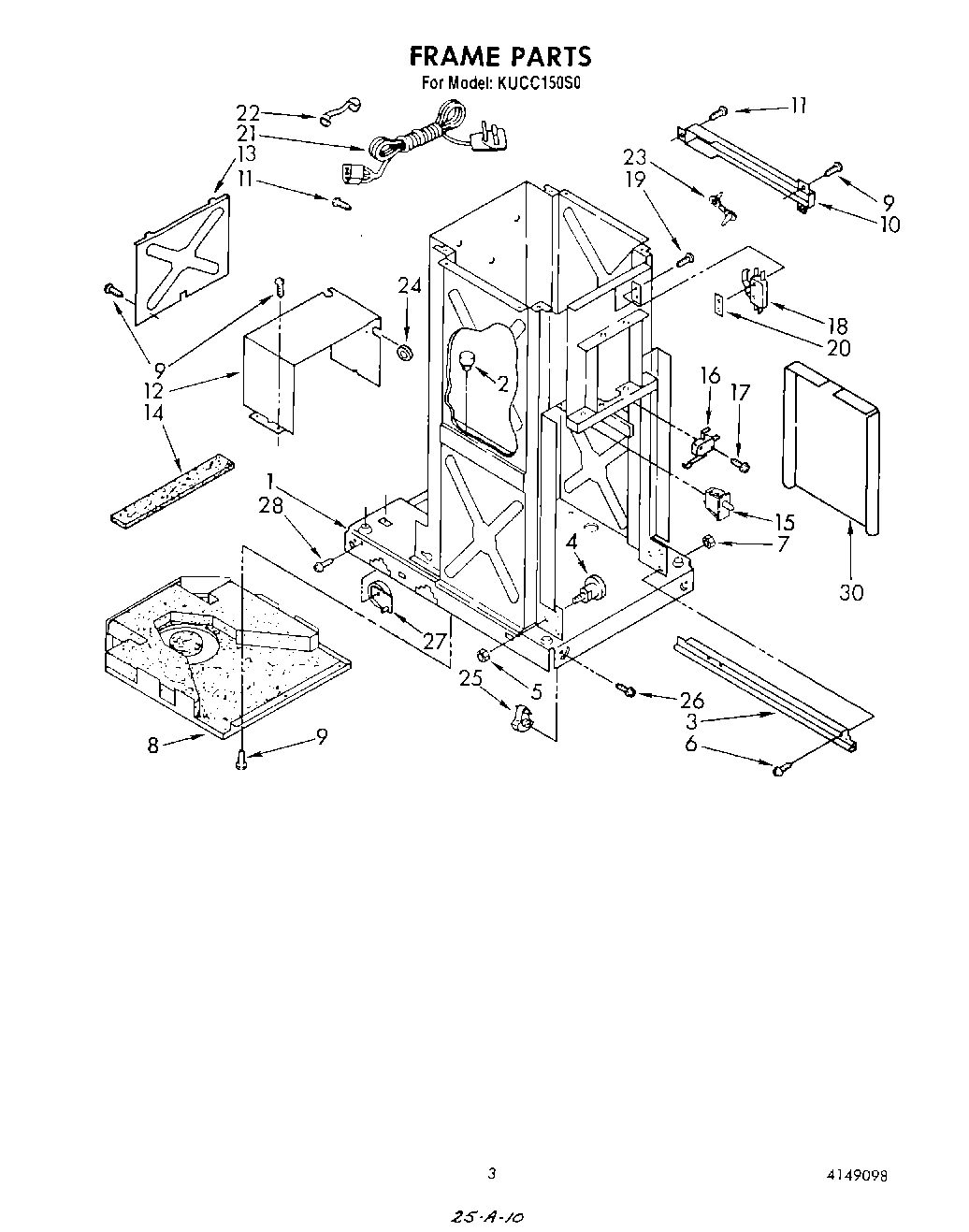

03 - FRAME

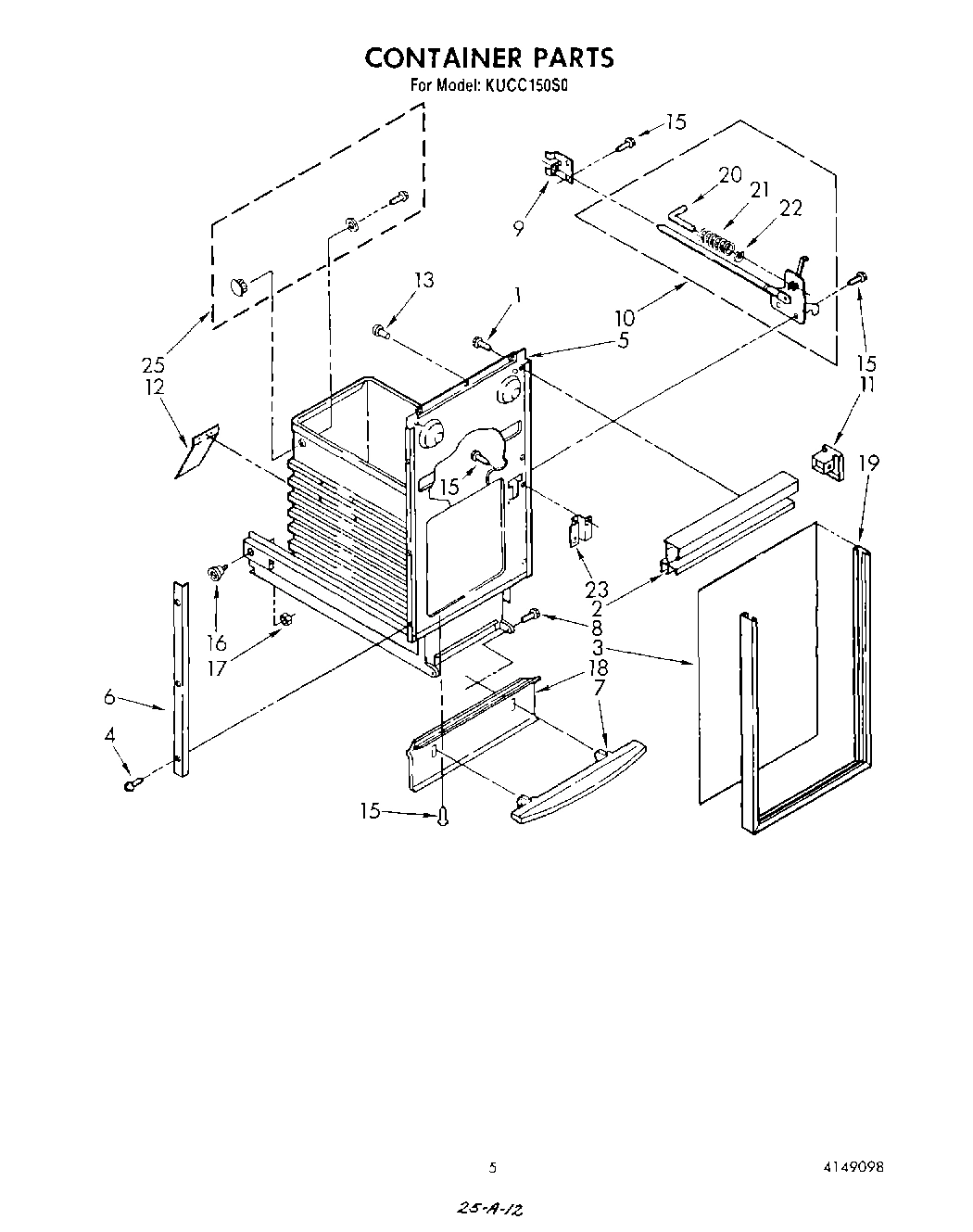

05 - CONTAINER

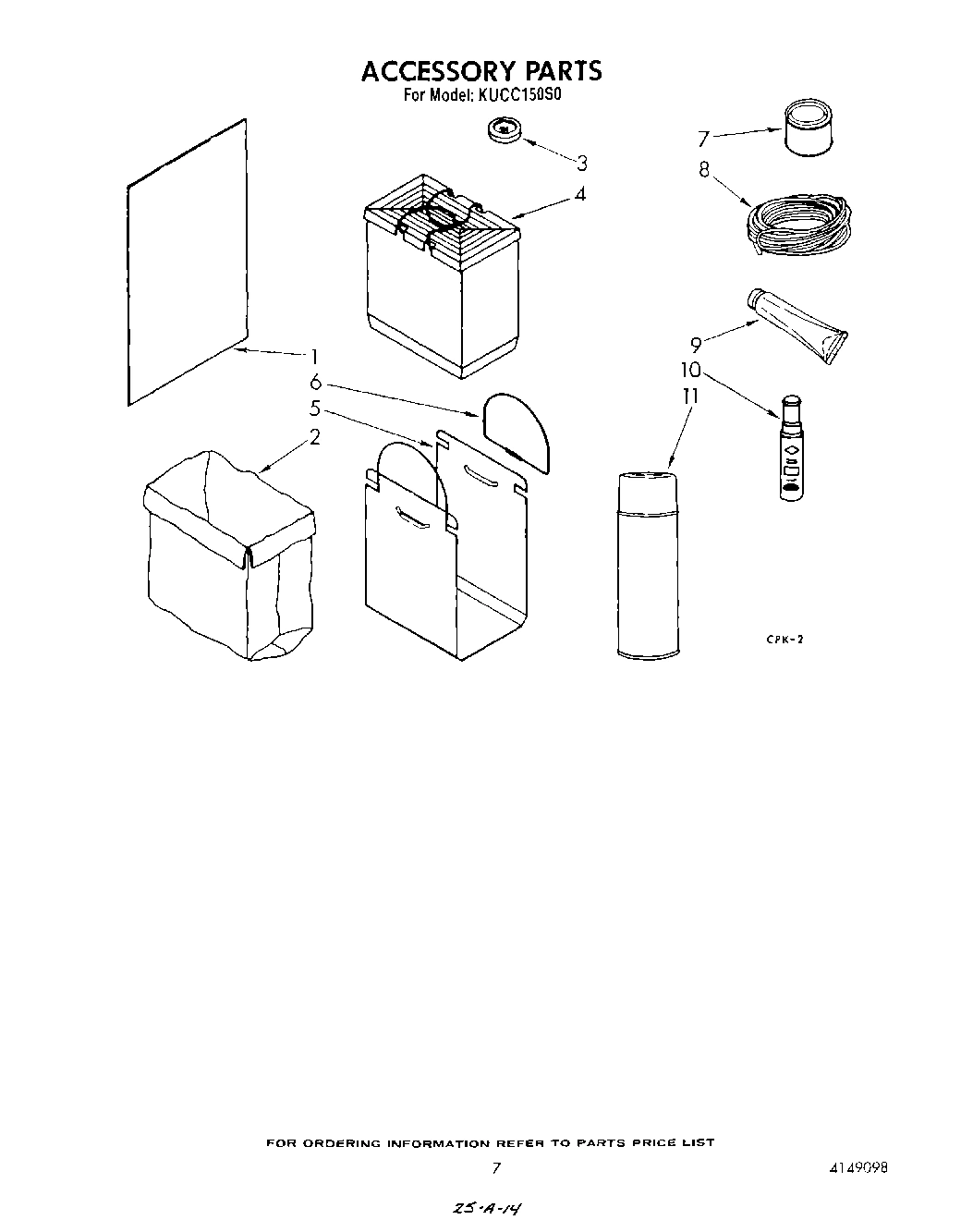

07 - ACCESSORY

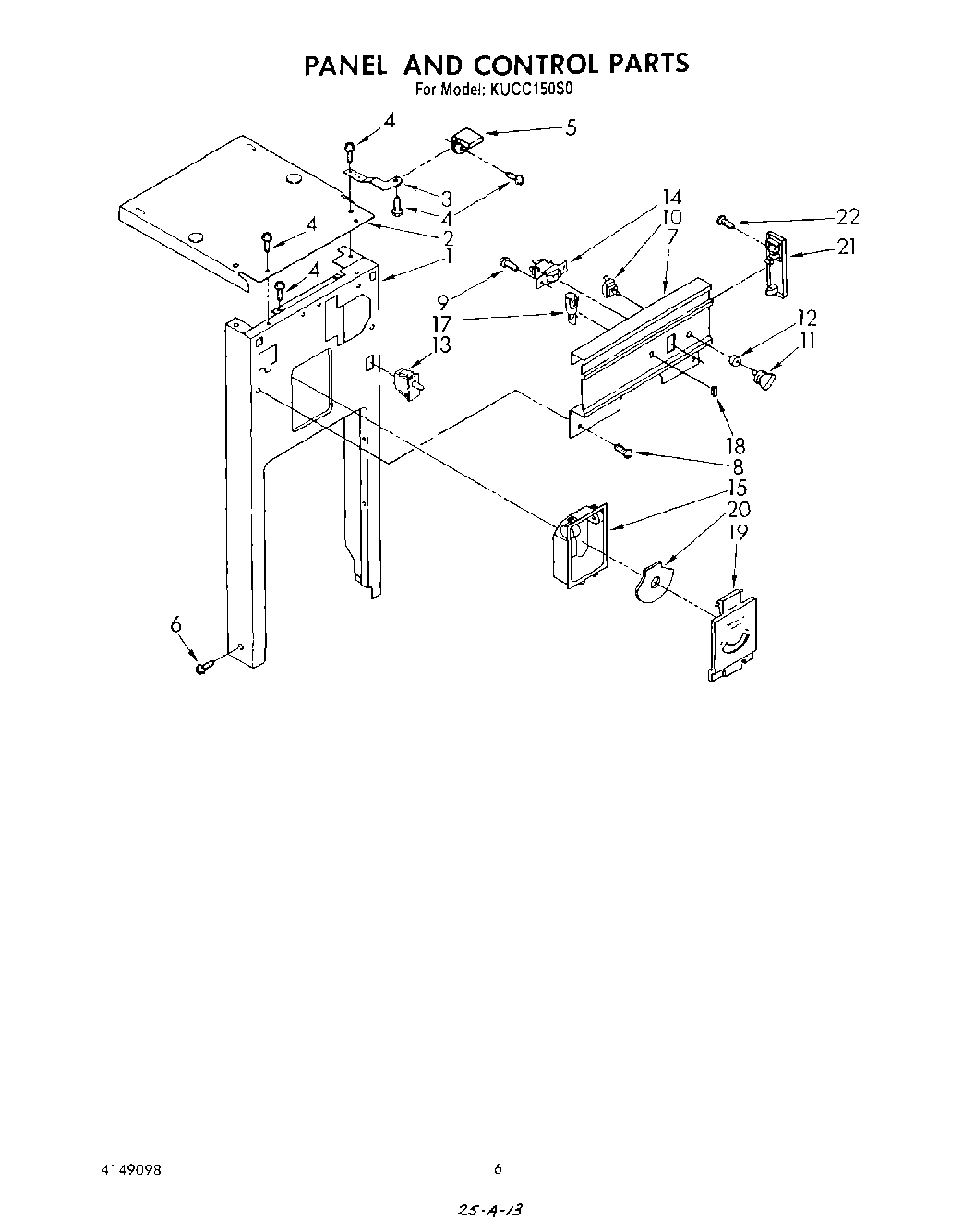

06 - PANEL AND CONTROL
Common parts from model Whirlpool KUCC150S0 TRASH COMPACTOR
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
1
Panel, Front Frame WPL 608846 Contact Us For Availability
2
Handle, Container WPL 4147734 Contact Us For Availability
2
Cover, Top WPL 608572 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Screw, 6-20 x 3/8 WPL 776191 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
5
Container Assembly WPL 882666 Contact Us For Availability
6
Plate, Trim WPL 608051 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
7
Escutcheon, Control WPL 4147733 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
9
Screw, ST 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
End Cap, Handle (L.H.) WPL 780188 Contact Us For Availability
11
End Cap, Handle (R.H.) WPL 780189 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
12
Cover, Motor WPL 608849 Contact Us For Availability
12
Spring, Safety Switch WPL 4147747 Contact Us For Availability
13
Plate, Motor Cover WPL 608009 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
13
Switch, Drawer WPL 780421 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
15
Switch, Drawer Safety WPL 780420 Contact Us For Availability
15
Compartment, Air Flow WPL 777642 Contact Us For Availability
16
Switch, Indicator (Bag Full) WPL 4147717 Contact Us For Availability
17
Light, Indicator WPL 4147718 Contact Us For Availability
18
Lens, Indicator WPL 4147746 Contact Us For Availability
19
Trim, Container (Front) WPL 777345 Contact Us For Availability
19
Cover, Air Flow WPL 4147744 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Dail, Air Flow WPL 608782 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
21
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
21
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4163646 Contact Us For Availability
25
Leveler, Front (2) WPL 780082 Contact Us For Availability
26
Screw, 10-16 x 3/4 (2) WPL 780125 Contact Us For Availability
27
Wheel, Leveler (R.H. Rear) WPL 780139 Contact Us For Availability
30
Insulation, Inner Panel WPL 780412 Contact Us For Availability
× ![]()
