Model Whirlpool KTRS25QABL11 – Common Parts & Diagrams
10 - ICEMAKER
04 - FREEZER DOOR

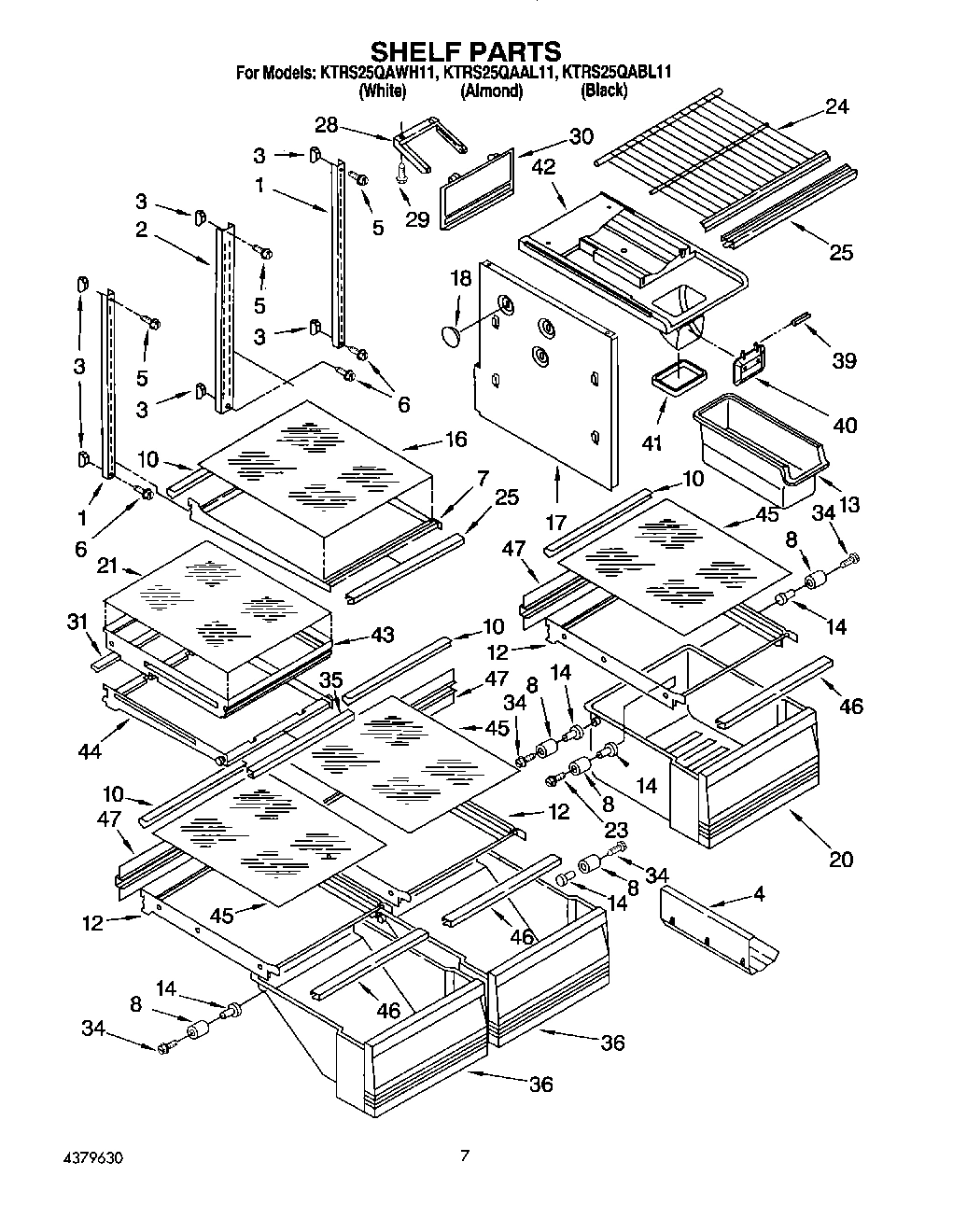

05 - SHELF, LIT/OPTIONAL

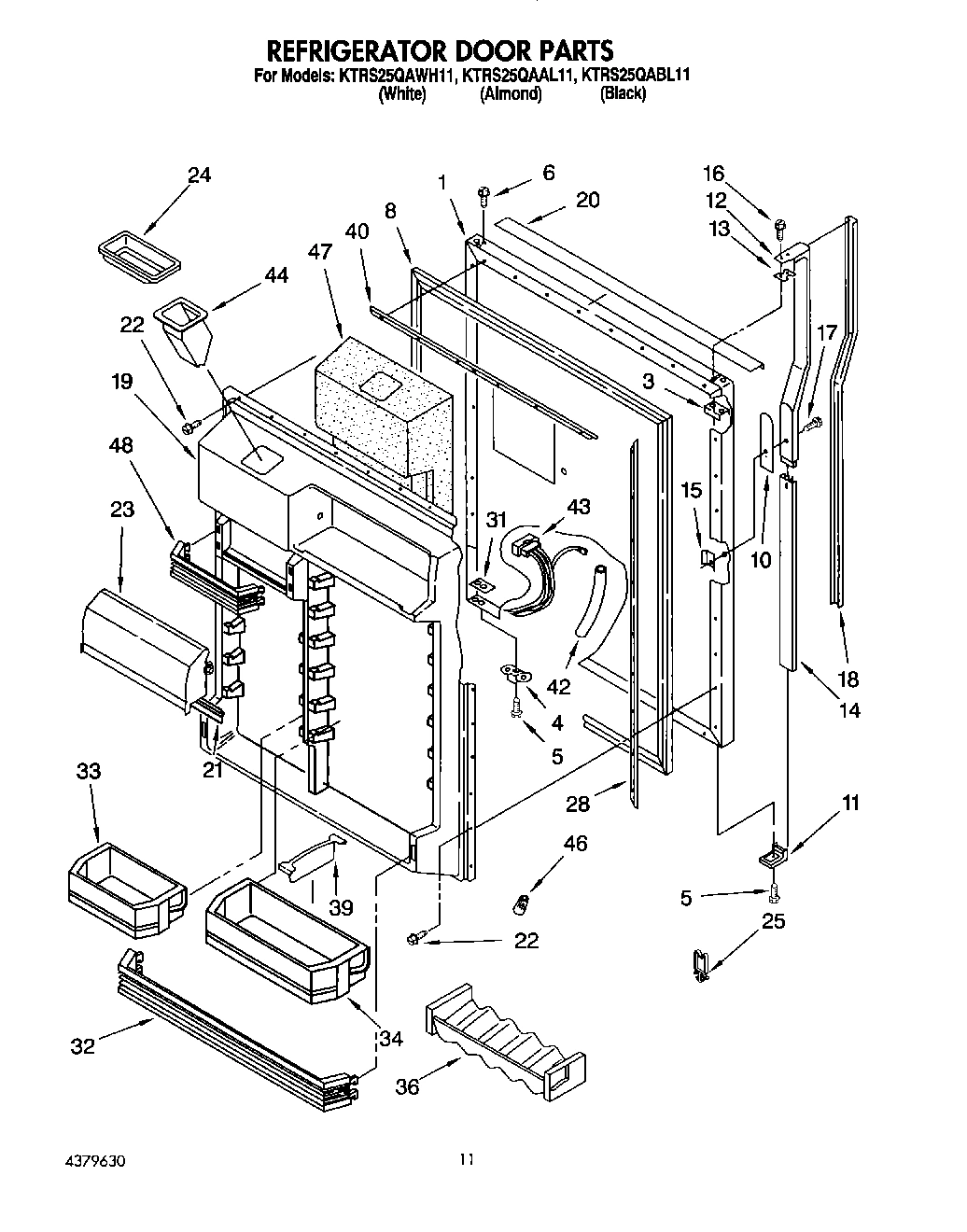

07 - REFRIGERATOR DOOR

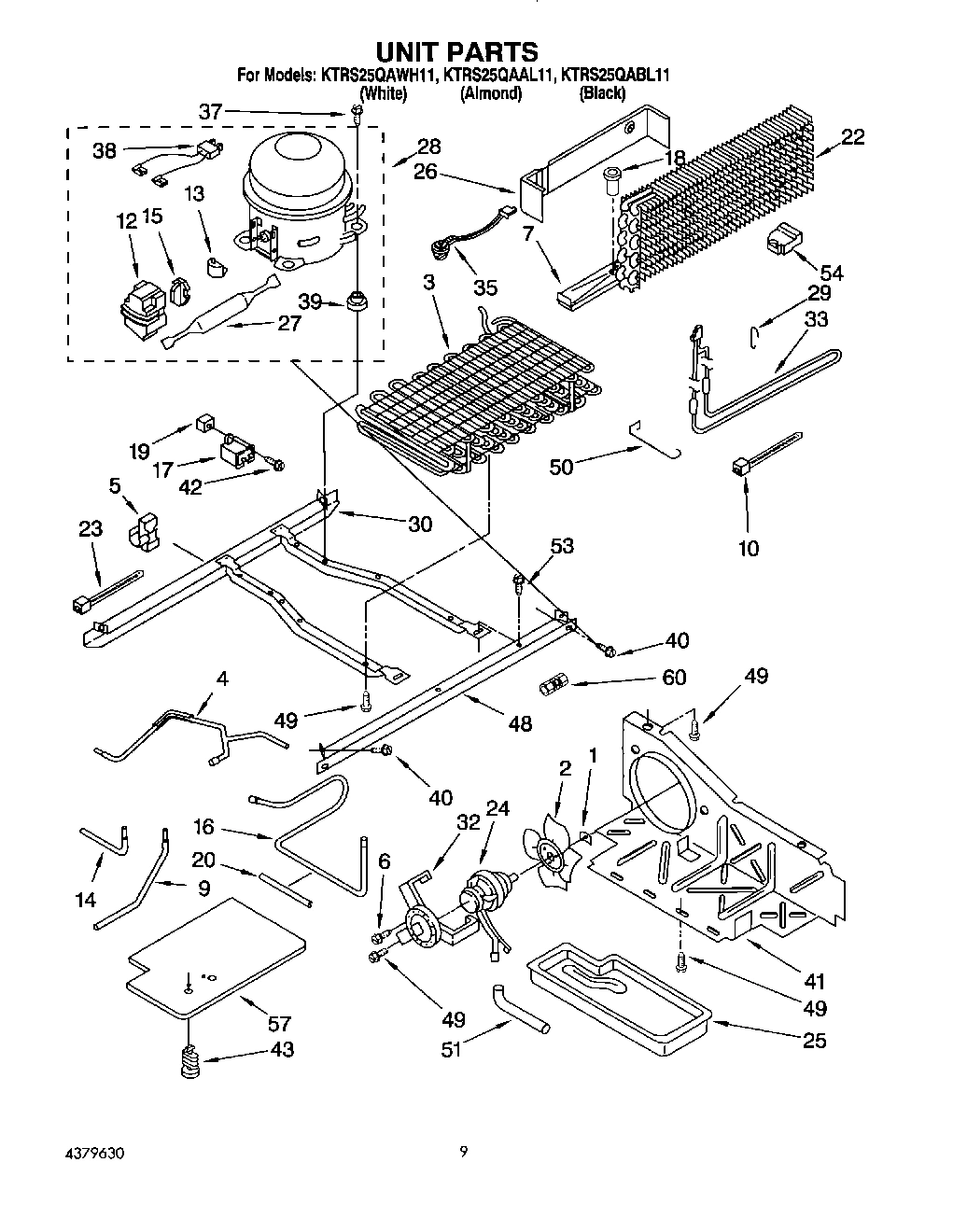

06 - UNIT

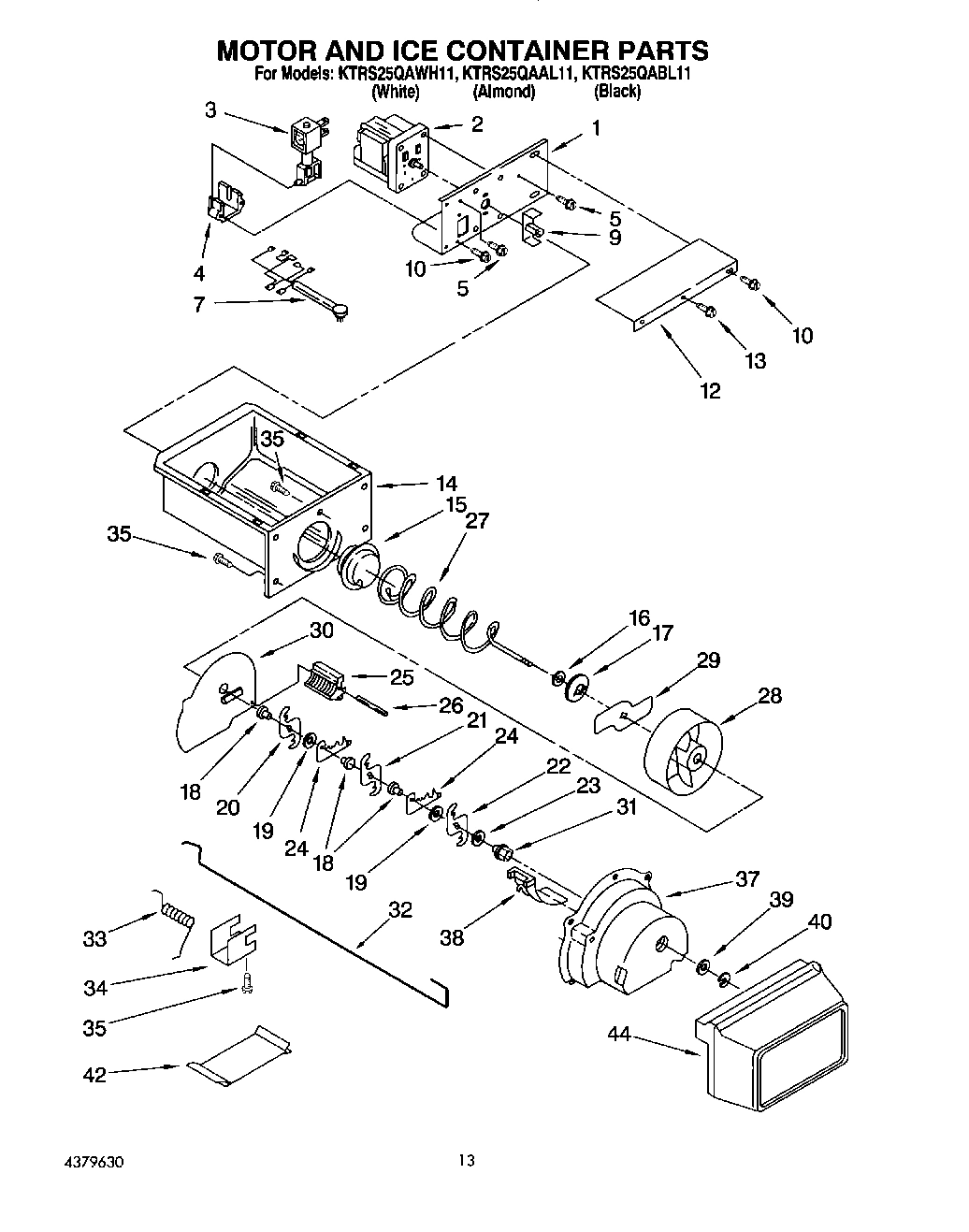

08 - MOTOR AND ICE CONTAINER

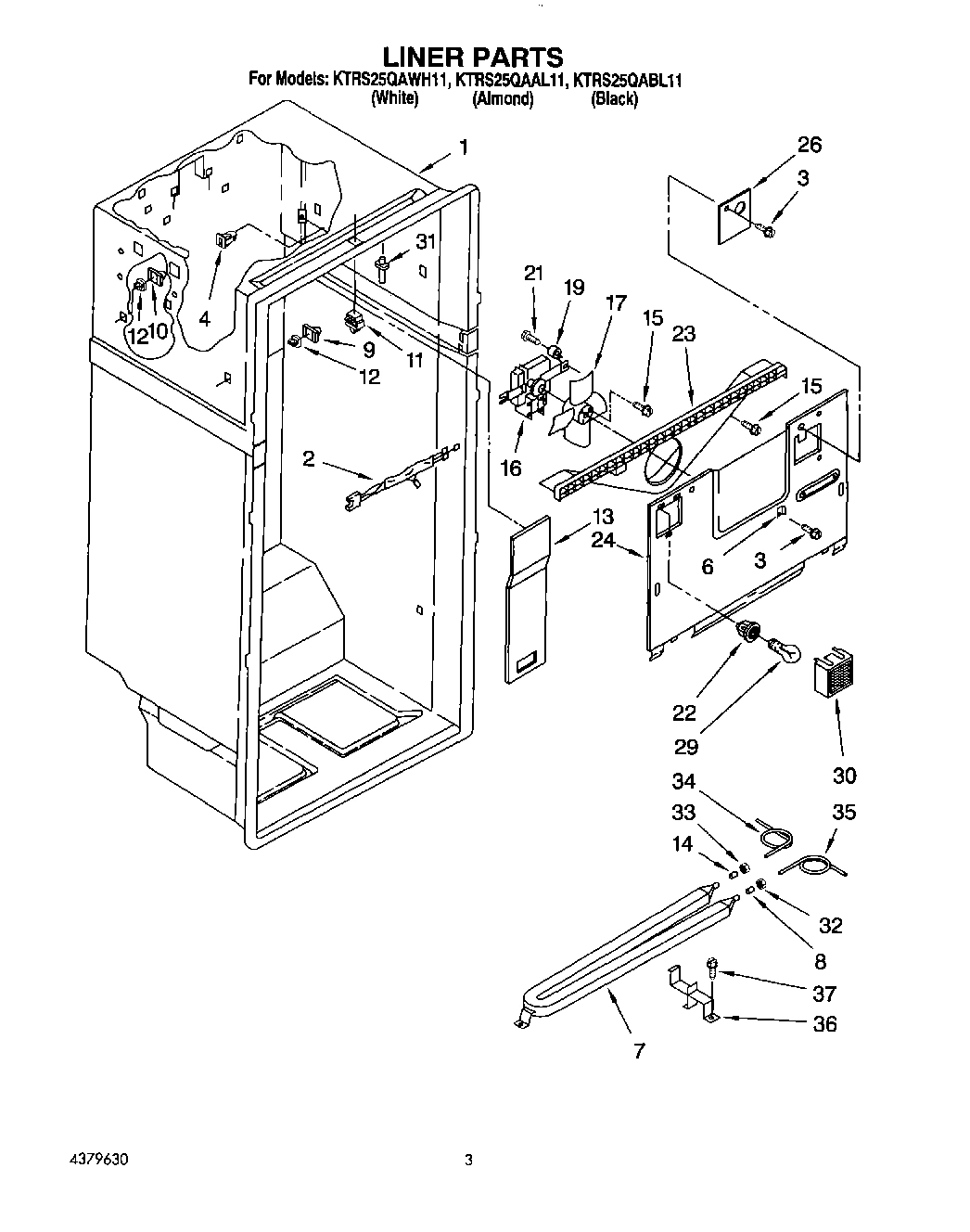

02 - LINER

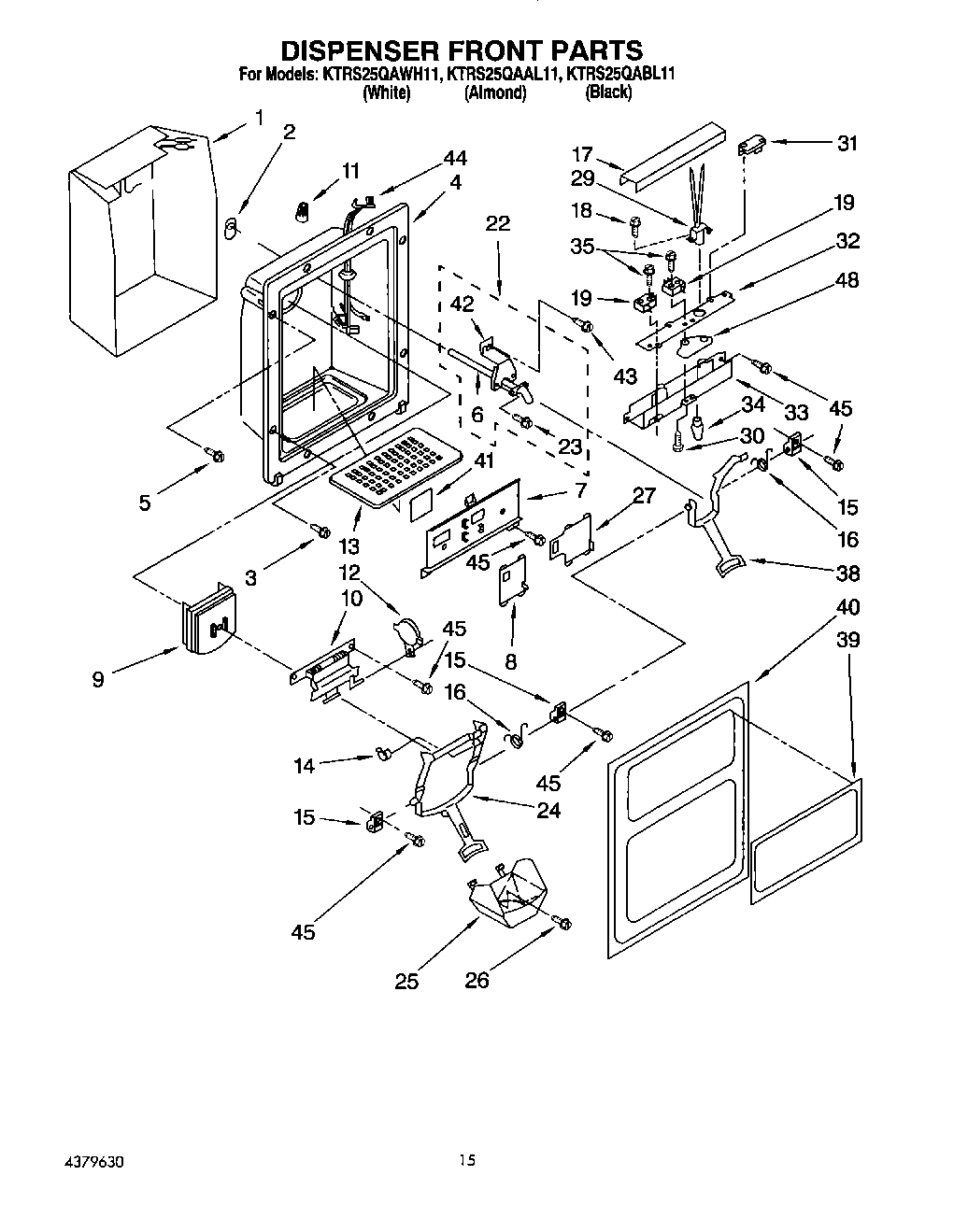

09 - DISPENSER FRONT

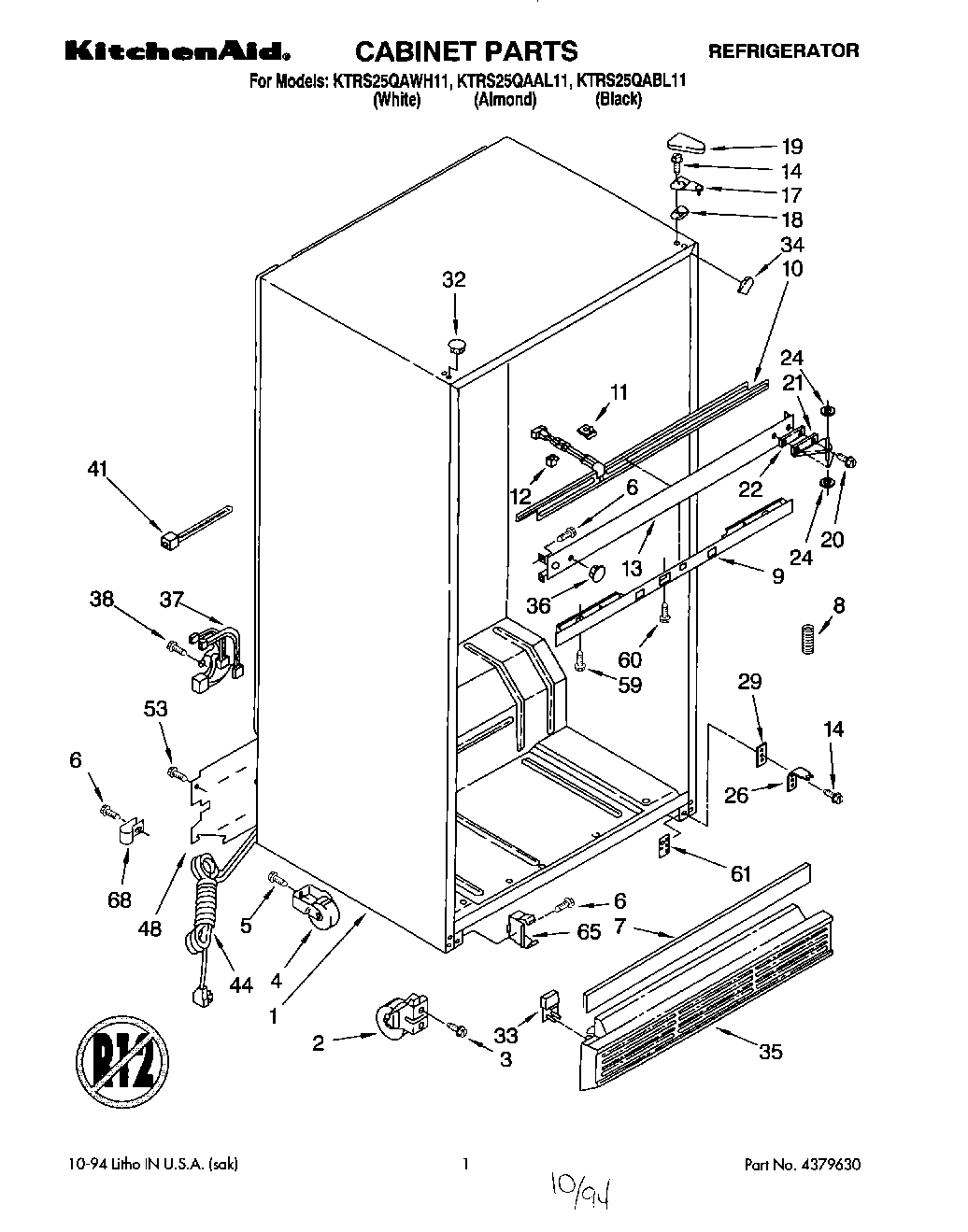

01 - CABINET

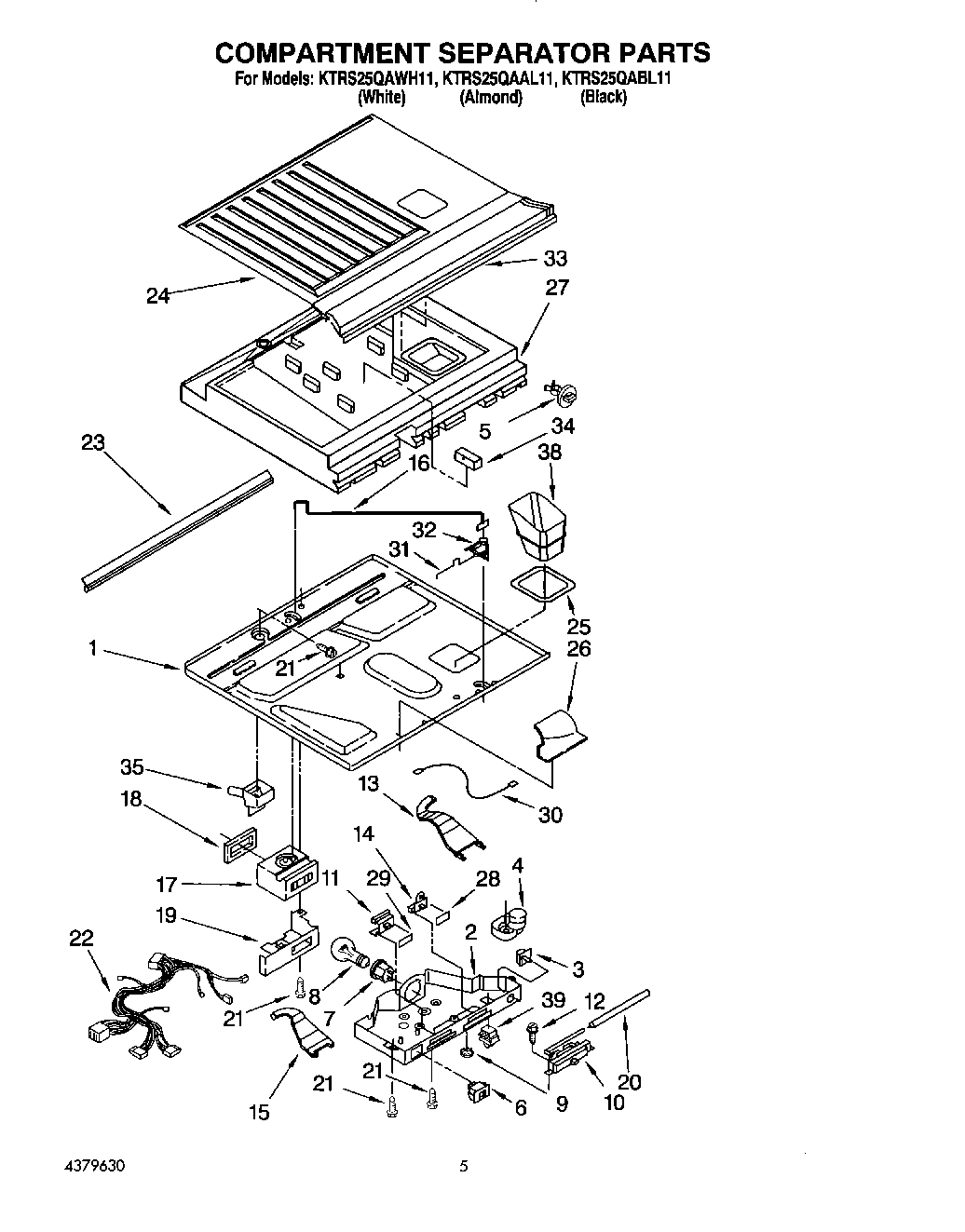

03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool KTRS25QABL11
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2160678 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168608 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168609 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112967A Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112966A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172831 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Wiring, Fan Motor WPL 2169524 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
2
Box, Control WPL 2160636 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Bracket, Door Stop WPL 988420 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
6
Tube, Water (Not a Serviceable Part) WPL ARI112969A Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Drain Pan WPL 1114597 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Deck Rail Cover WPL 2174745 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125923 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 1117939 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Spacer Door WPL 1107650 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
10
Thermostat WPL 2176747 Contact Us For Availability
11
End Cap Bottom WPL 1107236 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Slide, Thermostat WPL 1125513 Contact Us For Availability
12
Handle, Center WPL 2161508 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Grille, Overflow (For Black Model) WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Grille, Overflow (For White Model) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (For Almond Model) WPL 1126121 Contact Us For Availability
13
Center Rail WPL 2174743 Contact Us For Availability
13
Light, Bar Left WPL 2160640 Contact Us For Availability
14
Retainer, Insert WPL 1107209 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Slide, Air Control WPL 1125578 Contact Us For Availability
15
Relay (See Overload) WPL ARI112968A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Light, Bar Right WPL 2160641 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Suction WPL 2162473 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Rod, Connecting WPL 1126158 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Blade, Fan WPL 2169221 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Air Diffuser Assembly WPL 2169523 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Insert, Handle (White) WPL 2161513 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
18
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Interior Door Panel WPL 2160665 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Trim, Door WPL 1118063 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Evaporator WPL 2153980 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
23
Compartment Door, WPL 1125733 Contact Us For Availability
23
Scroll, Fan WPL 2169469 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
24
Butter, Tray WPL 1125936 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
24
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Clip WPL 2168567 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
26
Heat Shield WPL 1116511 Contact Us For Availability
26
Screw (For White And Almond Models) WPL 488892 Contact Us For Availability
26
Screw (For Black Model) WPL 489197 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Slide, Light Switch ( WPL 2152724 Contact Us For Availability
27
WPL 2152726 WPL 2152726 Contact Us For Availability
27
WPL 2152727 WPL 2152727 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
28
Window, Air Control WPL 1125579 Contact Us For Availability
29
Spacer, Bottom WPL 2172743 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
WPL 2147131 WPL 2147131 Contact Us For Availability
29
Window, Thermostat WPL 1125580 Contact Us For Availability
30
Door, Ice Compartment WPL 2160756 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
WPL 488361 WPL 488361 Contact Us For Availability
30
Wire Assembly WPL 2160799 Contact Us For Availability
31
Reflector, Shelf Cantilever WPL 2161808 Contact Us For Availability
31
Short Rod WPL 2160752 Contact Us For Availability
32
Shelf, Bin WPL 1125743 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
WPL 2147164 WPL 2147164 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Pivot Arm WPL 1125581 Contact Us For Availability
33
Door Bin (Narrow) WPL 1125744 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
WPL 2147163 WPL 2147163 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
34
Door Bin (Wide) WPL 1125555 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Rubber Strip WPL 2168582 Contact Us For Availability
35
Gasket, Shelf Front WPL 2161685 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
WPL 489360 WPL 489360 Contact Us For Availability
35
Grille (Black) WPL 2160687 Contact Us For Availability
35
Grille (Almond) WPL 2160758 Contact Us For Availability
35
Grille (White) WPL 2168620 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Crisper, Pan Front WPL 2161897 Contact Us For Availability
36
Holder, Beverage WPL 1125981 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2149199 Contact Us For Availability
38
WPL 2159196 WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Load Lock WPL 1117999 Contact Us For Availability
39
WPL 1126176 WPL 1126176 Contact Us For Availability
39
WPL 1126177 WPL 1126177 Contact Us For Availability
39
WPL 1126178 WPL 1126178 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
40
Retainer, Gasket WPL 1121119 Contact Us For Availability
40
WPL 1126170 WPL 1126170 Contact Us For Availability
40
WPL 1126171 WPL 1126171 Contact Us For Availability
40
WPL 1126172 WPL 1126172 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Frame, Shelf WPL 2161705 Contact Us For Availability
43
Plug, Crossover WPL 2160685 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
44
Frame, Cantilever WPL 2161805 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
Front Cover, Ice Container WPL 2160605 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Glass, Meat Pan Shelf WPL 1125779 Contact Us For Availability
46
Gasket (Front) WPL 1125813 Contact Us For Availability
46
Connector-Wire WPL 2160674 Contact Us For Availability
47
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
47
WPL 799344 WPL 799344 Contact Us For Availability
47
Gasket, Rear WPL 1125816 Contact Us For Availability
47
Door Removal Instructions WPL 2168575 Contact Us For Availability
47
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Trim-Door Shelf WPL 2160776 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support, Evap. WPL 1118017 Contact Us For Availability
57
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
