Model Whirlpool KTRS25QAAL12 – Common Parts & Diagrams

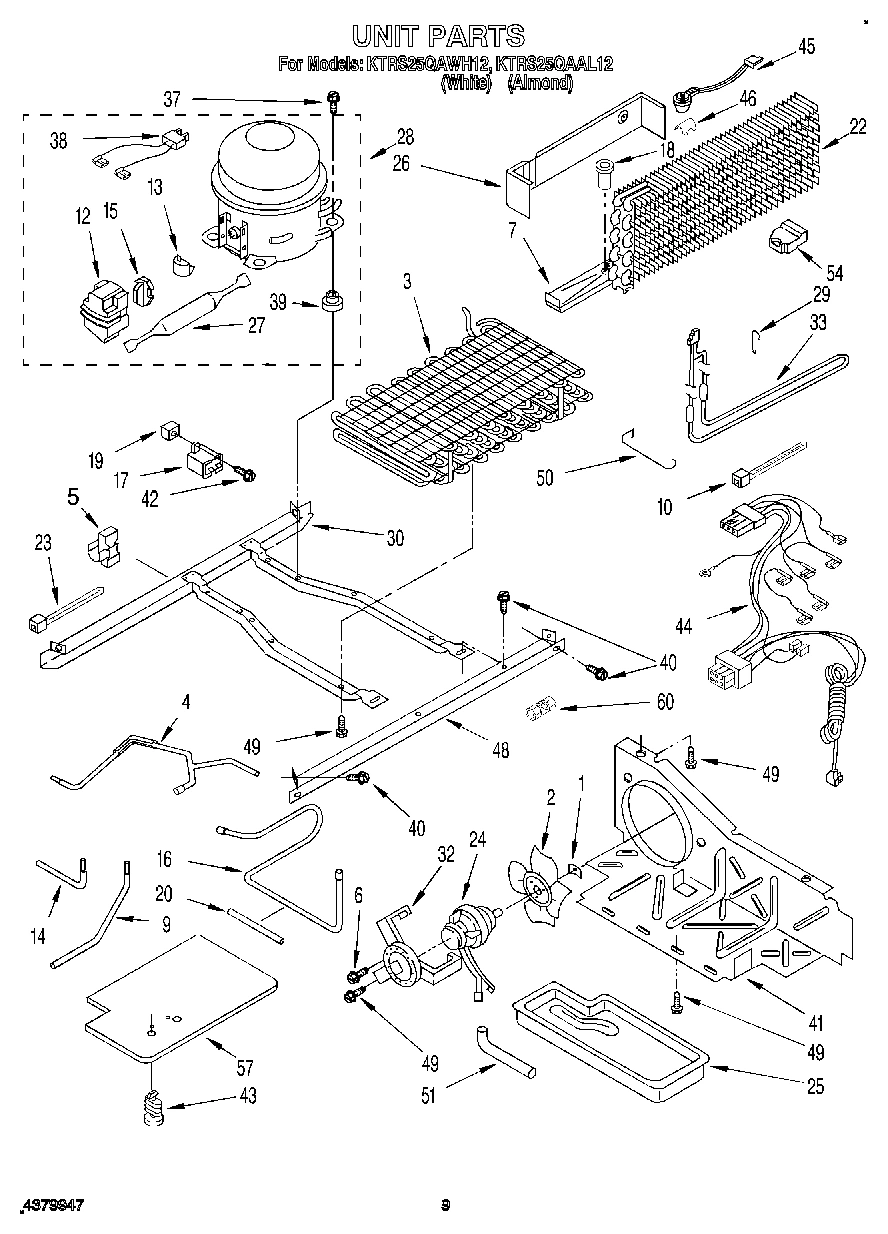

06 - UNIT

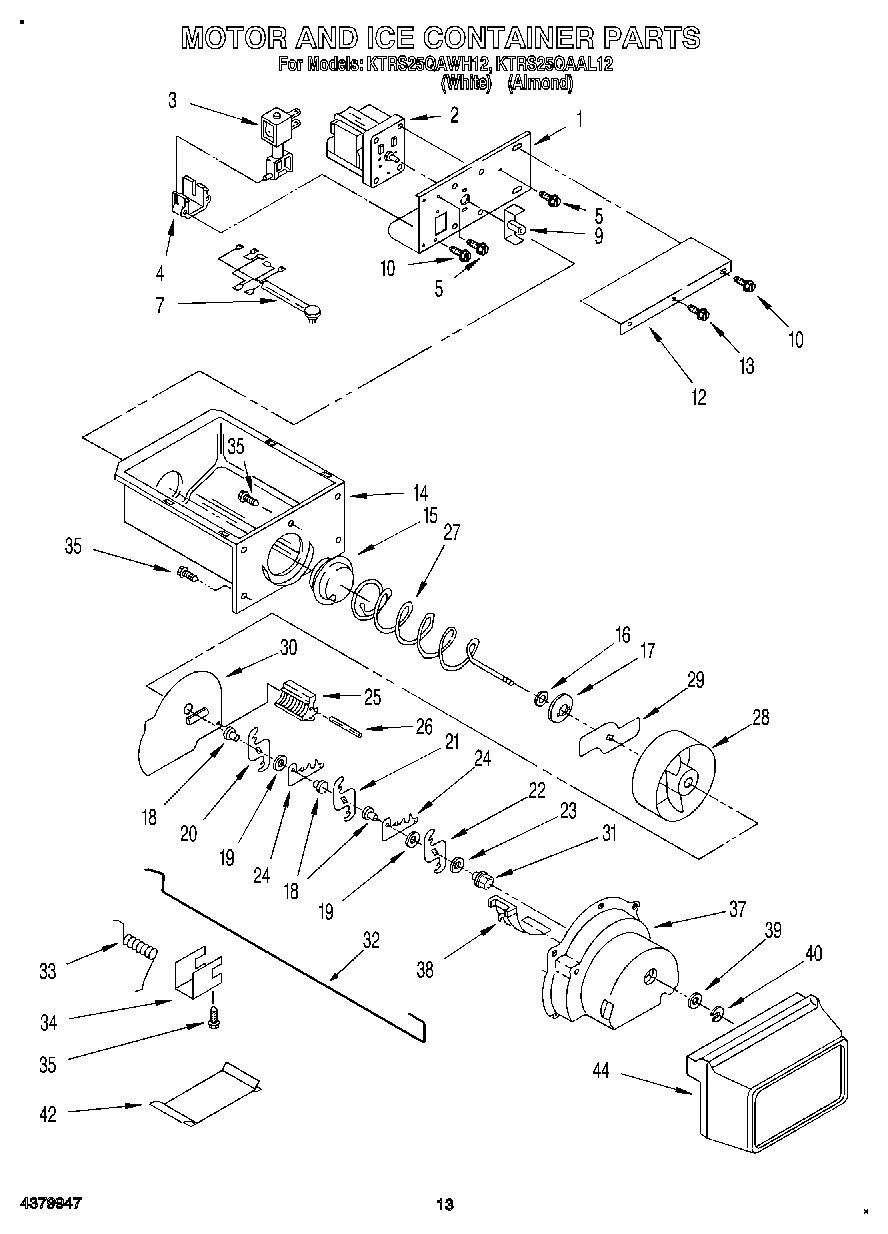

08 - MOTOR AND ICE CONTAINER
09 - DISPENSER FRONT
03 - COMPARTMENT SEPARATOR
05 - SHELF, LIT/OPTIONAL
02 - LINER
04 - FREEZER DOOR
10 - ICEMAKER
07 - REFRIGERATOR DOOR
01 - CABINET
Common parts from model Whirlpool KTRS25QAAL12
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2168556 WPL LIT2168556 Contact Us For Availability
WPL LIT2168924 WPL LIT2168924 Contact Us For Availability
WPL LIT2176905 WPL LIT2176905 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172831 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112956A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180093 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180094 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112955A Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2174828 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Wine Rack WPL 1126137 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 2155332 Contact Us For Availability
5
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1125748 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Deck Rail Cover WPL 2174745 Contact Us For Availability
8
Roller WPL 2161749 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125922 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125923 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 1117939 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Thermostat WPL 2159753 Contact Us For Availability
10
Retainer, Glass Shelf WPL 1125754 Contact Us For Availability
10
Insert, Handle (White) WPL 2161568 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161569 Contact Us For Availability
10
Spacer Door WPL 1107650 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
11
Slide, Thermostat WPL 1125513 Contact Us For Availability
11
End Cap Bottom WPL 1107236 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
12
Meat Pan Shelf Cantilever WPL 2161761 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Handle, Center WPL 2161509 Contact Us For Availability
12
Handle, Center WPL 2161508 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Light, Bar Left WPL 2160640 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Spacer WPL 1107192 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Center Rail WPL 2174743 Contact Us For Availability
14
Slide, Air Control WPL 1125578 Contact Us For Availability
14
Eyelet WPL 1112308 Contact Us For Availability
14
Retainer, Insert WPL 1107209 Contact Us For Availability
15
Light, Bar Right WPL 2160641 Contact Us For Availability
15
Interior Door Panel WPL 1125739 Contact Us For Availability
15
Clip WPL 652604 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rod, Connecting WPL 1126158 Contact Us For Availability
16
Glass, Shelf Cantilever WPL 1125749 Contact Us For Availability
16
Air Deflector WPL 2160751 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Support Wall I/M WPL 2160620 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Retainer, Insert WPL 2161570 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Insert, Handle (White) WPL 2161513 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
End Cap WPL 1125788 Contact Us For Availability
19
Interior Door Panel WPL 2177357 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
20
Pan, Meat WPL 2161894 Contact Us For Availability
20
Trim, Door WPL 1118063 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Gasket, Door Utility WPL 2183037 Contact Us For Availability
21
Glass, Roll-Out Shelf WPL 2161682 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
22
Spacer, Handle WPL 1125789 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Compartment Door WPL 2183043 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160696 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Butter, Tray WPL 1125936 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Gasket (Front) WPL 1125784 Contact Us For Availability
25
Clip WPL 2168567 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Window, Air Control WPL 1125579 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
29
Spacer, Bottom WPL 2172743 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Window, Thermostat WPL 1125580 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
30
Wire Assembly WPL 2160799 Contact Us For Availability
30
Door, Ice Compartment WPL 2160756 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
31
Short Rod WPL 2160752 Contact Us For Availability
31
Reflector, Shelf Cantilever WPL 2161808 Contact Us For Availability
31
Tap, Plate WPL 2155335 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Pivot Arm WPL 1125581 Contact Us For Availability
32
Trivet, Door WPL 2173836 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Door Bin (Narrow) WPL 1125744 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Rubber Strip WPL 2168582 Contact Us For Availability
34
Door Bin (Wide) WPL 1125555 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Screw, WPL 489155 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Gasket, Shelf Front WPL 2161685 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Grille (Almond) WPL 2160758 Contact Us For Availability
35
Grille (White) WPL 2168620 Contact Us For Availability
36
Crisper, Pan Front WPL 2161897 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Holder, Beverage WPL 1125981 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
Overlay, Front Cover (For White Model) WPL 1126176 Contact Us For Availability
39
Overlay, Front Cover (For Almond Model) WPL 1126177 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Load Lock WPL 1117999 Contact Us For Availability
40
Front Cover, Housing (For White Model) WPL 1126170 Contact Us For Availability
40
Front Cover, Housing (For Almond Model) WPL 1126171 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Retainer, Gasket WPL 1121119 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Frame, Shelf WPL 2161705 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Plug, Crossover WPL 2174771 Contact Us For Availability
43
Insert, Air Baffle WPL 2176796 Contact Us For Availability
44
Wiring Harness, WPL 2147166 Contact Us For Availability
44
Frame, Cantilever WPL 2161805 Contact Us For Availability
44
Clip (2) WPL 934011 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
45
Glass, Meat Pan Shelf WPL 1125779 Contact Us For Availability
45
Grommet, Water Tube WPL 2160675 Contact Us For Availability
46
Gasket (Front) WPL 1125813 Contact Us For Availability
47
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
47
WPL 799344 WPL 799344 Contact Us For Availability
47
Gasket, Rear WPL 1125816 Contact Us For Availability
47
Door Removal Instructions WPL 2168575 Contact Us For Availability
47
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Trivet, Door WPL 2173844 Contact Us For Availability
48
Cover, Unit WPL 2183134 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
