Model Whirlpool KTRS22MAWH12 – Common Parts & Diagrams

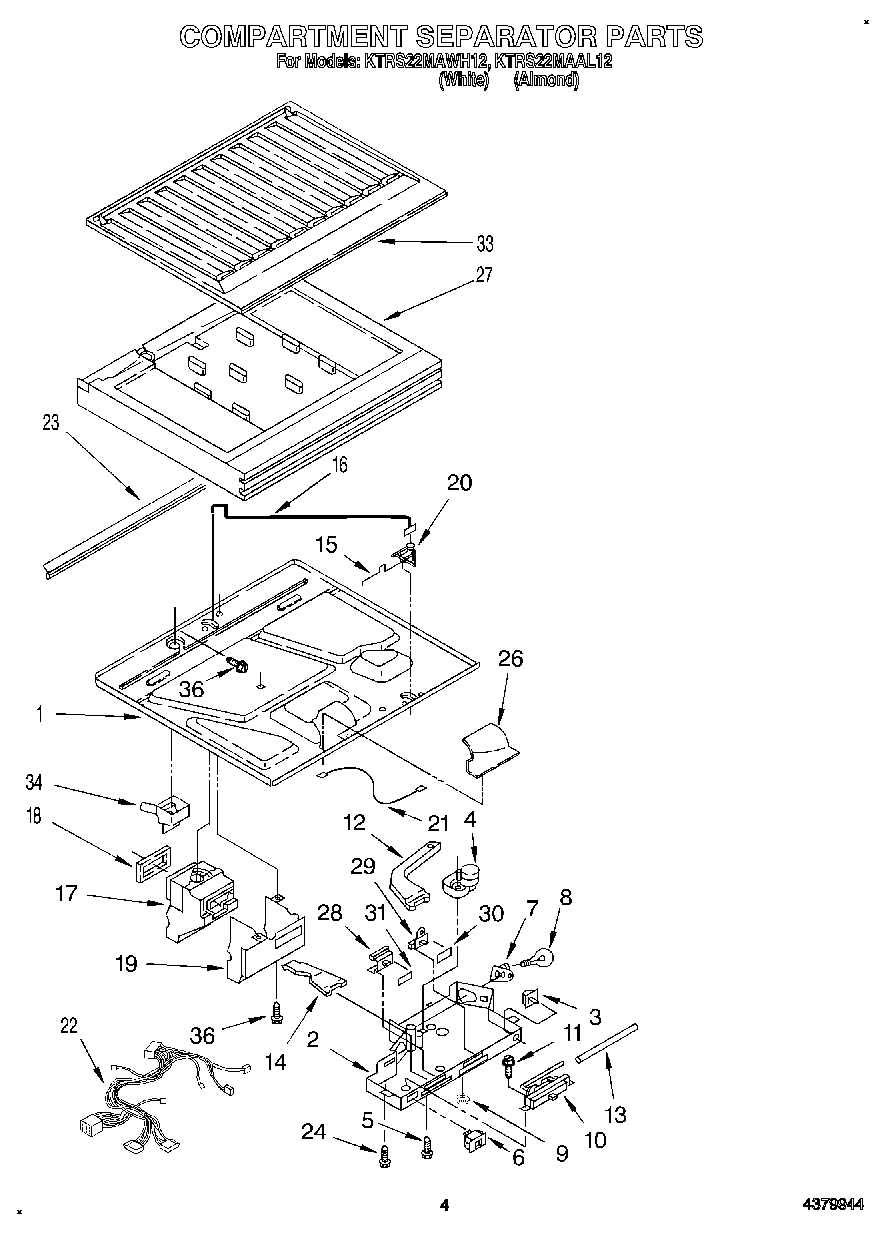

03 - COMPARTMENT SEPARATOR

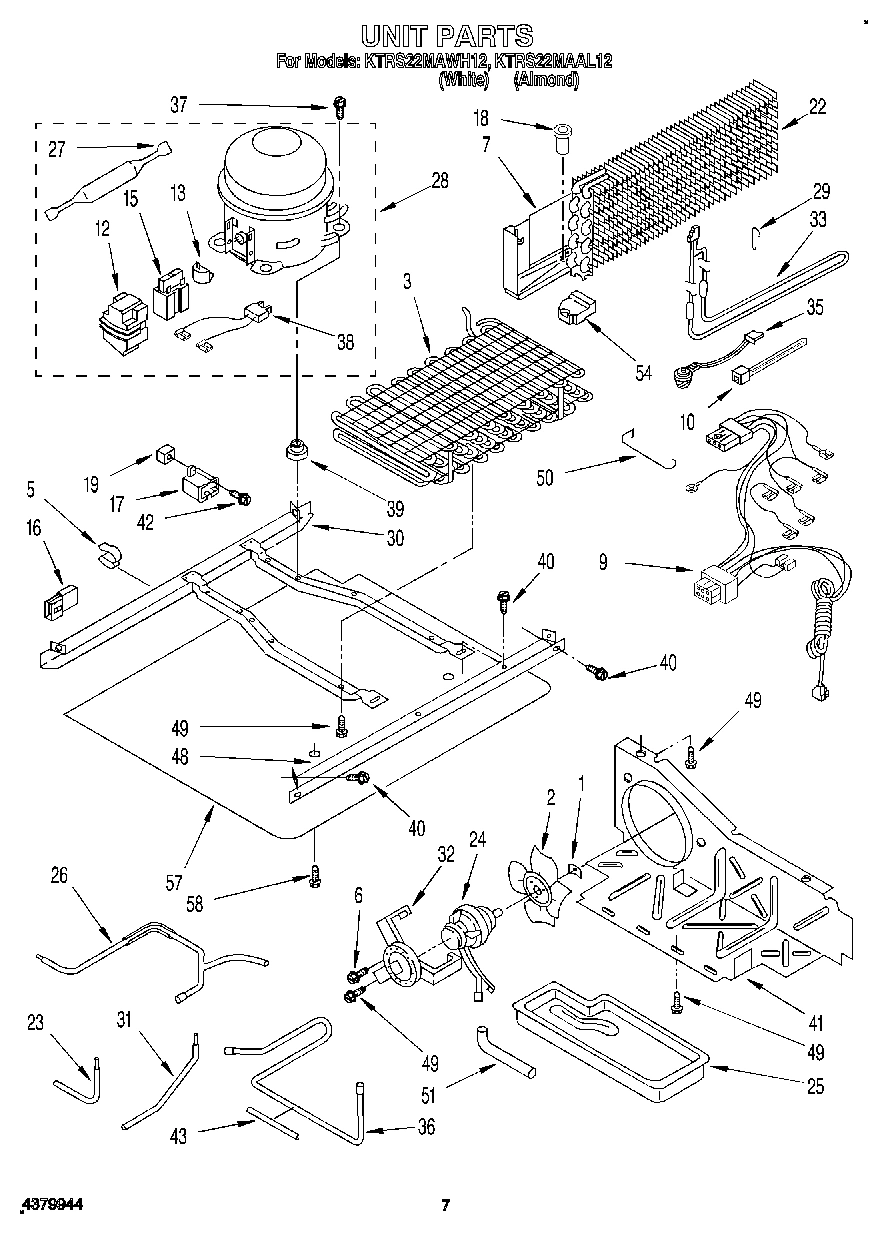

05 - UNIT
08 - FREEZER DOOR
04 - SHELF, LIT/OPTIONAL
01 - CABINET
02 - LINER
07 - ICEMAKER
06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRS22MAWH12
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161695 WPL LIT2161695 Contact Us For Availability
WPL LIT2168921 WPL LIT2168921 Contact Us For Availability
WPL LIT2176951 WPL LIT2176951 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 21) (Whit WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112693A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112694A Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Knob, Water Adjust WPL 1125891 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1125520 Contact Us For Availability
7
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
8
Gasket (Front) WPL 1125782 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2161766 Contact Us For Availability
9
Control, Front Cover WPL 1126139 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
11
Dike, Door (2) WPL 1125577 Contact Us For Availability
11
Glass, Pan Cover WPL 1125531 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2161758 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Gasket, Pan Cover (Rear) (2) WPL 1125529 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle WPL 2151813 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Glass, Shelf WPL 1125539 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
16
Glass, Shelf WPL 1125521 Contact Us For Availability
16
Insert, Air Baffle WPL 2176796 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168801 Contact Us For Availability
18
Shelf, Freezer WPL 2179445 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
19
Pan, Crisper & Roller Assembly WPL 2161888 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 2177347 Contact Us For Availability
20
Pan, Meat & Roller Assembly WPL 2161890 Contact Us For Availability
20
Wine & Egg Rack WPL 1125913 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
21
Gasket, Utility Door WPL 2183037 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Utility Door WPL 2183043 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Retainer, Shelf WPL 1110744 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
24
Frame & Roller Assembly WPL 2161804 Contact Us For Availability
24
Evaporator Cover WPL 2179450 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Gasket (Front) WPL 2161684 Contact Us For Availability
25
Trim, Door WPL 1107199 Contact Us For Availability
26
Glass, Full Shelf WPL 2161681 Contact Us For Availability
26
Shelf Bin (3) WPL 1125556 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Retainer, Shelf WPL 2161807 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Gasket, Front WPL 1125576 Contact Us For Availability
29
Shelf Bin, Fixed WPL 2173837 Contact Us For Availability
29
Gasket, Rear WPL 1125815 Contact Us For Availability
30
Divider WPL 2179446 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
32
Retainer, Gasket WPL 1122552 Contact Us For Availability
32
Utility Pan & Roller Assembly WPL 2161889 Contact Us For Availability
33
Roller WPL 2161749 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
34
Eyelet, Roller WPL 1112308 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Load Lock WPL 1117999 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Frame & Roller Assembly WPL 2161704 Contact Us For Availability
37
Door Reversal Instructions WPL 2172757 Contact Us For Availability
37
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
51
Drain Extension WPL 2183033 Contact Us For Availability
54
Support-Evaporator (Right Side) WPL 2174769 Contact Us For Availability
54
Support-Evaporator (Left Side) WPL 2174770 Contact Us For Availability
57
Cover-Unit Btm. WPL 2160505 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
