Model Whirlpool KTRS22MAAL01 – Common Parts & Diagrams
01 - CABINET
03 - COMPARTMENT SEPARATOR

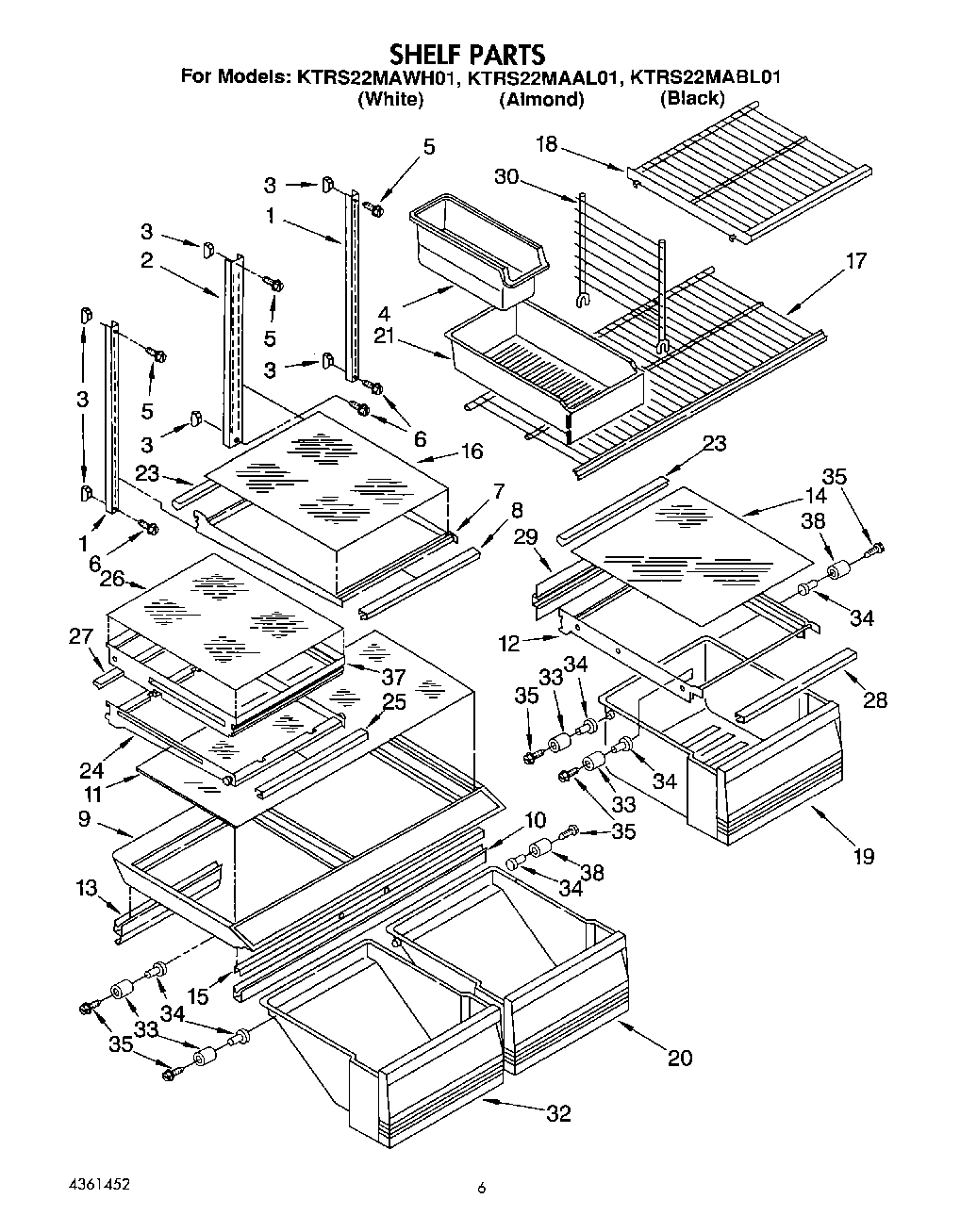

04 - SHELF, LIT/OPTIONAL

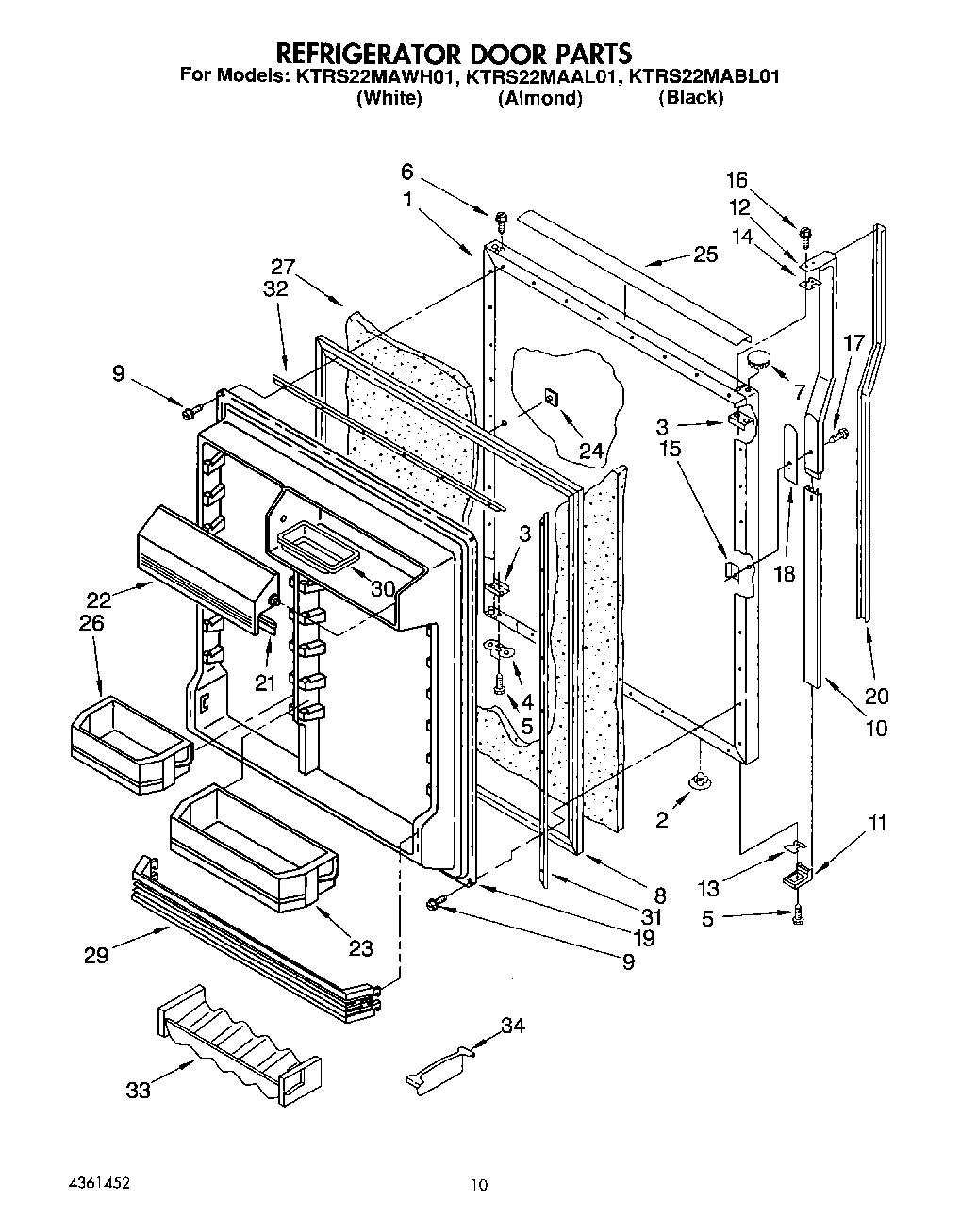

06 - REFRIGERATOR DOOR

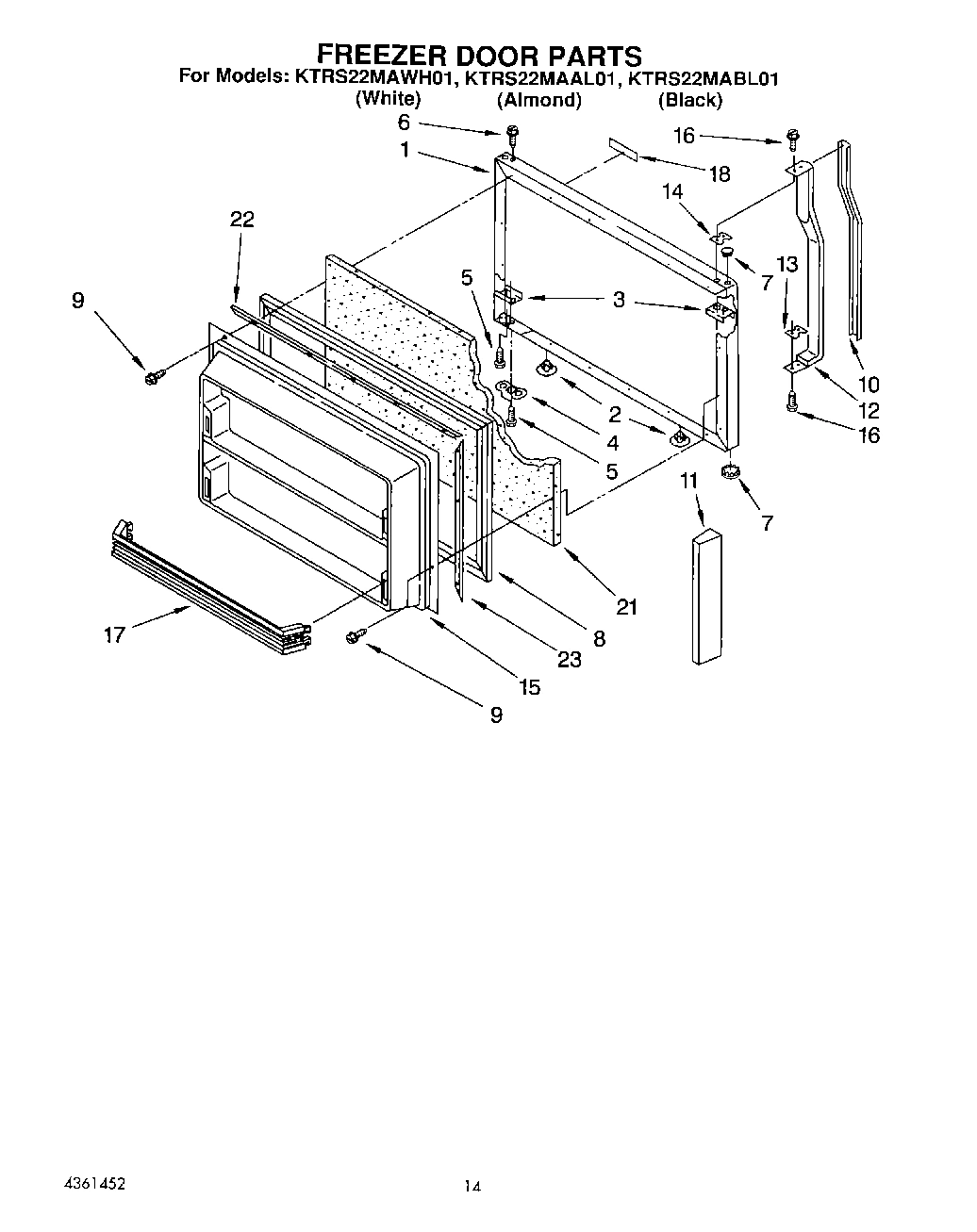

08 - FREEZER DOOR

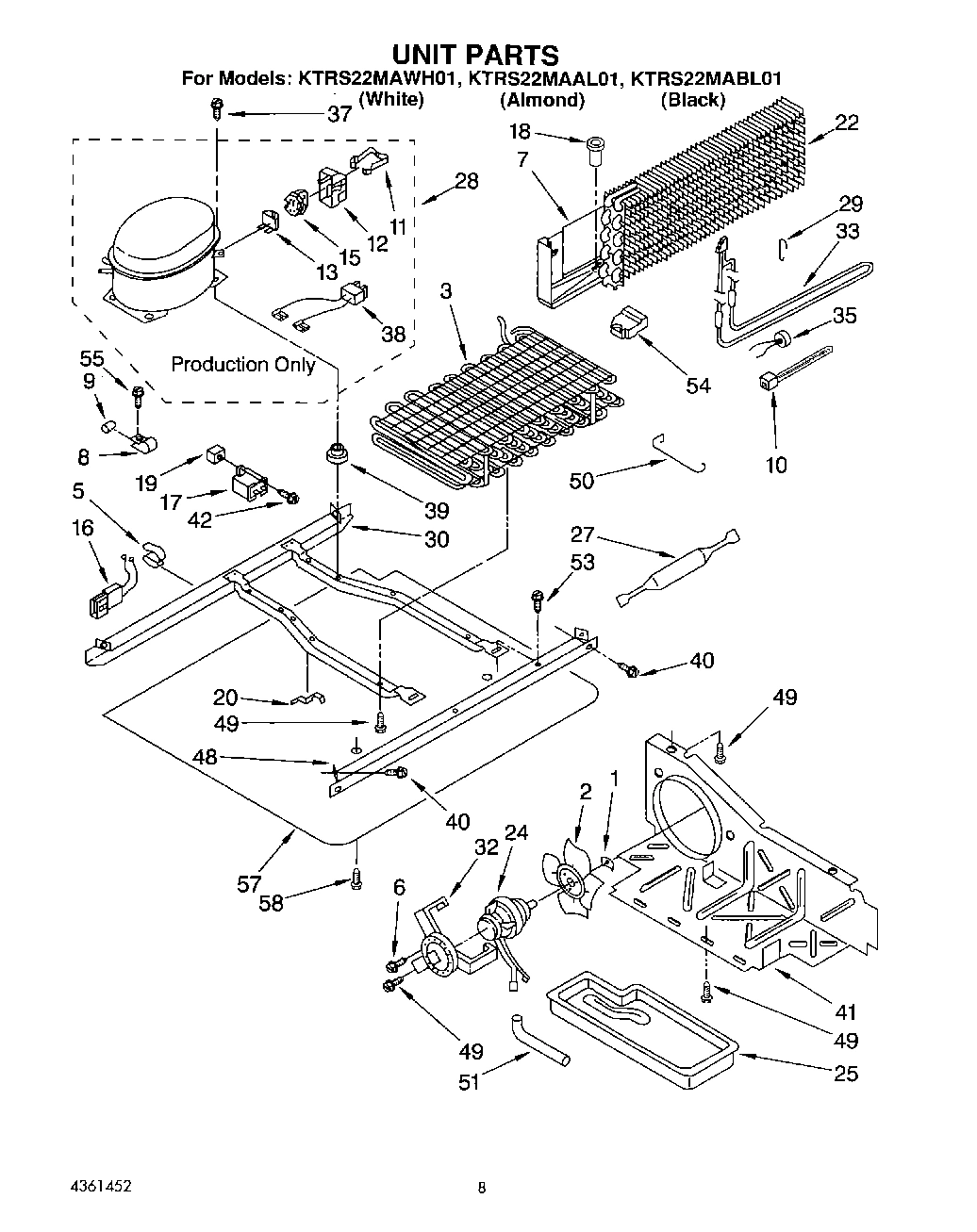

05 - UNIT

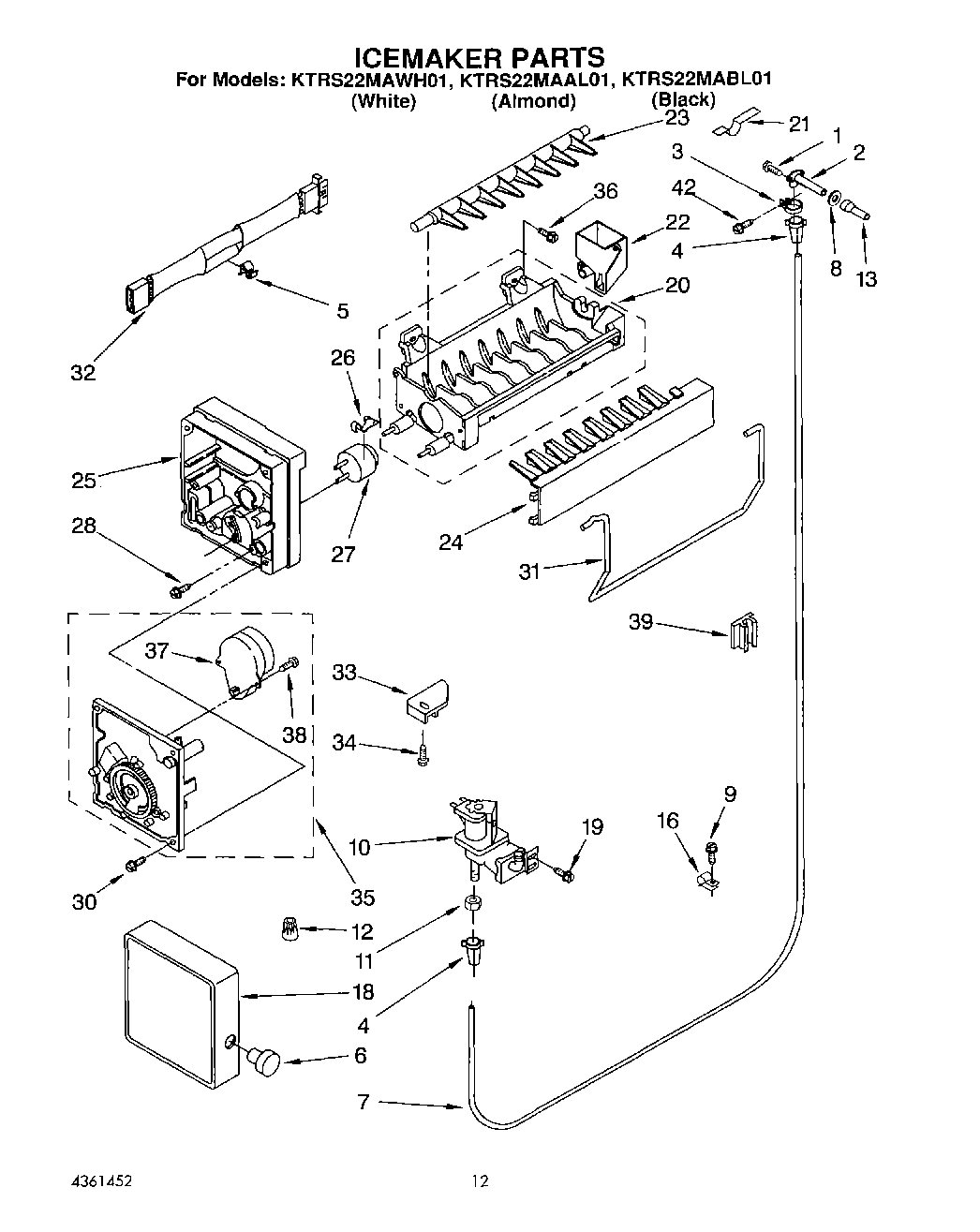

07 - ICEMAKER

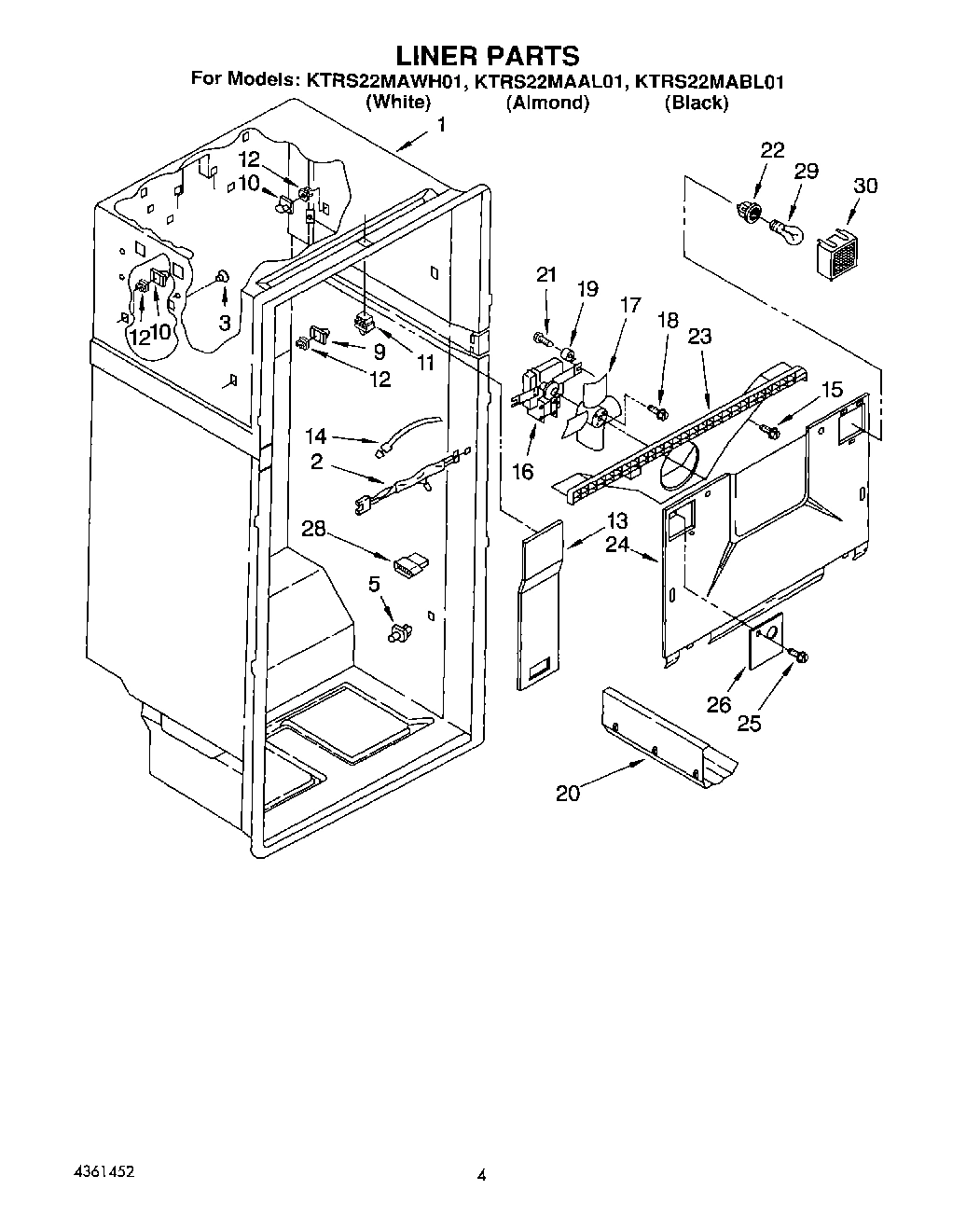

02 - LINER
Common parts from model Whirlpool KTRS22MAAL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154861 WPL LIT2154861 Contact Us For Availability
WPL LIT2161695 WPL LIT2161695 Contact Us For Availability
WPL LIT2161973 WPL LIT2161973 Contact Us For Availability
WPL LIT4361452 WPL LIT4361452 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1122658 Contact Us For Availability
1
Panel, Refrigerator Door (Black (Also Order I WPL 2161866 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112674A Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
6
Knob, Water Adjust WPL 1125891 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1125520 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Gasket (Front) WPL 1125782 Contact Us For Availability
8
Tube Clamp (2) WPL 2159720 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2161766 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
10
Thermostat Assembly WPL 2161676 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161867 Contact Us For Availability
11
Glass, Pan Cover WPL 1125531 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Dike, Door (2) WPL 1125577 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Light Pipe (R.S.) WPL 1125511 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2161758 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
13
Gasket, Pan Cover (Rear) (2) WPL 1125529 Contact Us For Availability
13
Shim, End Cap WPL 1107229 Contact Us For Availability
13
Spacer, Handle WPL 2151813 Contact Us For Availability
13
Overload (Service) WPL 1108114 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 2157410 Contact Us For Availability
14
Light Pipe (L.S.) WPL 1125512 Contact Us For Availability
14
Glass, Shelf WPL 1125539 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Strap, Mtg. WPL 1123230 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
16
Rod, Connecting WPL 1125514 Contact Us For Availability
16
Glass, Shelf WPL 1125521 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Air Diffuser Assembly WPL 2159698 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
17
Shelf Bin (2) WPL 1125557 Contact Us For Availability
17
Capacitor (Production) WPL 2154565 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Shelf, Freezer WPL 1125541 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Nameplate (White) WPL 1125818 Contact Us For Availability
18
Nameplate (Almond) WPL 1125819 Contact Us For Availability
18
Nameplate (Black) WPL 2161715 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
19
Cover, Air Diffuser WPL 1125941 Contact Us For Availability
19
Crisper Pan & Roller Assembly WPL 2161722 Contact Us For Availability
19
Interior Door Panel WPL 1117954 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
20
Pan, Meat & Roller Assembly WPL 2161752 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
20
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Wine & Egg Rack WPL 1125913 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability
22
Retainer, Gasket WPL 1122552 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Retainer, Shelf WPL 1110744 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
24
Frame & Roller Assembly WPL 2161804 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
25
Gasket (Front) WPL 2161684 Contact Us For Availability
25
Trim, Door WPL 1107199 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Glass, Full Shelf WPL 2161681 Contact Us For Availability
26
Shelf Bin (3) WPL 1125556 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
27
Retainer, Shelf WPL 2161807 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
28
Gasket, Front WPL 1125576 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
29
Gasket, Rear WPL 1125815 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
32
Utility Pan Roller Assembly WPL 2161753 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
33
Roller WPL 2161749 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
34
Eyelet, Roller WPL 1112308 Contact Us For Availability
34
Load Lock WPL 1117999 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
37
Frame & Roller Assembly WPL 2161704 Contact Us For Availability
38
WPL 876029 WPL 876029 Contact Us For Availability
38
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
38
WPL 799344 WPL 799344 Contact Us For Availability
38
Roller WPL 2161750 Contact Us For Availability
38
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
38
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
38
Screw, 3-24 x 23/64 WPL 486214 Contact Us For Availability
41
Air Baffle WPL 2155566 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S. Baffle (2)) WPL 2159708 Contact Us For Availability
57
Cover-Unit Btm. WPL 2160505 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
