Model Whirlpool KTRS21KDAL05 REFRIGERATOR – Common Parts & Diagrams

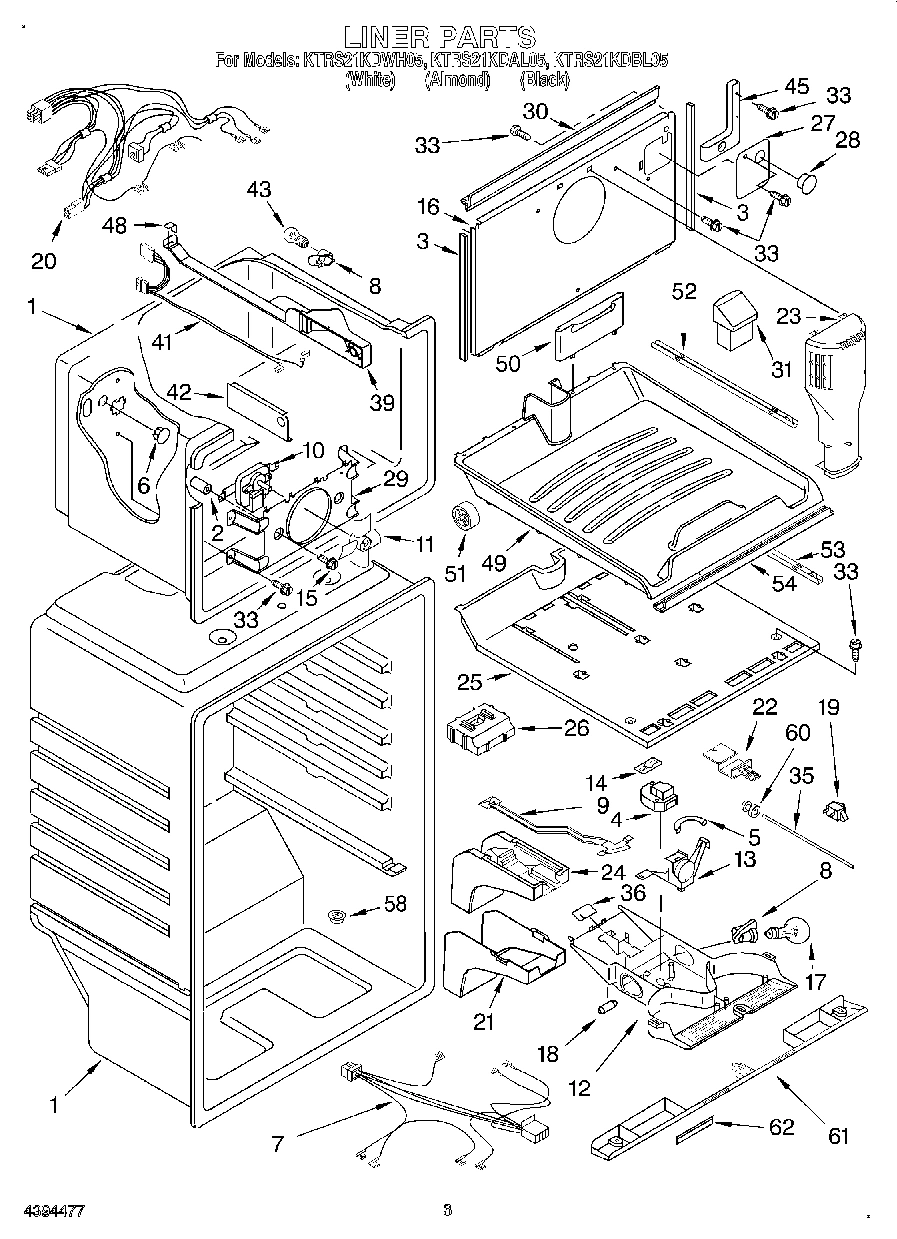

02 - LINER

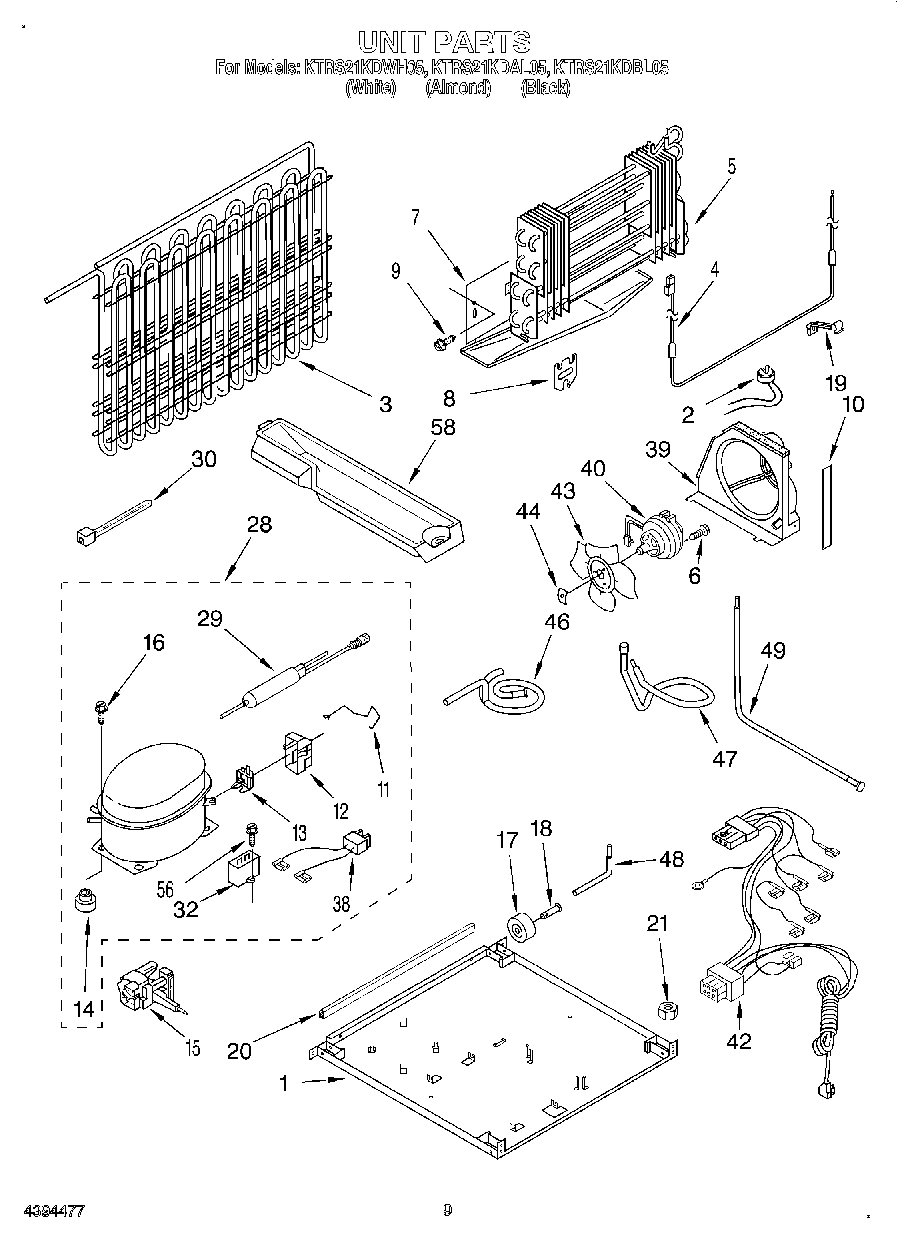

05 - UNIT
06 - FREEZER DOOR, LIT/OPTIONAL
04 - REFRIGERATOR DOOR
01 - CABINET
03 - SHELF
Common parts from model Whirlpool KTRS21KDAL05 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2184594 WPL LIT2184594 Contact Us For Availability
WPL LIT2193090 WPL LIT2193090 Contact Us For Availability
WPL LIT2193264 WPL LIT2193264 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2182490 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2184404 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Black) WPL 2184405 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2190645 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Alm WPL 2190646 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2190647 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112019A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Divider, Door Bin WPL 2171283 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Screw WPL 489436 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
6
Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177312 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177313 Contact Us For Availability
8
Bracket, Bottom Hinge WPL 2174899 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174128 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Divider, Freezer Shelf WPL 2195909 Contact Us For Availability
13
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
14
Insert, Handle (Black) WPL 2168996 Contact Us For Availability
14
Fastener WPL 2176270 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
15
End Cap, Handle WPL 1107236 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability
17
Trivet (2) WPL 2159292 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Shelf, Freezer WPL 2184566 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
18
Nameplate (Black) WPL 2168992 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
19
Pan, Crisper (Includes 8, 10, 29, 42, 44) WPL 2175433 Contact Us For Availability
20
Protector WPL 2183803 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171064 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Pan, Meat (Includes 8, 10, 29, 43) WPL 2175448 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
WPL 876029 WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI112023A Contact Us For Availability
21
Insert, Handle (White) WPL 2168898 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
21
Insert, Handle (Black) WPL 2169000 Contact Us For Availability
21
Door Reversal Instructions WPL 2179846 Contact Us For Availability
21
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
21
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
21
KIT, EVAPORATOR REPAIR (ALUMINUM E WPL 799833 Contact Us For Availability
21
WPL 978883 WPL 978883 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
Shelf, Freezer (Top) WPL 2166112 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI112020A Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
30
Screw WPL 489439 Contact Us For Availability
31
Holder, Beverage WPL 1125981 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
31
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
34
Cover WPL 2169935 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Black) WPL 2166189 Contact Us For Availability
35
Ice Cube Pan WPL 2173688 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Grille (Black) WPL 2182434 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
40
Cover-Hinge (Black) WPL 2176206 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI112021A Contact Us For Availability
42
Wire Assy. Unit WPL 2184587 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
Window, Crisper WPL 2175373 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Window, Meat Pan WPL 2175445 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
44
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
44
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
46
Shroud, I/M WPL 2195910 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
