Model Whirlpool KTRS21KDAL02 REFRIGERATOR – Common Parts & Diagrams

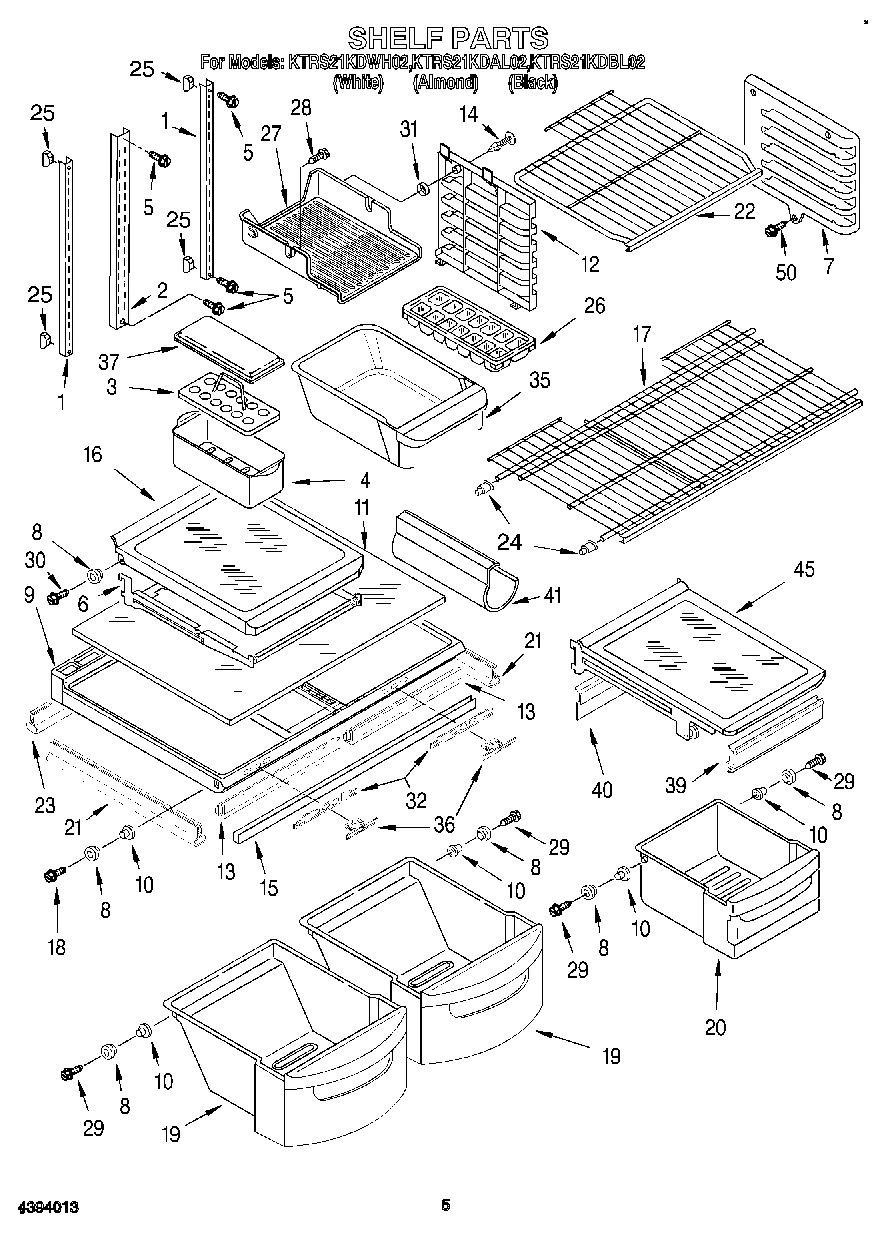

03 - SHELF

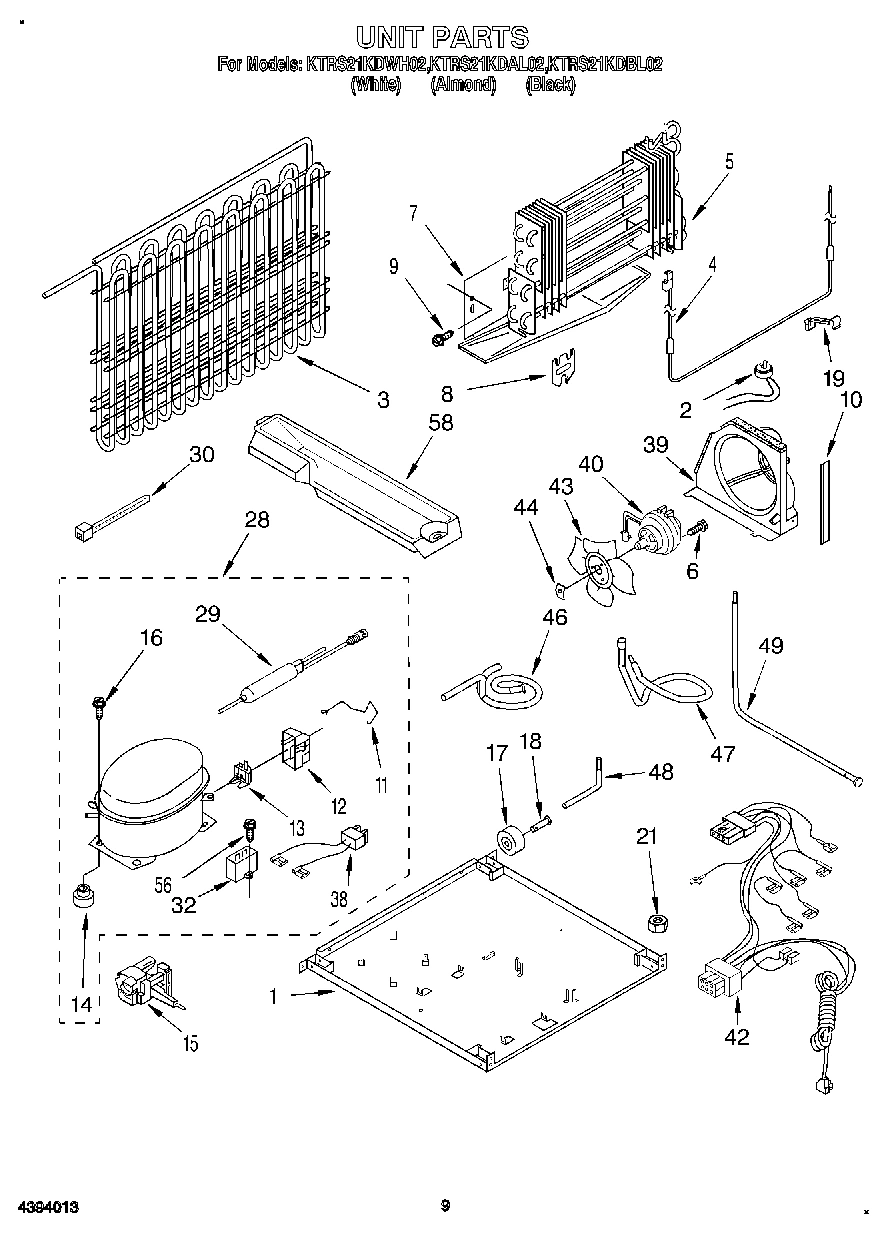

05 - UNIT
02 - LINER
06 - FREEZER DOOR, LIT/OPTIONAL
04 - REFRIGERATOR DOOR
01 - CABINET
Common parts from model Whirlpool KTRS21KDAL02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2179217 WPL LIT2179217 Contact Us For Availability
WPL LIT2179221 WPL LIT2179221 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112007A Contact Us For Availability
1
Freezer Door (Includes No.8) (Black) WPL 2168997 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2171340 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2171341 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2159288 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2159289 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Black) WPL 2168994 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112004A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Hole Plug (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Divider, Door Bin WPL 2171283 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
6
Seal, Air Diffuser WPL 2179834 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177312 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177313 Contact Us For Availability
8
Bracket, Bottom Hinge WPL 2174899 Contact Us For Availability
9
Damper, Air (Slide) WPL 2179855 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Control Box WPL 2174632 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2176346 Contact Us For Availability
13
Spacer, Handle WPL 1107628 Contact Us For Availability
13
Butter, Tray WPL 1125936 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
14
Insert, Handle (Black) WPL 2168996 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
End Cap, Handle WPL 1107236 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
16
Cover, Evaporator WPL 2183153 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
17
Trivet (2) WPL 2159292 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
18
Nameplate (Black) WPL 2168992 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171064 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
WPL 876029 WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI112008A Contact Us For Availability
21
Insert, Handle (White) WPL 2168898 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
21
Insert, Handle (Black) WPL 2169000 Contact Us For Availability
21
Door Reversal Instructions WPL 2179846 Contact Us For Availability
21
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
21
KIT, PORCELAIN REPAI WPL 799832 Contact Us For Availability
21
WPL 799833 WPL 799833 Contact Us For Availability
21
WPL 978883 WPL 978883 Contact Us For Availability
22
Slide, Knob WPL 2174633 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI112005A Contact Us For Availability
25
Freezer Floor WPL 2184410 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Holder, Beverage WPL 1125981 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
35
Light Fiber (2) WPL 2179921 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Black) WPL 2166189 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Grille (Black) WPL 2182434 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Housing Base WPL 2166269 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
40
PC Board, Freezer Light WPL 2166266 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
40
Cover-Hinge (Black) WPL 2176206 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2166281 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI112006A Contact Us For Availability
42
Wire Assy., Unit WPL 2182379 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2166280 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Freezer Light WPL 2166270 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
46
Wiring Harness, Freezer Light WPL 2166274 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
47
Shield, Electrical Heat WPL 2166273 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2179226 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179721 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
60
WPL 2172906 WPL 2172906 Contact Us For Availability
61
WPL 2176264 WPL 2176264 Contact Us For Availability
× ![]()
