Model Whirlpool KTRS20MAAL00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2154861 WPL LIT2154861 Contact Us For Availability

WPL LIT2161695 WPL LIT2161695 Contact Us For Availability

WPL LIT2168627 WPL LIT2168627 Contact Us For Availability

WPL LIT4361341 WPL LIT4361341 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

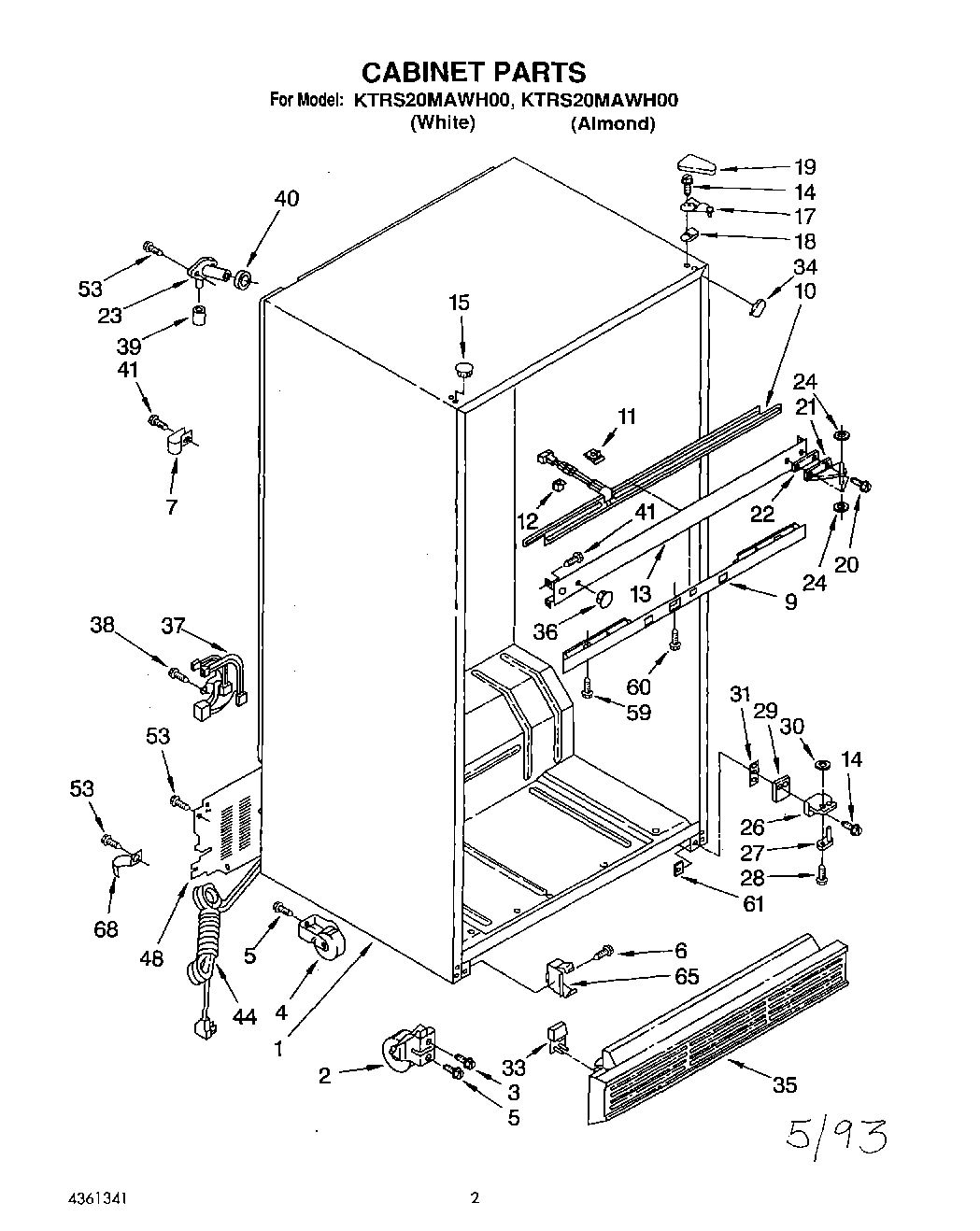

Cabinet (Not A Serviceable Part) WPL ARI111941A Contact Us For Availability

1

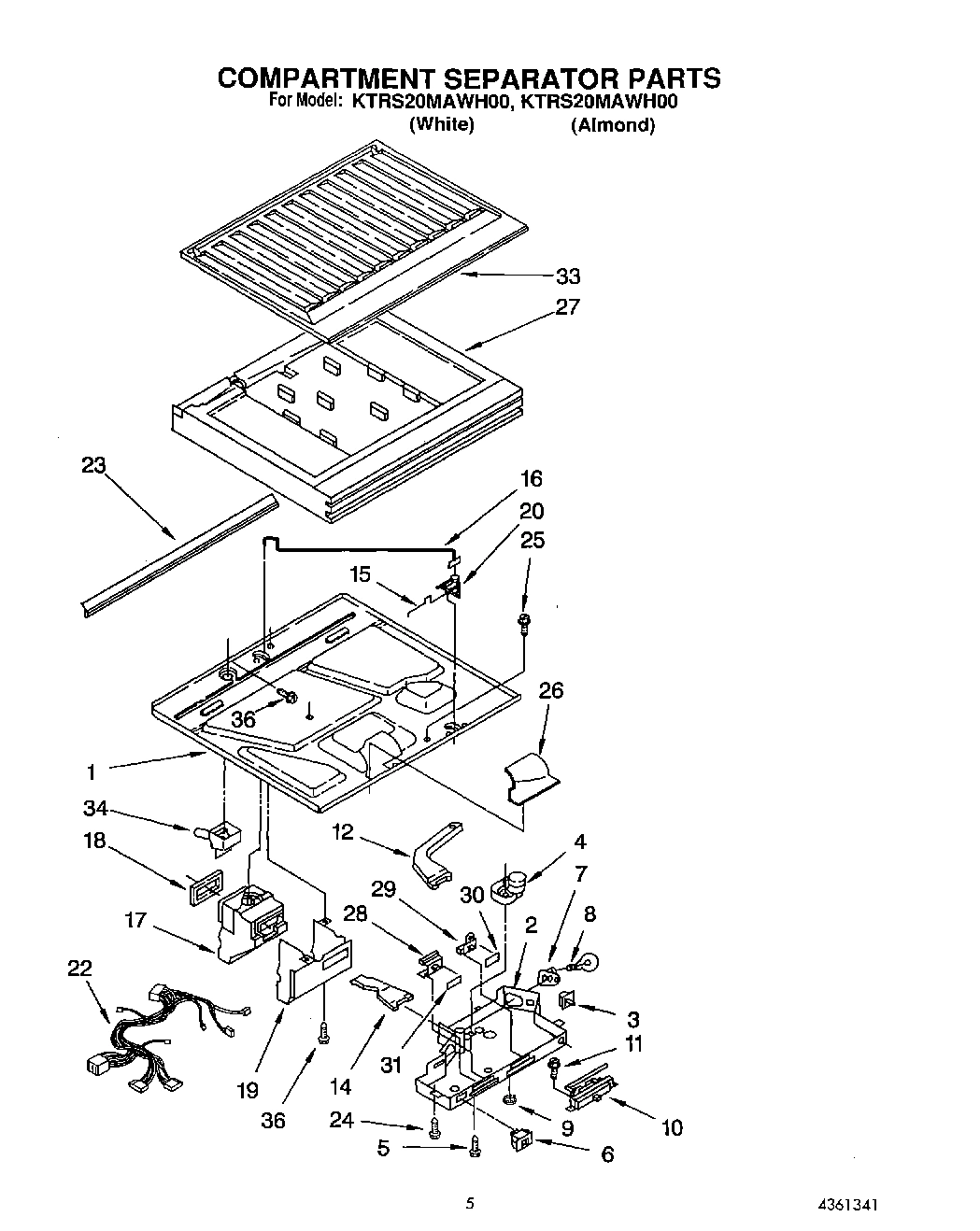

Bottom, Compartment Separator WPL 1125619 Contact Us For Availability

1

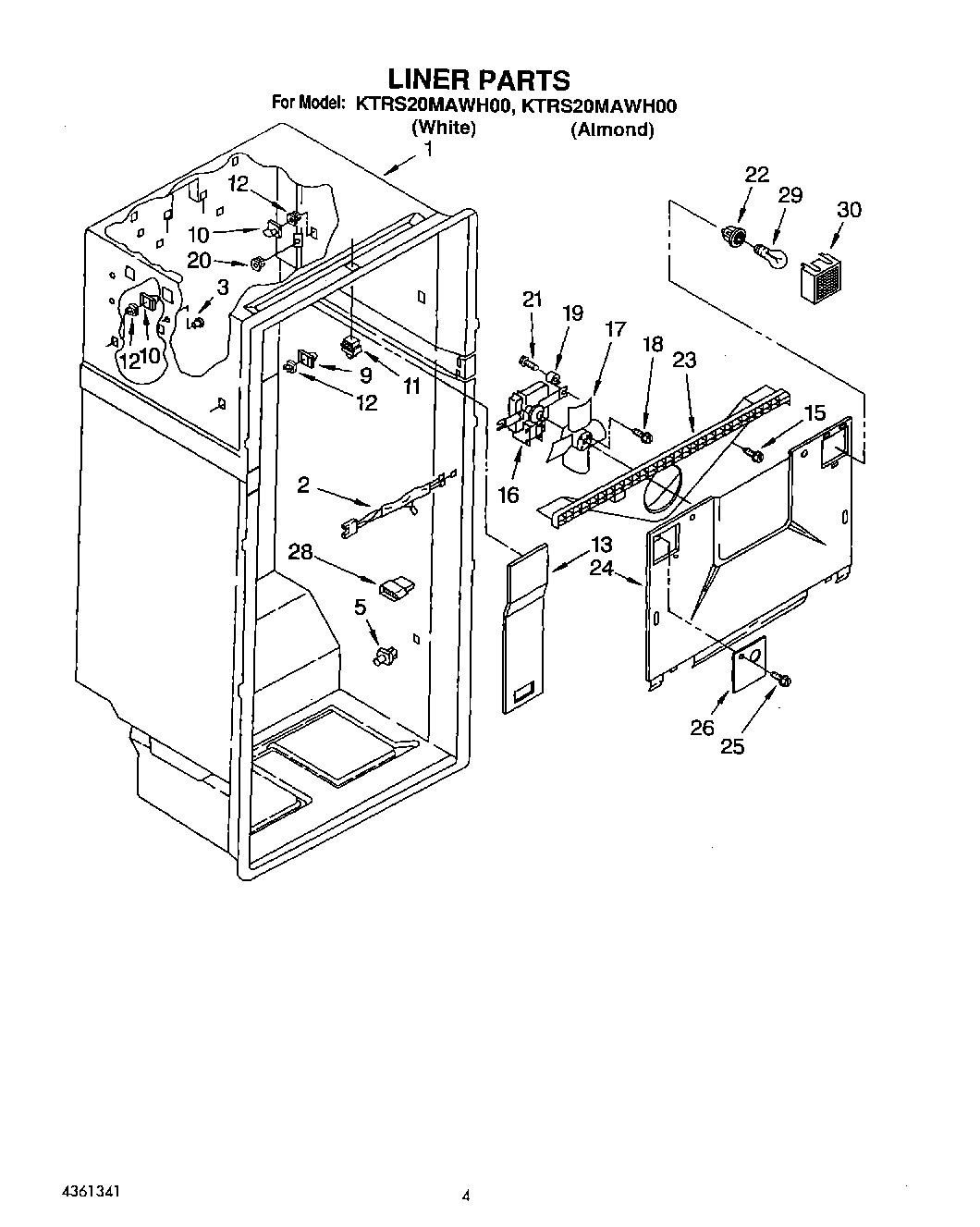

Liner (Not A Serviceable Part) WPL ARI111942A Contact Us For Availability

1

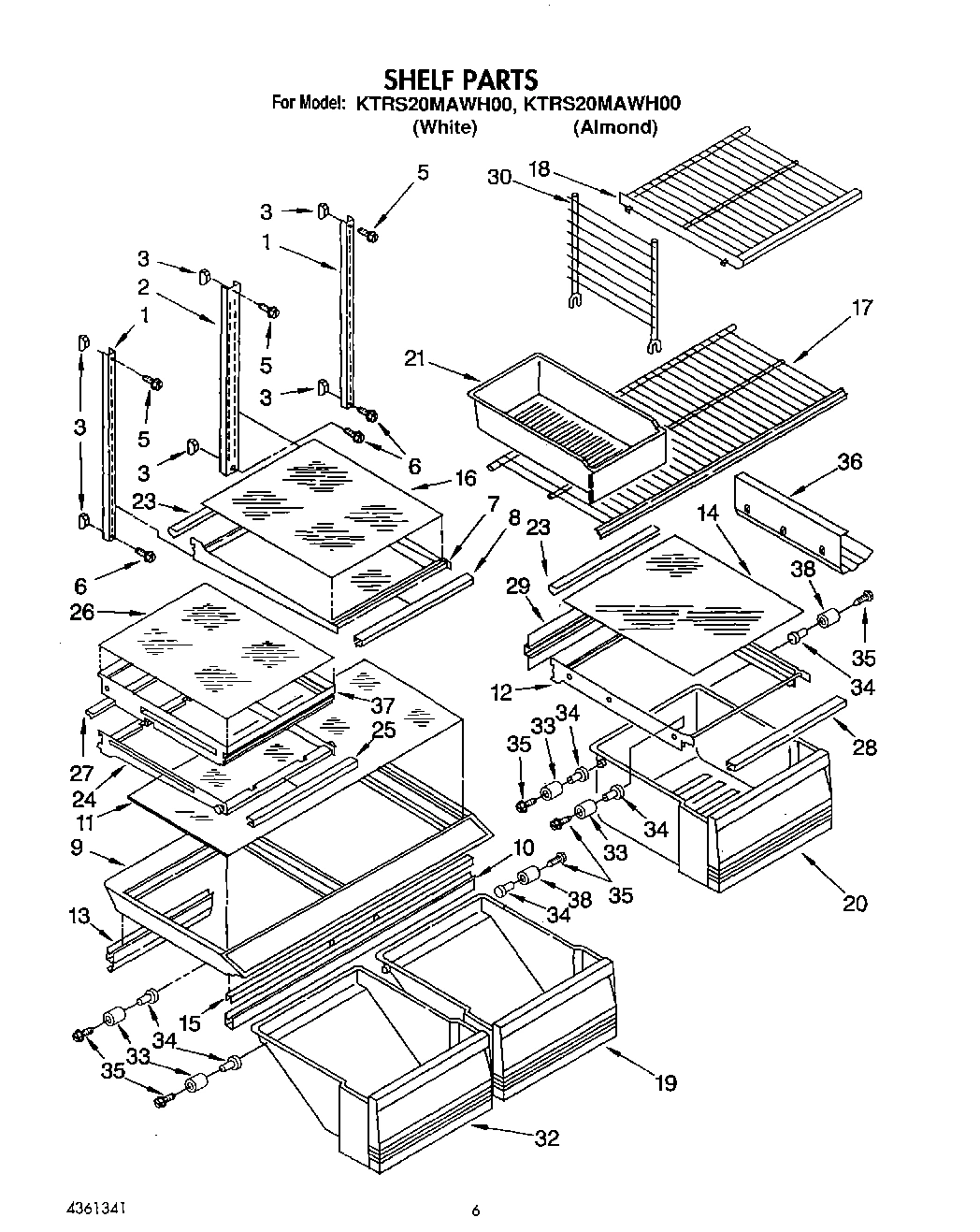

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 1125510 Contact Us For Availability

2

Fan, Blade WPL 851732 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

3

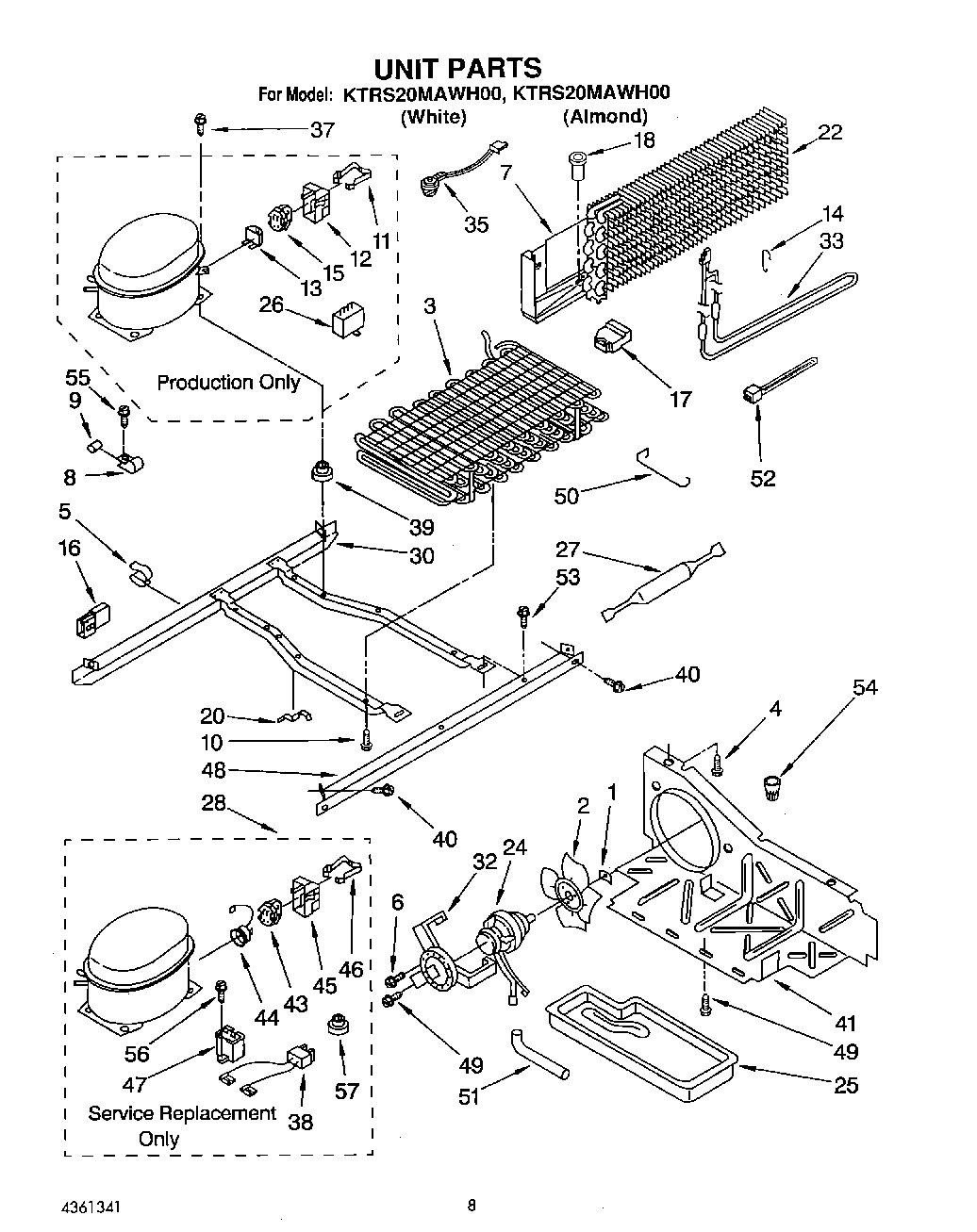

Condenser Assembly WPL 2154010 Contact Us For Availability

3

Grommet (4) WPL 1110779 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Timer, Defrost (10 Hour) WPL 2154982 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw (6) WPL 488454 Contact Us For Availability

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

5

Screw (3) WPL 489345 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

Switch, Toggle WPL 1125964 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

7

Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability

7

Shelf, Cantilever (2) WPL 1125624 Contact Us For Availability

8

Tube Clamp WPL 2159720 Contact Us For Availability

8

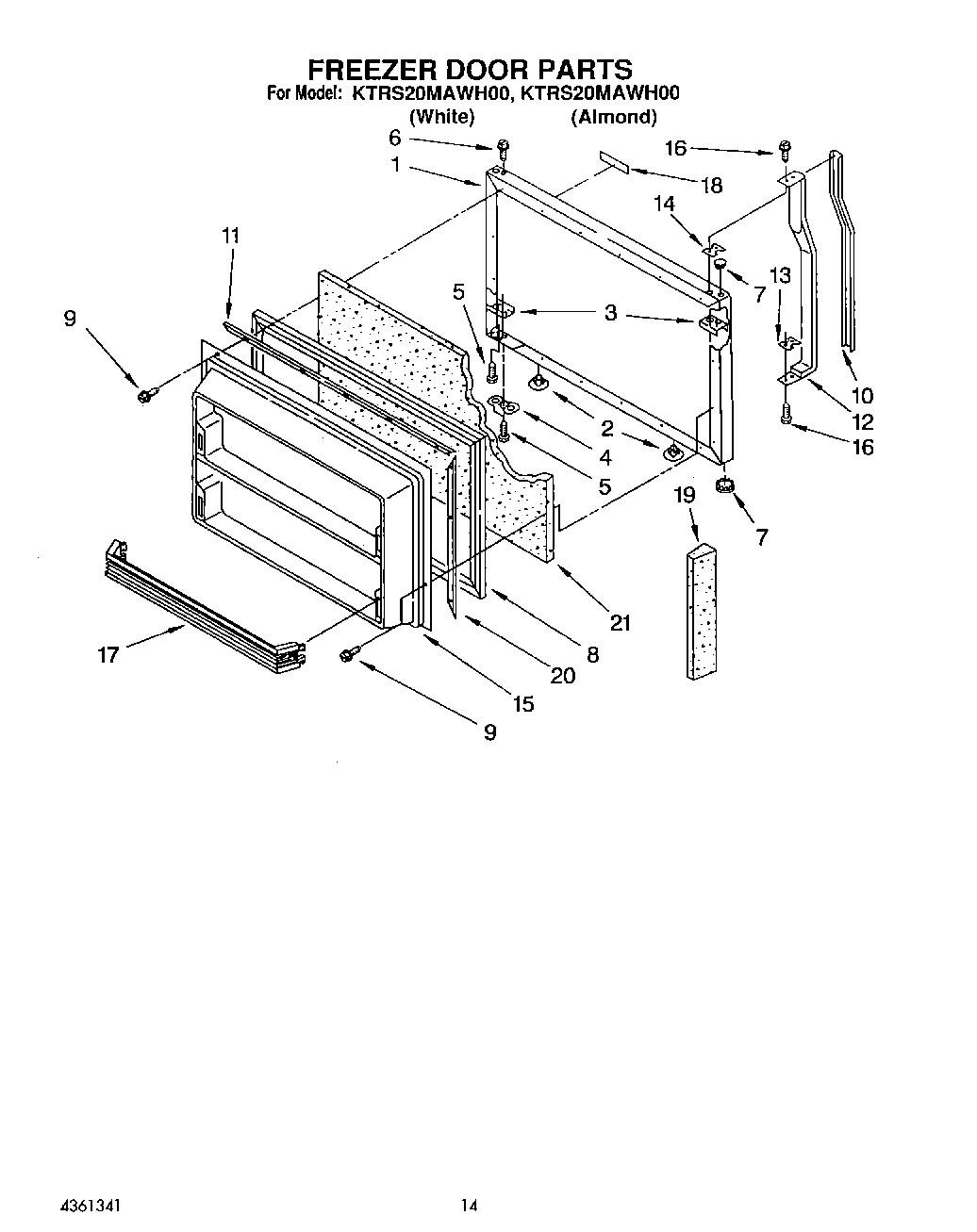

Gasket (Front) WPL 1125782 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

Control, Front Cover WPL 1126139 Contact Us For Availability

9

Dampener WPL 2149670 Contact Us For Availability

9

Stud (3) WPL 946356 Contact Us For Availability

9

Pan Cover & Roller Assembly WPL 2161766 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $13.89

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

Heater, Mullion WPL 2154065 Contact Us For Availability

Thermostat Assembly WPL 2161674 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Clip, Center Rail (4) WPL 1129018 Contact Us For Availability

Glass, Pan Cover WPL 1125531 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Light Pipe (R.S.) WPL 1125511 Contact Us For Availability

Support, Stud (6) WPL 946355 Contact Us For Availability

Pan Shelf & Roller Assembly WPL 2161759 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

Center Rail (White) WPL 1122566 Contact Us For Availability

Center Rail (Almond) WPL 1122569 Contact Us For Availability

Tube, Water Inlet WPL 939027 Contact Us For Availability

Cover, Air Duct WPL 2157410 Contact Us For Availability

Gasket, Pan Cover (Rear) (2) WPL 1125529 Contact Us For Availability

Spacer, Handle WPL 1107628 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Light Pipe (L.S.) WPL 1125512 Contact Us For Availability

Support, Heater WPL 2149120 Contact Us For Availability

Glass, Shelf WPL 1125632 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

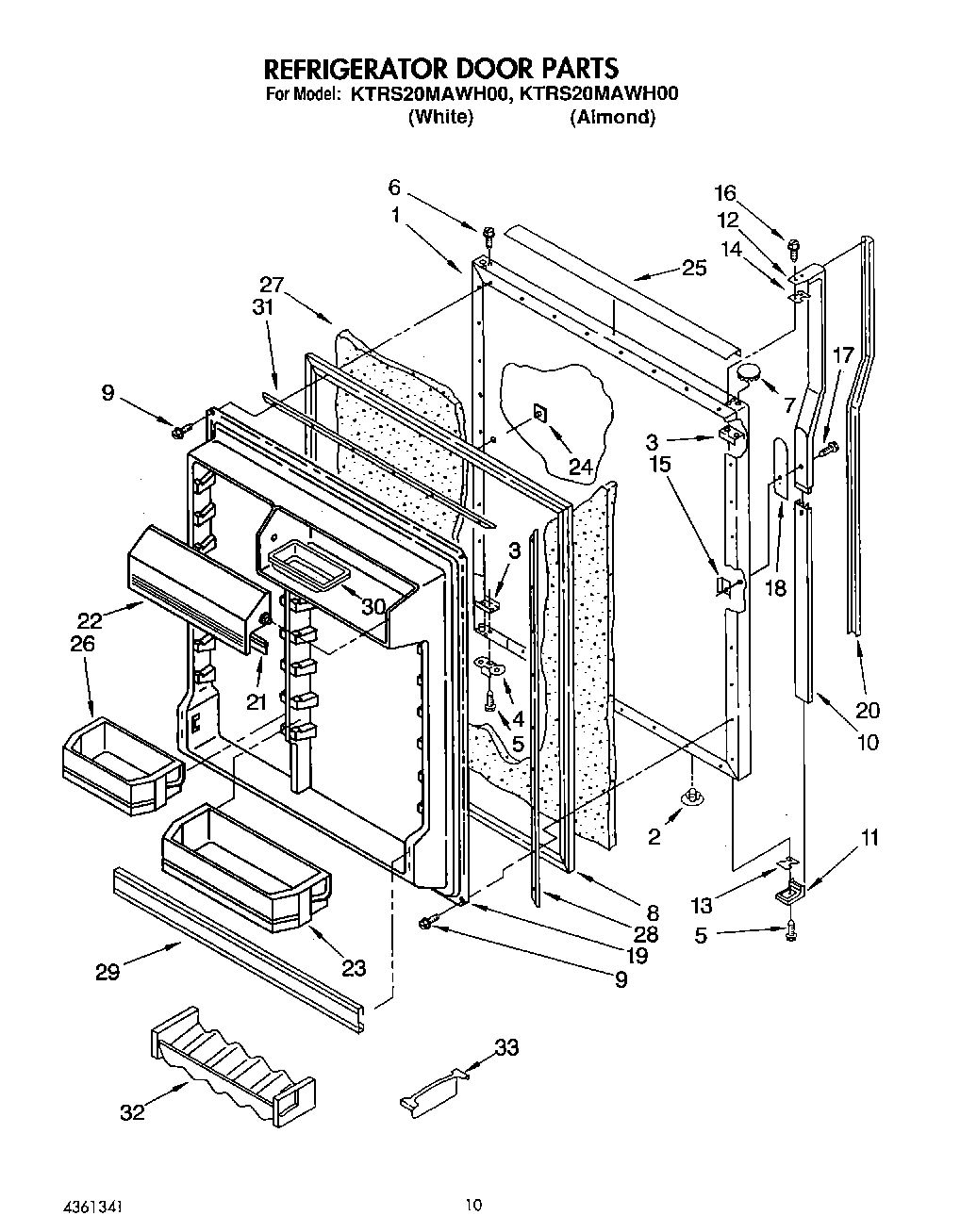

Interior Door Panel WPL 1117940 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Connecting Rod, Short WPL 1125515 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Rod, Connecting WPL 1126148 Contact Us For Availability

Clamp Tube WPL 510716 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

Glass, Shelf WPL 1125625 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $39.86

Shelf Bin (2) WPL 1125557 Contact Us For Availability

Air Diffuser Assembly WPL 2159698 Contact Us For Availability

Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability

Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability

Shelf, Freezer WPL 1125540 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Nameplate WPL 1125818 Contact Us For Availability

Shim, Hinge Top WPL 1123517 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Drain Fitting WPL 981629 Contact Us For Availability

Shelf, Freezer WPL 1125541 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Dike-Door WPL 1125577 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1125941 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Crisper Pan & Roller Assembly WPL 2161722 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

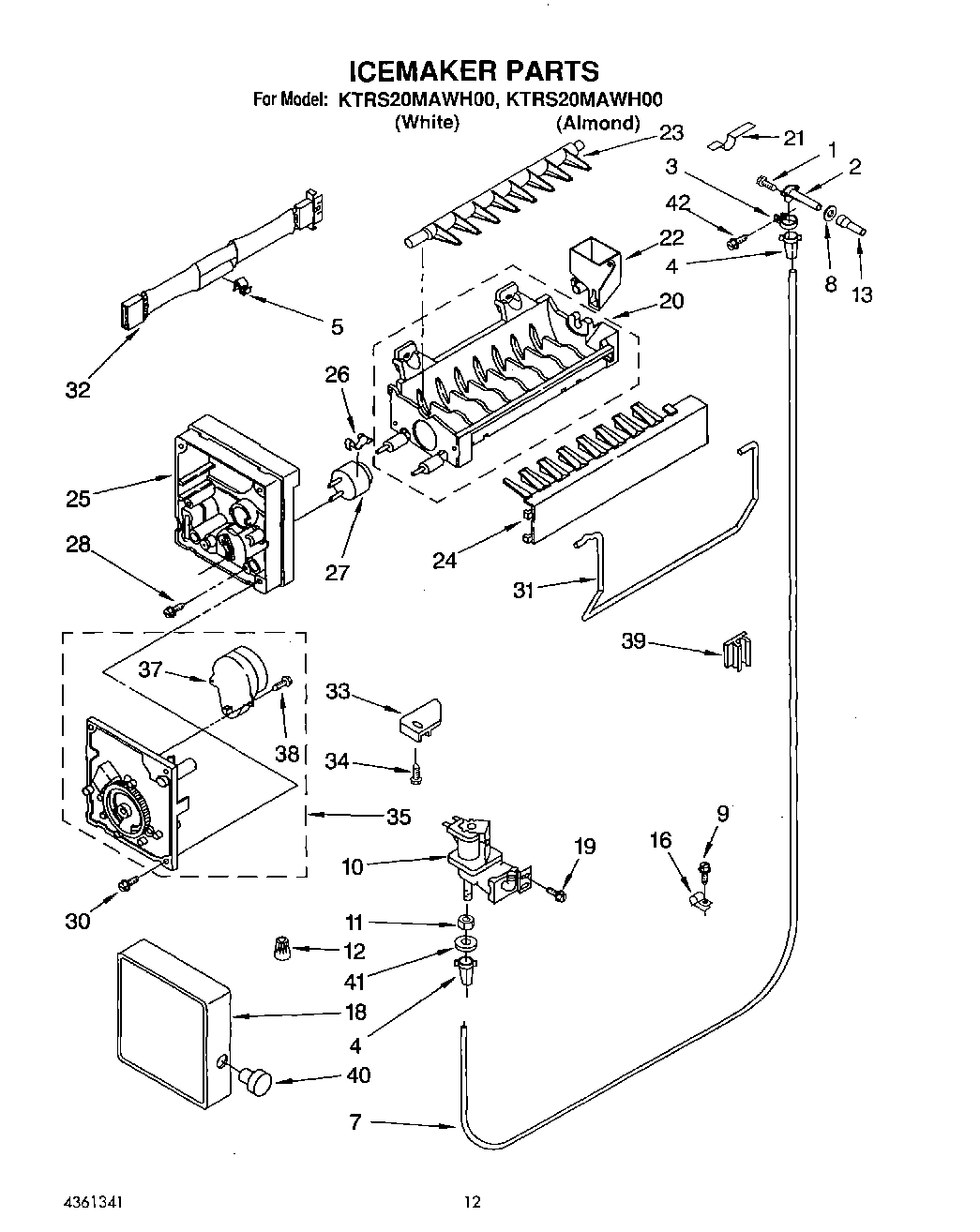

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Retainer, Gasket WPL 1122553 Contact Us For Availability

Pivot Arm WPL 1125581 Contact Us For Availability

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

Grommet (2) WPL 848445 Contact Us For Availability

Meat Pan & Roller Assembly WPL 2161752 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $25.46

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Hinge, Center WPL 2147335 Contact Us For Availability

Clip WPL 652604 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Evaporator WPL 2153978 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Gasket, Bottom Separator WPL 2159684 Contact Us For Availability

Scroll, Fan WPL 2160644 Contact Us For Availability

Retainer, Shelf WPL 1110744 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

Evaporator Cover WPL 2157427 Contact Us For Availability

Frame & Roller Assembly WPL 2161803 Contact Us For Availability

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Gasket (Front) WPL 2161684 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Hinge Butt, Bottom WPL 2148563 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Capacitor, Run WPL 2154565 Contact Us For Availability

Glass Shelf WPL 2161680 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

Reflector WPL 2161807 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $276.71

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Slide, Thermostat WPL 1125513 Contact Us For Availability

Gasket, Front WPL 1125576 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

Shim, Bottom WPL 1123379 Contact Us For Availability

Slide, Air Control WPL 1125578 Contact Us For Availability

Gasket, Rear WPL 1125815 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Window, Air Control WPL 1125579 Contact Us For Availability

Unit Mounting Frame WPL 1127942 Contact Us For Availability

Light Lens WPL 981365 Contact Us For Availability

Divider WPL 1125542 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

31

Spacer WPL 1121117 Contact Us For Availability

31

Window, Thermostat WPL 1125580 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

32

Utility Pan Roller Assembly WPL 2161753 Contact Us For Availability

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

Heater, Defrost WPL 2162019 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability

Eyelet, Roller WPL 1112308 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Grille (White) WPL 1125663 Contact Us For Availability

Grille (Almond) WPL 1125667 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

36

Wine & Egg Rack WPL 1125913 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

37

Frame & Roller Assembly Movable WPL 2161703 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Roller WPL 2161750 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

39

W11501419 Whirlpool Refrigerator Clip Backorder WPL W11501419 $4.19

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Knob, Water Adjust WPL 1125891 Contact Us For Availability

41

``O`` Ring WPL 488794 Contact Us For Availability

41

Air, Baffle WPL 1127938 Contact Us For Availability

42

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $53.03

44

Cord, Service WPL 937360 Contact Us For Availability

44

Overload WPL 1108114 Contact Us For Availability

45

Cover WPL 1108115 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

47

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

48

Cover, Unit WPL 1105531 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

Drain Extension WPL 2154119 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
