Model Whirlpool KTRS19KKBT00 REFRIGERATOR – Common Parts & Diagrams
02 - LINER
04 - REFRIGERATOR DOOR

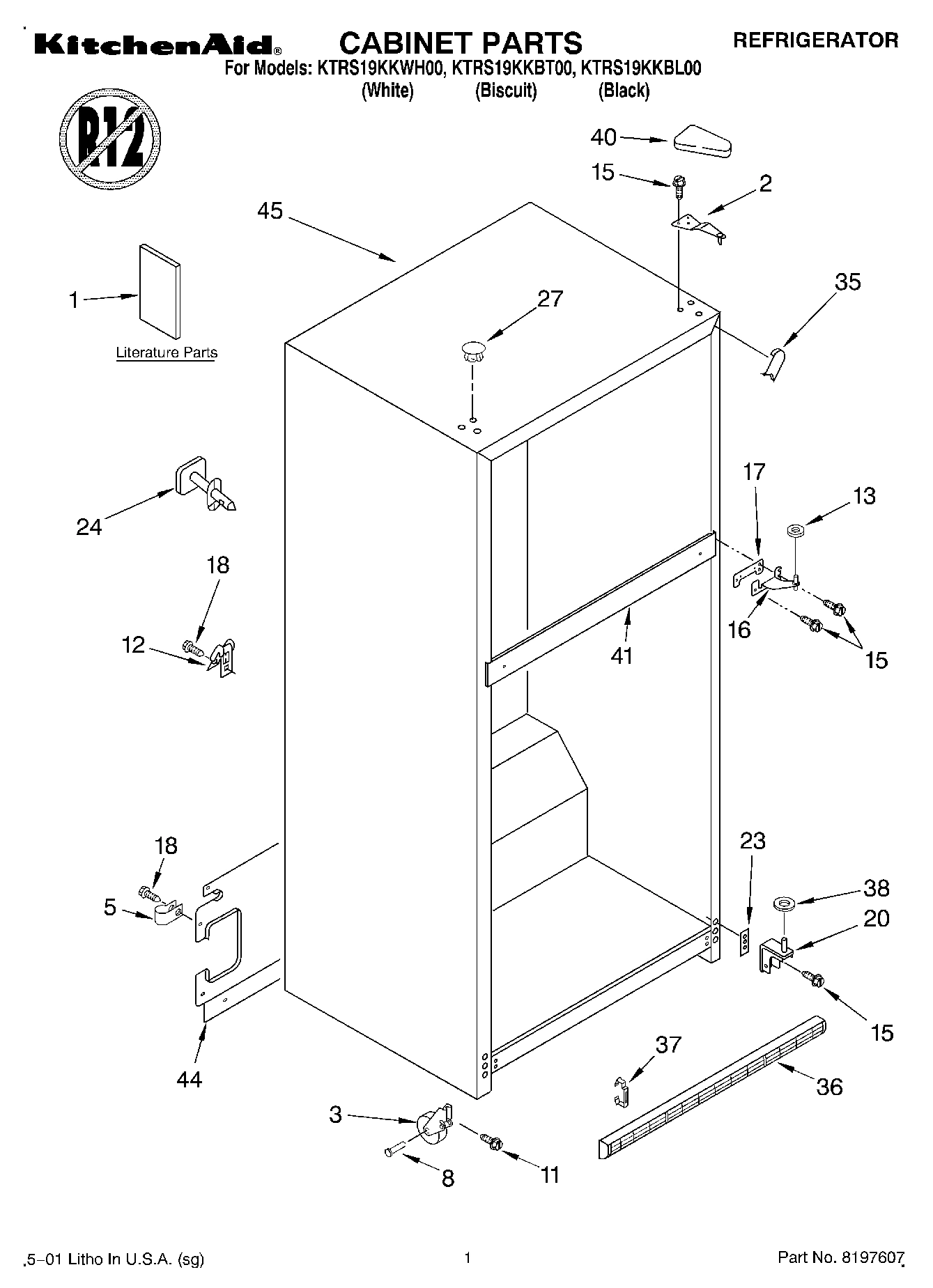

01 - CABINET, LITERATURE

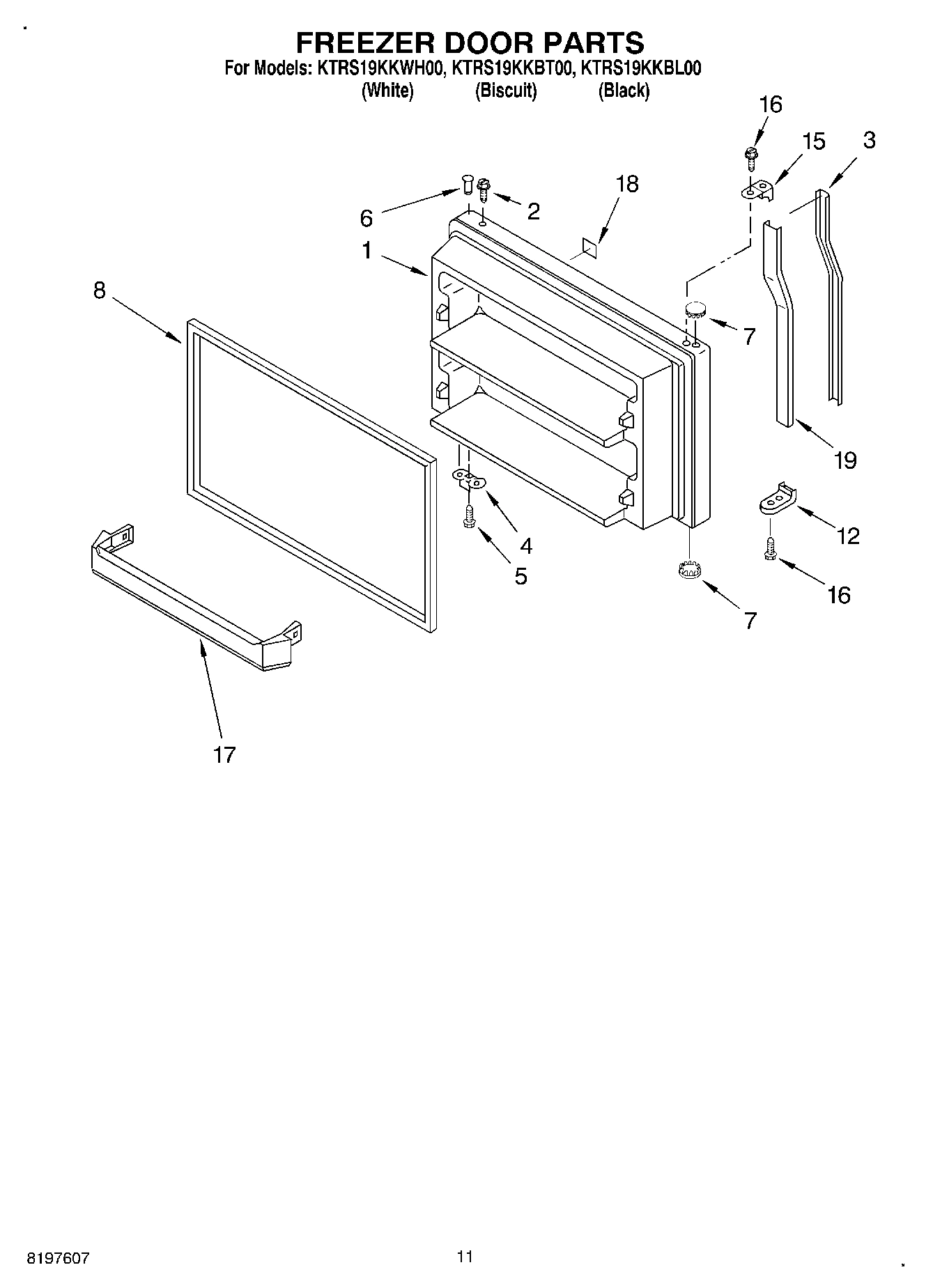

06 - FREEZER DOOR, OPTIONAL

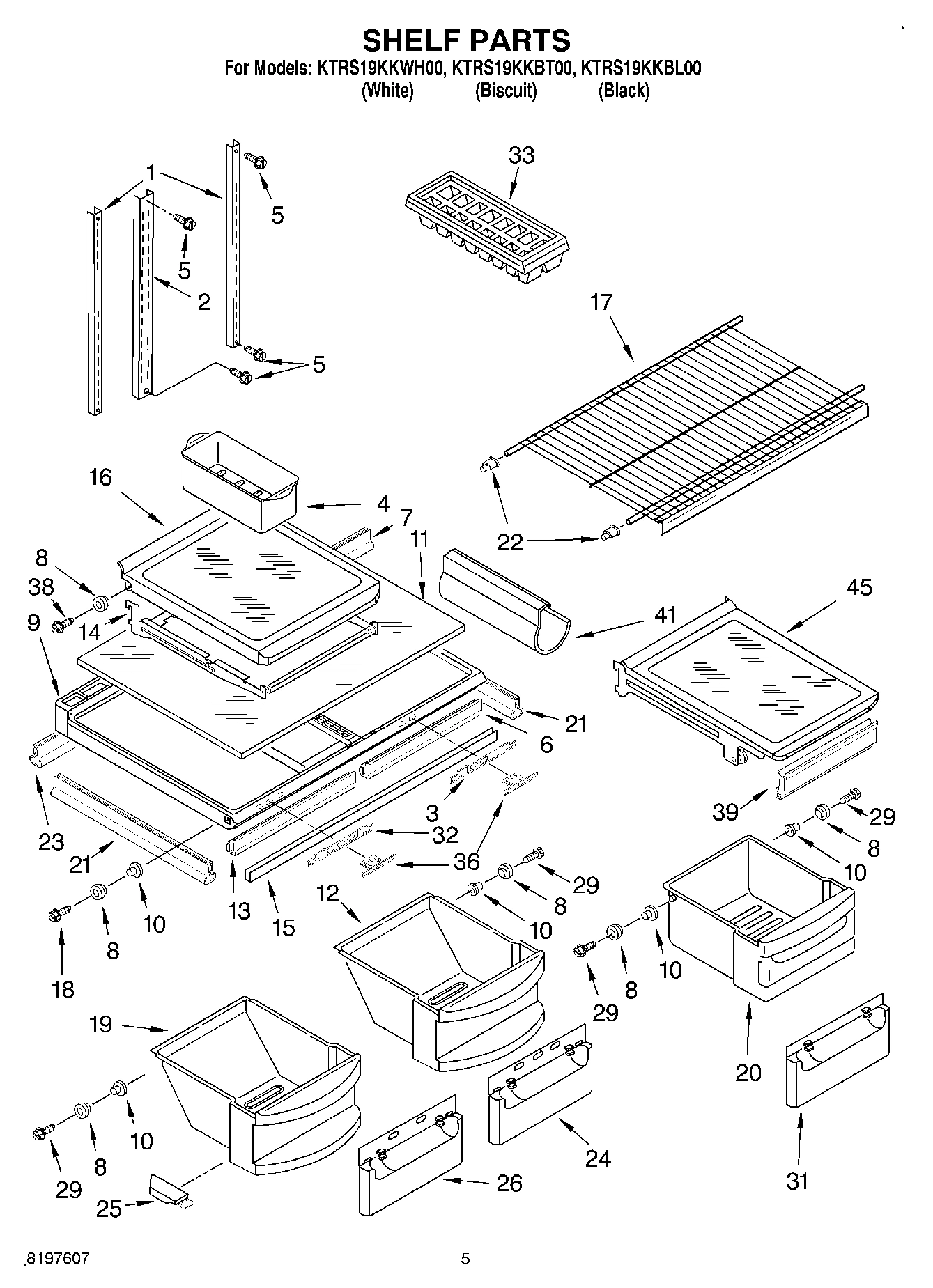

03 - SHELF

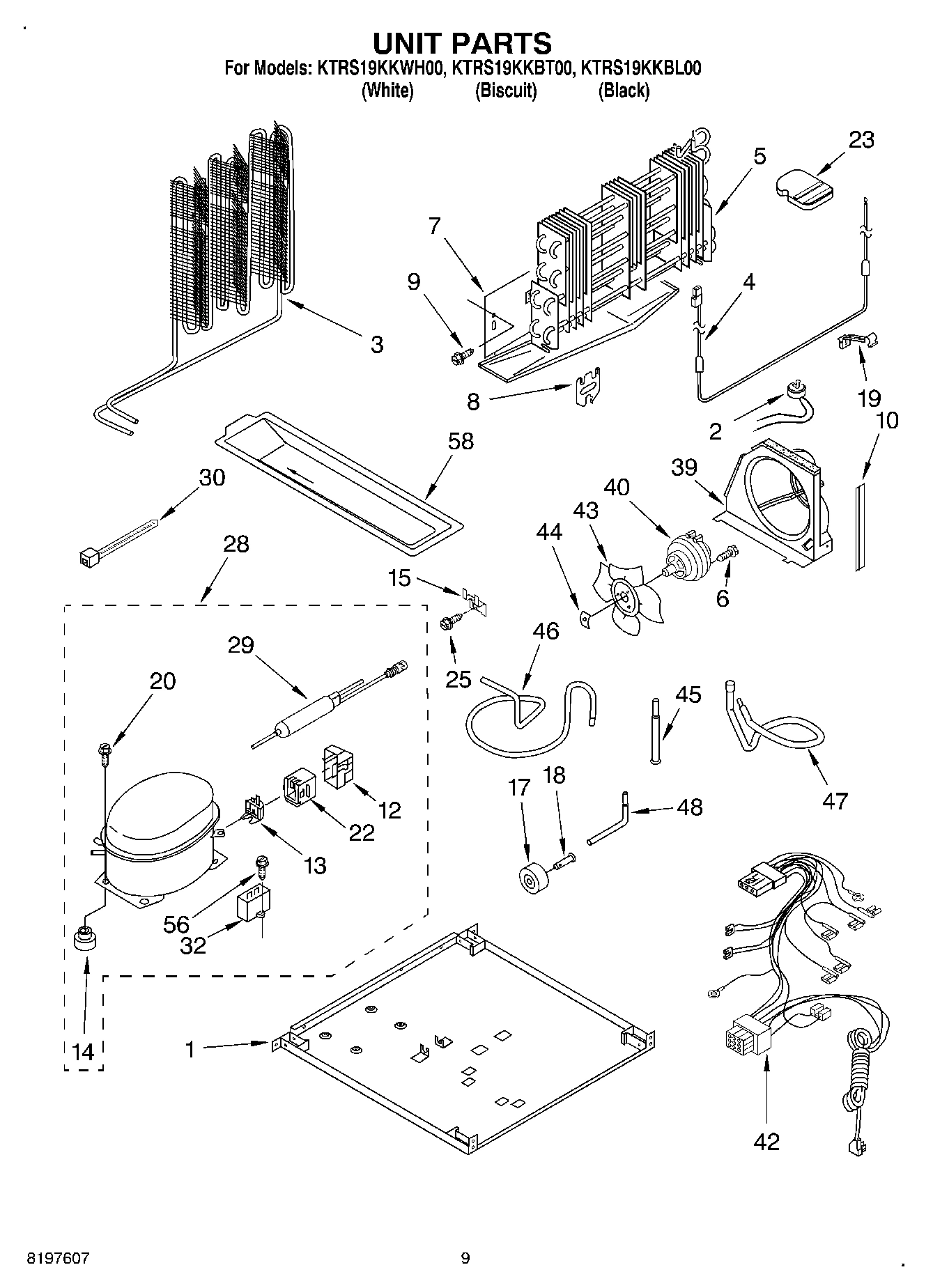

05 - UNIT
Common parts from model Whirlpool KTRS19KKBT00 REFRIGERATOR
1
Freezer Door (White) WPL 2183860 Contact Us For Availability
1
Freezer Door (Black (Includes No.6 & No.8)) WPL 2200620 Contact Us For Availability
1
Freezer Door (Biscuit) WPL 2205130 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Plate, Unit Mounting WPL 2205341 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
3
Insert, Handle (Black) WPL 2188154 Contact Us For Availability
3
Insert, Handle (White) WPL 2195984 Contact Us For Availability
3
Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Roller & Tread Assembly WPL 2188212 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
12
End Cap (Black) WPL 2195995B Contact Us For Availability
12
Endcap (Biscuit) WPL 2195995T Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2188285 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
End Cap (Black) WPL 2195994B Contact Us For Availability
15
Endcap (Biscuit) WPL 2195994T Contact Us For Availability
15
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
17
Trim, Door (2) WPL 2159291 Contact Us For Availability
18
Nameplate (White) WPL 2212760 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2212761 Contact Us For Availability
18
Nameplate (Black) WPL 2212762 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
WPL 876029 WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
WPL 799344 WPL 799344 Contact Us For Availability
19
Torx Key WPL 1117510 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Insert, Retainer (Black) WPL 2195992B Contact Us For Availability
19
Insert, Retainer (Biscuit) WPL 2195992T Contact Us For Availability
19
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
19
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
19
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
19
WPL 799340 WPL 799340 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 799833 WPL 799833 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188290 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Window, Crisper Pan WPL 2188271 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability
26
Window, Crisper Pan WPL 2188276 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
31
Window, Meat Pan WPL 2188277 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111633A Contact Us For Availability
42
Wire Assy. Unit WPL 2187358 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2202883 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
47
Tube, Suction WPL 2219514 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
