Model Whirlpool KTRS19KJWH01 REFRIGERATOR – Common Parts & Diagrams

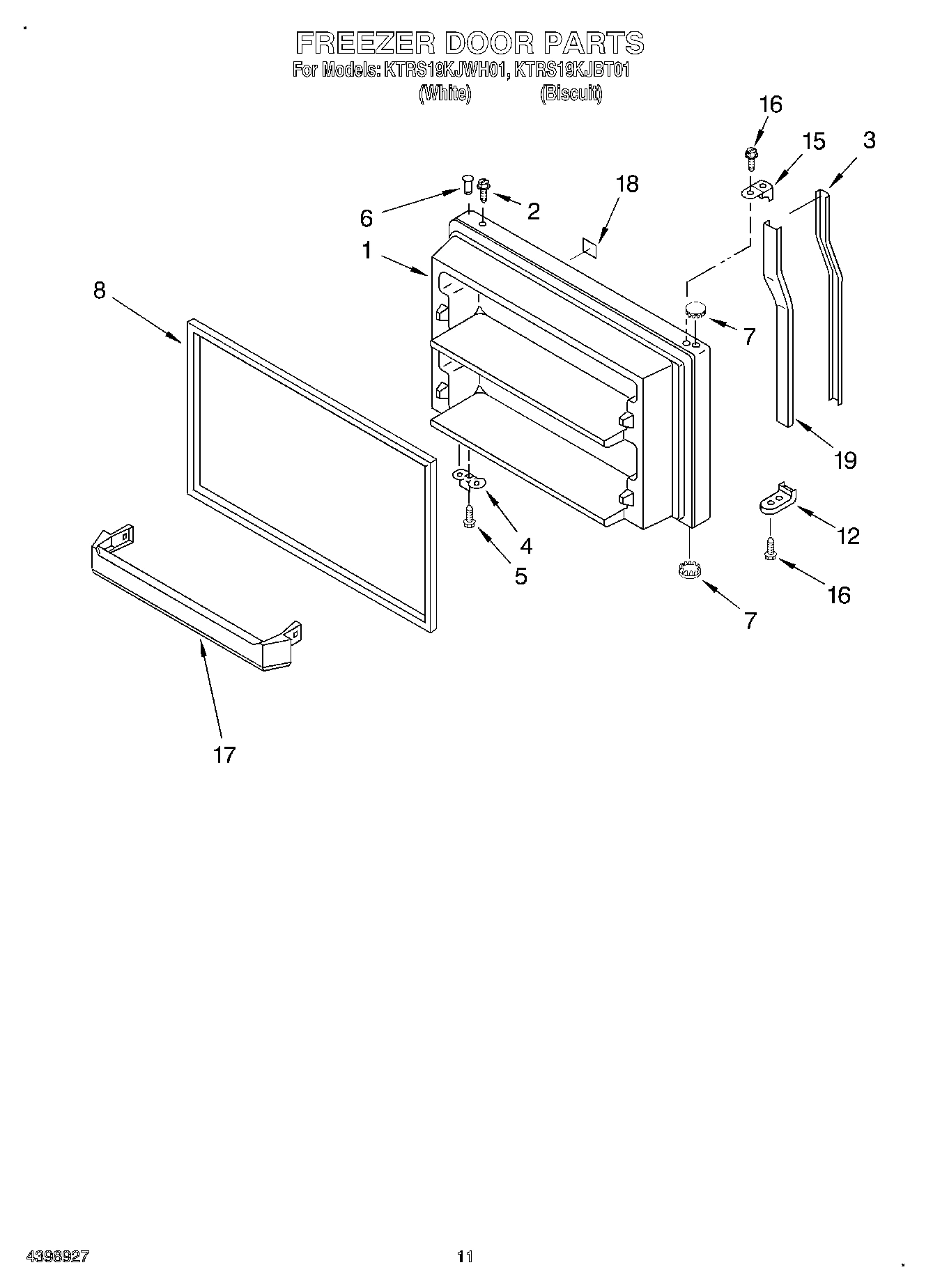

06 - FREEZER DOOR, OPTIONAL

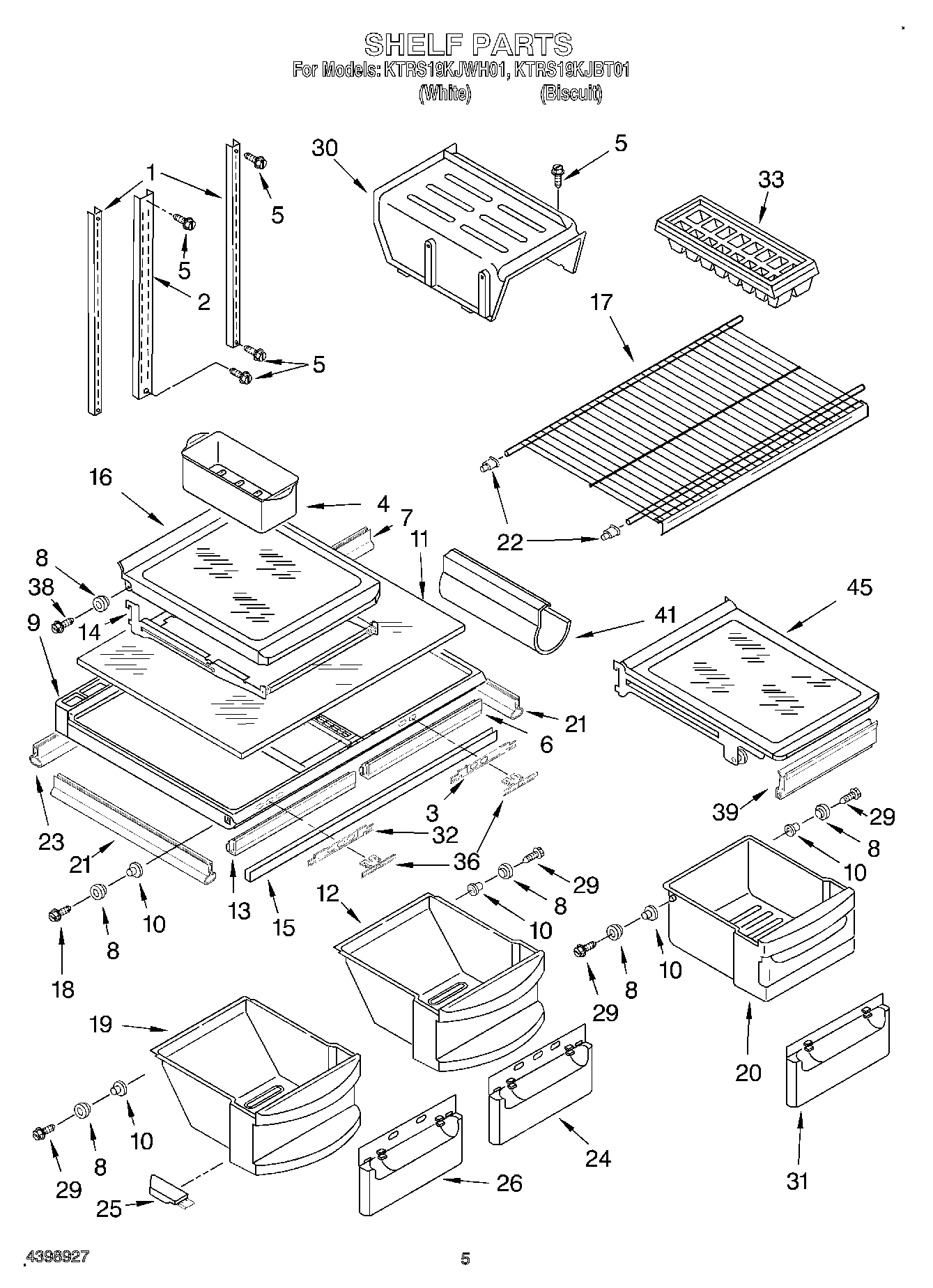

03 - SHELF
04 - REFRIGERATOR DOOR
01 - CABINET, LITERATURE
02 - LINER
05 - UNIT
Common parts from model Whirlpool KTRS19KJWH01 REFRIGERATOR
1
Energy Label WPL LIT2212801 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI111605A Contact Us For Availability
1
Plate, Unit Mounting WPL 2205341 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Cover, Water Valve WPL 2166251 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Thermostat Tube Barrier WPL 2212485 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187306 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
12
Control Box WPL 2212461 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2204984 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
16
Cover-Evaporator WPL 2201173 Contact Us For Availability
16
Cover, Unit WPL 2214857 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
WPL 876029 WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
Torx Key WPL 1117510 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2187301 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111606A Contact Us For Availability
22
Knob, Thermostat WPL 2205094 Contact Us For Availability
22
Start-Device Combination (Start Relay for Ove WPL 2188389 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111603A Contact Us For Availability
25
Freezer Floor WPL 2204746 Contact Us For Availability
26
Air Diffuser, Top WPL 2179878 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
34
Air Damper WPL 2212413 Contact Us For Availability
35
Shield, heat WPL 2204639 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Knob, Damper WPL 2204951 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111604A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2187341 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200777 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
46
Tube, Discharge WPL 2205384 Contact Us For Availability
47
Tube, Suction WPL 2205385 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2200946 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
