Model Whirlpool KTRS19KJBT00 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
04 - REFRIGERATOR DOOR

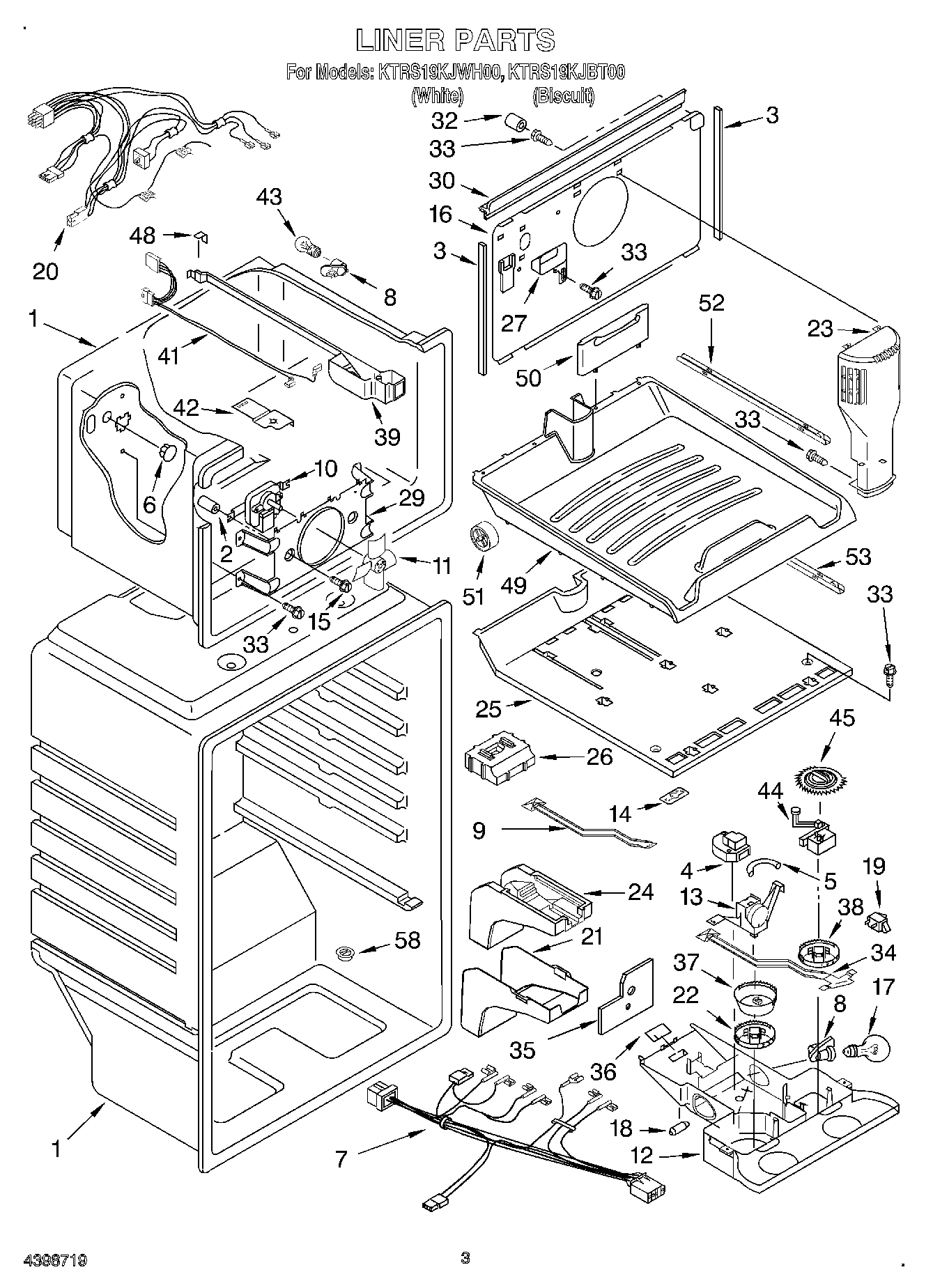

02 - LINER

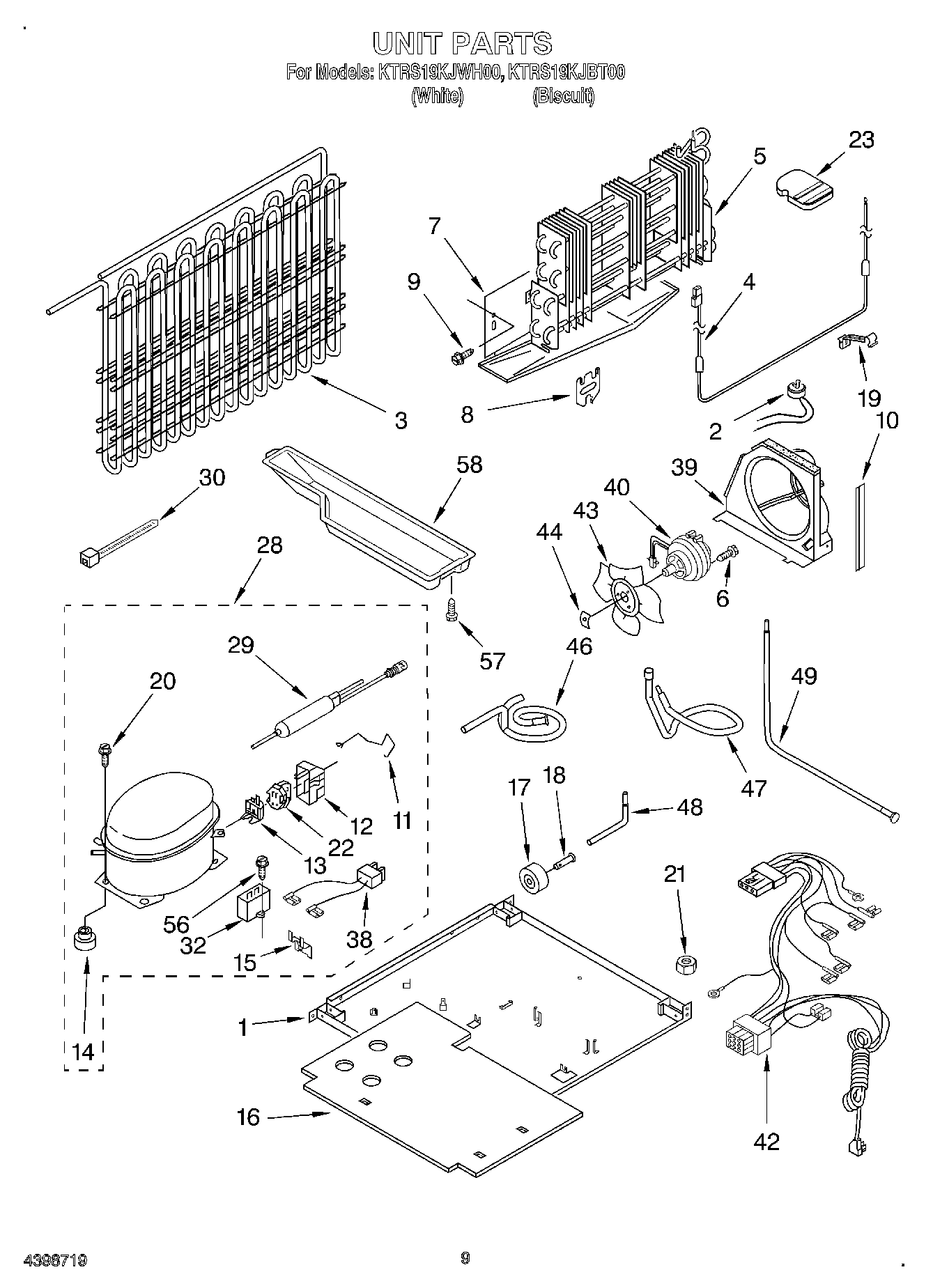

05 - UNIT

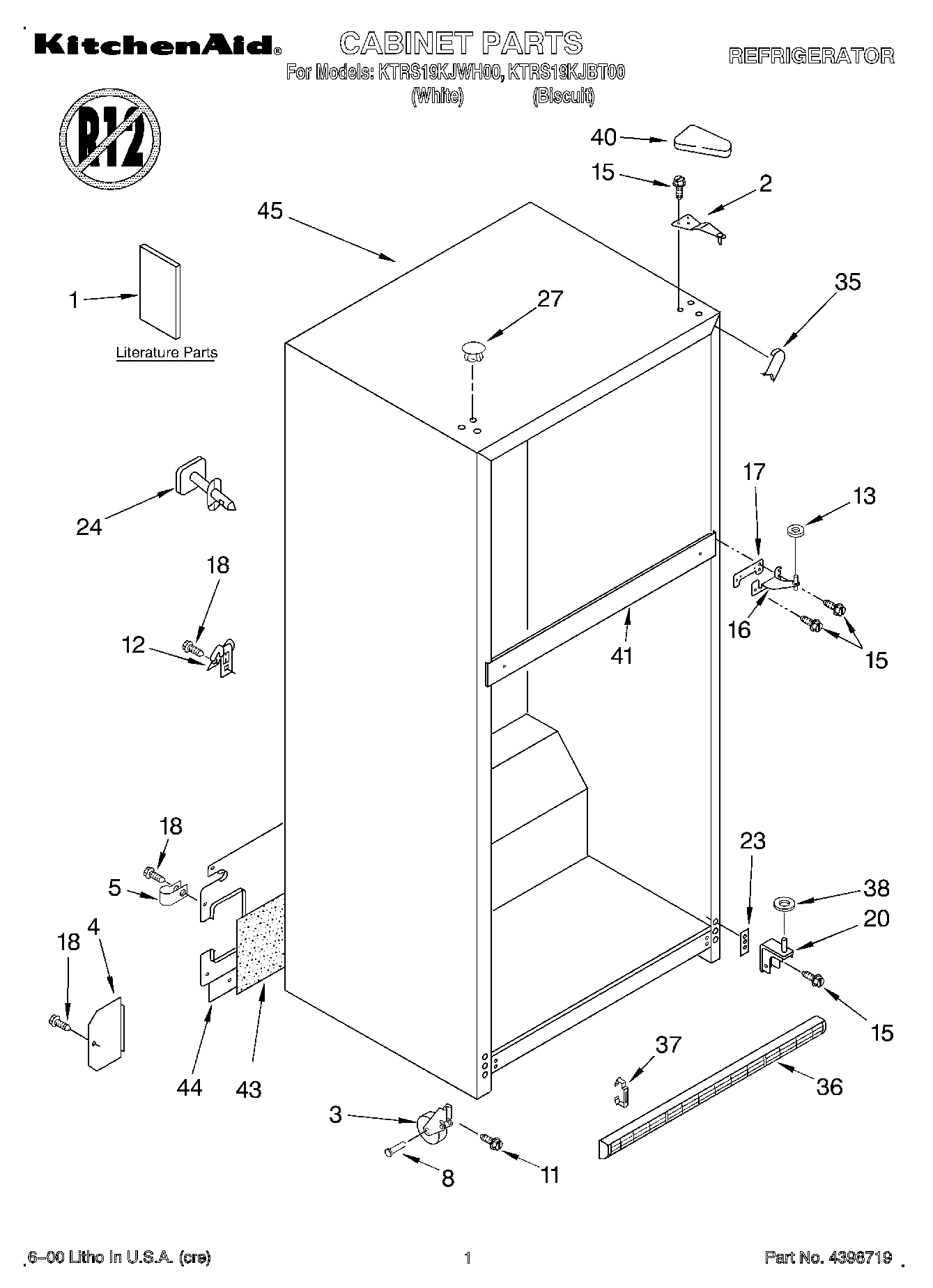

01 - CABINET, LITERATURE

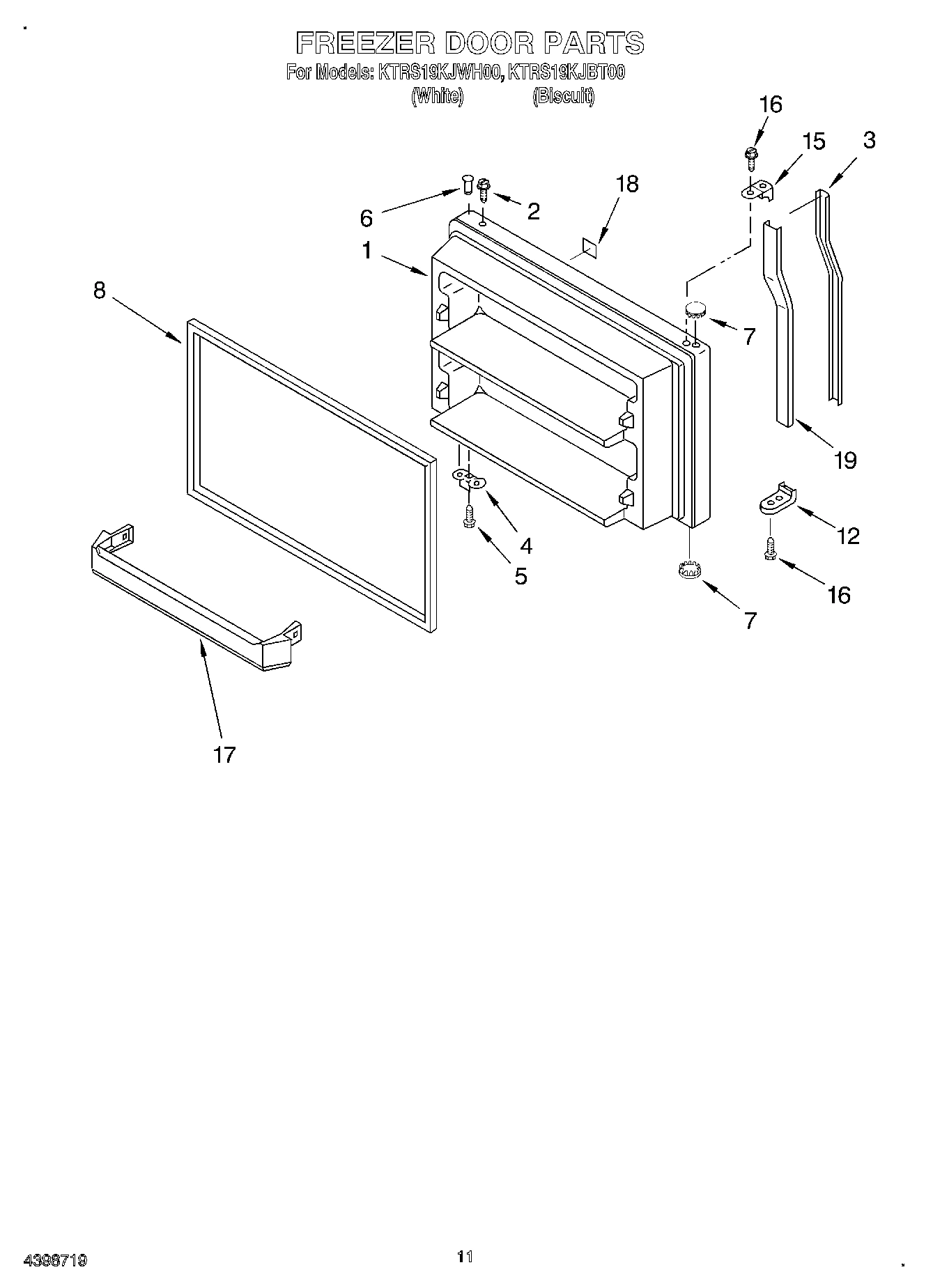

06 - FREEZER DOOR, OPTIONAL
Common parts from model Whirlpool KTRS19KJBT00 REFRIGERATOR
1
Plate, Unit Mounting WPL 2201161 Contact Us For Availability
1
Service & Wiring Sheet WPL LIT2201079 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2205264 Contact Us For Availability
1
Energy Label WPL LIT2212448 Contact Us For Availability
1
Freezer Door (White) WPL 2183860 Contact Us For Availability
1
Freezer Door (Biscuit (Includes No.6 & No.8)) WPL 2205130 Contact Us For Availability
3
Condenser WPL 2205471 Contact Us For Availability
3
Insert, Handle (White) WPL 2195984 Contact Us For Availability
3
Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability
4
Cover, Water Valve WPL 2166251 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
12
Endcap (Biscuit) WPL 2195995T Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
15
Endcap (Biscuit) WPL 2195994T Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
17
Trim, Door (2) WPL 2159291 Contact Us For Availability
18
Nameplate (White) WPL 2205367 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2205368 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
WPL 876029 WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
PAINT, BUL WPL 799344 Contact Us For Availability
19
Torx Key WPL 1117510 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Insert, Retainer (Biscuit) WPL 2195992T Contact Us For Availability
19
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
19
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
19
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
19
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 799833 WPL 799833 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111594A Contact Us For Availability
22
Relay (Production (Service - See Overload)) WPL 2176805 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111591A Contact Us For Availability
26
Air Diffuser, Top WPL 2200793 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Knob, Damper WPL 2204951 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111592A Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2200628 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200777 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2201045 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
