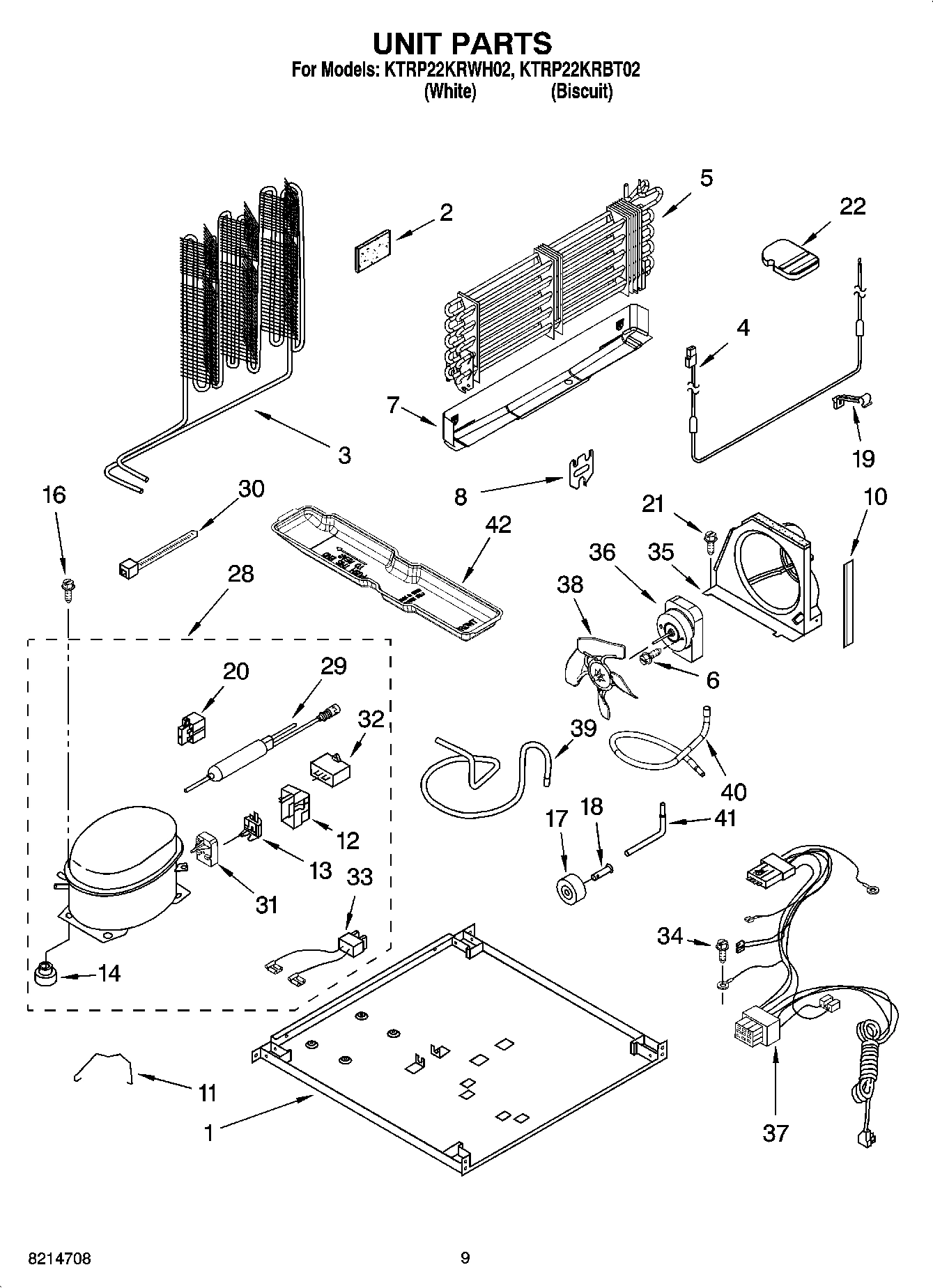

Model Whirlpool KTRP22KRWH02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

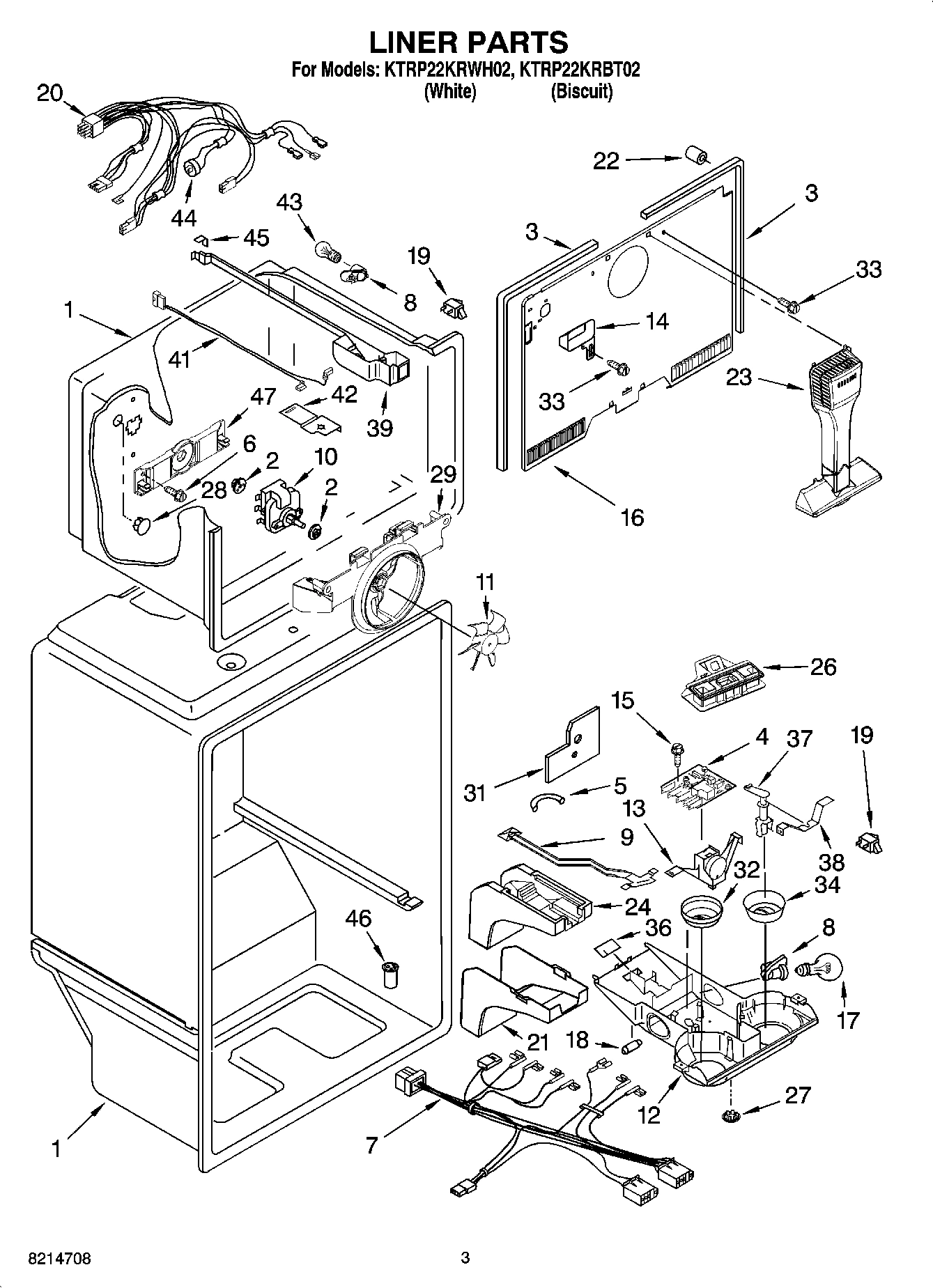

Liner (Not A Serviceable Part) WPL ARI111495A Contact Us For Availability

1

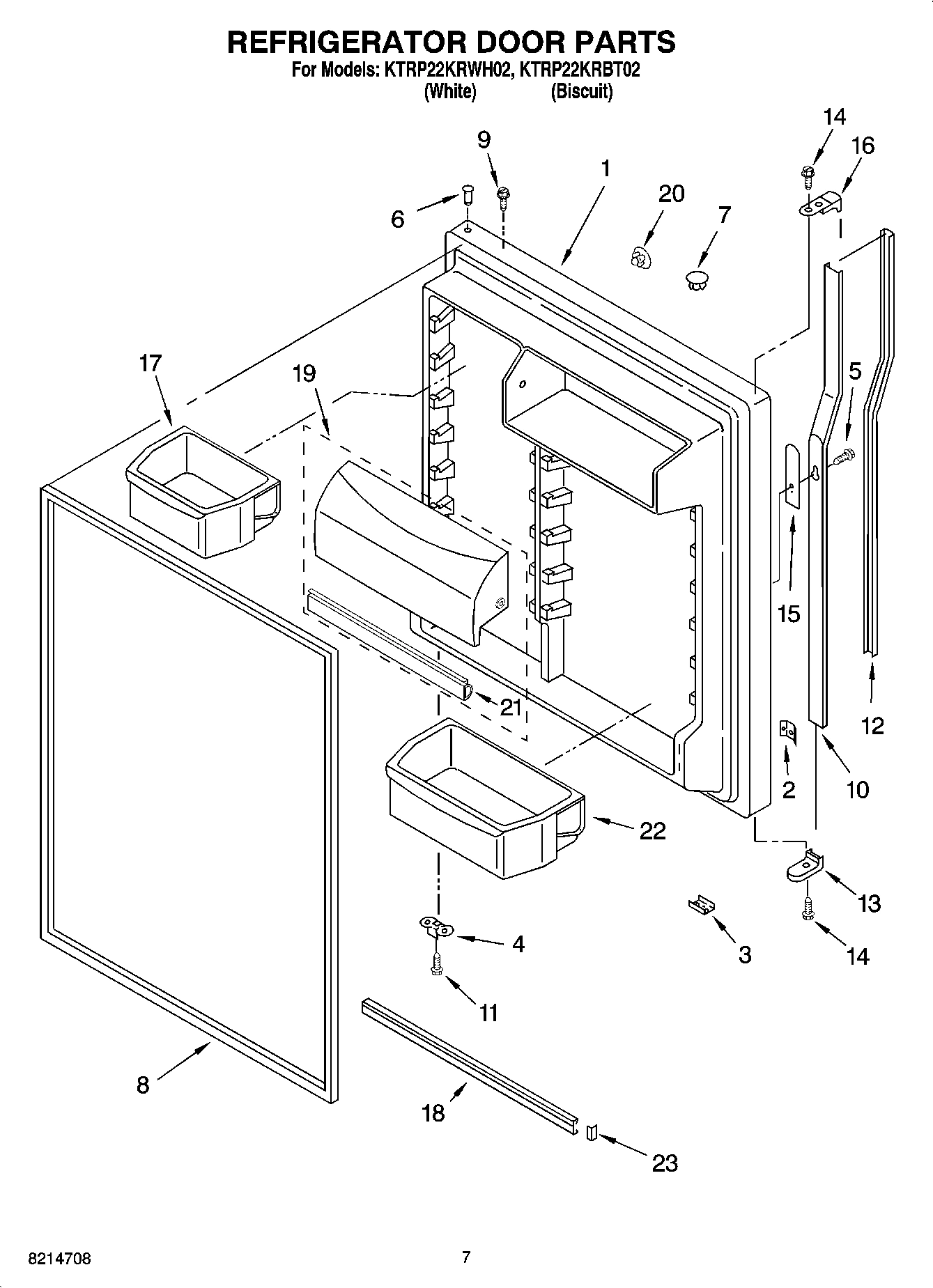

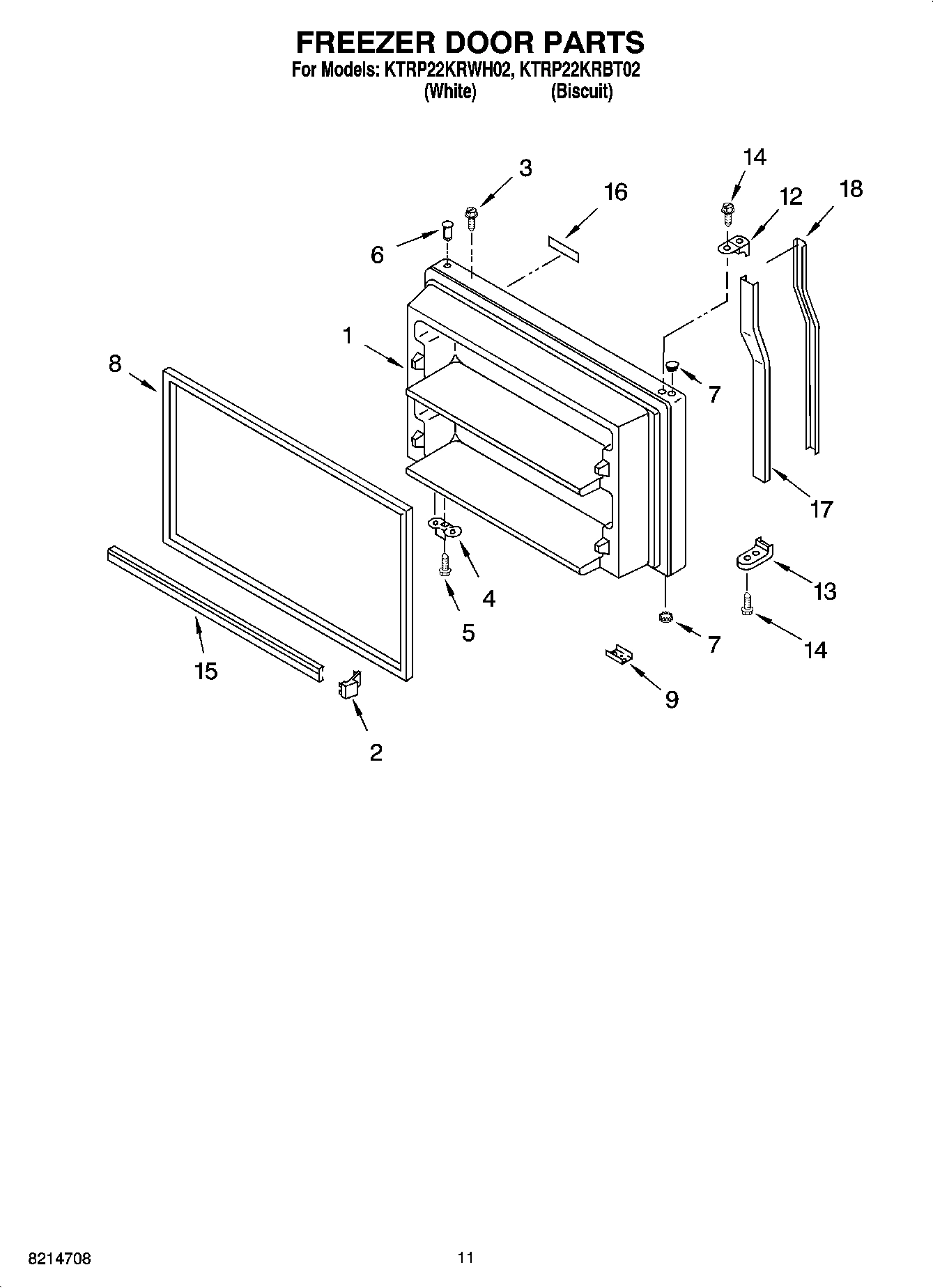

Refrigerator Door (Includes Illus. 2,3,6 & 8) WPL 2198970 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 2,3,6 & 8) WPL 2200927 Contact Us For Availability

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

5

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

5

Screw, 8 x 1/2 WPL 3400873 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assembly, Control Box WPL 2310057 Contact Us For Availability

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

9

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

9

Tap Plate WPL 2183000 Contact Us For Availability

9

Damper, Air (Slide) WPL 2179858 Contact Us For Availability

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

Retainer, Insert (Biscuit) WPL 2188222T Contact Us For Availability

Retainer, Insert (White) WPL 2188222W Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Endcap, Handle (Short) (White) WPL 2195994W Contact Us For Availability

Control Box WPL 2212982 Contact Us For Availability

Insert, Handle (White) WPL 2195986 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200932 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

Thermostat Assembly (Includes Illus. 5 & 18) WPL 2200859 Contact Us For Availability

Endcap, Handle (Long) (White) WPL 2195995W Contact Us For Availability

Endcap, Handle (Short) (White) WPL 2195990 Contact Us For Availability

Endcap, Handle (Short) (Biscuit) WPL 2200930 Contact Us For Availability

14

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

14

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

14

Cover, Inlet Tube WPL 2205003 Contact Us For Availability

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

Screw WPL 8534009 Contact Us For Availability

Spacer, Handle WPL 2188146 Contact Us For Availability

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Cover, Evaporator WPL 2254262 Contact Us For Availability

Endcap, Handle (Long) (Biscuit) WPL 2195995T Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

17

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

18

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

18

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Door Compartment WPL 2218119 Contact Us For Availability

2310099 Whirlpool Refrigerator Wire Harness Backorder WPL 2310099 $44.51

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

Grille (Includes Illus. 21) (White) WPL 2254313 Contact Us For Availability

Grille (Includes Illus. 21) (Biscuit) WPL 2254316 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

21

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

22

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

22

Support Block WPL 2201185 Contact Us For Availability

22

Bin, Door Shelf WPL 2171062 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

26

Air Separator Assembly WPL 2212439 Contact Us For Availability

27

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

28

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

31

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

31

Shield, heat WPL 2204639 Contact Us For Availability

32

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

Knob, Damper WPL 2302536 Contact Us For Availability

36

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

37

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

37

Damper Post WPL 2179859 Contact Us For Availability

38

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

39

Housing Base WPL 2300418 Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

44

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $28.85

45

Gasket, Rear WPL 2166284 Contact Us For Availability

46

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

47

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79
