Model Whirlpool KTRP20MDAL03 – Common Parts & Diagrams

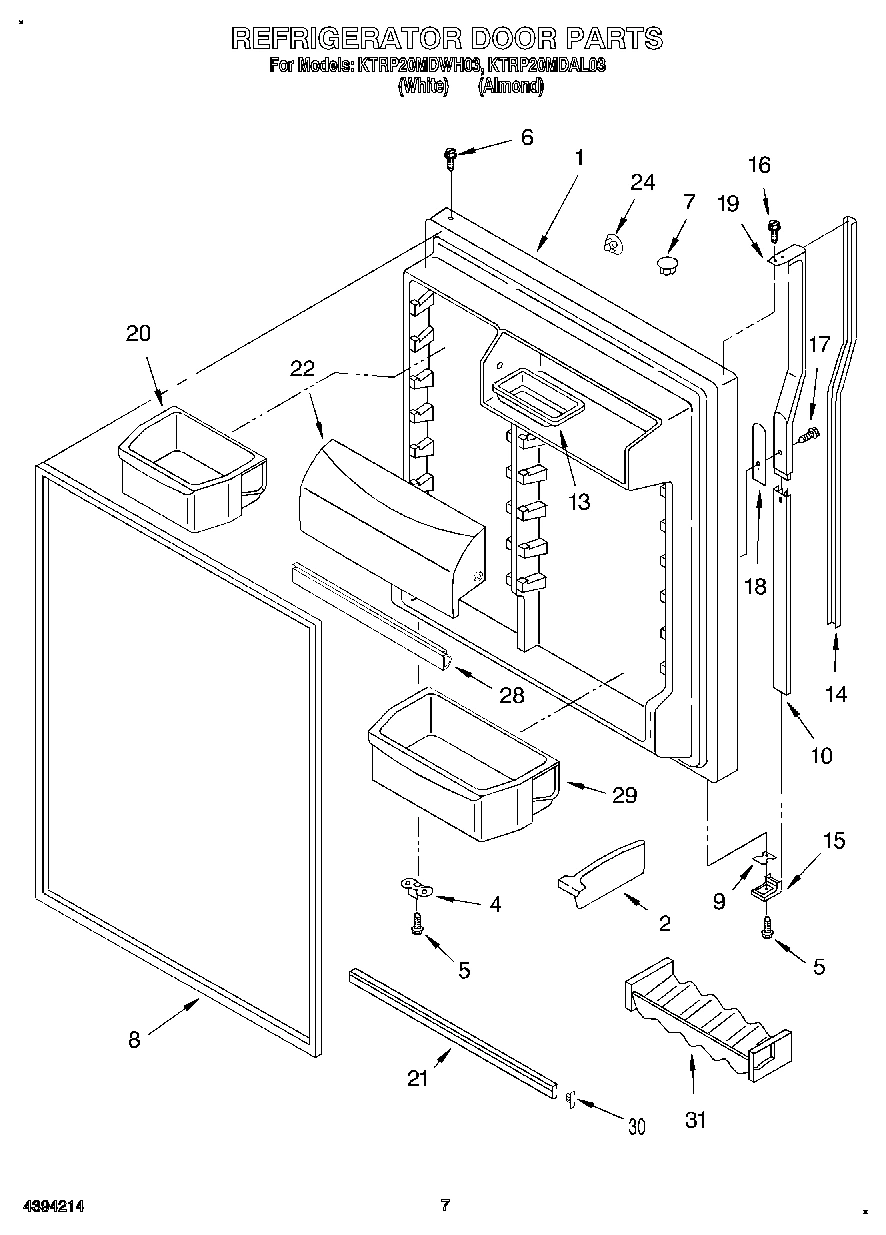

04 - REFRIGERATOR DOOR
06 - ICEMAKER

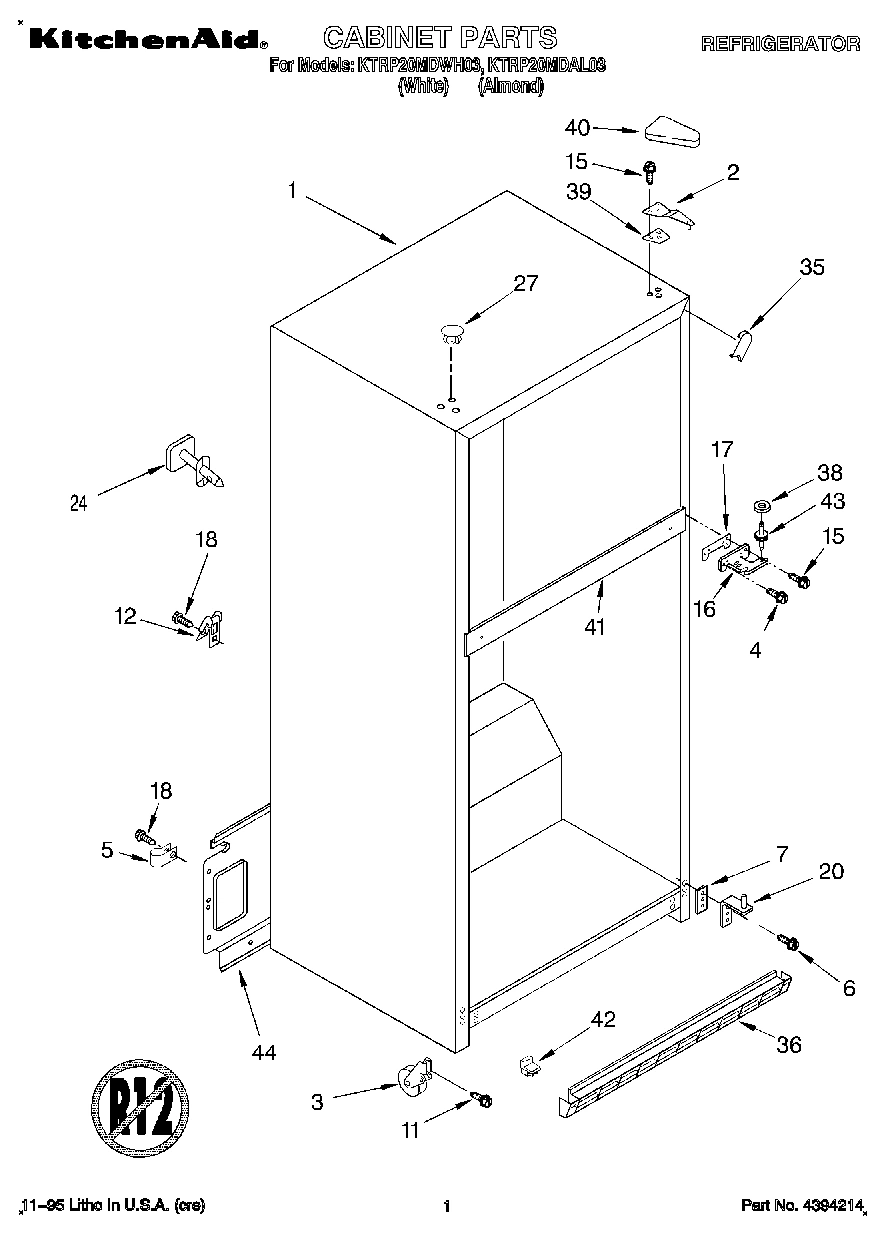

01 - CABINET

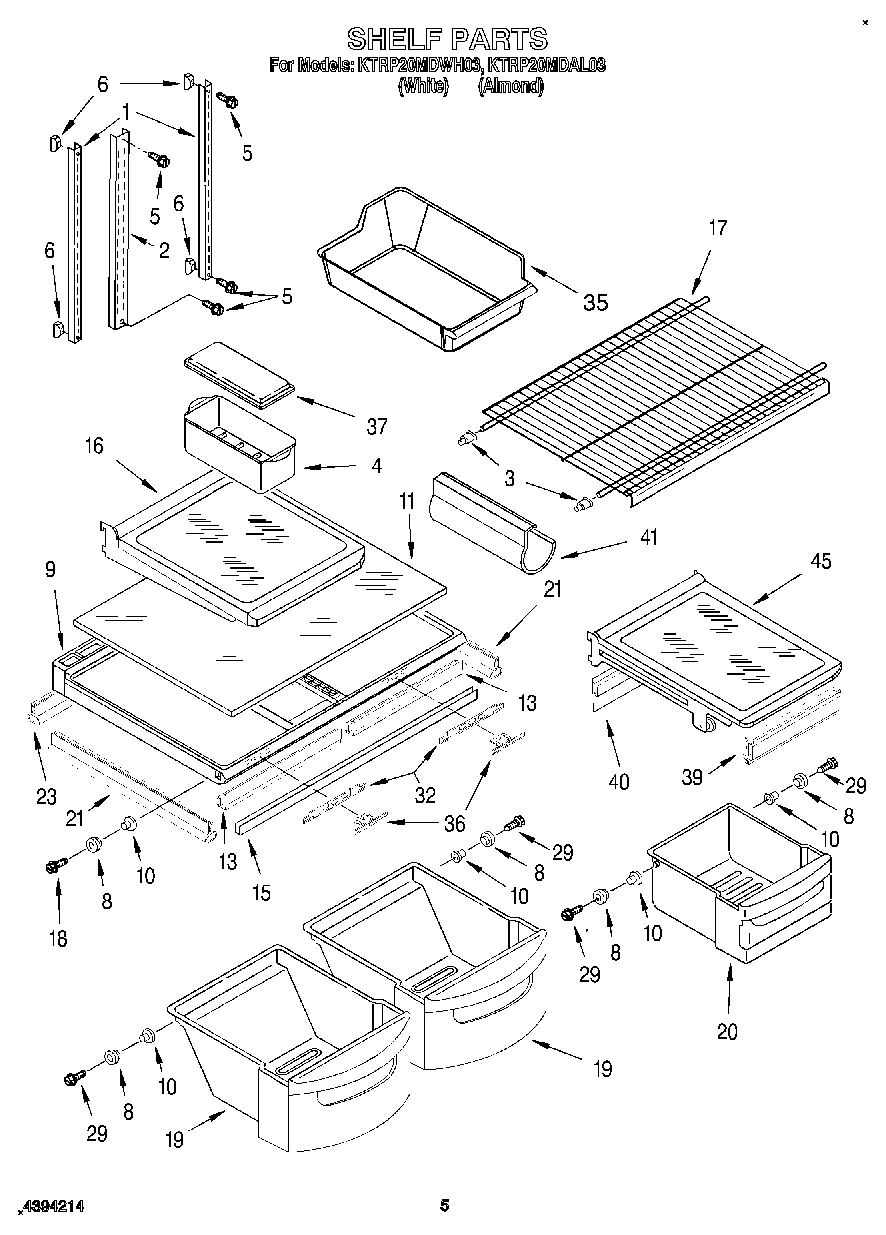

03 - SHELF

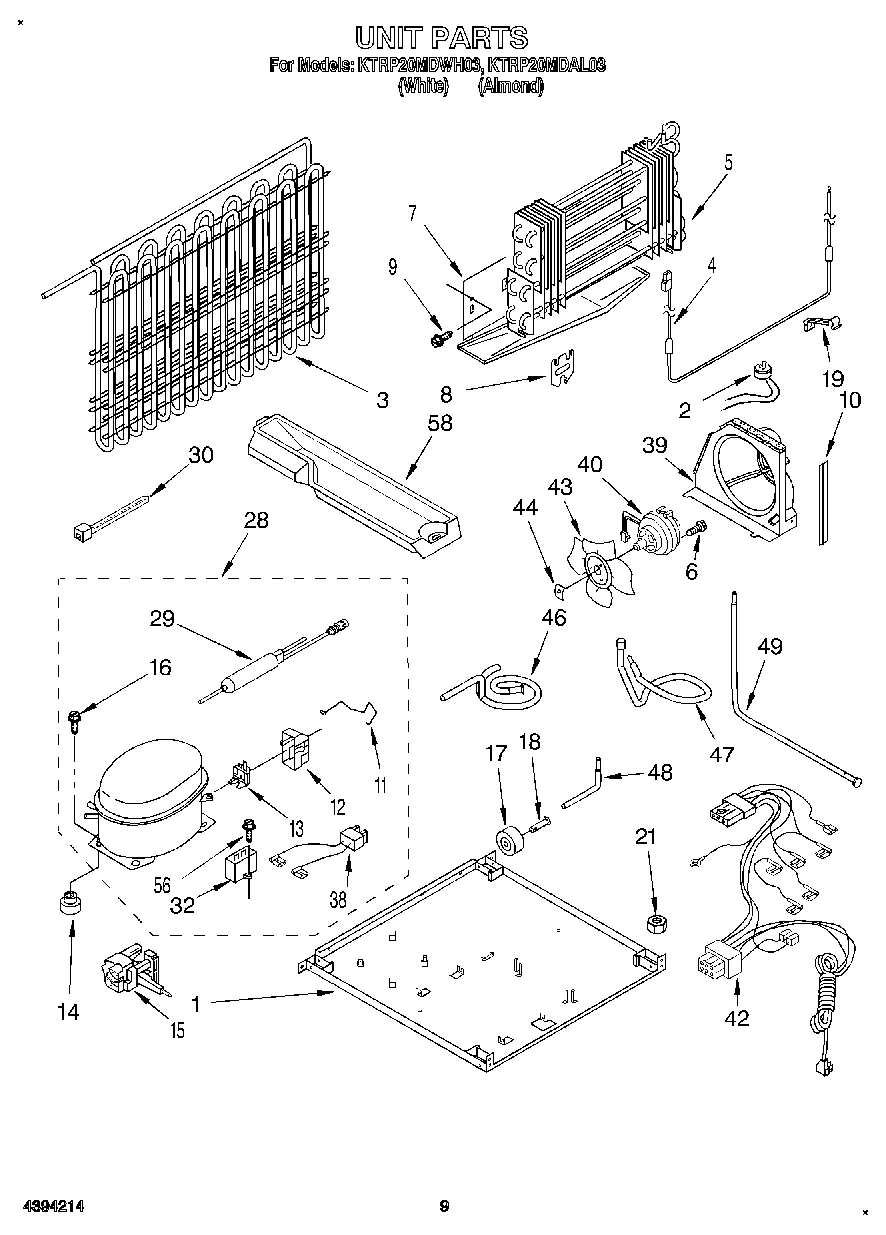

05 - UNIT

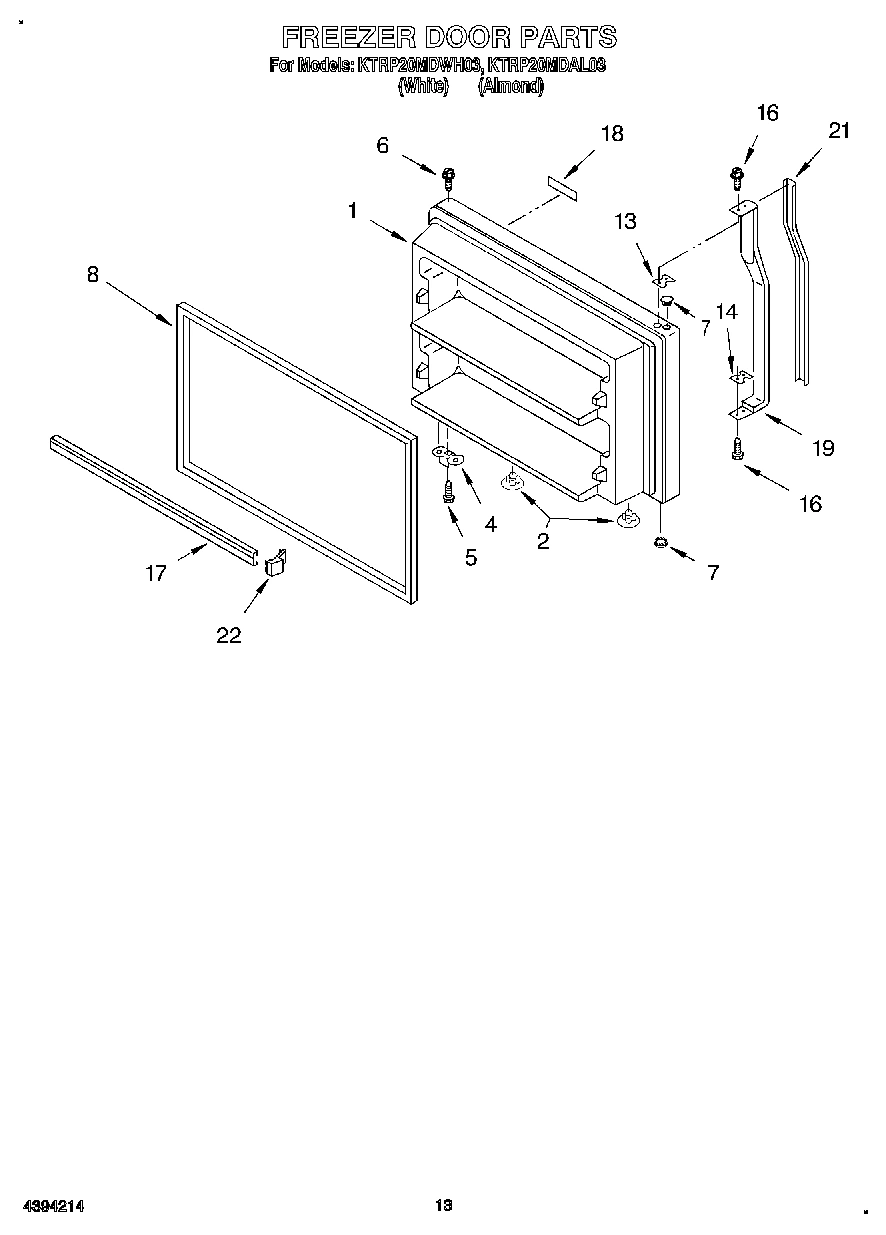

07 - FREEZER DOOR, LIT/OPTIONAL

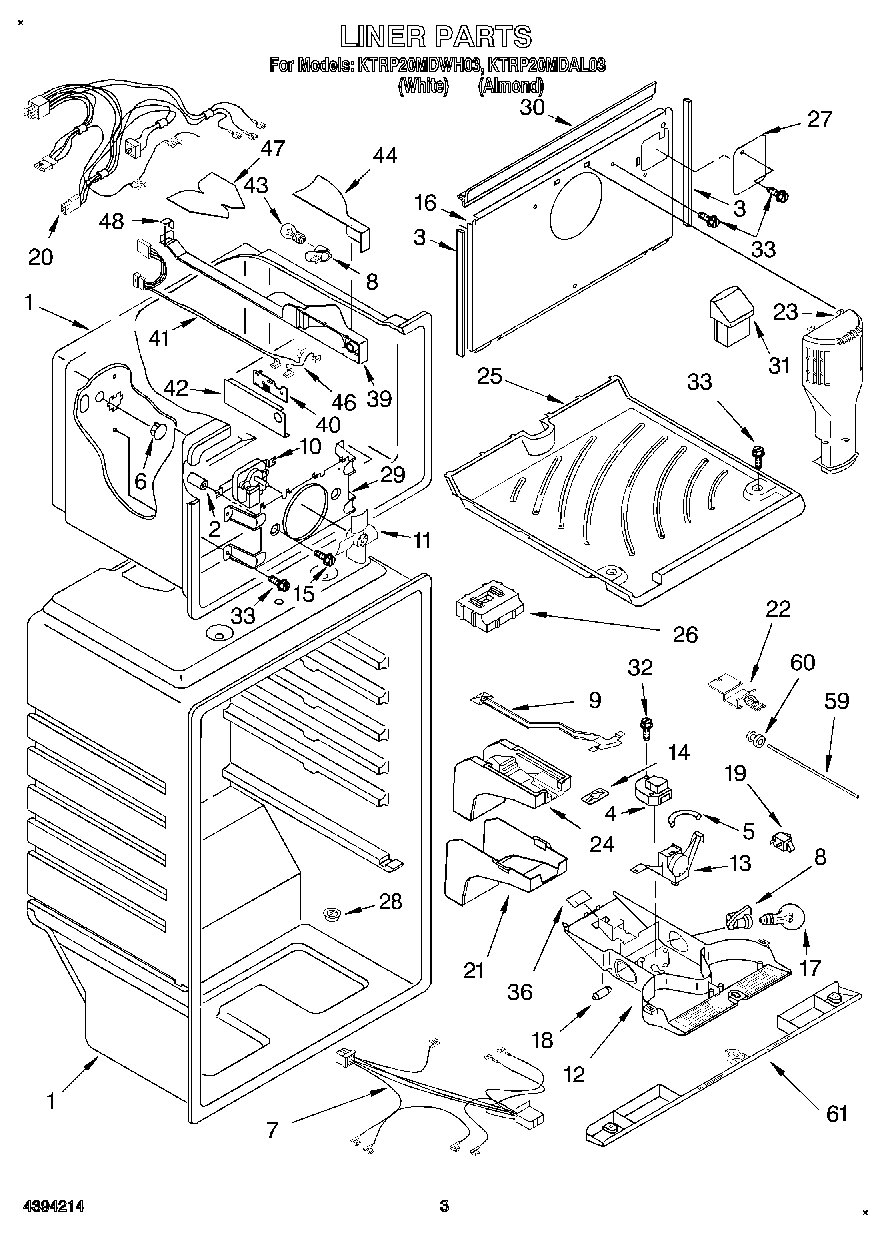

02 - LINER
Common parts from model Whirlpool KTRP20MDAL03
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2180059 WPL LIT2180059 Contact Us For Availability
WPL LIT2184594 WPL LIT2184594 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182403 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2190630 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2190631 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI111002A Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Door Gasket, Magnetic (Service) WPL 2177312 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174128 Contact Us For Availability
9
Damper, Air WPL 2179855 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Clamp (Production) WPL 2162400 Contact Us For Availability
11
Clamp (Service) WPL 2169464 Contact Us For Availability
12
Control Box WPL 2174632 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Overload (Production) WPL 2169407 Contact Us For Availability
13
Spacer, Handle WPL 1107628 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2190663 Contact Us For Availability
14
Grommet (4) (Service) WPL 110082 Contact Us For Availability
14
Grommet (4) (Production) WPL 218304 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Module WPL 216933 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) WPL 2174030 Contact Us For Availability
16
Screw WPL 48947 Contact Us For Availability
16
Cover, Evaporator WPL 2183153 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
17
Roller (2) WPL 216378 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171265 Contact Us For Availability
18
Rivet WPL 98112 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2174062 Contact Us For Availability
19
Clip WPL 218233 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2174080 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111003A Contact Us For Availability
21
Insert, Handle (White) WPL 2168898 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
22
KIT WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Door Reversal Instructions WPL 2180007 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Slide, Knob (2) WPL 2174633 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111000A Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 29,32, WPL 216940 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Housing Base WPL 2166269 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Gasket, Rear WPL 2174397 Contact Us For Availability
40
PC Board, Freezer Light WPL 2166266 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111001A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2166281 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 216615 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 216620 Contact Us For Availability
42
Wire Assy. Unit WPL 2184587 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2166280 Contact Us For Availability
43
Pin, Hinge WPL 218306 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 218315 Contact Us For Availability
44
Cover, Freezer Light WPL 2166270 Contact Us For Availability
45
Shelf Assembly, Spillguard (Incl. No.39 & No. WPL 2190504 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
46
Wiring Harness, Freezer Light WPL 2166274 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
47
Shield, Electrical Heat WPL 2166273 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
Light Fiber (2) WPL 2179921 Contact Us For Availability
60
Grommet, Light Fiber (2) WPL 2172906 Contact Us For Availability
61
Cover, Control Box Front WPL 2179719 Contact Us For Availability
× ![]()
