Model Whirlpool KTRP20KDWH00 – Common Parts & Diagrams

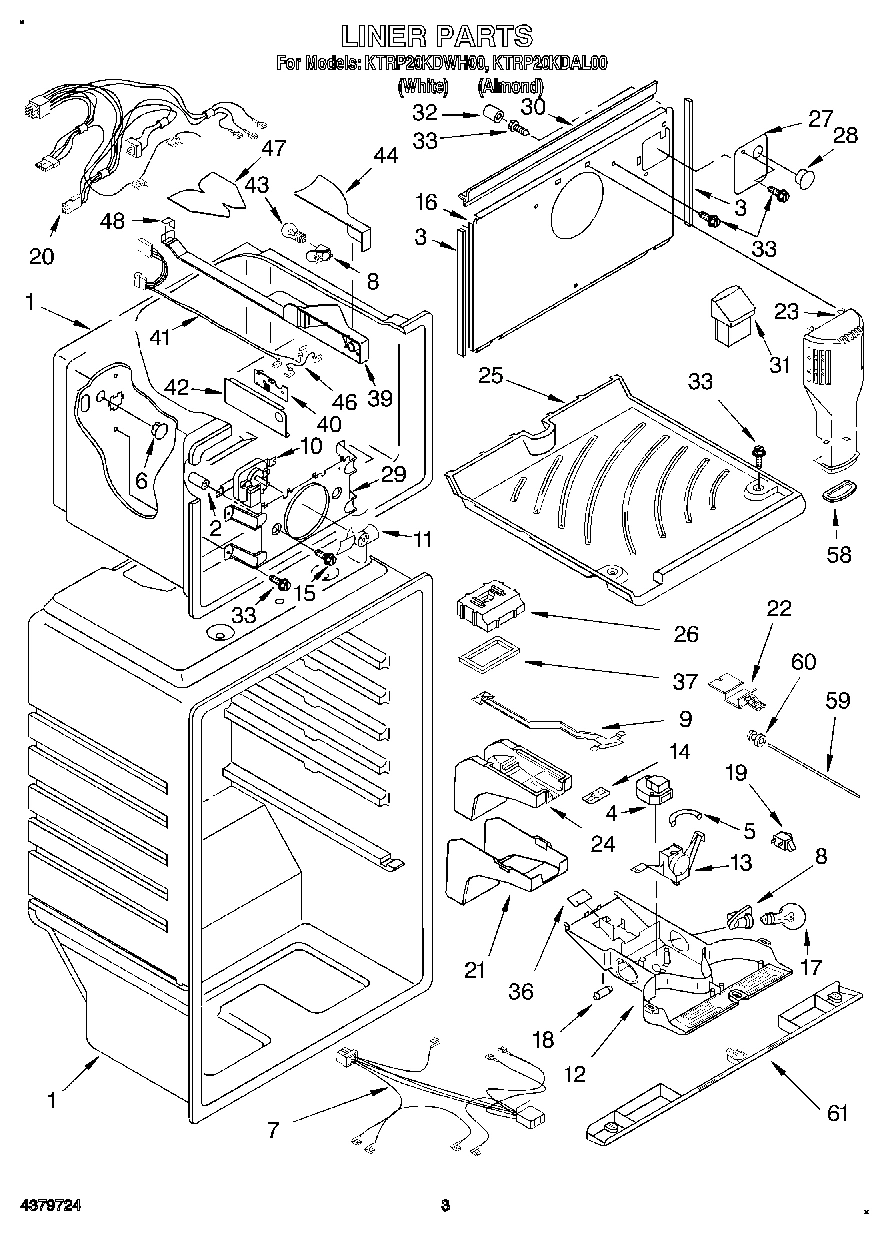

02 - LINER

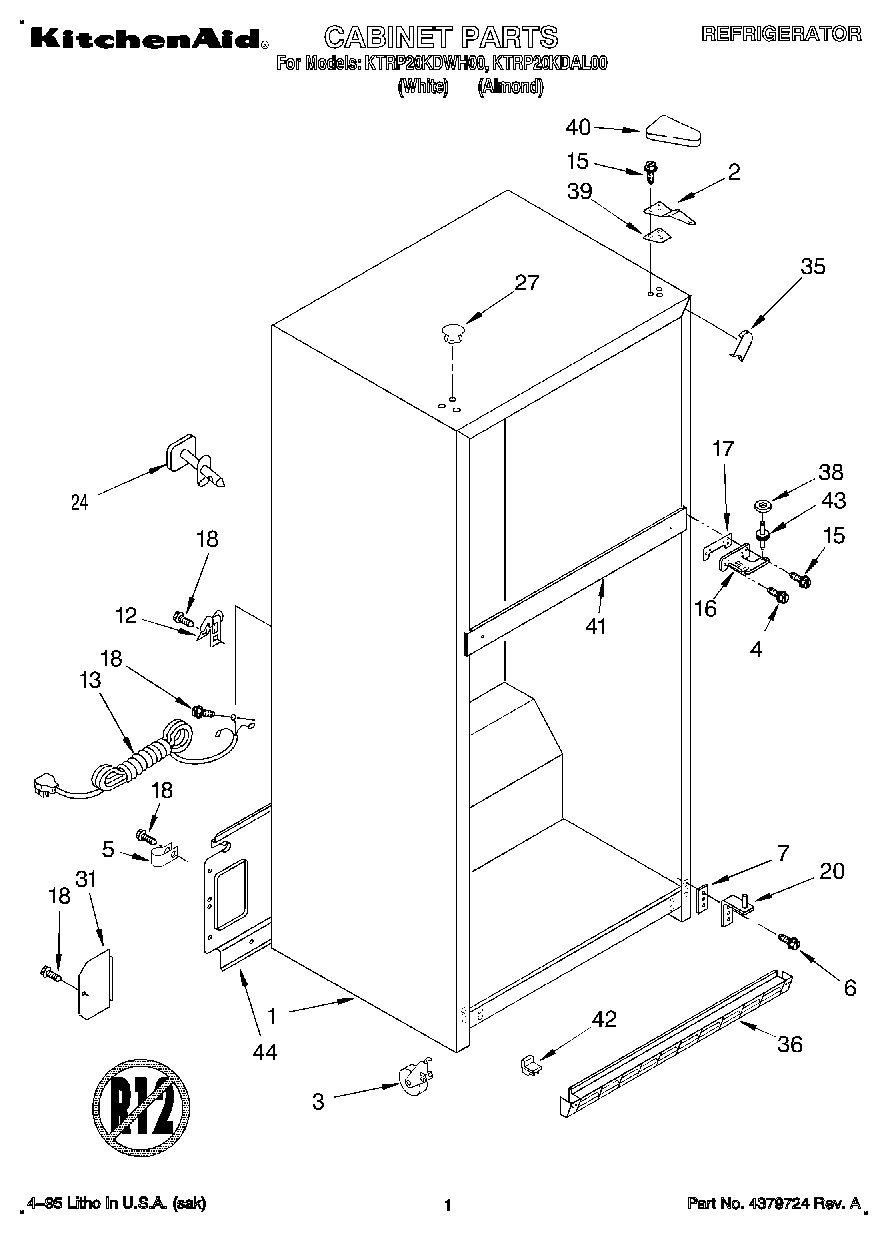

01 - CABINET

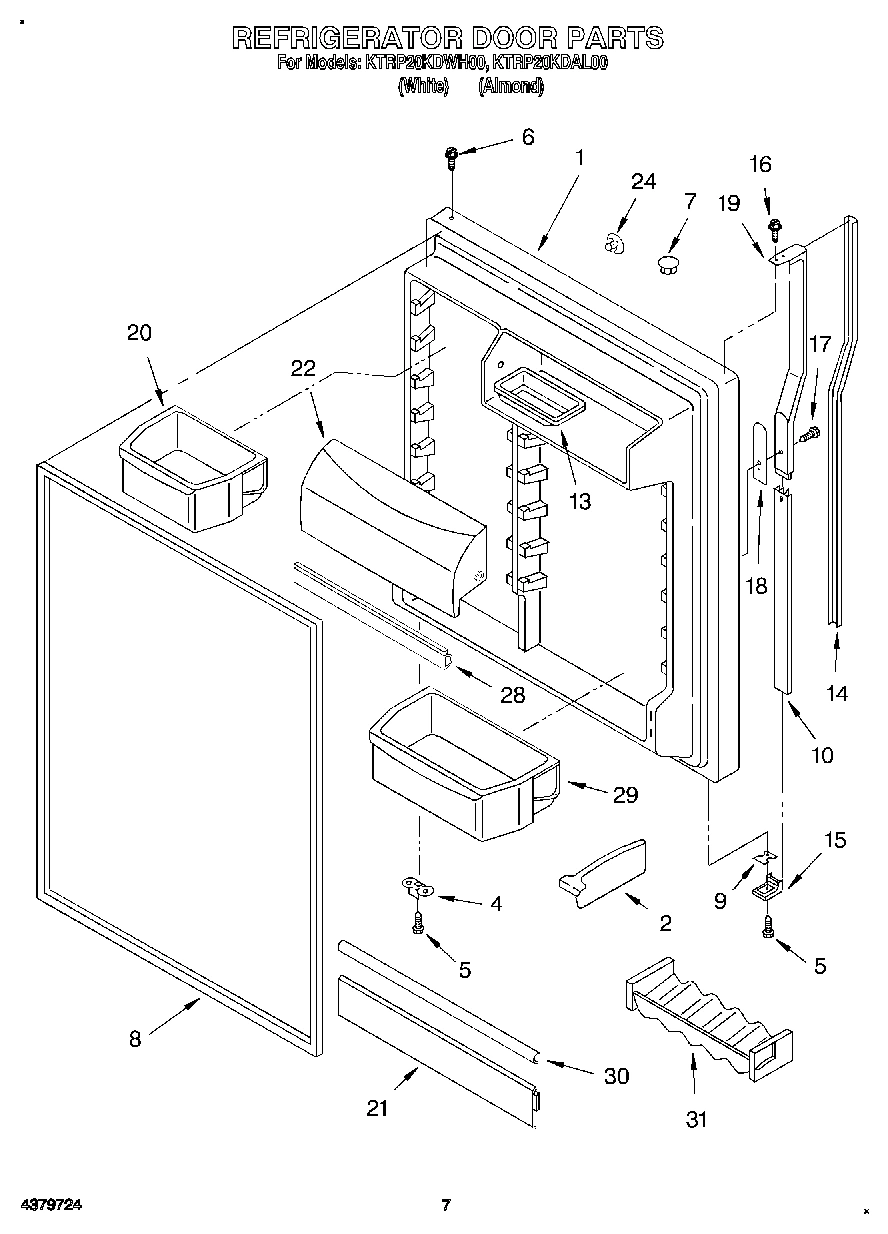

04 - REFRIGERATOR DOOR

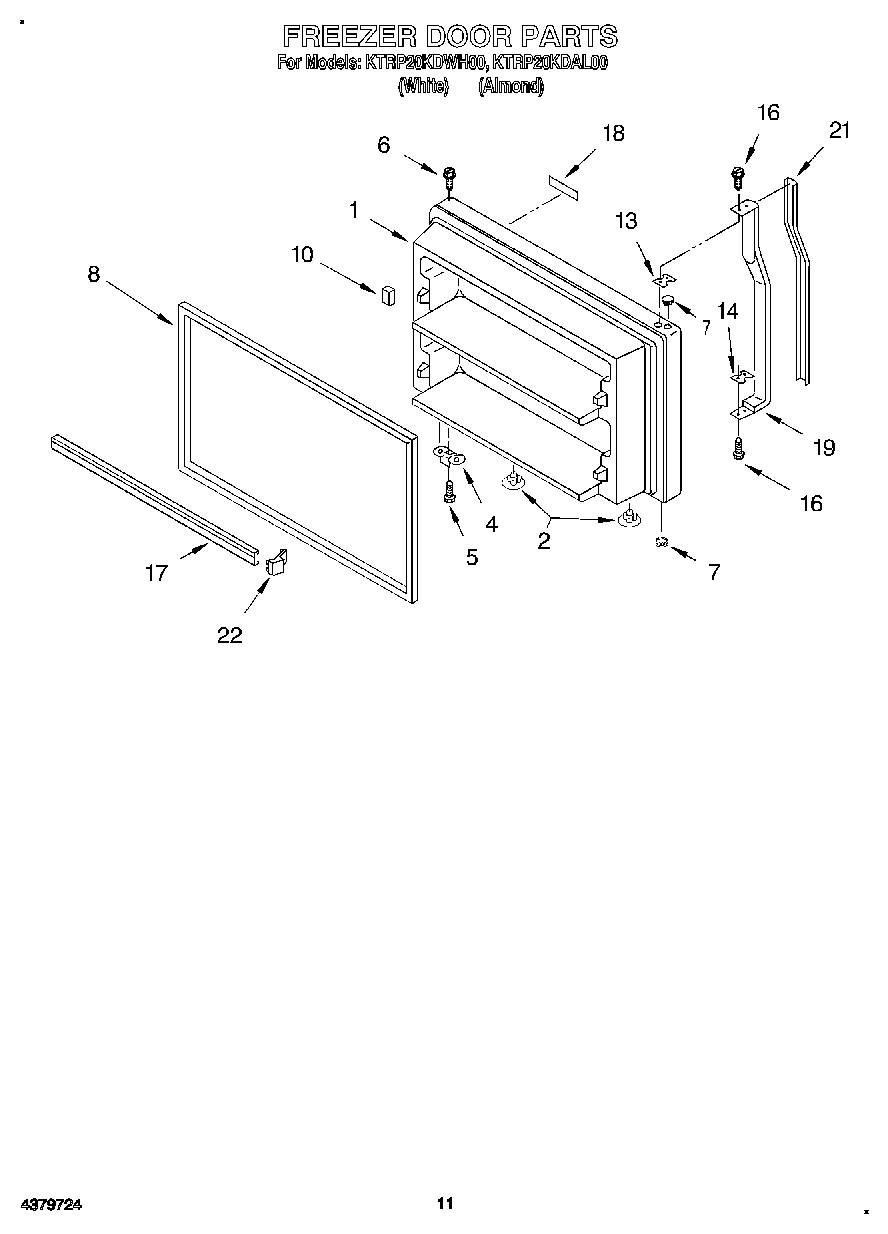

06 - FREEZER DOOR, LIT/OPTIONAL

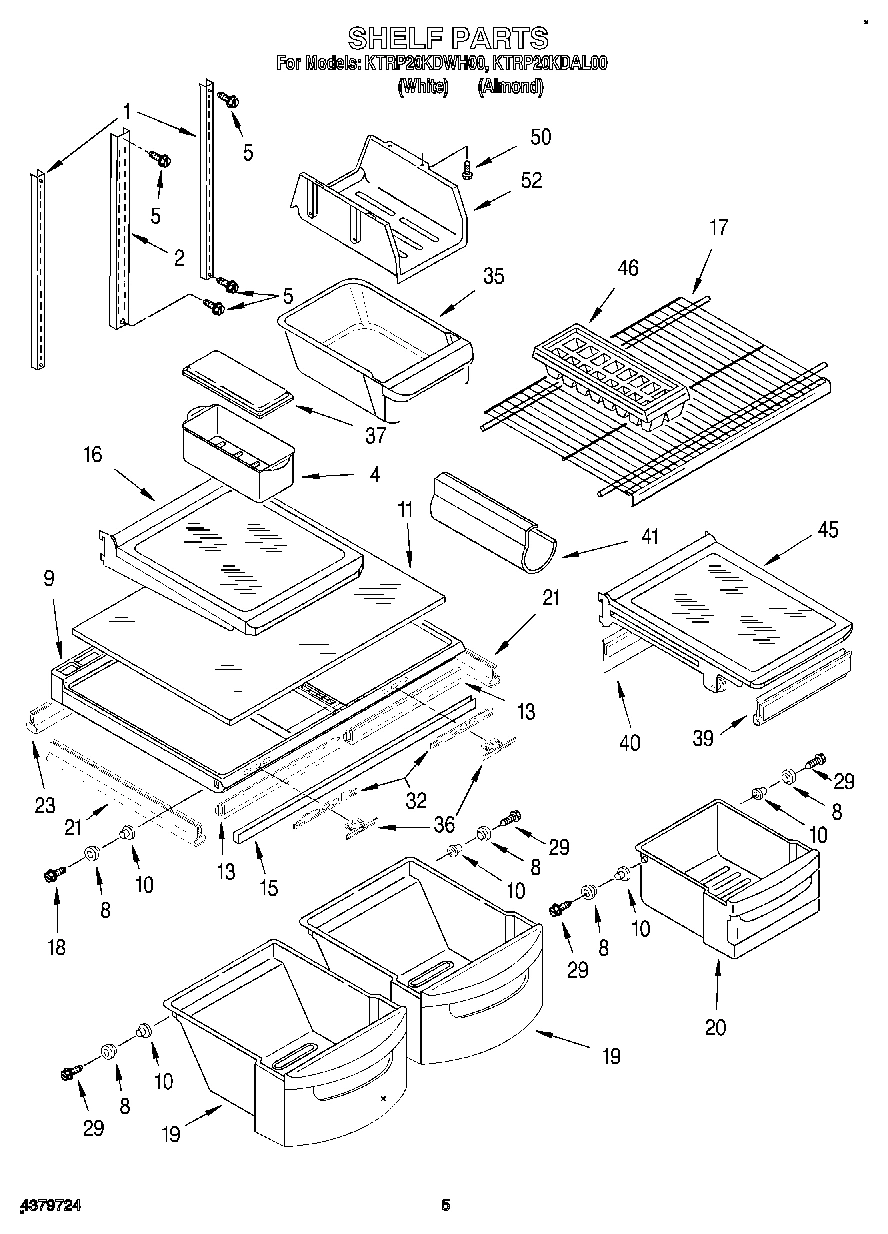

03 - SHELF

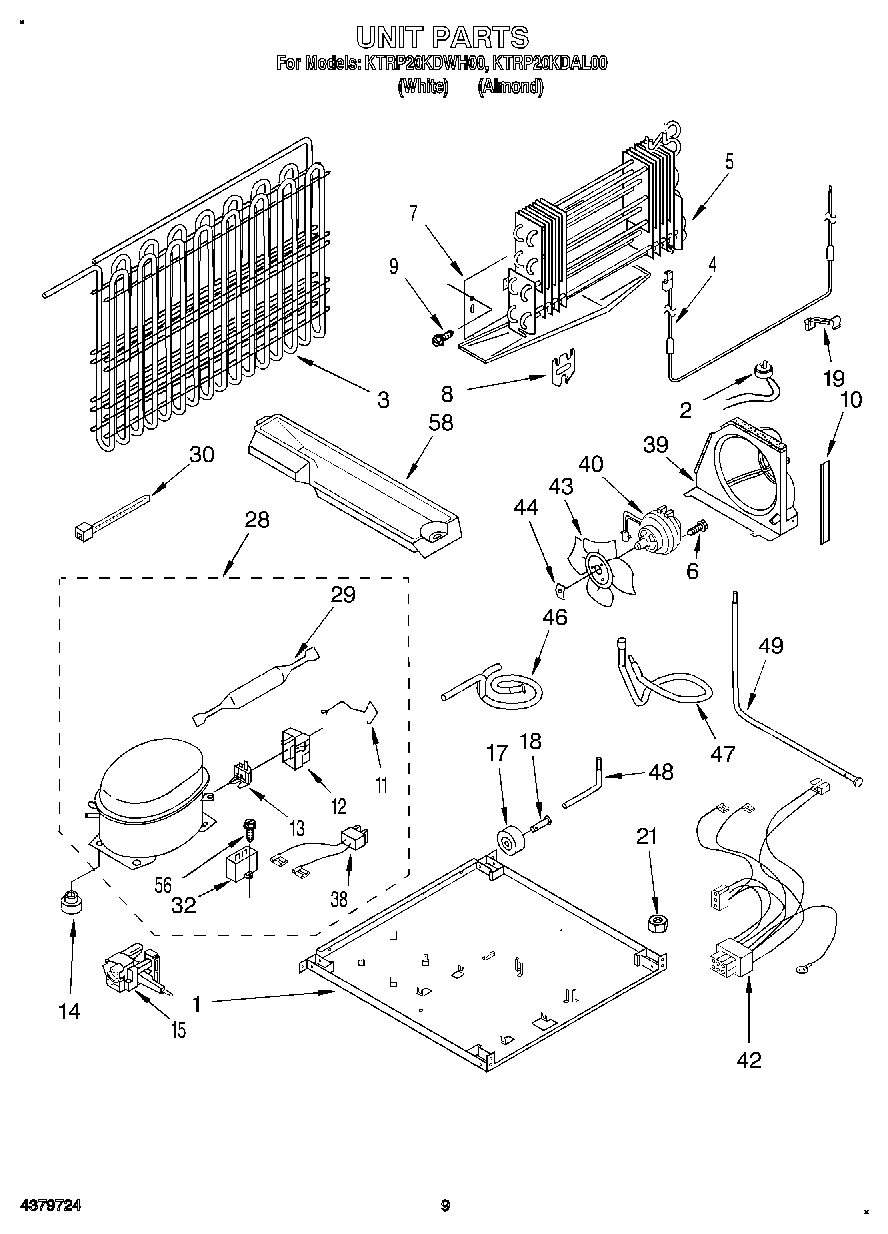

05 - UNIT
Common parts from model Whirlpool KTRP20KDWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2179217 WPL LIT2179217 Contact Us For Availability
WPL LIT2180059 WPL LIT2180059 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI110946A Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2177215 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2177216 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2171226 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2171227 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174624 Contact Us For Availability
2
Divider, Door Bin WPL 2171283 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 2172745 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Door Gasket, Magnetic (Phantom Gray) WPL 2177313 Contact Us For Availability
8
Door Gasket, Magnetic (Phantom Gray) WPL 2177312 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174128 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
10
Door Clip, Freezer Light WPL 2166278 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Butter, Tray WPL 1125936 Contact Us For Availability
13
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
End Cap, Handle WPL 1107236 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) WPL 2174030 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171265 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2174062 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171066 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2174080 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (White) WPL 2168898 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI110950A Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Door, Compartment WPL 2171078 Contact Us For Availability
22
Door Reversal Instructions WPL 2180007 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REP WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI110947A Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171063 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
31
Holder, Beverage WPL 1125981 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Pan, Ice Cube WPL 2174124 Contact Us For Availability
36
Grille (White) WPL 2179840 Contact Us For Availability
36
Grille (Almond) WPL 2179841 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
Cover WPL 2164374 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Gasket, Rear WPL 2174397 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI110948A Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163815 Contact Us For Availability
45
Shelf Assembly, Spillguard (Incl. No.39 & No. WPL 2174384 Contact Us For Availability
46
Tube, Discharge WPL 2172660 Contact Us For Availability
47
Shield, Electrical Heat WPL 2166273 Contact Us For Availability
47
Tube, Suction WPL 2172662 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Gasket, Air Tower WPL 2179839 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
Light Fiber (2) WPL 2179921 Contact Us For Availability
60
Grommet, Light Fiber (2) WPL 2172906 Contact Us For Availability
61
Cover, Control Box Front WPL 2179719 Contact Us For Availability
× ![]()
