Model Whirlpool KTRC22KMSS05 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Q WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI110328A WPL ARI110328A Contact Us For Availability

WPL ARI110329A WPL ARI110329A Contact Us For Availability

WPL ARI110330A WPL ARI110330A Contact Us For Availability

WPL ARI110331A WPL ARI110331A Contact Us For Availability

WPL ARI110332A WPL ARI110332A Contact Us For Availability

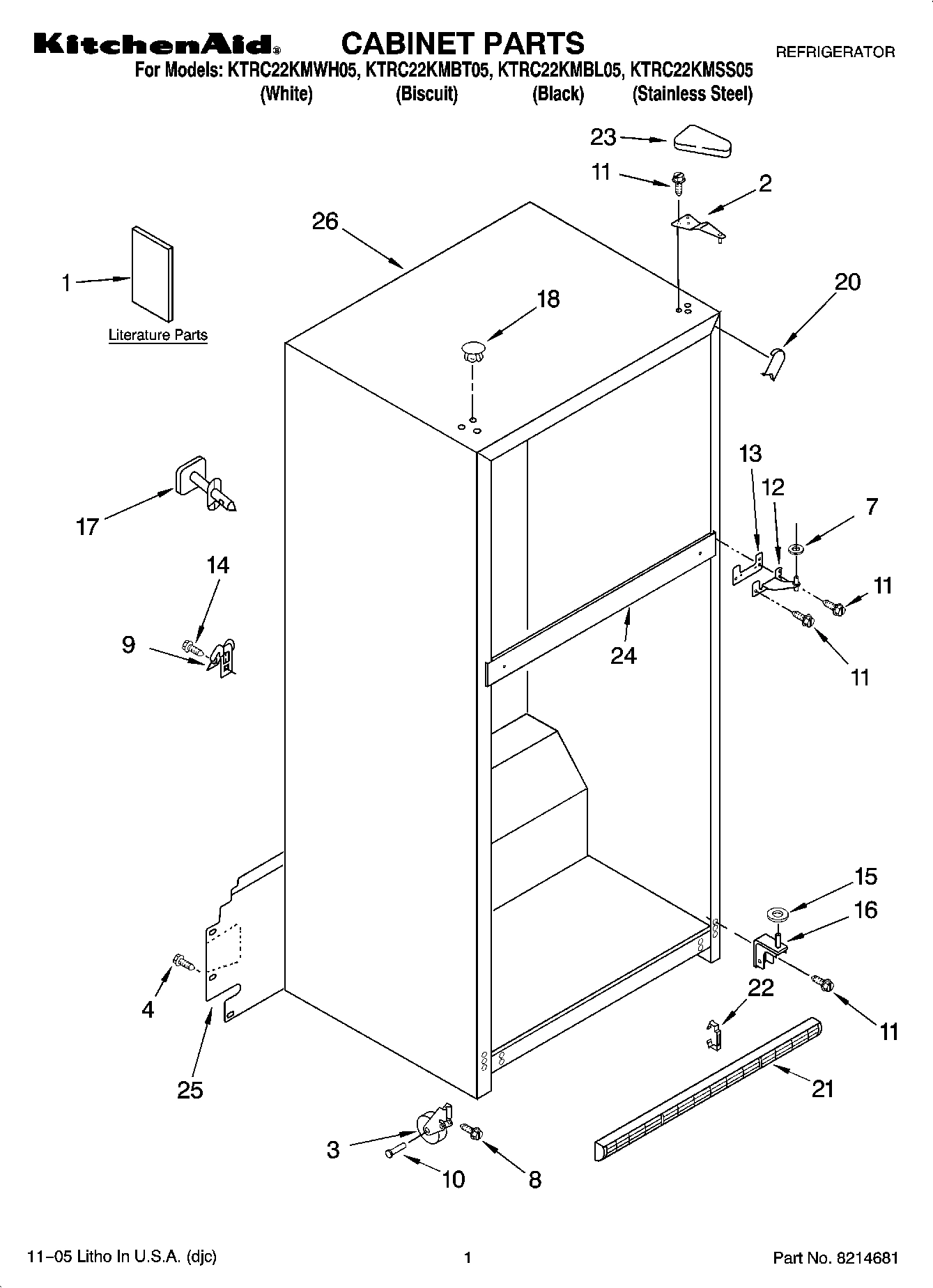

1

Customer Instructions WPL 2225415 Contact Us For Availability

1

Energy Label WPL 2302199 Contact Us For Availability

1

Service & Wiring Sheet WPL 2314274 Contact Us For Availability

1

Use & Care Guide WPL 2314464 Contact Us For Availability

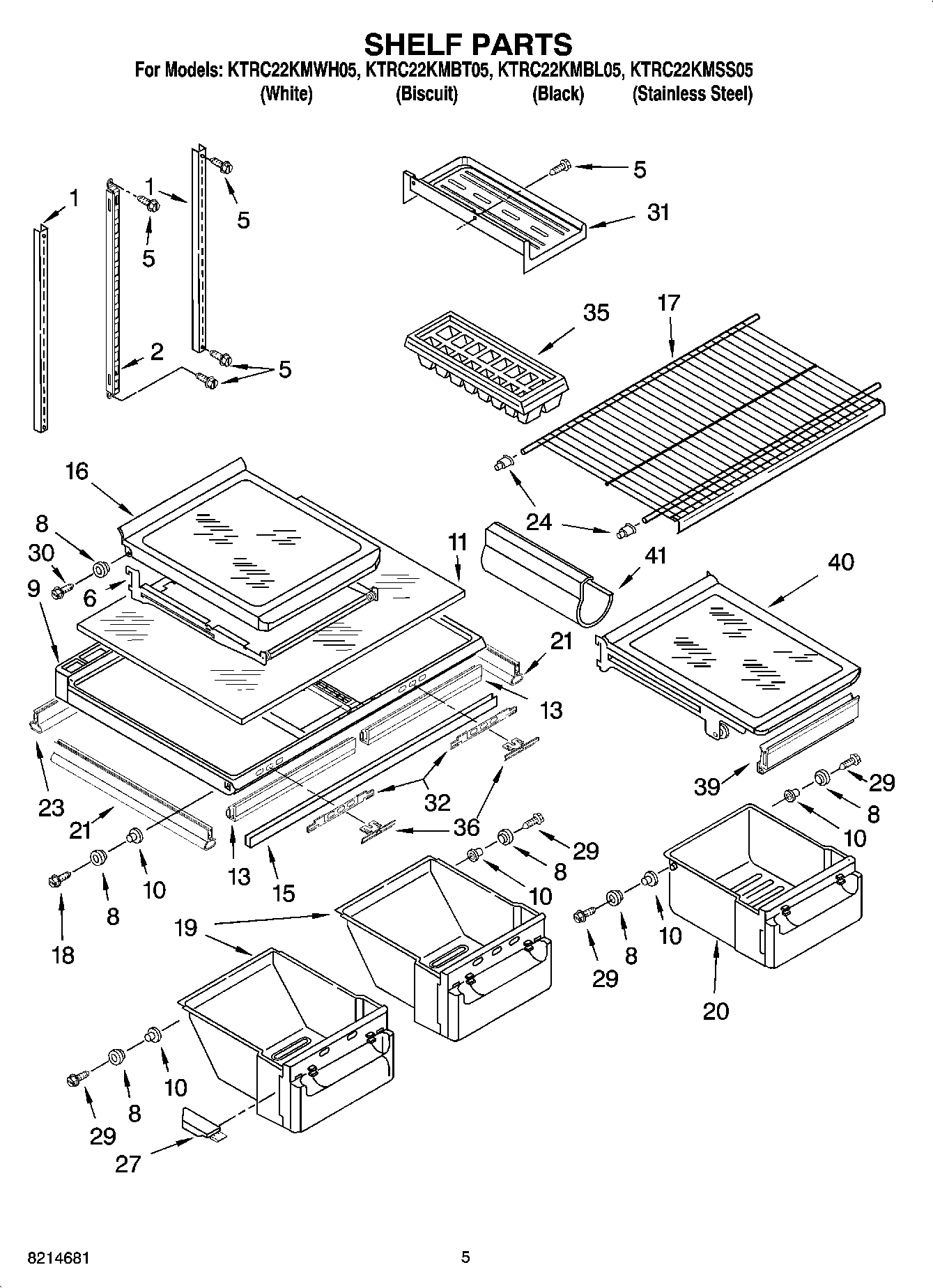

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

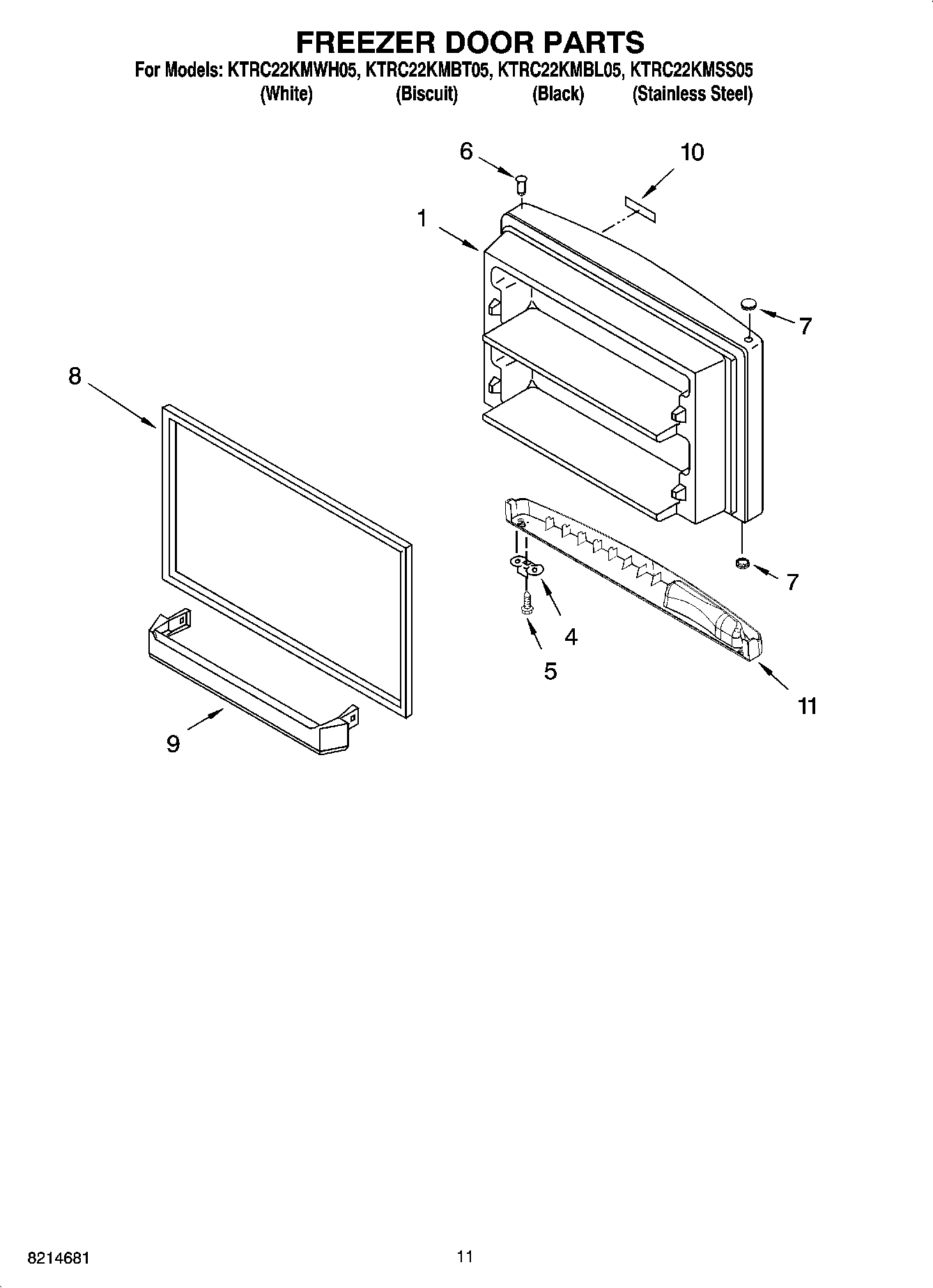

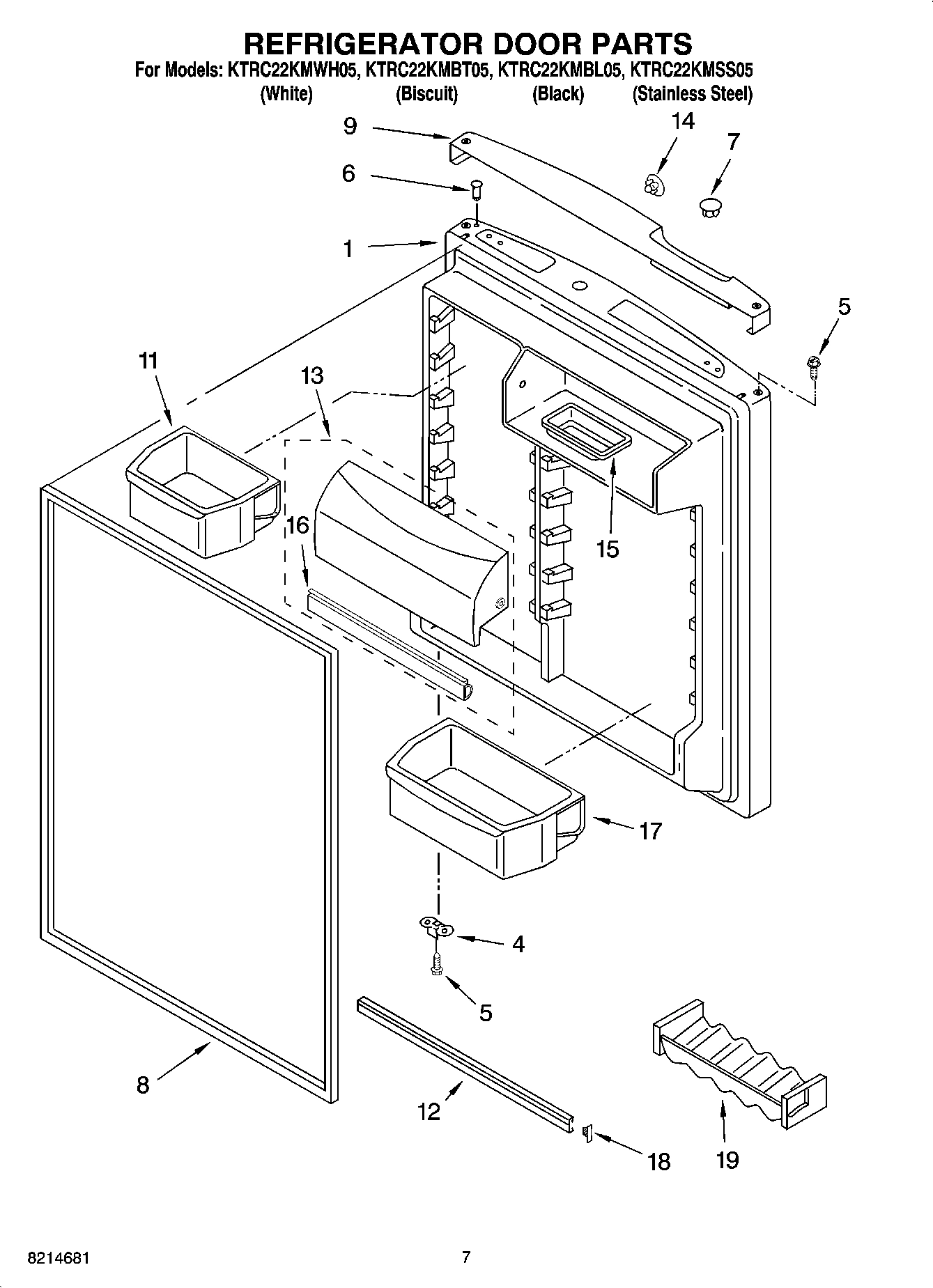

Freezer Door (Includes Illus. 6 & 8) (White) WPL 2202520 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Biscuit WPL 2204854 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Black) WPL 2204856 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Stainle WPL 2212419 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

Frame Assembly, Cantilever (Includes Illus. 8 WPL 2174014 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

7

Drain Pan WPL 2254295 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

9

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

9

Trim, Door WPL 2159292 Contact Us For Availability

9

Crisper Cover (Includes Items 8,10,13,18,21,2 WPL 2210583 Contact Us For Availability

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

Eyelet, Roller WPL 2174478 Contact Us For Availability

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Glass, Crisper Cover WPL 2210571 Contact Us For Availability

Endcap, Handle (White) WPL 2213328 Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2213329 Contact Us For Availability

Endcap, Handle (Black) WPL 2221624 Contact Us For Availability

12

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

13

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

13

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

13

Thermostat Assembly WPL 2302286 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability

Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability

Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

15

Butter, Dish WPL 2165792 Contact Us For Availability

16

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

16

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

16

Shelf Assembly, Spillguard (Includes Items 8 WPL 2174012 Contact Us For Availability

17

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

17

Fitting, Water Tube (Not Serviced) WPL ARI110322A Contact Us For Availability

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

Clip, Heater WPL 2182338 Contact Us For Availability

Beverage Holder WPL 2193409 Contact Us For Availability

Pan, Crisper (Includes Items 8,10,27 & 29) WPL 2188816 Contact Us For Availability

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Pan, Meat (Includes Items 8,10 & 29) WPL 2188818 Contact Us For Availability

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Grille (Includes Illus. 22) (White) WPL 2254313 Contact Us For Availability

Grille (Includes Illus. 22) (Biscuit) WPL 2254316 Contact Us For Availability

Grille (Includes Illus. 22) (Black) WPL 2254315 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

22

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

22

Support WPL 2201185 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

24

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Rail Center (Not Serviced) WPL ARI110323A Contact Us For Availability

25

Cover, Unit WPL 2202884 Contact Us For Availability

26

Cabinet (Not A Serviceable Part) WPL ARI110324A Contact Us For Availability

27

Cover, Hole WPL 2205003 Contact Us For Availability

27

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

27

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

30

Screw WPL 489439 Contact Us For Availability

31

Shelf, Ice Tray WPL 2212770 Contact Us For Availability

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

35

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

35

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

36

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

39

Housing Base WPL 2300418 Contact Us For Availability

39

Gasket, Front WPL 2174396 Contact Us For Availability

40

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

44

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

45

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80
