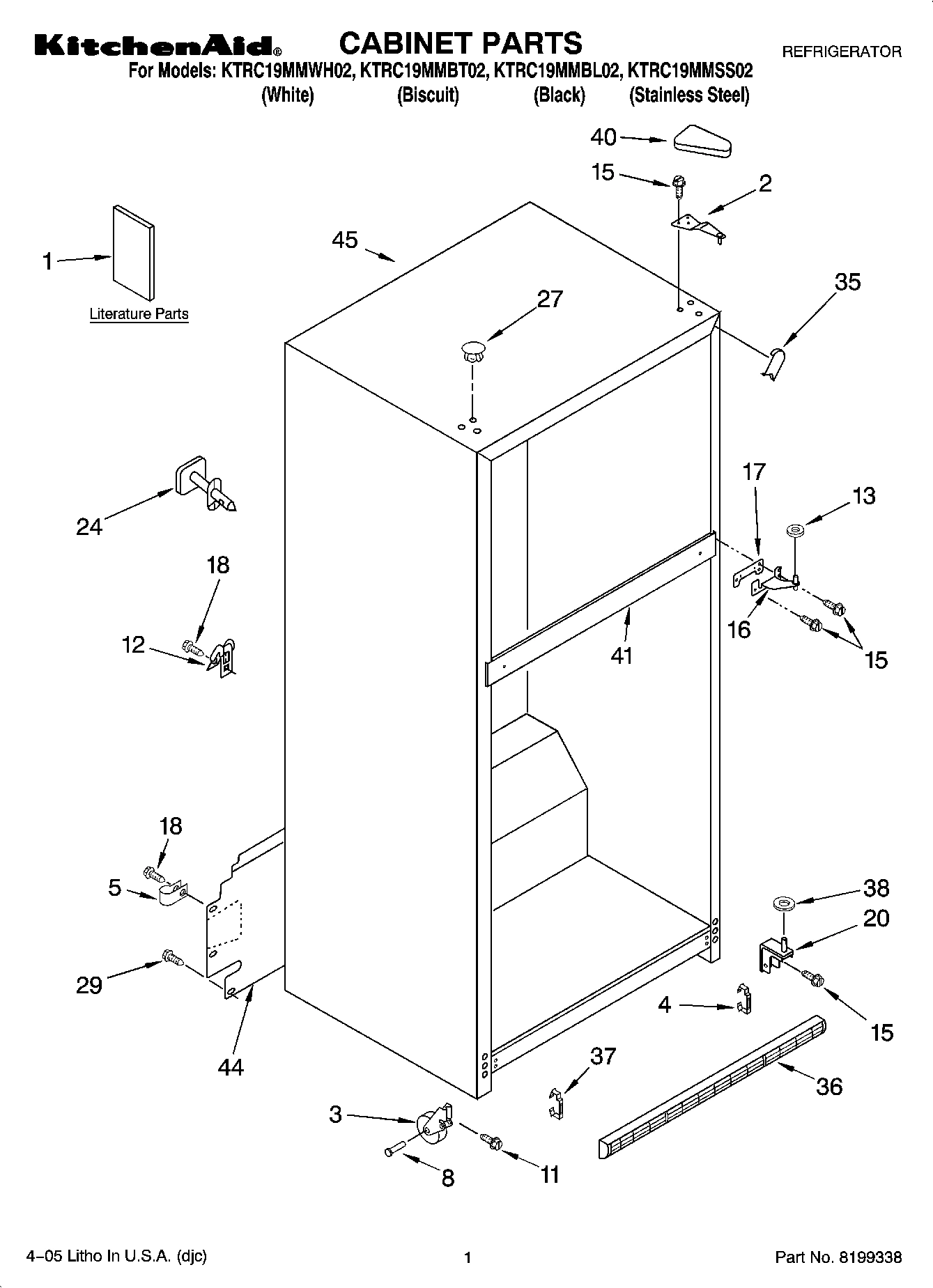

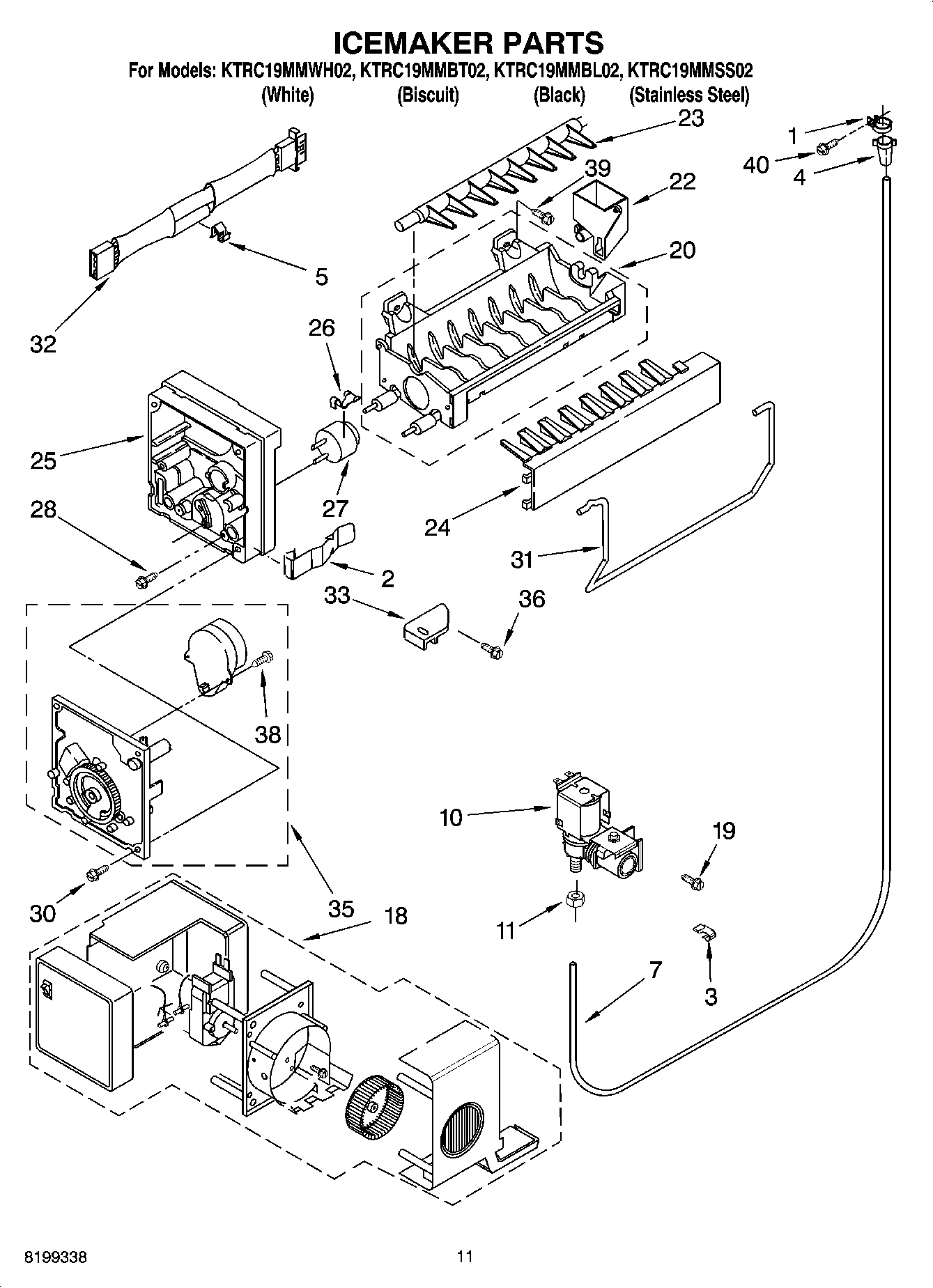

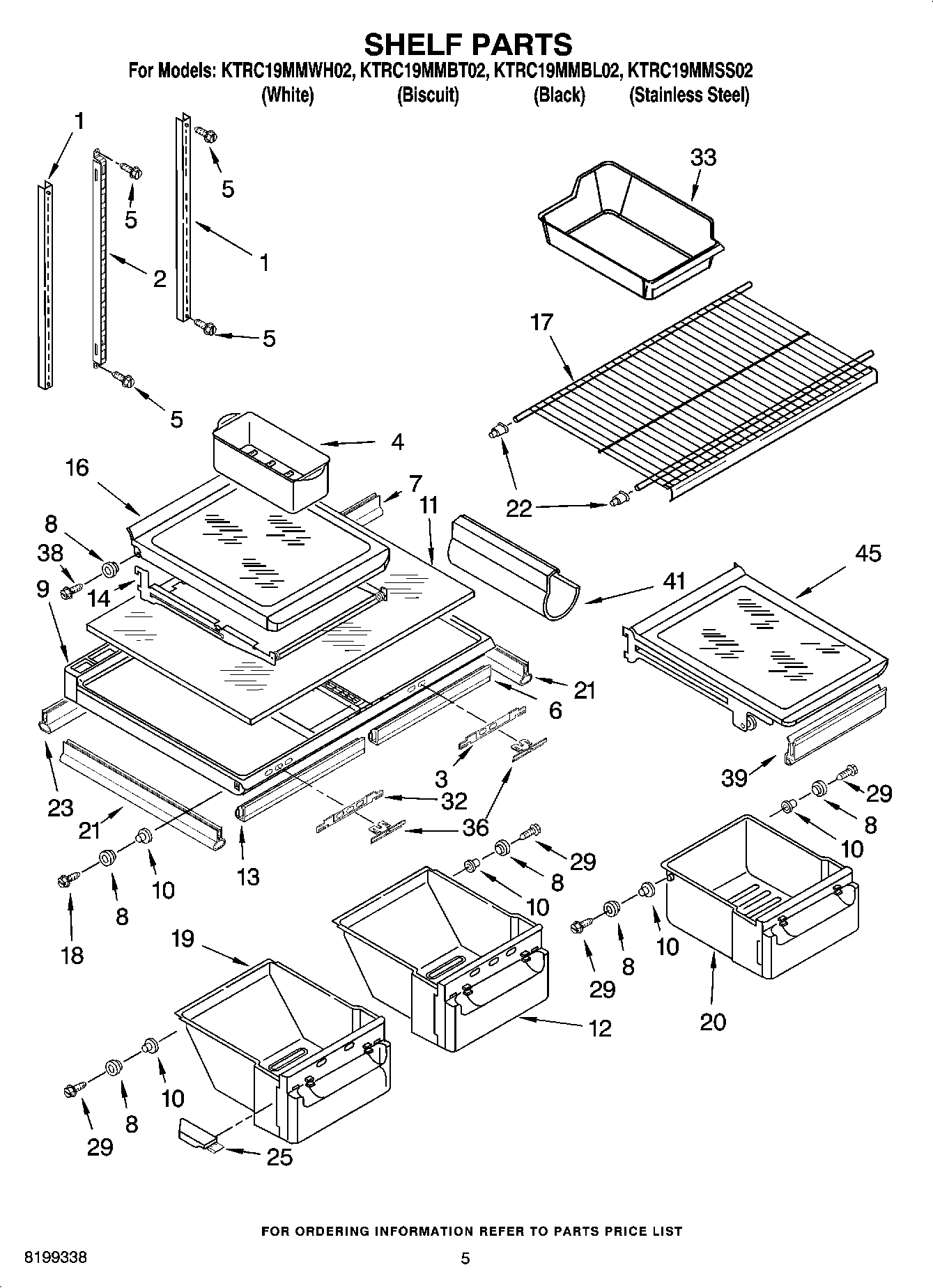

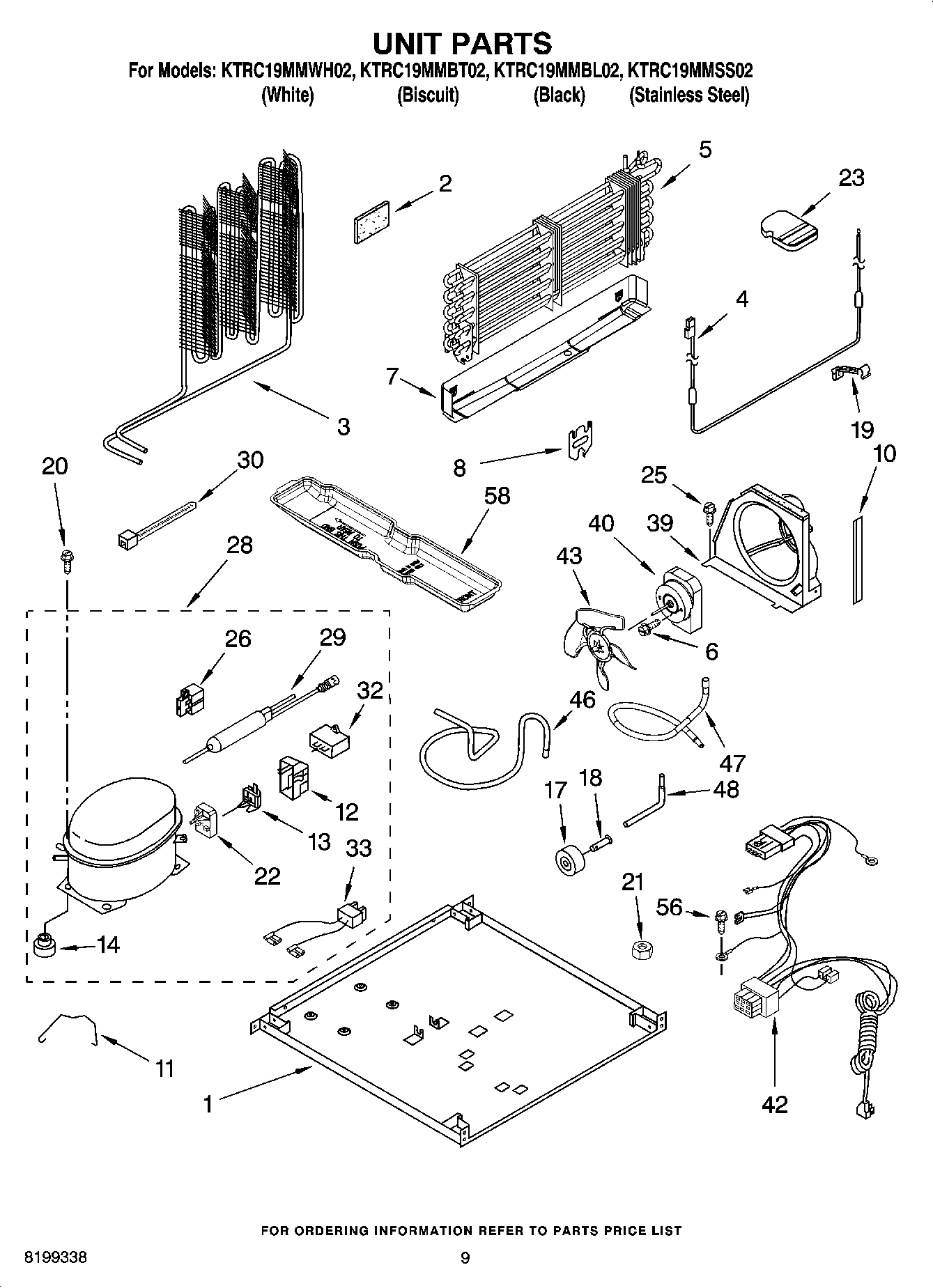

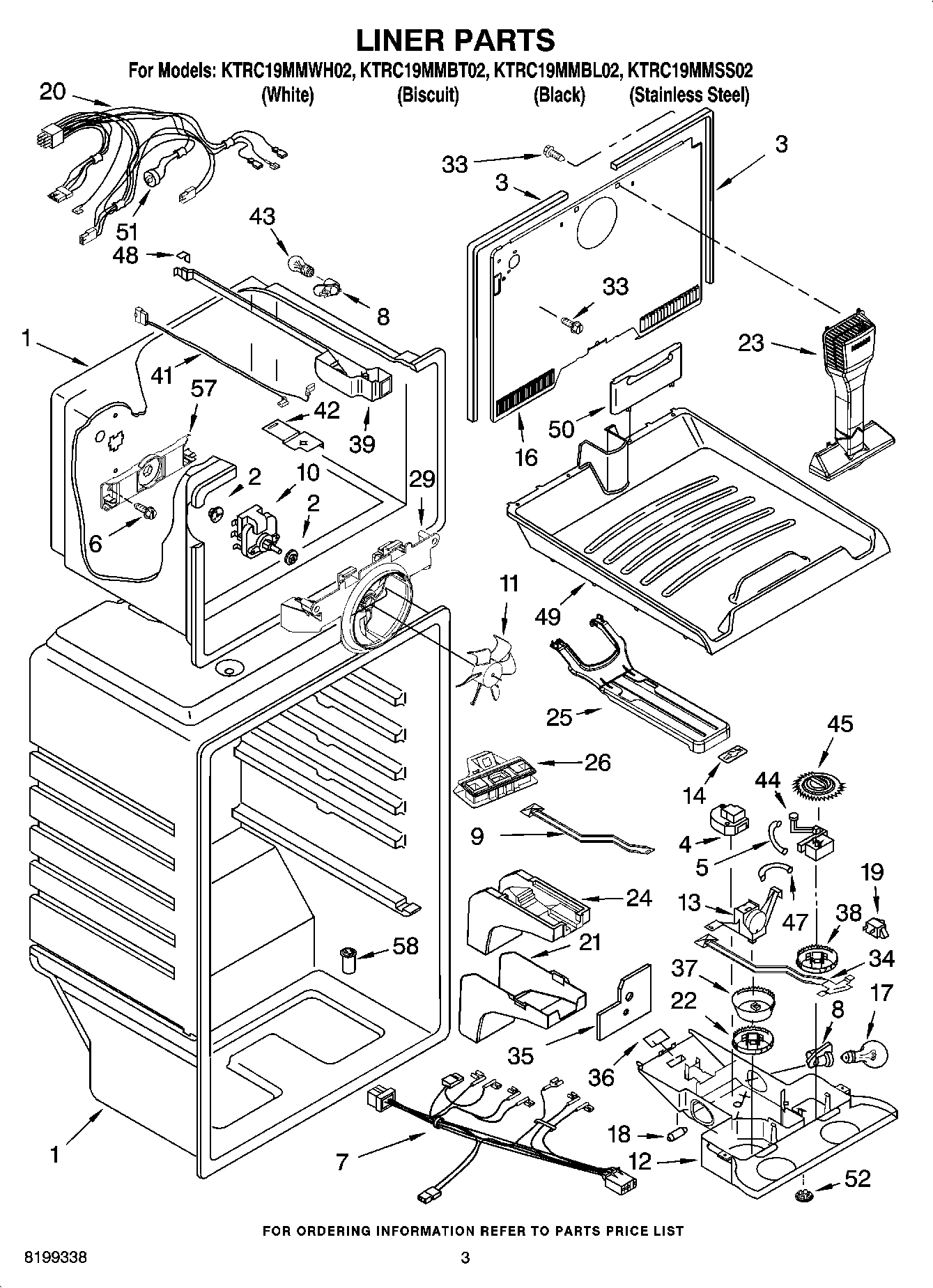

Model Whirlpool KTRC19MMBT02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI109574A WPL ARI109574A Contact Us For Availability

WPL ARI109575A WPL ARI109575A Contact Us For Availability

WPL ARI109576A WPL ARI109576A Contact Us For Availability

WPL ARI109577A WPL ARI109577A Contact Us For Availability

WPL ARI109578A WPL ARI109578A Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

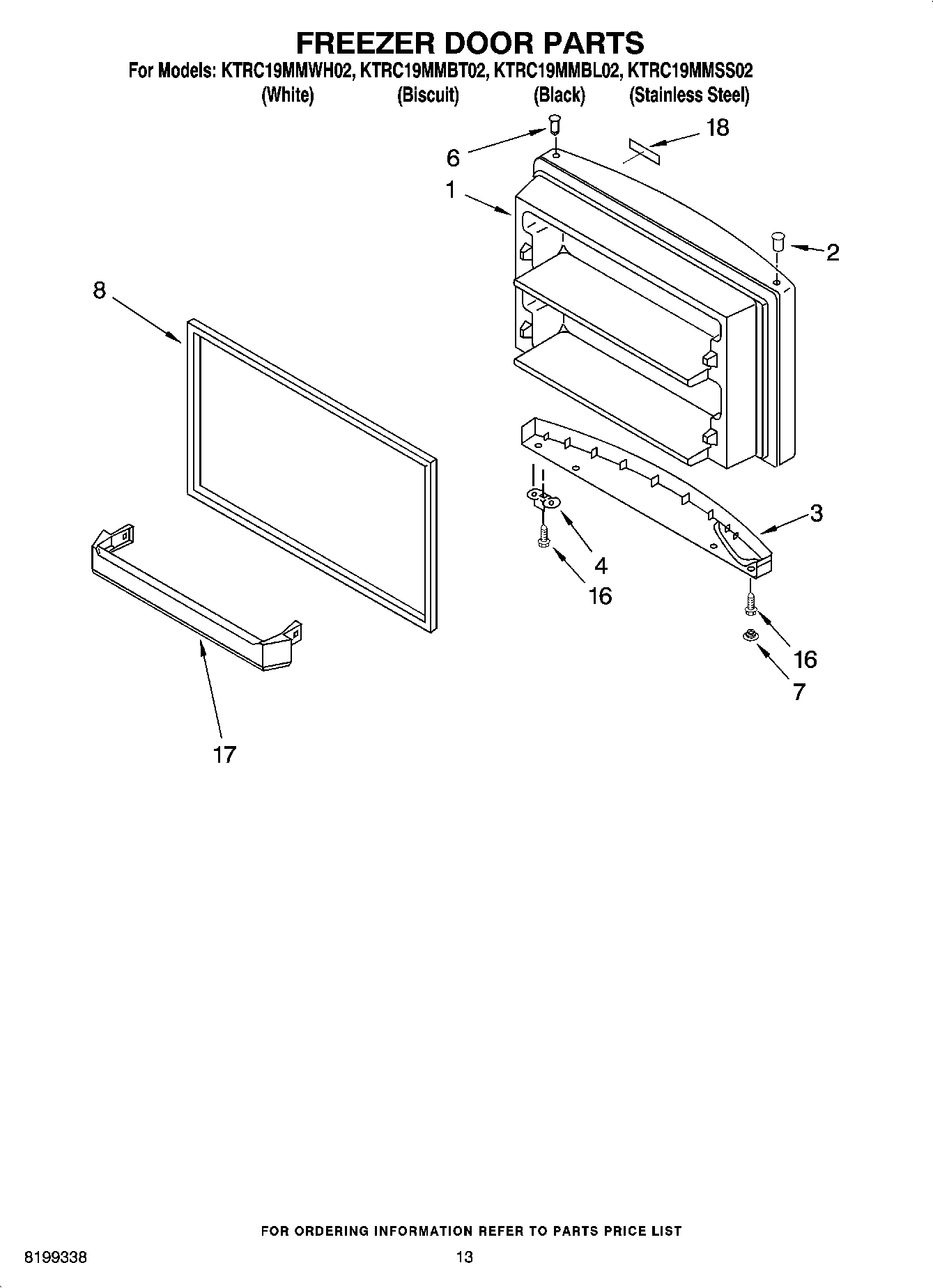

Freezer Door (Includes Illus. 6 & 8) (White) WPL 2205399 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Biscuit WPL 2205400 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Black) WPL 2205402 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Stainle WPL 2212495 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI109570A Contact Us For Availability

2

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

3

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $31.90

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

Handle, Endcap (White) WPL 2205459 Contact Us For Availability

3

Handle, Endcap (Biscuit) WPL 2205460 Contact Us For Availability

3

Handle, Endcap (Black) WPL 2221632 Contact Us For Availability

4

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

Defrost Timer WPL 2188376 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

7

2310174 Whirlpool Refrigerator Wire Harness Backorder WPL 2310174 $32.04

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254294 Contact Us For Availability

7

Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability

7

Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability

7

Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

8

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $124.26

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

8

Bracket, Heater WPL 2176301 Contact Us For Availability

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

12

Control Box WPL 2213195 Contact Us For Availability

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

13

Thermostat Assembly WPL 2302286 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

14

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

16

Cover-Evaporator WPL 2254257 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

Trim, Door (2) WPL 2159291 Contact Us For Availability

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

Wire Assembly, Freezer Compartment (Includes WPL 2187990 Contact Us For Availability

21

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Nut (Not Serviced) WPL ARI109571A Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Knob, Thermostat WPL 2205094 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

23

Support Block WPL 2201184 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

25

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Bin, Door WPL 2171062 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

34

Air Damper WPL 2212413 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Shield, heat WPL 2204639 Contact Us For Availability

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Grille (Includes Illus 4 & 37) (Black) WPL 2254388 Contact Us For Availability

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

38

Knob, Damper WPL 2204951 Contact Us For Availability

39

Housing Base WPL 2300417 Contact Us For Availability

39

Air Baffle WPL 2302249 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

44

Control, Freezer WPL 2204991 Contact Us For Availability

45

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

47

Barrier, Freezer Control WPL 2212485 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225477 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

52

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

57

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI109572A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI109573A Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
