Model Whirlpool KTRC19KMBT03 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI109308A WPL ARI109308A Contact Us For Availability

WPL ARI109309A WPL ARI109309A Contact Us For Availability

WPL ARI109310A WPL ARI109310A Contact Us For Availability

WPL ARI109311A WPL ARI109311A Contact Us For Availability

WPL ARI109312A WPL ARI109312A Contact Us For Availability

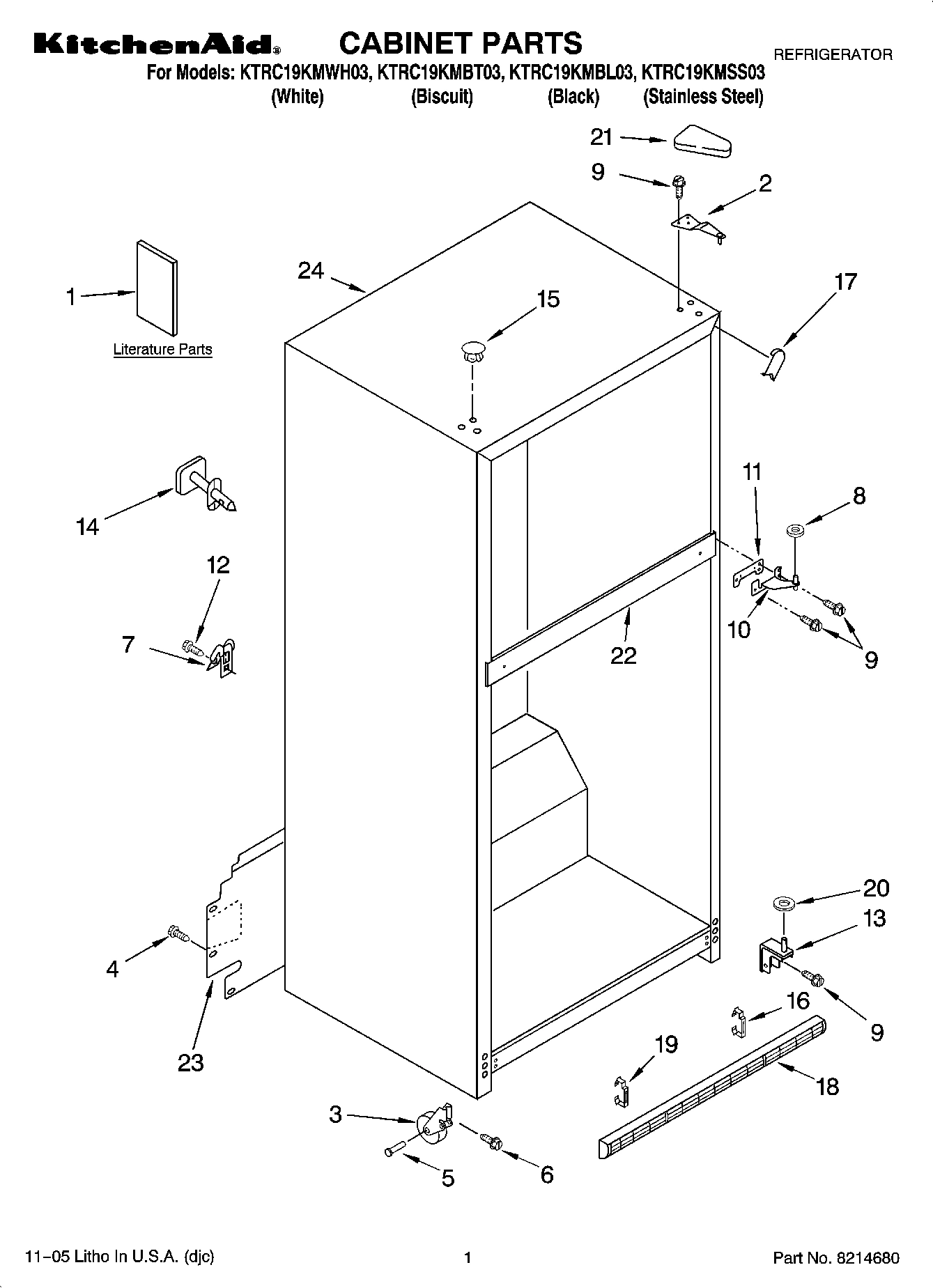

1

Customer Quick Tips WPL 2225415 Contact Us For Availability

1

Energy Label WPL 2302198 Contact Us For Availability

1

Service & Wiring Sheet WPL 2314273 Contact Us For Availability

1

Use & Care Guide WPL 2314464 Contact Us For Availability

1

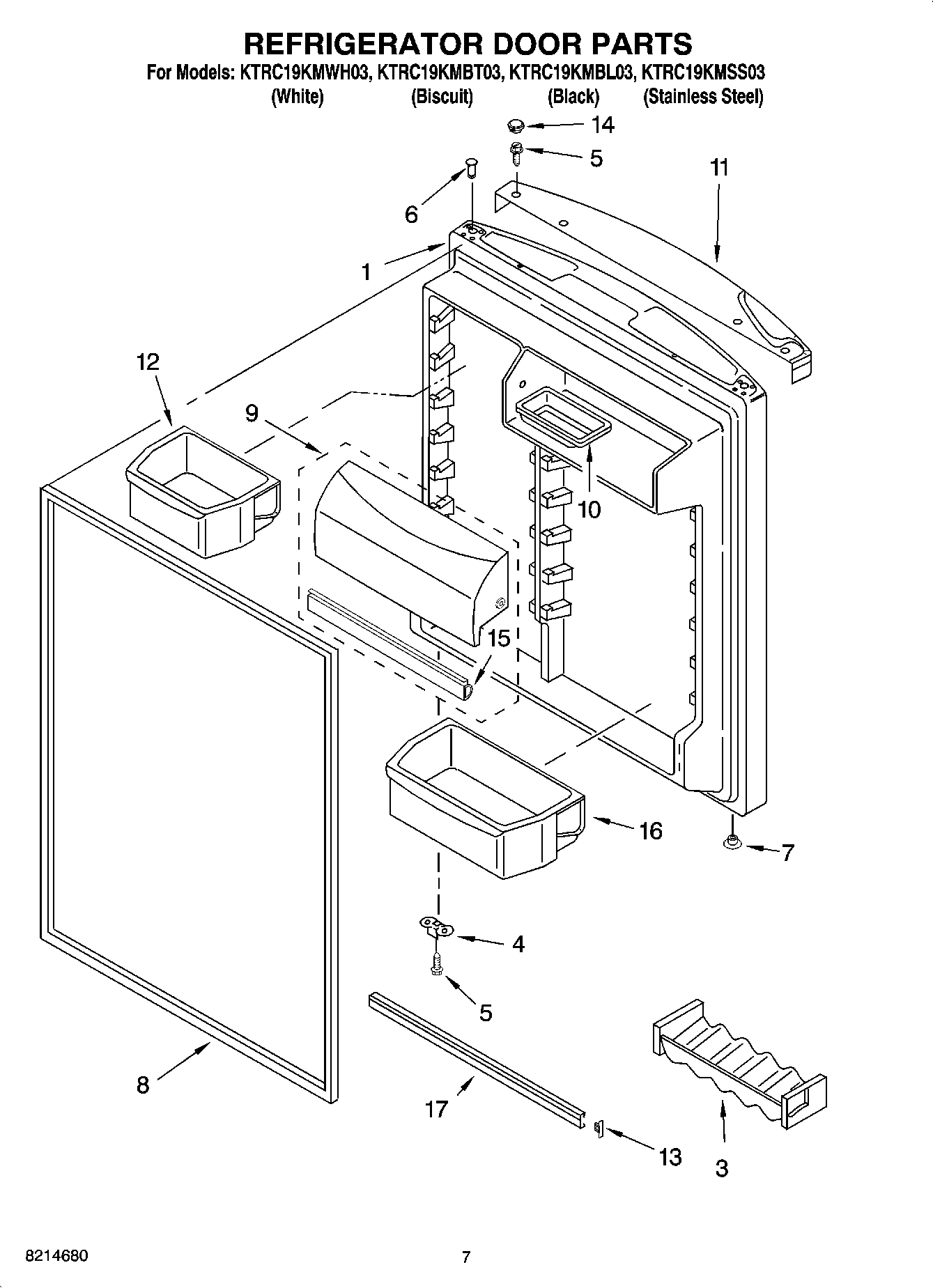

Refrigerator Door (Includes Illus. 6 & 8) (Wh WPL 2205403 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (Bi WPL 2205404 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (Bl WPL 2205406 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (St WPL 2212494 Contact Us For Availability

1

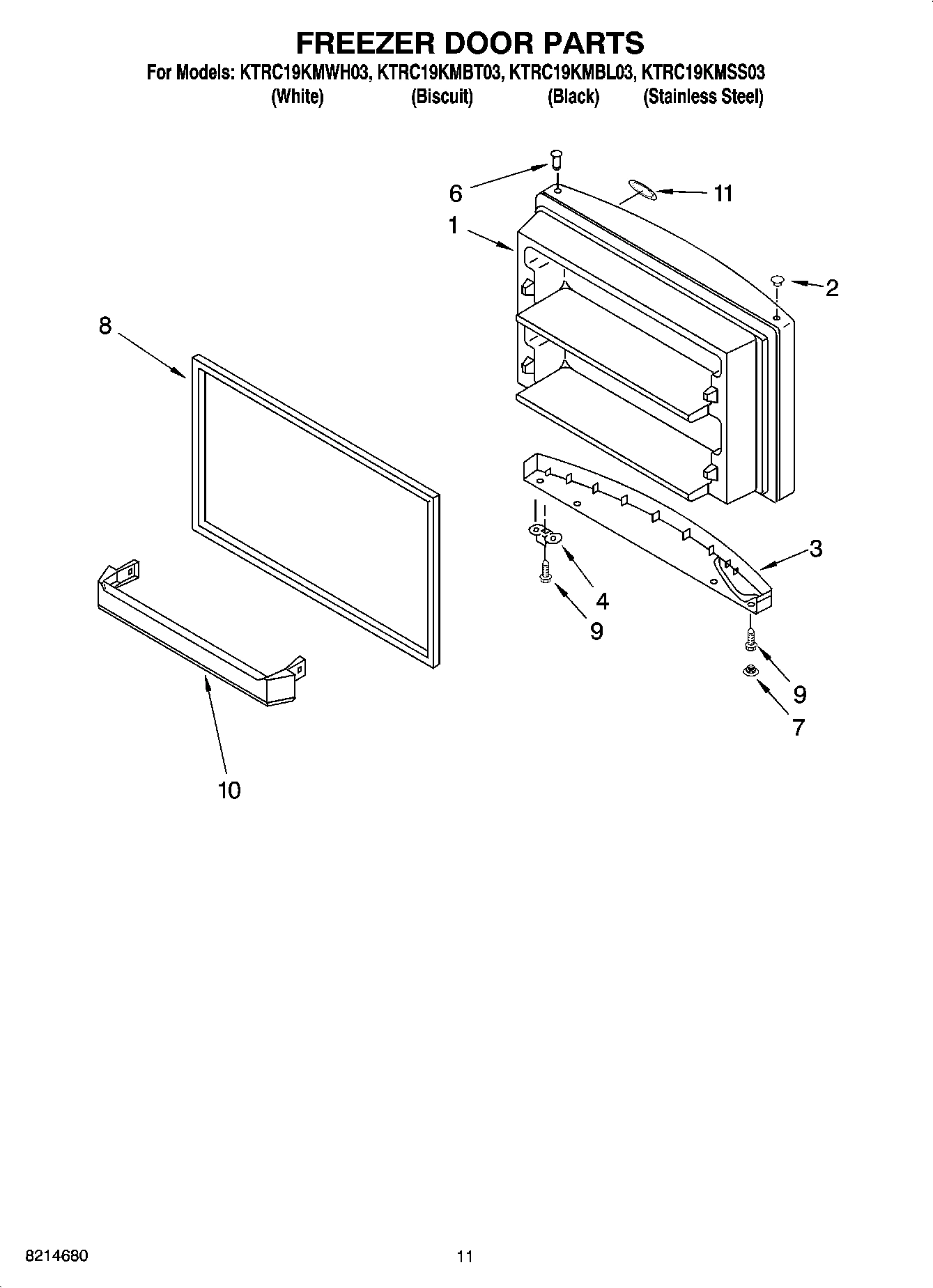

Freezer Door (Includes Illus. 6 & 8) (White) WPL 2205399 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Biscuit WPL 2205400 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Black) WPL 2205402 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Stainle WPL 2212495 Contact Us For Availability

2

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

Beverage Holder WPL 2193409 Contact Us For Availability

3

Handle, Endcap (White) WPL 2205459 Contact Us For Availability

3

Handle, Endcap (Biscuit) WPL 2205460 Contact Us For Availability

3

Handle, Endcap (Black) WPL 2221632 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2314156 Whirlpool Refrigerator Defrost Time In Stock WPL WP2314156 $105.85

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

7

Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability

7

HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

8

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $124.26

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.16

8

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

9

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

9

Door Compartment Assembly WPL 2218119 Contact Us For Availability

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

Eyelet, Roller WPL 2174478 Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

Trim, Door (2) WPL 2159291 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

Handle, Endcap (White) WPL 2205463 Contact Us For Availability

Handle, Endcap (Biscuit) WPL 2205464 Contact Us For Availability

Handle, Endcap (Black) WPL 2221636 Contact Us For Availability

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

12

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

12

Bin, Door Shelf WPL 2171065 Contact Us For Availability

13

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

13

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

13

THERMOSTAT WPL 2302286 Contact Us For Availability

14

Fitting, Water Tube (Not Serviced) WPL ARI109302A Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

16

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

16

Bin, Door WPL 2171062 Contact Us For Availability

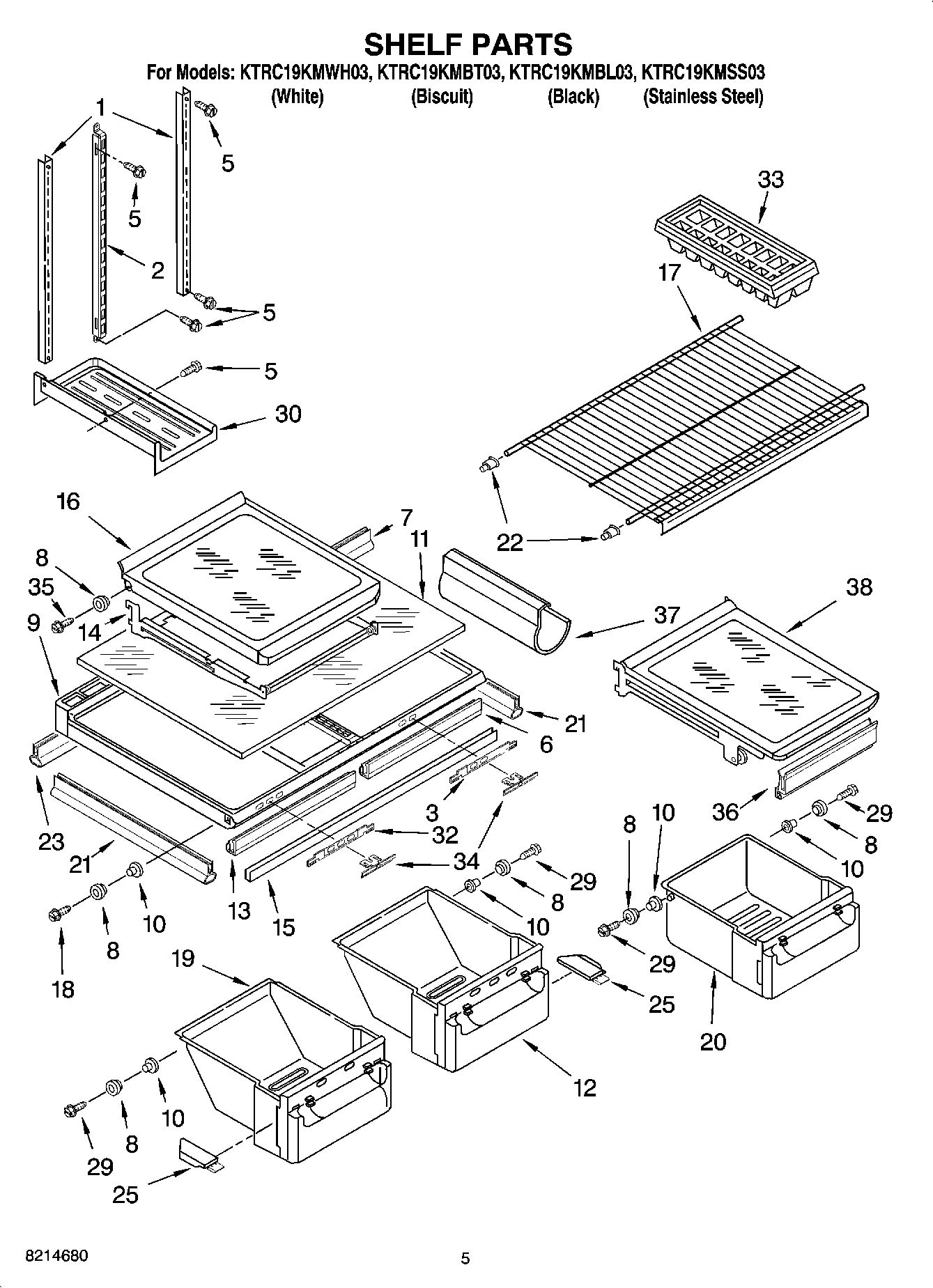

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

18

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

Grille (Includes Illus. 16 & 19) (Black) WPL 2254388 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Clip, Heater WPL 2182338 Contact Us For Availability

19

CLIP, GRILLE WPL 2189356 Contact Us For Availability

20

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

20

Wire Assembly, Freezer Compartment (Includes WPL 2310041 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

22

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

22

Rail Center (Not Serviced) WPL ARI109303A Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

23

Support Block WPL 2201184 Contact Us For Availability

23

Cover, Unit WPL 2221775 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Cabinet (Not A Serviceable Part) WPL ARI109304A Contact Us For Availability

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

Cover, Hole WPL 2205003 Contact Us For Availability

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

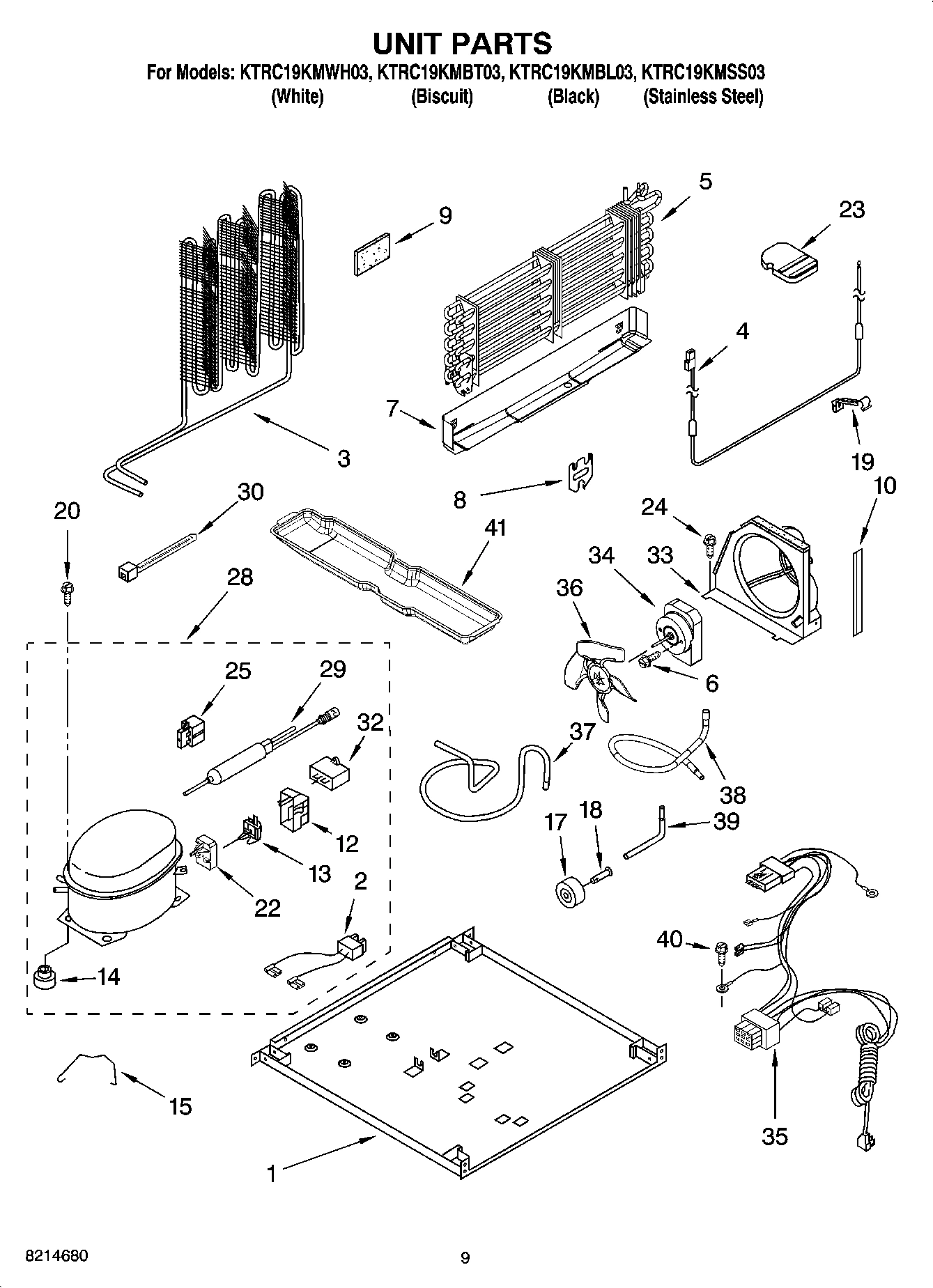

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

35

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

37

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

38

Knob, Damper WPL 2204951 Contact Us For Availability

39

Housing Base WPL 2300417 Contact Us For Availability

40

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

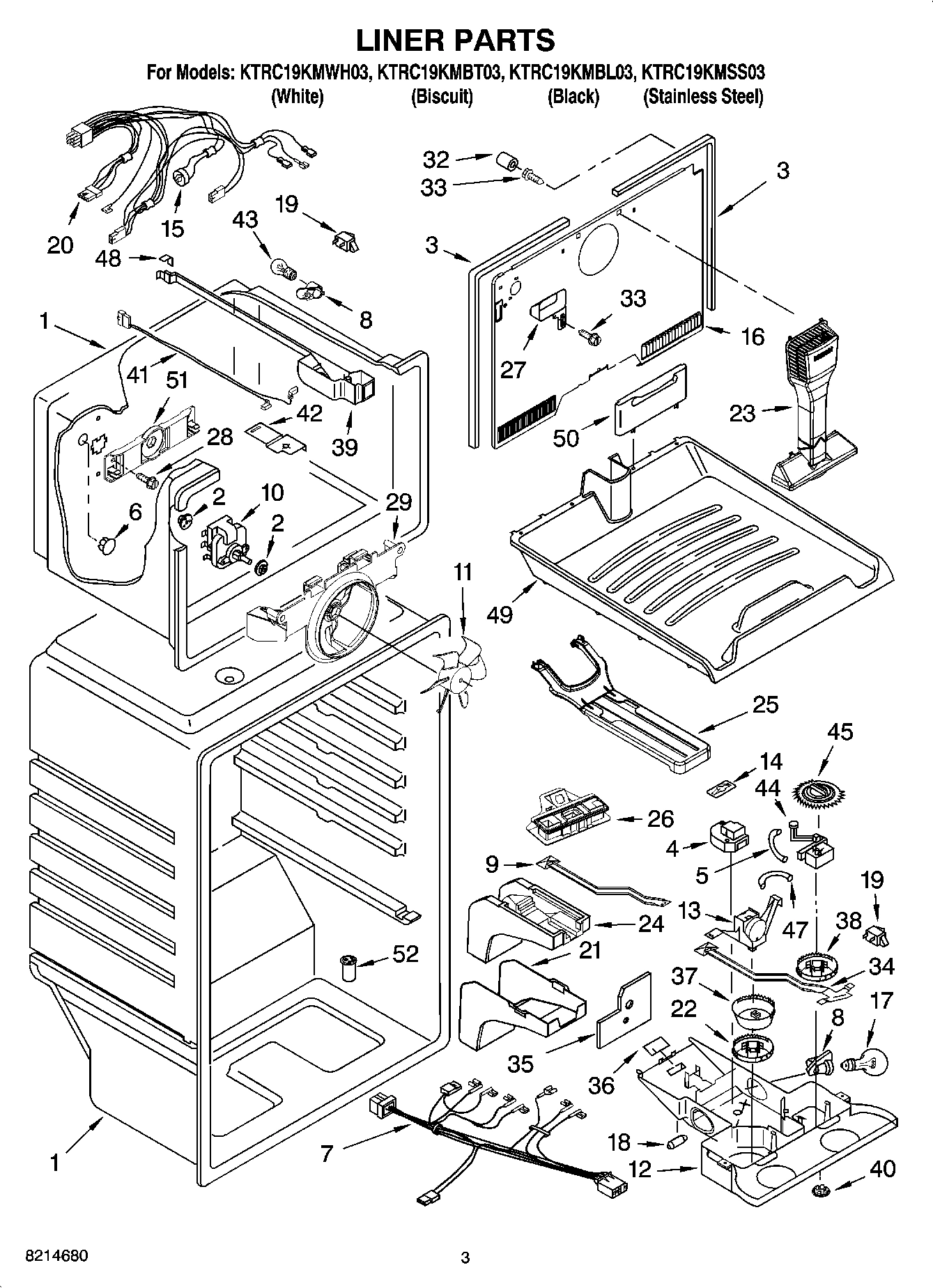

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

44

Control, Freezer WPL 2204991 Contact Us For Availability

45

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

47

Barrier, Freezer Control WPL 2212485 Contact Us For Availability

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225477 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80
