Model Whirlpool KTRC19ELSS01 REFRIGERATOR – Common Parts & Diagrams

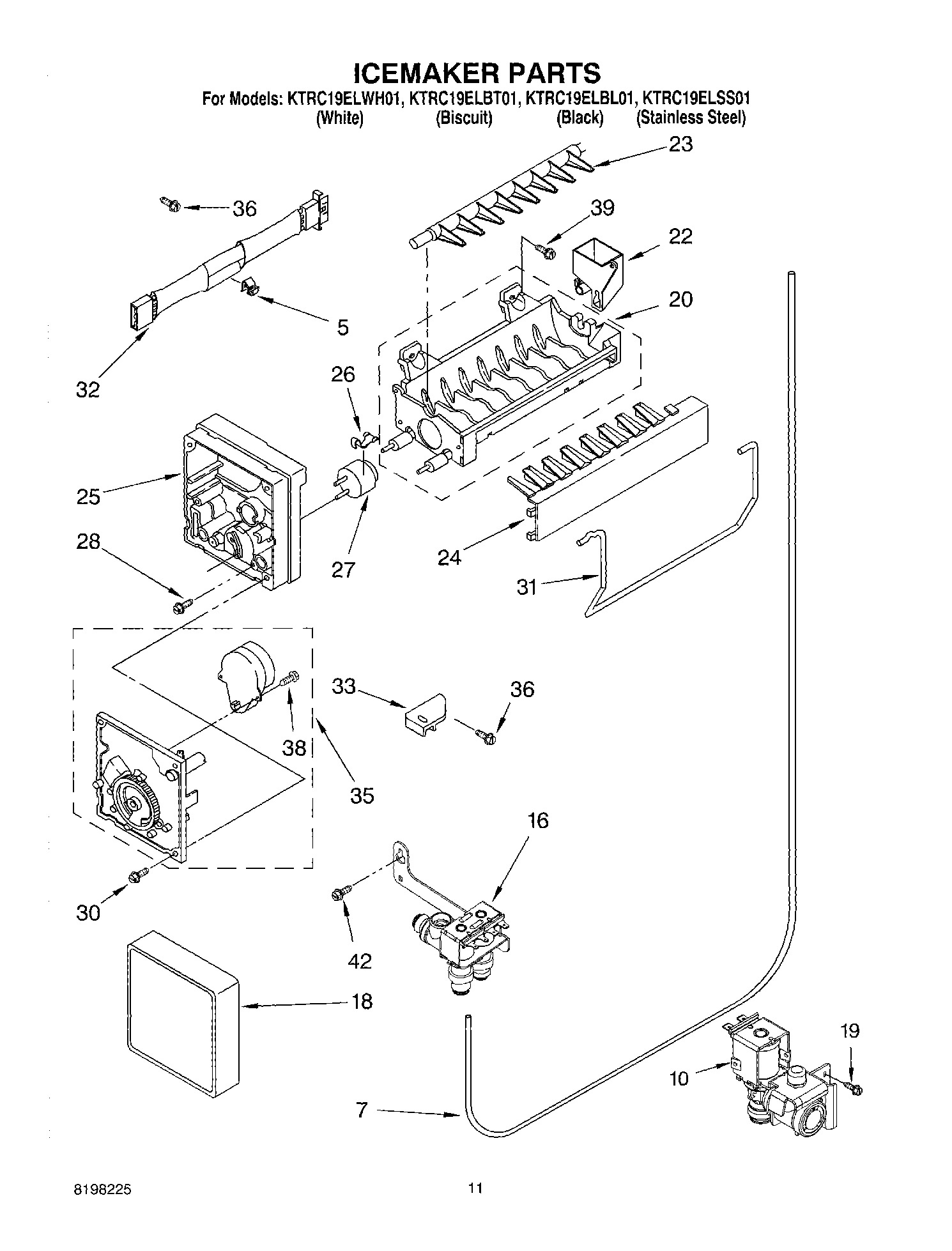

06 - ICE MAKER

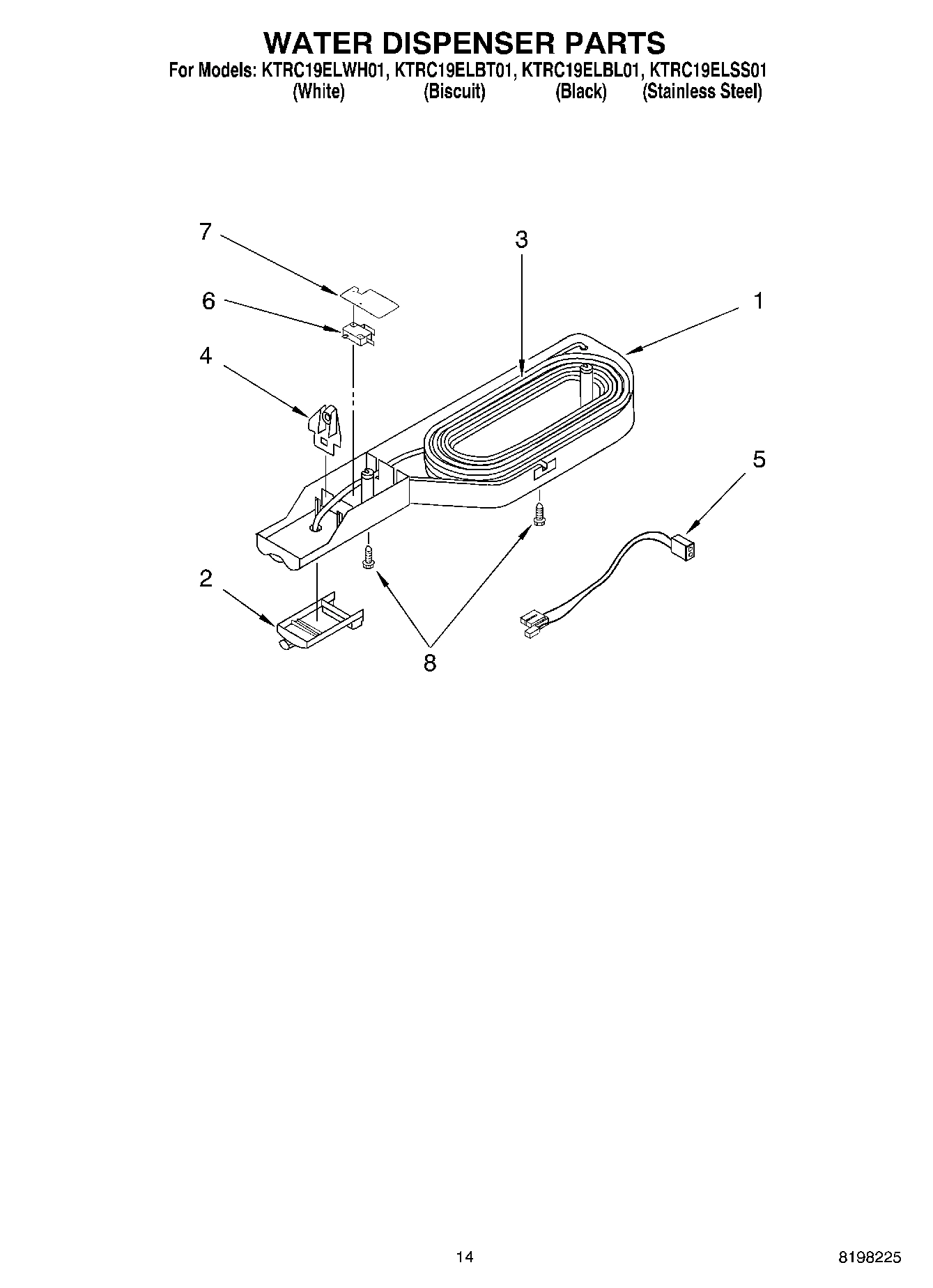

08 - WATER DISPENSER, OPTIONAL

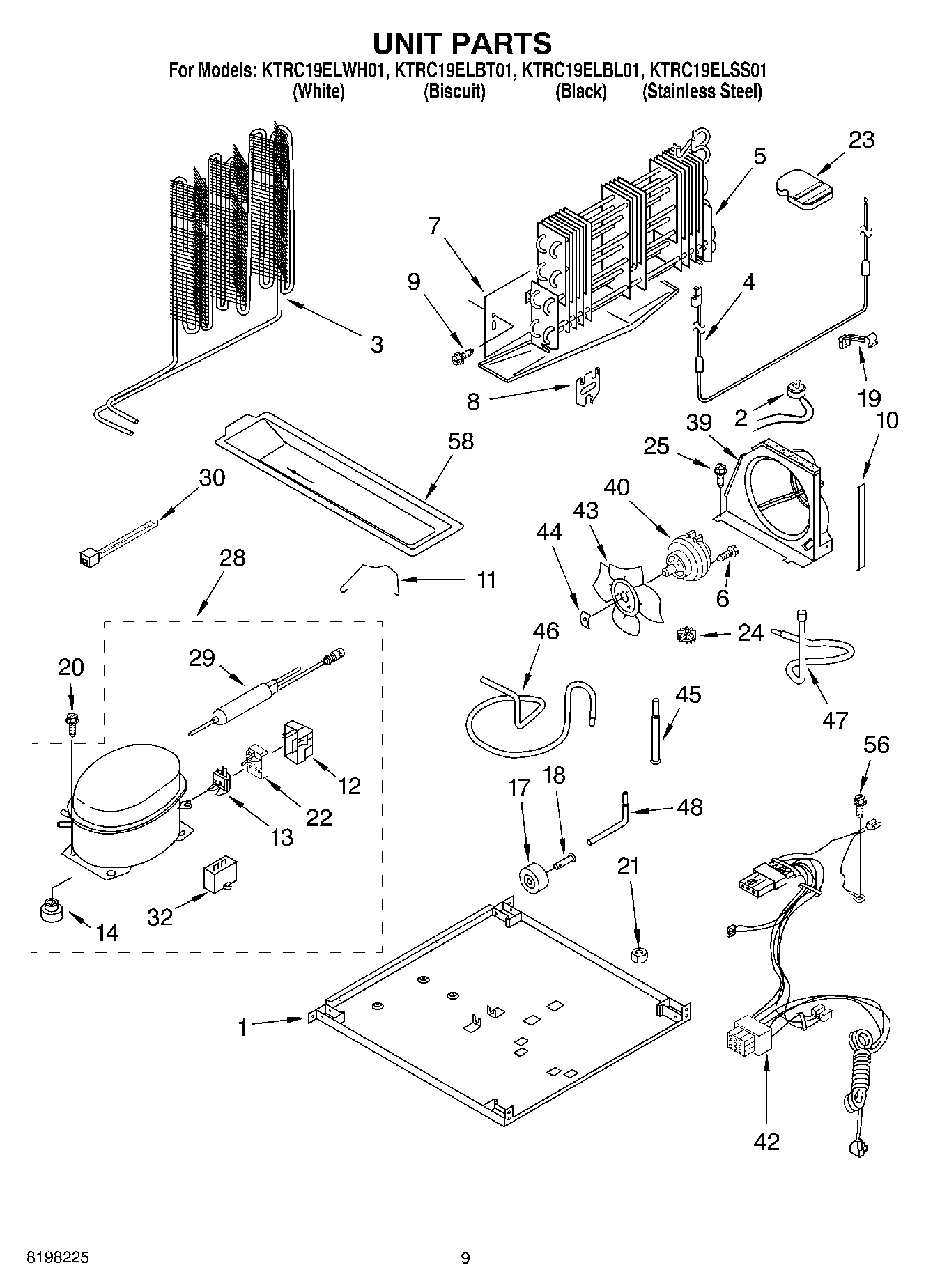

05 - UNIT

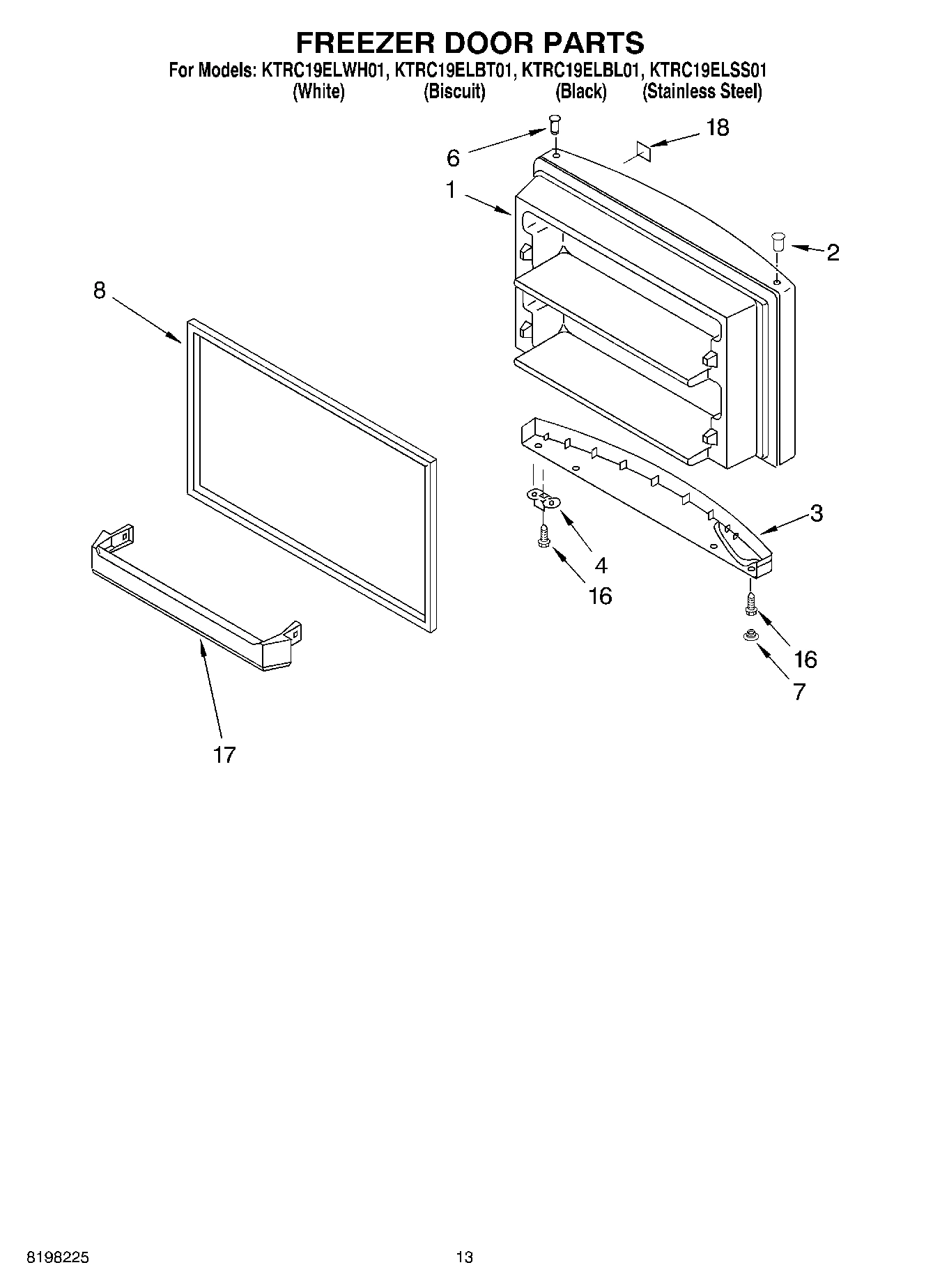

07 - FREEZER DOOR

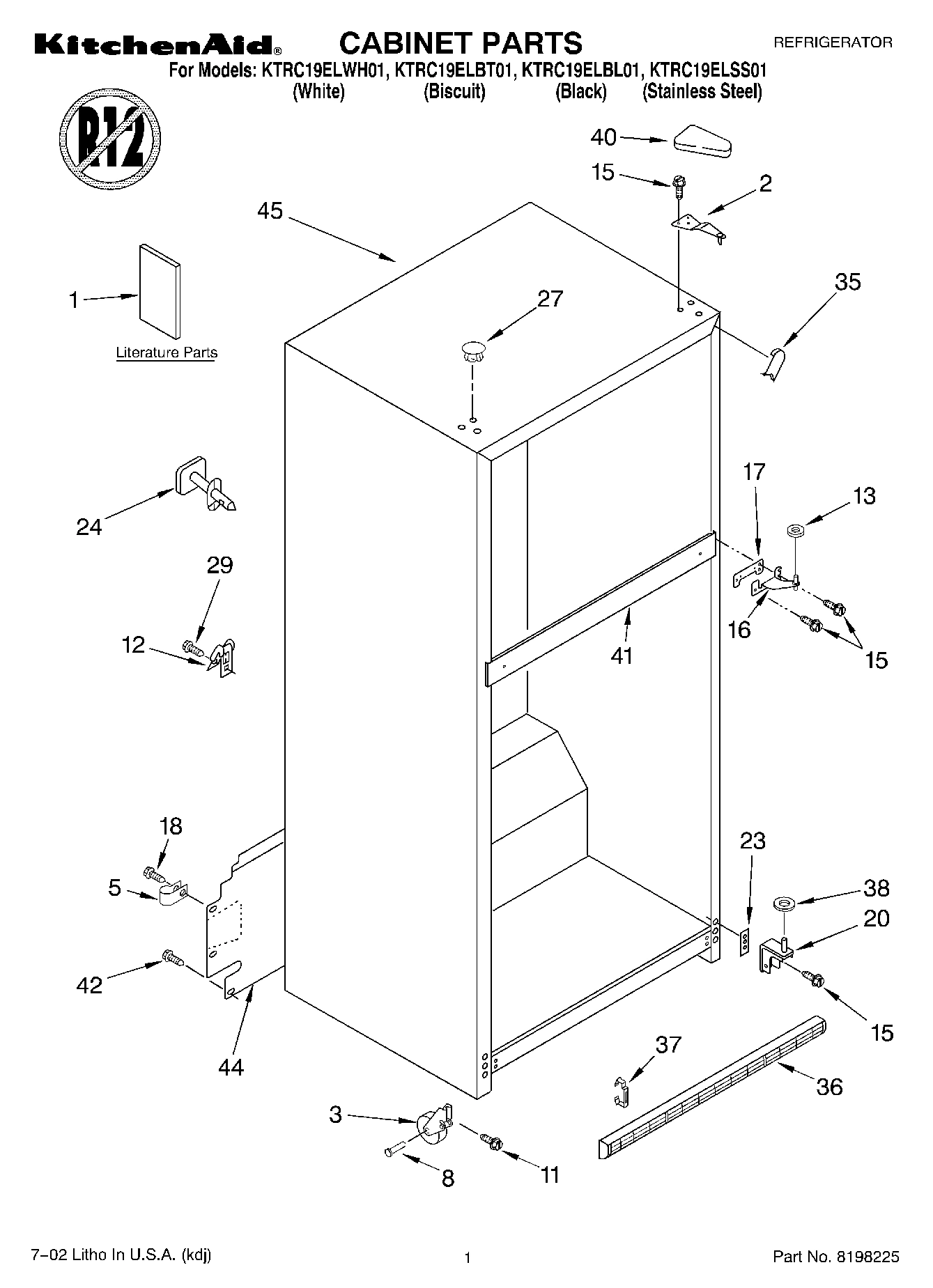

01 - CABINET, LITERATURE

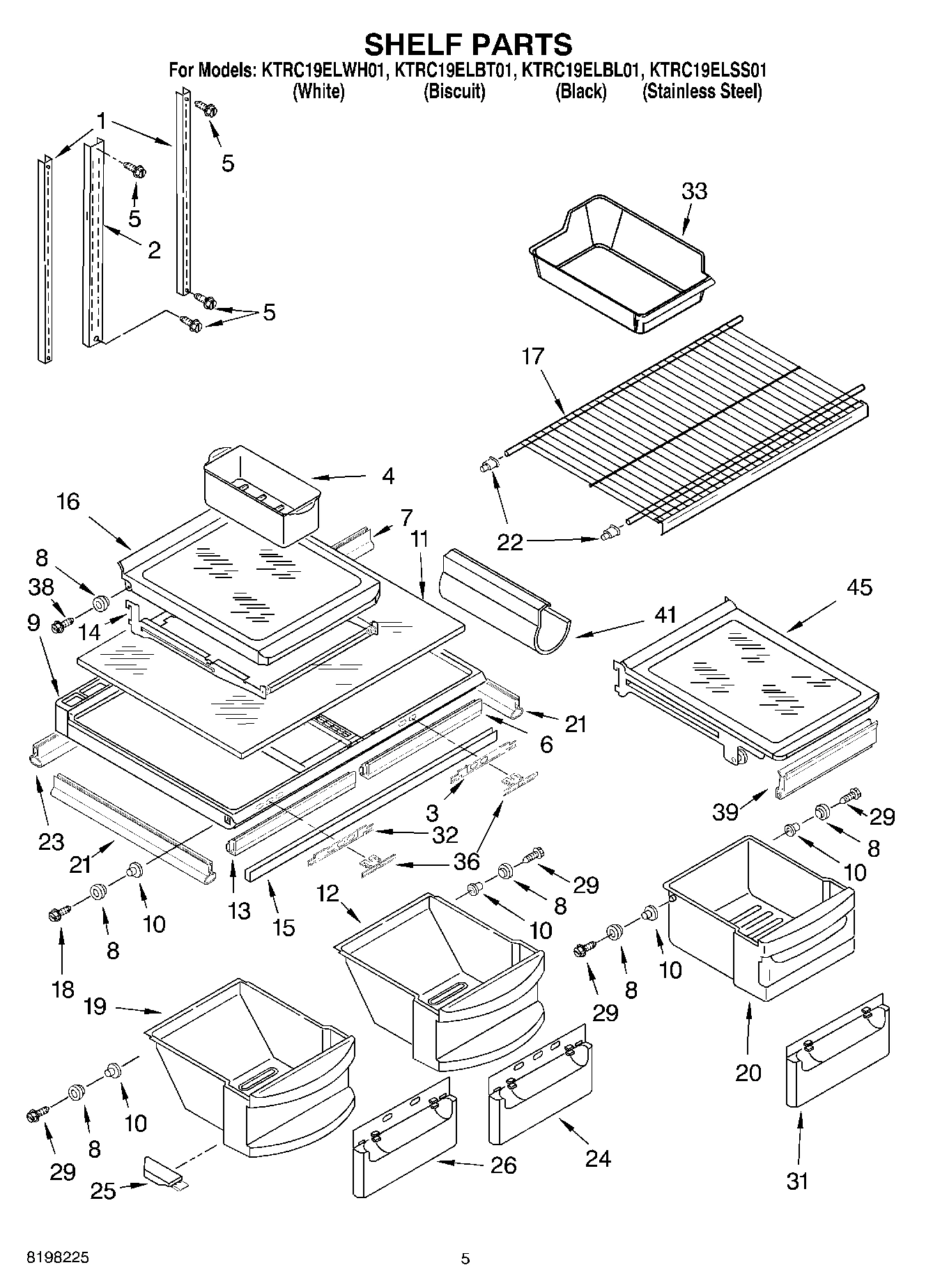

03 - SHELF

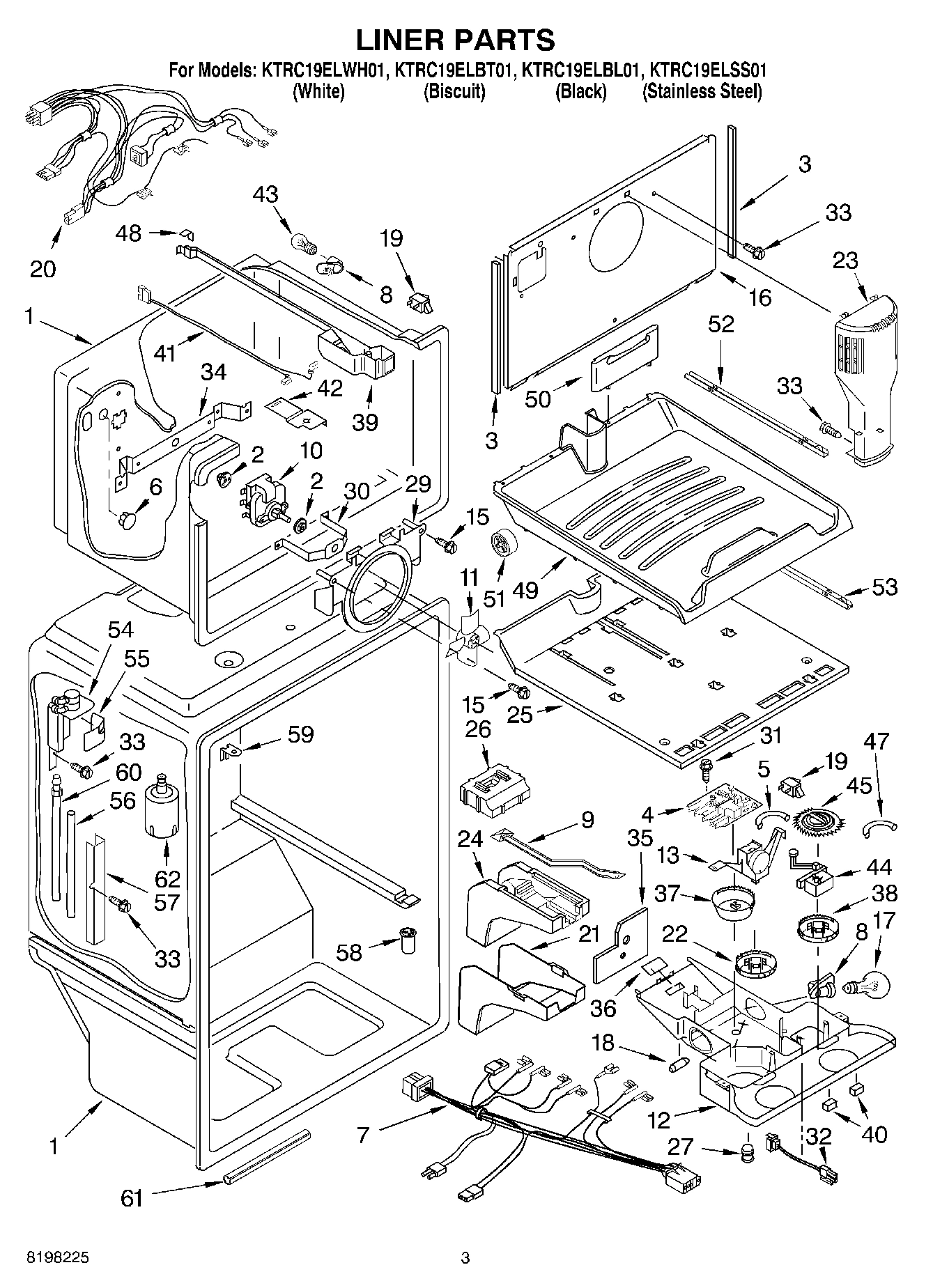

02 - LINER
04 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRC19ELSS01 REFRIGERATOR
1
Literature Parts (Use & Care Guide) WPL LIT2218589 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2218879 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2225025 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI109079A Contact Us For Availability
1
Refrigerator Door (White) WPL 2205403 Contact Us For Availability
1
Refrigerator Door (Biscuit) WPL 2205404 Contact Us For Availability
1
Refrigerator Door (Black) WPL 2205406 Contact Us For Availability
1
Refrigerator Door (Stainless Steel (Includes WPL 2212494 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
4
Flange, Tube WPL 2210523 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
7
Wire Assembly Control Box WPL 2187448 Contact Us For Availability
8
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
8
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
8
Torx Key WPL 1117510 Contact Us For Availability
8
Roller & Tread Assembly WPL 2188212 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
9
Damper, Air WPL 2212413 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
11
Glass, Crisper Cover WPL 2221694 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2188285 Contact Us For Availability
12
Control Box WPL 2218670 Contact Us For Availability
13
Thermostat Assembly (Includes Item 5) WPL 2204984 Contact Us For Availability
13
Butter, Dish WPL 2165792 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
14
Handle (White) WPL 2205463 Contact Us For Availability
14
Handle (Biscuit) WPL 2205464 Contact Us For Availability
14
Handle (Black) WPL 2221636 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
16
Cover-Evaporator WPL 2201173 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188290 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2187568 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
Knob, Thermostat WPL 2205094 Contact Us For Availability
22
Door, Compartment WPL 2218122 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI109076A Contact Us For Availability
24
Window, Crisper Pan WPL 2188271 Contact Us For Availability
24
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
24
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
24
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability
25
Freezer Floor WPL 2204746 Contact Us For Availability
26
Window, Crisper Pan WPL 2188276 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
27
Cover, Light Lens WPL 2213495 Contact Us For Availability
29
Bracket, Fan Motor WPL 2218696 Contact Us For Availability
30
Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability
31
Window, Meat Pan WPL 2188277 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
34
Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability
35
Shield, heat WPL 2204639 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
38
Knob, Damper WPL 2204951 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI109077A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2221682 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2221775 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI109078A Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
47
Barrier, Freezer Control WPL 2212485 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Bracket Assembly, Wat WPL 2210510 Contact Us For Availability
55
WPL 2219639 WPL 2219639 Contact Us For Availability
56
WPL 2219699 WPL 2219699 Contact Us For Availability
57
WPL 2210521 WPL 2210521 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
WPL 2210563 WPL 2210563 Contact Us For Availability
61
WPL 2214981 WPL 2214981 Contact Us For Availability
62
WPL 2213384 WPL 2213384 Contact Us For Availability
× ![]()
