Model Whirlpool KTLA19KRSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability

WPL ARI108306A WPL ARI108306A Contact Us For Availability

WPL ARI108307A WPL ARI108307A Contact Us For Availability

WPL ARI108308A WPL ARI108308A Contact Us For Availability

WPL ARI108309A WPL ARI108309A Contact Us For Availability

WPL ARI108310A WPL ARI108310A Contact Us For Availability

1

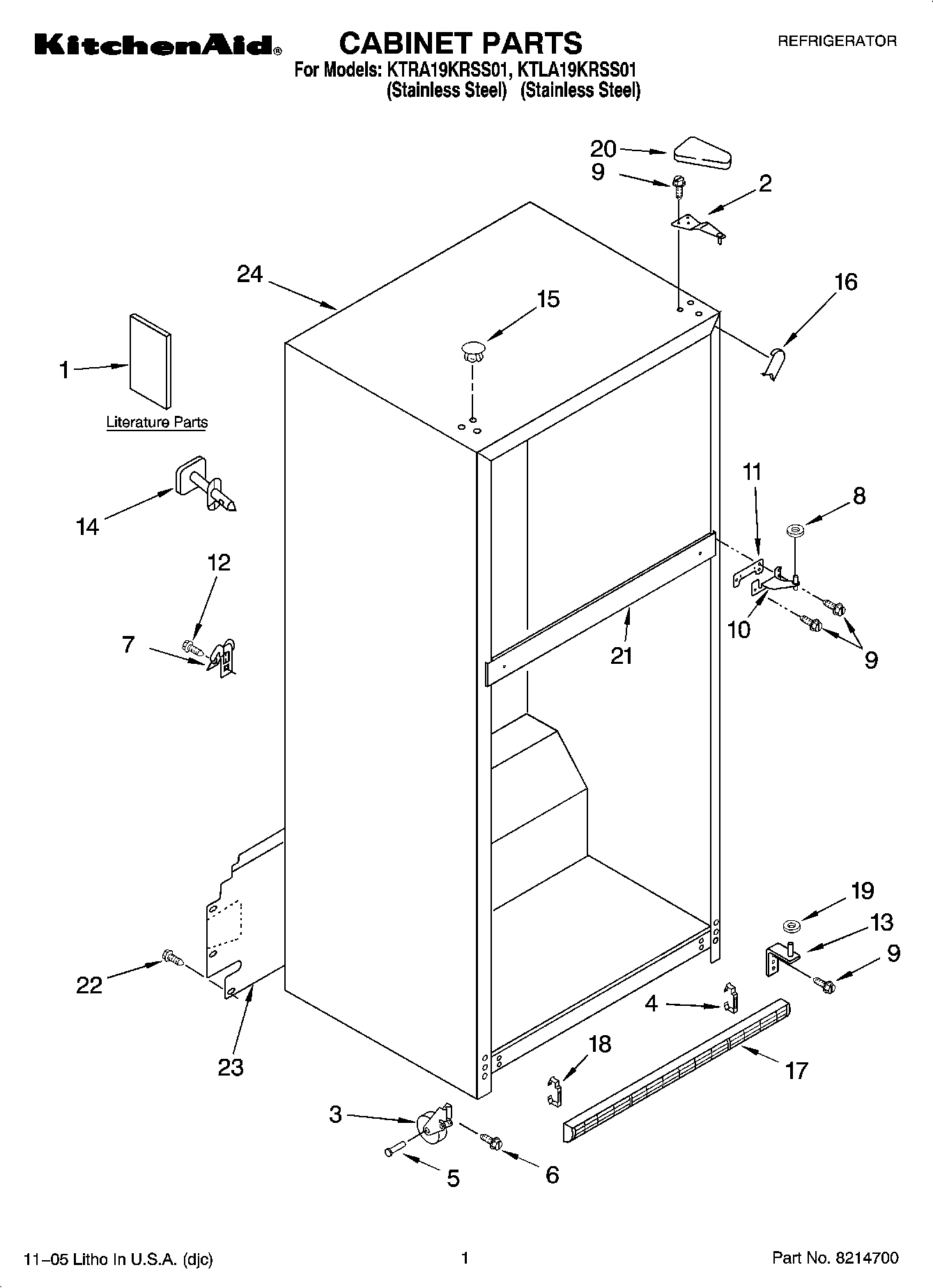

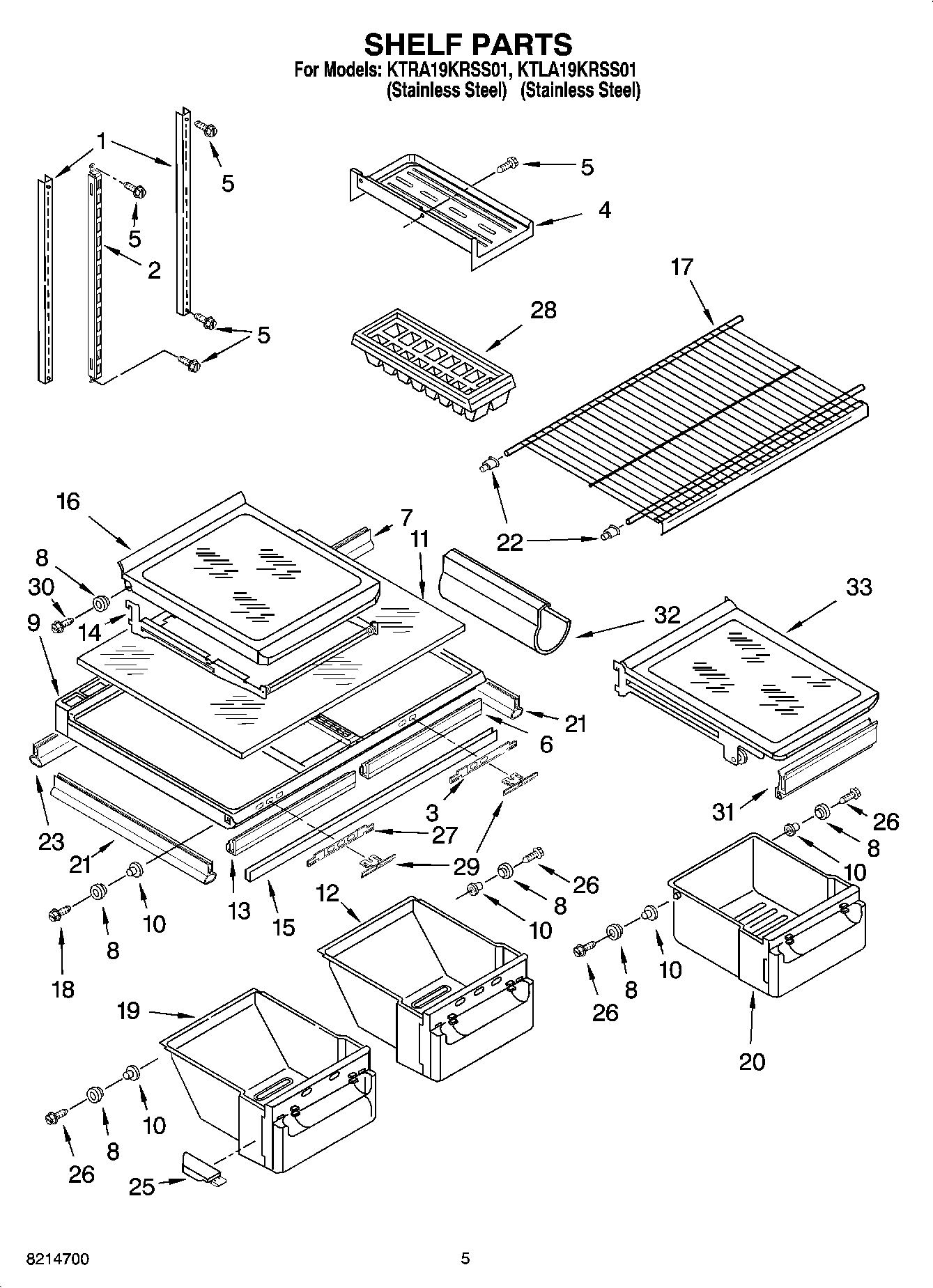

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

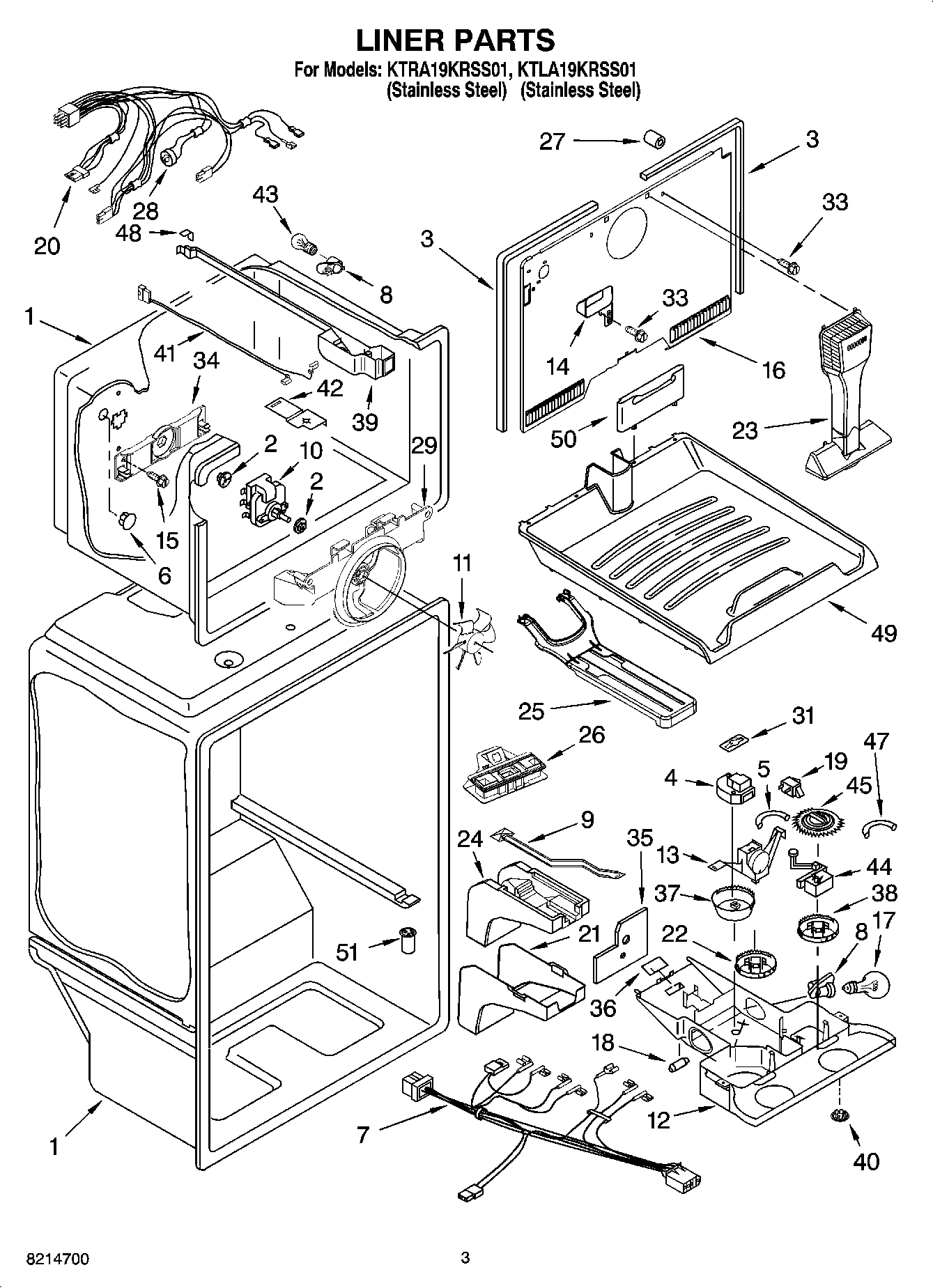

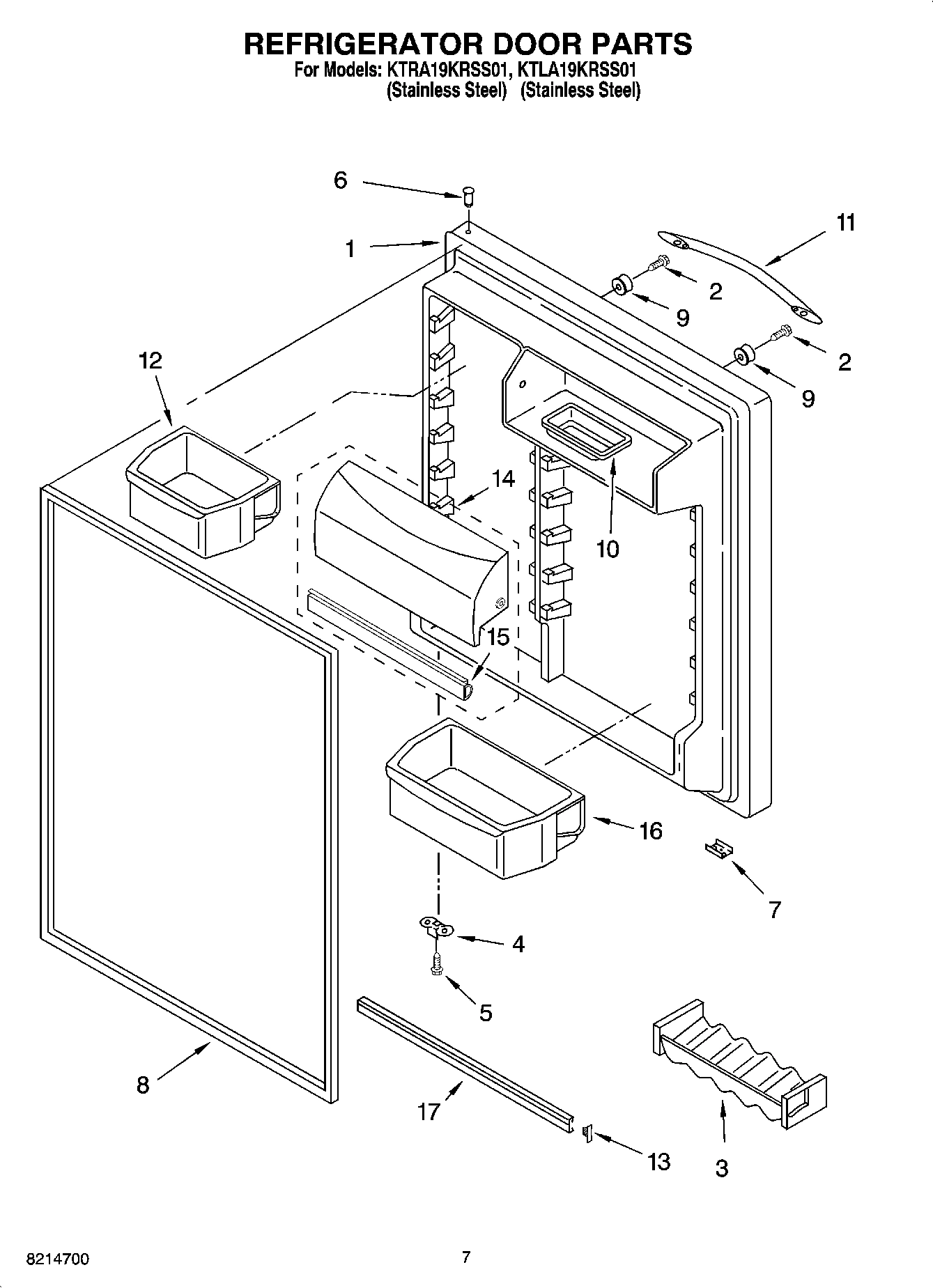

Refrigerator Door (Includes Illus. 6,7 & 8) ( WPL 2221740 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6,7 & 8) ( WPL 2221741 Contact Us For Availability

1

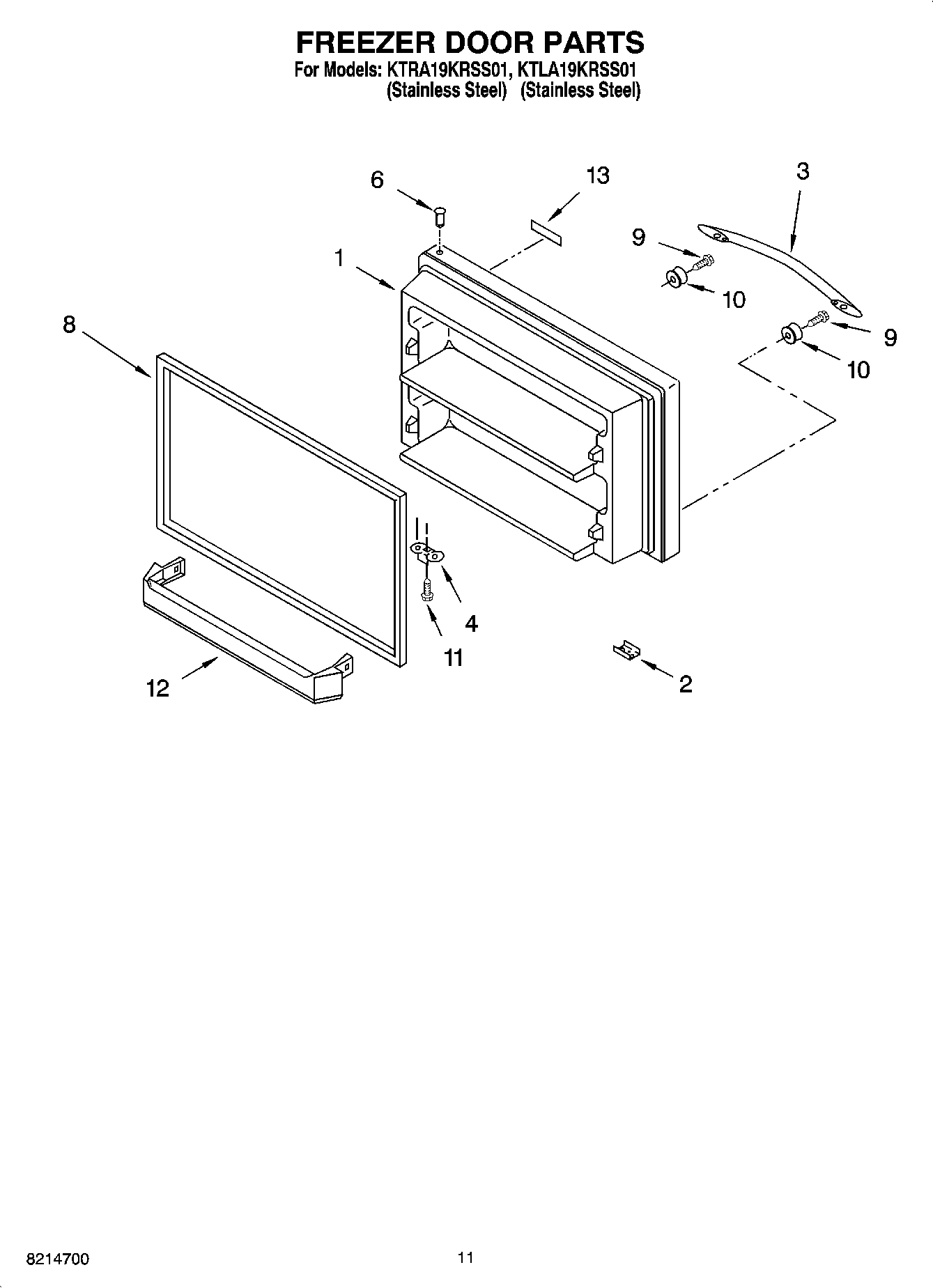

Freezer Door (Includes Illus. 2,6 & 8) (For M WPL 2221744 Contact Us For Availability

1

Freezer Door (Includes Illus. 2,6 & 8) (For M WPL 2221745 Contact Us For Availability

2

Tap Plate WPL 2183000 Contact Us For Availability

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

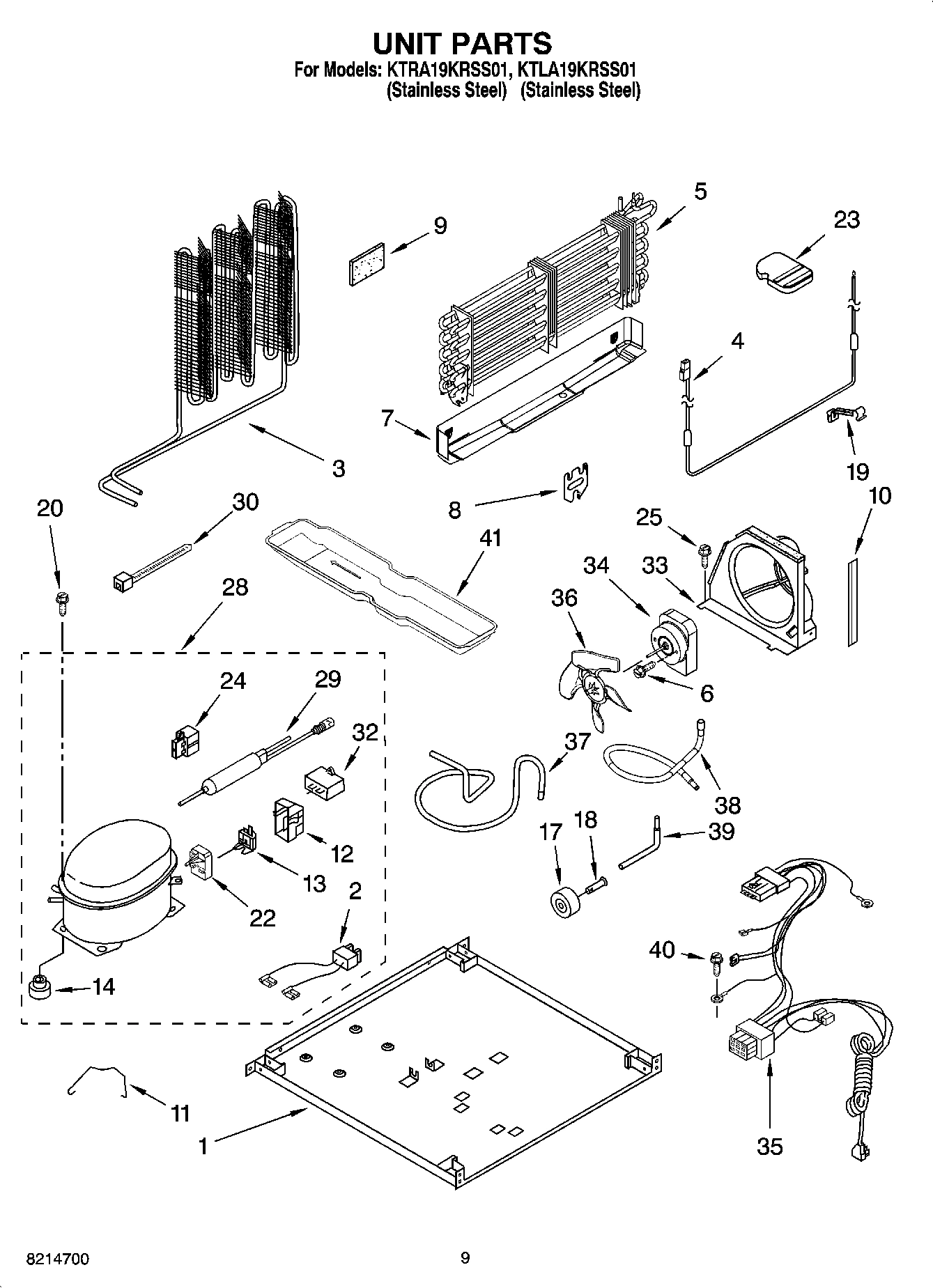

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

Slide, Humidity WPL 2174256 Contact Us For Availability

3

Beverage Holder WPL 2193409 Contact Us For Availability

3

Handle, Door WPL 2221770 Contact Us For Availability

4

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2314156 Whirlpool Refrigerator Defrost Time In Stock WPL WP2314156 $105.85

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

4

Shelf, Ice Tray WPL 2212770 Contact Us For Availability

5

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability

8

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $124.26

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.16

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

9

Crisper Cover (Inlcudes Illus. 3,6,7,8,10, 13 WPL 2198759 Contact Us For Availability

10

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Butter, Dish WPL 2165792 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Glass, Crisper Cover WPL 2221694 Contact Us For Availability

12

Pan, Crisper (11 Inch) (Includes Illus. 8,10, WPL 2188811 Contact Us For Availability

12

Bin, Door Shelf WPL 2171065 Contact Us For Availability

12

Trivet, Door WPL 2159291 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Thermostat Assembly WPL 2302286 Contact Us For Availability

Nameplate WPL 2212762 Contact Us For Availability

14

Cover, Inlet Tube WPL 2205003 Contact Us For Availability

14

Frame Assembly, Spillguard (Includes Illus. 8 WPL 2174011 Contact Us For Availability

14

Door Compartment WPL 2218119 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

16

Bin, Door WPL 2171062 Contact Us For Availability

16

Shelf Assembly, Spillguard (Includes Illus. 8 WPL 2174009 Contact Us For Availability

17

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

17

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

17

Grille (Includes Illus. 4 & 18) WPL 2254388 Contact Us For Availability

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

CLIP, GRILLE WPL 2189356 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Clip, Heater WPL 2182338 Contact Us For Availability

Pan, Crisper (13 Inch) (Includes Illus. 8,10, WPL 2188816 Contact Us For Availability

20

Wire Assembly, Freezer Compartment (Includes WPL 2310041 Contact Us For Availability

20

Pan, Meat (Includes Illus. 8,10 & 26) WPL 2188817 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Gasket, Crisper Cover (Side) WPL 2179214 Contact Us For Availability

22

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

22

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

22

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

23

Support Block WPL 2201184 Contact Us For Availability

23

Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability

25

Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability

26

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

Slide, Humidity WPL 2174257 Contact Us For Availability

28

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Button, Humidity Control WPL 2174253 Contact Us For Availability

30

Screw WPL 489439 Contact Us For Availability

31

Gasket, Front WPL 2174394 Contact Us For Availability

32

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

33

Shelf Assembly, Spillguard (Includes Illus. 3 WPL 2190503 Contact Us For Availability

34

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

34

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

35

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

39

Housing Base WPL 2300417 Contact Us For Availability

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI108304A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI108305A Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
