Model Whirlpool KTLA19ELSS01 REFRIGERATOR – Common Parts & Diagrams

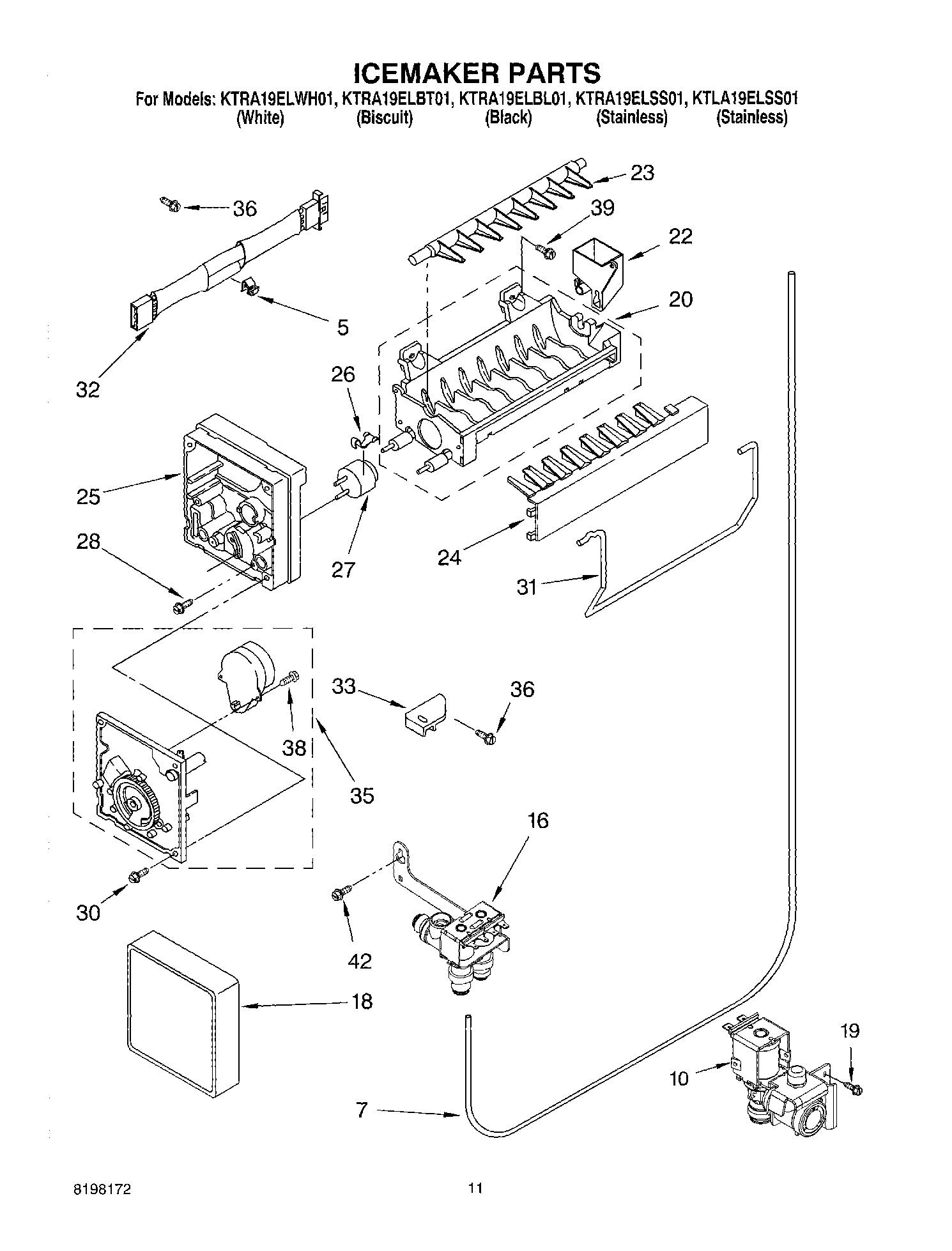

06 - ICE MAKER

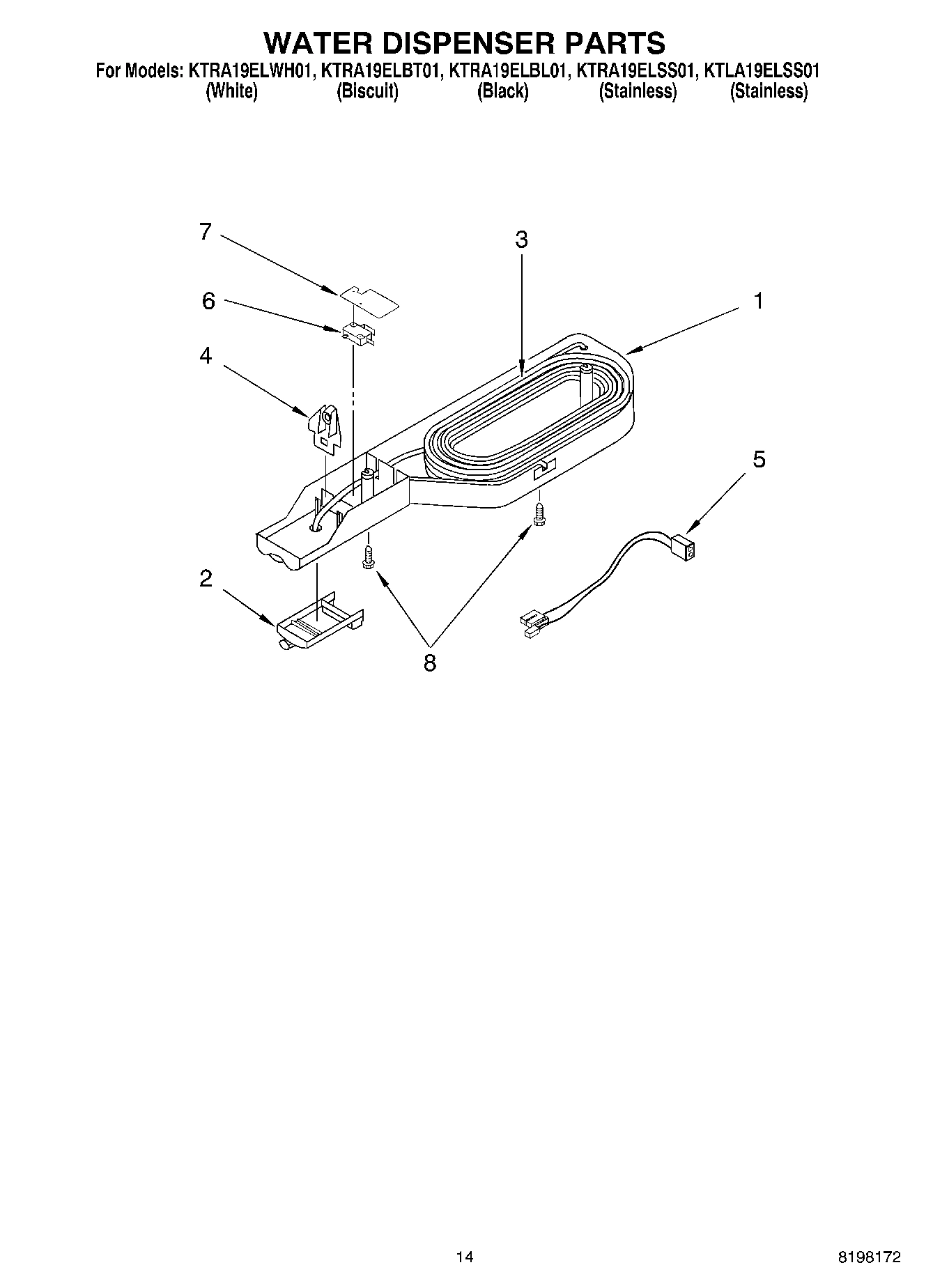

08 - WATER DISPENSER, OPTIONAL

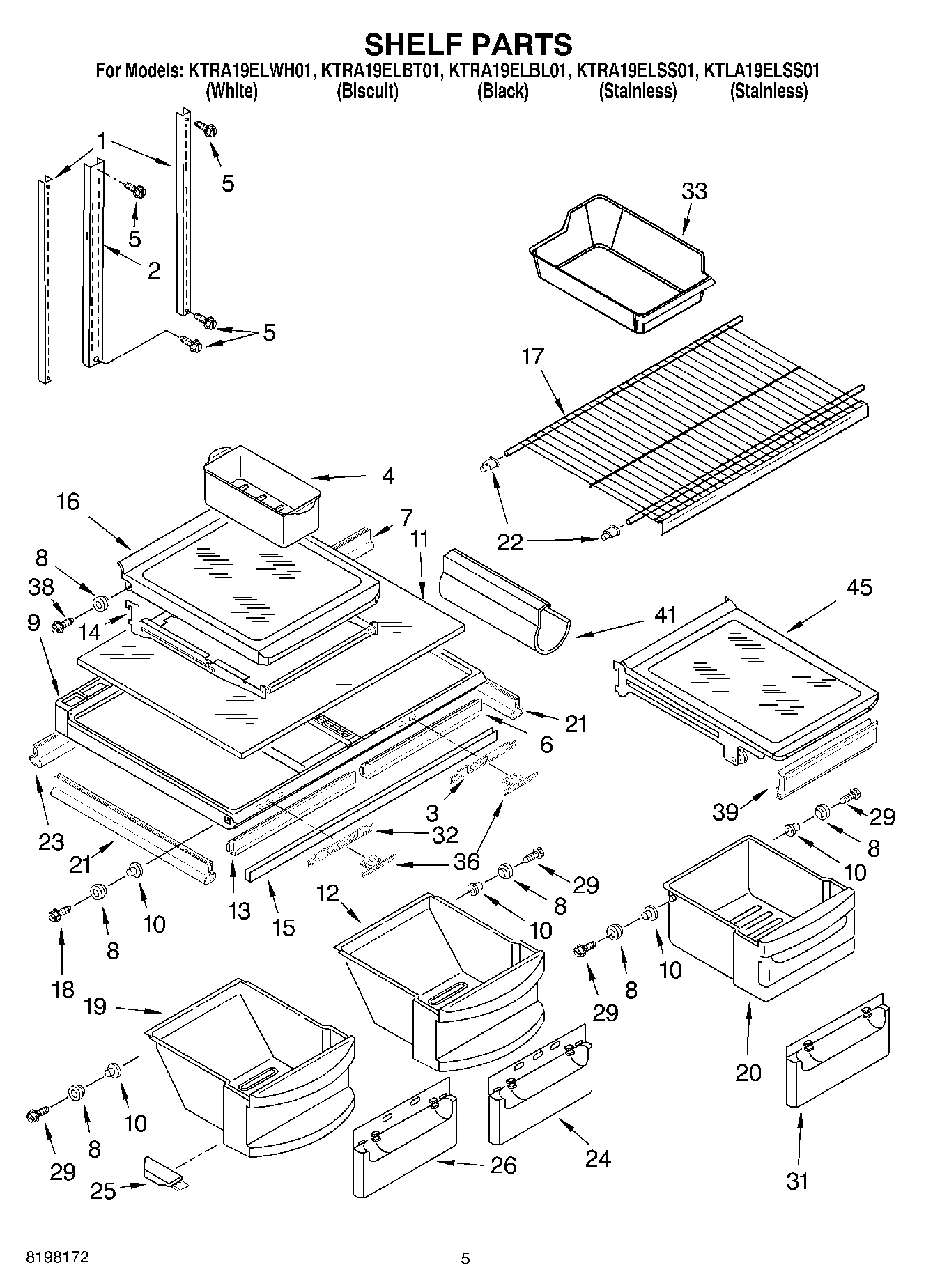

03 - SHELF

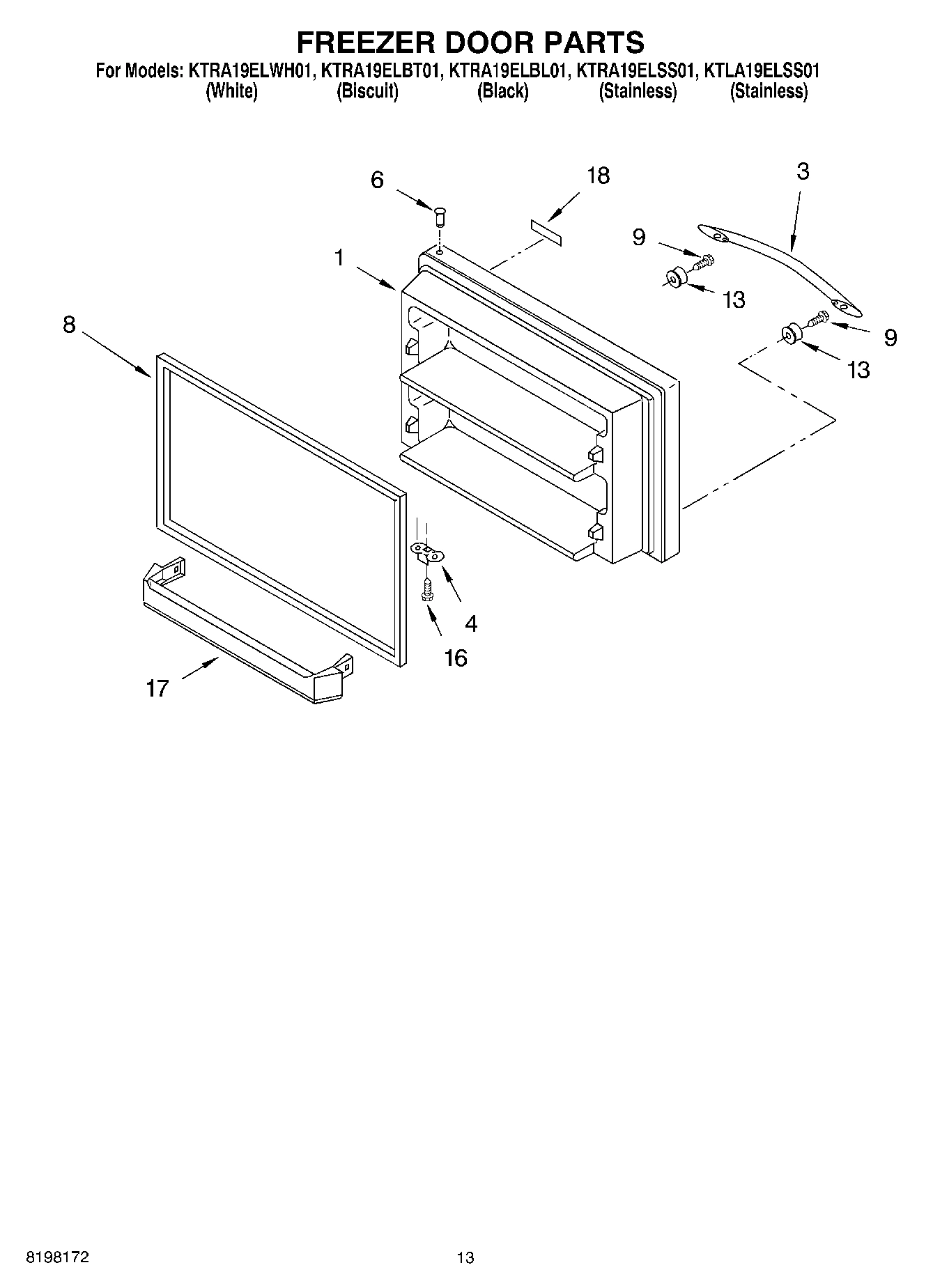

07 - FREEZER DOOR

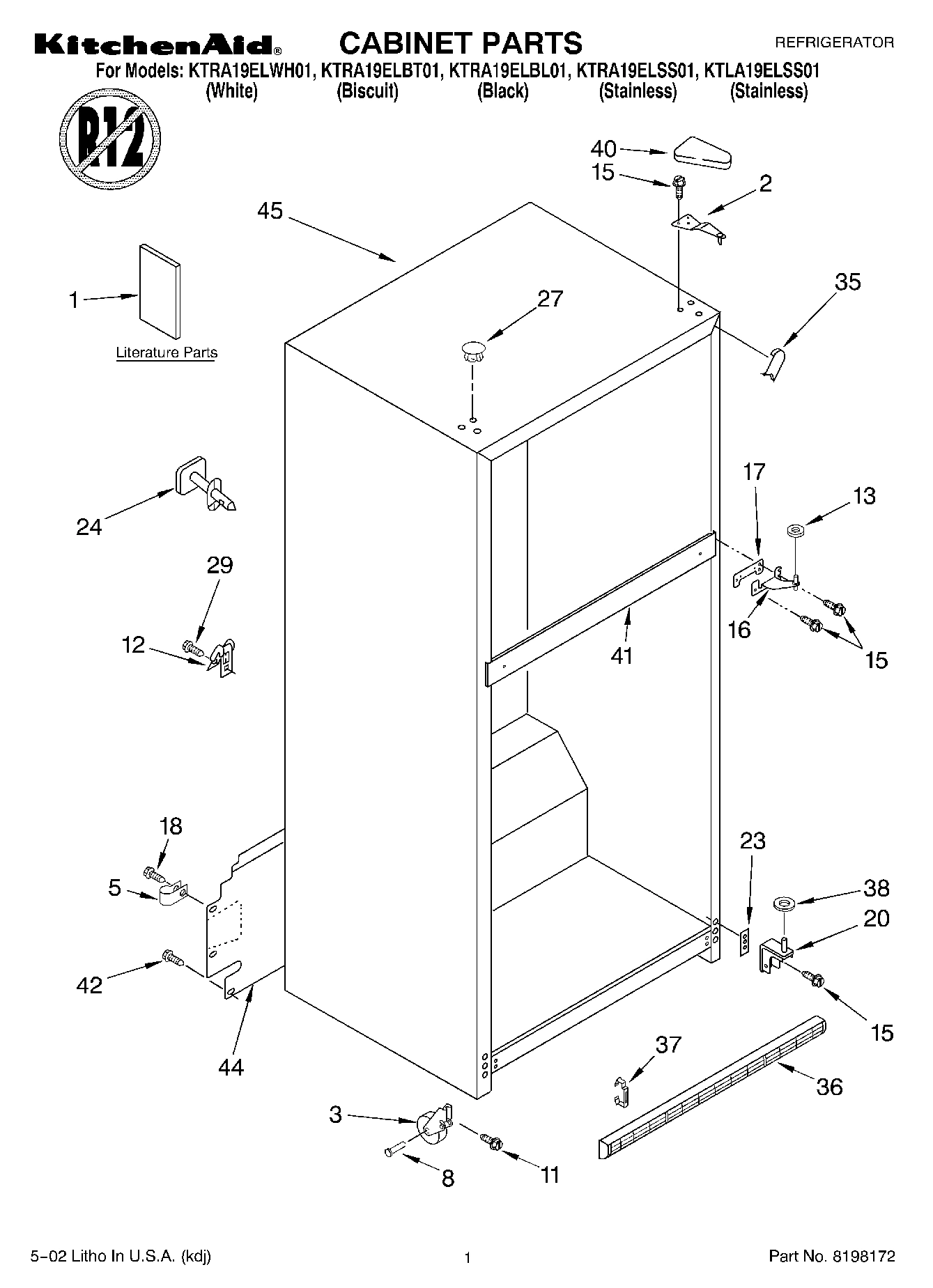

01 - CABINET, LITERATURE

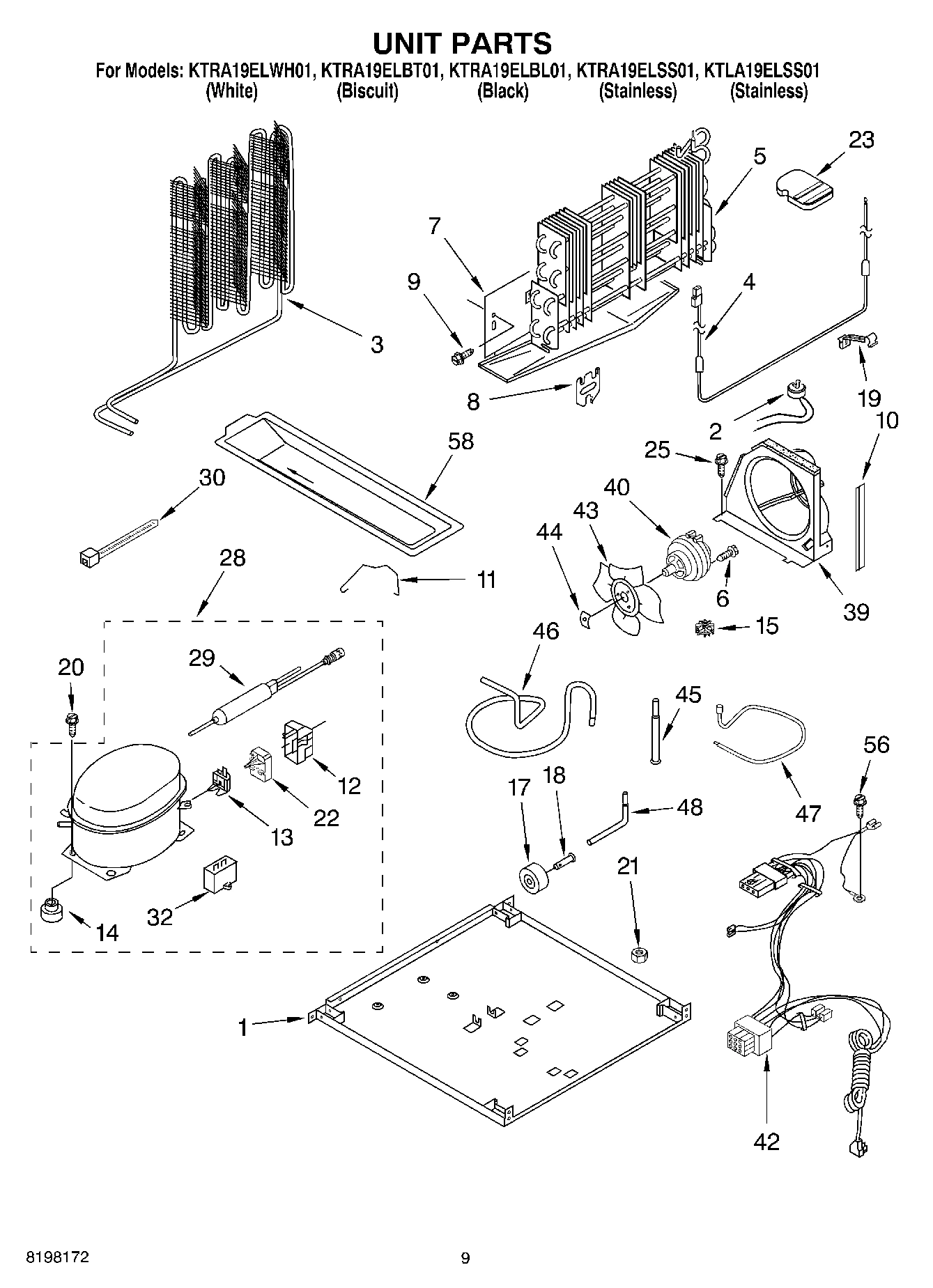

05 - UNIT

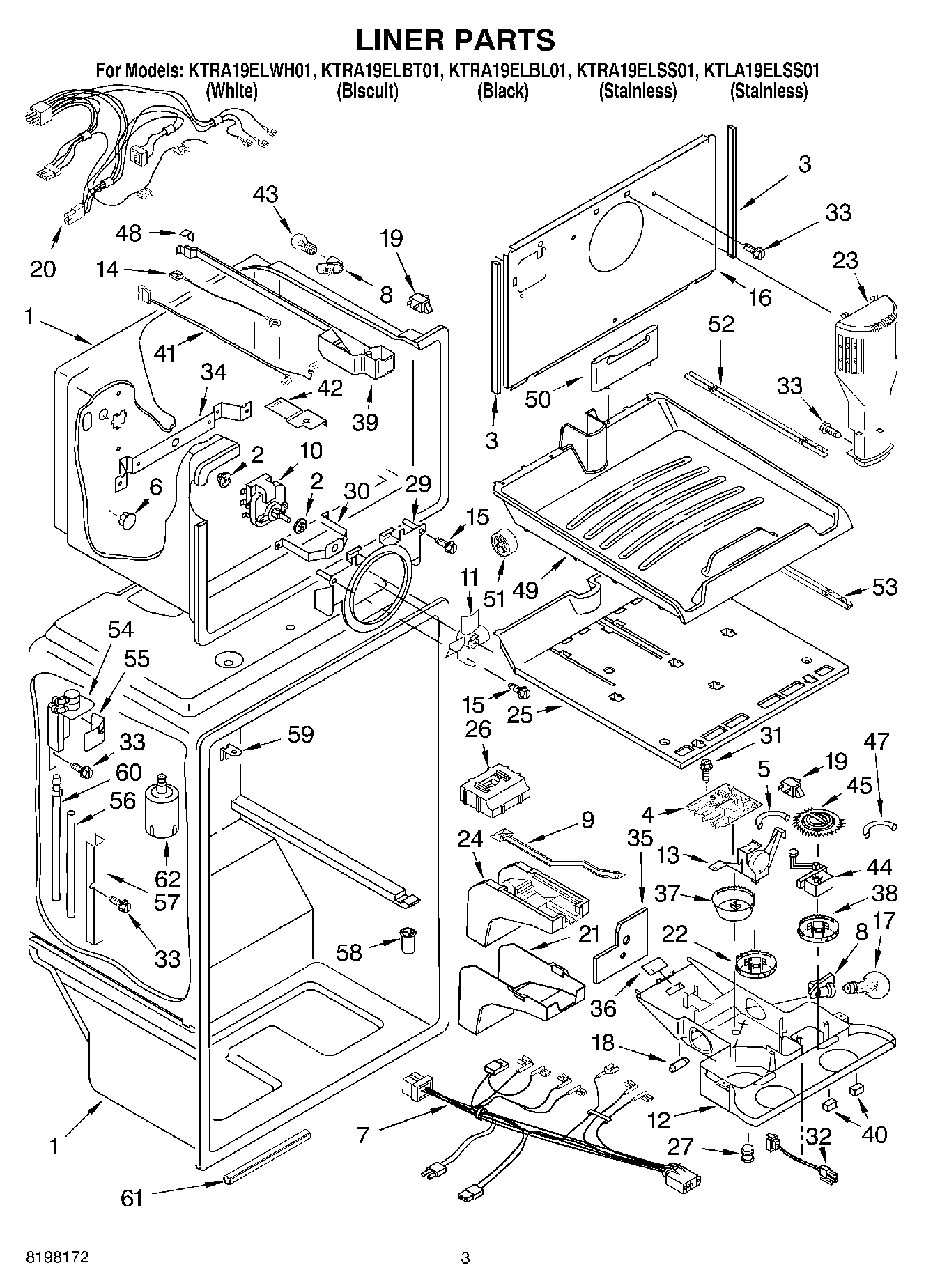

02 - LINER

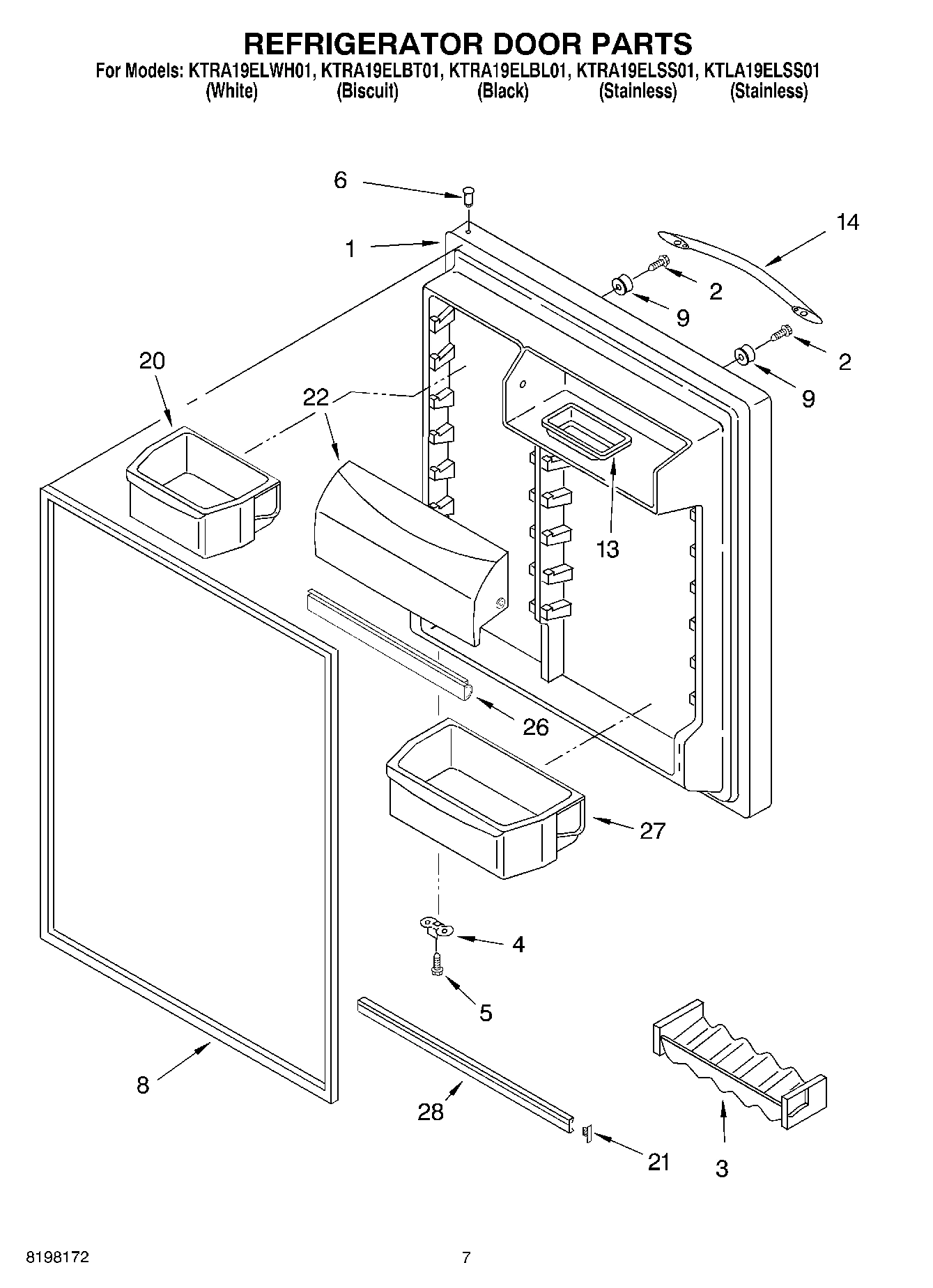

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTLA19ELSS01 REFRIGERATOR
1
Plate, Unit Mounting WPL 2205341 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI108258A Contact Us For Availability
1
Refrigerator Door (White) WPL 2221708 Contact Us For Availability
1
Refrigerator Door (Black) WPL 2221709 Contact Us For Availability
1
Refrigerator Door (Biscuit) WPL 2221710 Contact Us For Availability
1
Refrigerator Door (Stainless, Right Hand) WPL 2221740 Contact Us For Availability
1
Refrigerator Door (Stainless, Left Hand (Incl WPL 2221741 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
4
Flange, Tube WPL 2210523 Contact Us For Availability
4
Adaptive Defrost Control/P.C. Board Combinati WPL 2213493 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Wire Assembly Control Box WPL 2187448 Contact Us For Availability
8
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
8
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
8
Torx Key WPL 1117510 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2212413 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
12
Control Box WPL 2218670 Contact Us For Availability
13
Thermostat Assembly (Includes Item 5) WPL 2204984 Contact Us For Availability
13
Butter, Dish WPL 2165792 Contact Us For Availability
14
Wire Assembly, Ground WPL 2187567 Contact Us For Availability
14
Handle (Stainless) WPL 2221770 Contact Us For Availability
14
Handle (White) WPL 2221771 Contact Us For Availability
14
Handle (Black) WPL 2221772 Contact Us For Availability
14
Handle (Biscuit) WPL 2221773 Contact Us For Availability
15
Grommet WPL 531933 Contact Us For Availability
16
Cover-Evaporator WPL 2201173 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2219648 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI108259A Contact Us For Availability
22
Knob, Thermostat WPL 2205094 Contact Us For Availability
22
Door, Compartment WPL 2218122 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI108255A Contact Us For Availability
25
Freezer Floor WPL 2204746 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
27
Cover, Light Lens WPL 2213495 Contact Us For Availability
28
LEFT HAND DOOR SWING (White) WPL 2221711 Contact Us For Availability
28
LEFT HAND DOOR SWING (Black) WPL 2221712 Contact Us For Availability
28
LEFT HAND DOOR SWING (Biscuit) WPL 2221713 Contact Us For Availability
29
Bracket, Fan Motor WPL 2218696 Contact Us For Availability
30
Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability
34
Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability
35
Shield, heat WPL 2204639 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Knob, Damper WPL 2204951 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI108256A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2221682 Contact Us For Availability
42
Wire Assembly Unit WPL 2187385 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2221775 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI108257A Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
46
Tube, Discharge WPL 2205384 Contact Us For Availability
47
Tube, Suction WPL 2219622 Contact Us For Availability
47
Barrier, Freezer Control WPL 2212485 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
WPL 2210510 WPL 2210510 Contact Us For Availability
55
WPL 2219639 WPL 2219639 Contact Us For Availability
56
WPL 2219699 WPL 2219699 Contact Us For Availability
57
WPL 2210521 WPL 2210521 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
WPL 2210563 WPL 2210563 Contact Us For Availability
61
WPL 2214981 WPL 2214981 Contact Us For Availability
62
WPL 2213384 WPL 2213384 Contact Us For Availability
× ![]()
