Model Whirlpool KSRS22QAAL21 – Common Parts & Diagrams

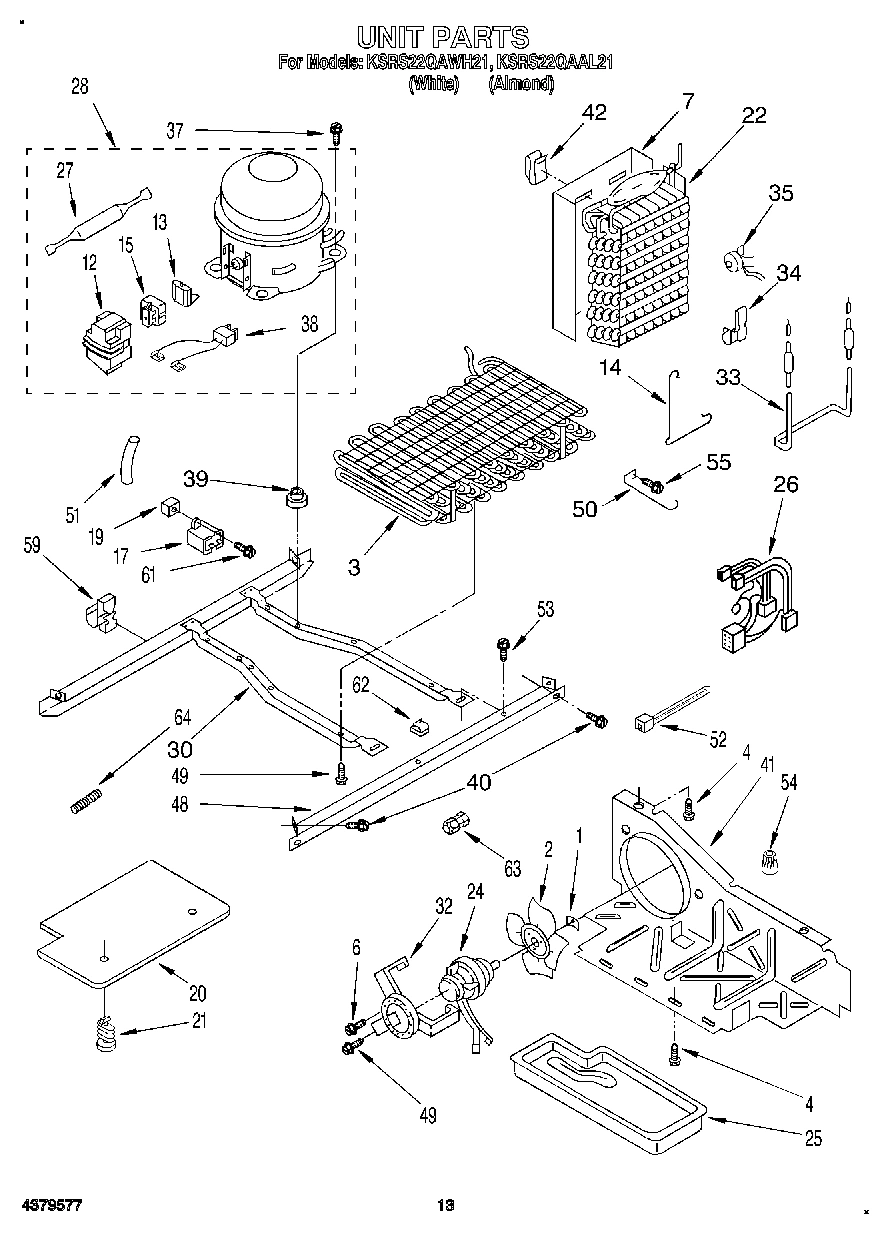

08 - UNIT
11 - ICEMAKER

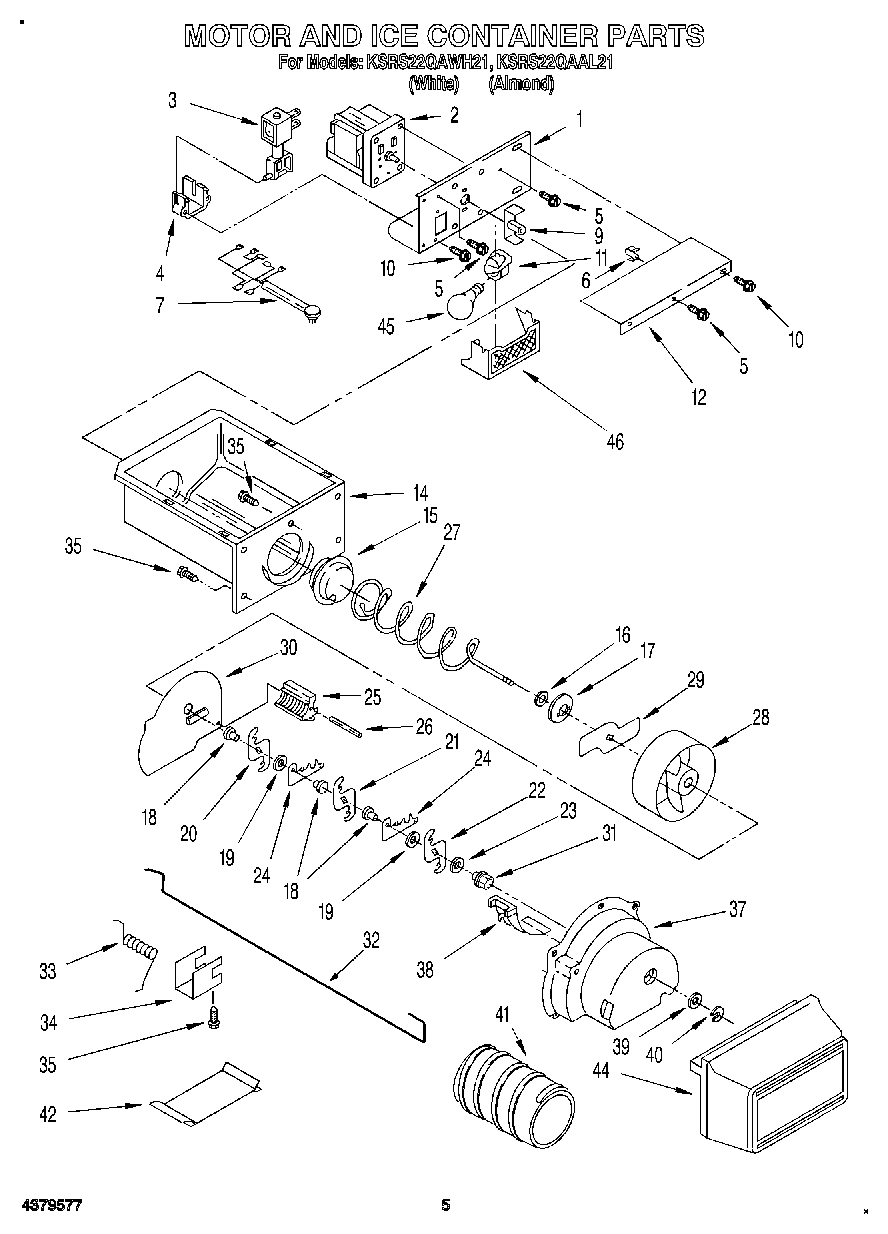

04 - MOTOR AND ICE CONTAINER

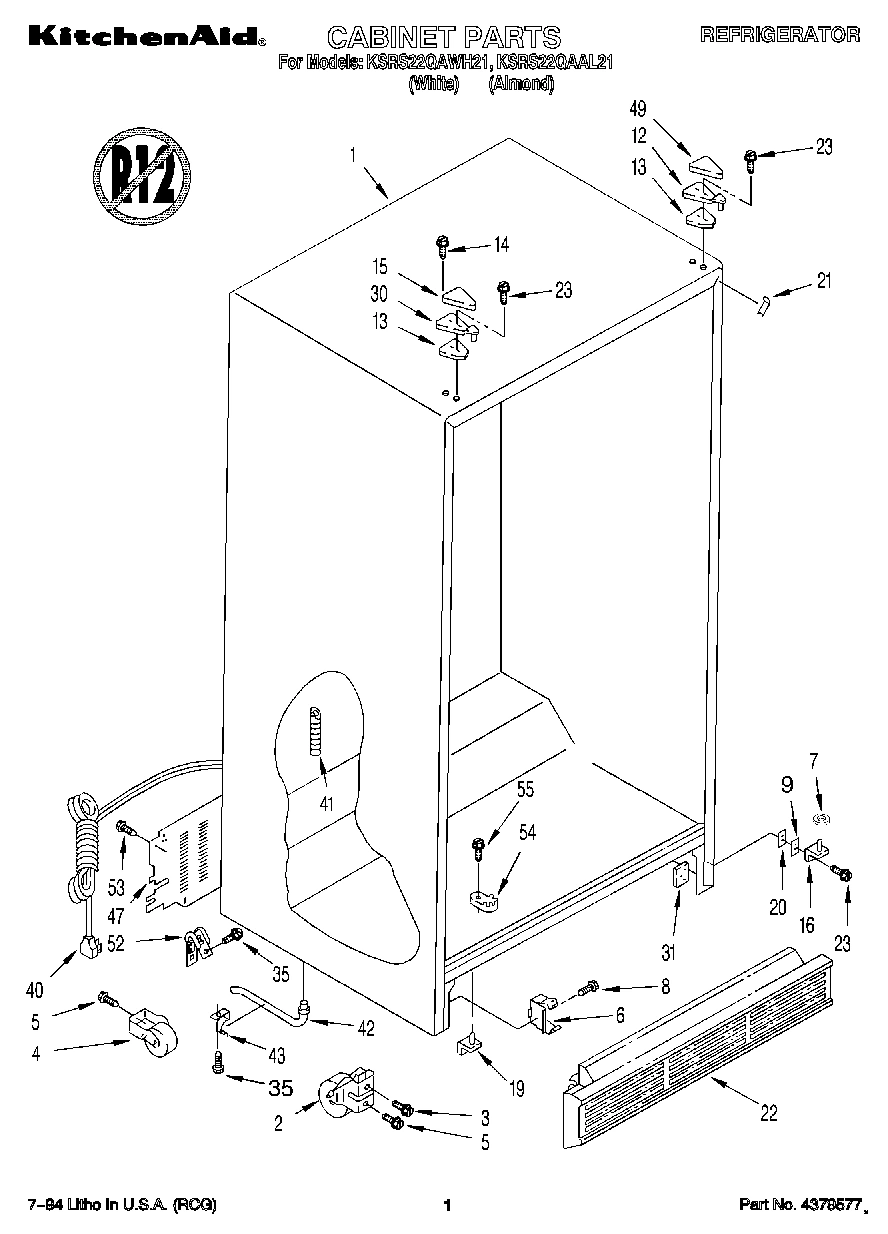

01 - CABINET

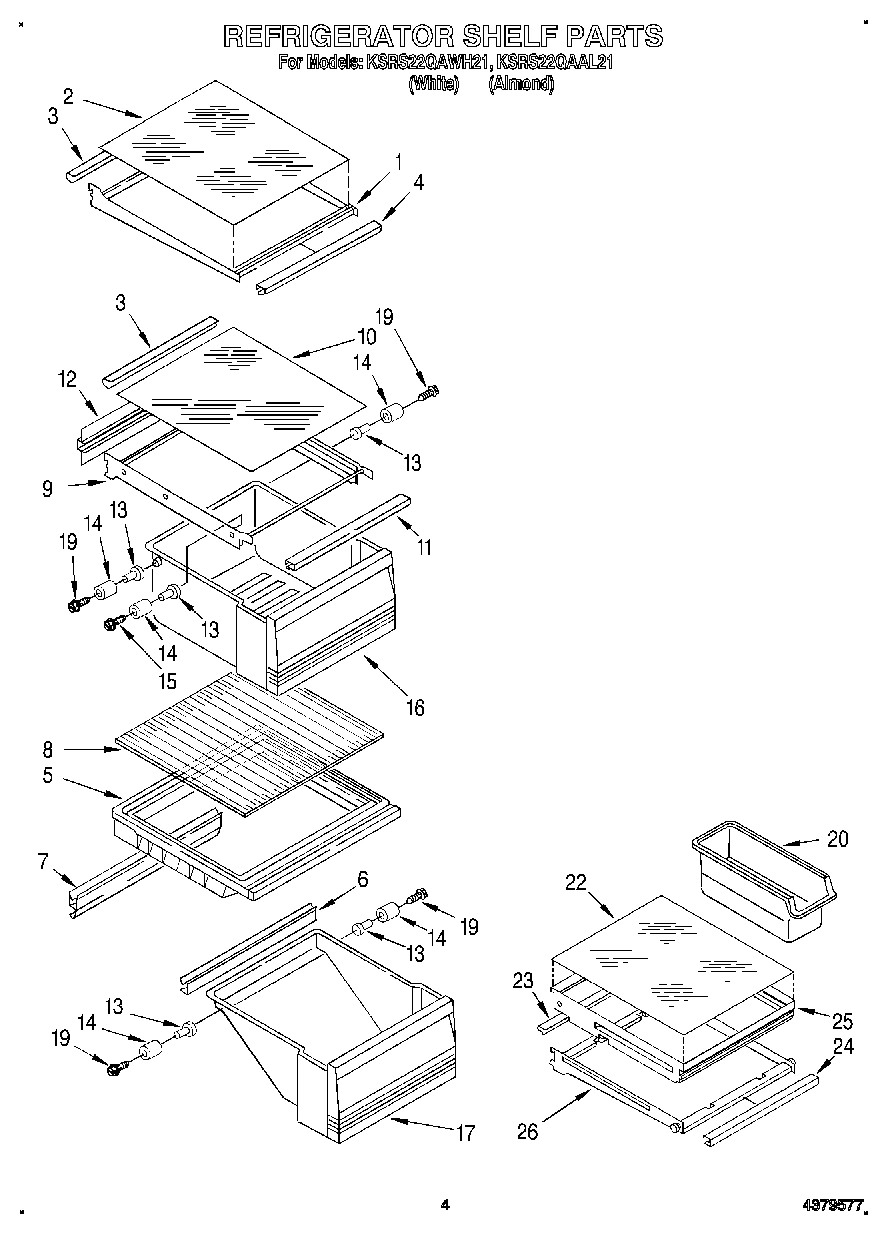

03 - REFRIGERATOR SHELF

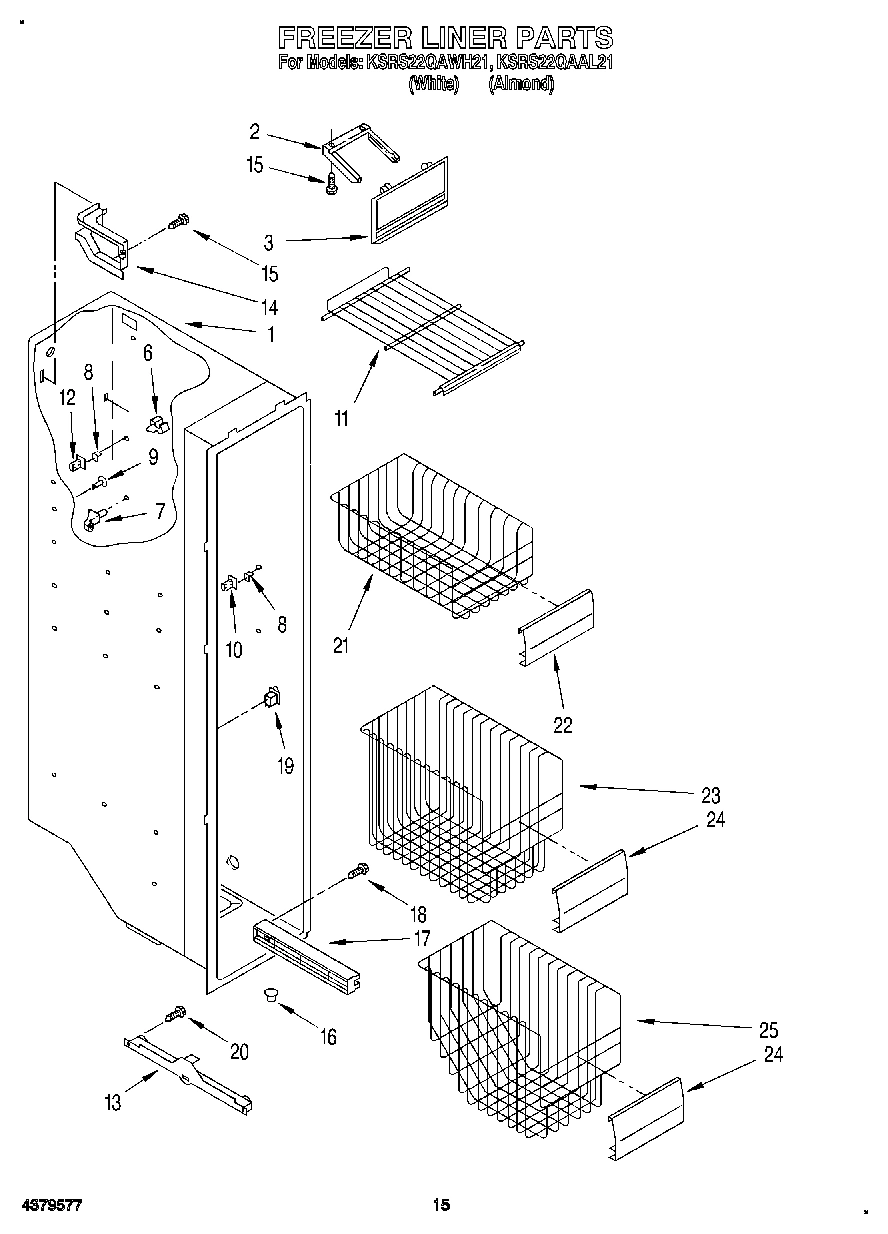

09 - FREEZER LINER

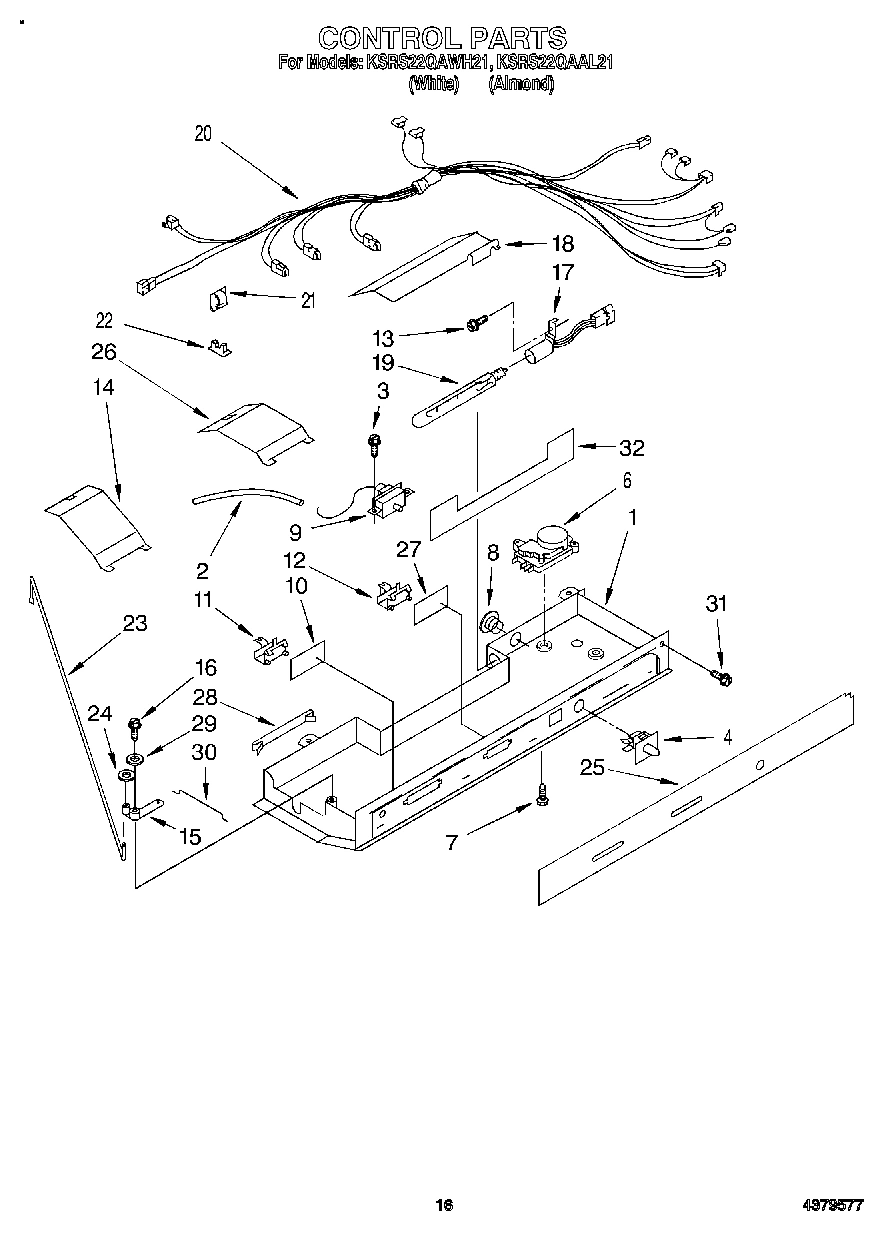

10 - CONTROL

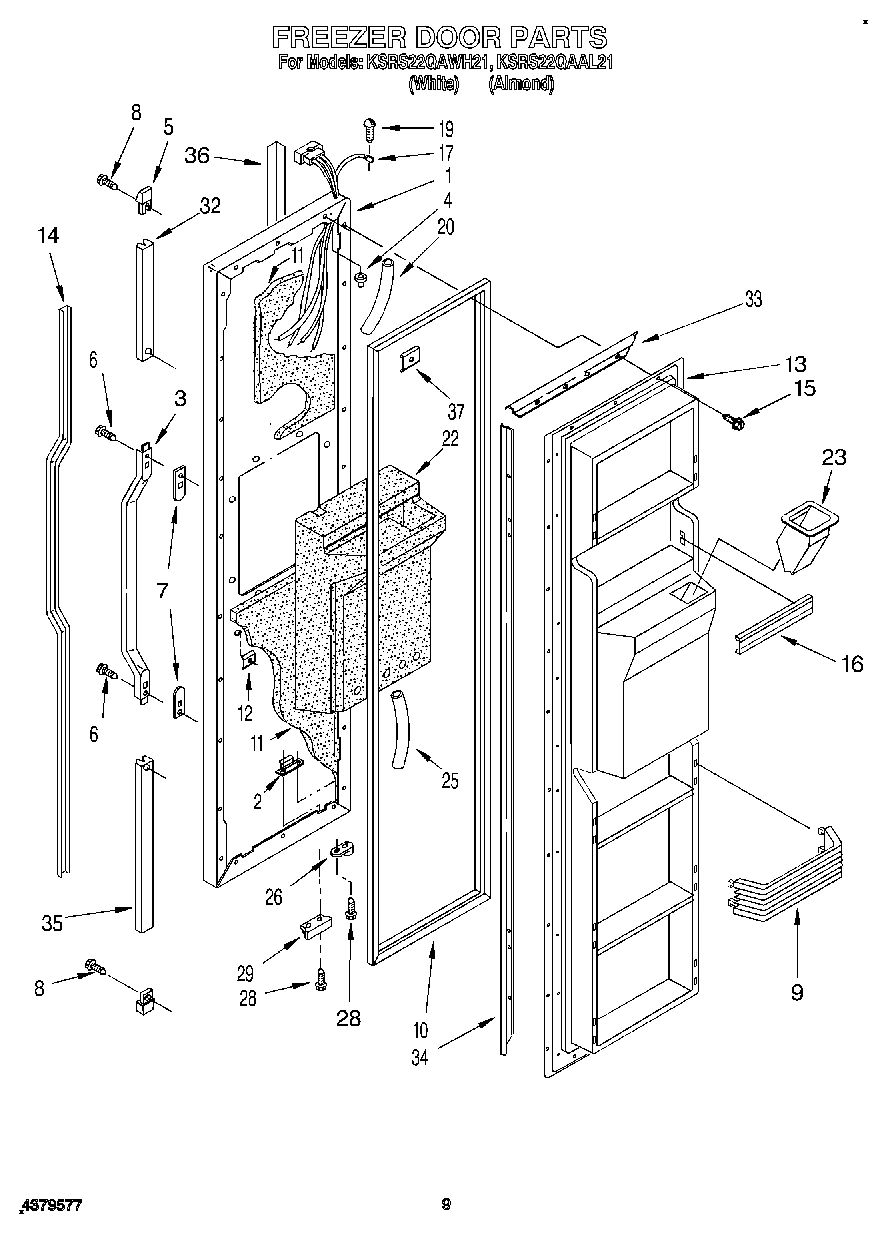

06 - FREEZER DOOR

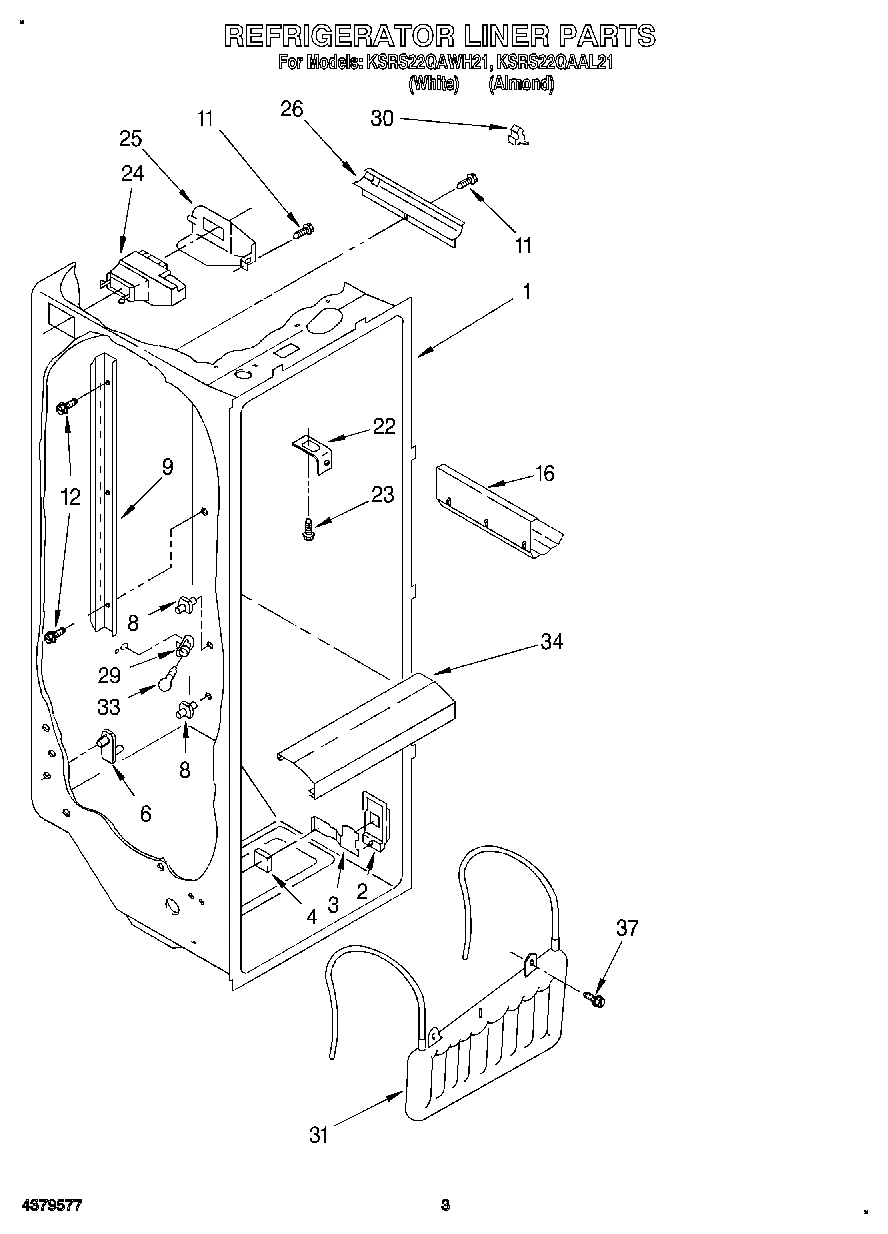

02 - REFRIGERATOR LINER

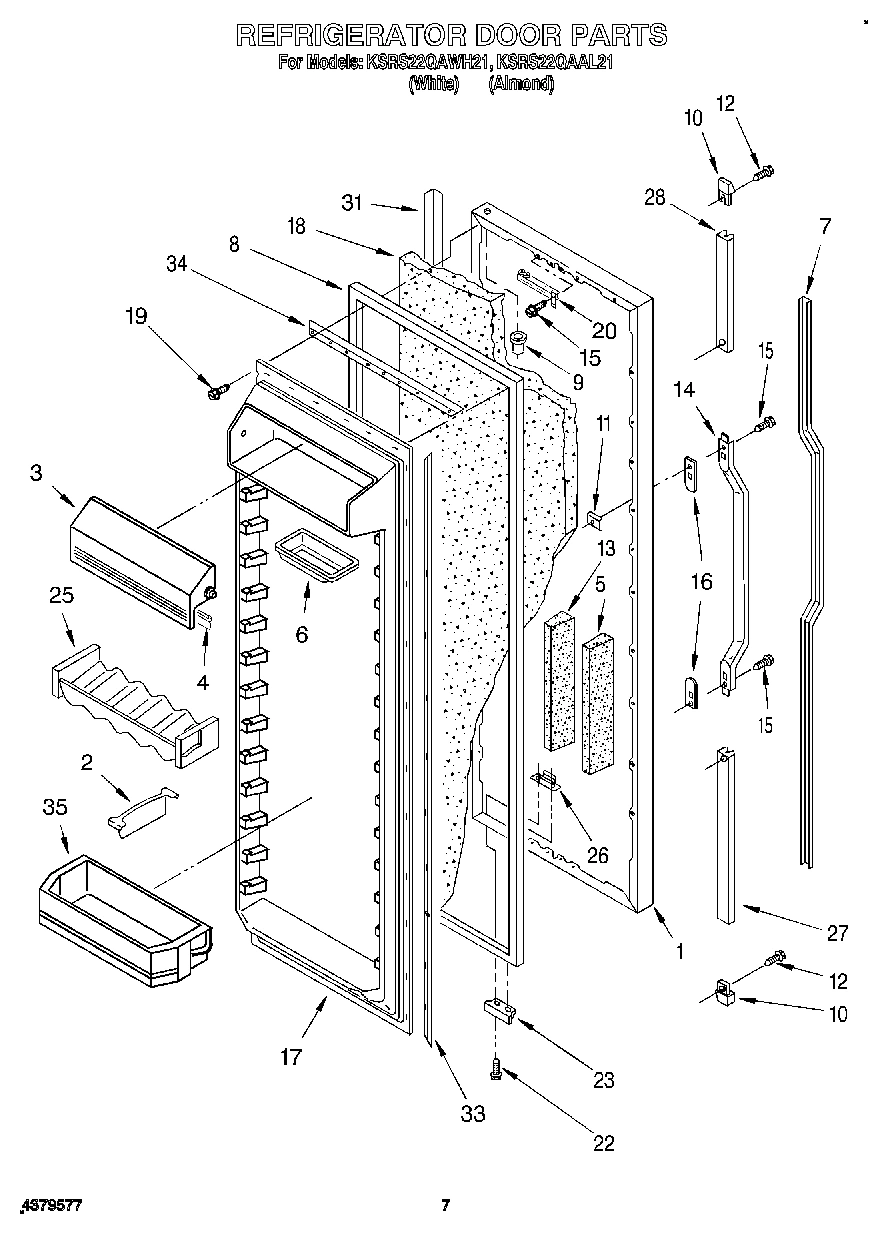

05 - REFRIGERATOR DOOR

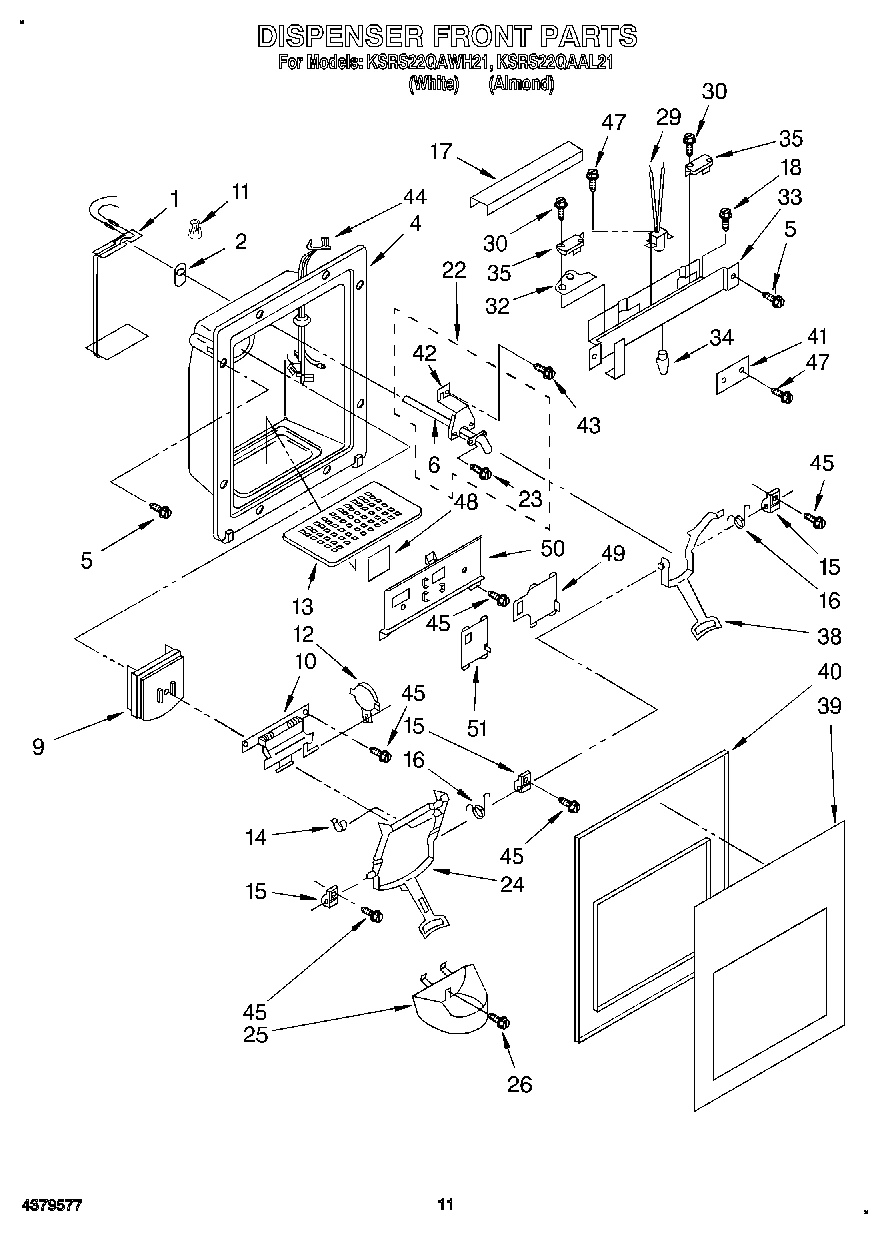

07 - DISPENSER FRONT
12 - AIR FLOW, LIT/OPTIONAL
Common parts from model Whirlpool KSRS22QAAL21
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161900 WPL LIT2161900 Contact Us For Availability
WPL LIT2168928 WPL LIT2168928 Contact Us For Availability
WPL LIT2169536 WPL LIT2169536 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100923A Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100927A Contact Us For Availability
1
Control Box WPL 2169149 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1125946 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1125952 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100924A Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362044 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362045 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Load Lock (4) WPL 1117999 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Ice Compartment WPL 1125821 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2154984 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI100925A Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Washer WPL 489366 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Insert, Handle (White) WPL 1117950 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Pan Shelf & Slide (Includes 13, 14, & 15) Ass WPL 2161760 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Shelf Bin (4) WPL 1117928 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
End Cap, Handle WPL 1107341 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Shelf WPL 2161946 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Screw Anchor WPL 941242 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Screw WPL 489075 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
13
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Handle Assembly WPL 1107215 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1125721 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Crisper Pan (2) (Includes 13, 14 & 19) WPL 2161893 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Spacer, Handle WPL 1107651 Contact Us For Availability
16
Trim, Door Shelf WPL 1126496 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
17
Utility Pan (Includes 13, 14 & 19) WPL 2161892 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Harness, Door WPL 1119212 Contact Us For Availability
17
Panel, Interior Door WPL 1117904 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2155694 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Basket, Small WPL 2161563 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
22
Front, Basket WPL 1125771 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
23
Basket, Upper WPL 2152100 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Bracket, Door Stop WPL 2155332 Contact Us For Availability
23
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
23
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Front, Basket WPL 1125613 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Basket, Lower WPL 2152103 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Holder, Beverage WPL 1125981 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2161806 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1117953 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Retainer, Insert WPL 1107241 Contact Us For Availability
29
Socket, Lamp WPL 2147131 Contact Us For Availability
30
Screw, WPL 489155 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Trim, Door WPL 1119061 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Insulator, Switch (2) WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Almond Handle Insert WPL 4211135 Contact Us For Availability
35
Trim Kit Panel (White) WPL 4211136 Contact Us For Availability
35
Trim Kit Trim Kit Panel WPL 4318331 Contact Us For Availability
35
Handle Insert (Black) WPL 4318334 Contact Us For Availability
35
Woodgrain WPL 4318335 Contact Us For Availability
35
Black Grille Kit WPL 4318416 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
39
Insert, Cover (White) WPL 1126176 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1126177 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1126170 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1126171 Contact Us For Availability
41
Spacer, Holding Switch WPL 625834 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171263 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Screw WPL 488361 Contact Us For Availability
48
Heat Shield, Frame WPL 2147172 Contact Us For Availability
49
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
49
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
50
Frame, Slides (White) WPL 2152717 Contact Us For Availability
50
Frame, Slides WPL 2152718 Contact Us For Availability
51
WPL 2152720 WPL 2152720 Contact Us For Availability
51
WPL 2152721 WPL 2152721 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
