Model Whirlpool KSRP22KDWH00 REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER LINER
09 - CONTROL, LIT/OPTIONAL

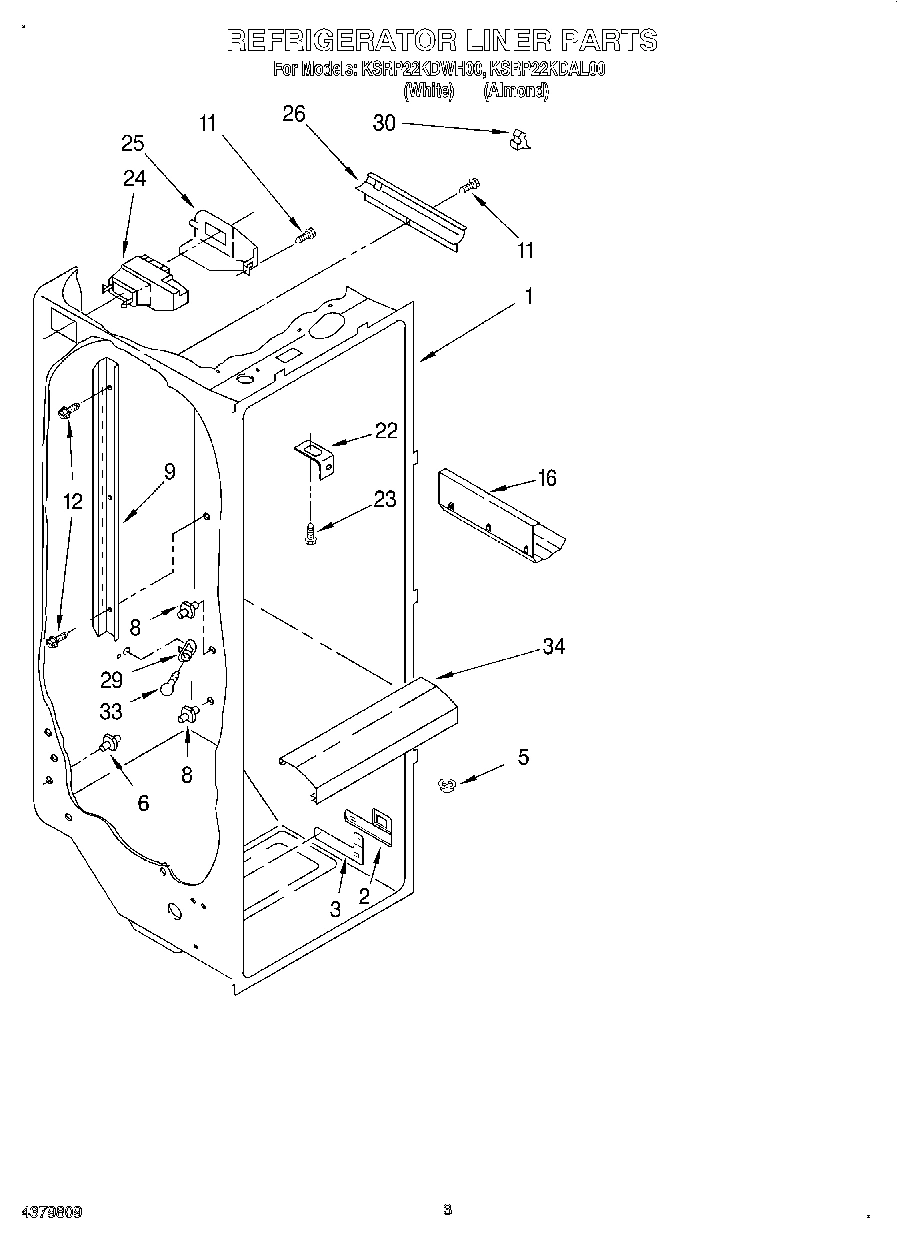

02 - REFRIGERATOR LINER

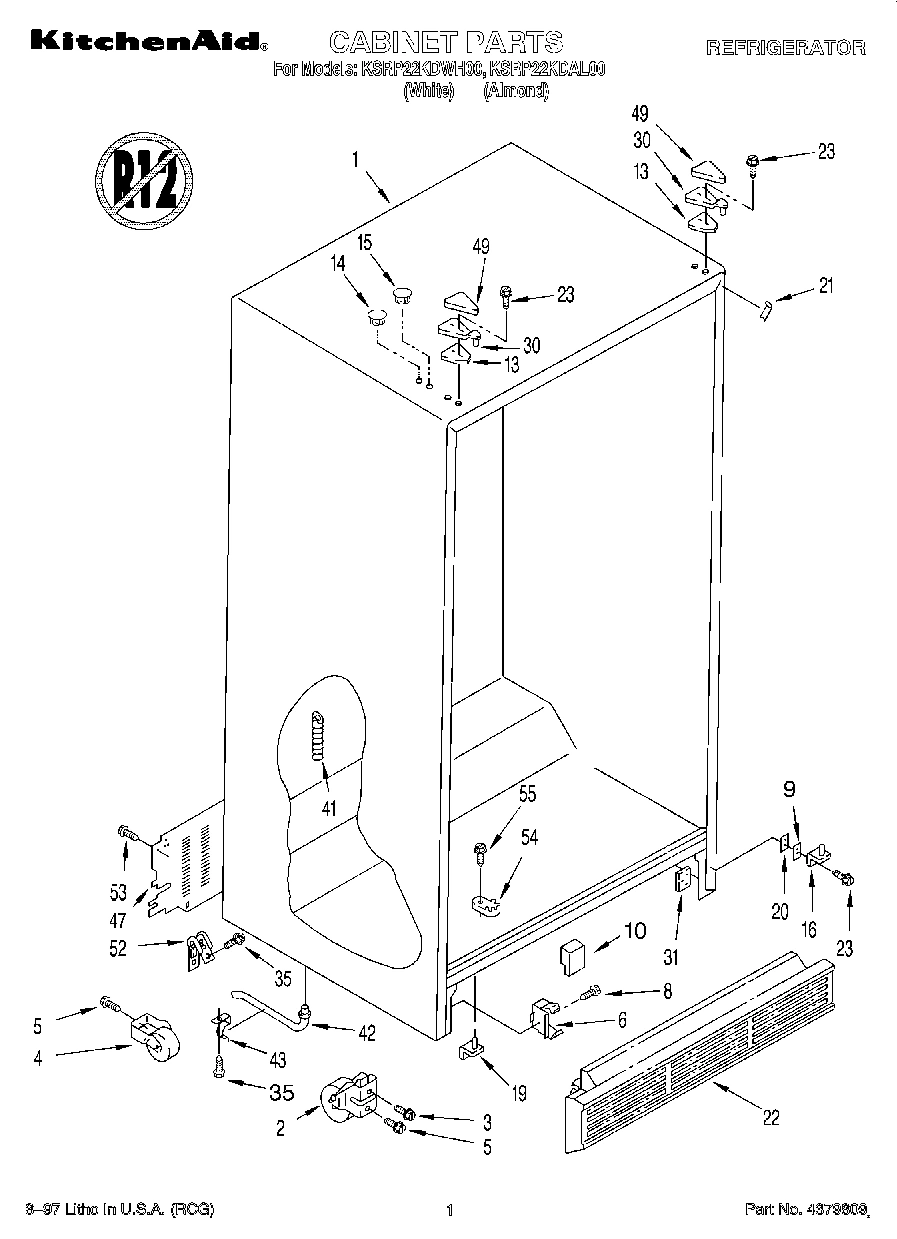

01 - CABINET

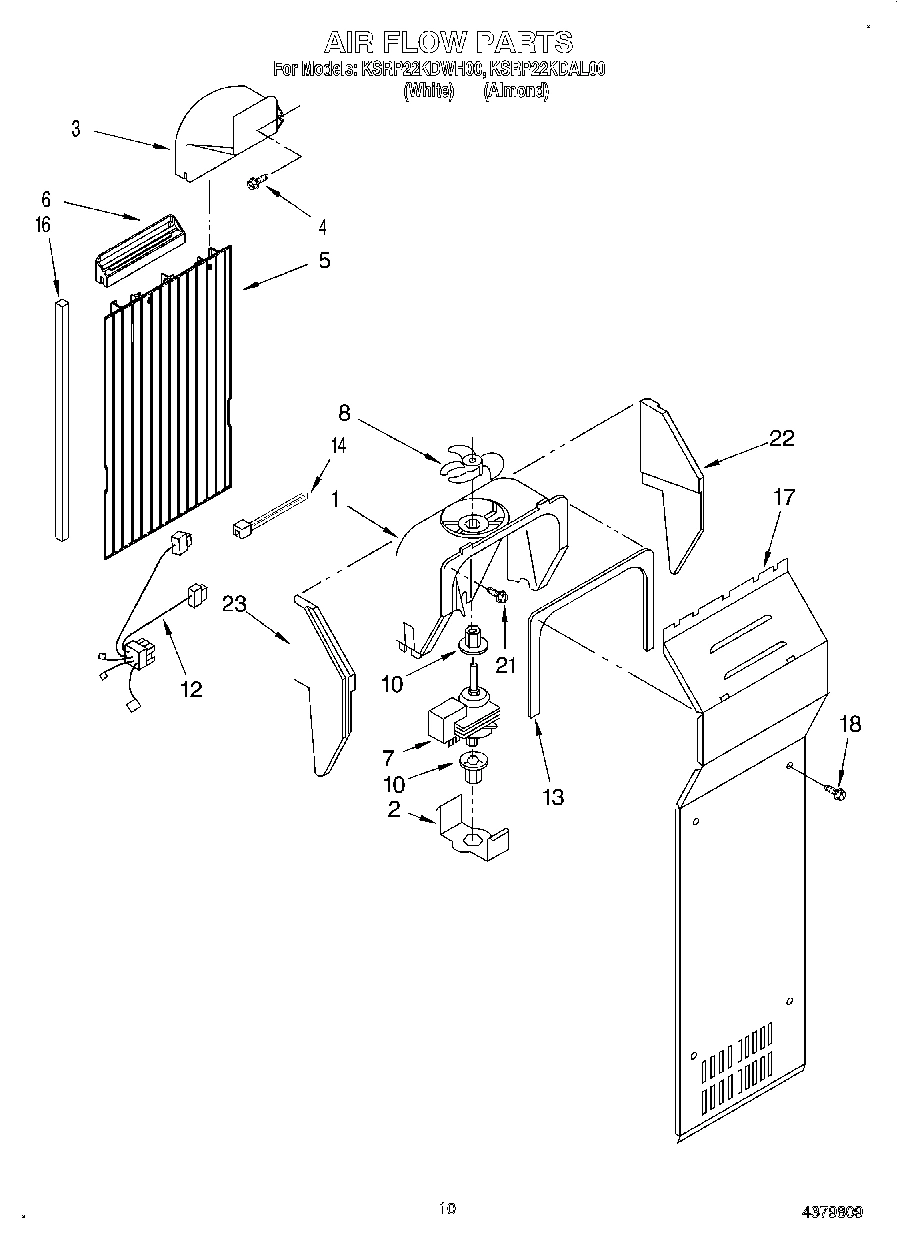

07 - AIRFLOW

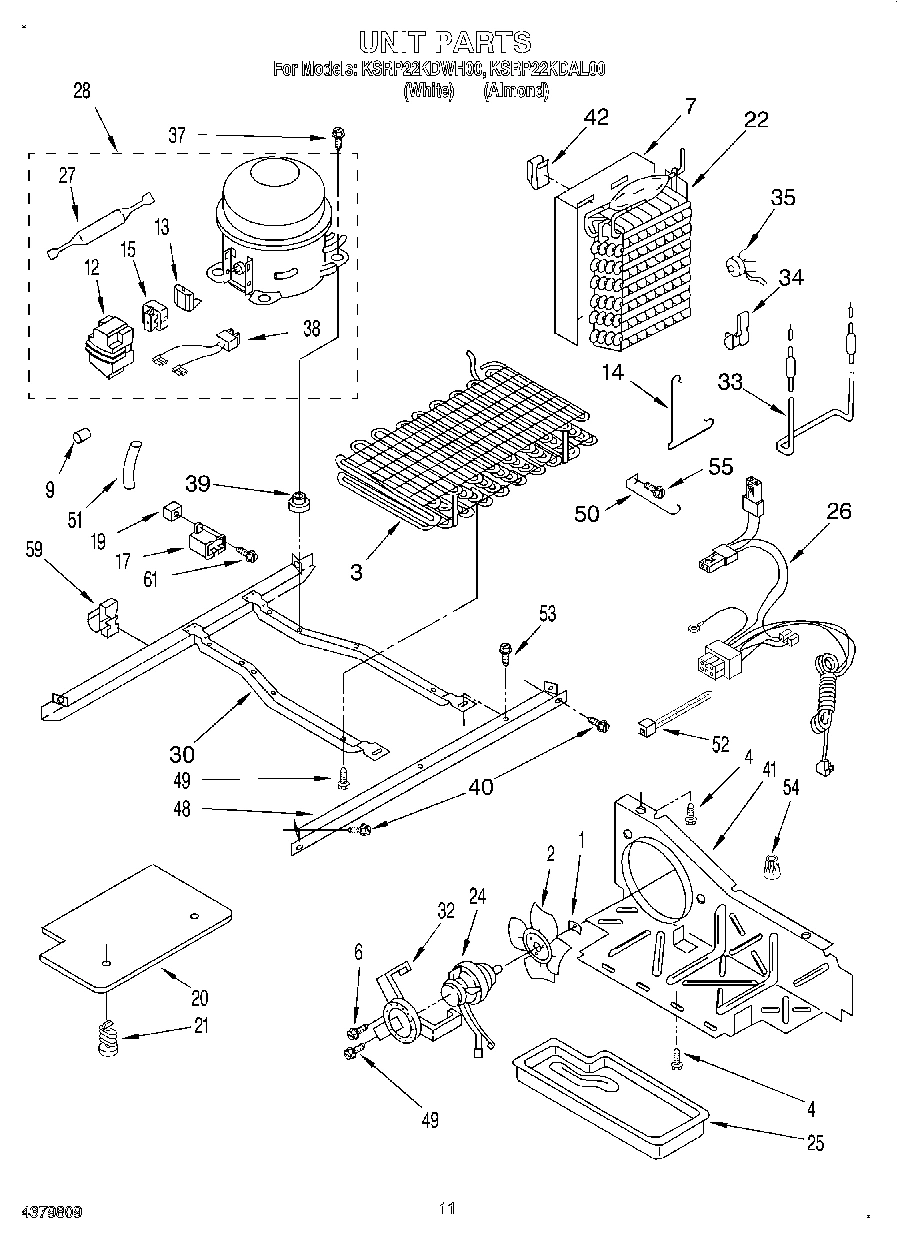

08 - UNIT
04 - REFRIGERATOR DOOR

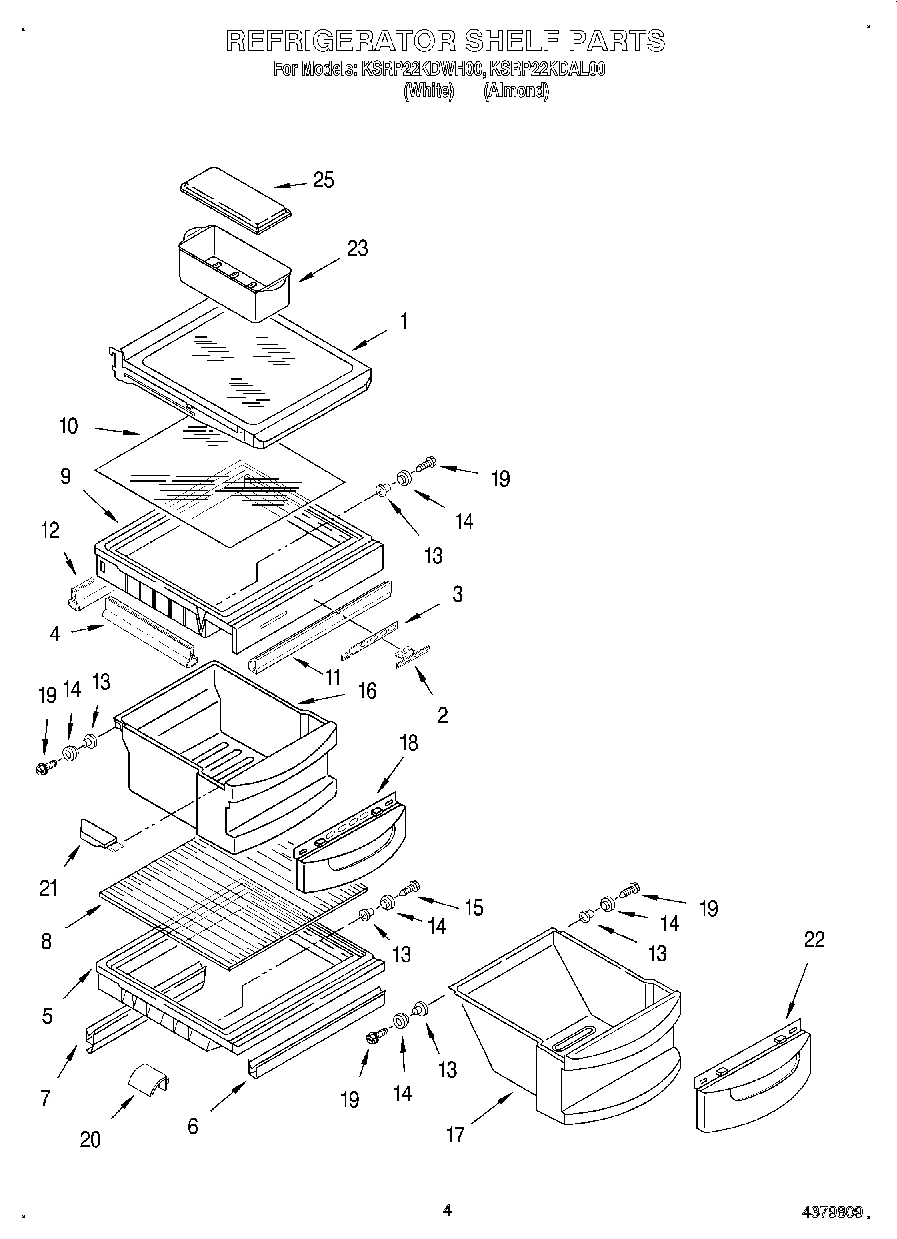

03 - REFRIGERATOR SHELF
05 - FREEZER DOOR
Common parts from model Whirlpool KSRP22KDWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100066A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2171090 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2171091 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174033 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2180048 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2180049 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
2
Handle Assembly WPL 1107215 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
End Cap (2) WPL 1107341 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Spacer, Handle WPL 1107651 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 2172956 Contact Us For Availability
7
Shelf Bin (5) WPL 2171071 Contact Us For Availability
8
Glass, Cover WPL 2174148 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171995 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Insert, Handle (White) WPL 1117950 Contact Us For Availability
9
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
10
Insert, Air Baffle WPL 2176796 Contact Us For Availability
10
Glass, Cover WPL 2179523 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Hole Plug (White) WPL 1115352 Contact Us For Availability
14
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Hole, Plug (White) WPL 849391 Contact Us For Availability
15
Hole Plug (Almond) WPL 989958 Contact Us For Availability
15
Relay (See Overload) WPL ARI100069A Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Bracket, Door Stop WPL 2155332 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Retainer, Insert WPL 1107241 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Retainer, Insert WPL 1117953 Contact Us For Availability
19
Shelf Bin (4) WPL 2171063 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Cover WPL 2164374 Contact Us For Availability
26
Harness, Intermediate WPL 2181710 Contact Us For Availability
30
KI WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
