Model Whirlpool KSRC25DXWH11 – Common Parts & Diagrams

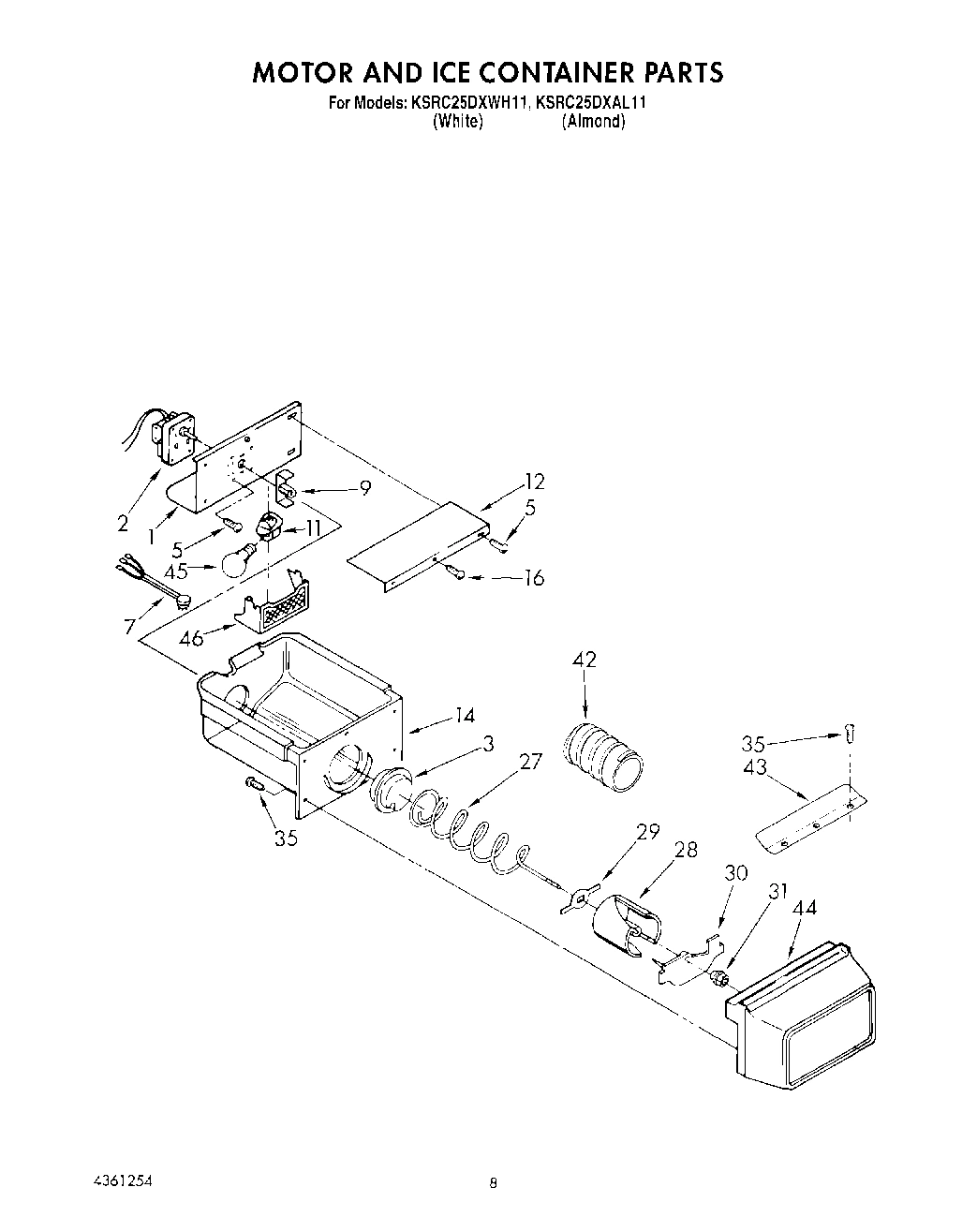

06 - MOTOR AND ICE CONTAINER

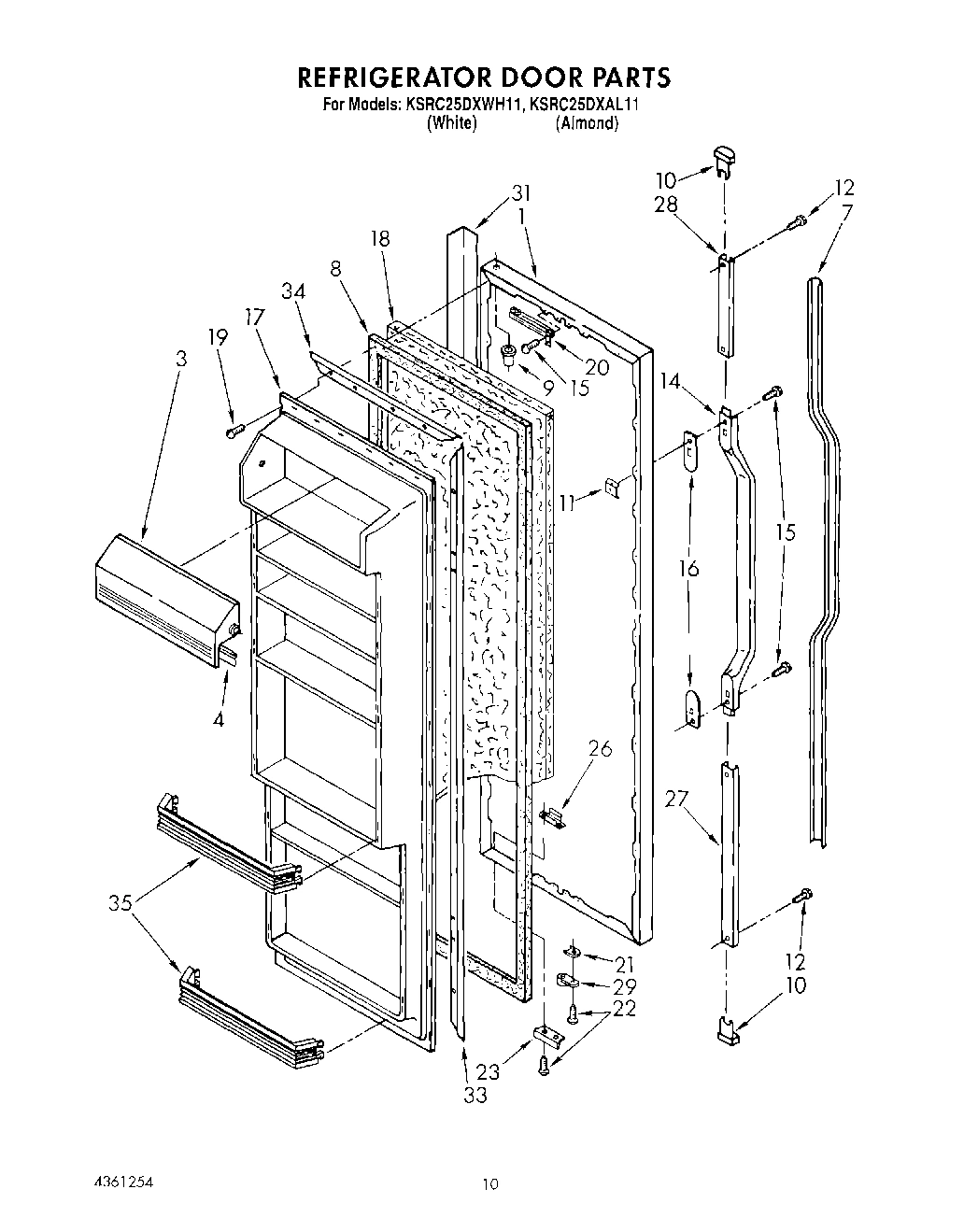

08 - REFRIGERATOR DOOR
10 - DISPENSER FRONT
11 - UNIT
09 - FREEZER DOOR
02 - REFRIGERATOR LINER
04 - FREEZER LINER
03 - REFRIGERATOR SHELF
05 - AIR FLOW
12 - ICEMAKER, LIT/OPTIONAL
07 - CONTROL
01 - CABINET
Common parts from model Whirlpool KSRC25DXWH11
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1117966 WPL LIT1117966 Contact Us For Availability
WPL LIT1126347 WPL LIT1126347 Contact Us For Availability
WPL LIT2154806 WPL LIT2154806 Contact Us For Availability
WPL LIT4361254 WPL LIT4361254 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1125957 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1125963 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95283A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95284A2 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 1125597 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Control Box WPL 1126344 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95282A1 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Shelf, Top Compartment WPL 1125824 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Handle Assembly WPL 1107215 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
5
End Cap (2) WPL 1107341 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Air Duct Freezer WPL 2157544 Contact Us For Availability
5
Switch, Lighted WPL 1125964 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
6
Gasket, Cover (Front) WPL 1115291 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Mullion Rail WPL 2155016 Contact Us For Availability
7
Clip (3) WPL 934011 Contact Us For Availability
7
Spacer, Handle WPL 1107651 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1115293 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
8
Stud L.S. Rear WPL 1115290 No Longer Available
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Screw (2) WPL 489075 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123972 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Shelf Bin (4) WPL 1125676 Contact Us For Availability
9
Screw, 8 x 1/2 WPL 486214 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1126272 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Thermostat Assembly WPL 1125769 Contact Us For Availability
9
Washer WPL 489366 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Glass, Shelf WPL 1126279 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Shelf WPL 1125609 Contact Us For Availability
11
Gasket (Front) WPL 1126281 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Connector, Wire WPL 850145 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Hinge, Top WPL 1123510 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2154794 Contact Us For Availability
13
Overload (Service (Includes Relay)) WPL 2162362 Contact Us For Availability
13
Panel, Interior Door WPL 1129232 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
14
Insert, Handle (White) WPL 1117948 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Meat Pan WPL 1126288 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Relay (See Overload) WPL ARI95285A9 Contact Us For Availability
15
Front, Crisper WPL 1126290 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Pivot Arm WPL 1125589 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 1126495 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
17
Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1116960 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Utility Bin WPL 1126274 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Slide, Humidity WPL 1124819 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 2157554 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Housing, Control WPL 1124820 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Control Box Harness WPL 2154809 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
Insulation, Dispenser WPL 1115345 Contact Us For Availability
22
GlassCover WPL 1126293 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (Almond) WPL 1125717 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Connecting Rod WPL 1125587 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
24
Shim .030 WPL 836196 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
25
Escutcheon, Control Box WPL 1126277 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2149958 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Lamp Holder Bracket WPL 987265 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Module, Assembly WPL 628358 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Connecting Rod (Short) WPL 1125590 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1117936 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Retainer, Insert WPL 1107243 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Cabinet Harness WPL 2155153 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Heater, Defrost WPL 2154543 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
35
Screw (2) WPL 488362 Contact Us For Availability
35
Retainer, Insert WPL 1117952 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Trim, Door WPL 1119062 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 1125974 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2155909 Contact Us For Availability
38
Wiring Shield, Long WPL 1119063 Contact Us For Availability
39
Insert, Cover (White) WPL 1126286 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1126287 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1126283 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1126284 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
45
Cover, Plug WPL 1110626 Contact Us For Availability
46
Gasket, Ice Door WPL 983691 Contact Us For Availability
46
Sealing Gasket WPL 1115322 Contact Us For Availability
47
Shield, Door WPL 987121 Contact Us For Availability
47
Cover, Unit WPL 2147323 Contact Us For Availability
49
Plunger, Ext. WPL 1116563 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Spring WPL 983986 Contact Us For Availability
51
Pin WPL 983987 Contact Us For Availability
51
Insulation WPL 1118237 Contact Us For Availability
52
Switch, Water WPL 841336 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Switch, Light WPL 851386 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
54
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
54
Stop, Glass WPL 2147480 Contact Us For Availability
55
WPL 984683 WPL 984683 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEM WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
