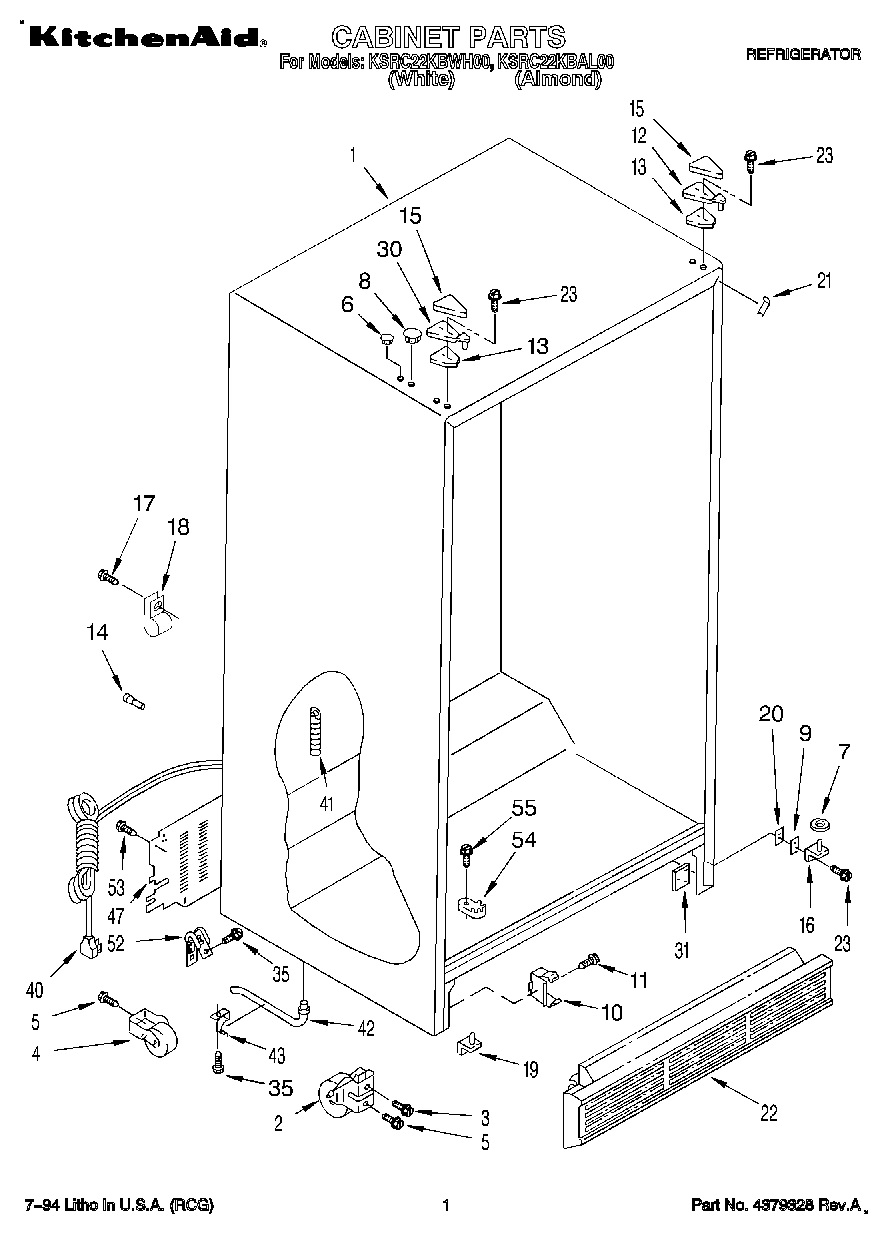

Model Whirlpool KSRC22KBWH00 – Common Parts &amp; Diagrams

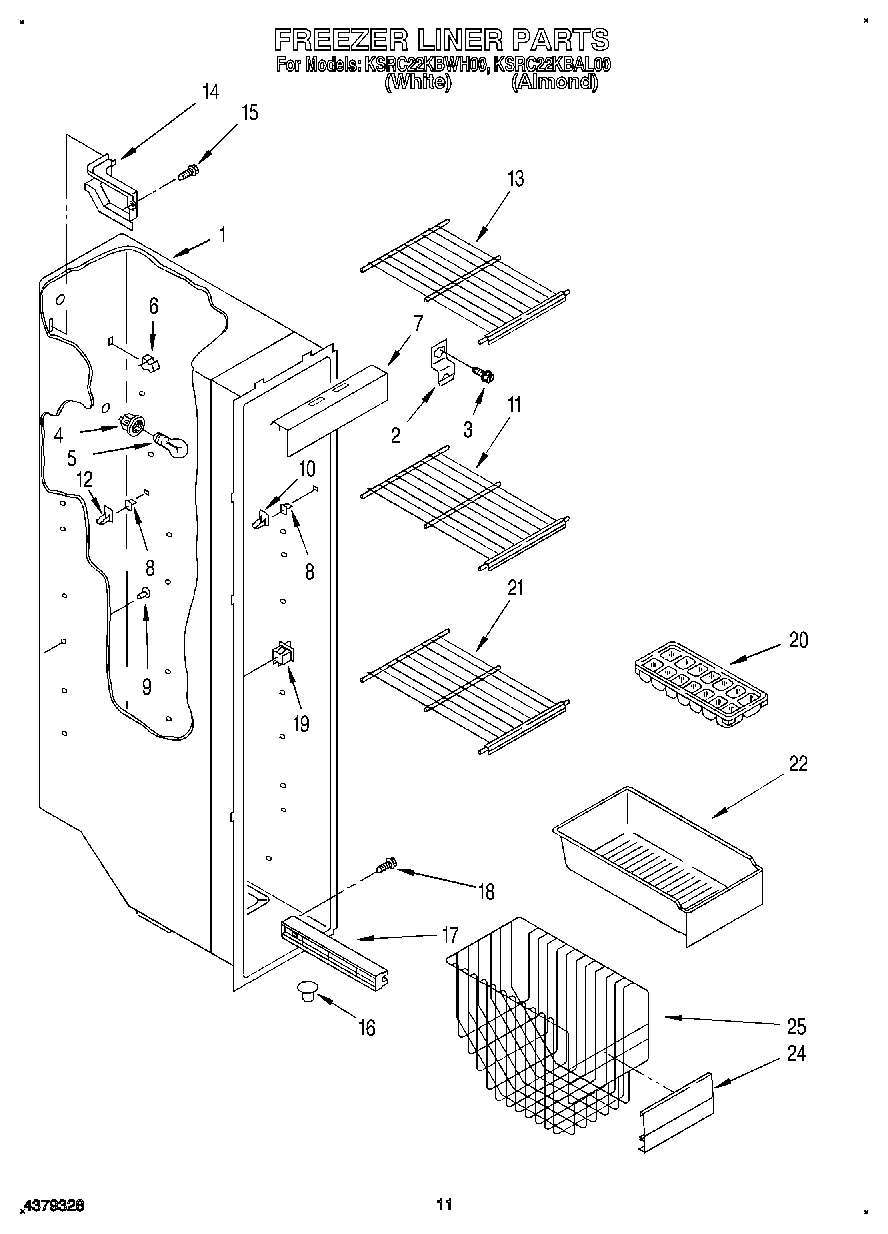

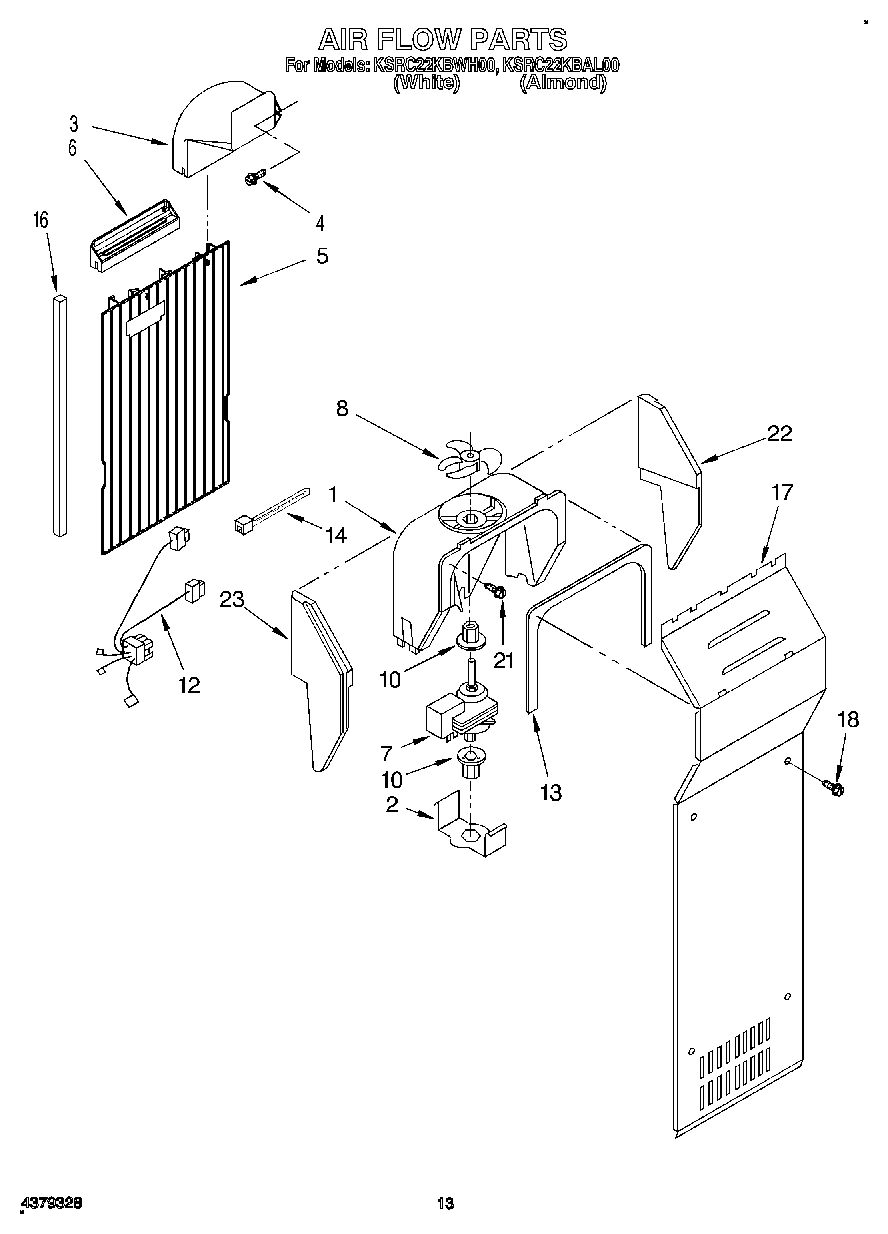

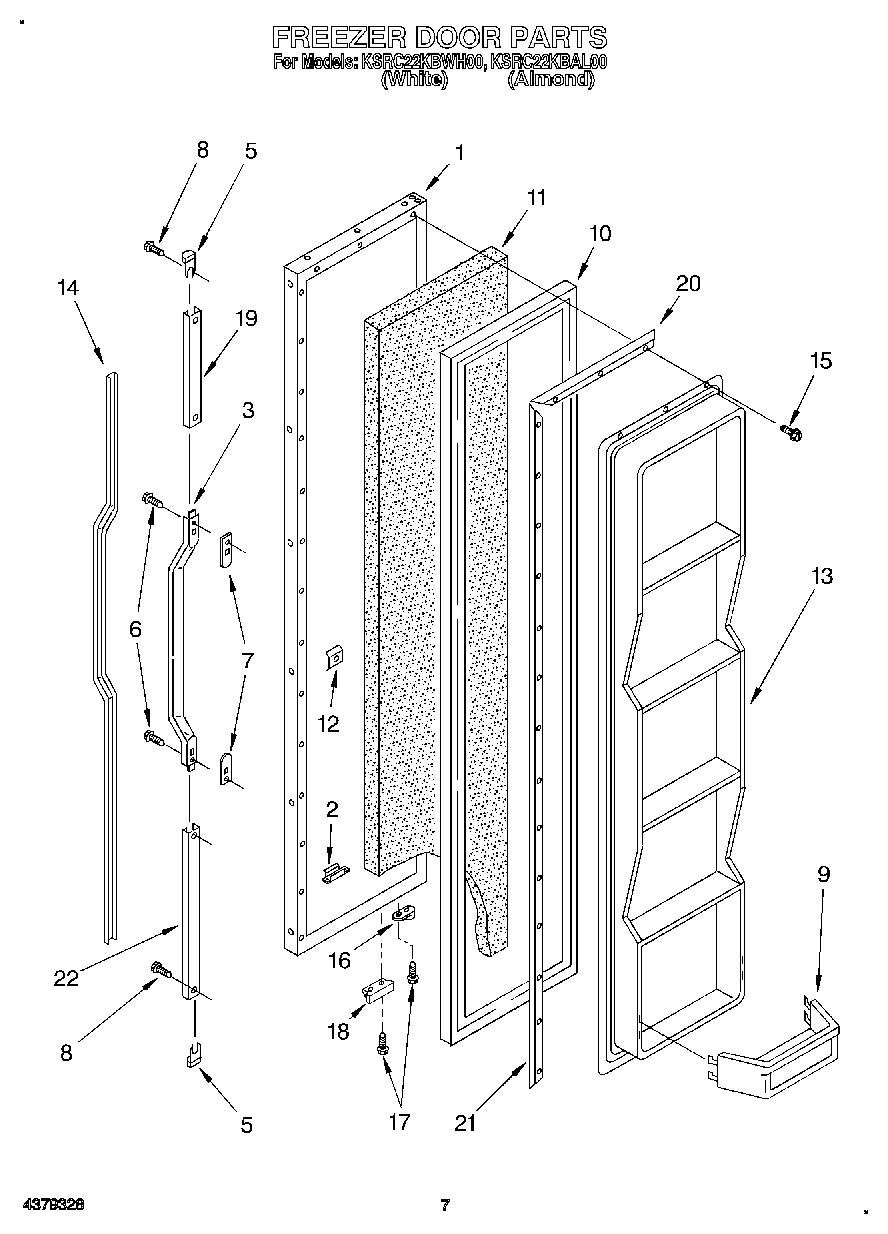

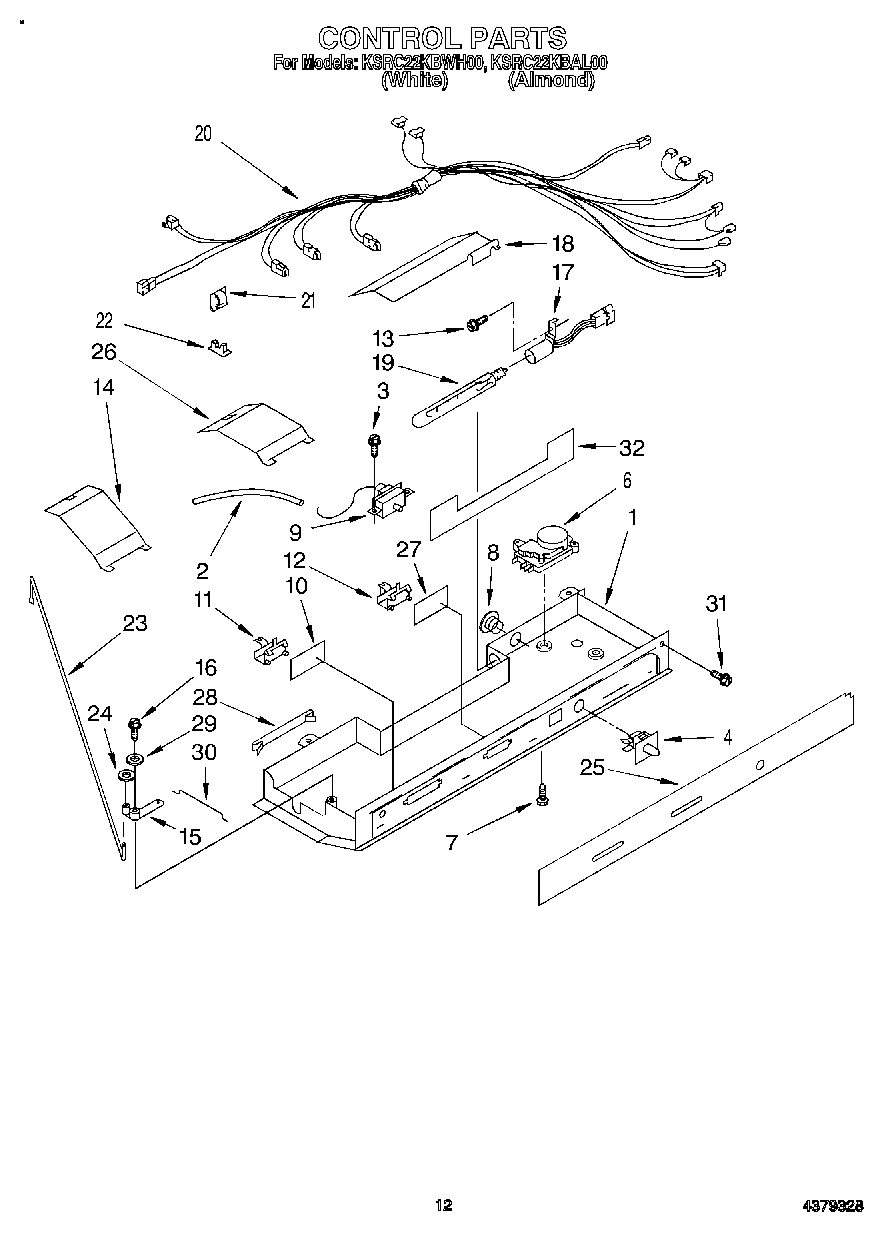

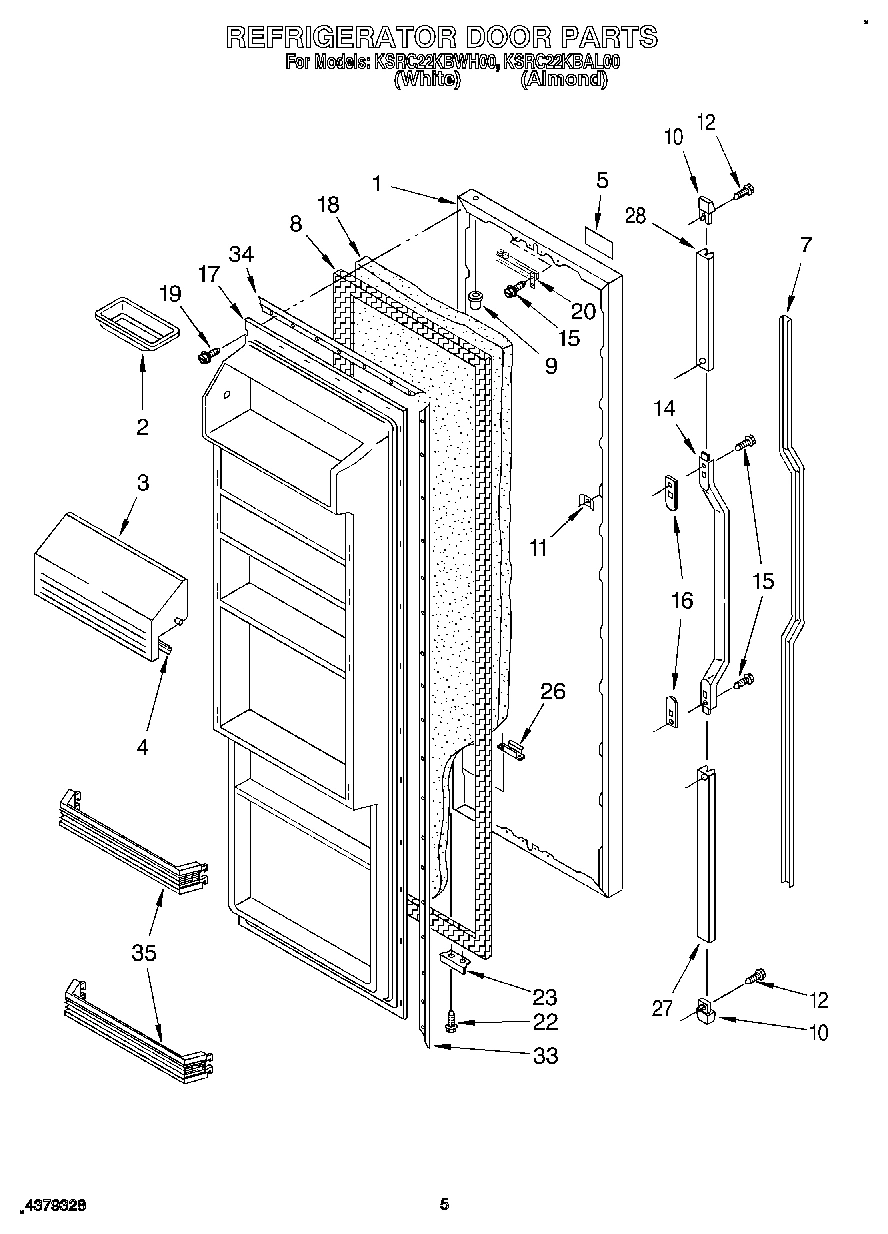

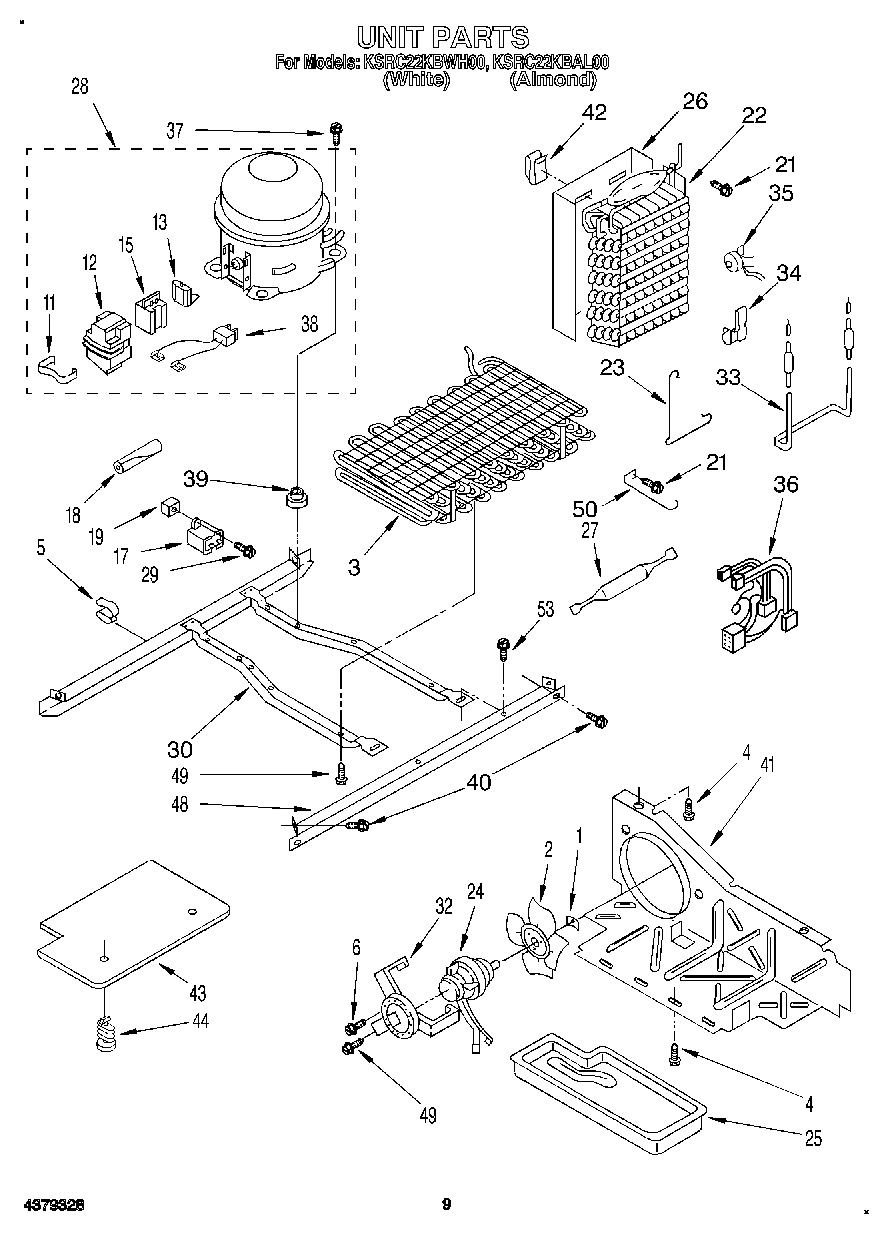

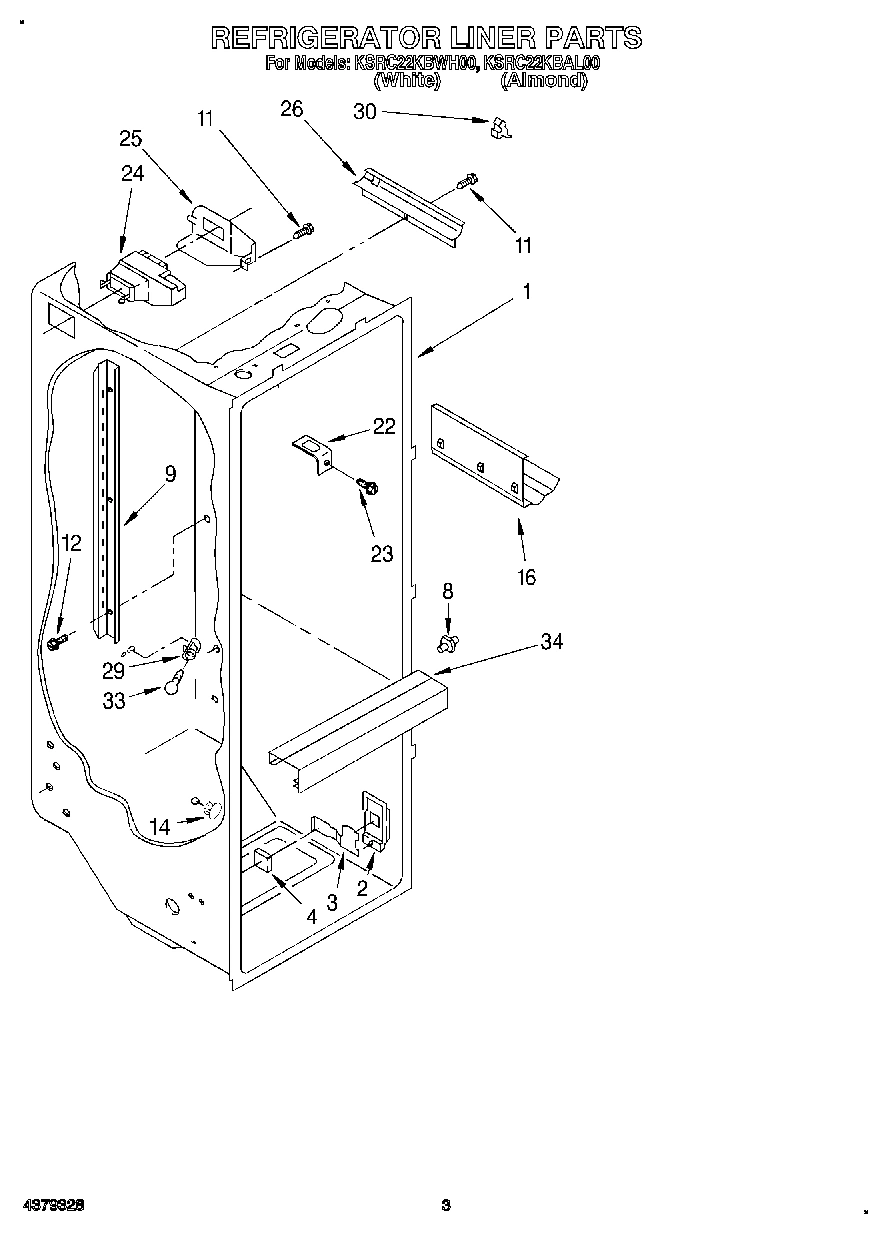

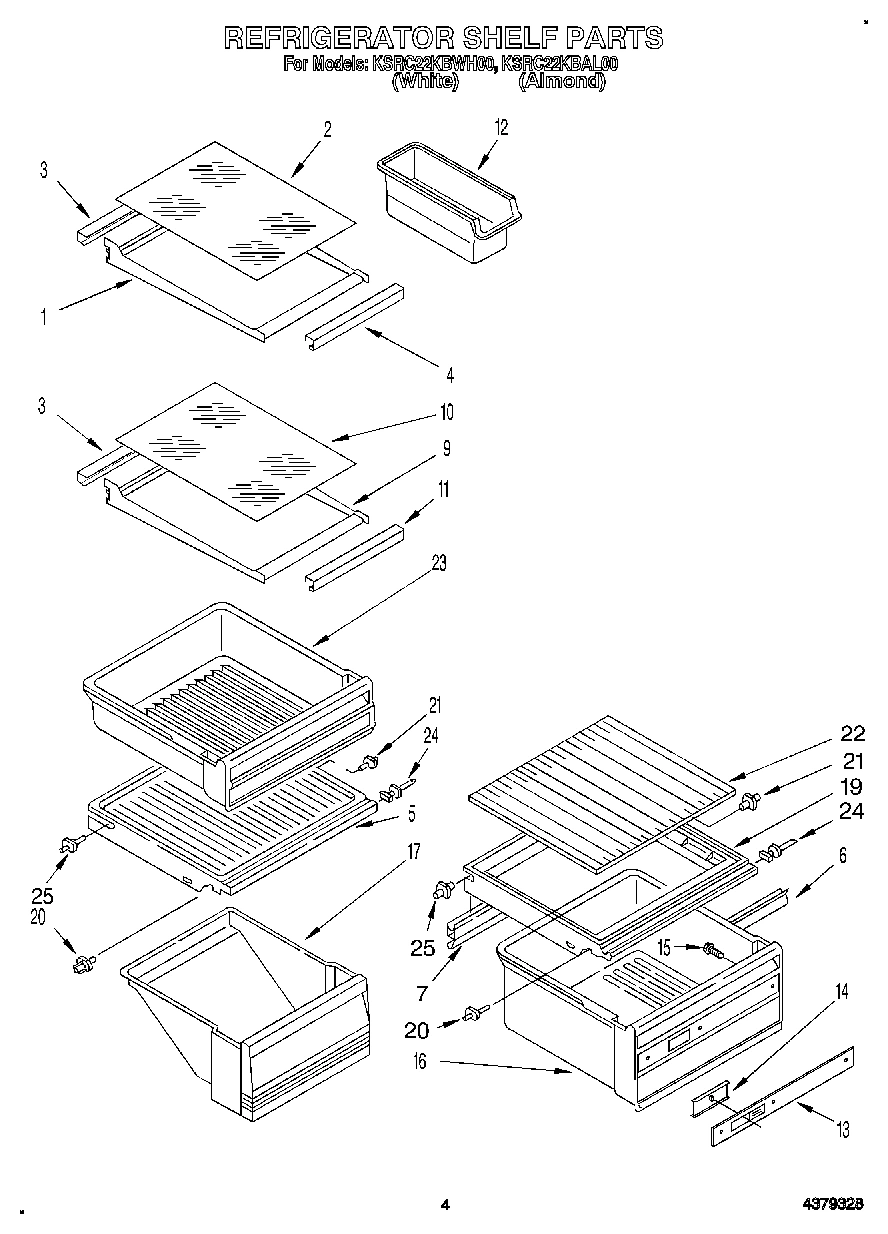

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2155213 WPL LIT2155213 Contact Us For Availability

WPL LIT2168887 WPL LIT2168887 Contact Us For Availability

WPL LIT2168926 WPL LIT2168926 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Door Panel (Also Order Item No.1 WPL 4362044 Contact Us For Availability

1

Refrigerator Door Panel (Also Order Item No.1 WPL 4362045 Contact Us For Availability

1

Freezer Door Panel (Also Order Item No.11) (W WPL 4362047 Contact Us For Availability

1

Freezer Door Panel (Also Order Item No.11) (A WPL 4362048 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI95231A9 Contact Us For Availability

1

Control Box WPL 2169149 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI95229A7 Contact Us For Availability

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Butter, Tray WPL 1125936 Contact Us For Availability

2

Tap, Plate WPL 2155335 Contact Us For Availability

2

Clip, Icemaker WPL 2155021 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

Door, Compartment WPL 1125733 Contact Us For Availability

3

Handle Assembly WPL 1107215 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

4

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

4

Gasket, Utility Door WPL 1125695 Contact Us For Availability

4

Pad, Foam WPL 992358 Contact Us For Availability

5

Nameplate (White Model) WPL 2168802 Contact Us For Availability

5

Nameplate (Almond Model) WPL 2168803 Contact Us For Availability

5

End Cap (2) WPL 1107341 Contact Us For Availability

5

Clip, Wire WPL 2155658 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

Defrost Timer WPL 2162046 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $28.09

7

Spacer, Handle WPL 1107651 Contact Us For Availability

8

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $126.42

8

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $12.43

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Screw WPL 489075 Contact Us For Availability

8

Support, Stud (2) WPL 946355 Contact Us For Availability

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

9

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

9

Shelf Bin (4) WPL 1117928 Contact Us For Availability

9

Grommet (2) WPL 1110779 Contact Us For Availability

9

Ladder, Shelf (2) WPL 1108433 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $132.43

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

Stud, Front WPL 946356 Contact Us For Availability

Window WPL 1126028 Contact Us For Availability

Grommet, Fan (2) WPL 2155589 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Shelf WPL 1126351 Contact Us For Availability

Strap WPL 938384 Contact Us For Availability

Slide, Air Control WPL 1125592 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Screw Anchor (2) WPL 941242 Contact Us For Availability

Stud, Rear WPL 1106982 Contact Us For Availability

Cover WPL 1108115 Contact Us For Availability

Slide, Thermostat WPL 1125591 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability

4388953 Whirlpool Overload Relay Backorder WPL 4388953 $74.41

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Front, Crisper WPL 2168759 Contact Us For Availability

Panel, Interior Door WPL 1129244 Contact Us For Availability

Shelf (2) WPL 1126297 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Slide, Humidity WPL 1125853 Contact Us For Availability

Insert, Handle (White) WPL 1117950 Contact Us For Availability

Insert, Handle (Almond) WPL 1117951 Contact Us For Availability

Cover, Wiring WPL 2155402 Contact Us For Availability

Light Bar WPL 1118072 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

Screw (3) WPL 489162 Contact Us For Availability

Relay (See Overload) WPL ARI95230A4 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $10.25

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

Pan, Crisper WPL 2168851 Contact Us For Availability

Drain Fitting WPL 2155556 Contact Us For Availability

Rack, Wine & Egg WPL 1125913 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Meat Pan WPL 2168884 Contact Us For Availability

Panel, Interior Door WPL 1126204 Contact Us For Availability

Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability

Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

Light Socket WPL 1110690 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Bracket, Door Stop WPL 2155332 Contact Us For Availability

Heat Shield WPL 1118033 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

WP1126289 Whirlpool Refrigerator Cover In Stock WPL WP1126289 $72.24

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $27.52

Retainer, Insert WPL 1107241 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $10.97

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $4.74

Door Closer, Upper Cam WPL 1117898 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability

Control Box Harness WPL 2155694 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

Shelf WPL 1126350 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $26.28

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Glass, Crisper WPL 1126293 Contact Us For Availability

Retainer, Insert WPL 1117953 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $47.56

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bin, Utility WPL 2168885 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Front, Basket WPL 1126356 Contact Us For Availability

Fastener, Push-On WPL 489391 Contact Us For Availability

Shelf Stud WPL 1115290 No Longer Available

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

Basket, Lower WPL 1126352 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

Escutcheon, Control Box WPL 2155705 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

Shield, Heat WPL 2149293 Contact Us For Availability

26

Light Bar WPL 1126089 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

Window WPL 1126027 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $26.79

28

Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability

28

Clip, Control Box WPL 1125811 Contact Us For Availability

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

32

Bracket, Fan Motor WPL 2162062 Contact Us For Availability

32

Heat Shield WPL 1127141 Contact Us For Availability

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

33

Heater, Defrost WPL 2161322 Contact Us For Availability

34

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

34

Light Lens WPL 1114624 Contact Us For Availability

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

Shelf Bin (4) WPL 1126206 Contact Us For Availability

Trim Kit Glass Panel Kit WPL 4318331 Contact Us For Availability

Handle Insert (Black) WPL 4318334 Contact Us For Availability

Woodgrain WPL 4318335 Contact Us For Availability

Black Grille Kit WPL 4318416 Contact Us For Availability

Black WPL 4319192 Contact Us For Availability

White WPL 4319193 Contact Us For Availability

Almond Handle Insert WPL 4319194 Contact Us For Availability

36

Wire Assembly Intermediate WPL 2153994 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
