Whirlpool KSM160PSWH0 5 QT. STAND MIXER

1

9704025 Whirlpool Housing Assembly Backorder WPL 9704025 $69.76

View on Model

1

WP110679 Whirlpool Screw Backorder WPL WP110679 $2.91

View on Model

1

Motor Housing (White) WPL 2402911 Contact Us For Availability

View on Model

1

Motor Housing (Onyx Black) WPL 24029113 Contact Us For Availability

View on Model

1

Motor Housing (Empire Red) WPL 24029121 Contact Us For Availability

View on Model

1

Gearcase Motor Housing WPL ARI92284A3 Contact Us For Availability

View on Model

2

WP116241 Whirlpool Washer Backorder WPL WP116241 $2.91

View on Model

2

Trim Band (Black) WPL W10140743 Contact Us For Availability

View on Model

2

Cap, Attachment Hub (Chrome) WPL 2427652 Contact Us For Availability

View on Model

3

9704029 Whirlpool Cover Assembly Backorder WPL 9704029 $33.38

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.33

View on Model

3

END COVER-White WPL 2402531 Contact Us For Availability

View on Model

3

END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability

View on Model

3

END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability

View on Model

4

9706670 Whirlpool Planetary Backorder WPL 9706670 $31.48

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4

PLANETARY-White WPL 2402861 Contact Us For Availability

View on Model

4

PLANETARY-Onyx Black WPL 24028616 Contact Us For Availability

View on Model

4

PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability

View on Model

4

Band, Trim WPL ARI92285A6 Contact Us For Availability

View on Model

5

9706662 Whirlpool Gearcase Assembly Backorder WPL 9706662 $45.16

View on Model

5

WP9704324 Whirlpool Washer Backorder WPL WP9704324 $2.91

View on Model

5

WPW10323373 Whirlpool Washer Backorder WPL WPW10323373 $2.91

View on Model

5

LOWER GEARCASE-White WPL 2403504 Contact Us For Availability

View on Model

5

LOWER GEARCASE (ONYX BLACK) WPL 24035056 Contact Us For Availability

View on Model

5

LOWER GEARCASE-Empire Red WPL 24035084 Contact Us For Availability

View on Model

6

3179260 Whirlpool Pedestal Backorder WPL 3179260 $62.45

View on Model

6

W11131262 Whirlpool Pedestal Backorder WPL W11131262 $62.03

View on Model

6

W11133634 Whirlpool Armature Backorder WPL W11133634 $50.98

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

6

Pedestal w/Feet (Onyx Black) WPL 3179275 Contact Us For Availability

View on Model

6

Pedestal w/Feet (Metallic Chrome) WPL 9706684 Contact Us For Availability

View on Model

7

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

7

W11233557 Whirlpool Washer Backorder WPL W11233557 $2.43

View on Model

7

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $2.91

View on Model

8

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

8

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

9

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $12.50

View on Model

9

Shaft & Pinion WPL 2402102 Contact Us For Availability

View on Model

10

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $25.20

View on Model

10

SEAL, END WPL 2407751 Contact Us For Availability

View on Model

11

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

View on Model

12

WP240026 Whirlpool Control Shaft Backorder WPL WP240026 $5.44

View on Model

12

WASHER WPL 3180238 Contact Us For Availability

View on Model

13

W10851015 Whirlpool Stat Screw Backorder WPL W10851015 $2.91

View on Model

13

Pin (Vertical Center Shaft) WPL 2400181 Contact Us For Availability

View on Model

14

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

14

W11218705 Whirlpool Washer Assembly Backorder WPL W11218705 $2.91

View on Model

14

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

15

103993 Whirlpool Screw Backorder WPL 103993 $17.77

View on Model

15

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $9.94

View on Model

15

Speed Link & Cam WPL 3184176 Contact Us For Availability

View on Model

16

W11232016 Whirlpool Latch Link Backorder WPL W11232016 $2.43

View on Model

16

WP240205 Whirlpool Spring Backorder WPL WP240205 $2.91

View on Model

16

O RING WPL 6750055 Contact Us For Availability

View on Model

17

W10870869 Whirlpool Field Assembly Backorder WPL W10870869 $40.15

View on Model

17

WP9709280 Whirlpool Latch Lever In Stock WPL WP9709280 $2.91

View on Model

17

WPW10323378 Whirlpool Washer Backorder WPL WPW10323378 $6.06

View on Model

18

W11210996 Whirlpool Sleeve Backorder WPL W11210996 $2.91

View on Model

18

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $2.91

View on Model

18

Lower Gear Case WPL ARI92286A1 Contact Us For Availability

View on Model

19

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $3.93

View on Model

19

Pedestal WPL ARI92289A5 Contact Us For Availability

View on Model

19

Screw, Special WPL 103994 Contact Us For Availability

View on Model

20

W11176201 Whirlpool Screw Backorder WPL W11176201 $2.91

View on Model

20

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

20

BOWL, 3 QT. WPL 3179861 Contact Us For Availability

View on Model

21

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

21

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model

22

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 $4.43

View on Model

22

WP3179908 Whirlpool Brush Holder Backorder WPL WP3179908 $2.91

View on Model

23

W11656718 Whirlpool Insert Backorder WPL W11656718 $3.42

View on Model

23

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

24

WP116286 Whirlpool Spring Cap Backorder WPL WP116286 $2.91

View on Model

24

Cover, End WPL ARI92287A8 Contact Us For Availability

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

25

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

View on Model

26

W11097298 Whirlpool Dishwasher Screw Backorder WPL W11097298 $2.91

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.91

View on Model

27

W11084238 Whirlpool Screw Assembly Backorder WPL W11084238 $2.91

View on Model

27

GEAR, WORM AND BRACKET WPL 2403092 Contact Us For Availability

View on Model

28

4160474 Whirlpool Control Shaft Backorder WPL 4160474 $18.94

View on Model

28

Control Plate Assy WPL 2409042 Contact Us For Availability

View on Model

29

WP8533914 Whirlpool Lock Backorder WPL WP8533914 $2.91

View on Model

29

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.24

View on Model

30

WP3400025 Whirlpool Screw Backorder WPL WP3400025 $2.91

View on Model

30

WPW10325124 Whirlpool Phase Board In Stock WPL WPW10325124 $10.39

View on Model

31

W11396625 Whirlpool Power Cord In Stock WPL W11396625 $9.85

View on Model

31

W11545825 Whirlpool Power Cord In Stock WPL W11545825 $8.22

View on Model

31

WP3400203 Whirlpool Screw Backorder WPL WP3400203 $2.91

View on Model

32

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

32

Screw, Self Tap WPL 3184609 Contact Us For Availability

View on Model

33

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.91

View on Model

34

Planetary WPL ARI92288A8 Contact Us For Availability

View on Model

35

WP240285 Whirlpool Drip Ring Backorder WPL WP240285 $5.36

View on Model

36

W11028216 Whirlpool Screw Backorder WPL W11028216 $2.91

View on Model

37

W11340106 Whirlpool Gear Assembly Backorder WPL W11340106 $11.95

View on Model

All Categories

Brands

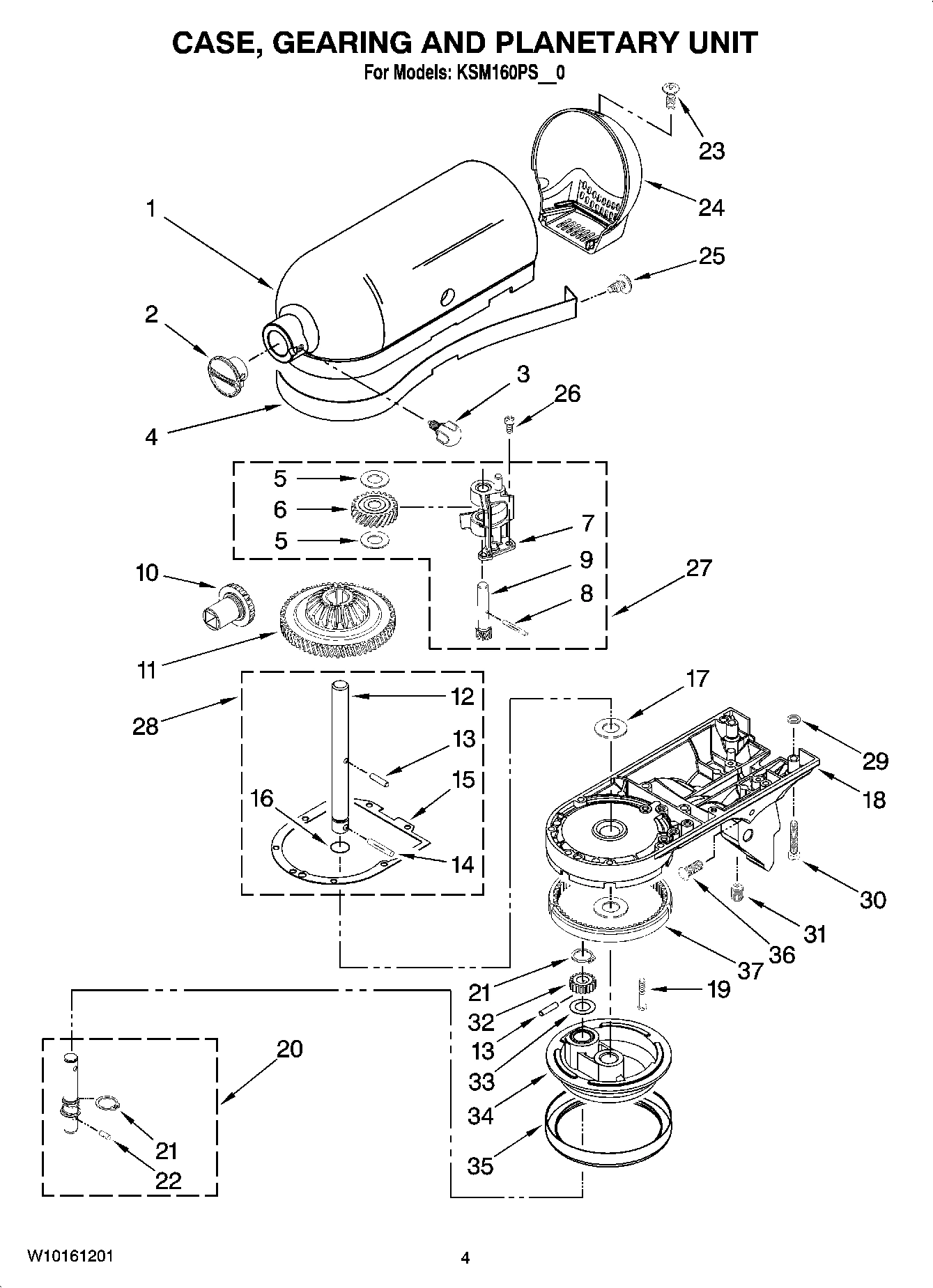

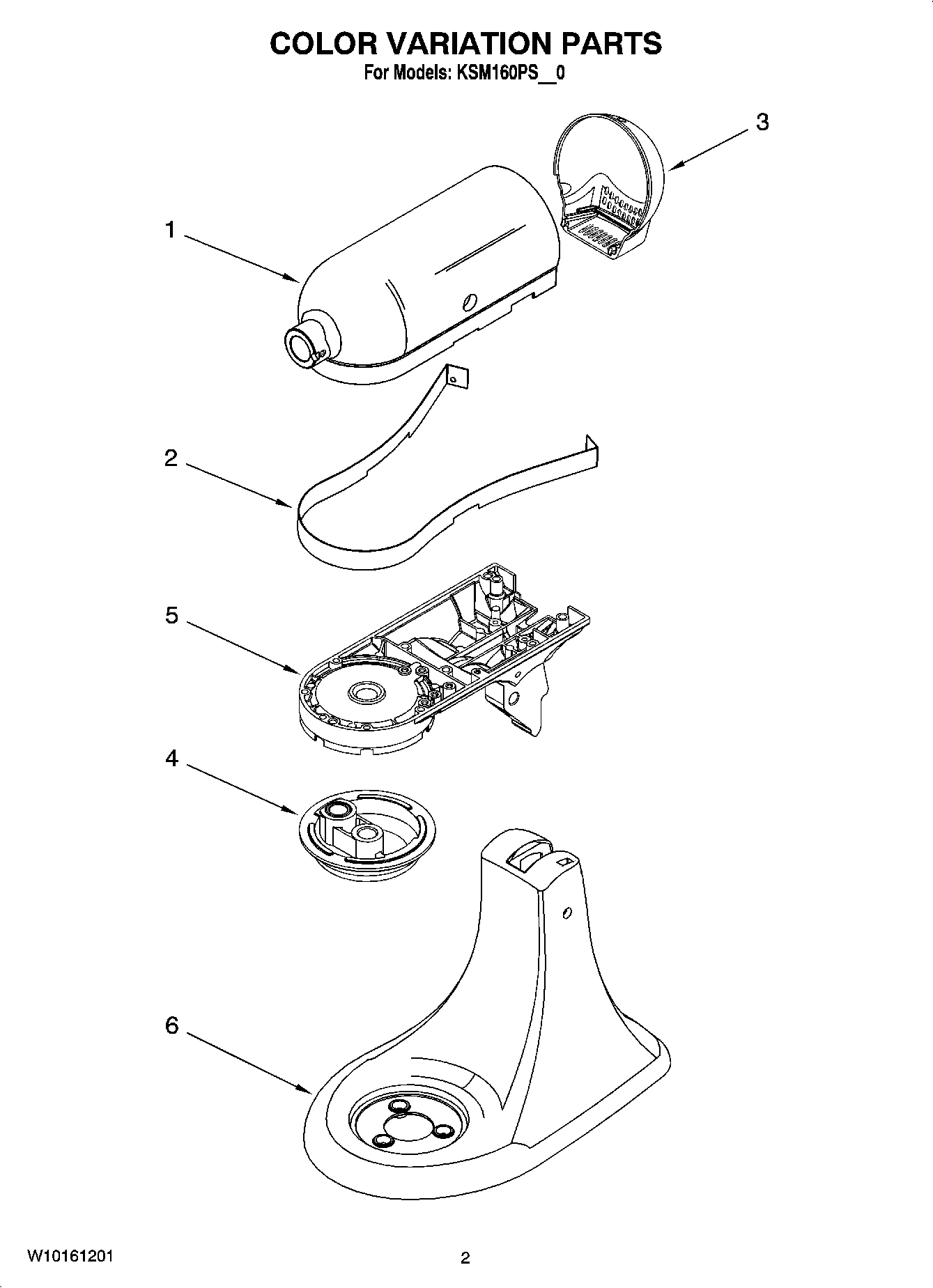

Model Whirlpool KSM160PSWH0 5 QT. STAND MIXER – Common Parts & Diagrams
