Model Whirlpool KSM120WH0 4 1/2 QT. STAND MIXER CUSTOM - TILT – Common Parts & Diagrams
03 - CASE, GEARING AND PLANETARY UNIT
01 - COLOR VARIATION PARTS

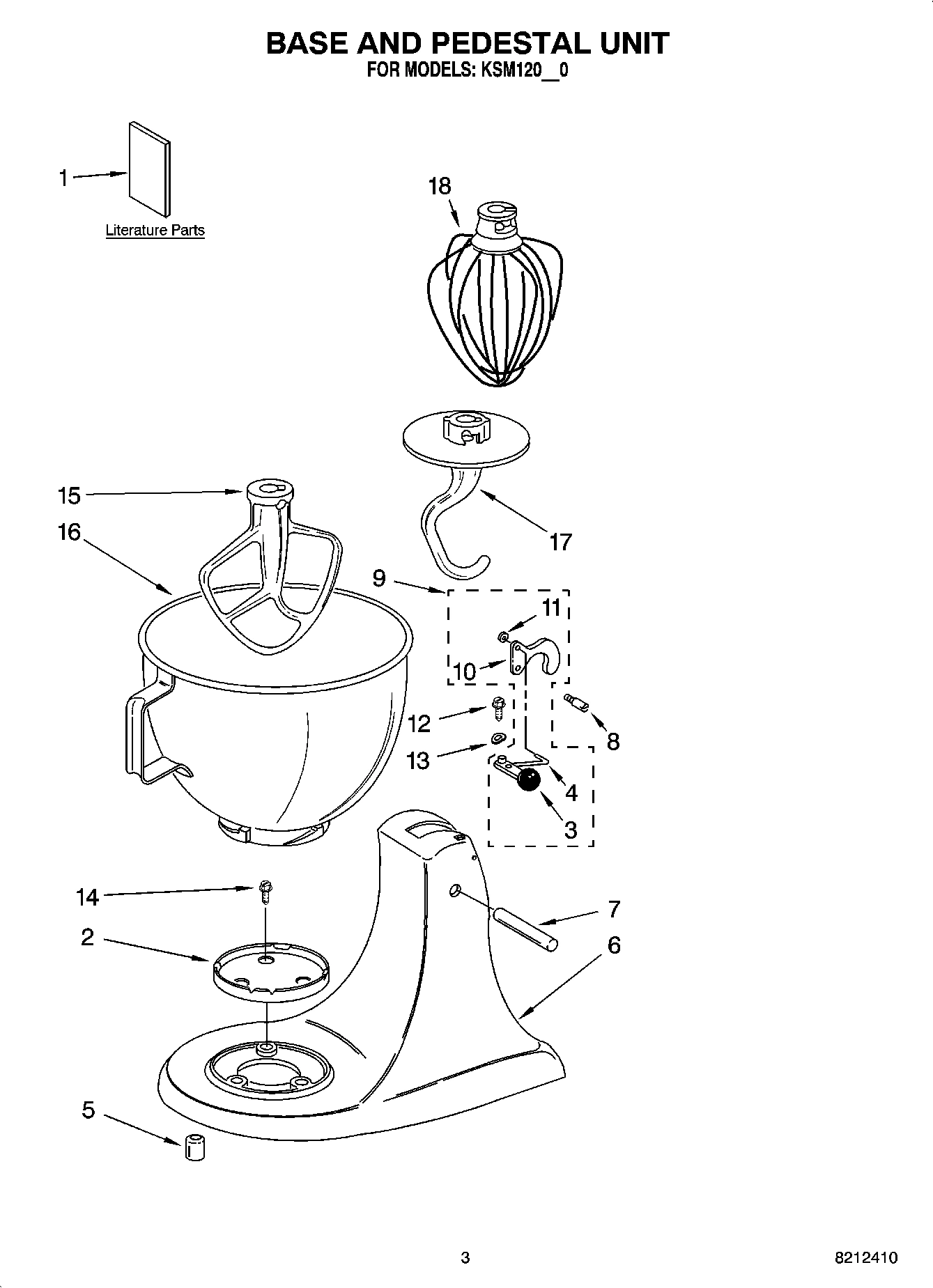

02 - BASE AND PEDESTAL UNIT

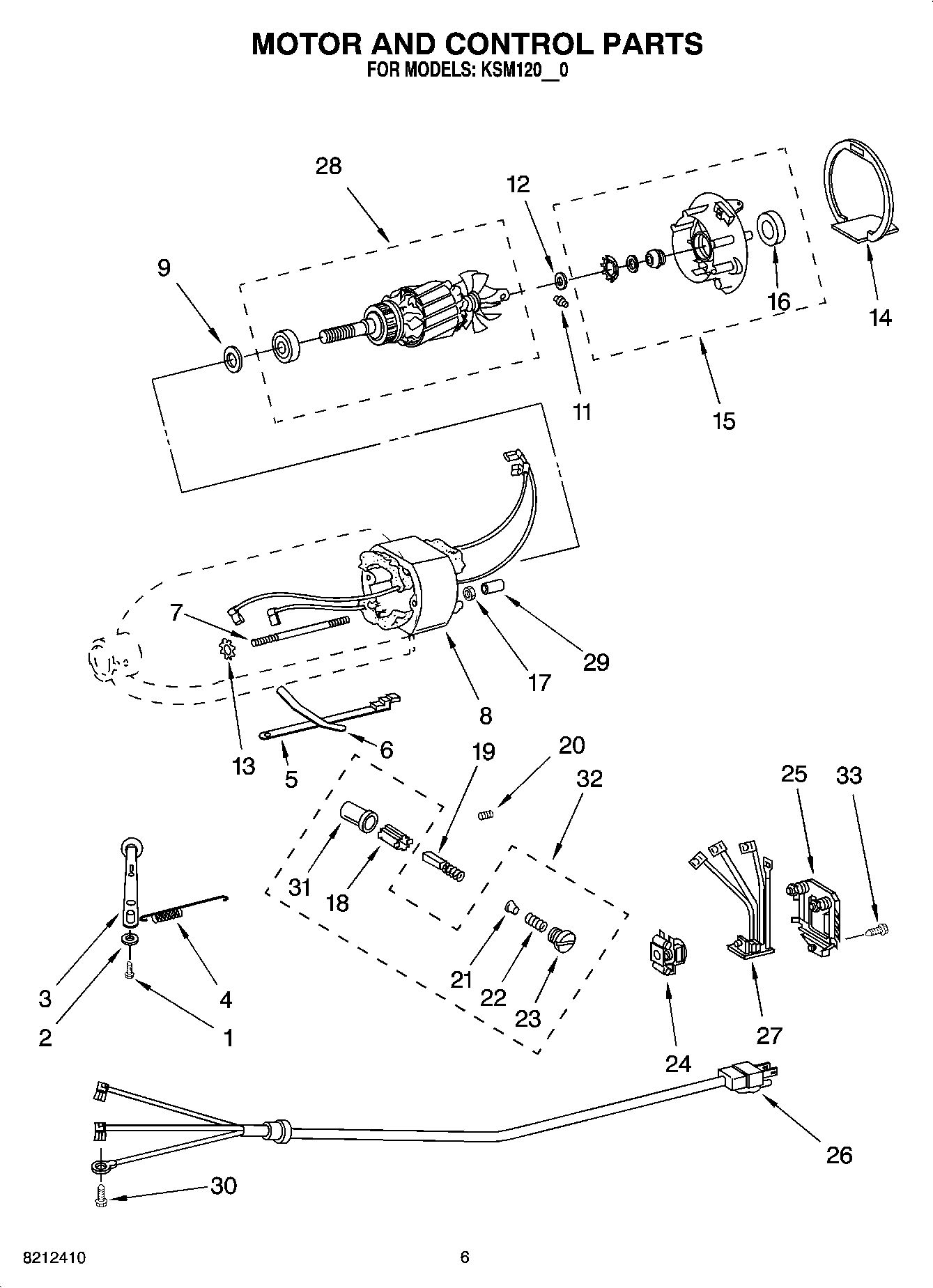

04 - MOTOR AND CONTROL PARTS, OPTIONAL PARTS
Common parts from model Whirlpool KSM120WH0 4 1/2 QT. STAND MIXER CUSTOM - TILT
Bowl Cover, Plastic Non-Sealing WPL 3177924 Contact Us For Availability
Bowl, 3 Qt. (KSM103 & KSM110) WPL 3180262 Contact Us For Availability
Cover, Decorative (Cotton Polyester) WPL 3180617 Contact Us For Availability
Food Tray (FT) WPL 4162838 Contact Us For Availability
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
JUICER (JE) WPL 4164748 Contact Us For Availability
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER ( WPL 4164774 Contact Us For Availability
WPL 4164775 WPL 4164775 Contact Us For Availability
WPL 4164778 WPL 4164778 Contact Us For Availability
WPL 4164803 WPL 4164803 Contact Us For Availability
WPL 4164824 WPL 4164824 Contact Us For Availability
WPL 4164839 WPL 4164839 Contact Us For Availability
WPL 8211924 WPL 8211924 Contact Us For Availability
WPL 8212519 WPL 8212519 Contact Us For Availability
1
Motor Housing (Metallic Chrome) WPL 9704025 Contact Us For Availability
1
Motor Housing (White) WPL 2402911 Contact Us For Availability
1
Motor Housing (Onyx Black) WPL 24029113 Contact Us For Availability
1
Motor Housing (Empire Red) WPL 24029121 Contact Us For Availability
1
Repair Parts List WPL 8212410 Contact Us For Availability
1
Use & Care Guide (Trilingual) WPL 9709785 Contact Us For Availability
2
TRIM BAND-Black WPL 9706661 Contact Us For Availability
3
PLANETARY-White WPL 2402861 Contact Us For Availability
3
PLANETARY-Onyx Black WPL 24028616 Contact Us For Availability
3
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
3
Planetary (Metallic Chrome) WPL 9706670 Contact Us For Availability
4
End Cover (Metallic Chrome) WPL 9704029 Contact Us For Availability
4
END COVER-White WPL 2402531 Contact Us For Availability
4
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
4
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
5
Foot, Base WPL 115792 Contact Us For Availability
5
Speed Link & Cam WPL 3184176 Contact Us For Availability
5
LOWER GEARCASE-White WPL 2403504 Contact Us For Availability
5
LOWER GEARCASE (ONYX BLACK) WPL 24035056 Contact Us For Availability
5
LOWER GEARCASE-Empire Red WPL 24035084 Contact Us For Availability
5
Lower Gearcase (Metallic Chrome) WPL 9706662 Contact Us For Availability
6
Pedestal & Foot (White) WPL 3179260 Contact Us For Availability
6
Pedestal & Foot (Onyx Black) WPL 3179275 Contact Us For Availability
6
Pedestal & Foot (Metallic Chrome) WPL 9706684 Contact Us For Availability
6
Pedestal WPL ARI92243A7 Contact Us For Availability
8
Screw, Latch Bearing WPL 103993 Contact Us For Availability
14
SCREW WPL 3400020 Contact Us For Availability
14
SEAL, END WPL 2407751 Contact Us For Availability
16
Bowl And Base (4 1/2 Qt.) WPL 2425502 Contact Us For Availability
16
WASHER WPL 3180238 Contact Us For Availability
17
Nut, Machine WPL 8533905 Contact Us For Availability
23
Planetary WPL ARI92247A8 Contact Us For Availability
25
Pin (Agitator Shaft Pinion) WPL 2400181 Contact Us For Availability
25
Control Plate Assembly WPL 2409042 Contact Us For Availability
30
Screw, Ground WPL 3184609 Contact Us For Availability
32
Brush Holder WPL 4162546 Contact Us For Availability
32
O RING WPL 6750055 Contact Us For Availability
34
Cover, End WPL ARI92248A7 Contact Us For Availability
36
Worm Gear Bracket and Gear WPL 2403092 Contact Us For Availability
37
CENTER SHAFT & O-RING WPL 4160474 Contact Us For Availability
× ![]()
