Model Whirlpool KSBS20QEAL1 – Common Parts & Diagrams
Common parts from model Whirlpool KSBS20QEAL1
1

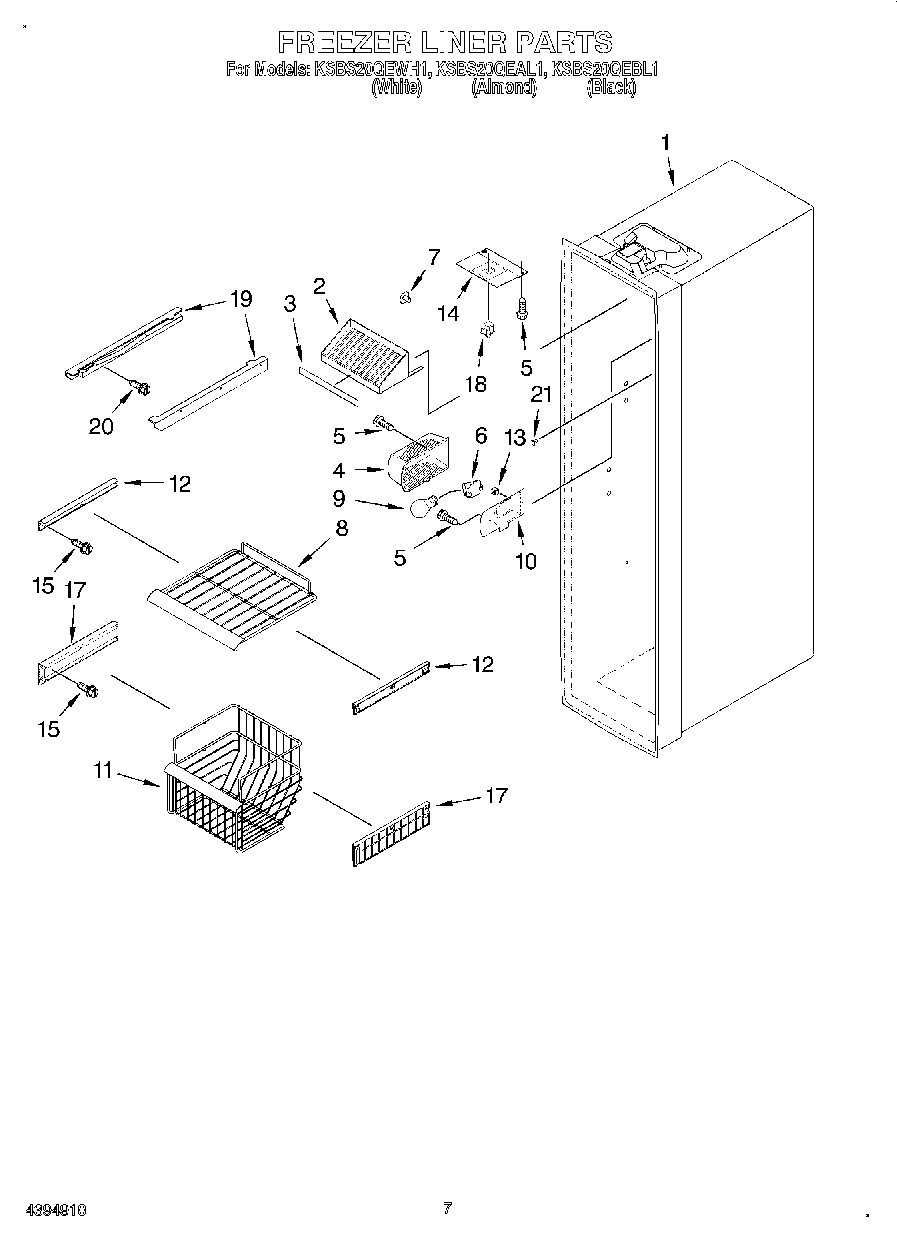

Liner (Not A Serviceable Part) WPL ARI154771A Contact Us For Availability
1

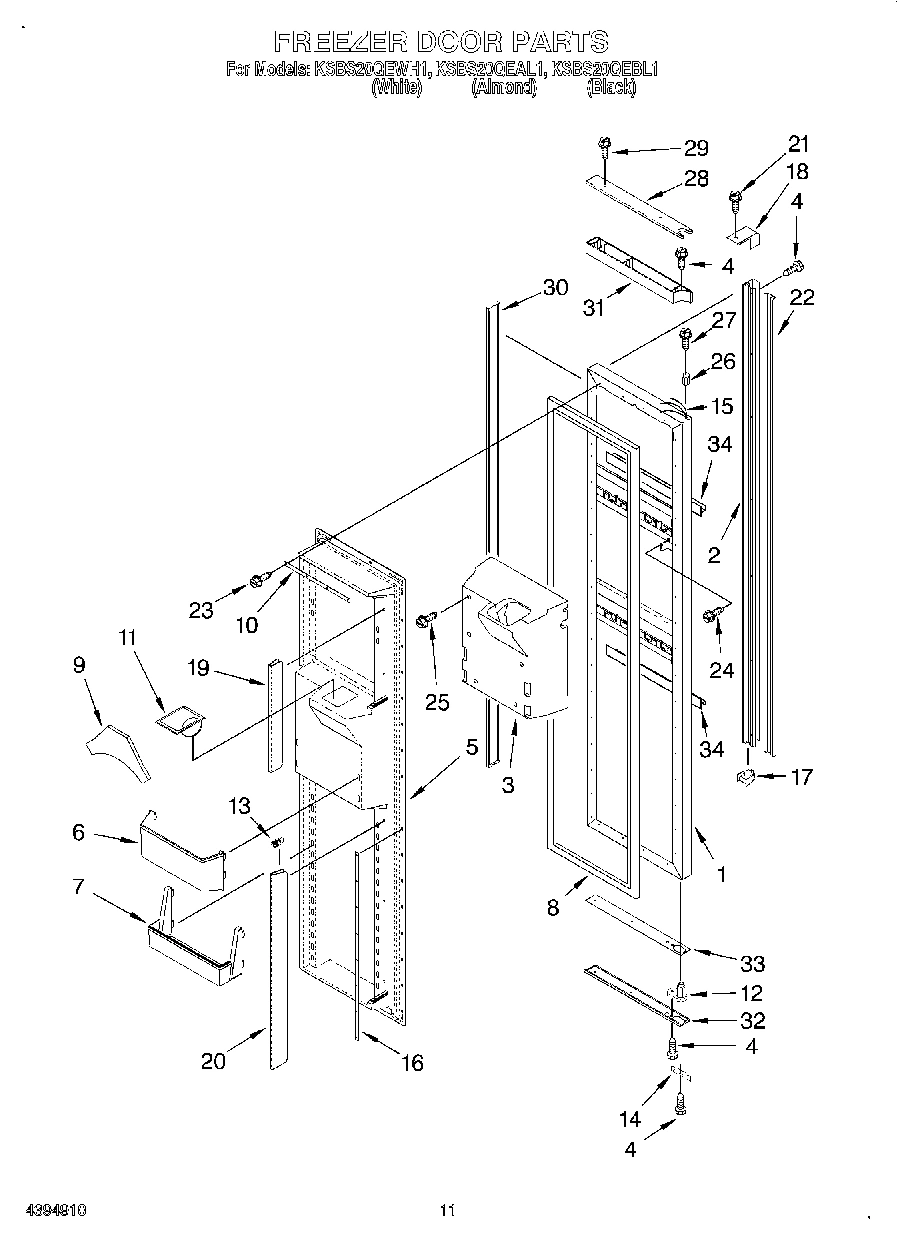

Freezer Door Panel (Includes Insulation) (Whi WPL 4344031 Contact Us For Availability
1

Freezer Door Panel (Includes Insulation) (Alm WPL 4344032 Contact Us For Availability
1

Freezer Door Panel (Includes Insulation) (Bla WPL 4344033 Contact Us For Availability
1

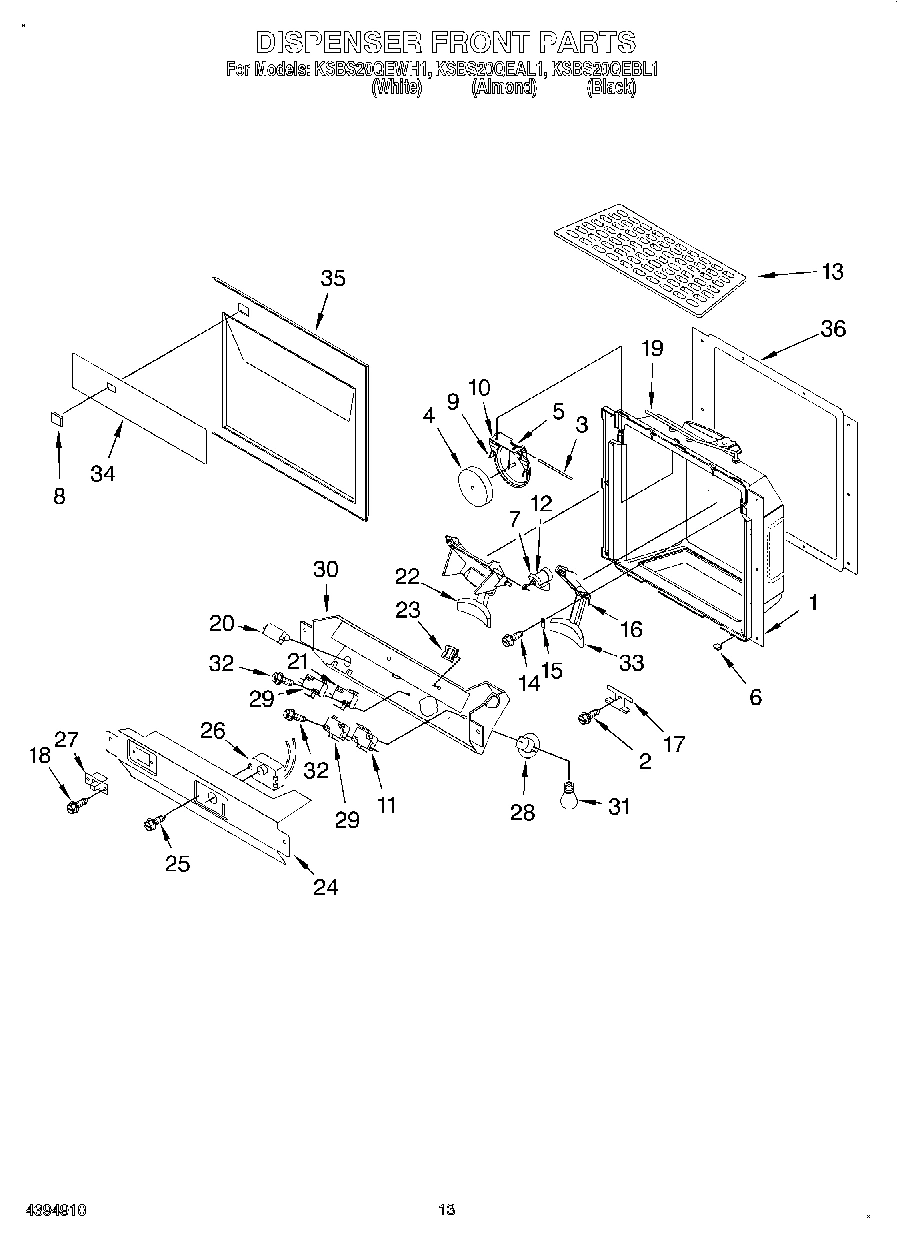

Housing, Dispenser (Includes Heater) (White) WPL 4343827 Contact Us For Availability
1

Housing, Dispenser (Includes Heater) (Almond) WPL 4343828 Contact Us For Availability
1

Housing, Dispenser (Includes Heater) (Black) WPL 4343829 Contact Us For Availability
1

Liner (Not A Serviceable Part) WPL ARI154772A Contact Us For Availability
1

Clip WPL 4343703 Contact Us For Availability
1

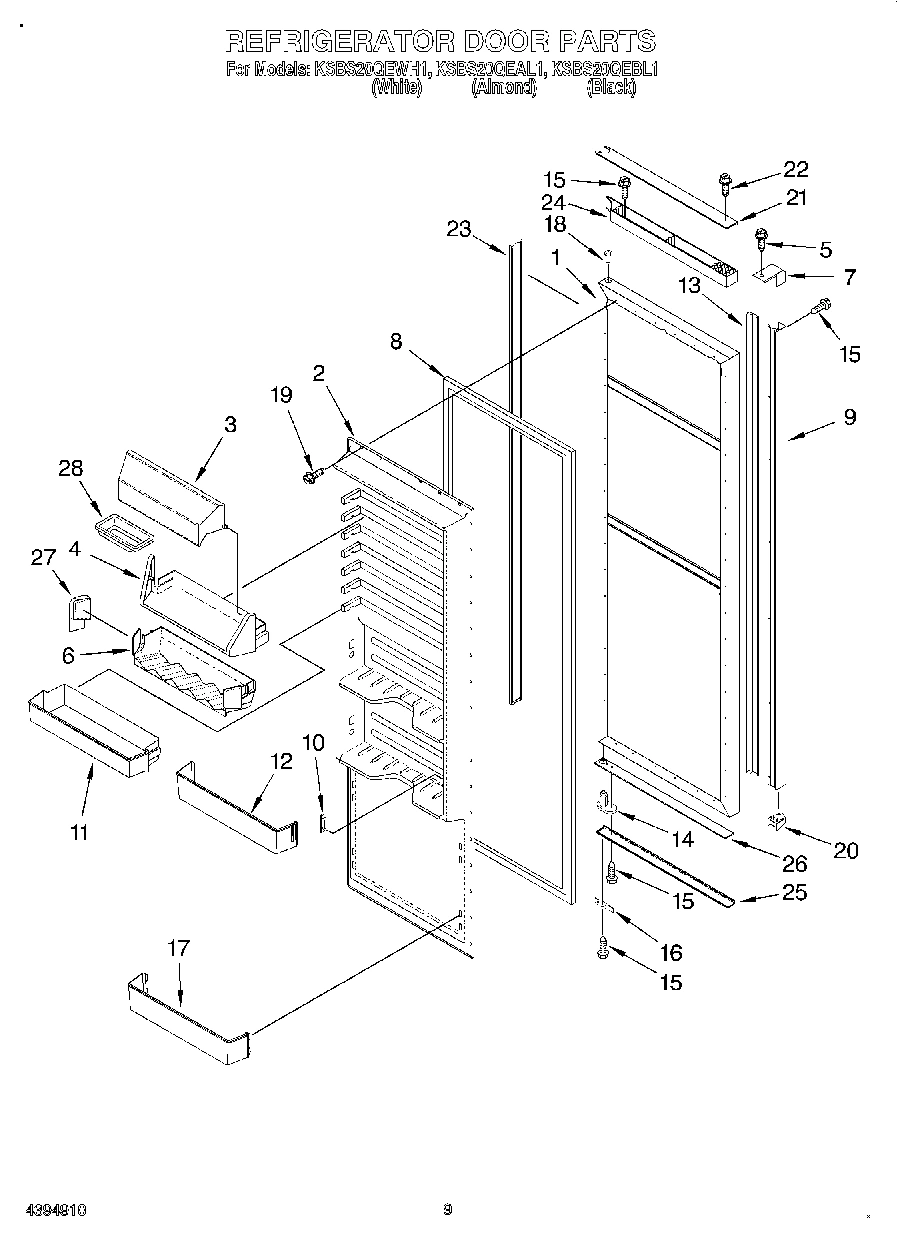

Refrigerator Door Panel (Includes Insulation) WPL 4344024 Contact Us For Availability
1

Refrigerator Door Panel (Includes Insulation) WPL 4344025 Contact Us For Availability
1

Refrigerator Door Panel (Includes Insulation) WPL 4344026 Contact Us For Availability
1

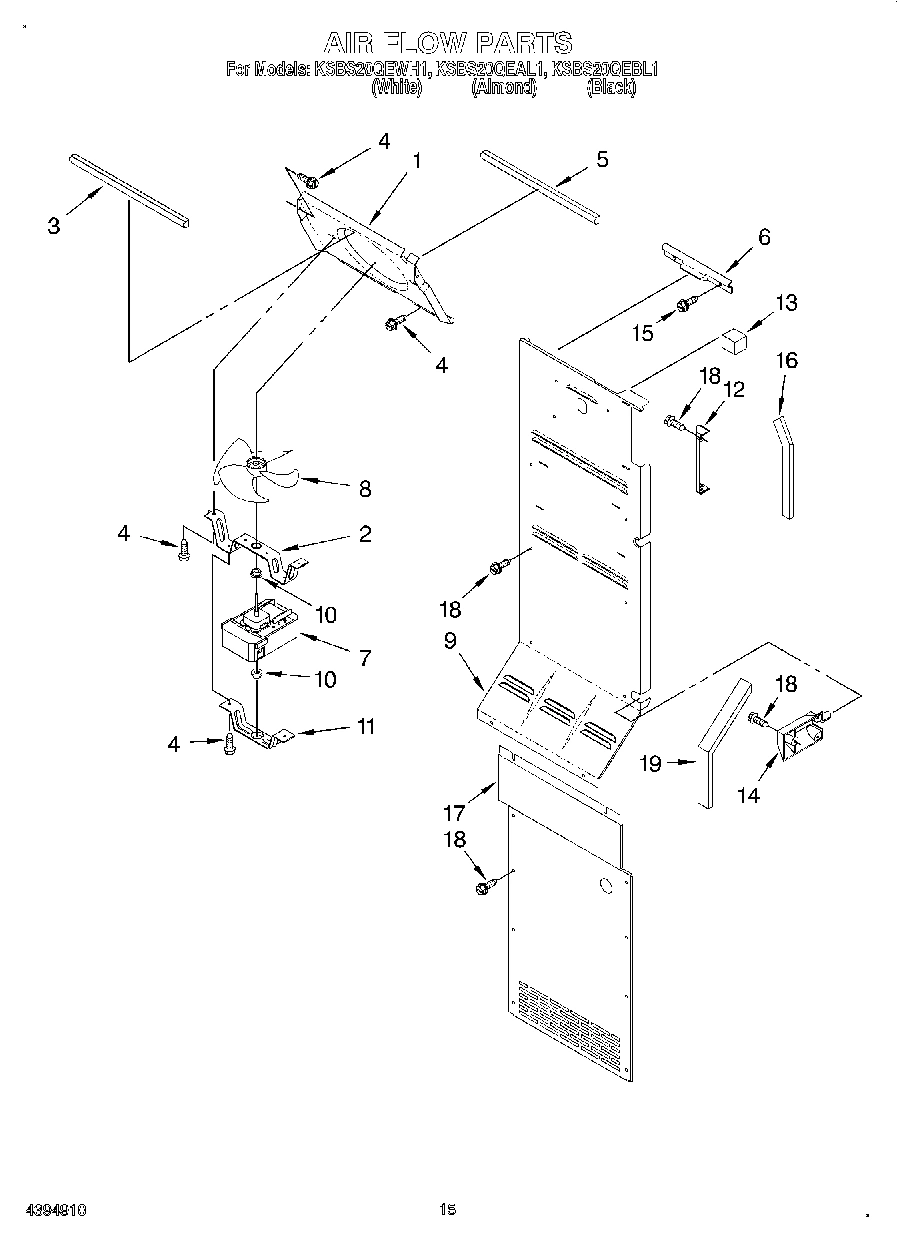

Fan Shroud WPL 4343799 Contact Us For Availability
1

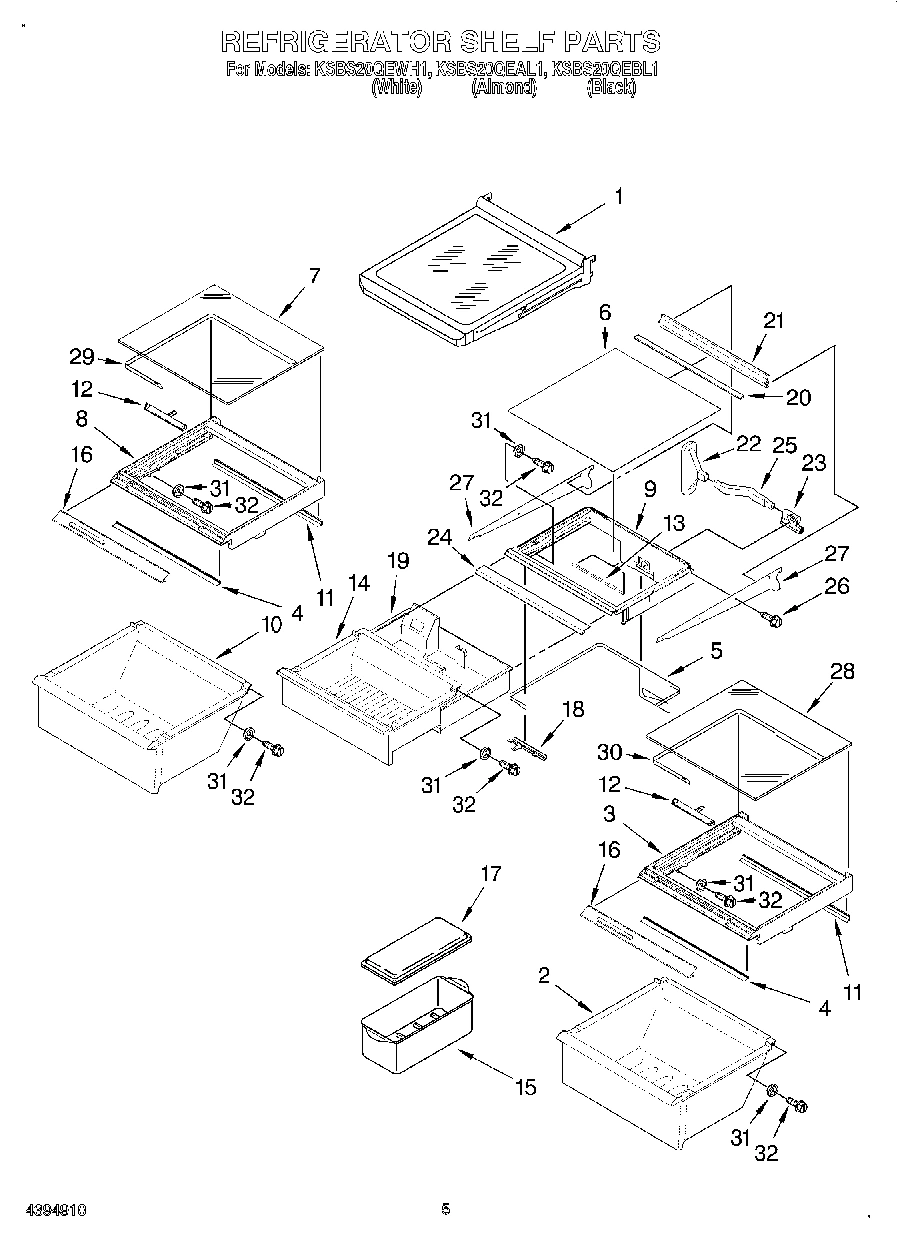

Shelf Assembly, Glass Sliding (2) WPL 4344062 Contact Us For Availability
1

Bracket, Motor WPL 4343667 Contact Us For Availability
2

Housing, Top Light WPL 4343927 Contact Us For Availability
2

Handle (White) WPL 4344108 Contact Us For Availability
2

Handle (Almond) WPL 4344109 Contact Us For Availability
2

Handle (Silver) WPL 4344110 Contact Us For Availability
2

Screw WPL 4343838 Contact Us For Availability
2

Top Shelf WPL 4343980 Contact Us For Availability
2

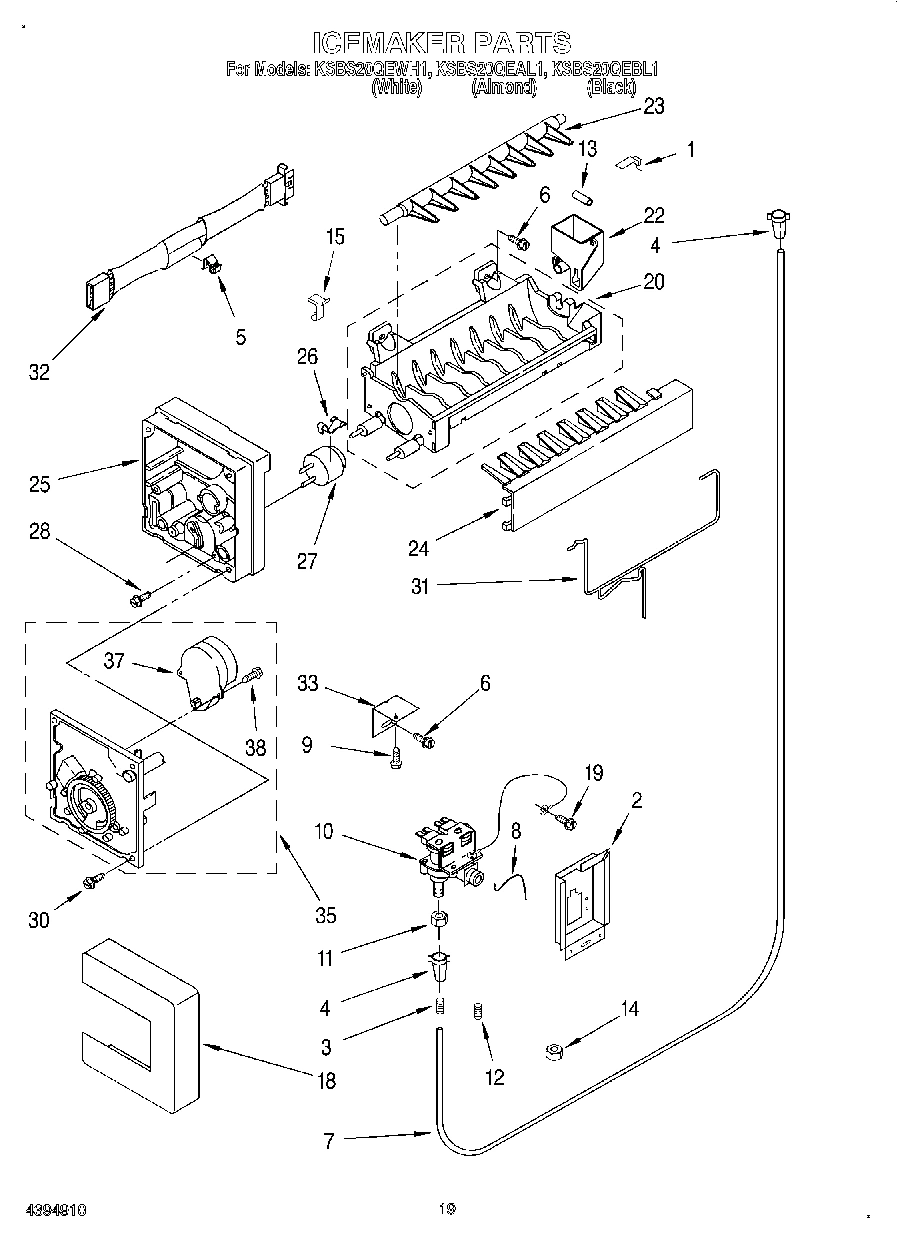

Bracket, Water Valve WPL 4344551 Contact Us For Availability
2

Interior Panel WPL 4343804 Contact Us For Availability
2

Retainer, Fan Motor WPL 4343935 Contact Us For Availability
2

Crisper Pan (Lower) WPL 4344063 Contact Us For Availability
2

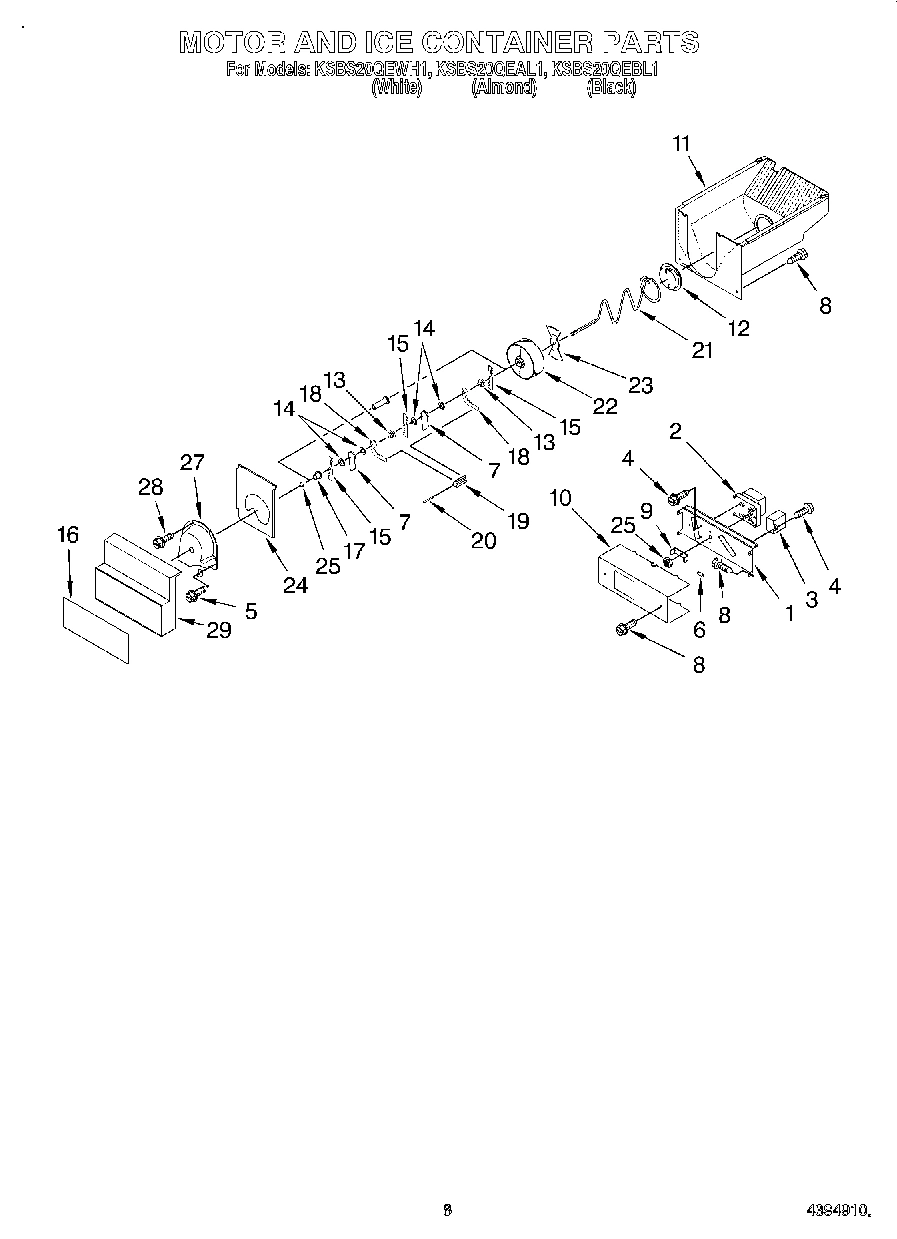

Motor, Dispenser WPL 4343639 Contact Us For Availability
2

Fan, Blade WPL 4343843 Contact Us For Availability
3

Insulation, Dispenser WPL 4343830 Contact Us For Availability
3

Pin, Chute Door WPL 4343946 Contact Us For Availability
3

Insert, Top Shelf WPL 4344056 Contact Us For Availability
3

Spring WPL 4343685 Contact Us For Availability
3

Door, Dairy WPL 4343816 Contact Us For Availability
3

Foam Seal WPL 4343791 Contact Us For Availability
3

Cover, Crisper (Lower) WPL 4343719 Contact Us For Availability
3

Capacitor WPL 4343712 Contact Us For Availability
3

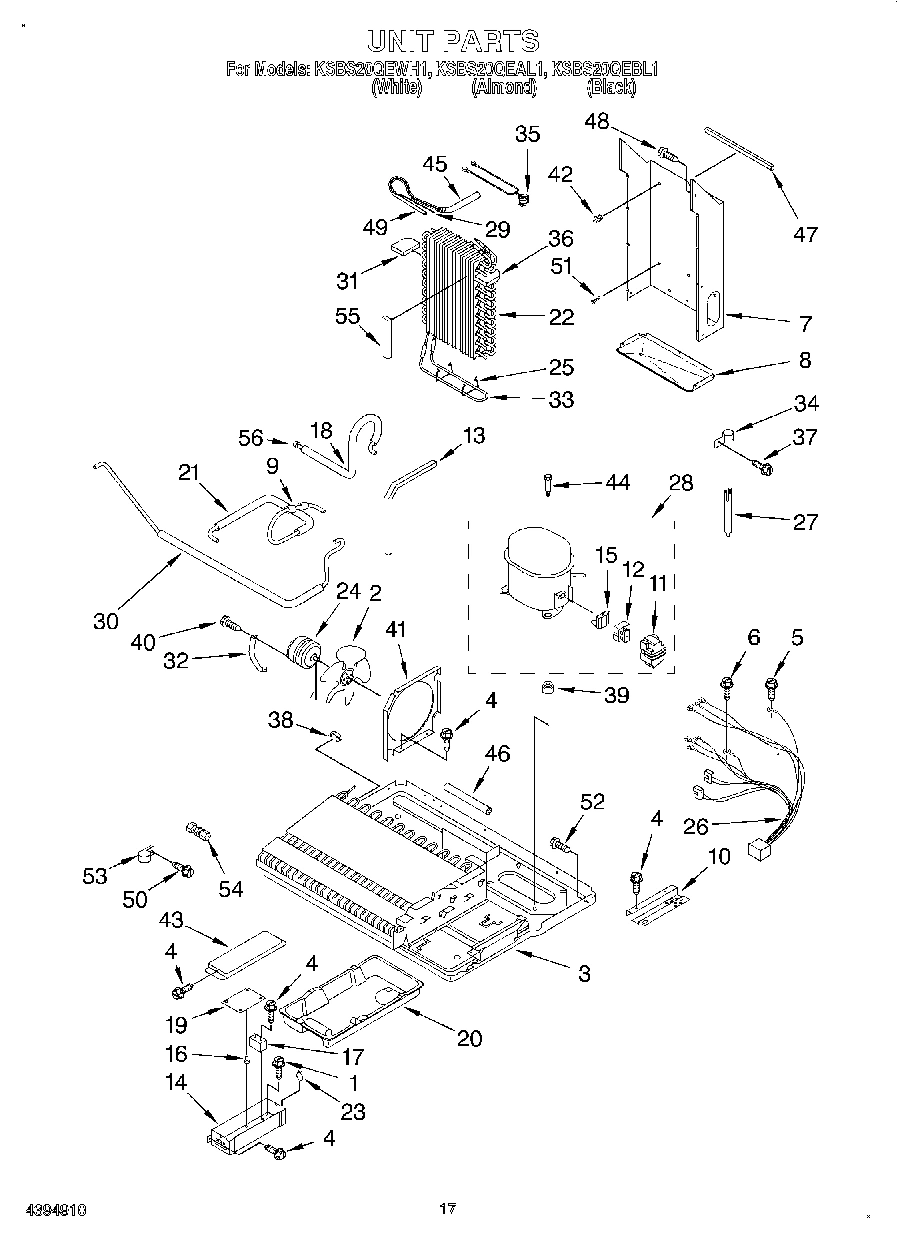

Condenser & Pan Assembly WPL 4343841 Contact Us For Availability
4

Insulation, Door WPL 4343948 Contact Us For Availability
4

Light Lens WPL 4343645 Contact Us For Availability
4

Shelf, Dairy WPL 4343809 Contact Us For Availability
4

Gasket, Cover (Front) WPL 4343910 Contact Us For Availability
4

Screw WPL 4343861 Contact Us For Availability
5

Interior Panel WPL 4343821 Contact Us For Availability
5

Screw WPL 4343693 Contact Us For Availability
5

Spring, Chute Door WPL 4343950 Contact Us For Availability
5

Seal, Control WPL 4343882 Contact Us For Availability
5

Screw WPL 4343898 Contact Us For Availability
6

Trivet, Shelf WPL 4343747 Contact Us For Availability
6

Clip WPL 4343952 Contact Us For Availability
6

Light Socket WPL 4343643 Contact Us For Availability
6

Can Holder WPL 4344087 Contact Us For Availability
6

Clip WPL 4343687 Contact Us For Availability
6

Glass, Meat Cover WPL 4344092 Contact Us For Availability
6

Clip, Wiring WPL 4343982 Contact Us For Availability
6

Screw WPL 4343860 Contact Us For Availability
7

Housing, Side Light WPL 4343932 Contact Us For Availability
7

Shelf Bin (4) WPL 4343746 Contact Us For Availability
7

Retainer, Door Delay WPL 4343953 Contact Us For Availability
7

Support, Stud (2) WPL 4343723 Contact Us For Availability
7

Cap, Handle Top (White) WPL 4344102 Contact Us For Availability
7

Cap, Handle Top (Almond) WPL 4344103 Contact Us For Availability
7

Cap, Handle Top (Silver) WPL 4344104 Contact Us For Availability
7

Fan Motor WPL 4344139 Contact Us For Availability
7

Glass, Crisper Cover (Upper) WPL 4344096 Contact Us For Availability
7

Damper, Ice WPL 4343904 Contact Us For Availability
7

Heat Shield WPL 4343762 Contact Us For Availability
8

Gasket WPL 4343933 Contact Us For Availability
8

Door Gasket, Magnetic (White) WPL 4343833 Contact Us For Availability
8

Door Gasket, Magnetic (Black) WPL 4343834 Contact Us For Availability
8

Cap, Cube/Crush Switch (White) WPL 4344047 Contact Us For Availability
8

Cap, Cube/Crush Switch (Almond) WPL 4344048 Contact Us For Availability
8

Cap, Cube/Crush Switch (Black) WPL 4344049 Contact Us For Availability
8

Shelf (2) WPL 4344061 Contact Us For Availability
8

Clip, Water Valve WPL 4343697 Contact Us For Availability
8

Door Gasket, Magnetic (White) WPL 4343812 Contact Us For Availability
8

Door Gasket, Magnetic (Black) WPL 4343813 Contact Us For Availability
8

Cover, Crisper (Upper) WPL 4343718 Contact Us For Availability
8

Drain Pan WPL 4343792 Contact Us For Availability
9

Shelf Ladder (Left Side) WPL 4343975 Contact Us For Availability
9

Shelf Ladder (Right Side) WPL 4343976 Contact Us For Availability
9

Seal, Ice Chute WPL 4343634 Contact Us For Availability
9

Door, Ice WPL 4343955 Contact Us For Availability
9

Door Handle (White) WPL 4344105 Contact Us For Availability
9

Door Handle (Almond) WPL 4344106 Contact Us For Availability
9

Door Handle (Silver) WPL 4344107 Contact Us For Availability
9

Rear Cover WPL 4343655 Contact Us For Availability
9

Frame, Meat Pan WPL 4343883 Contact Us For Availability
9

Dampner WPL 4343872 Contact Us For Availability
10

Retainer (Top & Bottom) WPL 4343824 Contact Us For Availability
10

Bracket, Chute Door WPL 4343949 Contact Us For Availability
10

Plate, Socket WPL 4343644 Contact Us For Availability
10

Clip, Retainer WPL 4343810 Contact Us For Availability
10

Crisper Pan (Upper) WPL 4344064 Contact Us For Availability
10

Cover, Motor WPL 4343638 Contact Us For Availability
10

Shelf, High Voltage Box WPL 4343867 Contact Us For Availability
11

Screw (4) WPL 4343727 Contact Us For Availability
11

Chute, Ice WPL 4343633 Contact Us For Availability
11

Switch WPL 4343963 Contact Us For Availability
11

Basket, Slope (2) WPL 4344065 Contact Us For Availability
11

Shelf Bin WPL 4344086 Contact Us For Availability
11

Bracket, Motor WPL 4343937 Contact Us For Availability
11

Gasket, Rear WPL 4343909 Contact Us For Availability
11

Ice Container WPL 4343896 Contact Us For Availability
11

Cover WPL 4343852 Contact Us For Availability
12

Mechanism Delay WPL 4343954 Contact Us For Availability
12

Shelf Track (Single) (Right Side) WPL 4343744 Contact Us For Availability
12

Shelf Track (Single) (Left Side) WPL 4343745 Contact Us For Availability
12

Spring WPL 4343686 Contact Us For Availability
12

Shelf Bin (2) WPL 4344084 Contact Us For Availability
12

Cover, Air Supply WPL 4343671 Contact Us For Availability
12

Slide, Humidity Control WPL 4344095 Contact Us For Availability
13

Clip, Ground WPL 4343682 Contact Us For Availability
13

Bracket Retainer WPL 4343692 Contact Us For Availability
13

Clip, Removable Door Dike WPL 4343825 Contact Us For Availability
13

Grille, Overflow (Black) WPL 4343678 Contact Us For Availability
13

Grille, Overflow (White) WPL 4343679 Contact Us For Availability
13

Grille, Overflow (Almond) WPL 4343680 Contact Us For Availability
13

Tube, Water Inlet WPL 4343722 Contact Us For Availability
13

Insert, Handle (White) WPL 4344111 Contact Us For Availability
13

Insert, Handle (Almond) WPL 4344112 Contact Us For Availability
13

Insert, Handle (Silver) WPL 4344113 Contact Us For Availability
13

Gasket Cover WPL 4343688 Contact Us For Availability
13

Gasket WPL 4343886 Contact Us For Availability
13

Spacer, Step (2) WPL 4343905 Contact Us For Availability
13

Gasket WPL 4343871 Contact Us For Availability
14

Cover, Switch WPL 4343928 Contact Us For Availability
14

Screw WPL 4343962 Contact Us For Availability
14

Nut WPL 4343647 Contact Us For Availability
14

Cover, Air WPL 4343672 Contact Us For Availability
14

Meat Pan WPL 4344091 Contact Us For Availability
14

Spacer, Wavered WPL 4343890 Contact Us For Availability
14

High Voltage Box WPL 4343854 Contact Us For Availability
15

Control, Damper WPL 4343649 Contact Us For Availability
15

Harness, Door WPL 4343826 Contact Us For Availability
15

Clip, Lever (4) WPL 4343947 Contact Us For Availability
15

Clamp WPL 4343984 Contact Us For Availability
15

Blade, Rotary WPL 4343903 Contact Us For Availability
16

Insulation, Damper WPL 4343666 Contact Us For Availability
16

Bracket, Door Stop (Black) WPL 4343806 Contact Us For Availability
16

Bracket, Door Stop (White) WPL 4343807 Contact Us For Availability
16

Bracket, Door Stop (Almond) WPL 4343808 Contact Us For Availability
16

Retainer (Side) WPL 4343835 Contact Us For Availability
16

Spring, Lever WPL 4343951 Contact Us For Availability
16

Gasket WPL 4343673 Contact Us For Availability
16

Trim, Front (2) WPL 4344097 Contact Us For Availability
16

Insert, Cover WPL 4343892 Contact Us For Availability
16

Support WPL 4343868 Contact Us For Availability
17

Shield, Light WPL 4343654 Contact Us For Availability
17

Cap, Bottom (White) WPL 4344120 Contact Us For Availability
17

Cap, Bottom (Almond) WPL 4344121 Contact Us For Availability
17

Cap, Bottom (Silver) WPL 4344122 Contact Us For Availability
17

Clip, Cover WPL 4343823 Contact Us For Availability
17

Shelf Track (Left Side (2)) WPL 4343663 Contact Us For Availability
17

Shelf Track (Right Side (2)) WPL 4343664 Contact Us For Availability
17

Shelf Bin (2) WPL 4344085 Contact Us For Availability
17

Cover, Evaporator WPL 4343750 Contact Us For Availability
17

Cover WPL 2169935 Contact Us For Availability
17

Spacer WPL 4343902 Contact Us For Availability
17

Capacitor WPL 4343851 Contact Us For Availability
18

Socket, Dual WPL 4343642 Contact Us For Availability
18

Cap, Top (White) WPL 4344099 Contact Us For Availability
18

Cap, Top (Almond) WPL 4344126 Contact Us For Availability
18

Cap, Top (Silver) WPL 4344127 Contact Us For Availability
18

Screw WPL 4343974 Contact Us For Availability
18

Cover WPL 4343696 Contact Us For Availability
18

Hinge Sleeve (Black) WPL 4343942 Contact Us For Availability
18

Hinge Sleeve (White) WPL 4343943 Contact Us For Availability
18

Slide, Control WPL 4343881 Contact Us For Availability
18

Blade, Fixed (2) WPL 4343901 Contact Us For Availability
18

Sleeve WPL 4343870 Contact Us For Availability
19

Reservoir WPL 4343773 Contact Us For Availability
19

Removable Door Dike, Top WPL 4343836 Contact Us For Availability
19

Screw WPL 4343811 Contact Us For Availability
19

Slide, Ice Container (Right Side) WPL 4343708 Contact Us For Availability
19

Gasket, Foam WPL 4343822 Contact Us For Availability
19

Sleeve WPL 4343877 Contact Us For Availability
19

Block, Blade WPL 4343907 Contact Us For Availability
19

Control WPL 4343842 Contact Us For Availability
20

Removable Door Dike, Bottom WPL 4343837 Contact Us For Availability
20

Light Switch WPL 4343966 Contact Us For Availability
20

Screw WPL 4343653 Contact Us For Availability
20

Cap, Bottom (White) WPL 4344117 Contact Us For Availability
20

Cap, Bottom (Almond) WPL 4344118 Contact Us For Availability
20

Cap, Bottom (Silver) WPL 4344119 Contact Us For Availability
20

Extrusion WPL 4343875 Contact Us For Availability
20

Roll Pin WPL 4343906 Contact Us For Availability
20

Drain Pan WPL 4343863 Contact Us For Availability
21

Light Lens, Top WPL 4343726 Contact Us For Availability
21

Micro Switch WPL 4343968 Contact Us For Availability
21

Grommet, Screw WPL 4343657 Contact Us For Availability
21

Trim, Door (Top) (White) WPL 4343612 Contact Us For Availability
21

Trim, Door (Top) (Almond) WPL 4343613 Contact Us For Availability
21

Trim, Door (Top) (Black) WPL 8170317 Contact Us For Availability
21

Trim, Rear WPL 4343876 Contact Us For Availability
21

Conveyor WPL 4343894 Contact Us For Availability
21

Tube, Discharge WPL 4343857 Contact Us For Availability
22

Insert, Handle (White) WPL 4344114 Contact Us For Availability
22

Insert, Handle (Almond) WPL 4344115 Contact Us For Availability
22

Insert, Handle (Silver) WPL 4344116 Contact Us For Availability
22

Screw WPL 4343611 Contact Us For Availability
22

Lever, Ice Dispenser (White) WPL 4343956 Contact Us For Availability
22

Lever, Ice Dispenser (Almond) WPL 4343957 Contact Us For Availability
22

Lever, Ice Dispenser (Black) WPL 4343958 Contact Us For Availability
22

Grommet, Air Duct WPL 4343878 Contact Us For Availability
22

Evaporator WPL 4343748 Contact Us For Availability
23

Gasket, Damper WPL 4343681 Contact Us For Availability
23

Clip, Wire WPL 4343969 Contact Us For Availability
23

Trim, Door (Side) (Silver) WPL 4343615 Contact Us For Availability
23

Trim, Door (Side) (White) WPL 4343616 Contact Us For Availability
23

Trim, Door (Side) (Almond) WPL 4343617 Contact Us For Availability
23

Extension, Air Duct WPL 4343880 Contact Us For Availability
23

Drive Bar WPL 4343891 Contact Us For Availability
23

Clamp, Wire WPL 4343869 Contact Us For Availability
24

Cover WPL 4343970 Contact Us For Availability
24

Extension (White) WPL 4344009 Contact Us For Availability
24

Extension (Almond) WPL 4344010 Contact Us For Availability
24

Extension (Black) WPL 4344011 Contact Us For Availability
24

Trim, Frame WPL 4344090 Contact Us For Availability
24

Front, Ice Crusher WPL 4343899 Contact Us For Availability
25

Clamp, Air Duct WPL 4343689 Contact Us For Availability
25

Button Plug WPL 4343840 Contact Us For Availability
25

Screw WPL 4343971 Contact Us For Availability
25

Trim, D WPL 4344027 Contact Us For Availability
25

WPL 4344028 WPL 4344028 Contact Us For Availability
25

WPL 4344029 WPL 4344029 Contact Us For Availability
25

Air Duct WPL 4343879 Contact Us For Availability
25

Nut, Locking WPL 4343641 Contact Us For Availability
26

Wire Cover WPL 4343707 Contact Us For Availability
26

Spacer, Damper WPL 4343676 Contact Us For Availability
26

Hinge Sleeve (Black) WPL 4343944 Contact Us For Availability
26

Switch, Sensor WPL 4343972 Contact Us For Availability
26

WPL 4344030 WPL 4344030 Contact Us For Availability
26

Harness, Unit WPL 4343846 Contact Us For Availability
27

Back Cover WPL 4343659 Contact Us For Availability
27

Gasket, Air Duct WPL 4343683 Contact Us For Availability
27

Screw, Ground WPL 4343725 Contact Us For Availability
27

Switch, Cube/Crush WPL 4344098 Contact Us For Availability
27

Cement Alumilastic) WPL 542369 Contact Us For Availability
27

WPL 4344088 WPL 4344088 Contact Us For Availability
27

WPL 4344089 WPL 4344089 Contact Us For Availability
27

Shelf Arm (Left Side) WPL 4343884 Contact Us For Availability
27

Shelf Arm (Right Side) WPL 4343885 Contact Us For Availability
27

Housing, Crusher WPL 4343900 Contact Us For Availability
28

Air Duct WPL 4343658 Contact Us For Availability
28

Trim, Door (Top) (White) WPL 4343608 Contact Us For Availability
28

Trim, Door (Top) (Almond) WPL 4343609 Contact Us For Availability
28

Trim, Door (Top) (Silver) WPL 4343610 Contact Us For Availability
28

Lamp Holder WPL 4343967 Contact Us For Availability
28

WPL 1125936 WPL 1125936 Contact Us For Availability
28

WPL 4378873 WPL 4378873 Contact Us For Availability
28

WPL 4378874 WPL 4378874 Contact Us For Availability
28

WPL 4378875 WPL 4378875 Contact Us For Availability
28

Glass, Crisper Cover (Lower) WPL 4343916 Contact Us For Availability
28

Screw WPL 4343908 Contact Us For Availability
29

Shim, Door Closer (White) WPL 4343755 Contact Us For Availability
29

Shim, Door Closer (White) WPL 4343756 Contact Us For Availability
29

Shim, Door Closer (Black) WPL 4343757 Contact Us For Availability
29

Shim, Door Closer (Black) WPL 4343758 Contact Us For Availability
29

Bracket, Rear WPL 4343668 Contact Us For Availability
29

Band, Crisper (Upper) WPL 4343911 Contact Us For Availability
29

Front Cover, Ice Container WPL 4343897 Contact Us For Availability
29

Heat Exchanger WPL 4343919 Contact Us For Availability
30

Cover, Unit WPL 4343978 Contact Us For Availability
30

Trim, Door (Side) (White) WPL 4343635 Contact Us For Availability
30

Trim, Do WPL 4343636 Contact Us For Availability
30

WPL 4343637 WPL 4343637 Contact Us For Availability
30

Bracket, Control WPL 4343832 Contact Us For Availability
30

Band, Crisper (Lower) WPL 4343915 Contact Us For Availability
30

Tube, Condenser/ PC Loop WPL 4343858 Contact Us For Availability
31

WPL 4344006 WPL 4344006 Contact Us For Availability
31

WPL 4344007 WPL 4344007 Contact Us For Availability
31

WPL 4344008 WPL 4344008 Contact Us For Availability
31

Roller WPL 4344093 Contact Us For Availability
31

Block, Evaporator (Left Side) WPL 4343921 Contact Us For Availability
32

Power Cord WPL 4343760 Contact Us For Availability
32

Thermostat Bracket WPL 4343677 Contact Us For Availability
32

WPL 4344034 WPL 4344034 Contact Us For Availability
32

WPL 4344035 WPL 4344035 Contact Us For Availability
32

WPL 4344036 WPL 4344036 Contact Us For Availability
32

Screw WPL 4343965 Contact Us For Availability
32

Harness, Wiring WPL 4343983 Contact Us For Availability
32

Screw WPL 4344094 Contact Us For Availability
32

Bracket, Fan Motor WPL 4343853 Contact Us For Availability
33

Tube Clamp WPL 4343752 Contact Us For Availability
33

WPL 4344037 WPL 4344037 Contact Us For Availability
33

Lever, Water Dispenser (White) WPL 4343959 Contact Us For Availability
33

Lever, Water Dispenser (Almond) WPL 4343960 Contact Us For Availability
33

Lever, Water Dispenser (Black) WPL 4343961 Contact Us For Availability
34

Screw WPL 4343765 Contact Us For Availability
34

Cover, Control WPL 4343651 Contact Us For Availability
34

WPL 8170314 WPL 8170314 Contact Us For Availability
34

WPL 8170315 WPL 8170315 Contact Us For Availability
34

WPL 8170316 WPL 8170316 Contact Us For Availability
34

Plaque, Front Cover (White) WPL 4344057 Contact Us For Availability
34

Plaque, Front Cover (Almond) WPL 4344058 Contact Us For Availability
34

Plaque, Front Cover (Black) WPL 4344059 Contact Us For Availability
34

Clip, Drier WPL 4343763 Contact Us For Availability
35

Clamp WPL 4343661 Contact Us For Availability
35

Knob, Thermostat WPL 4343710 Contact Us For Availability
35

Front Cover, Housing (White) WPL 4344044 Contact Us For Availability
35

Front Cover, Housing (Almond) WPL 4344045 Contact Us For Availability
35

Front Cover, Housing (Black) WPL 4344046 Contact Us For Availability
36

Gasket, Front WPL 4343724 Contact Us For Availability
36

Gasket WPL 4343831 Contact Us For Availability
36

Block, Evaporator (Right Side) WPL 4343922 Contact Us For Availability
37

Screw WPL 4343979 Contact Us For Availability
37

Insert WPL 4343650 Contact Us For Availability
37

Screw WPL 4343759 Contact Us For Availability
38

Screw WPL 4343674 Contact Us For Availability
38

Clip, Condenser WPL 4343866 Contact Us For Availability
39

Light Lens, Side WPL 4343751 Contact Us For Availability
39

Grommet (4) WPL 4343845 Contact Us For Availability
40

Shim, Hinge WPL 4343977 Contact Us For Availability
40

Screw WPL 4343859 Contact Us For Availability
41

Hinge Top (R.H.) WPL 4343998 Contact Us For Availability
41

Light Socket WPL 4343800 Contact Us For Availability
41

Air Baffle WPL 4343862 Contact Us For Availability
42

Hinge Cover (RC) (White) WPL 4344003 Contact Us For Availability
42

Hinge Cover (RC) (Almond) WPL 4344004 Contact Us For Availability
42

Hinge Cover (RC) (Black) WPL 4344005 Contact Us For Availability
42

Clip, Evaporator WPL 4343798 Contact Us For Availability
43

Cover, Reservior WPL 4343646 Contact Us For Availability
43

Cover, High Voltage Box WPL 4343864 Contact Us For Availability
44

Grille, Air Return WPL 4343925 Contact Us For Availability
44

Screw WPL 4343847 Contact Us For Availability
45

Plug, Button WPL 4343926 Contact Us For Availability
45

Cover, Tubing WPL 4343923 Contact Us For Availability
46

Sleeve WPL 4343844 Contact Us For Availability
47

Seal WPL 4343789 Contact Us For Availability
48

Screw WPL 4343749 Contact Us For Availability
49

Sleeve WPL 4343924 Contact Us For Availability
51

Clip, Evaporator WPL 4343797 Contact Us For Availability
52

Screw WPL 4343764 Contact Us For Availability
53

Clip, Tube WPL 4343705 Contact Us For Availability
54

Union WPL 4343648 Contact Us For Availability
55

Gasket, Foam WPL 4343753 Contact Us For Availability
56

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56

Tube, Suction WPL 4343848 Contact Us For Availability
56

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100

WPL 876029 WPL 876029 Contact Us For Availability
100

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100

Ice Container Assembly WPL 4343700 Contact Us For Availability
100

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100

WPL 799833 WPL 799833 Contact Us For Availability
100

WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
