Model Electrolux KS970GDKD2 RANGE – Common Parts & Diagrams

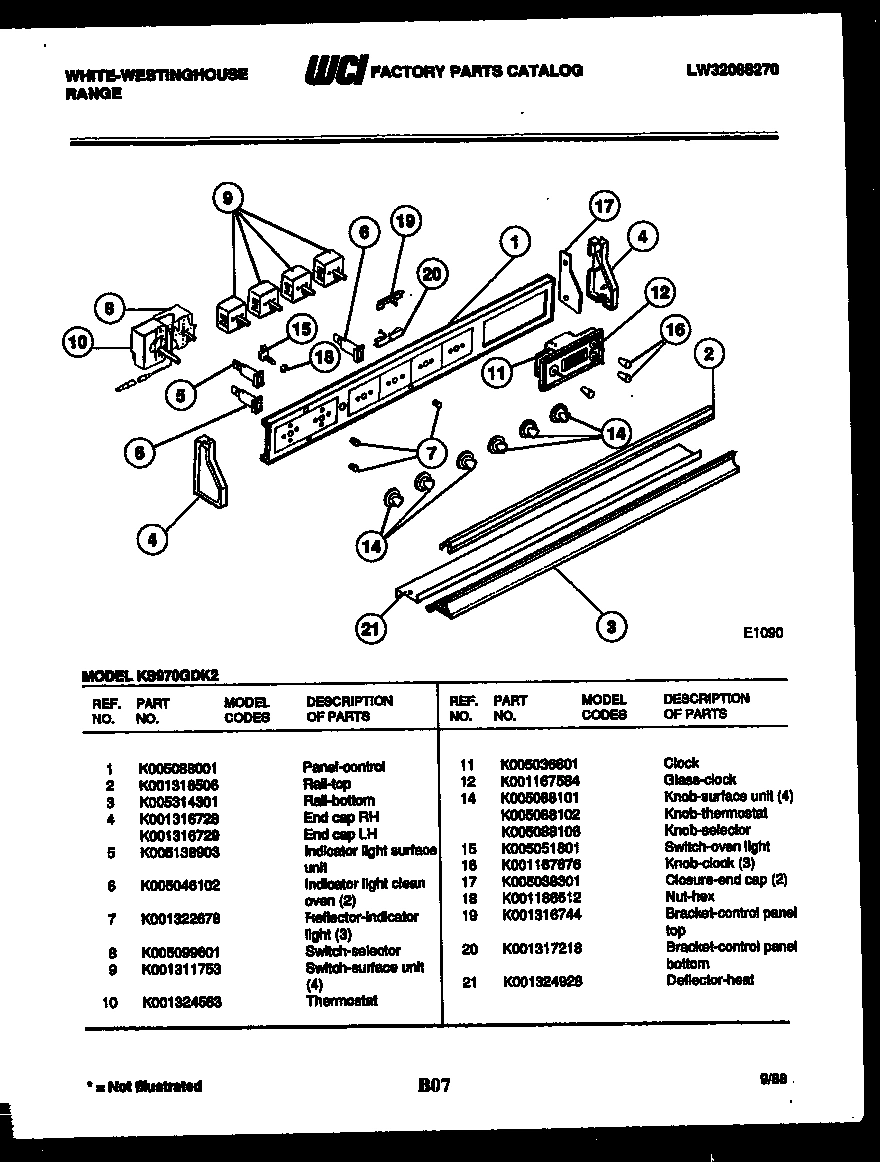

02 - CONTROL PANEL

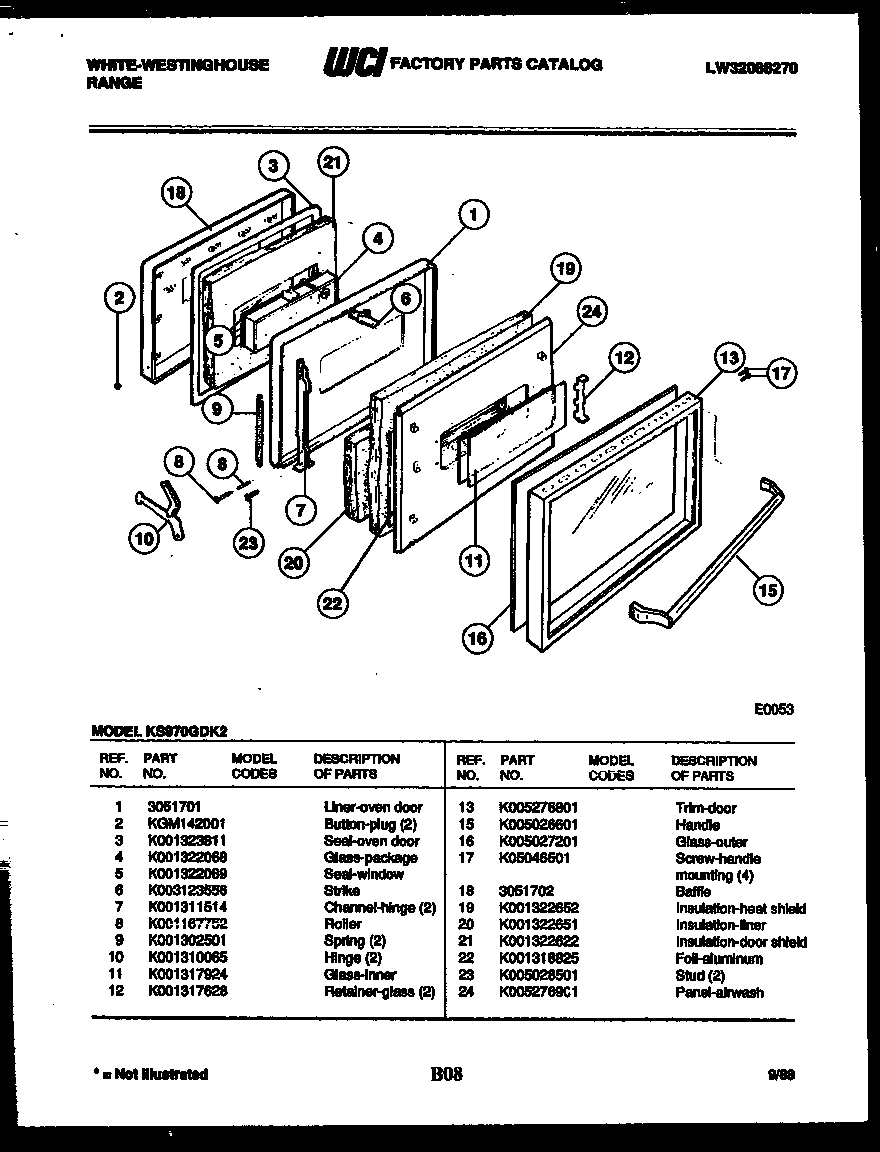

03 - DOOR PARTS
04 - DRAWER PARTS
05 - FRAME PARTS
06 - BROILER PARTS
07 - COOKTOP PARTS
08 - BODY PARTS
09 - BACKGUARD
10 - PANEL WITH BRACKET
11 - MOTOR PARTS
12 - MOTOR PARTS
Common parts from model Electrolux KS970GDKD2 RANGE
*16137
WCI K005056901 WCI K005056901 Contact Us For Availability
1
WCI K005088001 WCI K005088001 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3051701 Contact Us For Availability
1
WCI K001324095 WCI K001324095 Contact Us For Availability
1
WCI K001325193 WCI K001325193 Contact Us For Availability
1
PAN-GRILLE WCI 08008667 Contact Us For Availability
1
WCI K005279001 WCI K005279001 Contact Us For Availability
1
HOUSING-OVEN LIGHT WCI K001325530 Contact Us For Availability
1
WCI K005048601 WCI K005048601 Contact Us For Availability
1
PANEL-END RH HARVEST WHEAT WCI K001324749 Contact Us For Availability
1
WCI K001324751 WCI K001324751 Contact Us For Availability
1
WCI K005267301 WCI K005267301 Contact Us For Availability
1A
PANEL-END LH HARVEST WHEAT WCI K001324750 Contact Us For Availability
1A
WCI K001324752 WCI K001324752 Contact Us For Availability
2
WCI K001316506 WCI K001316506 Contact Us For Availability
2
BUTTON-PLUG (2) WCI KGM142001 Contact Us For Availability
2
GUIDES (2) WCI K001324091 Contact Us For Availability
2
WCI K005264401 WCI K005264401 Contact Us For Availability
2
WCI 3200779 WCI 3200779 Contact Us For Availability
2
WCI K001315282 WCI K001315282 Contact Us For Availability
2
WCI K001324795 WCI K001324795 Contact Us For Availability
2
BRACKET-END (2) WCI K001324740 Contact Us For Availability
2
WCI K001323994 WCI K001323994 Contact Us For Availability
2A
WCI K001324796 WCI K001324796 Contact Us For Availability
3
WCI K005314301 WCI K005314301 Contact Us For Availability
3
SEAL-OVEN DOOR WCI K001323811 Contact Us For Availability
3
WCI K001324879 WCI K001324879 Contact Us For Availability
3
WCI K005130901 WCI K005130901 Contact Us For Availability
3
WCI K005134801 WCI K005134801 Contact Us For Availability
3
WCI K001186186 WCI K001186186 Contact Us For Availability
3
WCI K001324793 WCI K001324793 Contact Us For Availability
3
WCI K001323993 WCI K001323993 Contact Us For Availability
3A
WCI K001324794 WCI K001324794 Contact Us For Availability
4
WCI K001316728 WCI K001316728 Contact Us For Availability
4
WCI K001322068 WCI K001322068 Contact Us For Availability
4
WCI K001324097 WCI K001324097 Contact Us For Availability
4
WCI K001164567 WCI K001164567 Contact Us For Availability
4
WCI K005291001 WCI K005291001 Contact Us For Availability
4
WCI K001324797 WCI K001324797 Contact Us For Availability
4
WCI K001189044 WCI K001189044 Contact Us For Availability
4A
WCI K001316729 WCI K001316729 Contact Us For Availability
4A
WCI K001324798 WCI K001324798 Contact Us For Availability
5
WCI K005138903 WCI K005138903 Contact Us For Availability
5
WCI K001322069 WCI K001322069 Contact Us For Availability
5
GRIP-HANDLE WCI K001325038 Contact Us For Availability
5
WCI K001324016 WCI K001324016 Contact Us For Availability
5
WCI K001313432 WCI K001313432 Contact Us For Availability
5
WCI K001317225 WCI K001317225 Contact Us For Availability
5
WCI K001325529 WCI K001325529 Contact Us For Availability
5
WCI K001317392 WCI K001317392 Contact Us For Availability
6
WCI K005046102 WCI K005046102 Contact Us For Availability
6
WCI K003123556 WCI K003123556 Contact Us For Availability
6
TAPE-FOAM WCI K001018420 Contact Us For Availability
6
WCI K001323514 WCI K001323514 Contact Us For Availability
6
WCI K001322317 WCI K001322317 Contact Us For Availability
6
TUBE-VENT WCI K005055201 Contact Us For Availability
6
WCI K001189043 WCI K001189043 Contact Us For Availability
7
REFLECTOR-INDICATOR LIGHT (3) WCI K001322678 Contact Us For Availability
7
CHANNEL-HINGE (2) WCI K001311514 Contact Us For Availability
7
WCI K001317223 WCI K001317223 Contact Us For Availability
7
INSULATION-WRAP WCI K001311331 Contact Us For Availability
7
WCI K001319527 WCI K001319527 Contact Us For Availability
8
WCI K005099601 WCI K005099601 Contact Us For Availability
8
ROLLER WCI K001167752 Contact Us For Availability
8
COOKTOP WCI 3200785 Contact Us For Availability
8
WCI K001314863 WCI K001314863 Contact Us For Availability
8
WCI K001324779 WCI K001324779 Contact Us For Availability
9
SWITCH-SURFACE UNIT (4) WCI K001311753 Contact Us For Availability
9
WCI K001302501 WCI K001302501 Contact Us For Availability
9
WCI K005291501 WCI K005291501 Contact Us For Availability
10
WCI K001324563 WCI K001324563 Contact Us For Availability
10
SPRING (2) WCI K001310065 Contact Us For Availability
10
CHANNEL-OVEN SUPT WCI K001324087 Contact Us For Availability
11
WCI K001317924 WCI K001317924 Contact Us For Availability
11
WCI K001319198 WCI K001319198 Contact Us For Availability
11
RETAINER-INSULATION SIDE (2) WCI K001324080 Contact Us For Availability
12
WCI K001167584 WCI K001167584 Contact Us For Availability
12
WCI K001317628 WCI K001317628 Contact Us For Availability
12
WCI K005104101 WCI K005104101 Contact Us For Availability
12
WCI K001324086 WCI K001324086 Contact Us For Availability
13
TRIM-DOOR WCI K005276801 Contact Us For Availability
13
PANEL-SIDE RH WCI K001324082 Contact Us For Availability
13A
PANEL-SIDE LH WCI K001324083 Contact Us For Availability
14
WCI K005088101 WCI K005088101 Contact Us For Availability
14
WCI K001325189 WCI K001325189 Contact Us For Availability
14A
WCI K005088102 WCI K005088102 Contact Us For Availability
14B
WCI K005088106 WCI K005088106 Contact Us For Availability
15
WCI K005051801 WCI K005051801 Contact Us For Availability
15
WCI K005026601 WCI K005026601 Contact Us For Availability
15
WCI K001324096 WCI K001324096 Contact Us For Availability
16
WCI K001167676 WCI K001167676 Contact Us For Availability
16
GLASS-OUTER WCI K005027201 Contact Us For Availability
16
WCI K001323503 WCI K001323503 Contact Us For Availability
17
WCI K005038301 WCI K005038301 Contact Us For Availability
17
WCI K05046501 WCI K05046501 Contact Us For Availability
17
WCI K005080001 WCI K005080001 Contact Us For Availability
18
NUT-HEX WCI K001186512 Contact Us For Availability
18
BAFFLE WCI 3051702 Contact Us For Availability
18
WCI K005277902 WCI K005277902 Contact Us For Availability
19
BRACKET-CONTROL PANEL TOP WCI K001316744 Contact Us For Availability
19
WCI K001322652 WCI K001322652 Contact Us For Availability
19
LINER WCI K001325537 Contact Us For Availability
20
BRACKET-CONTROL PANEL BOTTOM WCI K001317218 Contact Us For Availability
20
WCI K001322651 WCI K001322651 Contact Us For Availability
20
SCREW-LEVELING (4) WCI K001322905 Contact Us For Availability
21
WCI K001324928 WCI K001324928 Contact Us For Availability
21
INSULATION-DOOR SHIELD WCI K001322622 Contact Us For Availability
21
BUTTON-PLUG WCI KGM142025 Contact Us For Availability
22
WCI K001318825 WCI K001318825 Contact Us For Availability
22
WCI K001311371 WCI K001311371 Contact Us For Availability
23
WCI K001310199 WCI K001310199 Contact Us For Availability
24
WCI K005276901 WCI K005276901 Contact Us For Availability
24
WCI K001322683 WCI K001322683 Contact Us For Availability
25
WCI K001322682 WCI K001322682 Contact Us For Availability
26
WCI K001324830 WCI K001324830 Contact Us For Availability
27
WCI K005260202 WCI K005260202 Contact Us For Availability
28
STUD WCI K005028501 Contact Us For Availability
29
ROD-LATCH WCI K005271201 Contact Us For Availability
30
WCI K005300901 WCI K005300901 Contact Us For Availability
31
PLATE-FILLER WCI K001324691 Contact Us For Availability
32
INSULATOR (2) WCI K001308690 Contact Us For Availability
33
SWITCH-UPPER WCI K001167190 Contact Us For Availability
33A
SWITCH-LOWER WCI K001315370 Contact Us For Availability
34
WCI K005151601 WCI K005151601 Contact Us For Availability
36
GLIDE-DRAWER RH WCI K005269901 Contact Us For Availability
36A
GLIDE-DRAWER LH WCI K005269902 Contact Us For Availability
37
SPACER-DRAWER GLIDE (2) WCI K001324860 Contact Us For Availability
38
GLIDE-FRONT (2) WCI K001315216 Contact Us For Availability
39
PANEL-SIDE UPPER (2) WCI K001324088 Contact Us For Availability
39A
WCI K001325719 WCI K001325719 Contact Us For Availability
40
WCI K001311369 WCI K001311369 Contact Us For Availability
41
BUTTON-PLUG (2) WCI KGM142017 Contact Us For Availability
42
WCI K005113302 WCI K005113302 Contact Us For Availability
43
WCI K001324696 WCI K001324696 Contact Us For Availability
44
WCI K001319109 WCI K001319109 Contact Us For Availability
45
WCI K001319102 WCI K001319102 Contact Us For Availability
46
WCI K001317078 WCI K001317078 Contact Us For Availability
47
WCI K001317076 WCI K001317076 Contact Us For Availability
49
WCI K001145190 WCI K001145190 Contact Us For Availability
50
WCI K005276202 WCI K005276202 Contact Us For Availability
52
WCI K005133501 WCI K005133501 Contact Us For Availability
53
GRILLE-BROILER WCI K001313049 Contact Us For Availability
57
WCI K001314456 WCI K001314456 Contact Us For Availability
58
WCI K005142301 WCI K005142301 Contact Us For Availability
59
WCI K005134501 WCI K005134501 Contact Us For Availability
60
WCI K005113502 WCI K005113502 Contact Us For Availability
× ![]()
